2013 Peugeot 508 RXH Owner's Manual

3
95
Comfort
Massage function
This function provides the driver with a back massage. It only operates when the engine is
running as well as in STOP mode of the Stop &Start system.
Activation
) Press this button.
The warning lamp comes on and the massage function is activated for a period of 1 hour. During this time, massage is performed incycles of 6 minutes (4 minutes of massage
followed by 2 minutes break). In total, the
system will per form 10 cycles.
After one hour, the function is deactivated, thewarning lamp goes off.
Deactivation
You can deactivate the massage function at any time by pressing thisbutton.

96
Comfort

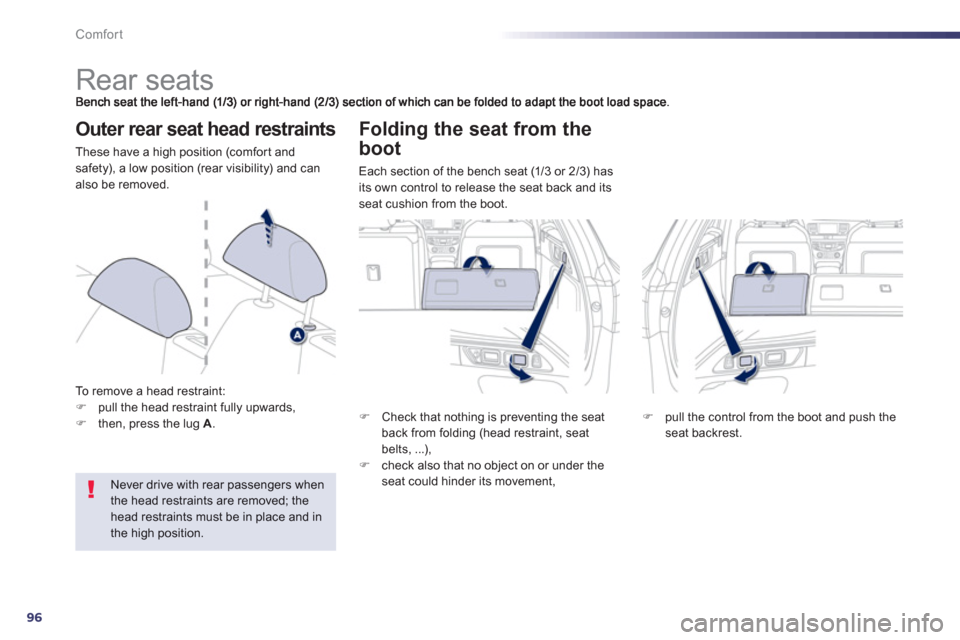

Rear seats
Outer rear seat head restraints
These have a high position (comfor t and safety), a low position (rear visibility) and canalso be removed.
T
o remove a head restraint:)pull the head restraint fully upwards, )then, press the lug A.
Never drive with rear passengers whenthe head restraints are removed; thehead restraints must be in place and in
the high position.


Folding the seat from the
boot
Each section of the bench seat (1/3 or 2/3) has
its own control to release the seat back and its seat cushion from the boot.
) Check that nothing is preventing the seat
back from foldin
g (head restraint, seat
belts, ...),) check also that no object on or under theseat could hinder its movement,
)pull the control from the boot and push the
seat backrest.

3
97
Comfort

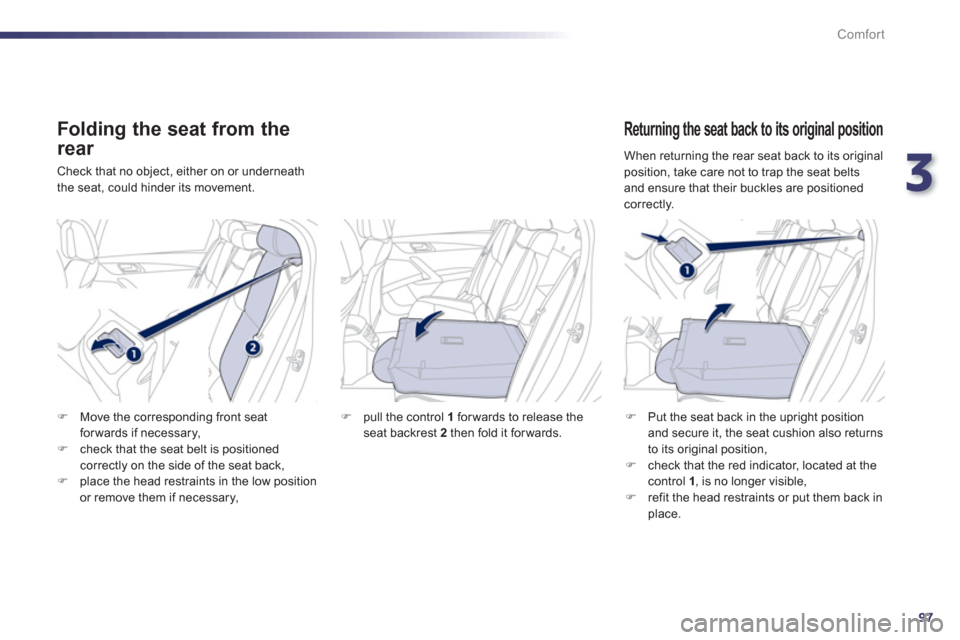

Folding the seat from the
rear
Check that no object, either on or underneath
the seat, could hinder its movement.
Returning the seat back to its original position
)Put the seat back in the upright position
and secure it, the seat cushion also returns
to its original position, )check that the red indicator, located at thecontrol 1 , is no longer visible,)refit the head restraints or put them back in place.
)Move the corresponding front seat
forwards if necessar
y, )check that the seat belt is positionedcorrectly on the side of the seat back, )place the head restraints in the low position
or remove them if necessary,
) pull the control 1forwards to release the
seat backrest 2then fold it forwards.
When returning the rear seat back to its original
position, take care not to trap the seat belts
and ensure that their buckles are positioned correctly.

98
Comfort

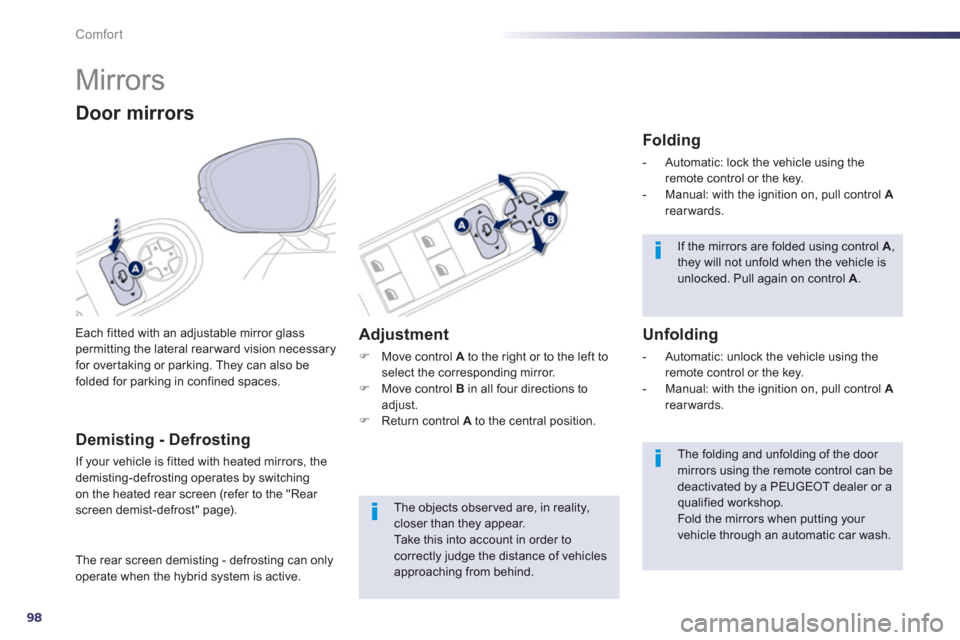

Mirrors
Each fitted with an adjustable mirror glasspermitting the lateral rearward vision necessary for overtaking or parking. They can also befolded for parking in confined spaces.
Door mirrors

If the mirrors are folded using control A
,they will not unfold when the vehicle is unlocked. Pull again on control A.


The folding and unfolding of the door mirrors using the remote control can bedeactivated by a PEUGEOT dealer or a qualified workshop.
Fold the mirrors when putting your vehicle through an automatic car wash.
The objects obser ved are, in reality, closer than they appear.
Take this into account in order to correctly judge the distance of vehicles approaching from behind.

Demisting - Defrosting
If your vehicle is fitted with heated mirrors, the
demisting-defrosting operates by switching
on the heated rear screen (refer to the "Rear screen demist-defrost" page).

Adjustment
)
Move control Ato the right or to the left to select the corresponding mirror. )
Move control Bin all four directions toadjust. )
Return control Ato the central position.



Folding



- Automatic: lock the vehicle using the remote control or the key.

- Manual: with the ignition on, pull control Arearwards.


Unfolding



- Automatic: unlock the vehicle using the remote control or the key.

- Manual: with the ignition on, pull control Arearwards.

The rear screen demistin
g - defrosting can onlyoperate when the hybrid system is active.

3
99
Comfort

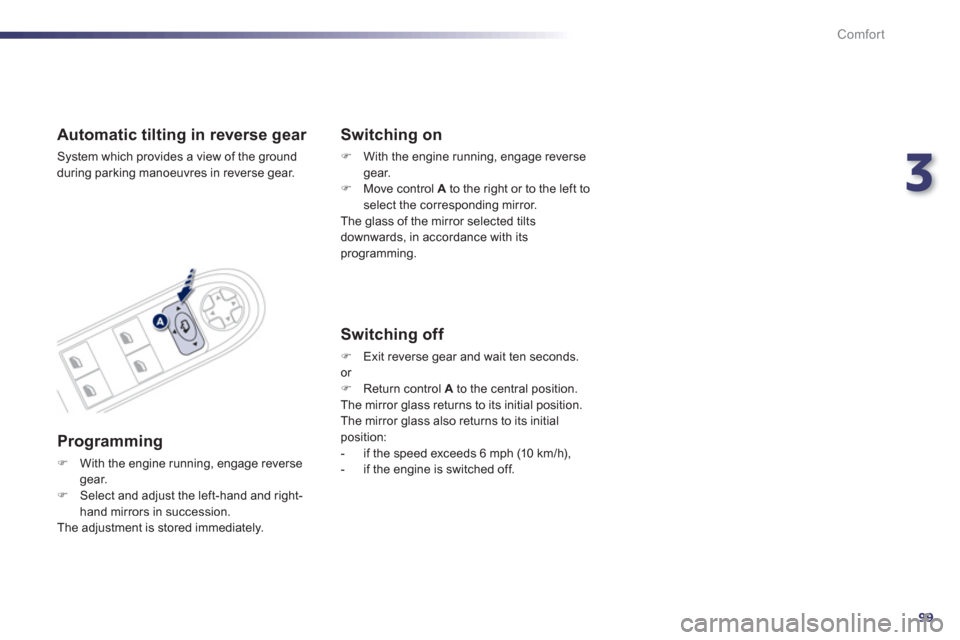

Automatic tilting in reverse gear
System which provides a view of the ground
durin
g parking manoeuvres in reverse gear.

Programming
)With the engine running, engage reverse gear.)Select and adjust the left-hand and right-hand mirrors in succession.
The adjustment is stored immediately.
Switching on
)
With the engine running, engage reversegear. )
Move control A
to the right or to the left to select the corresponding mirror.
The glass of the mirror selected tilts downwards, in accordance with its programming.
Switching off
) Exit reverse gear and wait ten seconds.or )
Return control Ato the central position.
The mirror glass returns to its initial position.
The mirror glass also returns to its initial position:
- if the speed exceeds 6 mph (10 km/h),
- if the engine is switched off.

100
Comfort
Automatic day/night model

By means of a sensor, which measures thelight from the rear of the vehicle, this system
automatically and progressively changes between the day and night uses.
Adjustable mirror providing a central rear ward
view.
Equipped with an anti-dazzle system, which
darkens the mirror glass and reduces thenuisance to the driver caused by the sun, headlamps from other vehicles...
Rear view mirror
Manual day/night model
Adjustment
)Adjust the mirror so that the glass is
directed correctl
y in the "day" position.
Day / night position
)Pull the lever to change to the "night" anti-
dazzle position.
)Push the lever to change to the normal"day" position.In order to ensure optimum visibility during your manoeuvres, the mirror lightens automatically when reversegear is engaged.










Steering wheel adjustment
) When stationary, lower the control lever yto release the steering wheel adjustment mechanism. )Adjust the height and reach to suit your driving position. )Pull the control lever to lock the steeringwheel adjustment mechanism.

As a safety precaution, these operations should only be carried out while the vehicle is stationary.
As a safety measure, the mirrors should be adjusted to reduce the "blind spot".

3
101
Comfort

















Interior fi ttings
1.Cooled glove box It has a ventilation nozzle which can be closed using a thumb wheel. It deliverscooled air. 2.Retractable cup holder
Press the cover to open the cup holder 3.Removable ashtray Press the lid to open the ashtray.
To empty it, pull it out by pulling it upwards. 4.Coin holder5.Peugeot Connect Assistance, Peugeot
Connect SOS6.Front armrest7.12 V accessory socket(120 W) Observe the maximum power rating toavoid damaging your accessory 8.Peugeot Connect USB

102
Comfort

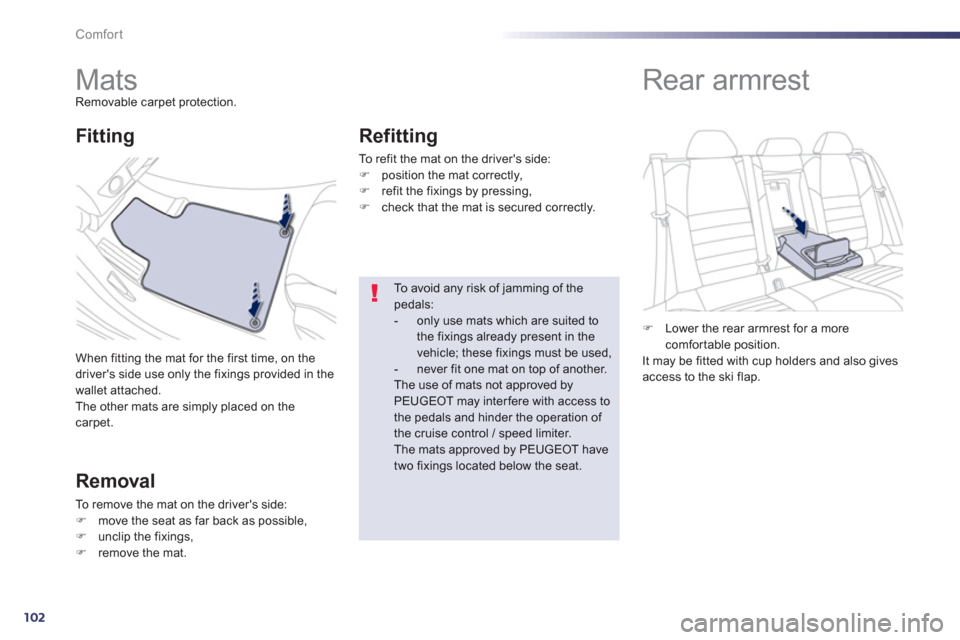

Mats Removable carpet protection.
When
fitting the mat for the first time, on the
driver's side use only the fixings provided in the
wallet attached.
The other mats are simply placed on the carpet.
Fitting
Removal
To remove the mat on the driver's side:)move the seat as far back as possible,)unclip the fixings, )remove the mat.


Refitting

To refit the mat on the driver's side:)
position the mat correctly, )
refit the fixings by pressing,)
check that the mat is secured correctly.
To a v o i d a ny risk of jamming of thepedals:- only use mats which are suited to the fixings already present in the vehicle; these fixings must be used, - never fit one mat on top of another. The use of mats not approved byPEUGEOT may inter fere with access to the pedals and hinder the operation of the cruise control / speed limiter. The mats approved by PEUGEOT havetwo fixings located below the seat.

)Lower the rear armrest for a more comfortable position.
It may be fitted with cup holders and also gives
access to the ski flap.








Rear armrest
