2013 Peugeot 508 RXH Owner's Manual

2
87
Access

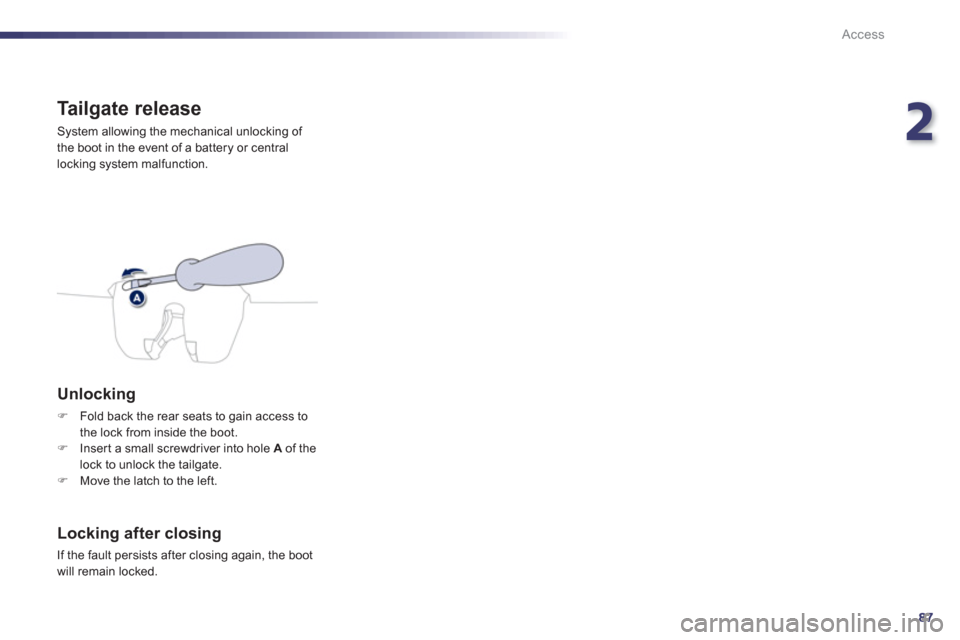

Tailgate release
System allowing the mechanical unlocking of
the boot in the event of a battery or central
locking system malfunction.

Unlocking
)Fold back the rear seats to gain access to
the lock from inside the boot.)Insert a small screwdriver into hole Aof thelock to unlock the tailgate. )Move the latch to the left.



Locking after closing

If the fault persists after closing again, the boot
will remain locked.

88
Access

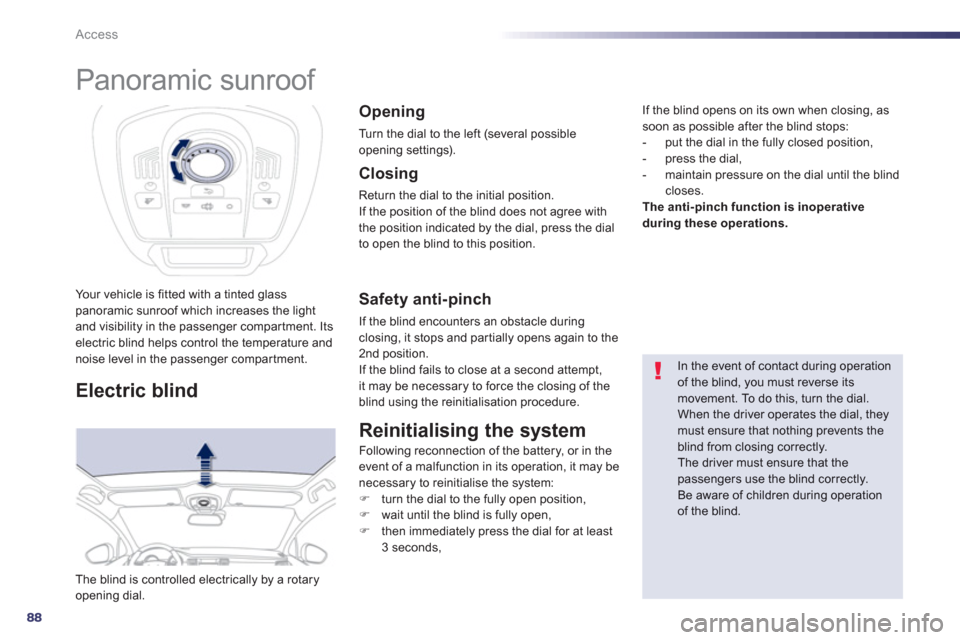

Panoramic sunroof
Your vehicle is fitted with a tinted glass panoramic sunroof which increases the lightand visibility in the passenger compartment. Itselectric blind helps control the temperature andnoise level in the passenger compartment.
Electric blind
The blind is controlled electrically by a rotaryopening dial.


Opening

Turn the dial to the left (several possible
opening settings).


In the event of contact during operationof the blind, you must reverse its movement. To do this, turn the dial.
When the driver operates the dial, theymust ensure that nothing prevents theblind from closing correctly. The driver must ensure that the passengers use the blind correctly.
Be aware of children during operationof the blind.


Closing

Return the dial to the initial position.
If the position of the blind does not agree with
t
he position indicated by the dial, press the dialto open the blind to this position.


Safety anti-pinch

If the blind encounters an obstacle duringclosing, it stops and par tially opens again to the 2nd position.
If the blind fails to close at a second attempt,
it may be necessary to force the closing of the blind using the reinitialisation procedure.

Reinitialising the system


Following reconnection of the battery, or in the event of a malfunction in its operation, it may be
necessary to reinitialise the system:
) turn the dial to the fully open position, )
wait until the blind is fully open,)
then immediately press the dial for at least
3 seconds,

If the blind opens on its own when closing, as soon as possible after the blind stops:


- put the dial in the fully closed position,

- press the dial,

- ma
intain pressure on the dial until the blindcloses. The anti-pinch function is inoperative
during these operations.

2
89
Access

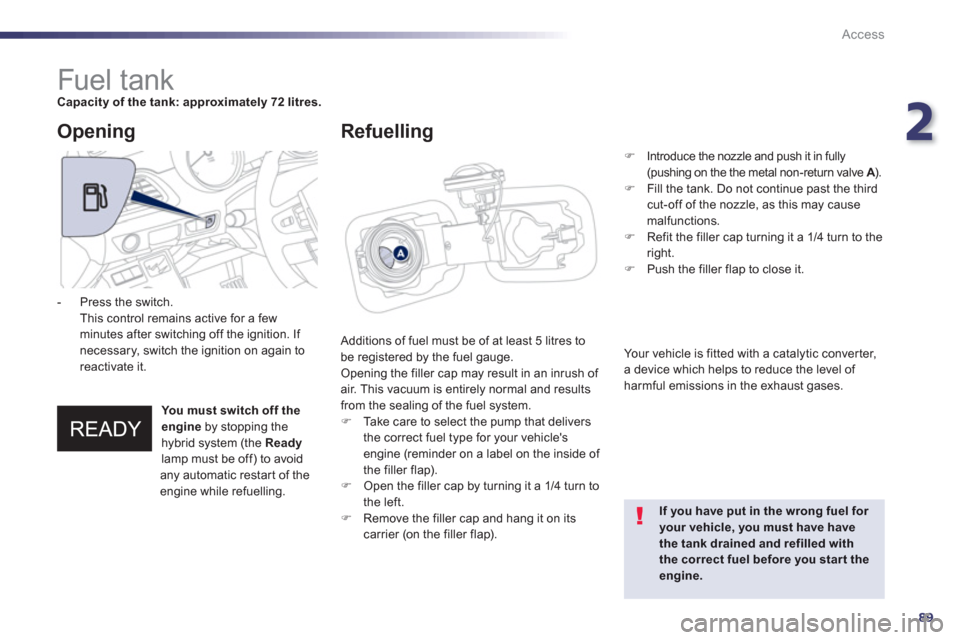

Fuel tank Capacity of the tank: approximately 72 litres.

Additions of fuel must be of at least 5 litres to
be registered by the fuel gauge.Opening the filler cap may result in an inrush of air. This vacuum is entirely normal and results from the sealing of the fuel system.) Take care to select the pump that delivers
the correct fuel t
ype for your vehicle'sengine (reminder on a label on the inside of
the filler flap).) Open the filler cap by turning it a 1/4 turn to
the left. ) Remove the filler cap and hang it on its carrier (on the filler flap).


Opening
If you have put in the wrong fuel for your vehicle, you must have havethe tank drained and refilled with the correct fuel before you start theengine.



- Press the switch.
This control remains active for a fewminutes after switching off the ignition. If necessary, switch the ignition on again toreactivate it.

Refuelling
)
Introduce the nozzle and push it in fully(pushing on the the metal non-return valve A
). AA)
Fill the tank. Do not continue past the thirdcut-off of the nozzle, as this may cause malfunctions. )
Refit the filler cap turning it a 1/4 turn to the
right. ) Push the filler flap to close it.

Your vehicle is
fitted with a catalytic converter,
a device which helps to reduce the level of
harmful emissions in the exhaust gases.
You must switch off theengine by stopping the
hybrid system (the Readylamp must be off) to avoid any automatic restar t of the
engine while refuelling.

90
Access

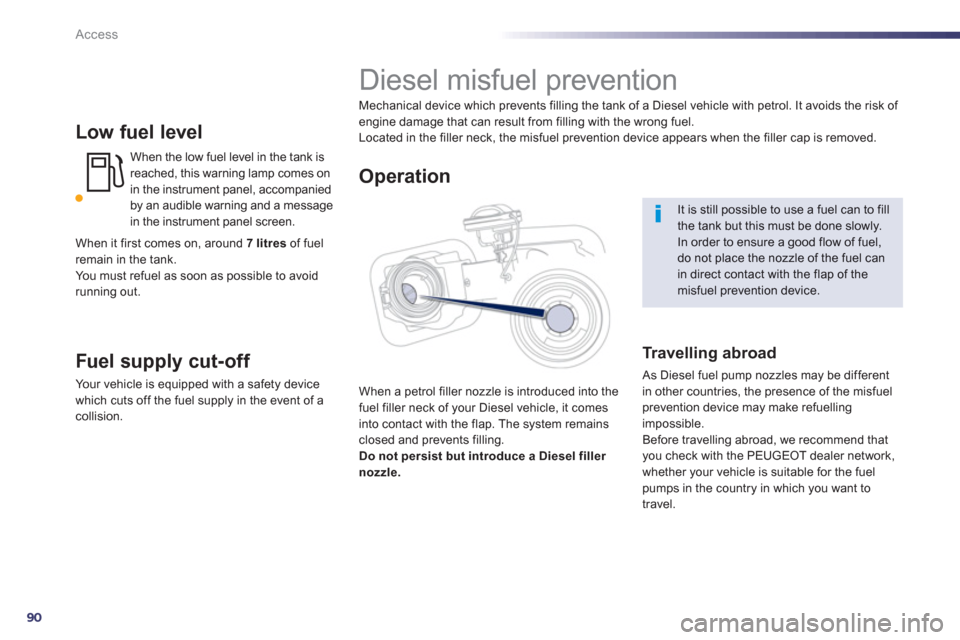

Low fuel level
When the low fuel level in the tank isreached, this warning lamp comes on in the instrument panel, accompanied by an audible warning and a message
in the instrument panel screen.
Fuel supply cut-off
Your vehicle is equipped with a safety device
which cuts off the fuel supply in the event of a collision.


It is still possible to use a fuel can to fill
the tank but this must be done slowly. In order to ensure a good flow of fuel, do not place the nozzle of the fuel canin direct contact with the flap of themisfuel prevention device.


Diesel misfuel prevention

Mechanical device which prevents filling the tank of a Diesel vehicle with petrol. It avoids the risk of engine damage that can result from filling with the wrong fuel.
Located in the filler neck, the misfuel prevention device appears when the filler cap is removed.
When a petrol
filler nozzle is introduced into the fuel filler neck of your Diesel vehicle, it comes
into contact with the flap. The system remains
closed and prevents filling. Do not persist but introduce a Diesel filler
nozzle.

Operation



Tr a v e l l i ng abroad
As Diesel fuel pump nozzles may be different
in other countries, the presence of the misfuel prevention device may make refuellingimpossible.
Before travelling abroad, we recommend that you check with the PEUGEOT dealer network,
whether your vehicle is suitable for the fuelpumps in the country in which you want to
travel.
When it
first comes on, around 7 litresof fuelremain in the tank.
You must refuel as soon as possible to avoid
running out.

2
91
DIESEL
Access

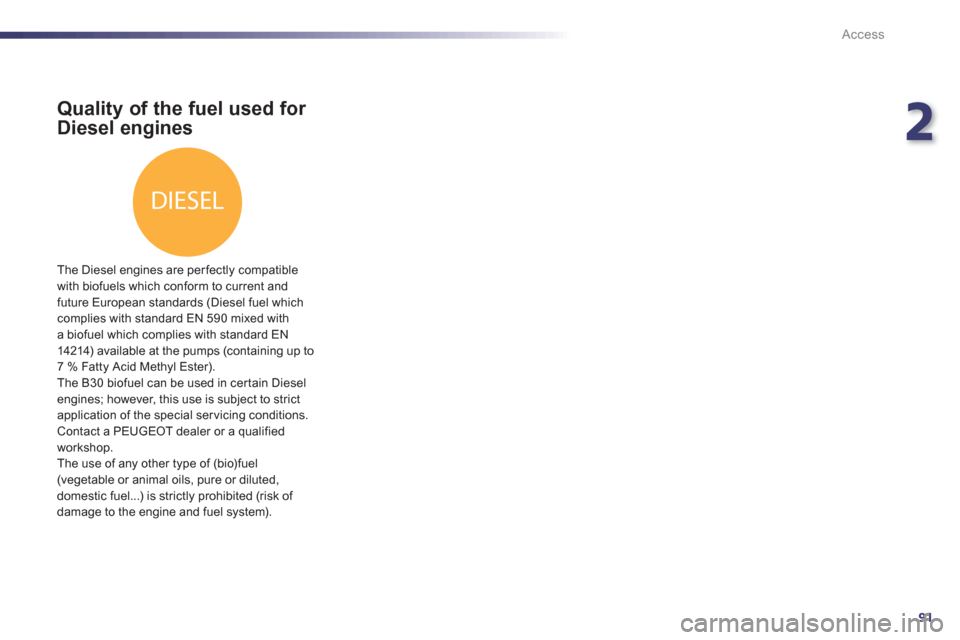

Quality of the fuel used for
Diesel engines

The Diesel engines are perfectly compatible
with biofuels which conform to current andfuture European standards (Diesel fuel which complies with standard EN 590 mixed with
a biofuel which complies with standard EN
14214
) available at the pumps (containing up to
7 % Fatty Acid Methyl Ester).
The B30 biofuel can be used in cer tain Diesel engines; however, this use is subject to strict
application of the special ser vicing conditions. Contact a PEUGEOT dealer or a qualified
workshop.
The use of an
y other type of (bio)fuel(vegetable or animal oils, pure or diluted,
domestic fuel...) is strictly prohibited (risk of
damage to the engine and fuel system).

92
Comfort
Electric adjustments
Switch on the ignition or star t the engine if the vehicle has gone into economy mode.
1.Adjustment of the seat cushion angleand height, and forwards-backwards
adjustment)Raise or lower the front of the control to adjust the seat cushion angle. )Raise or lower the rear of the control to raise or lower the seat.)Simultaneously raise or lower the frontand rear of the control in order to raise or lower the entire seat. 2.Adjustment of the backrest angle Move the control forwards or backwards to adjust the backrest angle. 3. Adjustment of lumbar support This function allows you to independentlyadjust the height and level of lumbar support.
The electric functions of the driver's seat are active for about a minute after opening the
front door. They are deactivated about a minute after switching off the ignition and in economy mode. To reactivate them, switch on the ignition.
M
ove the control:)Forwards or backwards to increase or reduce the lumbar suppor t. )Upwards or downwards to raise or lower
the lumbar suppor t zone.





Front seats

3
93
Comfort

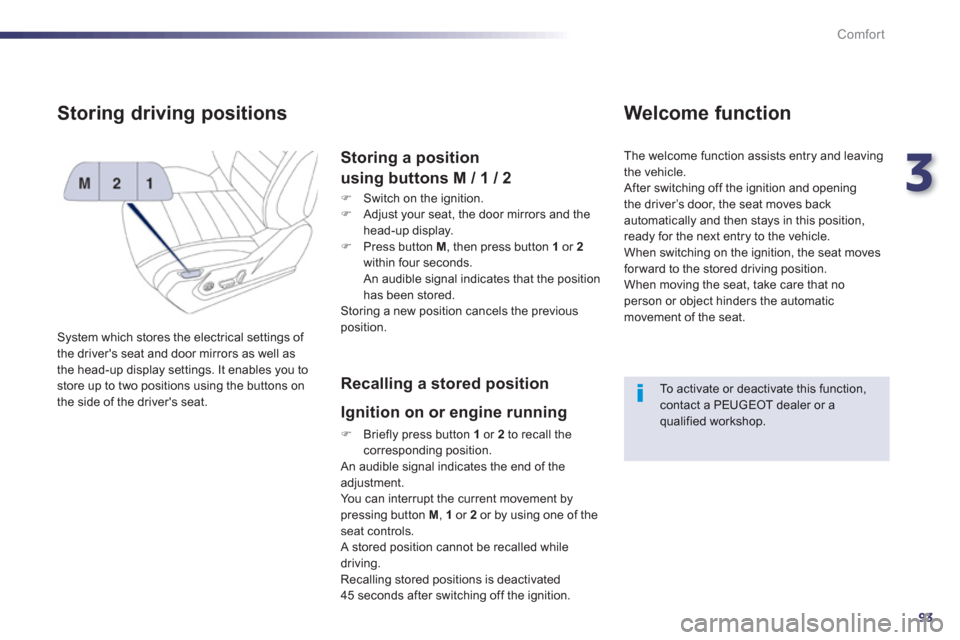

Storing driving positions
System which stores the electrical settings of
the driver's seat and door mirrors as well as
the head-up display settings. It enables you to store up to two positions using the buttons on
the side of the driver's seat.
Storing a position
using buttons M / 1 / 2
)
Switch on the ignition. )
Adjust your seat, the door mirrors and the
head-up display.
) Press button M
, then press button 1or 2
within four seconds.
An audible signal indicates that the position
has been stored.
Storing a new position cancels the previousposition.
Recalling a stored position
I
gnition on or engine running
) Briefly press button 1
or 2
to recall thecorresponding position.
An audible signal indicates the end of the adjustment. You can interrupt the current movement by pressing button M , 1or 2or by using one of the seat controls.
A stored position cannot be recalled while
driving.
Recalling stored positions is deactivated
45 seconds after switching off the ignition.

Welcome function

The welcome function assists entry and leaving
th
e vehicle.
After switching off the ignition and openingthe driver’s door, the seat moves back
automatically and then stays in this position,
ready for the next entry to the vehicle.
When switching on the ignition, the seat movesfor ward to the stored driving position.
When moving the seat, take care that no
person or object hinders the automatic
movement of the seat.
To activate or deactivate this function, contact a PEUGEOT dealer or a qualified workshop.

94
Comfort
Head restraint height and angle adjustment
)To lower the head restraint, press the lugA and, going beyond the stiff point, guide
the head restraint downwards, then release
the button at the desired position.
)To raise the head restraint, guide it upwards to the desired position.)To remove the head restraint, press the two lugs B and pull the head restraint upwards. )To put the head restraint back in place,
engage the head restraint stems in the
openings keeping them in line with the seat
back. Check that it has engaged by pulling it upwards.

The head restraint is fitted with a locking mechanism which prevents itfrom lowering; this is a safety device incase of impact.The adjustment is correct when theupper edge of the head restraint is level with the top of the head.Never drive with the head restraintsremoved; they must be in place andadjusted correctly.

)Use the adjustment wheel to switch on and select the level of heating required:
With the h
ybrid system active, the front seatscan be heated individually.
0
:
Off.1:
Low.2
:
Medium. 3
:
High.









Heated seats control
