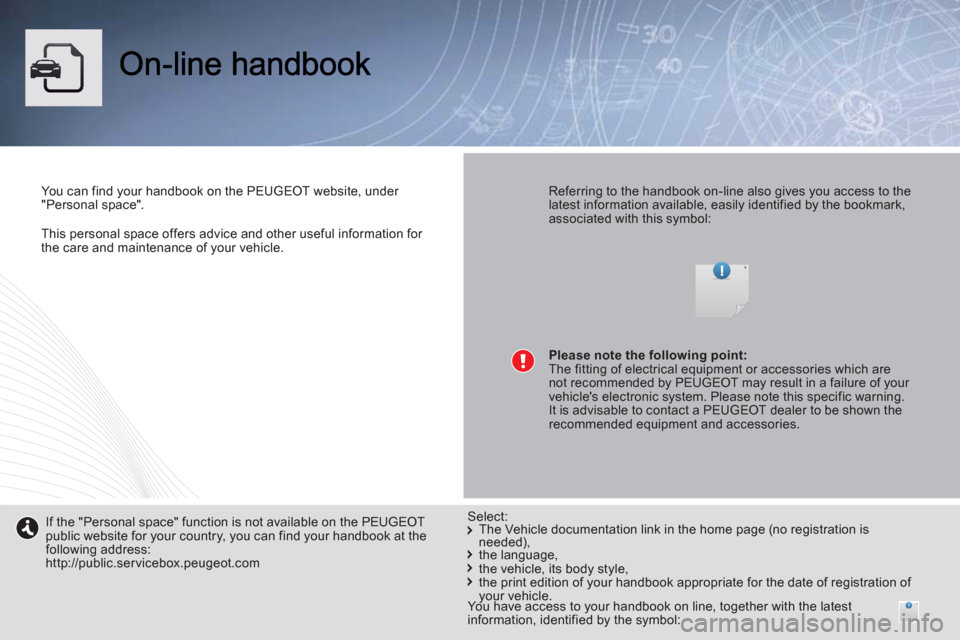

2013 Peugeot 508 RXH Owner's Manual

This personal space offers advice and other useful information for
the care and maintenance of your vehicle.

You can find your handbook on the PEUGEOT website, under "Personal space".

Referring to the handbook on-line also gives you access to the latest information available, easily identified by the bookmark, associated with this symbol:
If the "Personal space" function is not available on thePEUGEOTpublic website for your country, you can find your handbook at the following address:http://public.servicebox.peugeot.com
Please note the following point:
The fitting of electrical equipment or accessories which are not recommended by PEUGEOT may result in a failure of your vehicle's electronic system. Please note this specific warning.It is advisable to contact a PEUGEOT dealer to be shown the recommended equipment and accessories.

The Vehicle documentation link in the home page (no registration isneeded),
the language,
the vehicle, its body style,
the print edition of your handbook appropriate for the date of registration of your vehicle.
Select:
You have access to your handbook on line, together with the latesty
information, identified by the symbol:

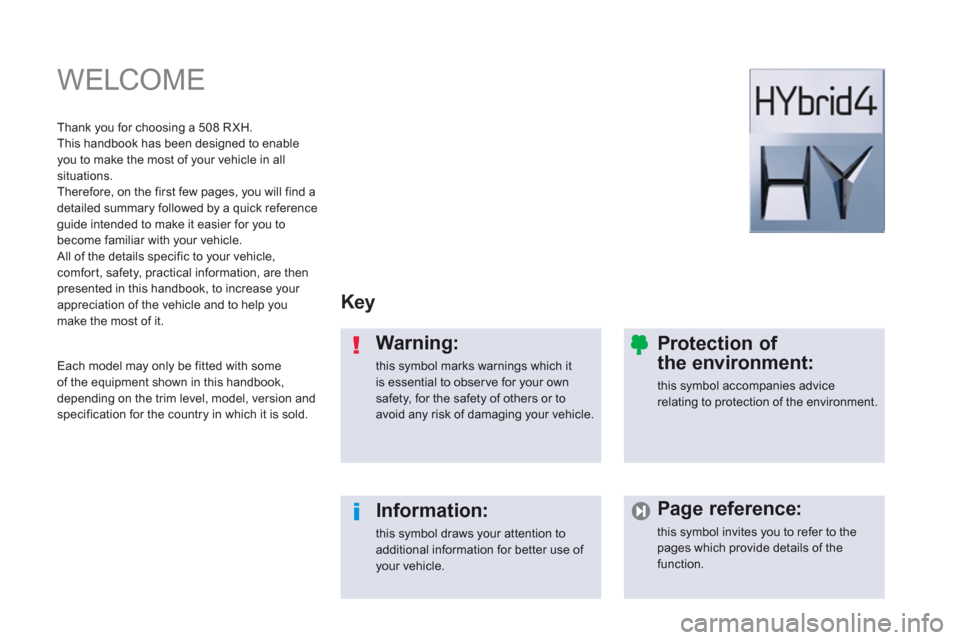

WELCOME
Key
Warning:
this symbol marks warnings which it is essential to observe for your own safety, for the safety of others or toavoid any risk of damaging your vehicle.
Information:
this symbol draws your attention to additional information for better use of your vehicle.


Protection of
the environment:

this symbol accompanies advicerelating to protection of the environment.
Page reference:
this symbol invites you to refer to the
pages which provide details of the function.
Thank
you for choosing a 508 R XH.
This handbook has been designed to enable
you to make the most of your vehicle in all situations.
Therefore, on the first few pages, you will find a
detailed summary followed by a quick reference
guide intended to make it easier for you to
become familiar with your vehicle.
All of the details specific to your vehicle, comfort, safety, practical information, are thenpresented in this handbook, to increase your
appreciation of the vehicle and to help youmake the most of it.

Each model may only be
fitted with some
of the equipment shown in this handbook,
depending on the trim level, model, version andspecification for the country in which it is sold.

.
.
Contents

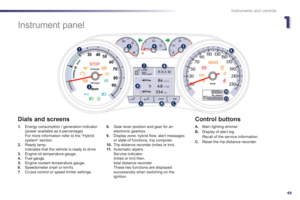

Instrument panel 49

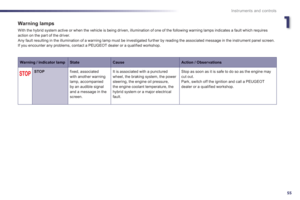

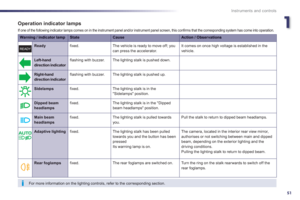

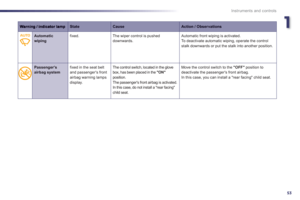

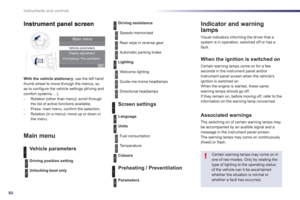

Indicator and warning lamps 50

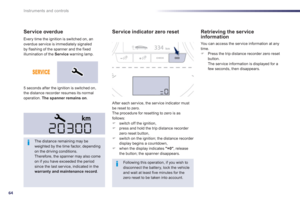

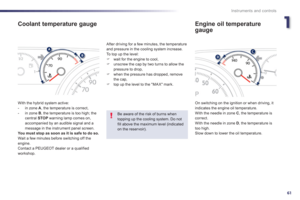

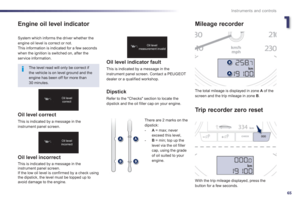

Gauges and indicators 61

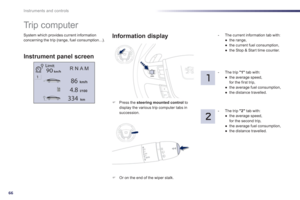

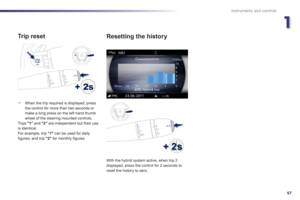

Tr ip computer 66

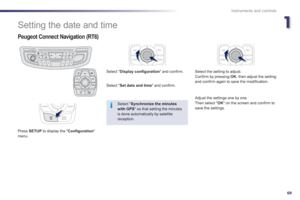

Setting the date and time 69

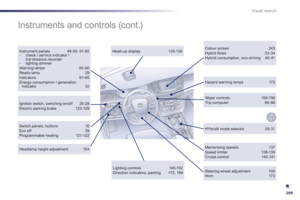

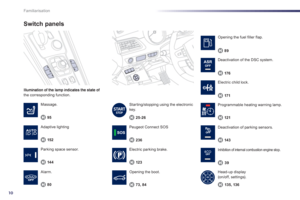

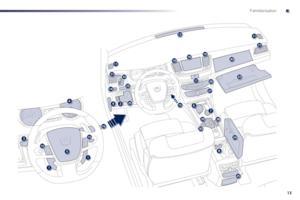

Instruments and controlsFamiliarisation

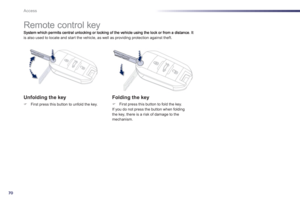

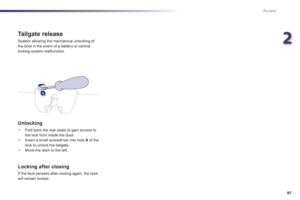

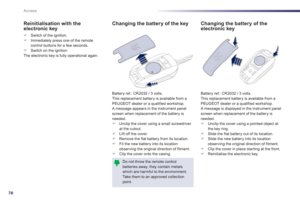

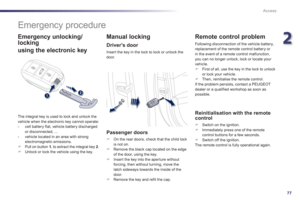

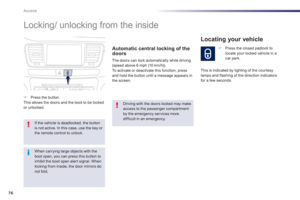

Remote control key 70

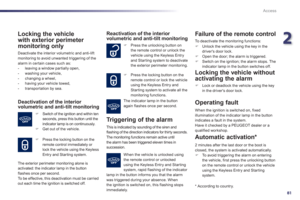

Alarm 80

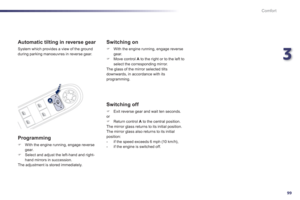

Electric windows 82

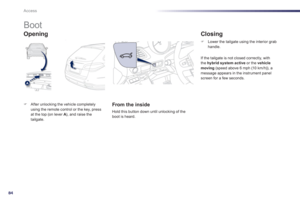

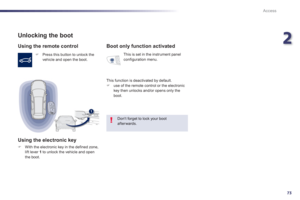

Boot 84
Motorised tailgate 85

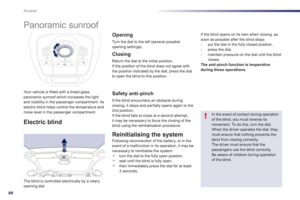

Panoramic sunroof 88

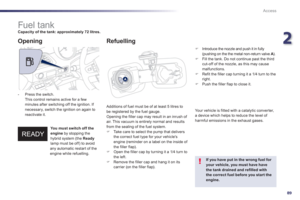

Fuel tank 89

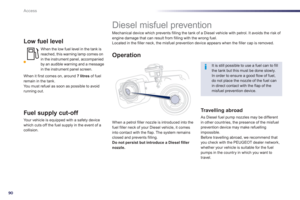

Diesel misfuel prevention 90
Access

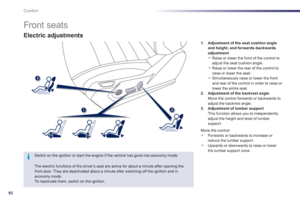

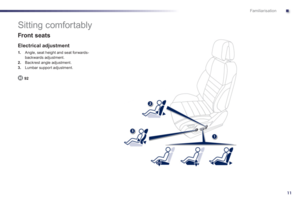

Front seats 92

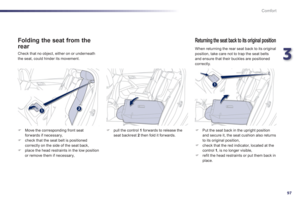

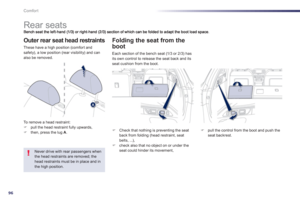

Rear seats 96

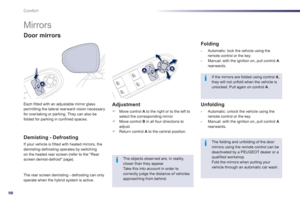

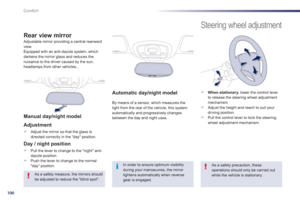

Mirrors 98

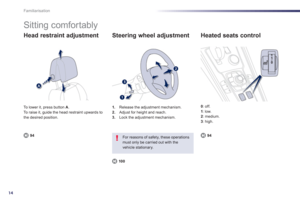

Steering wheel adjustment 100

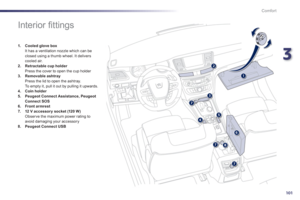

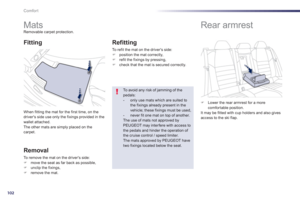

Interior fi ttings 101

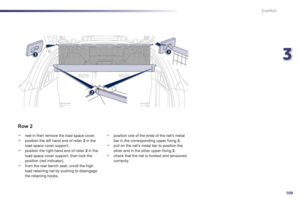

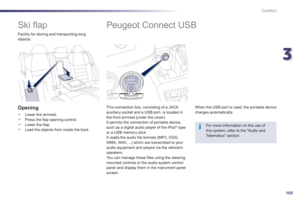

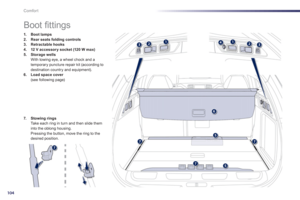

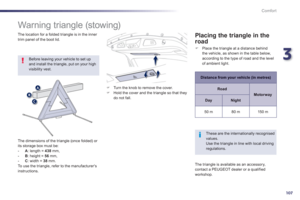

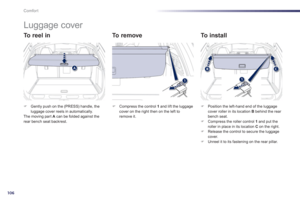

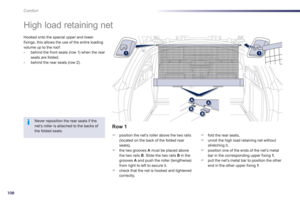

Boot fi ttings 104

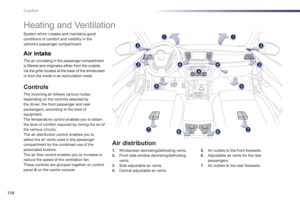

Heating and Ventilation 110

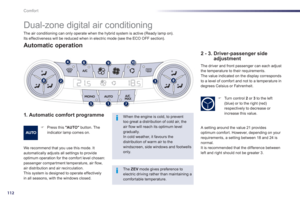

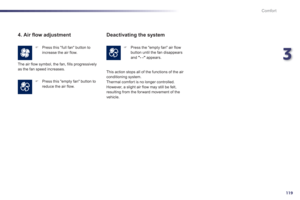

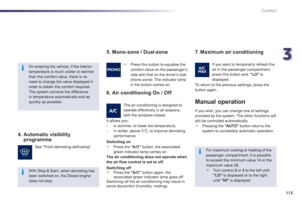

Dual-zone digital air conditioning 112

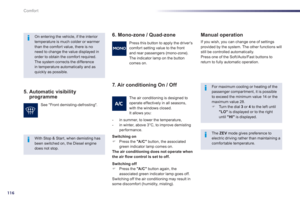

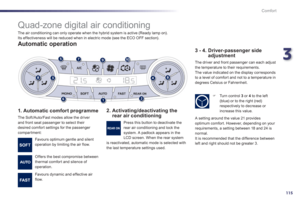

Quad-zone digital air conditioning 115

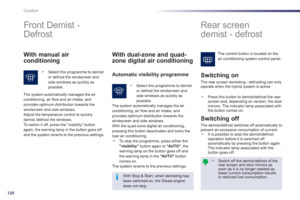

Rear screen demist - defrost 120

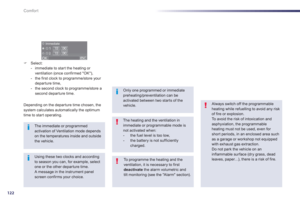

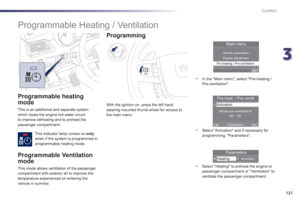

Programmable Heating / Ventilation 121
Comfort

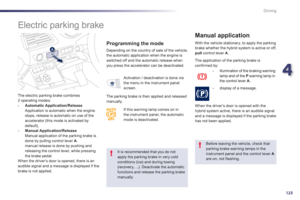

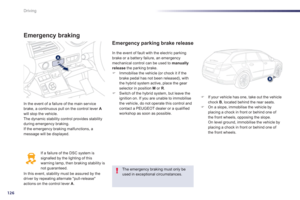

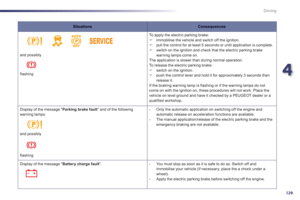

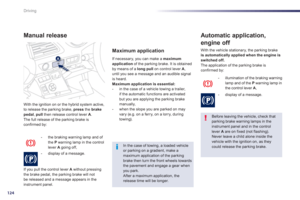

Electric parking brake 123

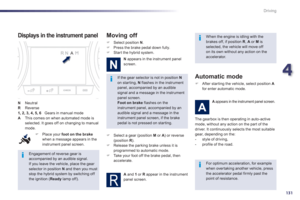

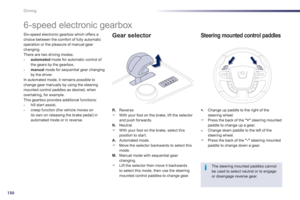

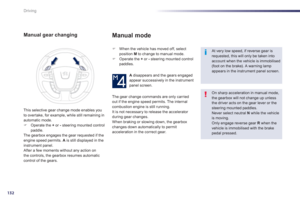

6-speed electronic gearbox 130
Hill star t assist 134

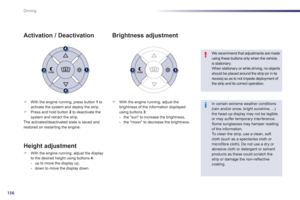

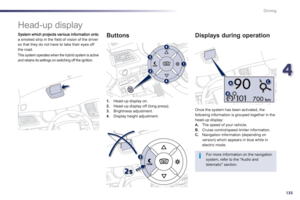

Head-up display 135

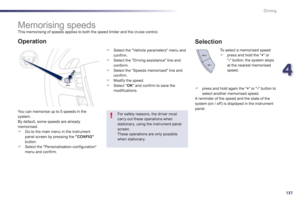

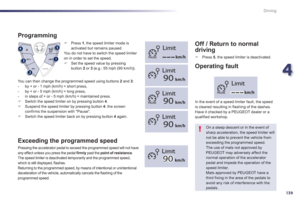

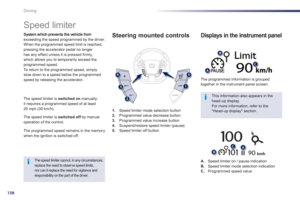

Speed limiter 138

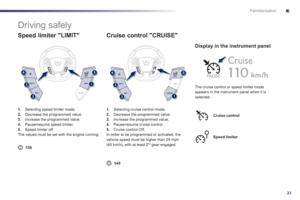

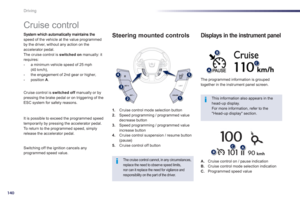

Cruise control 140

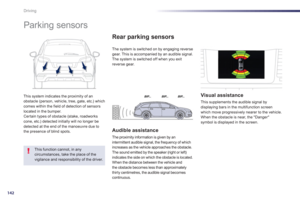

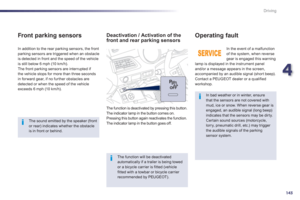

Parking sensors 142

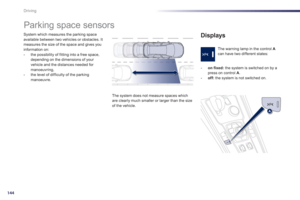

Parking space sensors 144
Driving

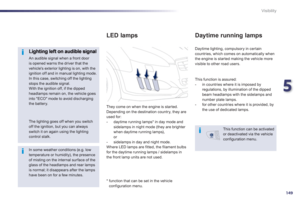

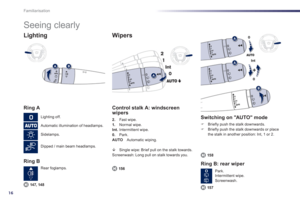

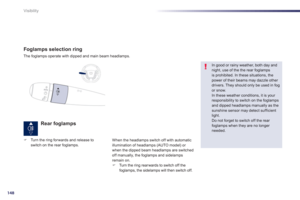

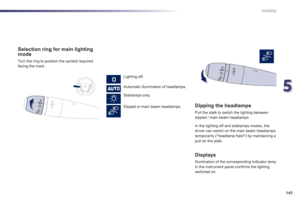

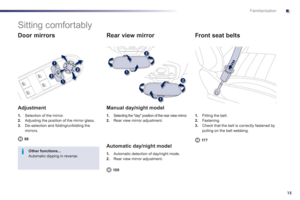

Lighting controls 146
LED lamps 149

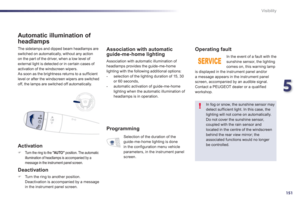

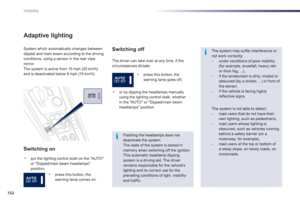

Automatic illumination of headlamps 151

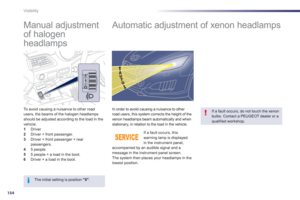

Headlamp adjustment 154

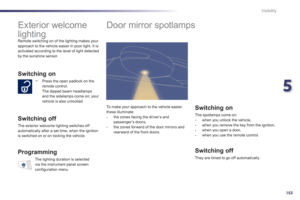

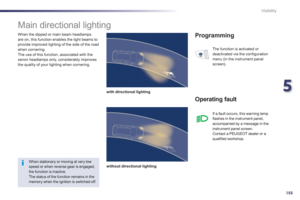

Directional lighting 155

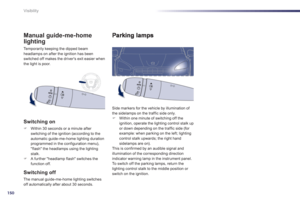

Wiper controls 156

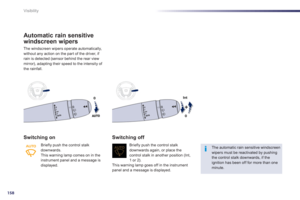

Automatic rain sensitive wipers 158

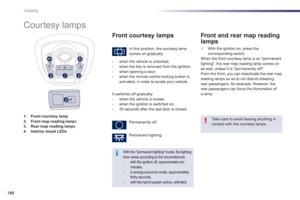

Cour tesy lamps 160
Interior mood lighting 161
Visibility Hybrid system
Presentation 22

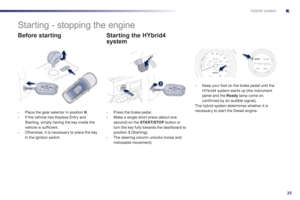

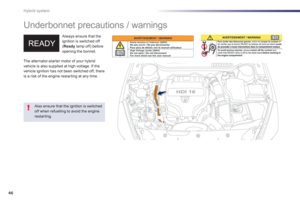

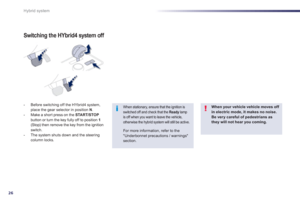

Starting / switching off 25

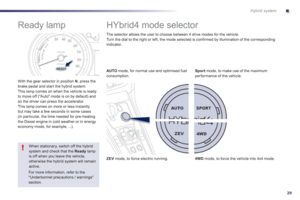

Ready lamp 29

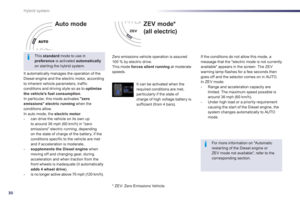

HYbrid4 mode selector 29
Energy consumption / generation
indicator 32

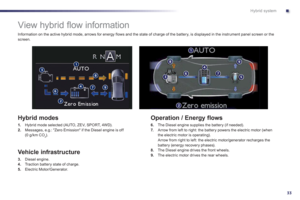

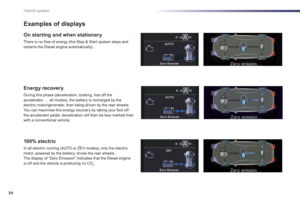

Display of hybrid power fl ow 33
HYbrid4 frequently asked questions 36

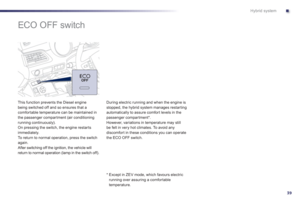

Eco off 39
Eco-driving 40
Consumption 42

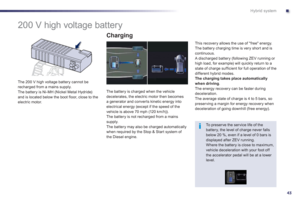

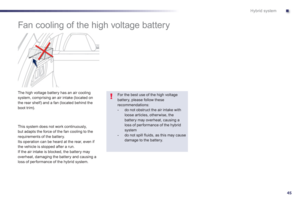

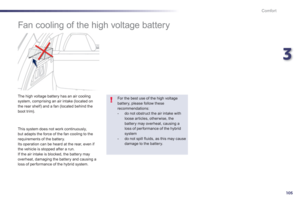

High voltage battery 43
Car washing machine or tunnel 47

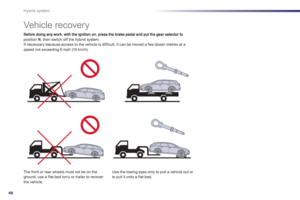

Vehicle recovery 48

.
.
Contents

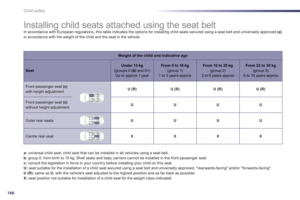

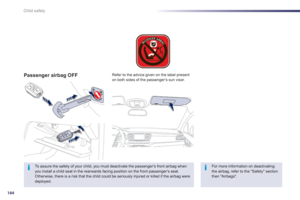

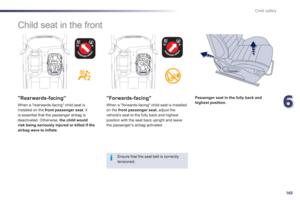

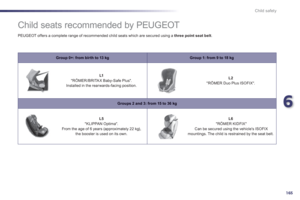

Child seats 162

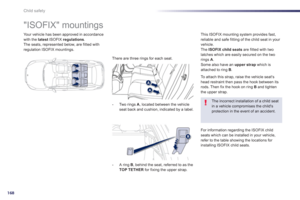

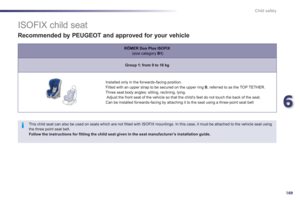

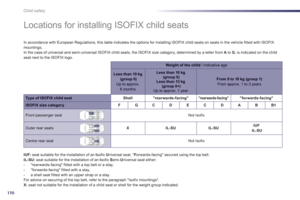

ISOFIX child seats 168

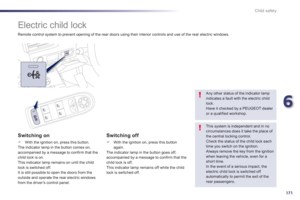

Child lock 171
Child safety

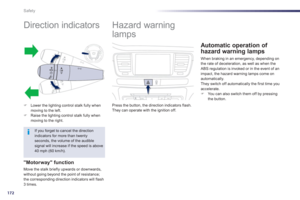

Direction indicators 172

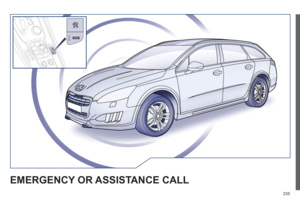

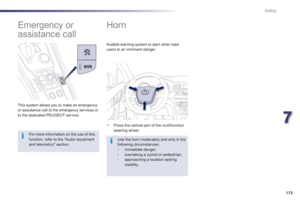

Emergency or assistance call 173
Horn 173

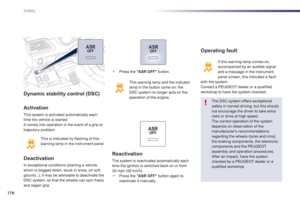

ESC system 174

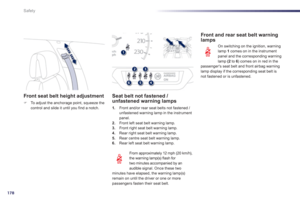

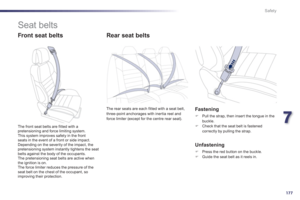

Seat belts 177

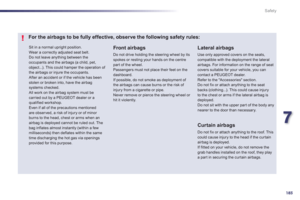

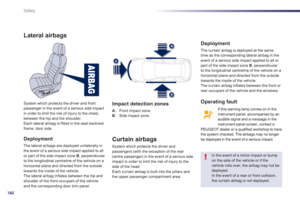

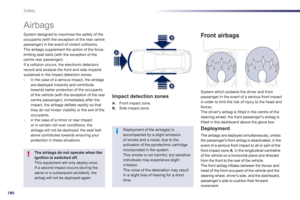

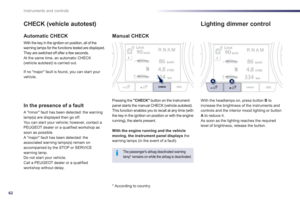

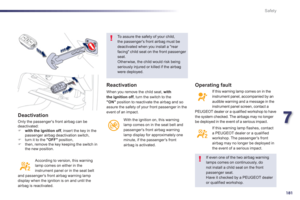

Airbags 180
Safety

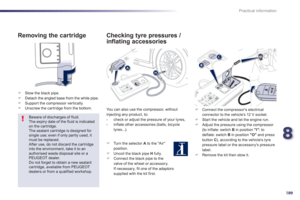

Te m p o r a ry puncture
repair kit 184

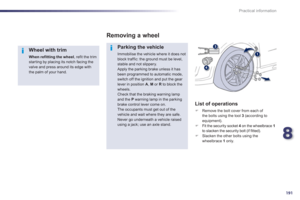

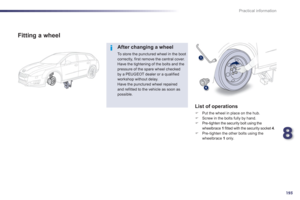

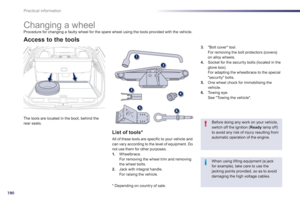

Changing a wheel 190

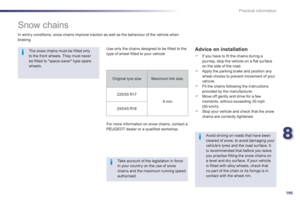

Snow chains 195

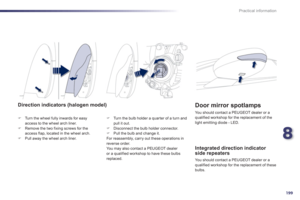

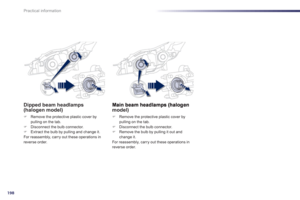

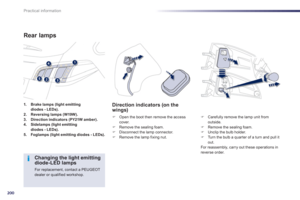

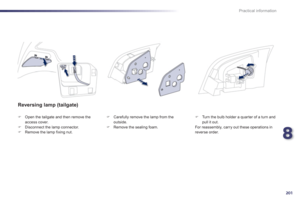

Changing a bulb 196

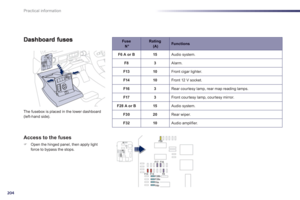

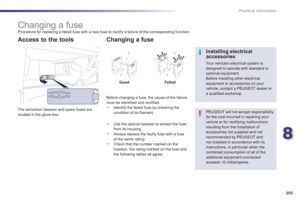

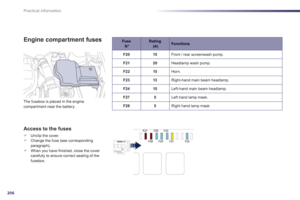

Changing a fuse 203

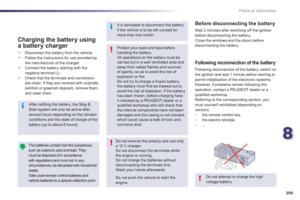

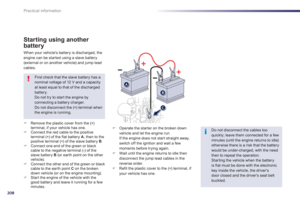

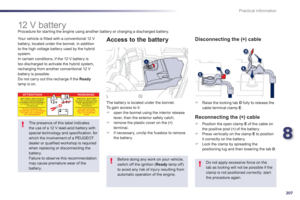

12 V battery 207

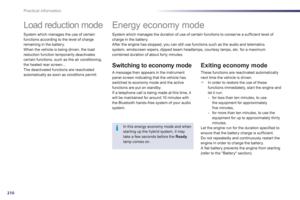

Energy economy mode 210

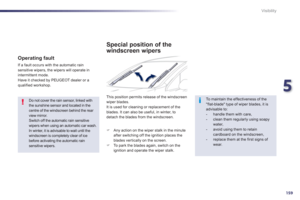

Changing a wiper blade 211

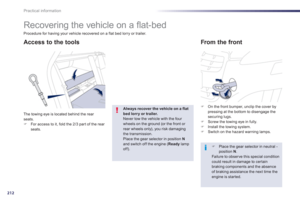

Recovering the vehicle 212

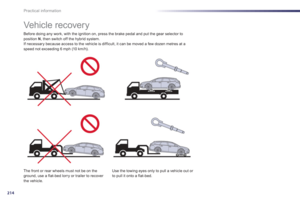

Vehicle recovery 214

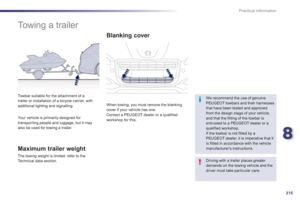

Towing a trailer 215

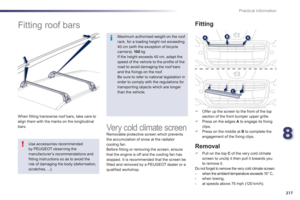

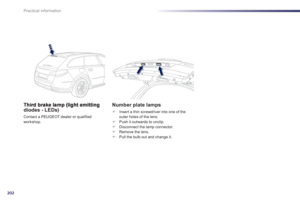

Fitting roof bars 217
Very cold climate screen 217
Accessories 218
Practical information

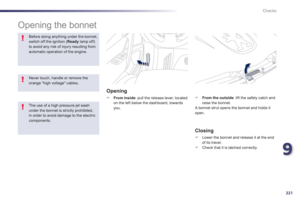

Opening the bonnet 221

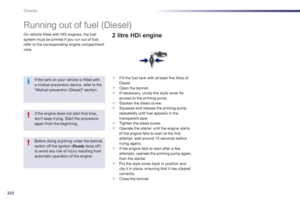

Running out of fuel (Diesel) 222
Diesel engine 223
Checking levels 224

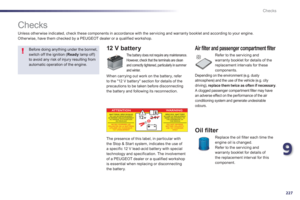

Checks 227
Checks
Electric motor 230
Diesel engine 231
Diesel weights 232

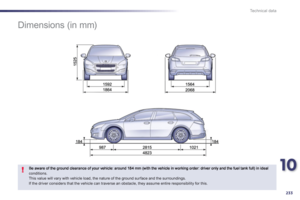

Dimensions 233

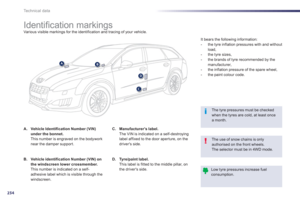

Identifi cation markings 234
Technical data

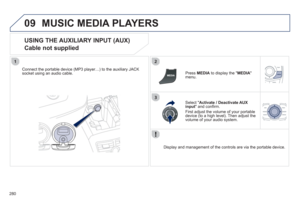

Emergency or assistance 235

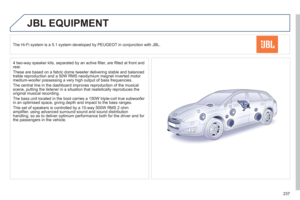

JBL equipment 237

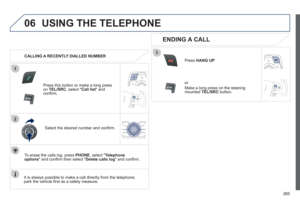

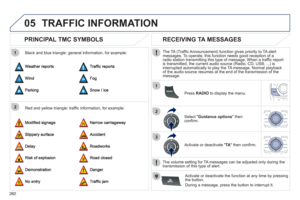

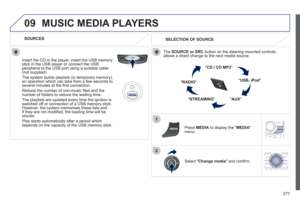

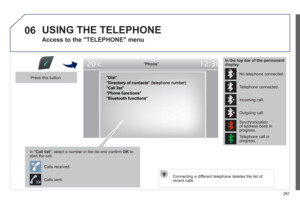

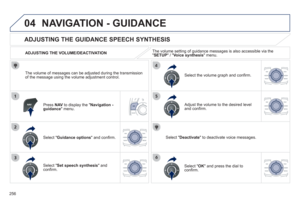

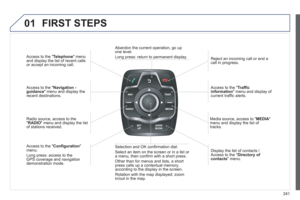

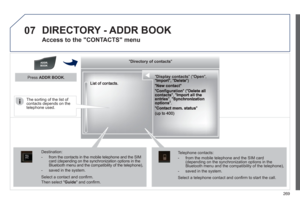

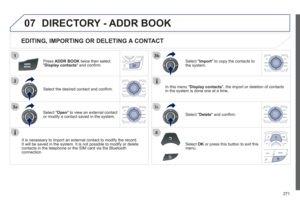

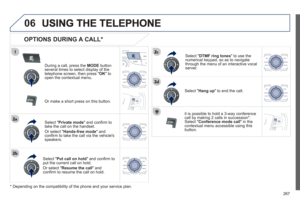

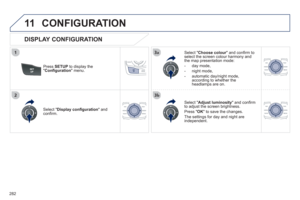

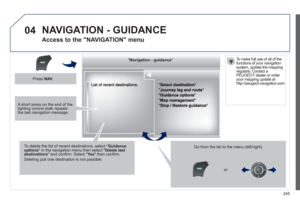

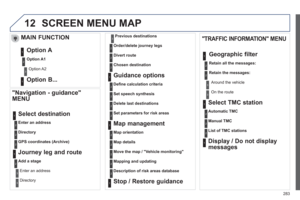

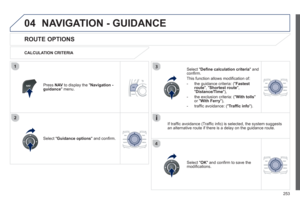

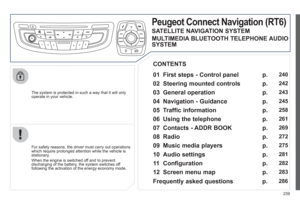

Peugeot Connect Navigation (RT6) 239

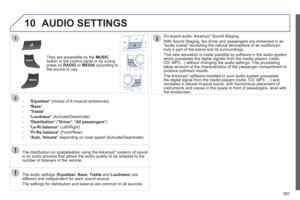

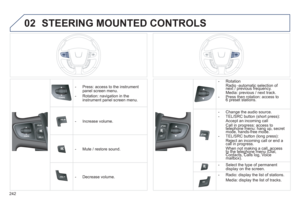

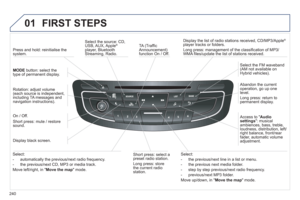

Audio equipment and telematics
Alphabetical index

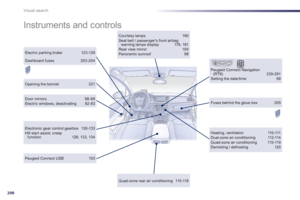

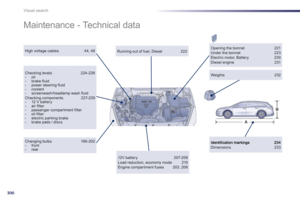

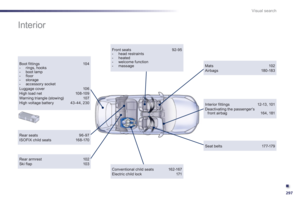

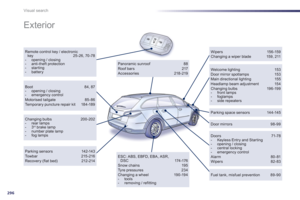

Visual search

4
Familiarisation

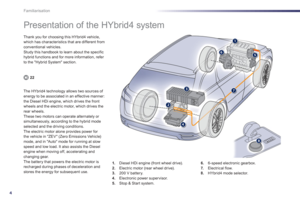

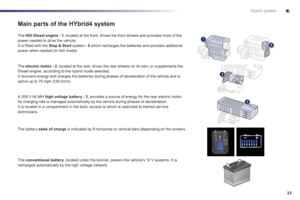

Presentation of the HYbrid4 system
Thank you for choosing this HYbrid4 vehicle,
which has characteristics that are different from conventional vehicles.
Study this handbook to learn about the specific hybrid functions and for more information, refer
to the "Hybrid System" section.

22

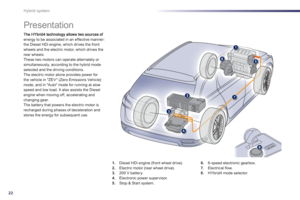

The HYbrid4 technology allows two sources of energy to be associated in an effective manner:
the Diesel HDi engine, which drives the front
wheels and the electric motor, which drives the
rear wheels.
These two motors can operate alternately or simultaneously, according to the hybrid modeselected and the driving conditions.
The electric motor alone provides power for
the vehicle in "ZEV" (Zero Emissions Vehicle) mode, and in "Auto" mode for running at slowspeed and low load. It also assists the Dieselengine when moving off, accelerating and changing gear.
The battery that powers the electric motor is
recharged during phases of deceleration andstores the energy for subsequent use.1
.Diesel HDi engine (front wheel drive). 2. Electric motor (rear wheel drive).3.
200 V battery.4.Electronic power supervisor.
5.Stop & Start system. 6
.6 -speed electronic gearbox.7. Electrical flow. 8.HYbrid4 mode selector.

.
5
Familiarisation

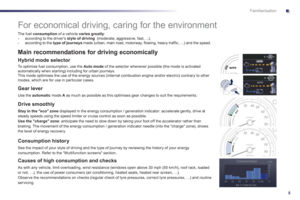

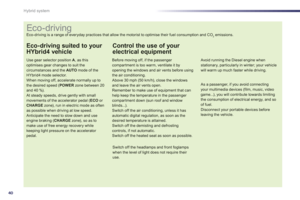

For economical driving, caring for the environment


The fuel consumptionof a vehicle varies greatly:


- according to the driver's style of driving
(moderate, aggressive, fast, ...),

- according to the type of journeys
made (urban, main road, motorway, flowing, heavy traffic, …) and the speed.


Main recommendations for driving economically


Hybrid mode selector

To optimise fuel consumption, use the Automodeof the selector whenever possible (the mode is activated
automatically when starting) including for urban journeys.
This mode optimises the use of the energy sources (internal combustion engine and/or electric) contrary to other modes, which are for use in par ticular cases.


Gear lever
Use the automatic
mode A
as much as possible as this optimises gear changes to suit the requirements.


Drive smoothly
Stay in the "eco" zone
displayed in the energy consumption / generation indicator: accelerate gently, drive atsteady speeds using the speed limiter or cruise control as soon as possible. Use the "charge" zone: anticipate the need to slow down by taking your foot off the accelerator rather than
braking. The movement of the energy consumption / generation indicator needle (into the "charge" zone), shows
the level of energy recovery.

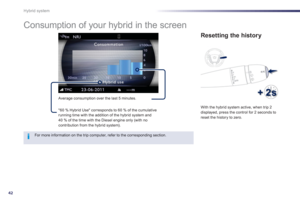

Consumption history

See the impact of your style of driving and the type of journey by reviewing the history of your energyconsumption. Refer to the "Multifunction screens" section.


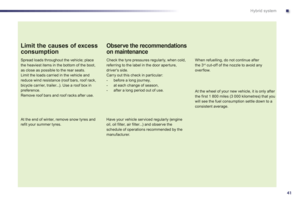

Causes of high consumption and checks
As with any vehicle, limit overloading, wind resistance (windows open above 30 mph (50 km/h), roof rack, loaded
or not, …), the use of power consumers (air conditioning, heated seats, heated rear screen, …).
Obser ve the recommendations on checks (regular check of tyre pressures, correct tyre pressures, …) and routine servicing.

6
Familiarisation

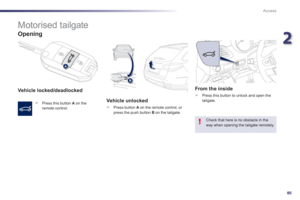

Motorised tailgate
This system provides motorised opening andclosing of the tailgate, by pressing a button.
8
5

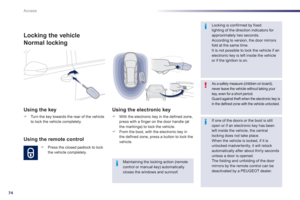

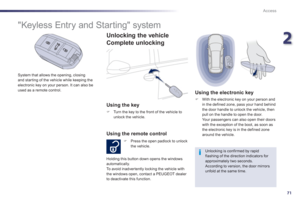

Electronic key: KeylessEntry and Starting
This system allows you to unlock, lockand star t your vehicle while keepingthe key on your person and in the defined zone around the vehicle.
25, 71

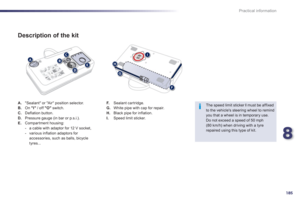

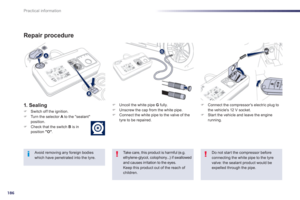

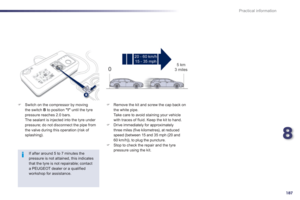

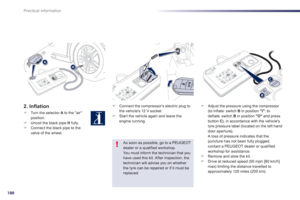

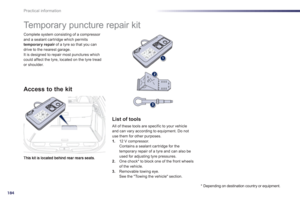

Te m p o r a ry puncture repair kit

This kit is a complete system consisting of a compressor and a sealant cartridge, to allow
the temporary repair of a tyre.
18
4

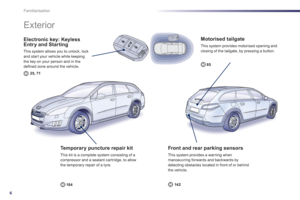

Exterior


Front and rear parking sensors

This system provides a warning when
manoeuvring for wards and backwards by
detecting obstacles located in front of or behind
the vehicle.
142
