2013 Peugeot 508 RXH Owner's Manual

1
55
Instruments and controls
Warning lamps
With the hybrid system active or when the vehicle is being driven, illumination of one of the following warning lamps indicates a fault which requires
action on the par t of the driver.
Any fault resulting in the illumination of a warning lamp must be investigated fur ther by reading the associated message in the instrument panel screen.
If you encounter any problems, contact a PEUGEOT dealer or a qualified workshop.
Warning / indicator lampStateCauseAction / Observations



STOP

fixed, associated
with another warning
lamp, accompanied
b
y an audible signal
and a message in thescreen. It is associated with a punctured
wheel, the brakin
g system, the power steering, the engine oil pressure,
the engine coolant temperature, thehybrid system or a major electrical fault. Stop as soon as it is safe to do so as the en
gine maycut out.
Park, switch off the ignition and call a PEUGEOT
dealer or a qualified workshop.

56
Instruments and controls


Serviceon temporarily. A minor fault has occurred for which
there is no specific warning lamp. Identify the fault by reading the message shown on
the screen, such as, for example:
- the h
ybrid system,
- the closin
g of the doors, boot or bonnet,
- the engine oil level,
- the screenwash level,
- the remote control battery,
- saturation of the par ticle emission filter (Diesel).
For any other faults, contact a PEUGEOT dealer or a
qualified workshop.
fixed. A major fault has occurred for which
there is no specific warning lamp. Identify the fault by reading the message shown on the screen and contact a PEUGEOT dealer or aqualified workshop.
PEF: particle emissions filter,Diesel
fixed, associated
temporarily with a message on the risk of
FEP filter blockage.Thi
s indicates the start of saturation
of the par ticle emissions filter. As soon as traffic conditions permit, regenerate
the filter by by driving at a speed of of least 36 mph(60 km/h) until the ser vice warning lamp goes off.
fix
ed.This indicates the low level of theDiesel additive reservoir. Have it topped up as soon as possible by a PEUGEOT
dealer or a qualified workshop.
Warning / indicator lampStateCauseAction / Observations

1
57
Instruments and controls
Warning / indicator lampStateCauseAction / Observations


Electric parkingbrakeflashing. The electric parking brake is not
applied automatically.
The application/release is faulty. You must stop as soon as it is safe to do so.
Park on flat level ground, switch off the ignition andcontact a PEUGEOT dealer or a qualified workshop.



Electric parkingbrake faultfixed. The electric parking brake has a fault. Contact a PEUGEOT dealer or a qualified workshop without delay.
The parking brake can be released manually using theemergency release procedure.
For more information on the electric parking brake,refer to the corresponding section.



Braking

fixed. The braking system fluid level has
dropped significantly. You must stop as soon as it is safe to do so.
Top up with brake fluid listed by PEUGEOT.
If the problem persists, have the system checked by a
PEUGEOT dealer or a qualified workshop.

+

fixed, associated
with the ABS warninglamp. Th
e electronic brake force distribution(EBFD) system has a fault. You must stop as soon as it is safe to do so.
Have it checked by a PEUGEOT dealer or a qualified
workshop.
Deactivation of the automaticfunctions of theelectric parking brake
fixed. The "automatic application" (onswitching off the engine) and "automatic release" functions are
deactivated or faulty. Activate the
function (according to country) via the
vehicle configuration menu or contact a PEUGEOT
dealer or a qualified workshop if automatic
application / release is not possible.
The parking brake can be released manually using theemergency release procedure.
For more information on the electric parking brake,refer to the corresponding section.

58
Instruments and controls
Warning / indicator lampStateCauseAction / Observations


Dynamic stability control(DSC/ASR)
flashing. The DSC/ASR regulation is
operating. The system optimises traction and improves the
directional stability of the vehicle.
fixed. Unless it has been deactivated(button pressed and its indicator lamp
on) the DSC/ASR system has a fault.Have it checked b
y a PEUGEOT or a qualified
workshop.
Engine autodiagnosis system
flashing.The engine management system hasa fault. Risk of destruction of the catalytic conver ter.
Have it checked by a PEUGEOT dealer or a qualified
workshop.
fixed.The emission control system has afault. The warning lamp should go off when the engine is started.
If it does not go off, contact a PEUGEOT dealer or qualified
workshop without delay.


Low fuel levelfixed with the needle
in the red zone. When it first comes on there remainsapproximately 7 litresof fuel in the
tank.
At this point, you begin to use the fuel reserve.Refuel as soon as possible to avoid runnin
g out of
fuel.This warning lamp will come on every time the ignition
is switched on, until a sufficient addition of fuel is made.
Never continue to drive until you run out of fuel, as
this could damage the emission control and injectionsystems.


Anti-lockBraking System(ABS)
fixed. The anti-lock braking system has a
fault. The vehicle retains conventional braking.
Drive carefully at reduced speed and contact a
PEUGEOT dealer or a qualified workshop without
dela
y.

1
59
Instruments and controls
Warning or indicator lamp in the instrument panelStateCauseAction / Observations


Engine oilpressure
fixed. There is a fault with the engine
lubrication system. You must stop as soon it is safe to do so.
Park, switch off the ignition and contact a PEUGEOT
dealer or a qualified workshop.


Battery charge

*


fixed. The battery charging circuit has a
fault. The warning lamp should go off when the engine is started.
If it does not go off, contact a PEUGEOT dealer or a
quali
fied workshop.


Door(s) open
fixed, associated with
a message identifying
the door, if the speed is
below 6 mph (10 km/h).
A door or the boot is still open. Close the door or boot.

fixed, associated with a
message identifying the
door, and accompanied
b
y an audible signal
if the speed is above
6 mph (10 km/h).

*
According to destination country.

60
Instruments and controls
Warning / indicator lampStateCauseAction / Observations


Airbagson temporarily. This lamp comes on for a fewseconds when you turn on the
ignition, then goes off. This lamp should
go off when the engine is started.
If it does not go off, contact a PEUGEOT dealer or a
qualified workshop.
fixed.One of the airbag or seat beltpretensioner systems has a fault.Have it checked by a PEUGEOT dealer or a qualified
workshop.


Directionalheadlampsflashing. The directional headlamps systemhas a fault.Have it checked by a PEUGEOT dealer or a qualified
workshop.


Seat belt(s) not fastened / unfastenedfixed then flashin
gaccompanied by anincreasing audible
signal. A
seat belt has not been fastened or has been unfastened.Pull the strap then inser t the tongue in the buckle.

1
61
Instruments and controls

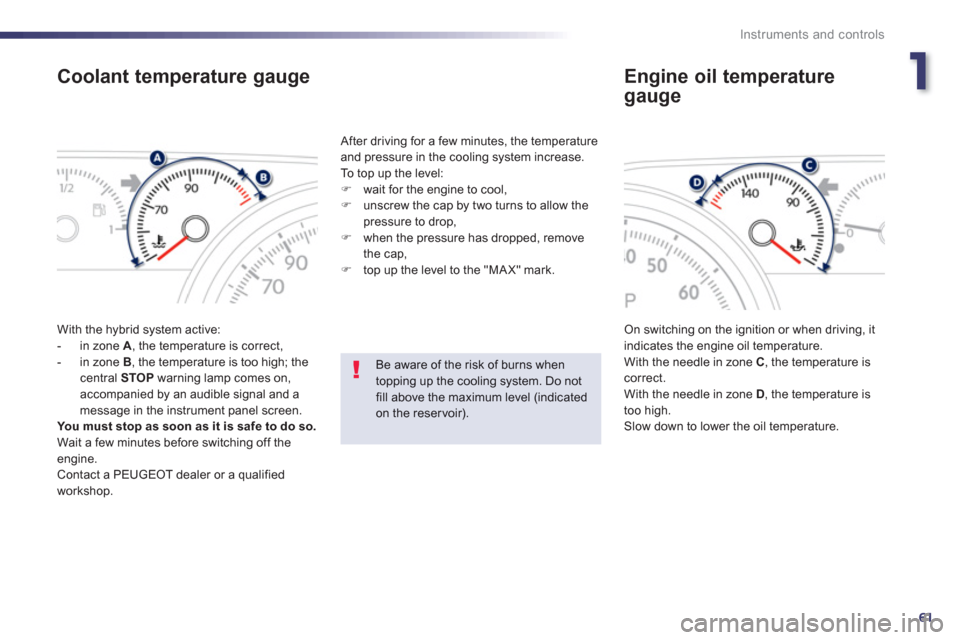

Coolant temperature gauge
With the hybrid system active:


- in zone A
, the temperature is correct,

- in zone B, the temperature is too high; the central STOP
warning lamp comes on,accompanied by an audible signal and amessage in the instrument panel screen.You must stop as soon as it is safe to do so.
Wait a few minutes before switching off theengine.
Contact a PEUGEOT dealer or a qualified
workshop.
After drivin
g for a few minutes, the temperatureand pressure in the cooling system increase.
To top up the level:
) wait for the engine to cool, )
unscrew the cap by two turns to allow the
pressure to drop,
) when the pressure has dropped, remove
the cap,) top up the level to the "MA X" mark.


On switching on the ignition or when driving, it
indicates the engine oil temperature.
With the needle in zone C
, the temperature is correct.
With the needle in zone D , the temperature is
too high.
Slow down to lower the oil temperature.


Engine oil temperature
gauge
Be aware of the risk of burns whentopping up the cooling system. Do not fill above the maximum level (indicatedon the reservoir).

62
Instruments and controls

* According to country.

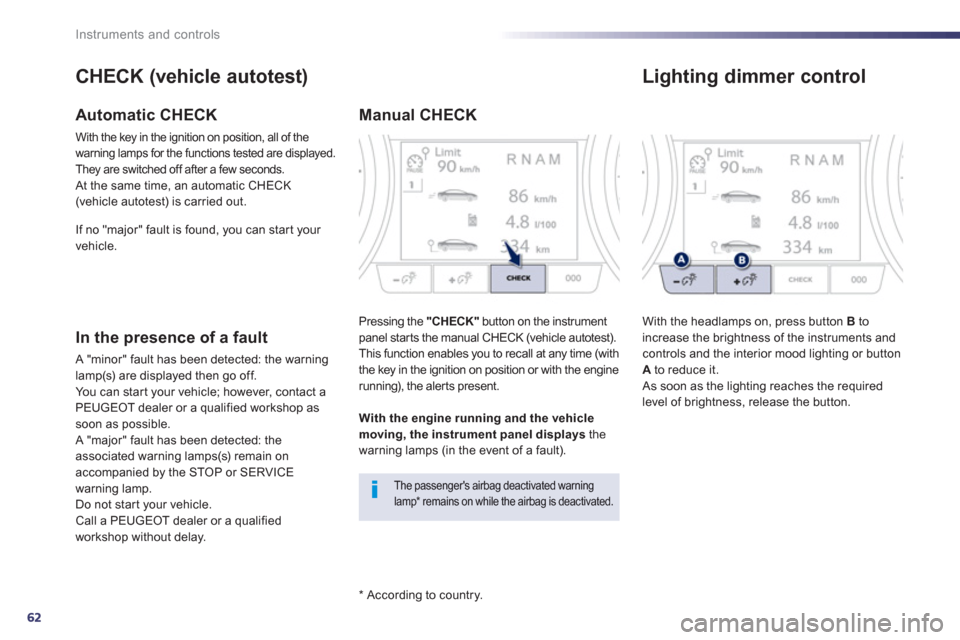

CHECK (vehicle autotest)
Automatic CHECK
With the key in the ignition on position, all of the
warning lamps for the functions tested are displayed.They are switched off after a few seconds. At the same time, an automatic CHECK(vehicle autotest) is carried out.
In the presence of a fault
A "minor" fault has been detected: the warning
lamp(s) are displayed then go off.You can star t your vehicle; however, contact a
PEUGEOT dealer or a qualified workshop assoon as possible.
A "major" fault has been detected: theassociated warning lamps(s) remain onaccompanied by the STOP or SERVICE
warning lamp.
Do not star t your vehicle. Call a PEUGEOT dealer or a qualified
wor
kshop without delay.

Manual CHECK

Pressing the "CHECK"
button on the instrument
panel star ts the manual CHECK (vehicle autotest).
This function enables you to recall at any time (with
the key in the ignition on position or with the enginerunning), the aler ts present.
The passenger's airbag deactivated warning lamp * remains on while the airbag is deactivated.

With the engine running and the vehiclemoving, the instrument panel displays
the
warning lamps (in the event of a fault). I
f no "major" fault is found, you can star t your
vehicle.

Lighting dimmer control

With the headlamps on, press button Bto
increase the brightness of the instruments and controls and the interior mood lighting or button Ato reduce it.
As soon as the lighting reaches the required
level of brightness, release the button.
