2013 Peugeot 508 RXH Owner's Manual

8
215
Practical information







Towing a trailer


We recommend the use of genuine PEUGEOT towbars and their harnesses that have been tested and approvedfrom the design stage of your vehicle, and that the fitting of the towbar isentrusted to a PEUGEOT dealer or aqualified workshop.
If the towbar is not fitted by a PEUGEOT dealer, it is imperative that itis fitted in accordance with the vehicle manufacturer's instructions.
T
owbar suitable for the attachment of atrailer or installation of a bicycle carrier, with
additional lighting and signalling.
Blanking cover
When towing, you must remove the blanking cover if your vehicle has one.
Contact a PEUGEOT dealer or a qualifiedworkshop for this.


Driving with a trailer places greater demands on the towing vehicle and the
driver must take par ticular care.
Maximum trailer weight

The towing weight is limited: refer to the
Technical data section.
Your vehicle is primaril
y designed for
transporting people and luggage, but it mayalso be used for towing a trailer.

216
Practical information
Driving advice
Distribution of loads
)Distribute the load in the trailer so that theheaviest items are as close as possible to
the axle and the nose weight approaches the maximum permitted without exceeding it.

Air density decreases with altitude, thus reducing engine performance. Above
1 000 metres, the maximum towed load must
be reduced b
y 10 % for every 1 000 metres of altitude.
Side wind
)Take into account the increased sensitivity
to side wind.

Cooling

To w i ng a trailer on a slope increases the
temperature of the coolant.
As the fan is electricall
y controlled, its cooling capacity is not dependent on the engine speed.
)
To lower the engine speed, reduce your speed.
The maximum towed load on a long incline
depends on the
gradient and the ambient
temperature.
In all cases, keep a check on the coolant
temperature.
)
If the warning lamp and the STOPwarning lamp come on, stop the
vehicle and switch off the engine
as soon as possible.



Braking

To w i ng a trailer increases the braking distance.
To avoid overheating of the brakes on a longmountain type of descent, the use of engine braking is recommended.


Tyres
)Check the tyre pressures of the towingvehicle and of the trailer, obser ving the recommended pressures.



Lighting
)Check the electrical lighting and signalling on the trailer.

The rear parking sensors will be deactivated automatically if a genuine PEUGEOT towbar is used.
R
efer to the "Technical data" section for details
of the weights and towed loads which apply to your vehicle.

8
217
Practical information

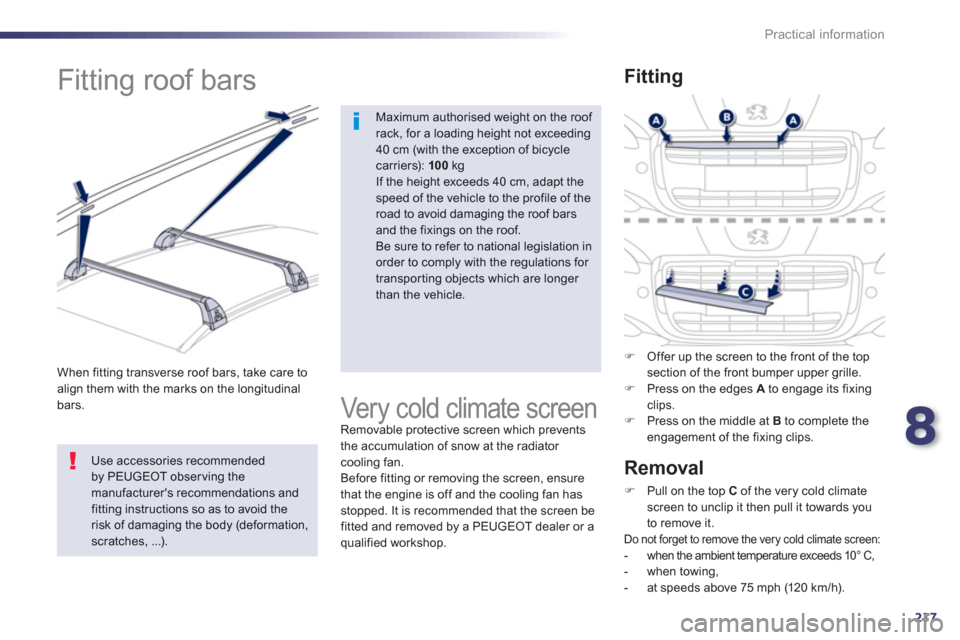

Fitting roof bars
Maximum authorised weight on the roof rack, for a loading height not exceeding40 cm (with the exception of bicyclecarriers): 100kgIf the height exceeds 40 cm, adapt the speed of the vehicle to the profile of the road to avoid damaging the roof bars and the fixings on the roof.Be sure to refer to national legislation inorder to comply with the regulations for transporting objects which are longer than the vehicle.


When
fitting transverse roof bars, take care to
align them with the marks on the longitudinal bars.
Use accessories recommendedby PEUGEOT obser ving the manufacturer's recommendations andfitting instructions so as to avoid therisk of damaging the body (deformation,
scratches, ...).









Very cold climate screen Removable protective screen which prevents
the accumulation of snow at the radiator cooling fan.
Before fitting or removing the screen, ensure
that the engine is off and the cooling fan has
stopped. It is recommended that the screen be
fitted and removed by a PEUGEOT dealer or aqualified workshop.

Fitting
)
Offer up the screen to the front of the topsection of the front bumper upper grille. )
Press on the edges A
to engage its fixingclips. )
Press on the middle at B
to complete the
engagement of the fixing clips.



Removal
)
Pull on the top C
of the very cold climate screen to unclip it then pull it towards you
to remove it.
Do not forget to remove the very cold climate screen:


- when the ambient temperature exceeds 10° C,

- when towing,

- at speeds above 75 mph (120 km/h).

218
Practical information




Accessories
A wide range of accessories and genuine par ts is available from the PEUGEOT dealer network.
These accessories and par ts have been tested and approved for reliability and safety.
They are all adapted to your vehicle and benefit from PEUGEOT's recommendation and warranty.
"Comfort":
cool box, smoker's kit, 230 V socket, torch...
"Transport solutions":
booster seats and child seats, boot tray, roof box, ski carrier, towbar-mounted bicycle carrier,
towbars (swan-neck, quickly detachable ball, folding), harnesses, sliding floor, utility vehicleconversion kit, ...
The trailer towbar and its harness shouldpreferably be fitted by a PEUGEOT dealer.


"Style":

spoiler, front and rear mud flaps, aluminium gear lever knob, alloy wheels (16, 17, 18 and
19 inch), body kit, door mirror shells, door air
deflectors, ...

*
To avoid an
y risk of jamming of the pedals:
- ensure that the mat is positioned and
secured correctl
y,
- never fit one mat on top of another.


"Safety and security":

speed limiter/cruise control, anti-theft alarm,
microwave unit, window etching, wheel securitybolts, breathalyser, first aid kit, warningtriangle, high visibility vest, stolen vehicle
tracking system, winter equipment (17 i n c h
wheels for snow chains), reversing camera,
front and rear parking sensors, boot spacers...

"Protection":

mats *
, seat covers, vehicle covers, sun blinds,boot net, load protection net, dog guard, door
and boot sill protectors, resin side rubbing
strips...

8
219
Practical information
The fitting of electrical equipmentor accessories which are notrecommended by PEUGEOT may result in a failure of your vehicle's electronic system and excessive electricalconsumption.Please note this precaution. You are advised to contact a PEUGEOT representative to be shown the rangeof recommended equipment andaccessories.



Installation of radio communication transmitters

Before installing any after-market radio communication transmitter, you can contact a PEUGEOT dealer for the specification of transmitters which canbe fitted (frequency, maximum power, aerial position, specific installationrequirements), in line with the Vehicle
Electromagnetic Compatibility Directive(2004/10 4/EC).


Depending on the legislation in force in the country, it may be compulsoryto have a high visibility safety vest, warning triangle and spare bulbs and fuses available in the vehicle. You can also obtain products
for cleaning and
maintenance (exterior and interior) and topping up fluids (screenwash, ...), as well as refills(cartridge for temporary tyre repair kit...) fromPEUGEOT dealers.



"Multimedia":

audio systems, portable navigation system,
Ta k a r a / S o ny por table video screen, Bluetoothsystem, speakers, DVD player, Wi-Fi, drivingaids, video suppor t, microwave unit...

220
Checks
PEUGEOT & TOTAL

9
221
Checks

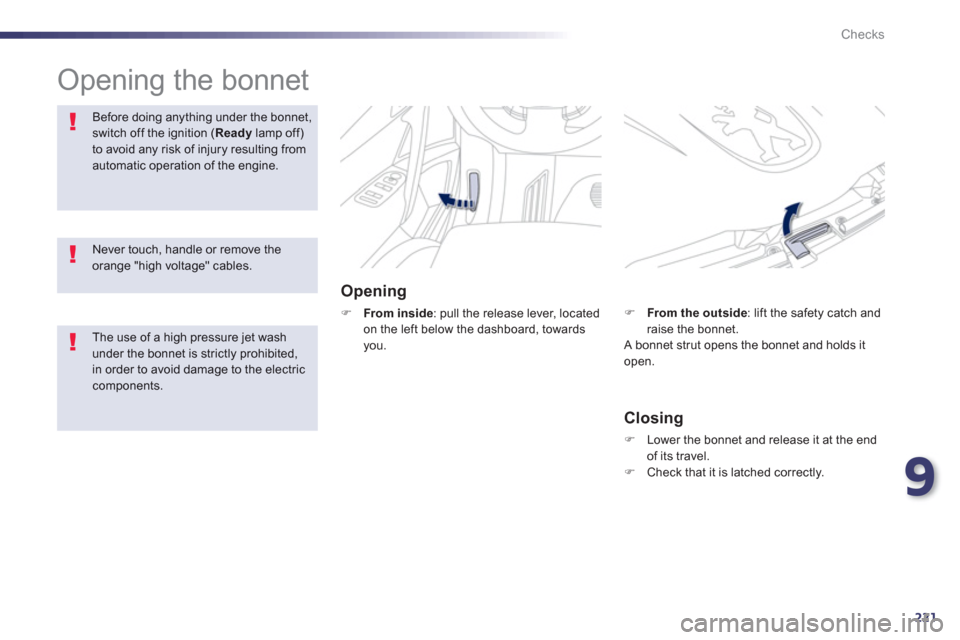

Opening the bonnet
Opening
)From inside
: pull the release lever, locatedon the left below the dashboard, towards you.
Before doing anything under the bonnet,switch off the ignition (Ready
lamp off) to avoid any risk of injury resulting fromautomatic operation of the engine.


Closing
)
Lower the bonnet and release it at the endof its travel. )
Check that it is latched correctly.


)From the outside: lift the safety catch and
raise the bonnet.
A bonnet strut opens the bonnet and holds itopen.


Never touch, handle or remove the orange "high voltage" cables.

The use of a high pressure jet wash under the bonnet is strictly prohibited,in order to avoid damage to the electriccomponents.

222
Checks
On vehicle fitted with HDi engines, the fuelsystem must be primed if you run out of fuel; refer to the corresponding engine compar tment
view.

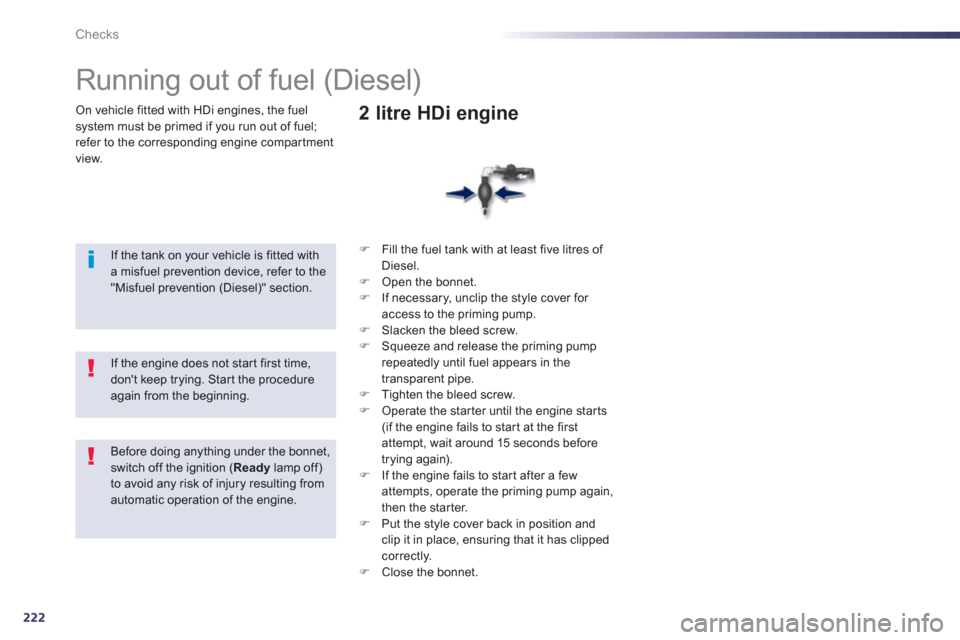

Running out of fuel (Diesel)


If the tank on your vehicle is fitted witha misfuel prevention device, refer to the "Misfuel prevention (Diesel)" section.
)
Fill the fuel tank with at least five litres of
Diesel.) Open the bonnet.)
If necessary, unclip the style cover for
access to the priming pump. ) Slacken the bleed screw. )
Squeeze and release the priming pump
repeatedly until fuel appears in the
transparent pipe.) Tighten the bleed screw.)
Operate the star ter until the engine starts(if the engine fails to star t at the first
attempt, wait around 15 seconds before
tr
ying again). ) If the engine fails to star t after a few
attempts, operate the priming pump again,
then the starter.) Put the style cover back in position and clip it in place, ensuring that it has clipped correctly. )
Close the bonnet.

2 litre HDi engine


If the engine does not star t first time, don't keep trying. Start the procedureagain from the beginning.







Before doing anything under the bonnet,switch off the ignition (Readylamp off) to avoid any risk of injury resulting from automatic operation of the engine.
