2013 PEUGEOT 5008 Owners Manual

CO
63
FRONT SEATS WITH MANUALADJUSTMENTS
Seat consisting of a seat cushion, a seat
back and a head restraint which can all
be adjusted to adapt your position for
ease of driving and comfort.
Height



)
Pull the control upwards to raise
or push it downwards to lower, as
many times as required, to obtain
the position required.

Seat back angle



)
Push the control rearwards.

Forwards-backwards



)
Raise the control and slide the seat
forwards or backwards.

CO
64

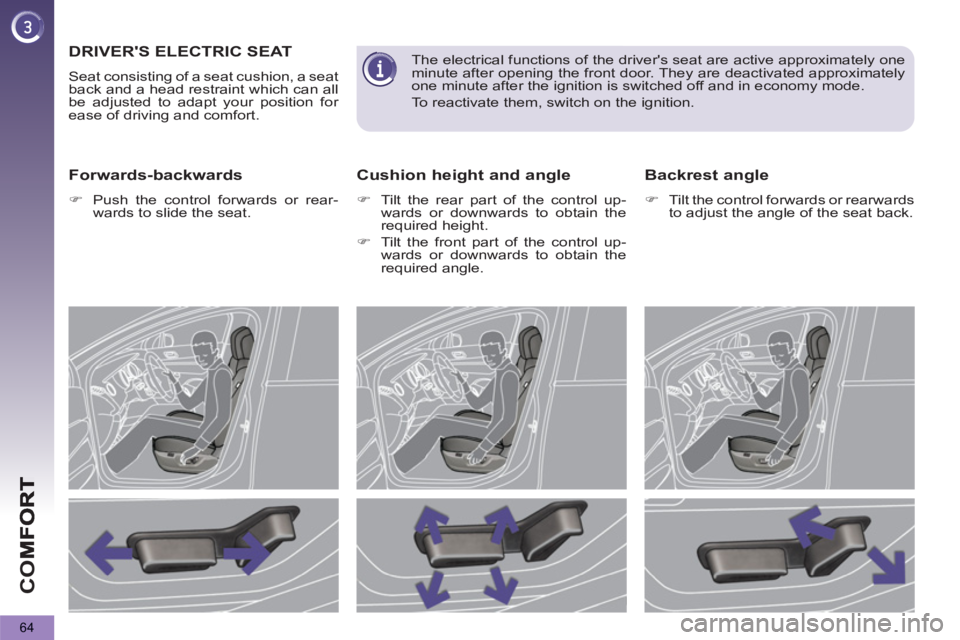

DRIVER'S ELECTRIC SEAT
Seat consisting of a seat cushion, a seat
back and a head restraint which can all
be adjusted to adapt your position for
ease of driving and comfort.
Forwards-backwards



)
Push the control forwards or rear-
wards to slide the seat.

Cushion height and angle



)
Tilt the rear part of the control up-
wards or downwards to obtain the
required height.

)
Tilt the front part of the control up-
wards or downwards to obtain the
required angle.

Backrest angle



)
Tilt the control forwards or rearwards
to adjust the angle of the seat back.

The electrical functions of the driver's seat are active approximately one
minute after opening the front door. They are deactivated approximately
one minute after the ignition is switched off and in economy mode.
To reactivate them, switch on the ignition.

CO
65










Heated seats control
With the engine running, the front seats
can be heated separately.


)
Use the adjustment dial, placed on
the side of each front seat, to switch
on and select the level of heating re-
quired:

0:


Off.

1

:
Low.

2

:
Medium.

3

:
High.


)
To raise the head restraint, pull it
forwards and upwards at the same
time.

)
To remove the head restraint, press
the lug A
and pull the head restraint
upwards.

)
To put the head restraint back in
place, engage the head restraint
stems in the openings keeping them
in line with the seat back.

)
To lower the head restraint, press
the lug A
and the head restraint at
the same time.

)
To adjust the angle of the head re-
straint, tilt its lower part forwards or
rearwards.
The head restraint is fi tted with
a frame with notches which
prevents it from lowering; this
is a safety device in case of impact.

The adjustment is correct when the
upper edge of the head restraint is
level with the top of the head.

Never drive with the head restraints
removed; they must be in place and
adjusted correctly.


Manual lumbar adjustment



)
Turn the knob manually to obtain
the desired level of lumbar support.

Head restraint height and angle adjustment

CO
66

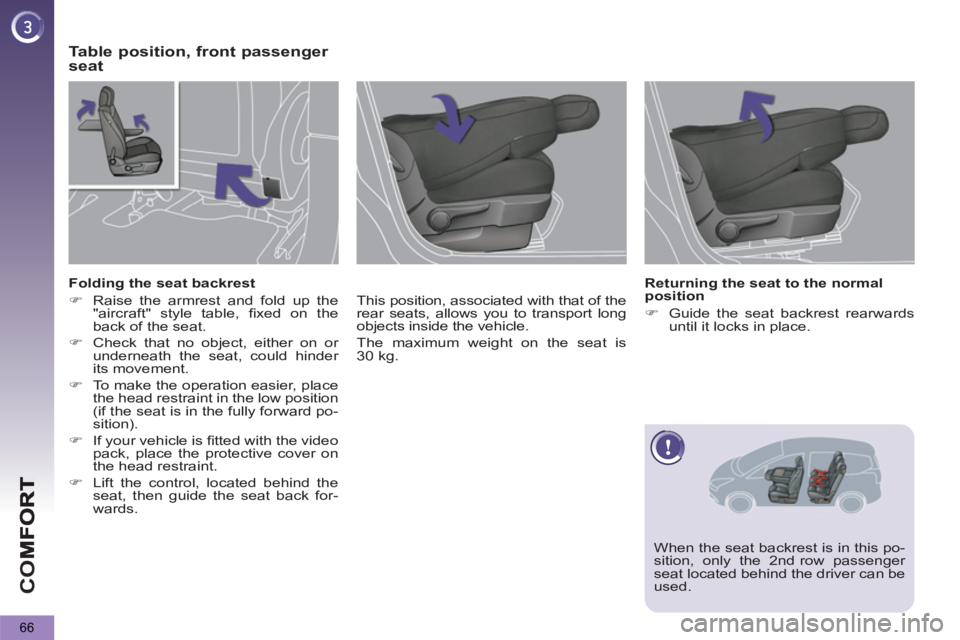

Table position, front passenger
seat

This position, associated with that of the
rear seats, allows you to transport long
objects inside the vehicle.
The maximum weight on the seat is
30 kg.
Folding the seat backrest


)
Raise the armrest and fold up the
"aircraft" style table, fi xed on the
back of the seat.

)
Check that no object, either on or
underneath the seat, could hinder
its movement.

)
To make the operation easier, place
the head restraint in the low position
(if the seat is in the fully forward po-
sition).

)
If your vehicle is fi tted with the video
pack, place the protective cover on
the head restraint.

)
Lift the control, located behind the
seat, then guide the seat back for-
wards.

Returning the seat to the normal
position


)
Guide the seat backrest rearwards
until it locks in place.



When the seat backrest is in this po-
sition, only the 2 nd

row passenger
seat located behind the driver can be
used.

CO
67
REAR HEAD RESTRAINTS
The rear head restraints can be removed
and have two positions:


- high, position for use,

- low, storage position.
To raise a head restraint, pull it upwards.
To lower it, press the lug then the head
restraint.
To remove it, place it in the high posi-
tion, push the lug and pull it upwards.
To r efi t it, engage the head restraint
rods in the holes taking care to remain
in line with the seat back.
2 NDROW SEATS

Forwards-backwards ad
justment

Lift the control A
, located at the front of
the seat, then adjust the seat to the po-
sition desired.
"Comfort" position

The three 2 nd row seats are indepen-
dent of each other and all the same
width. They all have a "comfort" position.

Placing a seat in the "comfort"
position


)
Pull on the control B
and guide the
seat rearwards.
The backrest reclines and the seat base
moves forward slightly.

Returning the seat to the initial
position


)
Pull on the control B
and allow the
seat to come forwards.


Always supervise any move-
ments of seats by children.

Never drive with the head re-
straints removed, they must be
in place and correctly adjusted.

CO
68

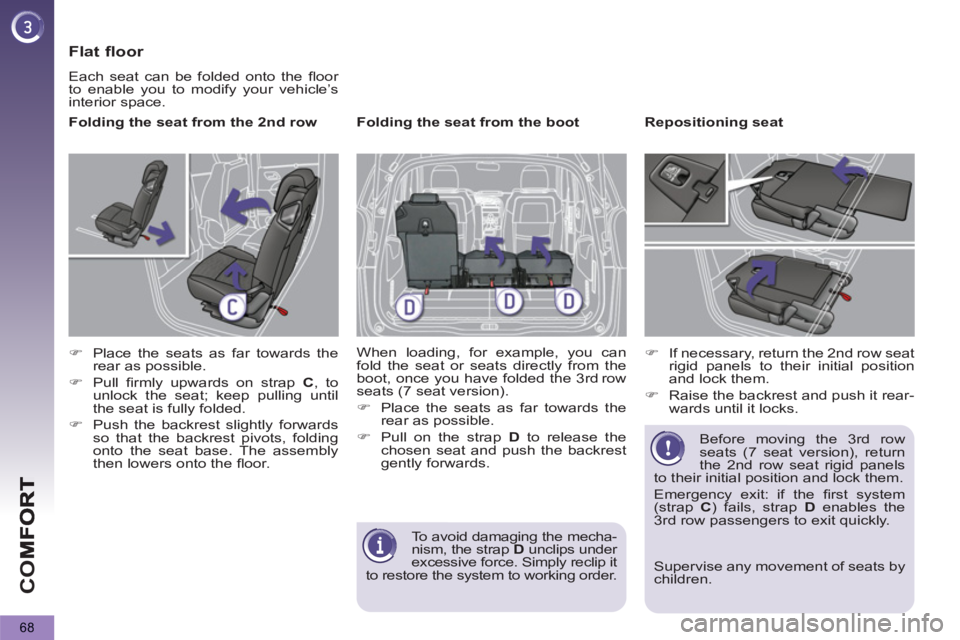

Flat floor

Each seat can be folded onto the fl oor
to enable you to modify your vehicle’s
interior space.

Folding the seat from the 2 nd row


)
Place the seats as far towards the
rear as possible.

)
Pull fi rmly upwards on strap C
, to
unlock the seat; keep pulling until
the seat is fully folded.

)
Push the backrest slightly forwards
so that the backrest pivots, folding
onto the seat base. The assembly
then lowers onto the fl oor.

Folding the seat from the boot
When loading, for example, you can
fold the seat or seats directly from the
boot, once you have folded the 3 rd

row
seats (7 seat version).


)
Place the seats as far towards the
rear as possible.

)
Pull on the strap D
to release the
chosen seat and push the backrest
gently forwards.
Repositioning seat


)
If necessary, return the 2 nd row seat
rigid panels to their initial position
and lock them.

)
Raise the backrest and push it rear-
wards until it locks.
Before moving the 3 rd row
seats (7 seat version), return
the 2
nd row seat rigid panels
to their initial position and lock them.
Emergency exit: if the fi rst system
(strap C
) fails, strap D
enables the
3 rd row passengers to exit quickly.
To avoid damaging the mecha-
nism, the strap D
unclips under
excessive force. Simply reclip it
to restore the system to working order.
Supervise any movement of seats by
children.

CO
69

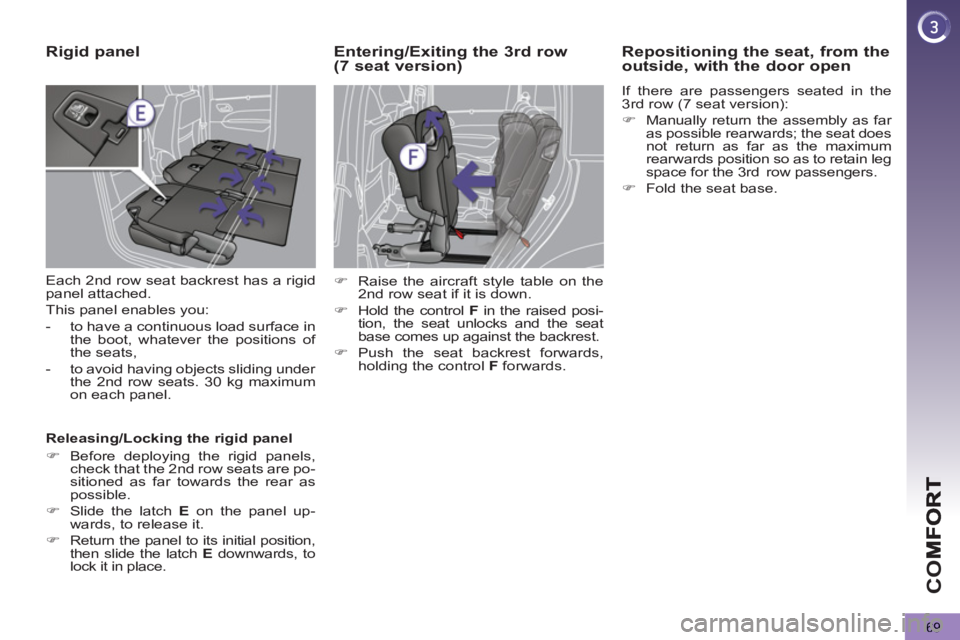

Rigid panel
Each 2 nd row seat backrest has a rigid
panel attached.
This panel enables you:


- to have a continuous load surface in
the boot, whatever the positions of
the seats,

- to avoid having objects sliding under
the 2 nd row seats. 30 kg maximum
on each panel.

Releasing/Locking the rigid panel


)
Before deploying the rigid panels,
check that the 2 nd row seats are po-
sitioned as far towards the rear as
possible.

)
Slide the latch E
on the panel up-
wards, to release it.

)
Return the panel to its initial position,
then slide the latch E
downwards, to
lock it in place.




Entering/Exiting the 3rd
row (7 seat version) Repositioning the seat, from the outside, with the door open
If there are passengers seated in the
3 rd row (7 seat version):


)
Manually return the assembly as far
as possible rearwards; the seat does
not return as far as the maximum
rearwards position so as to retain leg
space for the 3 rd

row passengers.

)
Fold the seat base.



)
Raise the aircraft style table on the
2 nd row seat if it is down.

)
Hold the control F
in the raised posi-
tion, the seat unlocks and the seat
base comes up against the backrest.

)
Push the seat backrest forwards,
holding the control F
forwards.

CO
70

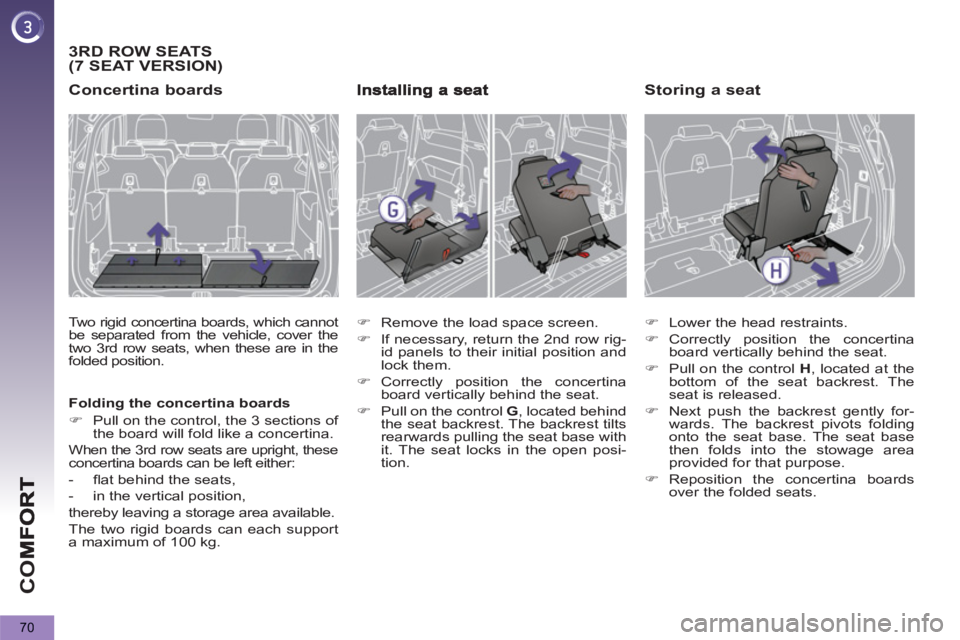

3 RDROW SEATS(7 SEAT VERSION)

Concertina boards

Two rigid concertina boards, which cannot
be separated from the vehicle, cover the
two 3 rd row seats, when these are in the
folded position.

Folding the concertina boards


)
Pull on the control, the 3 sections of
the board will fold like a concertina.
When the 3 rd row seats are upright, these
concertina boards can be left either:


- fl at behind the seats,

- in the vertical position,
thereby leaving a storage area available.
The two rigid boards can each support
a maximum of 100 kg.



)
Remove the load space screen.

)
If necessary, return the 2 nd row rig-
id panels to their initial position and
lock them.

)
Correctly position the concertina
board vertically behind the seat.

)
Pull on the control G
, located behind
the seat backrest. The backrest tilts
rearwards pulling the seat base with
it. The seat locks in the open posi-
tion.



Storing a seat



)
Lower the head restraints.

)
Correctly position the concertina
board vertically behind the seat.

)
Pull on the control H
, located at the
bottom of the seat backrest. The
seat is released.

)
Next push the backrest gently for-
wards. The backrest pivots folding
onto the seat base. The seat base
then folds into the stowage area
provided for that purpose.

)
Reposition the concertina boards
over the folded seats.
