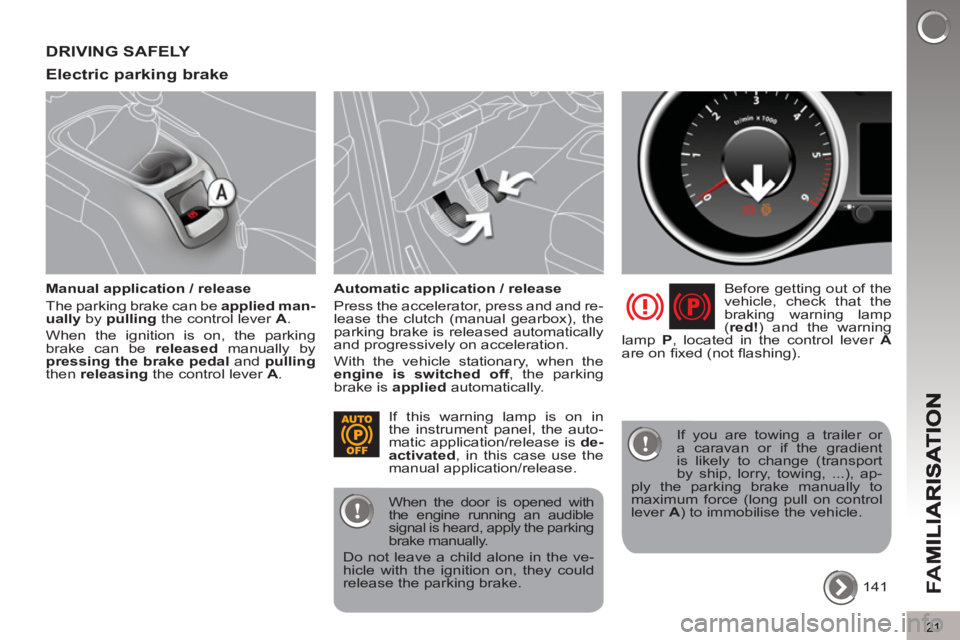

DRIVING SAFELY
Electric parkin
g brake

Manual application / release
The parking brake can be applied man-
ually
by pulling
the control lever A
.
When the ignition is on, the parking
brake can be released
manually by
pressing the brake pedal
and pulling

then releasing
the control lever A
.
Automatic application / release
Press the accelerator, press and and re-
lease the clutch (manual gearbox), the
parking brake is released automatically
and progressively on acceleration.
With the vehicle stationary, when the
engine is switched off
, the parking
brake is applied
automatically.
Before getting out of the
vehicle, check that the
braking warning lamp
( red!
) and the warning
lamp P
, located in the control lever A

are on fi xed (not fl ashing).
141 If this warning lamp is on in
the instrument panel, the auto-
matic application/release is de-
activated
, in this case use the
manual application/release.


When the door is opened with
the engine running an audible
signal is heard, apply the parking
brake manually.
Do not leave a child alone in the ve-
hicle with the ignition on, they could
release the parking brake.
If you are towing a trailer or
a caravan or if the gradient
is likely to change (transport
by ship, lorry, towing, ...), ap-
ply the parking brake manually to
maximum force (long pull on control
lever A
) to immobilise the vehicle.

26

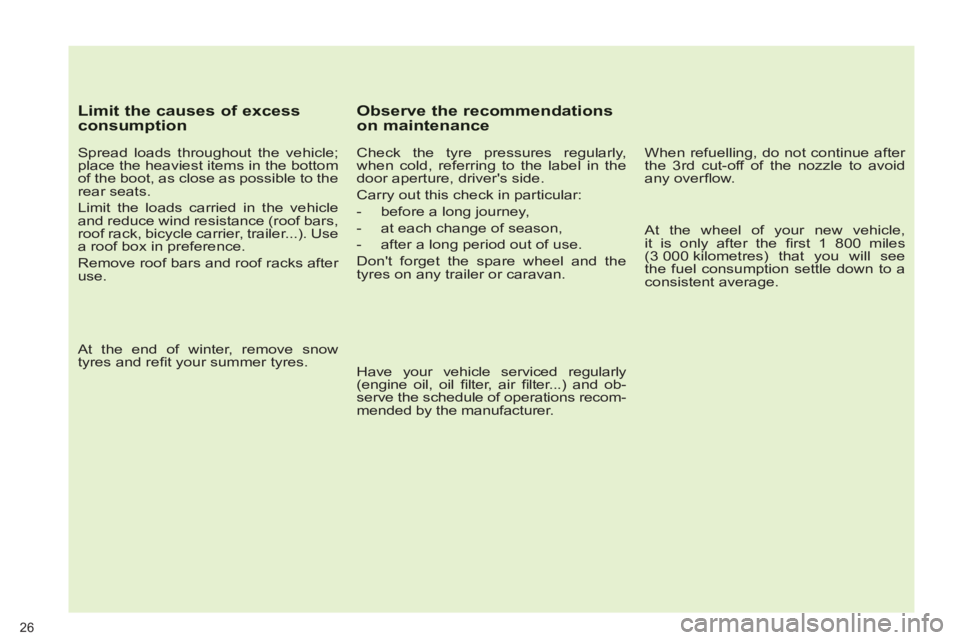

Limit the causes of excess consumption


Spread loads throughout the vehicle;
place the heaviest items in the bottom
of the boot, as close as possible to the
rear seats.
Limit the loads carried in the vehicle
and reduce wind resistance (roof bars,
roof rack, bicycle carrier, trailer...). Use
a roof box in preference.
Remove roof bars and roof racks after
use.

At the end of winter, remove snow
tyres and refi t your summer tyres.

Observe the recommendationson maintenance


Check the tyre pressures regularly,
when cold, referring to the label in the
door aperture, driver's side.
Carry out this check in particular:


- before a long journey,

- at each change of season,

- after a long period out of use.
Don't forget the spare wheel and the
tyres on any trailer or caravan.

Have your vehicle serviced regularly
(engine oil, oil fi lter, air fi lter...) and ob-
serve the schedule of operations recom-
mended by the manufacturer.


When refuelling, do not continue after
the 3 rd cut-off of the nozzle to avoid
any overfl ow.

At the wheel of your new vehicle,
it is only after the fi rst 1 800 miles
(3 000 kilometres) that you will see
the fuel consumption settle down to a
consistent average.

D
R
I
142

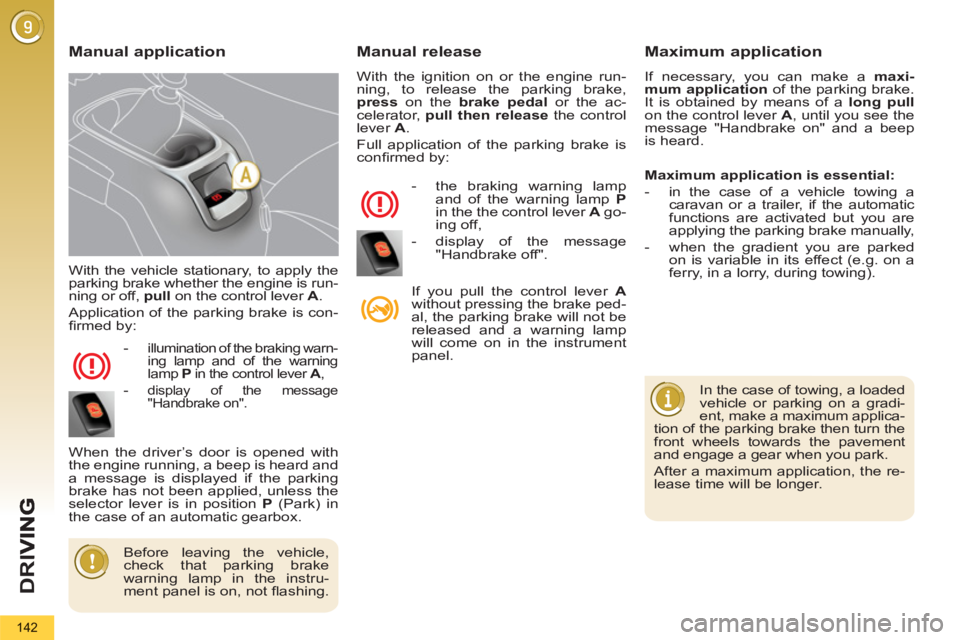

With the vehicle stationary, to apply the
parking brake whether the engine is run-
ning or off, pull
on the control lever A
.
Application of the parking brake is con-
fi rmed by:


-
illumination of the braking warn-
ing lamp and of the warning
lamp P
in the control lever A
,


- display of the message
"Handbrake on".

When the driver’s door is opened with
the engine running, a beep is heard and
a message is displayed if the parking
brake has not been applied, unless the
selector lever is in position P
(Park) in
the case of an automatic gearbox.
Manual release
With the ignition on or the engine run-
ning, to release the parking brake,
press
on the brake
pedal
or the ac-
celerator, pull then release
the control
lever A
.
Full application of the parking brake is
confi rmed by:


- the braking warning lamp
and of the warning lamp P

in the the control lever A
go-
ing off,

- display of the message
"Handbrake off".
If you pull the control lever A

without pressing the brake ped-
al, the parking brake will not be
released and a warning lamp
will come on in the instrument
panel.

Manual application Maximum application

If necessary, you can make a maxi-
mum application
of the parking brake.
It is obtained by means of a long pull

on the control lever A
, until you see the
message "Handbrake on" and a beep
is heard.

In the case of towing, a loaded
vehicle or parking on a gradi-
ent, make a maximum applica-
tion of the parking brake then turn the
front wheels towards the pavement
and engage a gear when you park.
After a maximum application, the re-
lease time will be longer.


Before leaving the vehicle,
check that parking brake
warning lamp in the instru-
ment panel is on, not fl ashing.

Maximum application is essential:



- in the case of a vehicle towing a
caravan or a trailer, if the automatic
functions are activated but you are
applying the parking brake manually,

- when the gradient you are parked
on is variable in its effect (e.g. on a
ferry, in a lorry, during towing).

D
R
169

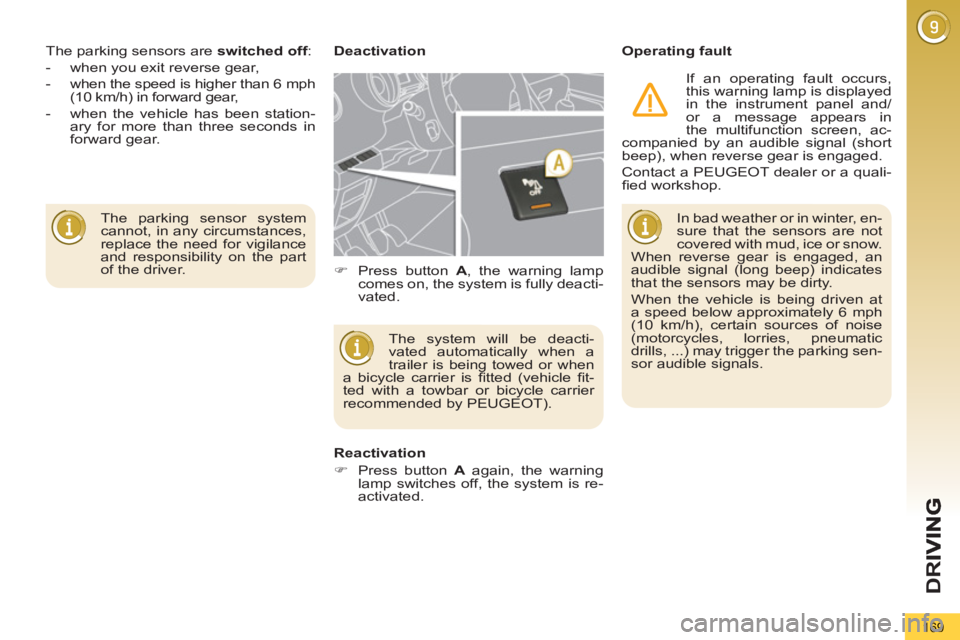

The parking sensor system
cannot, in any circumstances,
replace the need for vigilance
and responsibility on the part
of the driver. The parking sensors are switched off
:


- when you exit reverse gear,

- when the speed is higher than 6 mph
(10 km/h) in forward gear,

- when the vehicle has been station-
ary for more than three seconds in
forward gear.
Deactivation
Operating fault
The system will be deacti-
vated automatically when a
trailer is being towed or when
a bicycle carrier is fi tted (vehicle fi t-
ted with a towbar or bicycle carrier
recommended by PEUGEOT).

Reactivation


)
Press button A
again, the warning
lamp switches off, the system is re-
activated.


)
Press button A
, the warning lamp
comes on, the system is fully deacti-
vated. In bad weather or in winter, en-
sure that the sensors are not
covered with mud, ice or snow.
When reverse gear is engaged, an
audible signal (long beep) indicates
that the sensors may be dirty.
When the vehicle is being driven at
a speed below approximately 6 mph
(10 km/h), certain sources of noise
(motorcycles, lorries, pneumatic
drills, ...) may trigger the parking sen-
sor audible signals.
If an operating fault occurs,
this warning lamp is displayed
in the instrument panel and/
or a message appears in
the multifunction screen, ac-
companied by an audible signal (short
beep), when reverse gear is engaged.
Contact a PEUGEOT dealer or a quali-
fi ed workshop.

PRACTICAL INFORMATION
203

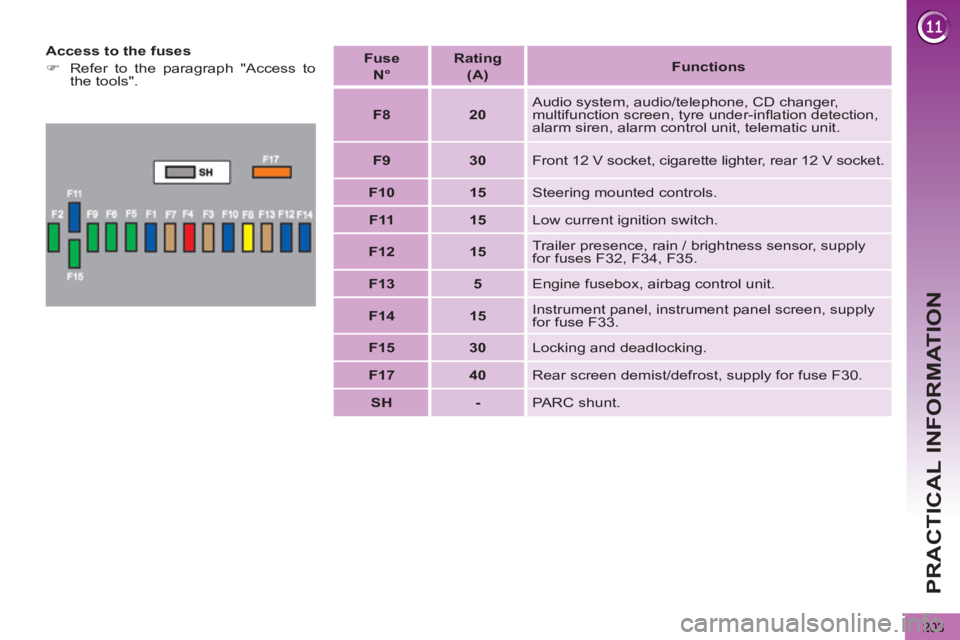

Access to the fuses


)
Refer to the paragraph "Access to
the tools".

Fuse
N°

Rating
(A)

Functions




F8



20

Audio system, audio/telephone, CD changer,
multifunction screen, tyre under-infl ation detection,
alarm siren, alarm control unit, telematic unit.


F9



30

Front 12 V socket, cigarette lighter, rear 12 V socket.


F10



15

Steering mounted controls.


F11



15

Low current ignition switch.


F12



15

Trailer presence, rain / brightness sensor, supply
for fuses F32, F34, F35.


F13



5

Engine fusebox, airbag control unit.


F14



15

Instrument panel, instrument panel screen, supply
for fuse F33.


F15



30

Locking and deadlocking.


F17



40

Rear screen demist/defrost, supply for fuse F30.


SH



-

PARC shunt.

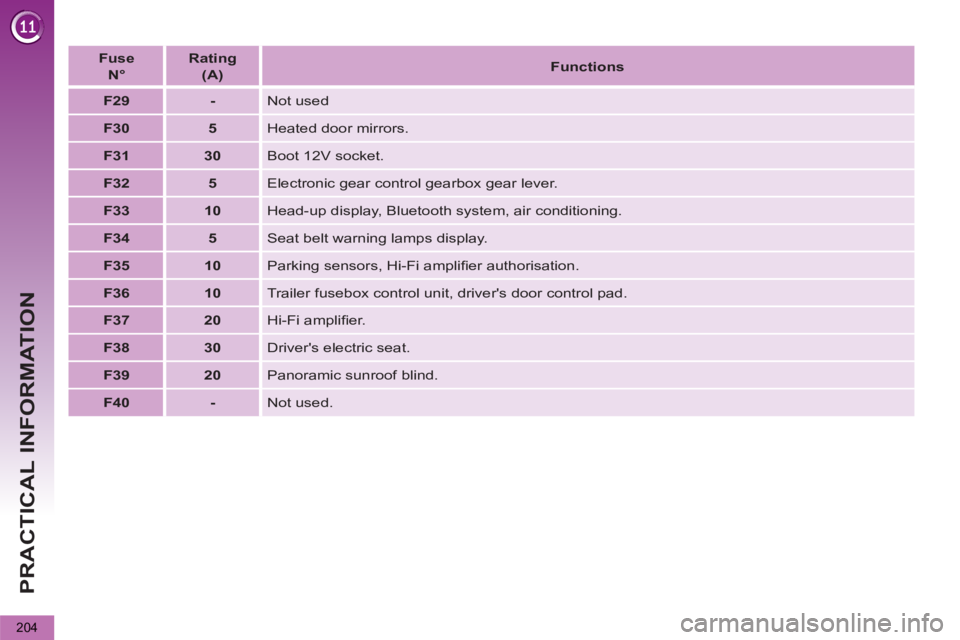

PRACTICAL INFORMATION
204


Fuse
N°



Rating
(A)



Functions




F29



-

Not used


F30



5

Heated door mirrors.


F31



30

Boot 12V socket.


F32



5

Electronic gear control gearbox gear lever.


F33



10

Head-up display, Bluetooth system, air conditioning.


F34



5

Seat belt warning lamps display.


F35



10

Parking sensors, Hi-Fi amplifi er authorisation.


F36



10

Trailer fusebox control unit, driver's door control pad.


F37



20

Hi-Fi amplifi er.


F38



30

Driver's electric seat.


F39



20

Panoramic sunroof blind.


F40



-

Not used.

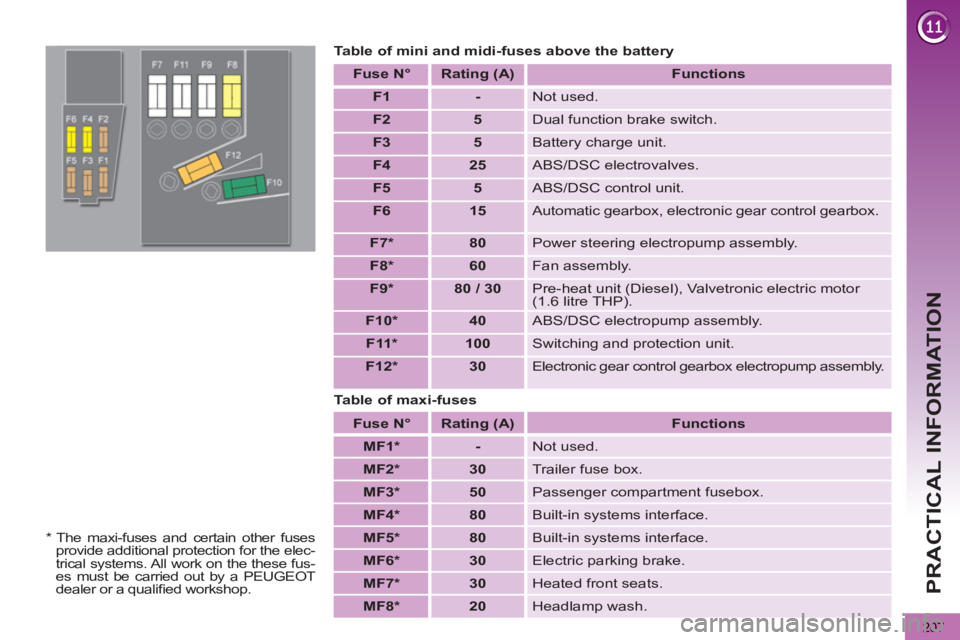

PRACTICAL INFORMATION
207

Table of mini and midi-fuses above the battery

Fuse N°

Rating
(A)


Functions




F1


-

Not used.


F2


5

Dual function brake switch.


F3


5

Battery charge unit.


F4


25

ABS/DSC electrovalves.


F5


5

ABS/DSC control unit.


F6


15

Automatic gearbox, electronic gear control gearbox.


F7 *



80

Power steering electropump assembly.


F8
*


60

Fan assembly.


F9 *



80 / 30

Pre-heat unit (Diesel), Valvetronic electric motor
(1.6 litre THP).


F10 *



40

ABS/DSC electropump assembly.


F11 *



100

Switching and protection unit.


F12 *



30

Electronic gear control gearbox electropump assembly.

Fuse N°

Rating (A)



Functions




MF1 *



-

Not used.


MF2 *



30

Trailer fuse box.


MF3 *



50

Passenger compartment fusebox.


MF4 *



80

Built-in systems interface.


MF5 *



80

Built-in systems interface.


MF6 *



30

Electric parking brake.


MF7 *



30

Heated front seats.


MF8 *



20

Headlamp wash.
Table of maxi-fuses

*

The maxi-fuses and certain other fuses
provide additional protection for the elec-
trical systems. All work on the these fus-
es must be carried out by a PEUGEOT
dealer or a qualifi ed workshop.
