2013 PEUGEOT 5008 Owners Manual

39
IN
S
Following this operation, if you
wish to disconnect the battery,
lock the vehicle and wait at
least fi ve minutes for the zero reset
to be taken into account.

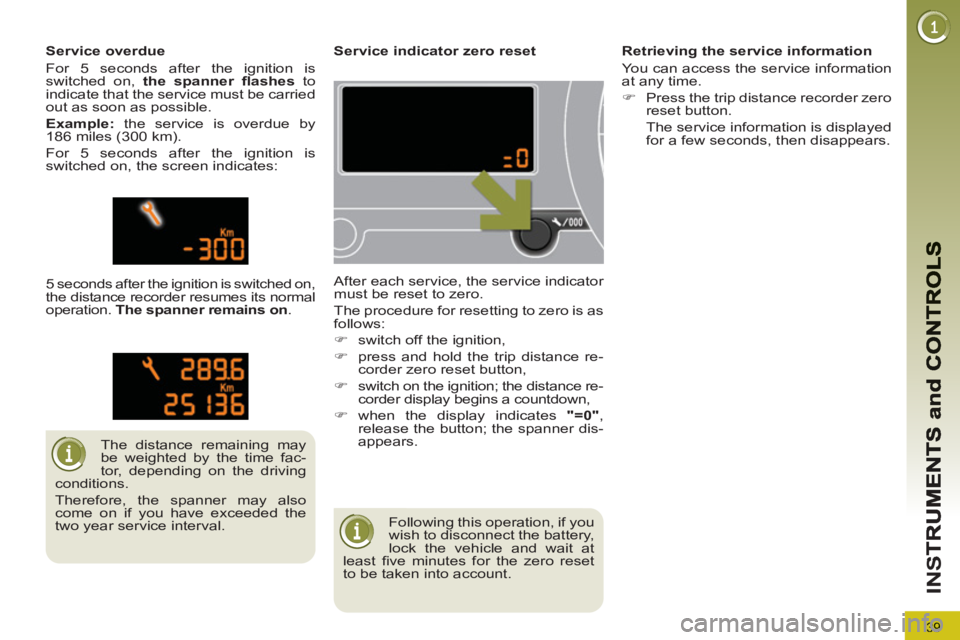

Service indicator zero reset
After each service, the service indicator
must be reset to zero.
The procedure for resetting to zero is as
follows:


)
switch off the ignition,

)
press and hold the trip distance re-
corder zero reset button,

)
switch on the ignition; the distance re-
corder display begins a countdown,

)
when the display indicates "=0"
,
release the button; the spanner dis-
appears.

The distance remaining may
be weighted by the time fac-
tor, depending on the driving
conditions.
Therefore, the spanner may also
come on if you have exceeded the
two year service interval.

Service overdue
For 5 seconds after the ignition is
switched on, the spanner fl ashes
to
indicate that the service must be carried
out as soon as possible.

Example:
the service is overdue by
186 miles (300 km).
For 5 seconds after the ignition is
switched on, the screen indicates:
5 seconds after the ignition is switched on,
the distance recorder resumes its normal
operation. The spanner remains on
.
Retrieving the service information
You can access the service information
at any time.


)
Press the trip distance recorder zero
reset button.
The service information is displayed
for a few seconds, then disappears.

IN
S

The level shown will only be
correct if the vehicle is on lev-
el ground and the engine has
been off for more than 30 minutes.

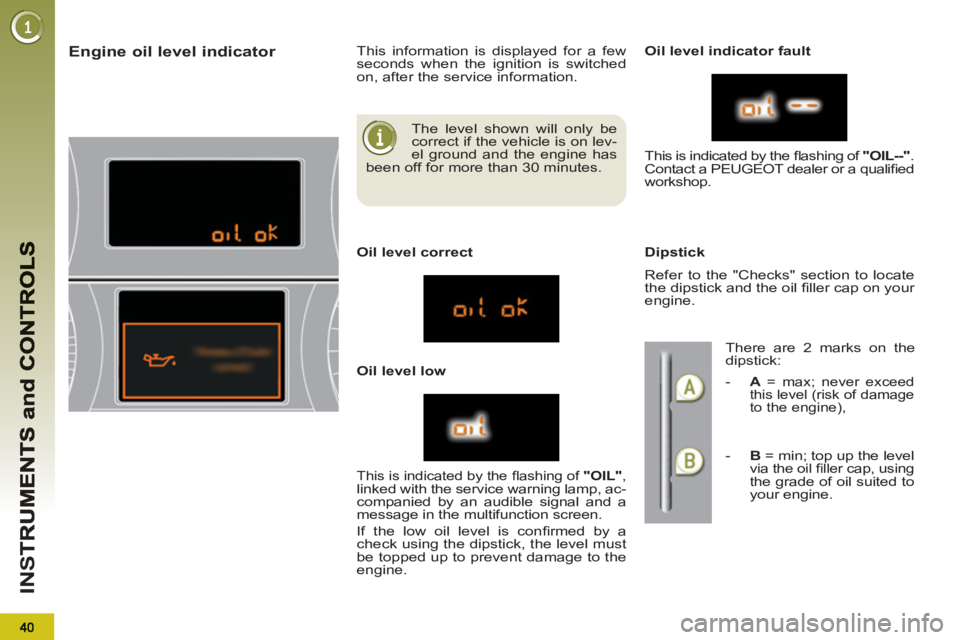

Engine oil level indicator

This information is displayed for a few
seconds when the ignition is switched
on, after the service information.

Oil level correct

Oil level low
Oil level indicator fault

Dipstick

This is indicated by the fl ashing of "OIL"
, linked with the service warning lamp, ac-
companied by an audible signal and a
message in the multifunction screen.
If the low oil level is confi rmed by a
check using the dipstick, the level must
be topped up to prevent damage to the
engine. This is indicated by the fl ashing of "OIL--"
.
Contact a PEUGEOT dealer or a qualifi ed
workshop.
Refer to the "Checks" section to locate
the dipstick and the oil fi ller cap on your
engine.

There are 2 marks on the
dipstick:


-
A
= max; never exceed
this level (risk of damage
to the engine),

- B
= min; top up the level via the oil fi ller cap, using the grade of oil suited to
your engine.

41
IN
S
Total distance recorder
System which measures the total dis-
tance travelled by the vehicle during its
life.
Lighting dimmer
System for manual adjustment of the
brightness of the instrument panel in re-
lation to the exterior brightness.
The total and trip distances are displayed
for thirty seconds when the ignition is
switched off, when the driver's door is
opened and when the vehicle is locked
or unlocked.
Trip distance recorder
System which measures a distance
travelled during a day or other period
since it was reset to zero by the driver.


)
With the ignition on, press the but-
ton until zeros appear.

When the vehicle lighting is
on, you cannot switch the in-
strument panel lighting off but
you can adjust it to minimum.

Deactivation
When the lighting is off, or in day mode
on vehicles fi tted with daytime running
lamps, pressing the button does not
have any effect.

Activation
When the vehicle lighting is on:


)
press the button to change the bright-
ness of the instrument panel,

)
when the lighting reaches the mini-
mum setting, release the button,
then press again to increase it,
or


)
when the lighting reaches the maxi-
mum setting, release the button, then
press again to reduce it,

)
when the lighting reaches the level
of brightness required, release the
button.

To conform to legislation in
the country you are crossing,
change the units of distance
(miles or km) via the confi guration
menu.

M
U
42

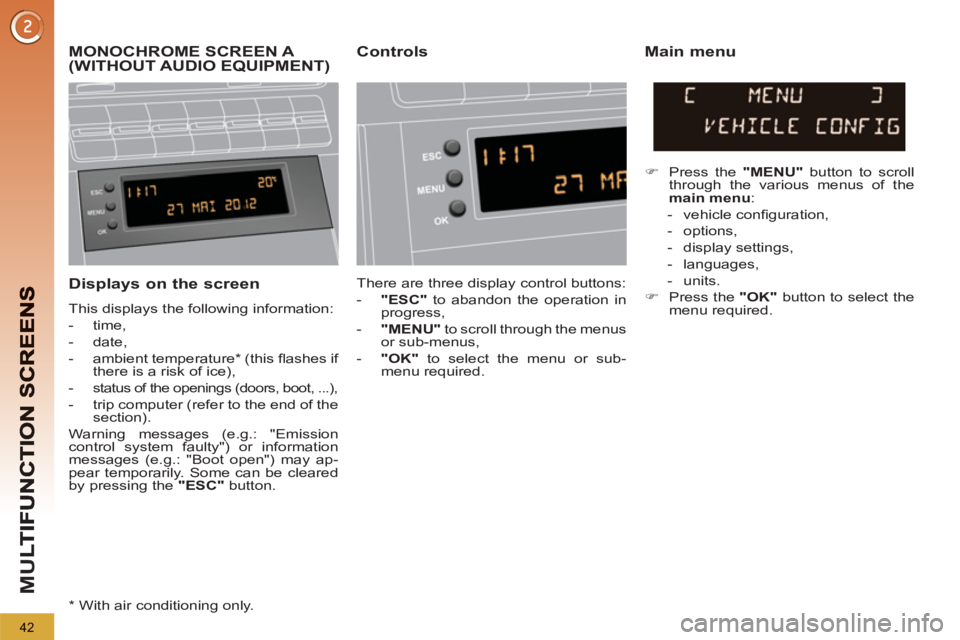

Displays on the screen

This displays the following information:


- time,

- date,

- ambient temperature * (this fl ashes if
there is a risk of ice),

-
status of the openings (doors, boot, ...),


- trip computer (refer to the end of the
section).
Warning messages (e.g.: "Emission
control system faulty") or information
messages (e.g.: "Boot open") may ap-
pear temporarily. Some can be cleared
by pressing the "ESC"
button.


MONOCHROME SCREEN A (WITHOUT AUDIO EQUIPMENT) Controls Main menu

There are three display control buttons:


- "ESC"
to abandon the operation in
progress,

- "MENU"
to scroll through the menus
or sub-menus,

- "OK"
to select the menu or sub-
menu required.


)
Press the "MENU"
button to scroll
through the various menus of the
main menu
:


- vehicle confi guration,

- options,

- display settings,

- languages,

- units.

)
Press the "OK"
button to select the
menu required.

*
With air conditioning only.

M
U
43

Vehicle confi guration
Options
Once the "Options" menu has been se-
lected, you can start diagnostics of the
status of the equipment (active, not active,
faulty).
Languages
Once the "Languages" menu has been
selected, you can change the language
used by the display (Français, Italiano,
Nederlands, Portugues, Portugues-Brasil,
Türkçe, Deutsch, English, Espanol).

Display settings
Once the "Display settings" menu has
been selected, you can gain access to
the following settings:


- year,

- month,

- day,

- hour,

- minutes,

- 12 or 24 hour mode.
Units
Once the "Units" menu has been selected,
you can change the units for:


- temperature (°C or °F),

- fuel consumption (l/100 km, mpg or
km/l).




)
Once you have selected a setting,
press the "OK"
button to change its
value.


)
Wait for approximately ten sec-
onds without any action to allow
the changed data to be recorded or
press the "ESC"
button to cancel.
The screen then returns to the normal
display.

Once the "Vehicle confi guration" menu
has been selected, you can activate or
deactivate the following equipment (ac-
cording to country):


- wiper linked with reverse gear (refer
to the "Visibility" section),

- selective unlocking (refer to the
"Access" section),

-
"guide-me-home" and welcome lighting
(refer to the "Visibility" section),

- interior mood lighting (refer to the
"Visibility" section),

- daytime running lamps (refer to the
"Visibility" section),

- directional headlamps (refer to the
"Visibility" section),

- automatic or manual parking brake
(refer to the "Driving" section),

- ...

For safety reasons, confi gu-
ration of the multifunction
screen by the driver must only
be done when stationary.

M
U
44

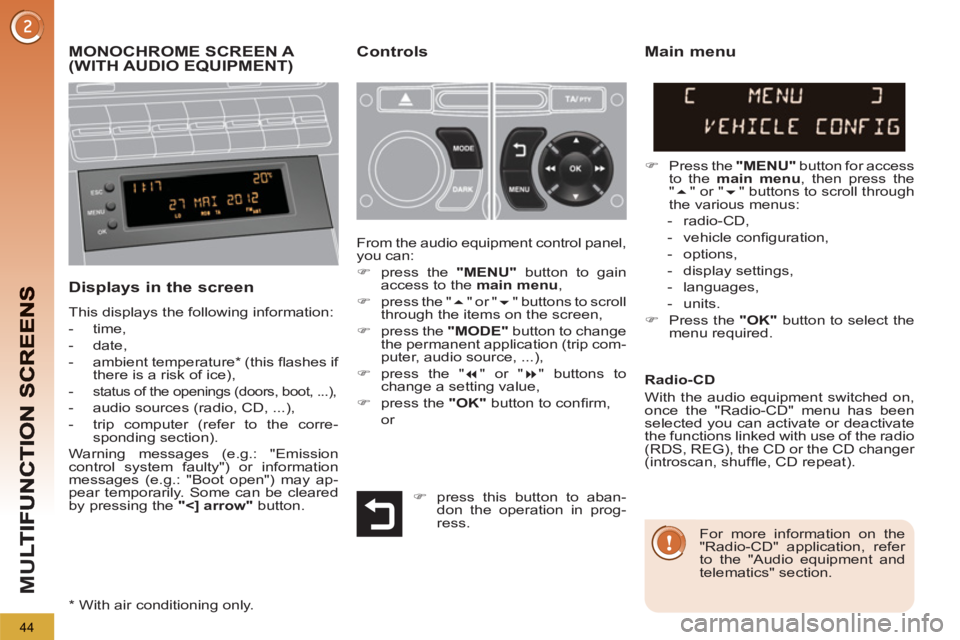

MONOCHROME SCREEN A (WITH AUDIO EQUIPMENT) Controls

Displays in the screen

This displays the following information:


- time,

- date,

- ambient temperature * (this fl ashes if
there is a risk of ice),

-
status of the openings (doors, boot, ...),


- audio sources (radio, CD, ...),

- trip computer (refer to the corre-
sponding section).
Warning messages (e.g.: "Emission
control system faulty") or information
messages (e.g.: "Boot open") may ap-
pear temporarily. Some can be cleared
by pressing the " < ] arrow"
button.



Main menu



)
Press the "MENU"
button for access
to the main menu
, then press the
"
" or "
" buttons to scroll through
the various menus:


- radio-CD,

- vehicle confi guration,

- options,

- display settings,

- languages,

- units.

)
Press the "OK"
button to select the
menu required. From the audio equipment control panel,
you can:


)
press the "MENU"
button to gain
access to the main menu
,

)
press the "
" or "
" buttons to scroll
through the items on the screen,

)
press the "MODE"
button to change
the permanent application (trip com-
puter, audio source, ...),

)
press the "
" or "
" buttons to
change a setting value,

)
press the "OK"
button to confi rm,
or
Radio-CD
With the audio equipment switched on,
once the "Radio-CD" menu has been
selected you can activate or deactivate
the functions linked with use of the radio
(RDS, REG), the CD or the CD changer
(introscan, shuffl e, CD repeat).

For more information on the
"Radio-CD" application, refer
to the "Audio equipment and
telematics" section.
)
press this button to aban-
don the operation in prog-
ress.


*
With air conditioning only.

M
U
45


For safety reasons, confi gu-
ration of the multifunction
screen by the driver must only
be done when stationary.

Display settings
Once the "Display settings" menu has
been selected, you can gain access to
the following settings:


- year,

- month,

- day,

- hour,

- minutes,

- 12 or 24 hour mode.
Languages
Once the "Languages" menu has been
selected, you can change the language
used by the display.

Units
Once the "Units" menu has been se-
lected, you can change the units of the
following parameters:


- temperature (°C or °F),

- fuel consumption (l/100 km, mpg or
km/l).



)
Once you have selected a setting,
press the "
" or "
" buttons to
change its value.


)
Press the "
" or "
" buttons to
switch respectively to the previous
or next setting.

)
Press the "OK"
button to record the
change and return to the normal dis-
play or press the " < ] arrow"
button
to cancel.

Vehicle confi guration

Once the "Vehicle Confi guration" menu
has been selected, you can activate or
deactivate the following equipment (ac-
cording to country):


- wiper linked with reverse gear (refer
to the "Visibility" section),

- selective unlocking (refer to the
"Access" section),

- guide-me-home and welcome lighting
(refer to the "Visibility" section),

- interior mood lighting (refer to the
"Visibility" section),

- daytime running lamps (refer to the
"Visibility" section),

- directional headlamps (refer to the
"Visibility" section),

- automatic or manual parking brake
(refer to the "Driving" section),

- ...

Options

Once the "Options" menu has been selected,
you can start diagnostics of the status of the
equipment (active, not active, faulty).

M
U
46

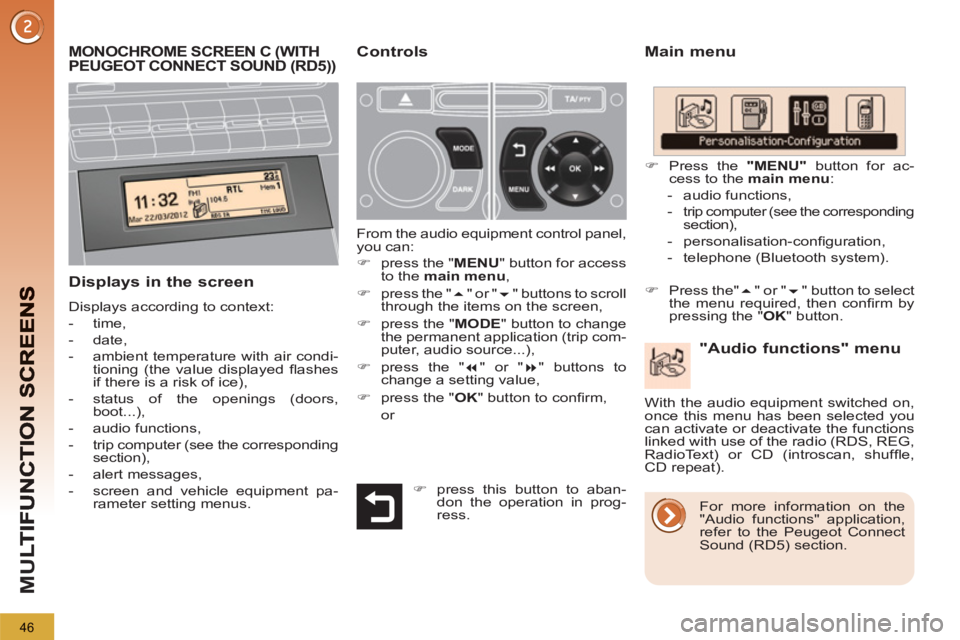

MONOCHROME SCREEN C
(WITH PEUGEOT CONNECT SOUND (RD5))
Main menu

Displays in the screen

Displays according to context:


- time,

- date,

- ambient temperature with air condi-
tioning (the value displayed fl ashes
if there is a risk of ice),

- status of the openings (doors,
boot...),

- audio functions,

- trip computer (see the corresponding
section),

- alert messages,

- screen and vehicle equipment pa-
rameter setting menus.



"Audio functions" menu Controls

From the audio equipment control panel,
you can:


)
press the " MENU
" button for access
to the main menu
,

)
press the "
" or "
" buttons to scroll
through the items on the screen,

)
press the " MODE
" button to change
the permanent application (trip com-
puter, audio source...),

)
press the "
" or "
" buttons to
change a setting value,

)
press the " OK
" button to confi rm,
or


)
Press the "MENU"
button for ac-
cess to the main menu
:


- audio functions,

- trip computer (see the corresponding
section),

- personalisation-confi guration,

- telephone (Bluetooth system).



With the audio equipment switched on,
once this menu has been selected you
can activate or deactivate the functions
linked with use of the radio (RDS, REG,
RadioText) or CD (introscan, shuffl e,
CD repeat).

For more information on the
"Audio functions" application,
refer to the Peugeot Connect
Sound (RD5) section.



)
press this button to aban-
don the operation in prog-
ress.




)
Press the"
" or "
" button to select
the menu required, then confi rm by
pressing the " OK
" button.
