2013 PEUGEOT 5008 Owners Manual

AC
79

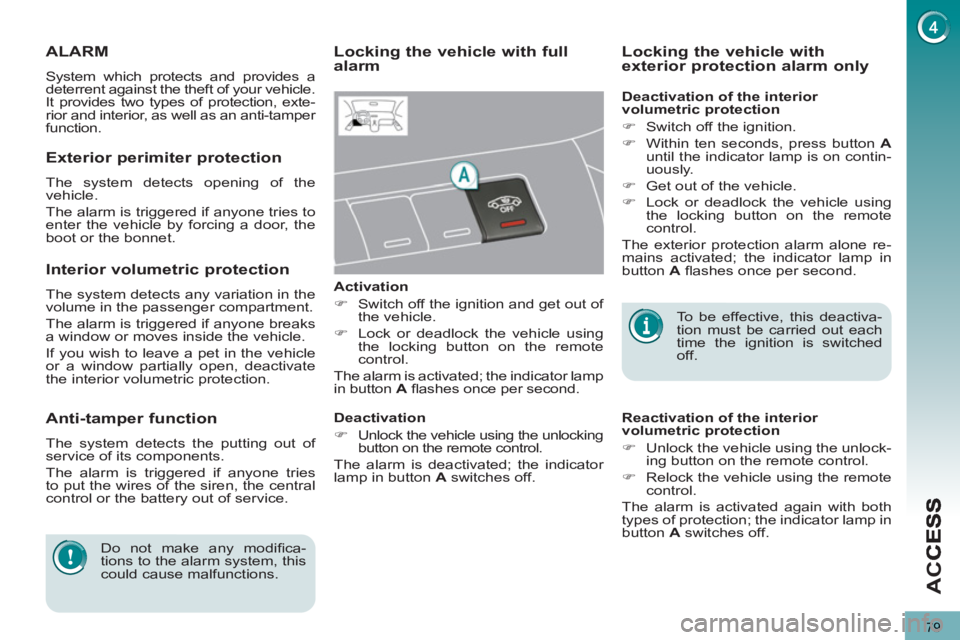

ALARM
System which protects and provides a
deterrent against the theft of your vehicle.
It provides two types of protection, exte-
rior and interior, as well as an anti-tamper
function.

Locking the vehicle with fullalarm


Do not make any modifi ca-
tions to the alarm system, this
could cause malfunctions.

To be effective, this deactiva-
tion must be carried out each
time the ignition is switched
off.

Reactivation of the interior
volumetric protection


)
Unlock the vehicle using the unlock-
ing button on the remote control.

)
Relock the vehicle using the remote
control.
The alarm is activated again with both
types of protection; the indicator lamp in
button A
switches off.


Locking the vehicle with exterior protection alarm only


Deactivation


)
Unlock the vehicle using the unlocking
button on the remote control.
The alarm is deactivated; the indicator
lamp in button A
switches off.

Exterior perimiter protection

The system detects opening of the
vehicle.
The alarm is triggered if anyone tries to
enter the vehicle by forcing a door, the
boot or the bonnet.
Interior volumetric protection

The system detects any variation in the
volume in the passenger compartment.
The alarm is triggered if anyone breaks
a window or moves inside the vehicle.
If you wish to leave a pet in the vehicle
or a window partially open, deactivate
the interior volumetric protection.
Anti-tamper function

The system detects the putting out of
service of its components.
The alarm is triggered if anyone tries
to put the wires of the siren, the central
control or the battery out of service.
Activation


)
Switch off the ignition and get out of
the vehicle.

)
Lock or deadlock the vehicle using
the locking button on the remote
control.
The alarm is activated; the indicator lamp
in button A
fl ashes once per second.
Deactivation of the interior
volumetric protection


)
Switch off the ignition.

)
Within ten seconds, press button A

until the indicator lamp is on contin-
uously.

)
Get out of the vehicle.

)
Lock or deadlock the vehicle using
the locking button on the remote
control.
The exterior protection alarm alone re-
mains activated; the indicator lamp in
button A
fl ashes once per second.

AC
C
80

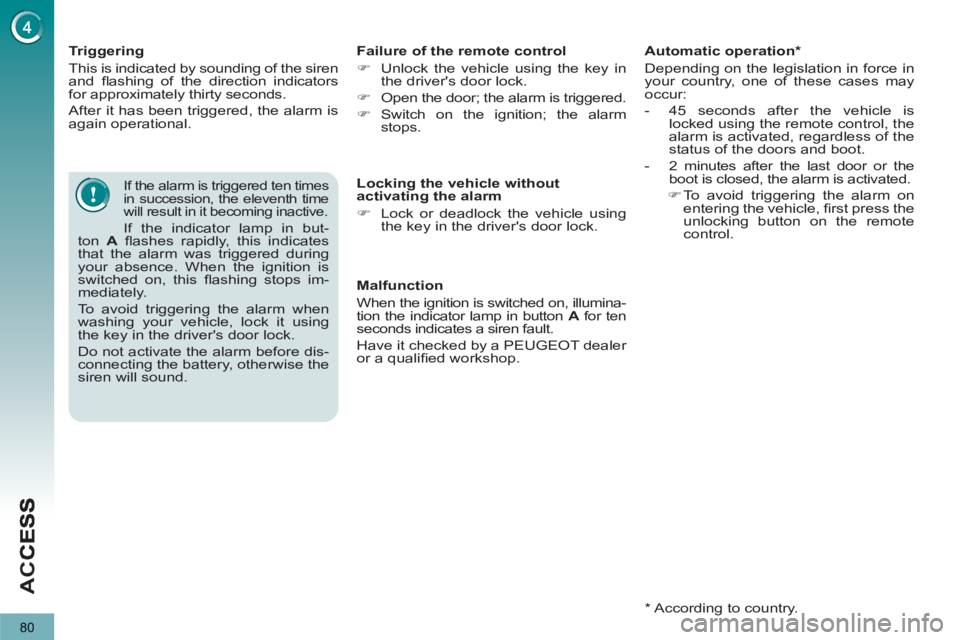

Triggering
This is indicated by sounding of the siren
and fl ashing of the direction indicators
for approximately thirty seconds.
After it has been triggered, the alarm is
again operational.


If the alarm is triggered ten times
in succession, the eleventh time
will result in it becoming inactive.
If the indicator lamp in but-
ton A
fl ashes rapidly, this indicates
that the alarm was triggered during
your absence. When the ignition is
switched on, this fl ashing stops im-
mediately.
To avoid triggering the alarm when
washing your vehicle, lock it using
the key in the driver's door lock.
Do not activate the alarm before dis-
connecting the battery, otherwise the
siren will sound.


Failure of the remote control


)
Unlock the vehicle using the key in
the driver's door lock.

)
Open the door; the alarm is triggered.

)
Switch on the ignition; the alarm
stops.




Malfunction
When the ignition is switched on, illumina-
tion the indicator lamp in button A
for ten
seconds indicates a siren fault.
Have it checked by a PEUGEOT dealer
or a qualifi ed workshop.


Locking the vehicle without
activating the alarm


)
Lock or deadlock the vehicle using
the key in the driver's door lock.



Automatic operation *
Depending on the legislation in force in
your country, one of these cases may
occur:


- 45 seconds after the vehicle is
locked using the remote control, the
alarm is activated, regardless of the
status of the doors and boot.

- 2 minutes after the last door or the
boot is closed, the alarm is activated.


)
To avoid triggering the alarm on
entering the vehicle, fi rst press the
unlocking button on the remote
control.




*
According to country.

AC
81

The electric window controls
remain operational for ap-
proximately 45 seconds after
the ignition is switched off or until the
vehicle is locked after a front door is
opened.
If one of the passenger windows can-
not be operated from the driver's door
control panel, carry out the operation
from the control pad of the passen-
ger door concerned, and vice versa.
ELECTRIC WINDOWS




1.
Driver


2.
Passenger


3.
Rear right


4.
Rear left


5.
Deactivation of the rear electric
windows and doors.




If the window cannot be closed
(for example, in the presence
of ice), immediately after the
movement is reversed:


)
Press and hold the control until
the window opens fully.

)
Then pull the control immediately
and hold it until the window closes.

)
Continue to hold the control for
approximately one second after
the window has closed.

The safety anti-pinch function is
not operational during these op-
erations.


Safety anti-pinch
When the window rises and meets an
obstacle, it stops and partially lowers
again.
Automatic mode


)
Press or pull the control fi rmly. The
window opens or closes fully when
the control is released.

)
Pressing the control again stops the
movement of the window.



One-touch electric windows
After approximately ten con-
secutive complete opening/clos-
ing movements of the window, a
protection function is activated to prevent
damage to the electric window motor.
After this, you have approximately
one minute within which to close the
window.
Once the window is closed, the con-
trols will become available again after
approximately 40 minutes.
System intended to open or close a
window manually or automatically. Fit-
ted with a safety anti-pinch system and
a system for deactivation in the event of
misuse of the rear controls.
Manual mode


)
Press or pull the control gently. The
window stops when the control is re-
leased.

82

Indicator lamp on, the rear
controls are deactivated.
Indicator lamp off, the rear
controls are activated.

This control also deactivates
the interior controls for the
rear doors (see "Child lock").

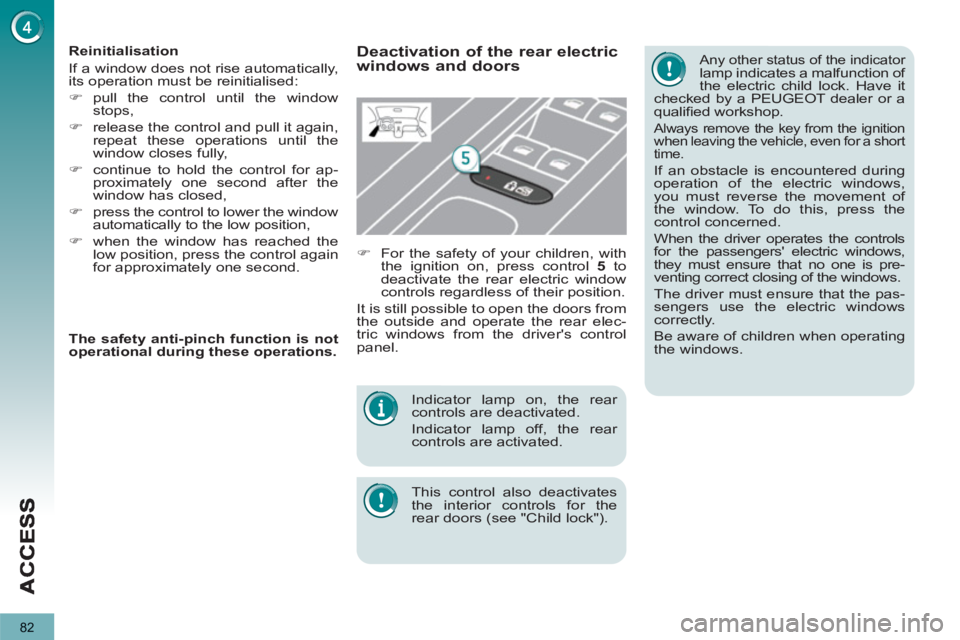

Reinitialisation
If a window does not rise automatically,
its operation must be reinitialised:


)
pull the control until the window
stops,

)
release the control and pull it again,
repeat these operations until the
window closes fully,

)
continue to hold the control for ap-
proximately one second after the
window has closed,

)
press the control to lower the window
automatically to the low position,

)
when the window has reached the
low position, press the control again
for approximately one second.


Any other status of the indicator lamp indicates a malfunction of
the electric child lock. Have it
checked by a PEUGEOT dealer or a
qualifi ed workshop.

Always remove the key from the ignition
when leaving the vehicle, even for a short
time.
If an obstacle is encountered during
operation of the electric windows,
you must reverse the movement of
the window. To do this, press the
control concerned.
When the driver operates the controls
for the passengers' electric windows,
they must ensure that no one is pre-
venting correct closing of the windows.
The driver must ensure that the pas-
sengers use the electric windows
correctly.
Be aware of children when operating
the windows.

Deactivation of the rear electric
windows and doors



)
For the safety of your children, with
the ignition on, press control 5
to
deactivate the rear electric window
controls regardless of their position.
It is still possible to open the doors from
the outside and operate the rear elec-
tric windows from the driver's control
panel.
The safety anti-pinch function is not
operational during these operations.

AC
83

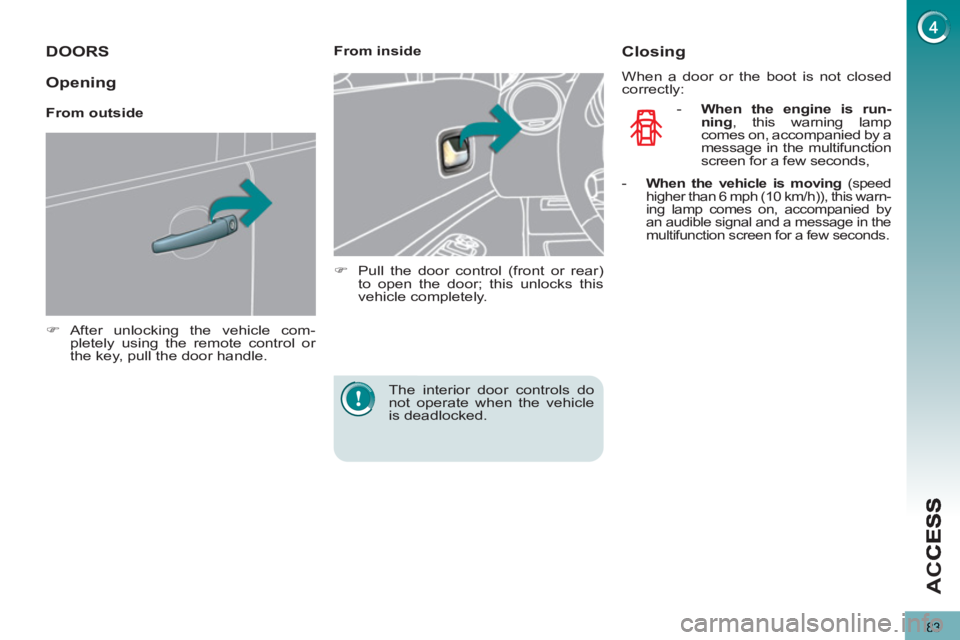

DOORS


)
After unlocking the vehicle com-
pletely using the remote control or
the key, pull the door handle.



From inside


)
Pull the door control (front or rear)
to open the door; this unlocks this
vehicle completely.




The interior door controls do
not operate when the vehicle
is deadlocked.

Closing

When a door or the boot is not closed
correctly:


- When the engine is run-
ning
, this warning lamp
comes on, accompanied by a
message in the multifunction
screen for a few seconds, Opening

From outside

-
When the vehicle is moving
(speed
higher than 6 mph (10 km/h)), this warn-
ing lamp comes on, accompanied by
an audible signal and a message in the
multifunction screen for a few seconds.

AC
C
84
A confi rmation message ap-
pears in the multifunction
screen, accompanied by an

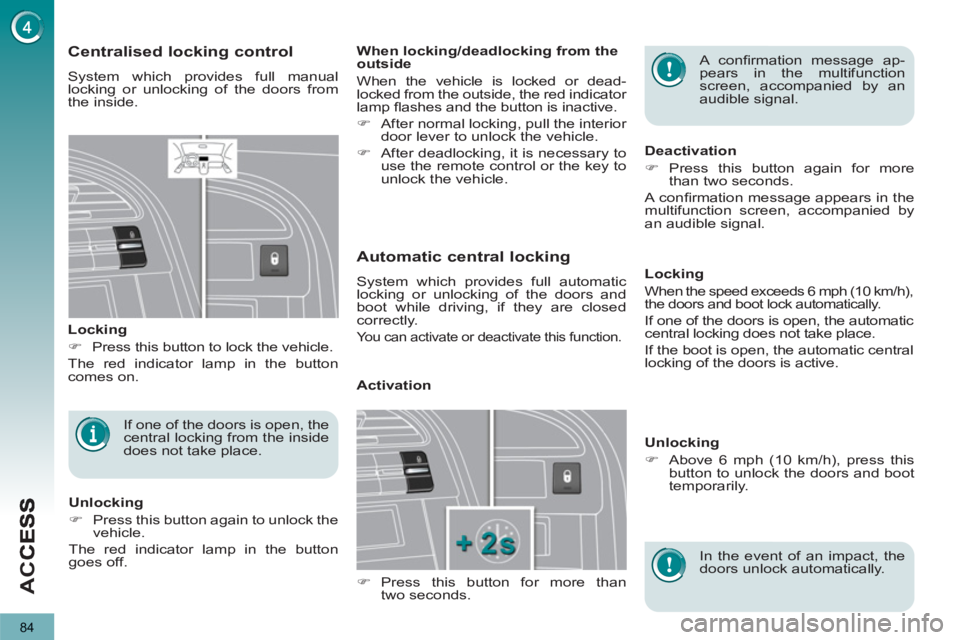

audible signal. Centralised locking control

System which provides full manual
locking or unlocking of the doors from
the inside.

Locking


)
Press this button to lock the vehicle.
The red indicator lamp in the button
comes on.
Automatic central locking
System which provides full automatic
locking or unlocking of the doors and
boot while driving, if they are closed
correctly.
You can activate or deactivate this function.


Locking

When the speed exceeds 6 mph (10 km/h),
the doors and boot lock automatically.
If one of the doors is open, the automatic
central locking does not take place.
If the boot is open, the automatic central
locking of the doors is active.
Deactivation


)
Press this button again for more
than two seconds.
A confi rmation message appears in the
multifunction screen, accompanied by
an audible signal.
If one of the doors is open, the
central locking from the inside
does not take place.

Unlocking


)
Press this button again to unlock the
vehicle.
The red indicator lamp in the button
goes off.
Activation

In the event of an impact, the
doors unlock automatically.

Unlocking


)
Above 6 mph (10 km/h), press this
button to unlock the doors and boot
temporarily.



)
Press this button for more than
two seconds.
When locking/deadlocking from the
outside
When the vehicle is locked or dead-
locked from the outside, the red indicator
lamp fl ashes and the button is inactive.


)
After normal locking, pull the interior
door lever to unlock the vehicle.

)
After deadlocking, it is necessary to
use the remote control or the key to
unlock the vehicle.

AC
85

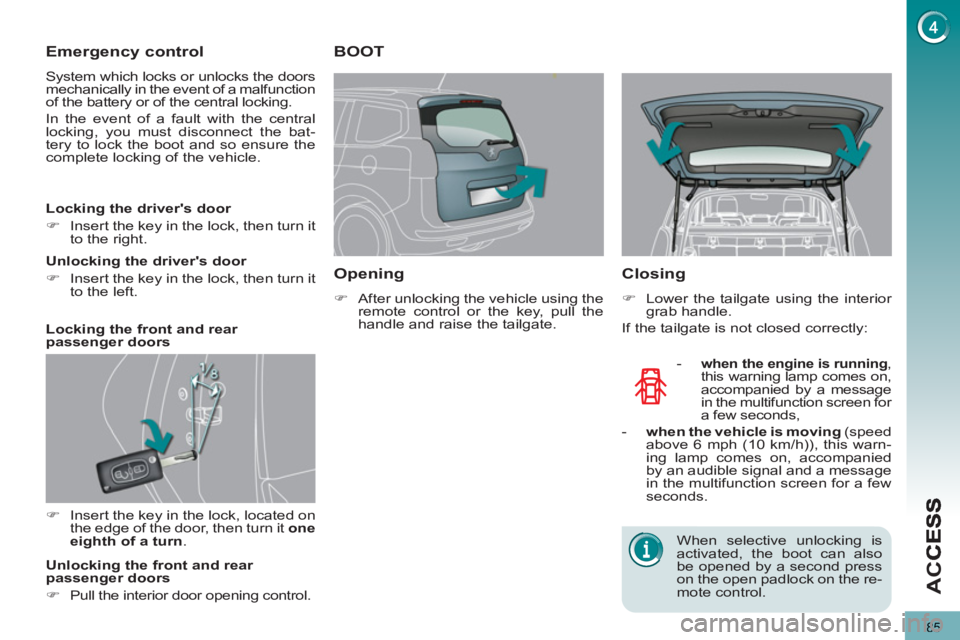

Emergency control
System which locks or unlocks the doors
mechanically in the event of a malfunction
of the battery or of the central locking.
In the event of a fault with the central
locking, you must disconnect the bat-
tery to lock the boot and so ensure the
complete locking of the vehicle.


)
Insert the key in the lock, located on
the edge of the door, then turn it one
eighth of a turn
.

Locking the driver's door


)
Insert the key in the lock, then turn it
to the right.


Unlocking the driver's door


)
Insert the key in the lock, then turn it
to the left.


Locking the front and rear
passenger doors

Unlocking the front and rear
passenger doors


)
Pull the interior door opening control.


BOOT

Openin
g



)
After unlocking the vehicle using the
remote control or the key, pull the
handle and raise the tailgate.



-
when the engine is running
,
this warning lamp comes on,
accompanied by a message
in the multifunction screen for
a few seconds,

- when the vehicle is moving
(speed
above 6 mph (10 km/h)), this warn-
ing lamp comes on, accompanied
by an audible signal and a message
in the multifunction screen for a few
seconds.

Closing



)
Lower the tailgate using the interior
grab handle.
If the tailgate is not closed correctly:
When selective unlocking is
activated, the boot can also
be opened by a second press
on the open padlock on the re-
mote control.

AC
C
86

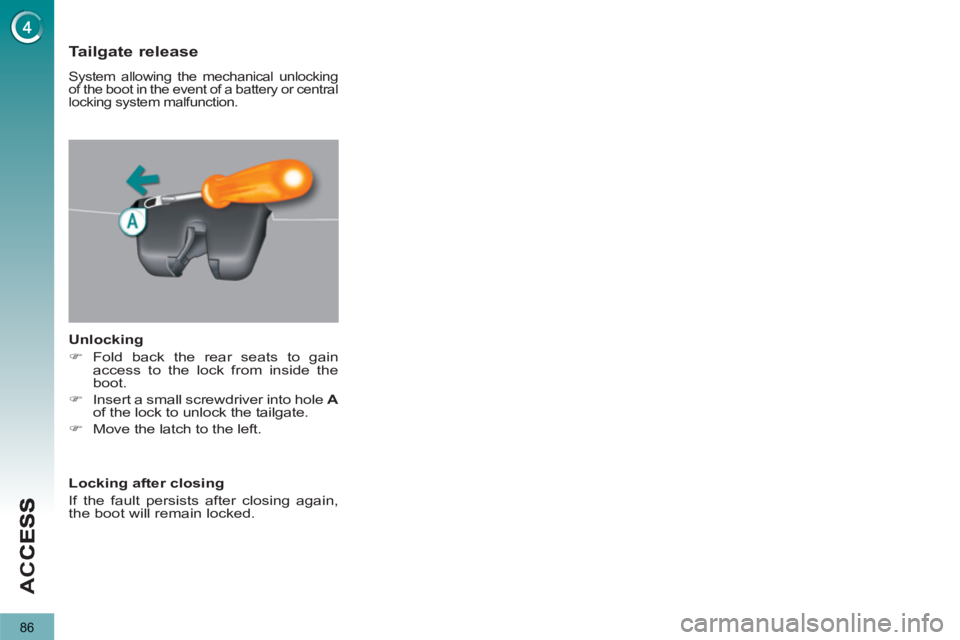

Tailgate release
System allowing the mechanical unlocking
of the boot in the event of a battery or central
locking system malfunction.

Unlocking


)
Fold back the rear seats to gain
access to the lock from inside the
boot.

)
Insert a small screwdriver into hole A

of the lock to unlock the tailgate.

)
Move the latch to the left.


Locking after closing
If the fault persists after closing again,
the boot will remain locked.
