2013 PEUGEOT 5008 Owners Manual

CO
71

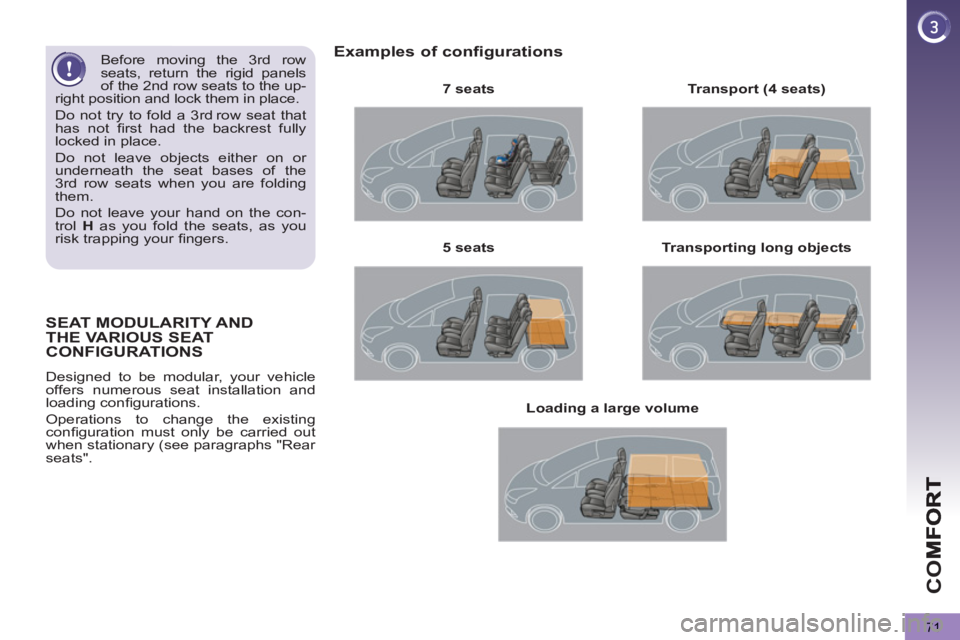

SEAT MODULARITY AND THE VARIOUS SEAT
CONFIGURATIONS
Designed to be modular, your vehicle
offers numerous seat installation and
loading confi gurations.
Operations to change the existing
confi guration must only be carried out
when stationary (see paragraphs "Rear
seats".

Examples of configurations


7 seats

Transporting long objects

5 seats
Transport (4 seats)

Loading a large volume

Before moving the 3 rd row
seats, return the rigid panels
of the 2 nd row seats to the up-
right position and lock them in place.
Do not try to fold a 3 rd

row seat that
has not fi rst had the backrest fully
locked in place.
Do not leave objects either on or
underneath the seat bases of the
3 rd row seats when you are folding
them.
Do not leave your hand on the con-
trol H
as you fold the seats, as you
risk trapping your fi ngers.

72
The objects observed are, in
reality, closer than they ap-
pear.
Take this into account in order to cor-
rectly judge the distance of vehicles
approaching from behind.

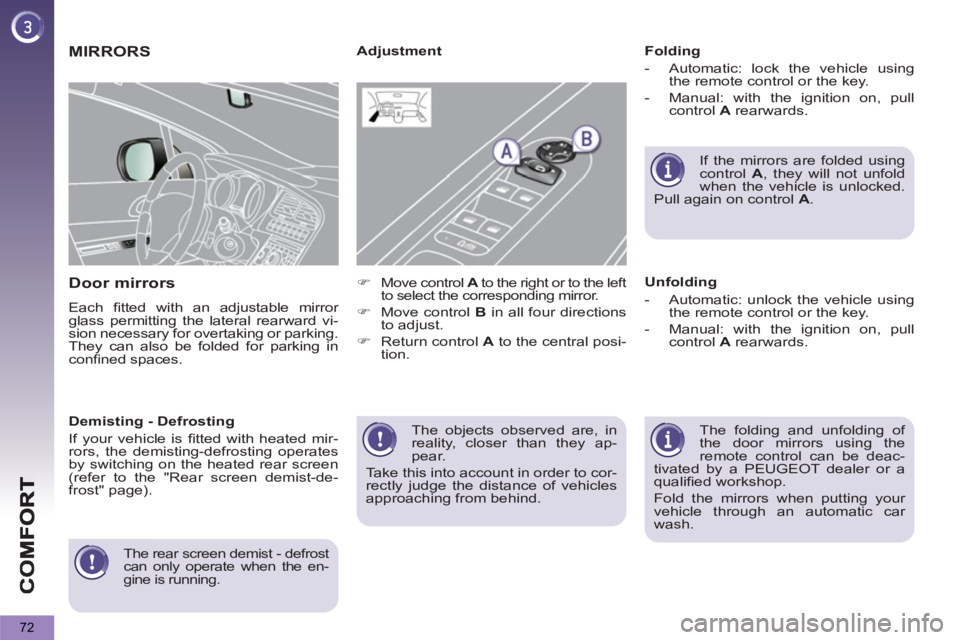

MIRRORS

Door mirrors

Each fi tted with an adjustable mirror
glass permitting the lateral rearward vi-
sion necessary for overtaking or parking.
They can also be folded for parking in
confi ned spaces.

Folding


- Automatic: lock the vehicle using
the remote control or the key.

- Manual: with the ignition on, pull
control A
rearwards.

The folding and unfolding of
the door mirrors using the
remote control can be deac-
tivated by a PEUGEOT dealer or a
qualifi ed workshop.
Fold the mirrors when putting your
vehicle through an automatic car
wash.

Adjustment

Unfolding


- Automatic: unlock the vehicle using
the remote control or the key.

- Manual: with the ignition on, pull
control A
rearwards.
If the mirrors are folded using
control A
, they will not unfold
when the vehicle is unlocked.
Pull again on control A
.


)
Move control A
to the right or to the left
to select the corresponding mirror.

)
Move control B
in all four directions
to adjust.

)
Return control A
to the central posi-
tion.

Demisting - Defrosting
If your vehicle is fi tted with heated mir-
rors, the demisting-defrosting operates
by switching on the heated rear screen
(refer to the "Rear screen demist-de-
frost" page).










The rear screen demist - defrost
can only operate when the en-
gine is running.

CO
73

Adjustment



)
Adjust the mirror so that the glass is di-
rected correctly in the "day" position.


As a safety measure, the mir-
rors should be adjusted to re-
duce the "blind spot".


Manual day/night model

Day/night position


)
Pull the lever to change to the "night"
anti-dazzle position.

)
Push the lever to change to the normal
"day" position.


Rear view mirror

Adjustable mirror providing a central
rearward view.
Equipped with an anti-dazzle system,
which darkens the mirror glass and re-
duces the nuisance to the driver caused
by the sun, headlamps from other ve-
hicles...

In order to ensure optimum vis-
ibility during your manoeuvres,
the mirror lightens automatically when reverse gear is engaged.







Automatic day/night model
By means of a sensor, which measures
the light from the rear of the vehicle, this
system automatically and progressively
changes between the day and night
uses.



)
When stationary
, pull the con-
trol lever to release the adjustment
mechanism.

)
Adjust the height and reach to suit
your driving position.

)

Push the control lever to lock the ad-
justment mechanism.

As a safety precaution, these
operations should only be car-
ried out while the vehicle is
stationary.

74

Unfolding the key


)
First press this button to unfold the
key.



Unlocking the vehicle



)
Press the open padlock to
unlock the vehicle.

Complete unlocking using the
remote control
REMOTE CONTROL KEY
System which permits central unlock-
ing or locking of the vehicle using the
lock or from a distance. It is also used to
locate and start the vehicle, as well as
providing protection against theft.
Complete unlocking using the key


)
Turn the key to the left in the driver's
door lock to unlock the vehicle.
Unlocking is confi rmed by rapid fl ashing
of the direction indicators for approxi-
mately two seconds.
According to version, the door mirrors
unfold at the same time.



Selective unlocking using the
remote control

Selective unlocking using the key


)
Turn the key to the left in the driver's
door lock once to unlock the driver's
door only.

)
Turn the key to the left in the driver's
door lock again to unlock the other
doors and the boot.

)
Press the open padlock
once to unlock the driver's
door only.

)
Press the open padlock again to
unlock the other doors and the
boot.
Each unlocking is confi rmed by rapid
fl ashing of the direction indicators for
approximately two seconds.
According to version, the door mirrors
unfold at the same time as the fi rst
unlocking action.
The selective unlocking is only available
on versions fi tted with deadlocking.
The complete or selective
unlocking parameter is set
via the multifunction screen
confi guration menu.
Complete unlocking is activated by
default.

AC
75
Locating your vehicle


)
Press the closed padlock to locate
your locked vehicle in a car park.
This is indicated by lighting of the direction
indicators for a few seconds. Deadlocking renders the exte-
rior and interior door controls
inoperative.
It also deactivates the manual central
control button.
Therefore, never leave anyone inside
the vehicle when it is deadlocked.






Deadlocking using the remote
control

Deadlocking using the key

Folding the key


)

Press the closed padlock to
lock the vehicle completely
or press the closed padlock
for more than two seconds
to close the windows auto-
matically in addition to lock-
ing (according to version).



)
Turn the key to the right in the driver's
door lock to lock the vehicle com-
pletely and hold it in this position for
more than two seconds to close the
windows automatically in addition to
locking (according to version).

)
Turn the key to the right again within
fi ve seconds to deadlock the vehicle.
Deadlocking is confi rmed by fi xed lighting
of the direction indicators for approximately two seconds.
According to version, the door mirrors
fold at the same time. If one of the doors or the boot
is still open, the central locking
does not take place.
When the vehicle is locked, if it is
unlocked inadvertently, it will relock
automatically after thirty seconds un-
less a door is opened.
Normal locking using the key


)

Turn the key to the right in the driver's
door lock to lock the vehicle completely.

Locking is confi rmed by fi xed lighting of
the direction indicators for approximately
two seconds.
According to version, the door mirrors
fold at the same time.
The folding and unfolding of
the door mirrors using the
remote control can be deac-
tivated by a PEUGEOT dealer or a
qualifi ed workshop.

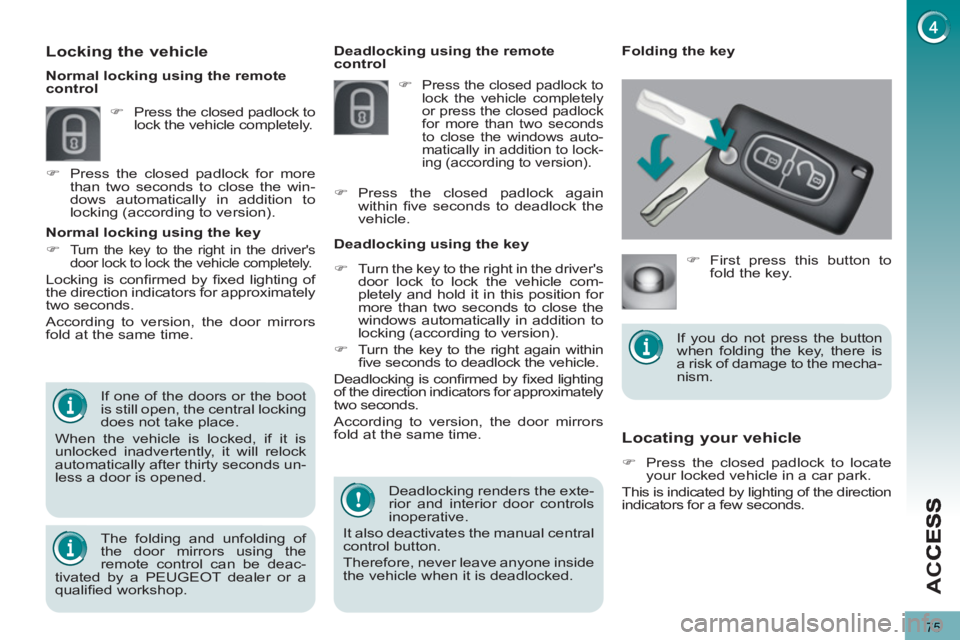

Locking the vehicle



)
Press the closed padlock to
lock the vehicle completely.

)
Press the closed padlock for more
than two seconds to close the win-
dows automatically in addition to
locking (according to version).

Normal locking using the remote
control


)
First press this button to
fold the key.
)
Press the closed padlock again
within fi ve seconds to deadlock the
vehicle.


If you do not press the button
when folding the key, there is
a risk of damage to the mecha-
nism.

AC
C
76

Electronic engine immobiliser
The key contains an electronic chip
which has a special code. When the
ignition is switched on, this code must
be recognised in order for starting to be
possible.
This electronic engine immobiliser locks
the engine management system a few
minutes after the ignition is switched off
and prevents starting of the engine by
anyone who does not have the key.
Anti-theft protection
In the event of a fault, you are
informed by illumination of this
warning lamp, an audible signal
and a message in the screen.
In this case, your vehicle will not start;
contact a PEUGEOT dealer as soon as
possible.
Keep safely the label attached to the
keys given to you on acquisition of the
vehicle.

For more information, refer to
the "Practical information - En-
ergy economy mode" section.

Starting the vehicle



)
Insert the key in the ignition switch.
The system recognises the starting
code.

)
Turn the key fully towards the dash-
board to position 3 (Starting)
.

)
When the engine starts, release the
key.

Switching the vehicle off



)
Immobilise the vehicle.

)
Turn the key fully towards you to po-
sition 1 (Stop)
.

)
Remove the key from the ignition
switch.
Energy economy mode

After switching off the engine (position 1-
Stop
), you can still use functions such as
the audio and telematics system, the wip-
ers, the dipped headlamps, the courtesy
lamps, etc. for a maximum combined pe-
riod of thirty minutes.


A heavy object (key fob...),
attached to the key and weigh-
ing down on its shaft in the
ignition switch, could cause a
malfunction.

AC
77

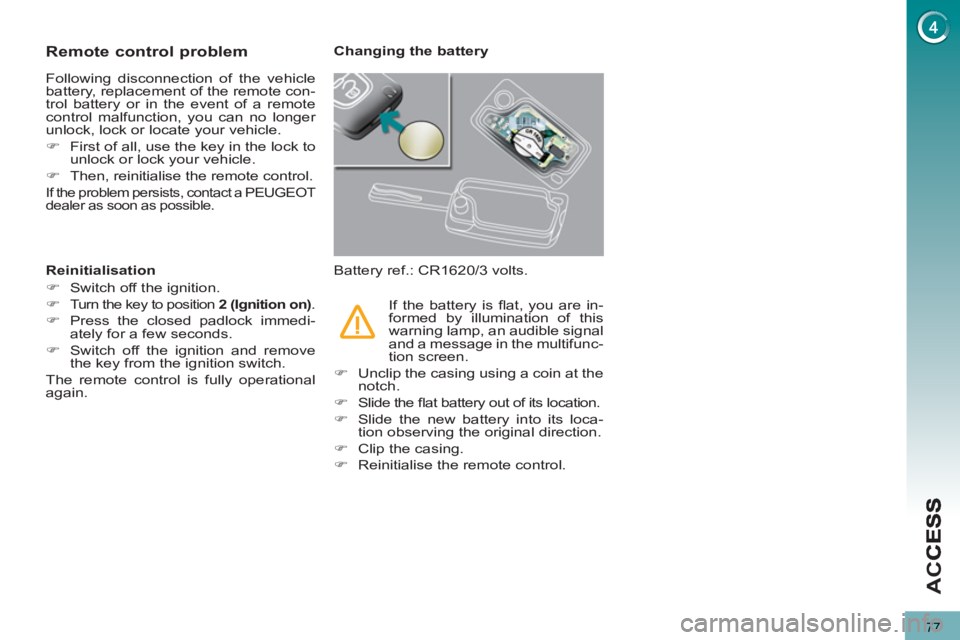

Remote control problem
Following disconnection of the vehicle
battery, replacement of the remote con-
trol battery or in the event of a remote
control malfunction, you can no longer
unlock, lock or locate your vehicle.


)
First of all, use the key in the lock to
unlock or lock your vehicle.

)
Then, reinitialise the remote control.

If the problem persists, contact a PEUGEOT
dealer as soon as possible.

Changing the battery
Battery ref.: CR1620/3 volts.

Reinitialisation


)
Switch off the ignition.

)

Turn the key to position 2 (Ignition on)
.


)
Press the closed padlock immedi-
ately for a few seconds.

)
Switch off the ignition and remove
the key from the ignition switch.
The remote control is fully operational
again. If the battery is fl at, you are in-
formed by illumination of this
warning lamp, an audible signal
and a message in the multifunc-
tion screen.


)
Unclip the casing using a coin at the
notch.

)
Slide the fl at battery out of its location.

)
Slide the new battery into its loca-
tion observing the original direction.

)
Clip the casing.

)
Reinitialise the remote control.

AC
C
78
Lost keys
Visit a PEUGEOT dealer with the vehicle's registration document, your
personal identifi cation documents and if possible the key code label.
The PEUGEOT dealer will be able to look up the key code and the transponder
code required to order a new key.







Do not throw the remote con-
trol batteries away, they contain
metals which are harmful to the
environment.
Take them to an approved collection
point.

Remote control

The high frequency remote control is a sensitive system; do not operate it while
it is in your pocket as there is a possibility that it may unlock the vehicle, without
you being aware of it.
Do not repeatedly press the buttons of your remote control out of range and
out of sight of your vehicle. You run the risk of stopping it from working and the
remote control would have to be reinitialised.
No remote control can operate when the key is in the ignition switch, even when
the ignition is switched off, except for reinitialisation.


Locking the vehicle

Driving with the doors locked may make access to the passenger compartment
by the emergency services more diffi cult in an emergency.
However, the vehicle unlocks automatically in the event of a serious impact
causing airbag deployment.
As a safety precaution, never leave children alone in the vehicle, except for a
very short period.
In all cases, it is essential to remove the key from the ignition switch when leaving
the vehicle.


Anti-theft protection

Do not make any modifi cations to the electronic engine immobiliser system; this
could cause malfunctions.


When purchasing a second-hand vehicle

Have the pairing of all of the keys in your possession checked by a PEUGEOT
dealer, to ensure that only your keys can be used to open and start the vehicle.
