Warning lamps
When the engine is running or the vehicle is being driven, the illumination of one of the following warning lamps indicates a
fault which requires action on the part of the driver.
Any fault resulting in the illumination of a warning lamp must be investigated further by reading the associated message in
the multifunction screen.
If you encounter any problems, do not hesitate to contact a PEUGEOT dealer or a qualifi ed workshop.



Warning lamp



is on



Cause



Action/Observations




STOP




fi xed, alone or
associated with
another warning lamp,
accompanied by an
audible signal and a
message in the screen.
Illumination of this warning
lamp is associated with a
serious braking system, power
steering, engine lubrication or
cooling system malfunction or
a punctured tyre. Stop as soon as it is safe to do so as
there is a risk that the engine will cut out
while driving.
Park, switch off the ignition and contact a
PEUGEOT dealer or a qualifi ed workshop.







Service


on temporarily. A minor fault has occurred
for which there is no specifi c
warning lamp. Identify the fault by reading the message
shown in the screen, such as, for
example:


- the closing of the doors, boot or
bonnet,

- the engine oil level,

- the screenwash level,

- the remote control battery,

- the tyre pressures,

- saturation of the particle emission
fi lter (Diesel).

- ...
For any other faults, contact a PEUGEOT
dealer or a qualifi ed workshop.

fi xed. A major fault has occurred
for which there is no specifi c
warning lamp. Identify the fault by reading the message
shown on the screen and contact
a PEUGEOT dealer or a qualifi ed
workshop.


PEF:
particle
emissions
fi lter, Diesel


fi xed, associated
temporarily with a
message on the risk of
blockage of the PEF. This indicates the start of
saturation of the particle
emissions fi lter. As soon as traffi c conditions allow,
regenerate the fi lter by driving at a
speed of at least 35 mph (60 km/h) until
the service warning lamp goes off.

fi xed. This indicates the low level in
the Diesel additive reservoir.
Have the level topped up by a PEUGEOT dealer
or a qualifi ed workshop as soon as possible.

35
IN
S


Warning lamp



is on



Cause



Action/Observations




Engine
autodiagnosis
system

fl ashing. The engine management
system has a fault. Risk of destruction of the catalytic converter.
Have it checked by a PEUGEOT dealer or
a qualifi ed workshop.

fi xed. The emission control system
has a fault. The warning lamp should go off when
the engine is started.
If it does not go off, contact a PEUGEOT
dealer or qualifi ed workshop without delay.






Low fuel
level


fi xed with the needle
in the red zone. When it fi rst comes on there
remains approximately 6 litres

of fuel in the tank.
At this point, you begin to
use the fuel reserve. Refuel as soon as possible to avoid
running out of fuel.
This warning lamp will come on every
time the ignition is switched on, until a
suffi cient addition of fuel is made.
Fuel tank capacity: approximately 60 litres
.
Never continue to drive until you run
out of fuel, as this could damage the
emission control and injection systems.


Maximum
coolant
temperature


fi xed with the needle
in the red zone. The temperature of the
cooling system is too high. Stop as soon as it is safe to do so.
Wait until the engine has cooled down
before topping up the level, if necessary.
If the problem persists, contact a
PEUGEOT dealer or a qualifi ed workshop.


Engine oil
pressure


fi xed. There is a fault with the
engine lubrication system. You must stop as soon it is safe to do so.
Park, switch off the ignition and contact a
PEUGEOT dealer or a qualifi ed workshop.







Dynamic
stability
control

(DSC/ASR)


fl ashing. The DSC/ASR regulation is
operating. The system optimises traction and
improves the directional stability of the
vehicle.

fi xed. Unless it has been
deactivated (button pressed
and its indicator lamp on) the
DSC/ASR system has a fault. Have it checked by a PEUGEOT or a
qualifi ed workshop.

CHECKS
178
Avoid prolonged contact of
used oil or fl uids with the skin.
Most of these fl uids are harm-
ful to health or indeed very corrosive.
Do not discard used oil or fl uids
into sewers or onto the ground.
Take used oil to a PEUGEOT
dealer or a qualifi ed workshop
(France) or to an authorised waste
disposal site.










Diesel additive level (Diesel engine
with particle emission filter)







Used products


Topping up
This additive must be topped up by a
PEUGEOT dealer or a qualifi ed work-
shop without delay.
A low additive level is indi-
cated by illumination of the
service warning lamp, accom-
panied by an audible warning
and a message in the instrument panel
screen.
Fluid specifi cation
For optimum cleaning and to avoid
freezing, this fl uid must not be topped
up with or replaced with plain water.

In the case of vehicles fi tted
with headlamp washers, the
low fl uid level is indicated by an
audible signal and a message
in the instrument panel screen.
Top up the reservoir when you next stop
the vehicle.





















Screenwash and headlamp
wash fluid






The cooling fan may start after
switching off the engine: take care
with articles and clothing that might
become caught by the fan blades.



Fluid specifi cation
The coolant must conform to the manu-
facturer's recommendations.

Changing the coolant
The coolant does not have to be
changed.











Coolant level


The coolant level should be
close to the "MAX" mark but
should never exceed it.
When the engine is warm, the
temperature of the coolant is regulated
by the fan.
In addition, as the cooling system is
pressurised, wait at least one hour after
switching off the engine before carrying
out any work.
To avoid any risk of scalding, unscrew
the cap by two turns to allow the pres-
sure to drop. When the pressure has
dropped, remove the cap and top up
the level.

PRACTICAL INFORMATION
205

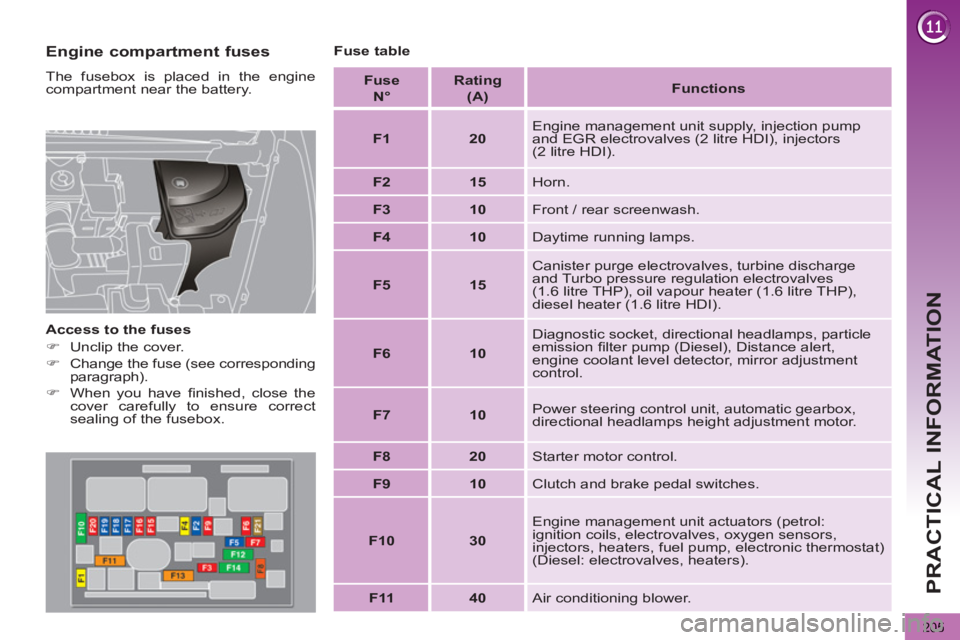

Engine compartment fuses

The fusebox is placed in the engine
compartment near the battery.

Access to the fuses


)
Unclip the cover.

)
Change the fuse (see corresponding
paragraph).

)
When you have fi nished, close the
cover carefully to ensure correct
sealing of the fusebox.

Fuse table

Fuse
N°

Rating
(A)



Functions




F1



20

Engine management unit supply, injection pump
and EGR electrovalves (2 litre HDI), injectors
(2 litre HDI).


F2



15

Horn.


F3



10

Front / rear screenwash.


F4



10

Daytime running lamps.


F5



15

Canister purge electrovalves, turbine discharge
and Turbo pressure regulation electrovalves
(1.6 litre THP), oil vapour heater (1.6 litre THP),
diesel heater (1.6 litre HDI).


F6



10

Diagnostic socket, directional headlamps, particle
emission fi lter pump (Diesel), Distance alert,
engine coolant level detector, mirror adjustment
control.


F7



10

Power steering control unit, automatic gearbox,
directional headlamps height adjustment motor.


F8



20

Starter motor control.


F9



10

Clutch and brake pedal switches.



F10



30

Engine management unit actuators (petrol:
ignition coils, electrovalves, oxygen sensors,
injectors, heaters, fuel pump, electronic thermostat)
(Diesel: electrovalves, heaters).


F11



40

Air conditioning blower.

PRACTICAL INFORMATION
206

Fuse
N°

Rating
(A)

Functions




F12



30

Windscreen wipers slow / fast speed.


F13



40

Built-in systems interface supply (ignition positive).


F14



30

Air pump.


F15



10

Right-hand main beam headlamp.


F16



10

Left-hand main beam headlamp.


F17



15

Left-hand dipped headlamp.


F18



15

Right-hand dipped headlamp.


F19



15

Oil vapour heater (1.6 litre VTi), Turbo pressure
regulation electrovalve (Diesel), engine coolant
level detector (Diesel).


F20



10

Electronic thermostat, variable timing electrovalves,
Turbo pressure regulation electrovalve (Diesel),
engine coolant level detector (Diesel).


F21



5

Fan assembly relay supply, Valvetronic relay
control (1.6 litre VTi), Turbo cooling (1.6 litre THP),
air fl ow sensor (1.6 litre HDI).
