Displays in the screen
When the screen is unfolded, it displays
the following information automatically
and directly:


- time,

- date,

- altitude,

-
ambient temperature (the value dis-
played fl ashes if there is a risk of ice),


- doors check,

- warning and vehicle function status
messages, displayed temporarily,

- audio functions,

- trip computer information.

- satellite navigation system information. From the audio system control panel:


)
press the dedicated "RADIO"
,
"MUSIC"
, "NAV"
, "TRAFFIC"
,
"SETUP"
or "PHONE"
button for
access to the corresponding menu,

)
turn the navigator to move the se-
lection,

)
press the navigator to confi rm the
selection,
or
16/9 RETRACTABLE COLOUR SCREEN (WITH
PEUGEOT CONNECT NAVIGATION (RT6) OR
PEUGEOT CONNECT MEDIA NAVIGATION (NG4 3D))

Controls


For operation of the retractable
screen (opening, closing, ad-
justment of the position, etc.),
refer to the paragraph "Access to the
retractable screen".

For more information on these
applications, refer to the "Au-
dio equipment and telematics"
section.

Depending on the equipment fi tted to
your vehicle, the trip computer informa-
tion appears in either the multifunction
screen or the instrument panel screen.

)
press the this button to aban-
don the current operation
and return to the previous
display.

M
U
50

"SETUP" menu




)
Press the "SETUP"
button for access
to the "SETUP"
menu. This allows
you to select from the following func-
tions:


- "Languages" (Peugeot Connect
Navigation (RT6)),

- "Languages and voice functions"
(Peugeot Connect Media Navigation
(NG4 3D))

- "Date and time",

- "Display",

- "Vehicle parameters" (Peugeot
Connect Navigation (RT6)),

- "Units",

- "System".



Languages (Peugeot Connect
Navigation (RT6))
This menu allows you to select the lan-
guage used by the display.

Languages and voice functions
(Peugeot Connect Media Navigation
(NG4 3D))
This menu allows you to :


- select the language used by the display,

- select the settings for voice recognition
(on/off, instructions on use, personal
voice training...),

- adjust the volume of the voice syn-
thesiser.

Date and time
This menu allows you to set the date
and time, the format of the date and the
format of the time.

Display
This menu allows you to set the bright-
ness of the screen, the screen colour
scheme and the colour of the map (day/
night or auto mode).

Vehicle parameters (Peugeot
Connect Navigation (RT6))
This menu allows you to activate or
deactivate certain driving and comfort
equipment * :


- wiper linked with reverse gear (refer
to the "Visibility" section),

- selective unlocking (refer to the
"Access" section),

- guide-me-home and welcome lighting
(refer to the "Visibility" section),

- interior mood lighting (refer to the
"Visibility" section),

- daytime running lamps (refer to the
"Visibility" section),

- directional headlamps (refer to the
"Visibility" section),

- automatic or manual parking brake
(refer to the "Driving" section),

- ...


For safety reasons, confi gu-
ration of the multifunction
screen by the driver must only
be done when stationary.



Units
This menu allows you to select the
units: temperature (°C or °F) and fuel
consumption (km/l, l/100 or mpg).

*
According to country.
System
This menu allows you to restore the fac-
tory confi guration, display the software
version and activate scrolling text.

PRACTICAL INFORMATION
211
Let the engine run for the
duration specifi ed to ensure
that the battery charge is suf-
fi cient.
Do not repeatedly and continuously
restart the engine in order to charge
the battery.
A fl at battery prevents the engine
from starting (refer to the "Battery"
paragraph). If the telephone is being used
at this time:


- i
t will be maintained for 5 minutes with
the hands-free kit of your Peugeot
Connect Sound or Peugeot Connect
Navigation,

- it will still be possible to fi nish the
call with the Peugeot Connect
Media.



Exiting economy mode

These functions are reactivated auto-
matically next time the vehicle is driven.
To restore the use of these functions im-
mediately, start the engine and let it run
for at least 5 minutes.
CHANGING A WIPER BLADE

Removing



)
Raise the corresponding wiper arm.

)
Unclip the wiper blade and remove it.



Fitting



)
Put the corresponding new wiper
blade in place and clip it.

)
Fold down the wiper arm carefully.



Before removing a front wiper
blade


)
Within one minute after switching off
the ignition, operate the wiper stalk
to position the wiper blades verti-
cally on the windscreen.



After fitting a front wiper blade



)
Switch on the ignition.

)
Operate the wiper stalk again to
park the wiper blades.

LOAD REDUCTION MODE

System which manages the use of cer-
tain functions according to the level of
charge remaining in the battery.
When the vehicle is being driven, the load
reduction function temporarily deactivates
certain functions, such as the air condi-
tioning, the heated rear screen...
The deactivated functions are reactivat-
ed automatically as soon as conditions
permit.
ENERGY ECONOMY MODE
System which manages the duration of
use of certain functions to conserve a
suffi cient level of charge in the battery.
After the engine has stopped, you can
still use functions such as the audio and
telematics system, windscreen wip-
ers, dipped beam headlamps, courtesy
lamps, etc. for a maximum combined
duration of thirty minutes.
This period may be greatly reduced if
the battery is not fully charged.

Switching to economy mode

Once this time has elapsed, a message
appears in the screen indicating that
the vehicle has switched to economy
mode and the active functions are put
on standby.

PRACTICAL INFORMATION
216

"Multimedia":

audio systems, amplifi ers, satellite navigation systems, Bluetooth hands-free system, CD
changer, speakers, DVD player, USB Box,
front and rear parking sensors, additional
Bluetooth wireless headphones, Bluetooth
audio headphones mains charger.


Installation of radio
communication
transmitters
Before installing any after-market ra-
dio communication transmitter, you
can contact a PEUGEOT dealer for
the specifi cation of transmitters which
can be fi tted (frequency, maximum
power, aerial position, specifi c instal-
lation requirements), in line with the
Vehicle Electromagnetic Compatibility
Directive (2004/104/EC).




"Protection":

mats * , boot tray, luggage net, coat
hanger fi xed on head restraint, stainless
steel or carbon fi bre style door sills.

*
To avoid any risk of jamming of the
pedals:


- ensure that the mat is positioned
and secured correctly,

- never fi t one mat on top of another.






ACCESSORIES

A wide range of accessories and genu-
ine parts is available from the PEUGEOT
dealer network.
These accessories and parts have been
tested and approved for reliability and
safety.
They are all adapted to your vehicle and
benefi t from PEUGEOT's recommenda-
tion and warranty.


"Safety and security":

anti-theft alarm, window etching, wheel
security bolts, fi rst aid kit, breathalyzer,
warning triangle, high visibility vest, sto-
len vehicle tracking system, dog guard,
snow chains.


"Style":

seat covers compatible with lateral air-
bags, leather gear lever knob, foglamps,
door defl ectors, spoiler, styling strips,
alloy wheels, trims, chrome-plated door
handle shells.
Depending on the legislation
in force in the country, it may
be compulsory to have a high
visibility safety vest, warning triangle
and spare bulbs and fuses available
in the vehicle.
The fi tting of electrical equip-
ment or accessories which
are not recommended by
PEUGEOT may result in a failure of
your vehicle's electronic system and
excessive electrical consumption.
Please note this precaution. You are
advised to contact a PEUGEOT rep-
resentative to be shown the range of
recommended equipment and acces-
sories.








"Transport solutions":

For leisure pursuits: roof bars, bicycle
carrier on towbar, bicycle carrier on roof
bars, ski carrier, roof box, booster seats
and child seats, side blinds, under shelf
storage.
Trailer towbar, which must be fi tted by a
PEUGEOT dealer.

You can also obtain cleaning and main-
tenance products (exterior and interior),
products for topping up (screenwash
fl uid...) and refi lls (sealant cartridge
for the temporary puncture repair kit...)
from PEUGEOT dealers.

231

The system is protected in such a way that it will onlyoperate in your vehicle.
Peugeot Connect Media Navigation (NG4 3D)


For safety reasons, it is imperative that the driver carries out operations which require prolonged attention
while the vehicle is stationary.
When the en
gine is switched off and to prevent
discharging of the battery, the system switches off
following the activation of the energy economy mode.

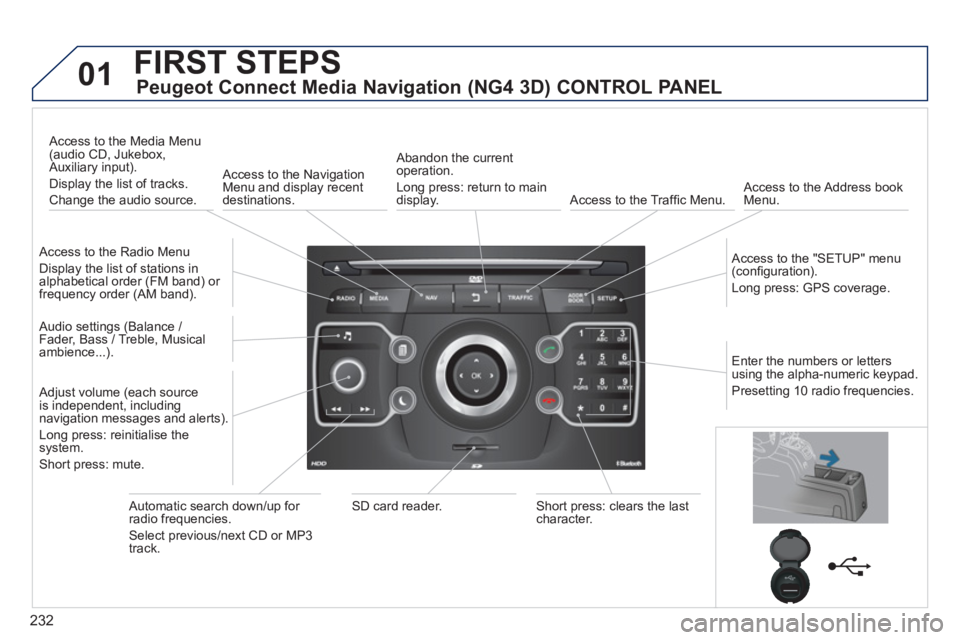

01 First steps

02 Voice commands and
steerin
g mounted controls

03 General operation

04 Navi
gation - Guidance

05 Traffic information

06 Radio

07 Music media pla
yers

08 Usin
g the telephone

09 Screen menu map

Frequentl
y asked questions
p.
p.
p.
p.
p.
p.
p.
p.
p.
p. 2
32
234
237
242
251
253
254
259
264
269

CONTENTS
MULTIMEDIA AUDIO SYSTEM / BLUETOOTH TELEPHONE
GPS EUROPE

232
01FIRST STEPS
Peugeot Connect Media Navigation (NG4 3D) CONTROL PANEL
Access to the Radio Menu

Display the list of stations in
alphabetical order (FM band) or frequency order (AM band).

Access to the Media Menu(audio CD, Jukebox,
Auxiliary input).
Display the list o
f tracks.
Change the audio source.
Access to the NavigationMenu and display recentdestinations.
Abandon the current
operation.
Long press: return to main
displa
y. Access to the Traffi c Menu.
Access to the Address book Menu.

A
ccess to the "SETUP" menu (confi guration).
Lon
g press: GPS coverage.

Audio settings (Balance /
Fader, Bass / Treble, Musical
ambience...
).

Adjust volume (each source
is independent, including
navigation messages and alerts).
Lon
g press: reinitialise thesystem.
Short press: mute.

Automatic search down/up for radio frequencies.
Select
previous/next CD or MP3
track.
SD card reader.Short press: clears the last character.
Enter the numbers or lettersusing the alpha-numeric keypad.
Presettin
g 10 radio frequencies.
