35
IN
S

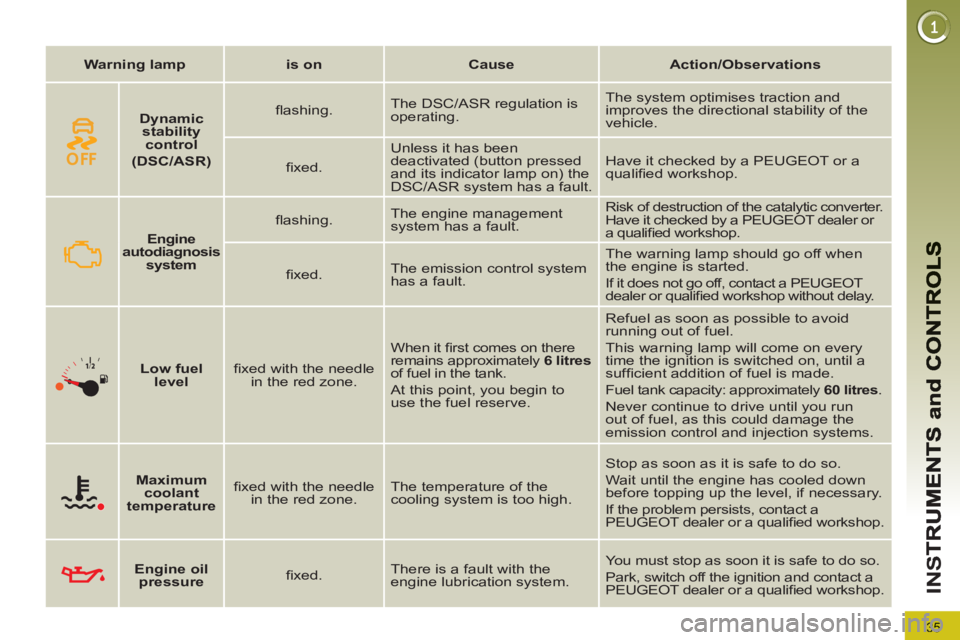

Warning lamp
is on
Cause
Action/Observations
Engine
autodiagnosis
system
fl ashing. The engine management
system has a fault. Risk of destruction of the catalytic converter.
Have it checked by a PEUGEOT dealer or
a qualifi ed workshop.
fi xed. The emission control system
has a fault. The warning lamp should go off when
the engine is started.
If it does not go off, contact a PEUGEOT
dealer or qualifi ed workshop without delay.
Low fuel
level
fi xed with the needle
in the red zone. When it fi rst comes on there
remains approximately 6 litres
of fuel in the tank.
At this point, you begin to
use the fuel reserve. Refuel as soon as possible to avoid
running out of fuel.
This warning lamp will come on every
time the ignition is switched on, until a
suffi cient addition of fuel is made.
Fuel tank capacity: approximately 60 litres
.
Never continue to drive until you run
out of fuel, as this could damage the
emission control and injection systems.
Maximum
coolant
temperature
fi xed with the needle
in the red zone. The temperature of the
cooling system is too high. Stop as soon as it is safe to do so.
Wait until the engine has cooled down
before topping up the level, if necessary.
If the problem persists, contact a
PEUGEOT dealer or a qualifi ed workshop.
Engine oil
pressure
fi xed. There is a fault with the
engine lubrication system. You must stop as soon it is safe to do so.
Park, switch off the ignition and contact a
PEUGEOT dealer or a qualifi ed workshop.
Dynamic
stability
control
(DSC/ASR)
fl ashing. The DSC/ASR regulation is
operating. The system optimises traction and
improves the directional stability of the
vehicle.
fi xed. Unless it has been
deactivated (button pressed
and its indicator lamp on) the
DSC/ASR system has a fault. Have it checked by a PEUGEOT or a
qualifi ed workshop.
TECHNICAL DATA
217
Petrol engine
1.6 litre VTi
120 hp
1.6 litre THP
156 hp
Gearbox
Manual
(5-speed)
Manual
(6-speed)
Automatic
(6-speed)
Cubic capacity (cc)
1 598
1 598
Bore x stroke (mm)
77 x 85.8
77 x 85.8
Max power: EU standard (kW) *
88
11 5
Max power engine speed (rpm)
6 000
6 000
Max torque: EU standard (Nm)
160
240
Max torque engine speed (rpm)
4 250
1 400
Fuel
Unleaded
Unleaded
Catalytic converter
yes
yes
Oil capacities (in litres)
Engine (with fi lter replacement)
4.25
4.25
PETROL ENGINES AND GEARBOXES
*
The maximum power corresponds to the type approved value on a test bed, under the conditions defi ned in European
legislation (directive 1999/99/CE).
TECHNICAL DATA
219
Engines
1.6 litre Turbo e-HDi
115 hp
2 litre Turbo HDi
150 hp
2 litre Turbo HDi
163 hp
Gearbox
Manual
(6-speed)
Electronic gear control
(6-speed)
Manual
(6-speed)
Automatic
(6-speed)
Cubic capacity (cc)
1 560
1 997
Bore x stroke (mm)
75 x 88.3
85 x 88
Max power: EU standard (kW) *
82
110/120
Max power engine speed (rpm)
4 000
3 750
Max torque: EU standard (Nm)
270
320/340
Max torque engine speed (rpm)
1 750
2 000
Fuel
Diesel
Diesel
Catalytic converter
yes
yes
Particle emission fi lter
yes
yes
Oil capacities (in litres)
Engine (with fi lter replacement)
3.75
-
DIESEL ENGINES AND GEARBOXES
*
The maximum power corresponds to the type approved value on a test bed, under the conditions defi ned in European
legislation (directive 1999/99/CE).
