2013 PEUGEOT 5008 Owners Manual

D
R
151

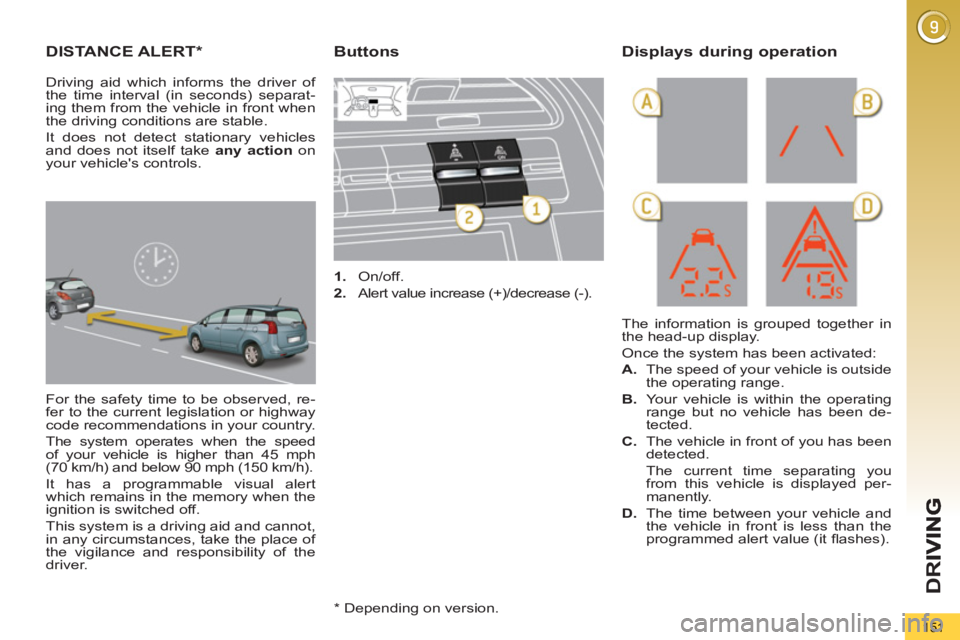

DISTANCE ALERT *

For the safety time to be observed, re-
fer to the current legislation or highway
code recommendations in your country.
The system operates when the speed
of your vehicle is higher than 45 mph
(70 km/h) and below 90 mph (150 km/h).
It has a programmable visual alert
which remains in the memory when the
ignition is switched off.
This system is a driving aid and cannot,
in any circumstances, take the place of
the vigilance and responsibility of the
driver.

1.
On/off.

2.
Alert value increase (+)/decrease (-).

The information is grouped together in
the head-up display.
Once the system has been activated:


A.
The speed of your vehicle is outside
the operating range.

B.
Your vehicle is within the operating
range but no vehicle has been de-
tected.

C.
The vehicle in front of you has been
detected.
The current time separating you
from this vehicle is displayed per-
manently.

D.
The time between your vehicle and
the vehicle in front is less than the
programmed alert value (it fl ashes).


ButtonsDisplays during operation


Driving aid which informs the driver of
the time interval (in seconds) separat-
ing them from the vehicle in front when
the driving conditions are stable.
It does not detect stationary vehicles
and does not itself take any action
on
your vehicle's controls.

*
Depending on version.

D
R
I
152
Activation
Deactivation



)
Press button 1
to deactivate the sys-
tem, the indicator lamp goes off.

Reactivation



)
Press button 1
again to reactivate
the system.

The last value programmed is retained
and the indicator lamp comes on.



If the indicator lamp in but-
ton 1
fl ashes, have the sys-
tem checked by a PEUGEOT
dealer or a qualifi ed workshop.
Example with a value of 2 seconds:


Operating limits

The system switches to standby auto-
matically if the sensor does not detect
the vehicle in front correctly (very dif-
fi cult weather conditions, sensor out of
adjustment, ...). A message is displayed
in the multifunction screen.
The vehicle being followed may not be
detected in certain conditions such as,
for example:


- when turning,

- when changing lane,

- when the vehicle in front is either
too far ahead (maximum range of
the sensor: 100 m) or stationary (in
a traffi c jam, ...),
When the vehicle being followed is
much too near (time between the two
vehicles less than 0.5 seconds), the dis-
play remains fi xed at 0.5 seconds.

Programming the alert value



)
Select the alert value required using
button 2
, in steps of 0.1 second:


- up to increase: "+",

- down to decrease: "-".

This system is not an anti-colli-
sion radar and it does not act of the
movement of your vehicle. It pro-
vides information but cannot, in any
circumstances, take the place of the
vigilance and responsibility of the
driver.


)
Press button 1
, the indicator lamp
comes on.
The system is activated but will only
operate from 45 mph (70 km/h).
The alert value can be programmed to
between 0.9 second and 2.5 seconds.
The visual alert can be deactivated by
programming a value of 0 second. When the time (in seconds) between
your vehicle and the vehicle in front is
less than the programmed time (alert
value), a visual alert fl ashes.


A safety time of 2 seconds is
recommended in normal driv-
ing conditions (correct traction
and speed) to avoid a collision
in the event of emergency
braking.

D
R
153
SPEED LIMITER
The controls of this system are grouped
together on stalk A
.


1.
Speed limiter mode selection dial

2.
Programmed value decrease button

3.
Programmed value increase button

4.
Speed limiter on / off button

The programmed information is
grouped together on the instrument
panel screen.

5.
Speed limiter on / off indication

6.
Speed limiter mode selection indication

7.
Programmed speed value


Steering mounted controls Displays in the instrument panel


The speed limiter cannot, in any
circumstances, replace the need
to observe speed limits, nor can
it replace the need for vigilance and re-
sponsibility on the part of the driver.
The speed limiter is switched on
man-
ually: it requires a programmed speed
of at least 20 mph (30 km/h).
The speed limiter is switched off
by
manual operation of the control.
The programmed speed remains in the
memory when the ignition is switched off.






This information also appears
in the head-up display.
For more information, refer to
the "Head-up display" section.
System which prevents the vehicle from
exceeding the speed programmed by
the driver.
When the programmed speed limit is
reached, pressing the accelerator ped-
al no longer has any effect unless it is
pressed fi rmly, which permits temporary
exceeding of the programmed speed.
To return to the programmed speed,
simply slow down to a speed below the
programmed speed by releasing the ac-
celerator.

D
R
I

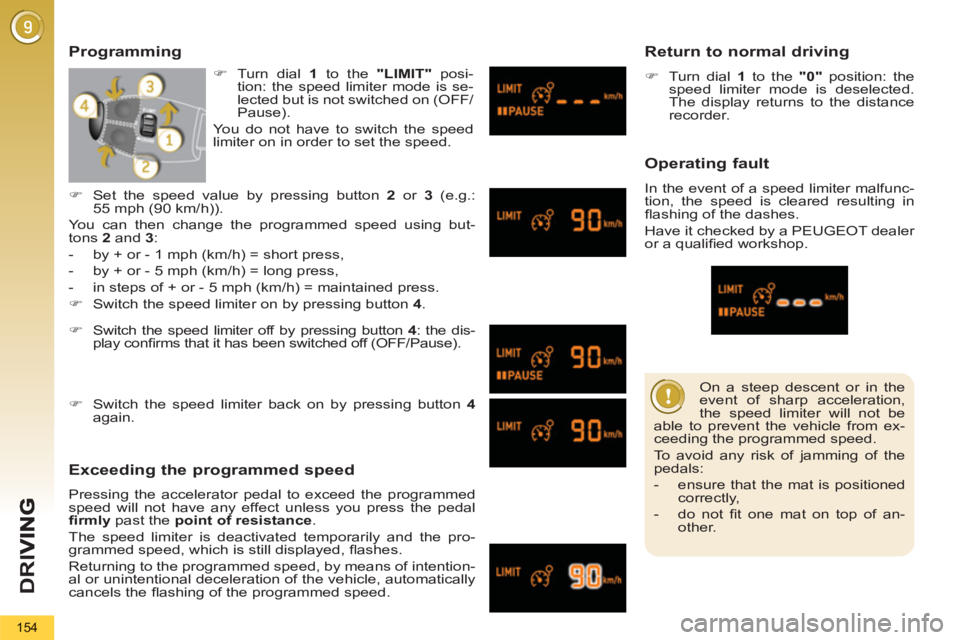

154

On a steep descent or in the
event of sharp acceleration,
the speed limiter will not be
able to prevent the vehicle from ex-
ceeding the programmed speed.
To avoid any risk of jamming of the
pedals:


- ensure that the mat is positioned
correctly,

- do not fi t one mat on top of an-
other.



Programming

Exceeding the programmed speed

Pressing the accelerator pedal to exceed the programmed
speed will not have any effect unless you press the pedal
fi rmly
past the point of resistance
.
The speed limiter is deactivated temporarily and the pro-
grammed speed, which is still displayed, fl ashes.
Returning to the programmed speed, by means of intention-
al or unintentional deceleration of the vehicle, automatically
cancels the fl ashing of the programmed speed.

Return to normal driving



)
Turn dial 1
to the "0"
position: the
speed limiter mode is deselected.
The display returns to the distance
recorder.



Operating fault

In the event of a speed limiter malfunc-
tion, the speed is cleared resulting in
fl ashing of the dashes.
Have it checked by a PEUGEOT dealer
or a qualifi ed workshop.



)
Switch the speed limiter off by pressing button 4
: the dis-
play confi rms that it has been switched off (OFF/Pause).



)
Switch the speed limiter back on by pressing button 4

again.



)
Set the speed value by pressing button 2
or 3
(e.g.:
55 mph (90 km/h)).
You can then change the programmed speed using but-
tons 2
and 3
:


- by + or - 1 mph (km/h) = short press,

- by + or - 5 mph (km/h) = long press,

- in steps of + or - 5 mph (km/h) = maintained press.


)
Switch the speed limiter on by pressing button 4
.



)
Turn dial 1
to the "LIMIT"
posi-
tion: the speed limiter mode is se-
lected but is not switched on (OFF/
Pause).
You do not have to switch the speed
limiter on in order to set the speed.

D
R
155

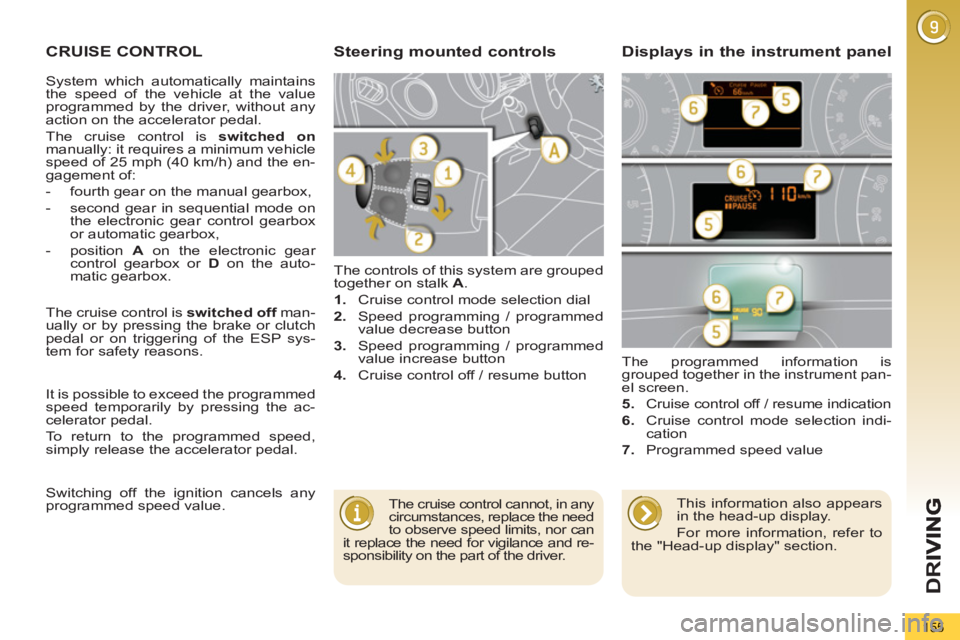

CRUISE CONTROL
The controls of this system are grouped
together on stalk A
.


1.
Cruise control mode selection dial

2.
Speed programming / programmed
value decrease button

3.
Speed programming / programmed
value increase button

4.
Cruise control off / resume button The programmed information is
grouped together in the instrument pan-
el screen.

5.
Cruise control off / resume indication

6.
Cruise control mode selection indi-
cation

7.
Programmed speed value


Steering mounted controls Displays in the instrument panel


The cruise control cannot, in any
circumstances, replace the need
to observe speed limits, nor can
it replace the need for vigilance and re-
sponsibility on the part of the driver.
The cruise control is switched off
man-
ually or by pressing the brake or clutch
pedal or on triggering of the ESP sys-
tem for safety reasons.
It is possible to exceed the programmed
speed temporarily by pressing the ac-
celerator pedal.
To return to the programmed speed,
simply release the accelerator pedal.
Switching off the ignition cancels any
programmed speed value.





This information also appears
in the head-up display.
For more information, refer to
the "Head-up display" section.
System which automatically maintains
the speed of the vehicle at the value
programmed by the driver, without any
action on the accelerator pedal.
The cruise control is switched on

manually: it requires a minimum vehicle
speed of 25 mph (40 km/h) and the en-
gagement of:


- fourth gear on the manual gearbox,

- second gear in sequential mode on
the electronic gear control gearbox
or automatic gearbox,

- position A
on the electronic gear
control gearbox or D
on the auto-
matic gearbox.

D
R
I

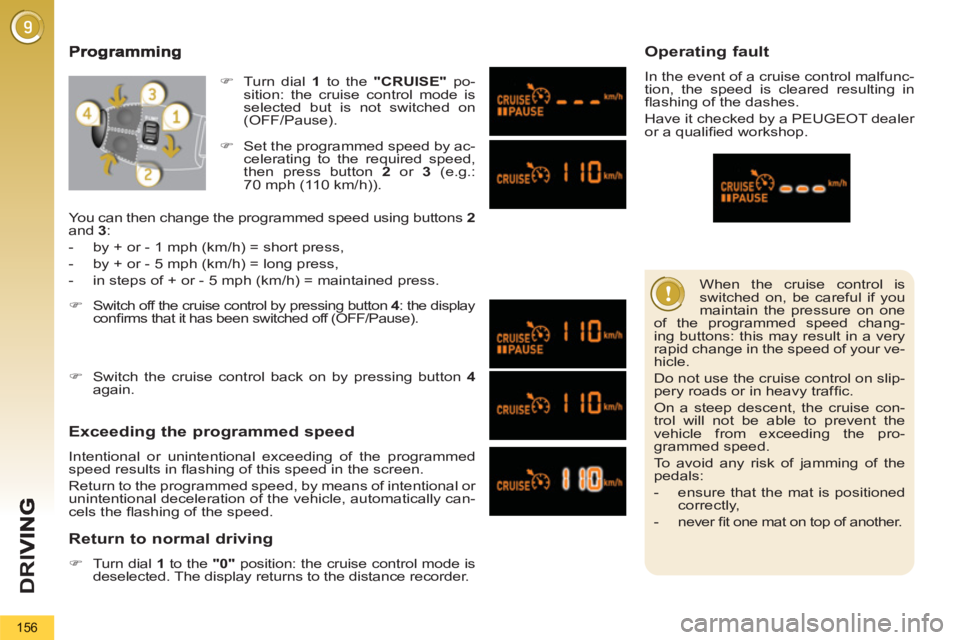

156

When the cruise control is
switched on, be careful if you
maintain the pressure on one
of the programmed speed chang-
ing buttons: this may result in a very
rapid change in the speed of your ve-
hicle.
Do not use the cruise control on slip-
pery roads or in heavy traffi c.
On a steep descent, the cruise con-
trol will not be able to prevent the
vehicle from exceeding the pro-
grammed speed.
To avoid any risk of jamming of the
pedals:


- ensure that the mat is positioned
correctly,

- never fi t one mat on top of another.



Exceeding the programmed speed

Intentional or unintentional exceeding of the programmed
speed results in fl ashing of this speed in the screen.
Return to the programmed speed, by means of intentional or
unintentional deceleration of the vehicle, automatically can-
cels the fl ashing of the speed.


Return to normal driving



)
Turn dial 1
to the "0"
position: the cruise control mode is
deselected. The display returns to the distance recorder.



Operating fault

In the event of a cruise control malfunc-
tion, the speed is cleared resulting in
fl ashing of the dashes.
Have it checked by a PEUGEOT dealer
or a qualifi ed workshop.



)
Set the programmed speed by ac-
celerating to the required speed,
then press button 2
or 3
(e.g.:
70 mph (110 km/h)).



)
Switch off the cruise control by pressing button 4
: the display
confi rms that it has been switched off (OFF/Pause).




)
Switch the cruise control back on by pressing button 4

again.

You can then change the programmed speed using buttons 2

and 3
:


- by + or - 1 mph (km/h) = short press,

- by + or - 5 mph (km/h) = long press,

- in steps of + or - 5 mph (km/h) = maintained press.



)
Turn dial 1
to the "CRUISE"
po-
sition: the cruise control mode is
selected but is not switched on
(OFF/Pause).

D
R
157

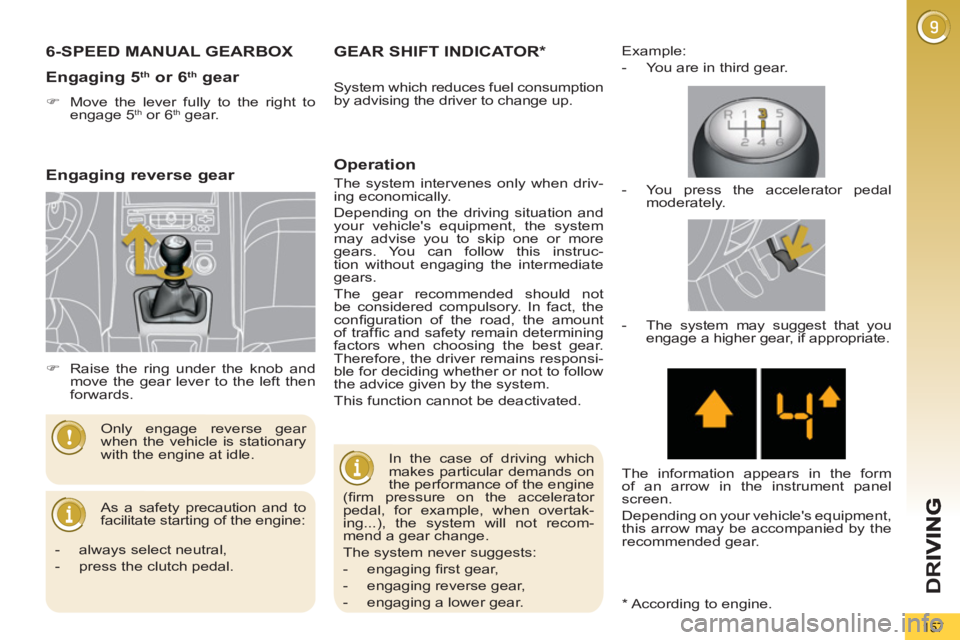

6-SPEED MANUAL GEARBOX
As a safety precaution and to
facilitate starting of the engine: Only engage reverse gear
when the vehicle is stationary
with the engine at idle.
Engaging 5 thor 6 thgear


)
Move the lever fully to the right to
engage 5 th or 6 th
gear.

GEAR SHIFT INDICATOR *


O
peration


Example:


- You are in third gear.


In the case of driving which
makes particular demands on
the performance of the engine
(fi rm pressure on the accelerator
pedal, for example, when overtak-
ing...), the system will not recom-
mend a gear change.
The system never suggests:


- engaging fi rst gear,

- engaging reverse gear,

- engaging a lower gear.



- You press the accelerator pedal
moderately.




- The system may suggest that you
engage a higher gear, if appropriate.


The information appears in the form
of an arrow in the instrument panel
screen.
Depending on your vehicle's equipment,
this arrow may be accompanied by the
recommended gear.



- always select neutral,

- press the clutch pedal.


)
Raise the ring under the knob and
move the gear lever to the left then
forwards.
Engaging reverse gear


System which reduces fuel consumption
by advising the driver to change up.




The system intervenes only when driv-
ing economically.
Depending on the driving situation and
your vehicle's equipment, the system
may advise you to skip one or more
gears. You can follow this instruc-
tion without engaging the intermediate
gears.
The gear recommended should not
be considered compulsory. In fact, the
confi guration of the road, the amount
of traffi c and safety remain determining
factors when choosing the best gear.
Therefore, the driver remains responsi-
ble for deciding whether or not to follow
the advice given by the system.
This function cannot be deactivated.

*
According to engine.

D
R
I
158

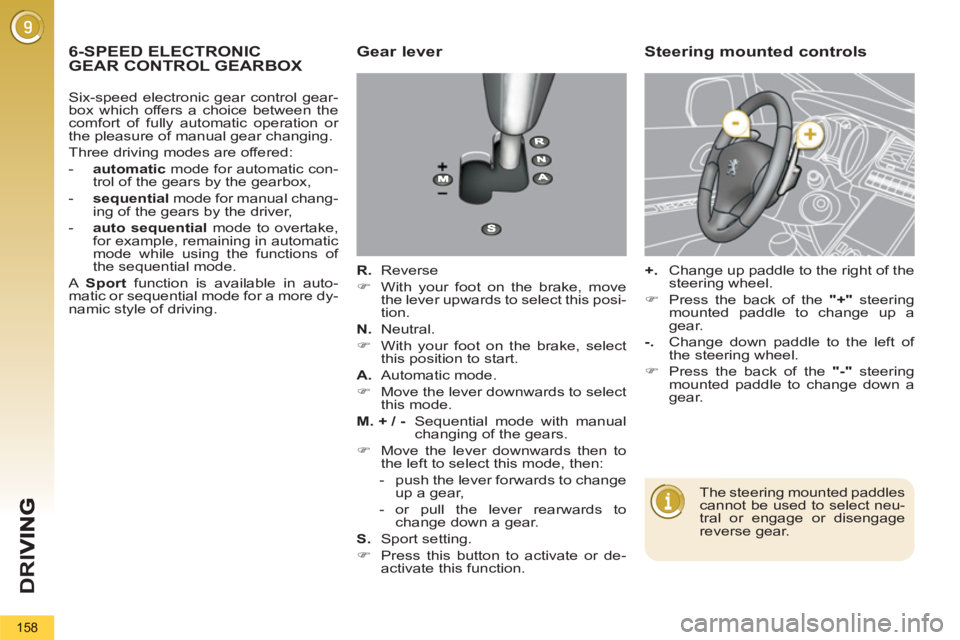

6-SPEED ELECTRONIC GEAR CONTROL GEARBOXGear lever

R.
Reverse


)
With your foot on the brake, move
the lever upwards to select this posi-
tion.

N.
Neutral.


)
With your foot on the brake, select
this position to start.

A.
Automatic mode.


)
Move the lever downwards to select
this mode.

M. + / -
Sequential mode with manual
changing of the gears.


)
Move the lever downwards then to
the left to select this mode, then:


- push the lever forwards to change
up a gear,

- or pull the lever rearwards to
change down a gear.


S.
Sport setting.


)
Press this button to activate or de-
activate this function.



Steering mounted controls


+.
Change up paddle to the right of the
steering wheel.


)
Press the back of the "+"
steering
mounted paddle to change up a
gear.

-.
Change down paddle to the left of
the steering wheel.


)
Press the back of the "-"
steering
mounted paddle to change down a
gear.

The steering mounted paddles
cannot be used to select neu-
tral or engage or disengage
reverse gear.

Six-speed electronic gear control gear-
box which offers a choice between the
comfort of fully automatic operation or
the pleasure of manual gear changing.
Three driving modes are offered:


- automatic
mode for automatic con-
trol of the gears by the gearbox,

- sequential
mode for manual chang-
ing of the gears by the driver,

- auto sequential
mode to overtake,
for example, remaining in automatic
mode while using the functions of
the sequential mode.
A Sport
function is available in auto-
matic or sequential mode for a more dy-
namic style of driving.
