2013 PEUGEOT 5008 Owners Manual

VIS
95

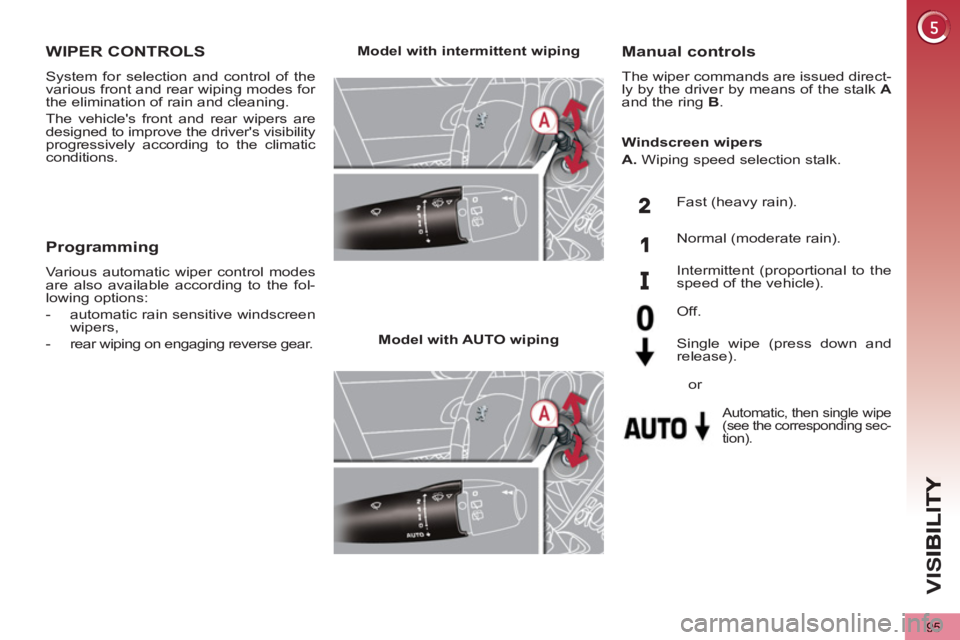

WIPER CONTROLS
System for selection and control of the
various front and rear wiping modes for
the elimination of rain and cleaning.
The vehicle's front and rear wipers are
designed to improve the driver's visibility
progressively according to the climatic
conditions.
Manual controls
The wiper commands are issued direct-
ly by the driver by means of the stalk A

and the ring B
.

Model with intermittent wiping



Model with AUTO wiping

Fast (heavy rain).

Normal (moderate rain).

Intermittent (proportional to the
speed of the vehicle).


Automatic, then single wipe
(see the corresponding sec-
tion).



Off.



Single wipe (press down and
release).

Windscreen wipers

A.
Wiping speed selection stalk.







or
Programming

Various automatic wiper control modes
are also available according to the fol-
lowing options:


- automatic rain sensitive windscreen
wipers,

- rear wiping on engaging reverse gear.

VIS
96
Windscreen and headlamp
wash

B.
Rear wiper selection ring:

Park.

Intermittent wipe.

Wash-wipe (set duration).

Reverse gear
When reverse gear is engaged, the
rear wiper will come into operation if the
windscreen wipers are operating.

Programming

)
Pull the windscreen wiper stalk to-
wards you. The windscreen wash
then the windscreen wipers operate
for a fi xed period.
The headlamp washers only operate
when the dipped beam headlamps are
on
.











Rear wiper

If a signifi cant accumulation
of snow or ice is present, or
when using a bicycle carrier
on the boot, deactivate the auto-
matic rear wiper via the multifunction
screen confi guration menu. The function is activated or
deactivated via the multi-
function screen confi gura-
tion menu.
This function is activated
by default.










Screenwash/headlamp wash low
level
In the case of vehicles fi tted with
headlamp washers, when the
minimum level of the reservoir
is reached, this warning lamp is
displayed in the instrument panel, ac-
companied by an audible signal and a
message in the multifunction screen.
The warning lamp is displayed when
the ignition is switched on, or every time
the stalk is operated, until the reservoir
is refi lled.
Next time you stop, refi ll the screen-
wash/headlamp wash reservoir.

VIS
97
Special position of the
windscreen wipersAutomatic rain sensitive
windscreen wipers
The windscreen wipers operate automati-
cally, without any action on the part of the
driver, if rain is detected (sensor behind
the rear view mirror), adapting their speed
to the intensity of the rainfall.

Activation
This is controlled manually by the driver
by pushing the stalk downwards to the
"AUTO"
position.
It is accompanied by a message in the
screen. This position permits release of the
windscreen wiper blades.
It is used for cleaning or replacement
of the blades. It can also be useful, in
winter, to detach the blades from the
windscreen.
Do not cover the rain sensor,
linked with the sunshine sen-
sor and located in the centre
of the windscreen behind the rear
view mirror.
Switch off the automatic rain sensi-
tive wipers when using an automatic
car wash.
In winter, to avoid damaging the wip-
er blades, it is advisable to wait until
the windscreen is completely clear of
ice before activating the automatic
rain sensitive wipers.
The automatic rain sensitive
wipers must be reactivated if
the ignition has been off for
more than one minute, by pushing
the stalk downwards.

Switching off
This is controlled manually by the driver
by moving the stalk upwards then re-
turning it to position "0"
.
It is accompanied by a message in the
screen.
Operating fault
If an automatic wiping malfunction oc-
curs, the wipers will operate in intermit-
tent mode.
Have it checked by a PEUGEOT dealer
or a qualifi ed workshop.

To maintain the effectiveness
of the "fl at-blade" type of wiper
blades, it is advisable to:


- handle them with care,

- clean them regularly using soapy
water,

- avoid using them to retain card-
board on the windscreen,

- replace them at the fi rst signs of
wear.




)
Any action on the wiper stalk in the
minute after switching off the igni-
tion places the blades vertically on
the screen.

)
To park the blades again, switch on
the ignition and operate the wiper
stalk.

VIS
98

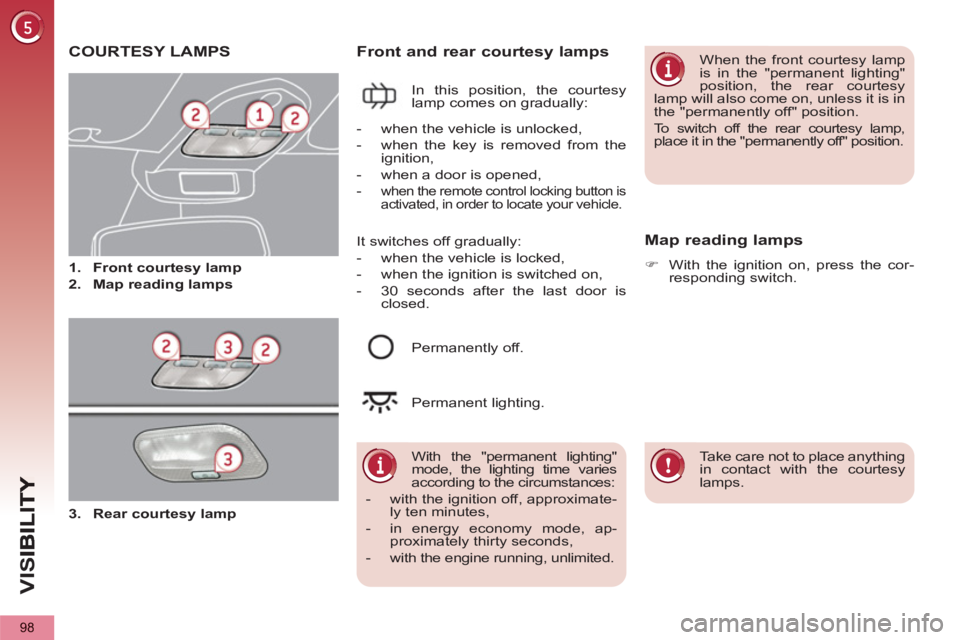

COURTESY LAMPS



1.
Front courtesy lamp


2.
Map reading lamps

Front and rear courtesy lamps

In this position, the courtesy
lamp comes on gradually:
Map reading lamps



)
With the ignition on, press the cor-
responding switch.















With the "permanent lighting"
mode, the lighting time varies
according to the circumstances:


- with the ignition off, approximate-
ly ten minutes,

- in energy economy mode, ap-
proximately thirty seconds,

- with the engine running, unlimited.



- when the vehicle is unlocked,

- when the key is removed from the
ignition,

- when a door is opened,

-
when the remote control locking button is
activated, in order to locate your vehicle.


Permanently off.

Permanent lighting.
When the front courtesy lamp
is in the "permanent lighting"
position, the rear courtesy
lamp will also come on, unless it is in
the "permanently off" position.
To switch off the rear courtesy lamp,
place it in the "permanently off" position.



Take care not to place anything
in contact with the courtesy
lamps.
It switches off gradually:


- when the vehicle is locked,

- when the ignition is switched on,

- 30 seconds after the last door is
closed.

3.
Rear courtesy lamp

VIS
99
INTERIOR MOOD LIGHTING INTERIOR WELCOME LIGHTING

The remote switching on of the passen-
ger compartment lighting makes your
approach to the vehicle easier in poor
light. It operates with the automatic il-
lumination of headlamps.

Switching on



)
Press the open padlock on the re-
mote control.
The courtesy lamps come on; your ve-
hicle is also unlocked.


Switching off

The interior welcome lighting switches
off automatically after a set time or when
one of the doors is opened.


Programming
Switching on

At night, the front courtesy lamp mood
lamp A
comes on automatically when
the sidelamps are switched on.
Switching off

The interior mood lighting switches off
automatically when the sidelamps are
switched off.

The duration of the welcome
lighting is associated with and
identical to that of the automat-
ic guide-me-home lighting.
The function is activated or
deactivated via the multi-
function screen confi gura-
tion menu.
DOOR MIRROR SPOTLAMPS
To make your approach to the vehicle
easier, these illuminate:


- the zones facing the driver’s and
passenger’s doors,

- the zones forward of the door mirrors
and rearward of the front doors.
Switching on

The spotlamps come on:


- when you unlock the vehicle,

- when you remove the key from the
ignition,

- when you open a door,

- when you use the remote control.

Switching off

They are timed to go off automatically.
The dimmed passenger compartment
lighting improves visibility in the vehicle
when the light is poor.

VIS
100

Different lighting times are
available:


- when the ignition is off, approxi-
mately ten minutes,

- in energy economy mode, ap-
proximately thirty seconds,

- when the engine is running, no limit.


This comes on automatically when the
boot is opened and switches off auto-
matically when the boot is closed.

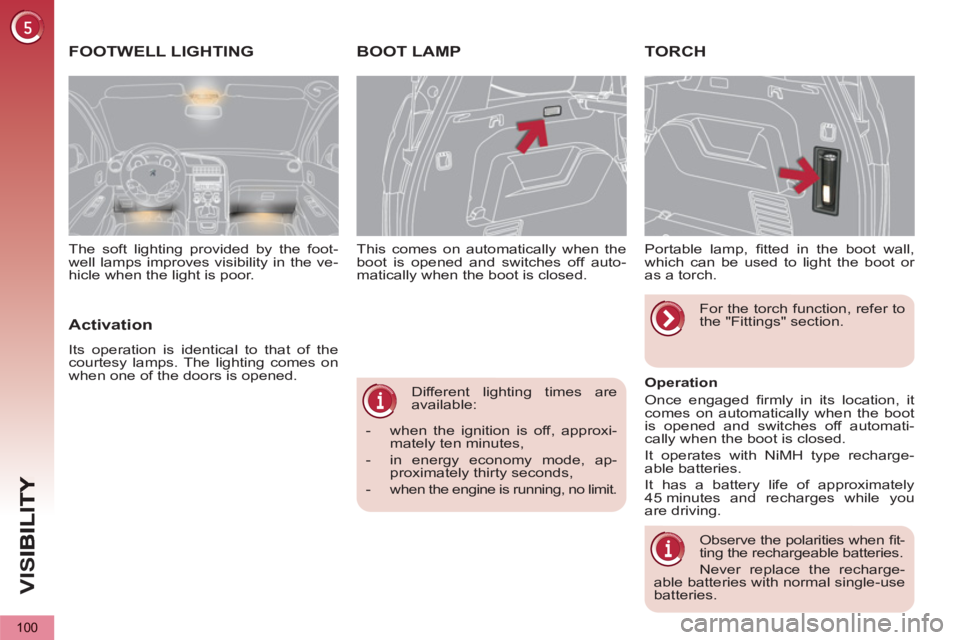

BOOT LAMP TORCH

Portable lamp, fi tted in the boot wall,
which can be used to light the boot or
as a torch.

Operation
Once engaged fi rmly in its location, it
comes on automatically when the boot
is opened and switches off automati-
cally when the boot is closed.
It operates with NiMH type recharge-
able batteries.
It has a battery life of approximately
45 minutes and recharges while you
are driving.

Observe the polarities when fi t-
ting the rechargeable batteries.
Never replace the recharge-
able batteries with normal single-use
batteries.

For the torch function, refer to
the "Fittings" section.
FOOTWELL LIGHTING

Activation

Its operation is identical to that of the
courtesy lamps. The lighting comes on
when one of the doors is opened. The soft lighting provided by the foot-
well lamps improves visibility in the ve-
hicle when the light is poor.

FITTINGS
101

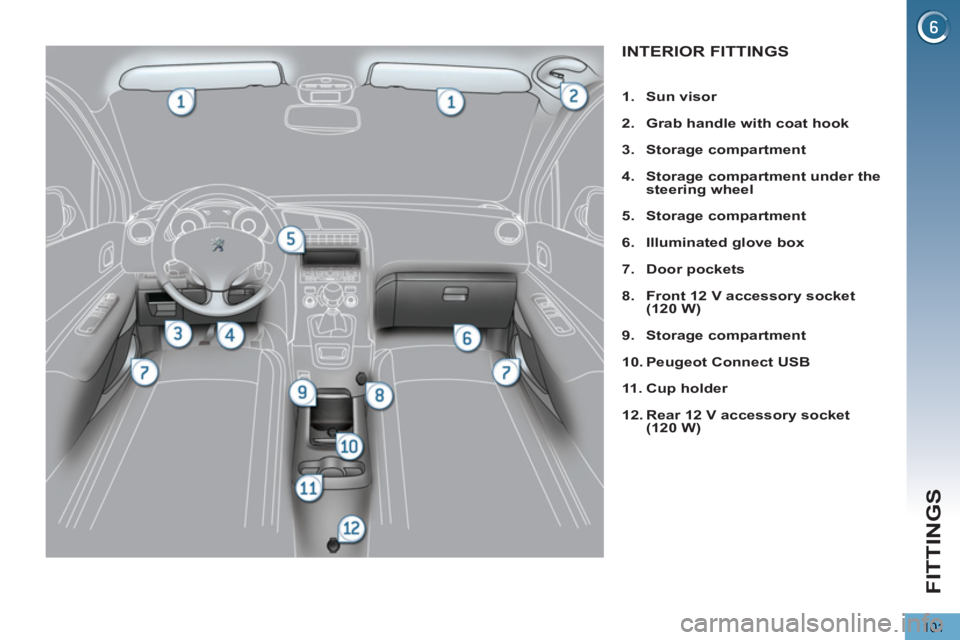

INTERIOR FITTINGS


1.
Sun visor


2.
Grab handle with coat hook


3.
Storage compartment


4.
Storage compartment under the
steering wheel


5.
Storage compartment


6.
Illuminated glove box


7.
Door pockets


8.
Front 12 V accessory socket
(120 W)


9.
Storage compartment


10.
Peugeot Connect USB


11 .
Cup holder


12.
Rear 12 V accessory socket
(120 W)

FITTINGS
102

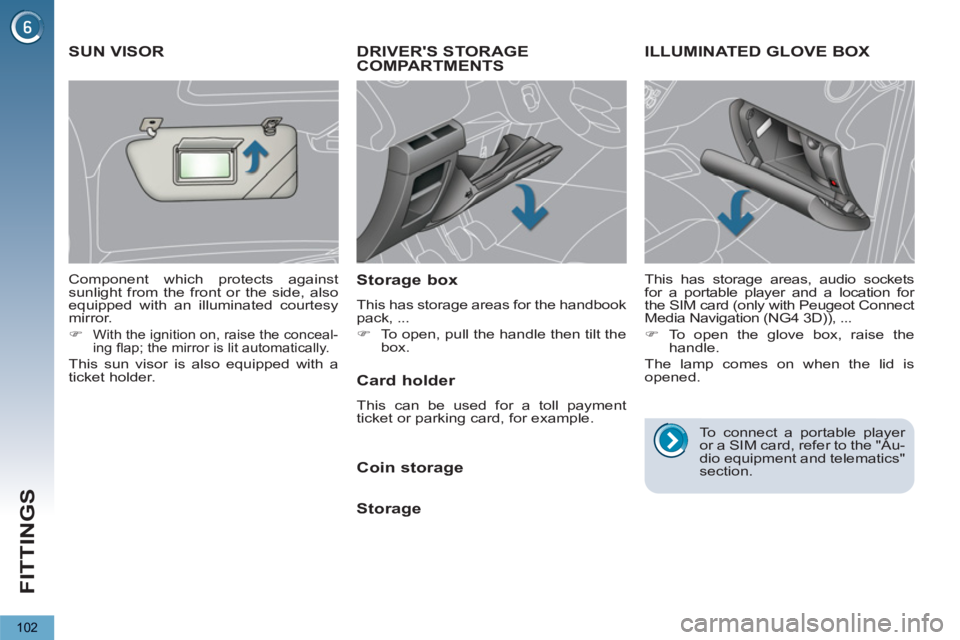

DRIVER'S STORAGE
COMPARTMENTS

Storage box

This has storage areas for the handbook
pack, ...


)
To open, pull the handle then tilt the
box.

ILLUMINATED GLOVE BOX


This has storage areas, audio sockets
for a portable player and a location for
the SIM card (only with Peugeot Connect
Media Navigation (NG4 3D)), ...


)
To open the glove box, raise the
handle.
The lamp comes on when the lid is
opened.
SUN VISOR

Component which protects against
sunlight from the front or the side, also
equipped with an illuminated courtesy
mirror.


)

With the ignition on, raise the conceal-
ing fl ap; the mirror is lit automatically.

This sun visor is also equipped with a
ticket holder.

Card holder

This can be used for a toll payment
ticket or parking card, for example.


Coin storage

Storage


To connect a portable player
or a SIM card, refer to the "Au-
dio equipment and telematics"
section.
