2013 PEUGEOT 5008 Owners Manual

FA
M
15

Digital air conditioning:
we recommend use of the fully automatic mode by pressing the "AUTO"
button.

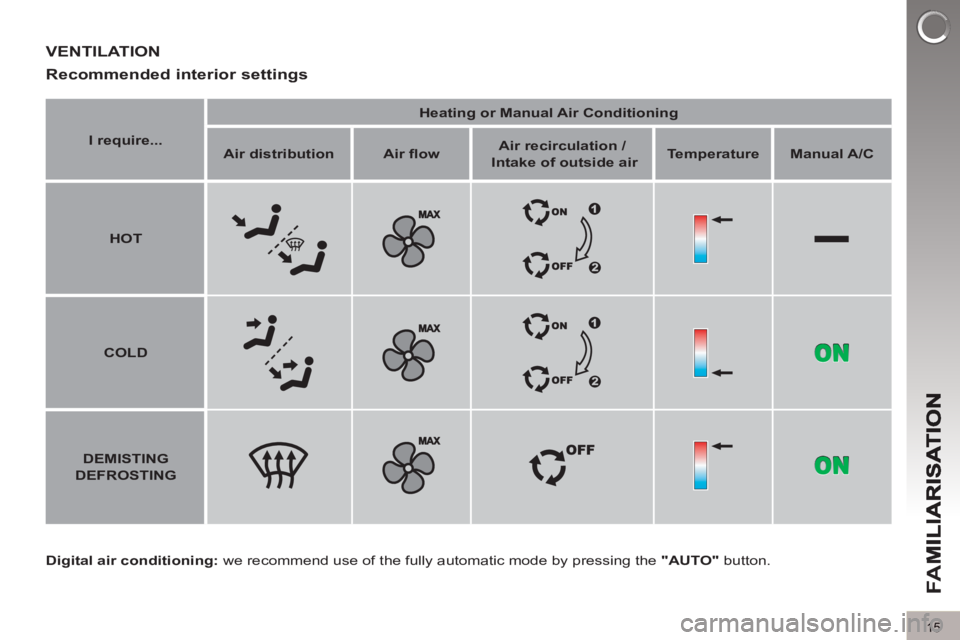

VENTILATION
Recommended interior settin
gs


I require...



Heating or Manual Air Conditioning




Air distribution



Air fl ow



Air recirculation /

Intake of outside air



Temperature



Manual A/C




HOT







COLD






DEMISTING

DEFROSTING

FA
M
16
MONITORING

Instrument
panels



A.
With the ignition on, the needle
should indicate the level of fuel re-
maining.

B.
With the engine running, its associated
low level warning lamp should go off.

C.
With the ignition on, the oil level in-
dicator should display "OIL OK"
for
a few seconds.
If the levels are not correct, top up the
levels which are low.
27


1.
With the ignition on, the orange and
red warning lamps come on.

2.
With the engine running, these
warning lamps should go off.
If warning lamps remain on, refer to the
page concerned.
29


Switch panels

Lighting of the indicator lamp indicates the
status of the corresponding function.


A.
Visual and audible
parking sensors. 168
131
128
170
166
79
149
129
B.
ESC OFF.

C.
Child lock.

D.
Parking space sensors.

E.
Deactivation of Stop &
Start.

F.
Volumetric alarm.

G.
Head-up display.

H.
Hazard warning lamps.
Lower


Central

151

I.
Distance alert.
84


J.
Central locking.

FA
M
17

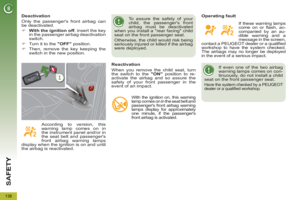

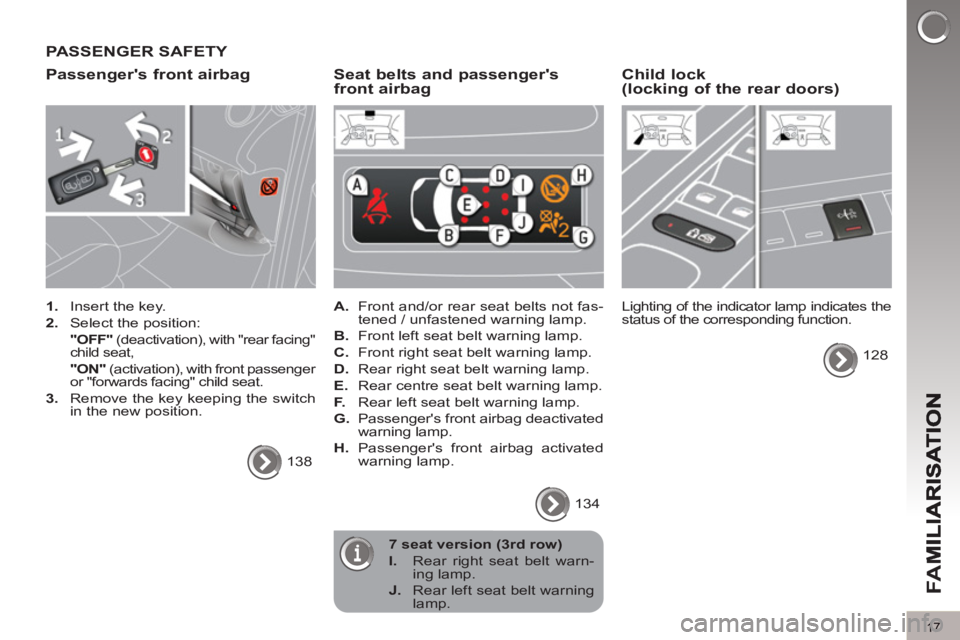

PASSENGER SAFETY
Passen
ger's front airbag


1.
Insert the key.

2.
Select the position:

"OFF"
(deactivation), with "rear facing"
child seat,
"ON"
(activation), with front passenger
or "forwards facing" child seat.

3.
Remove the key keeping the switch
in the new position.
138


Seat belts and passenger's front airbag



A.
Front and/or rear seat belts not fas-
tened / unfastened warning lamp.

B.
Front left seat belt warning lamp.

C.
Front right seat belt warning lamp.

D.
Rear right seat belt warning lamp.

E.
Rear centre seat belt warning lamp.

F.
Rear left seat belt warning lamp.

G.
Passenger's front airbag deactivated
warning lamp.

H.
Passenger's front airbag activated
warning lamp.
134
Child lock (locking of the rear doors)

Lighting of the indicator lamp indicates the
status of the corresponding function.
128


7 seat version (3rd row)


I.
Rear right seat belt warn-
ing lamp.

J.
Rear left seat belt warning
lamp.

FA
M
18
ARRANGING YOUR SEATS
Ri
gid panel
Putting the seats back in place


)
Raise the seat back and push it
rearwards until it locks.


From the boot


)
Pull the strap B
to release the seat
and push the seat back forwards
gently.



Folding the seats in the 2nd row




)
Pull the strap A
upwards fi rmly to re-
lease the seat and continue to pull
until the seat is fully folded.



Access to the 3rd row seats



)
Close the aircraft style tables on the
2 nd row seats if they are open.

)
Hold the control D
up, the seat is
released and the seat base rises to
the seat back.

)
Push the seat back forwards, holding
the control D
forwards.
69
68
69

7 SEAT VERSION



)
After folding the seats, slide the
catch C
.

FA
M
19
ARRANGING YOUR SEATS (7 SEAT VERSION)
70,
110
)
Pull the strap E
and guide the seat
until the assembly locks.

)
Fold the concertina boards forwards.

)
Lower the head restraints and place
the concertina board in the vertical
position behind the seat.

)
While pulling the strap F
, push the
seat back forwards gently.

)
Remove the load space screen from
its storage compartment and posi-
tion it behind the 2 nd row seats.

)
Place the rigid panels of the 2 nd row
seats upright and lock them then fold
the concertina boards rearwards.

)
Remove the load space cover and
store it in its housing.
Changing from 5 to 7 seats
70,
110

FA
M
20
DRIVING SAFELY

Sto
p & Start


Going into engine STOP mode
The "ECO"
warning lamp comes
on in the instrument panel and the
engine automatically goes into
standby, w ith a 6-speed elec-
tronic gear control gearbox:
at speeds
below 5 mph (8 km/h), press the brake
pedal or put the gear lever in position N
.
In some circumstances, STOP mode may
not be available; the "ECO"
warning lamp
fl ashes for few seconds, then goes off.
Going into engine START mode
The "ECO" warning lamp goes
off and the engine restarts with
a 6-speed electronic gear
control gearbox
:


- gear lever in position A
or M
, release
the brake pedal,

- or with the gear lever in position N

and the brake pedal released, move
the gear lever to position A
or M
,

- or engage reverse gear.
In some circumstances START mode
may be invoked automatically; the "ECO"

warning lamp fl ashes for a few seconds,
then goes off.
Deactivation / Reactivation
You can deactivate the system at any
time by pressing the "ECO OFF"
but-
ton; the warning lamp in the button
comes on.
Before refuelling or doing any-
thing under the bonnet, you
must switch off the ignition using
the key.
The system is reactivated au-
tomatically at every new start
using the key.
165

FA
M
21
DRIVING SAFELY
Electric parkin
g brake

Manual application / release
The parking brake can be applied man-
ually
by pulling
the control lever A
.
When the ignition is on, the parking
brake can be released
manually by
pressing the brake pedal
and pulling

then releasing
the control lever A
.
Automatic application / release
Press the accelerator, press and and re-
lease the clutch (manual gearbox), the
parking brake is released automatically
and progressively on acceleration.
With the vehicle stationary, when the
engine is switched off
, the parking
brake is applied
automatically.
Before getting out of the
vehicle, check that the
braking warning lamp
( red!
) and the warning
lamp P
, located in the control lever A

are on fi xed (not fl ashing).
141 If this warning lamp is on in
the instrument panel, the auto-
matic application/release is de-
activated
, in this case use the
manual application/release.


When the door is opened with
the engine running an audible
signal is heard, apply the parking
brake manually.
Do not leave a child alone in the ve-
hicle with the ignition on, they could
release the parking brake.
If you are towing a trailer or
a caravan or if the gradient
is likely to change (transport
by ship, lorry, towing, ...), ap-
ply the parking brake manually to
maximum force (long pull on control
lever A
) to immobilise the vehicle.

FA
M
22

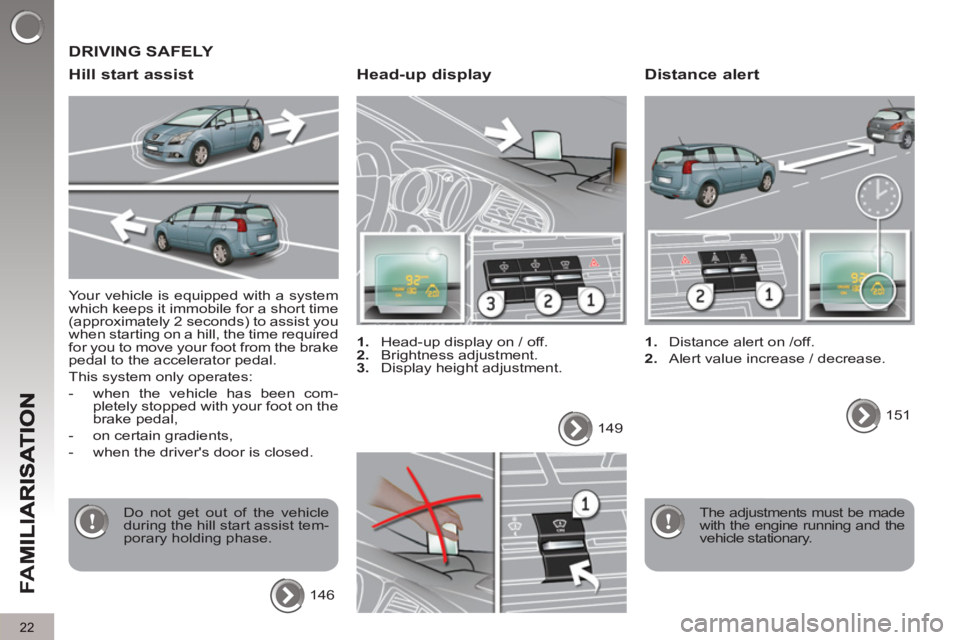

Your vehicle is equipped with a system
which keeps it immobile for a short time
(approximately 2 seconds) to assist you
when starting on a hill, the time required
for you to move your foot from the brake
pedal to the accelerator pedal.
This system only operates:


- when the vehicle has been com-
pletely stopped with your foot on the
brake pedal,

- on certain gradients,

- when the driver's door is closed.
Do not get out of the vehicle
during the hill start assist tem-
porary holding phase.
146

DRIVING SAFELY
Head-up displa
y


1.
Head-up display on / off.

2.
Brightness adjustment.

3.
Display height adjustment.
The adjustments must be made
with the engine running and the
vehicle stationary. 149


Distance alert



1.
Distance alert on /off.

2.
Alert value increase / decrease.
151


Hill start assist
