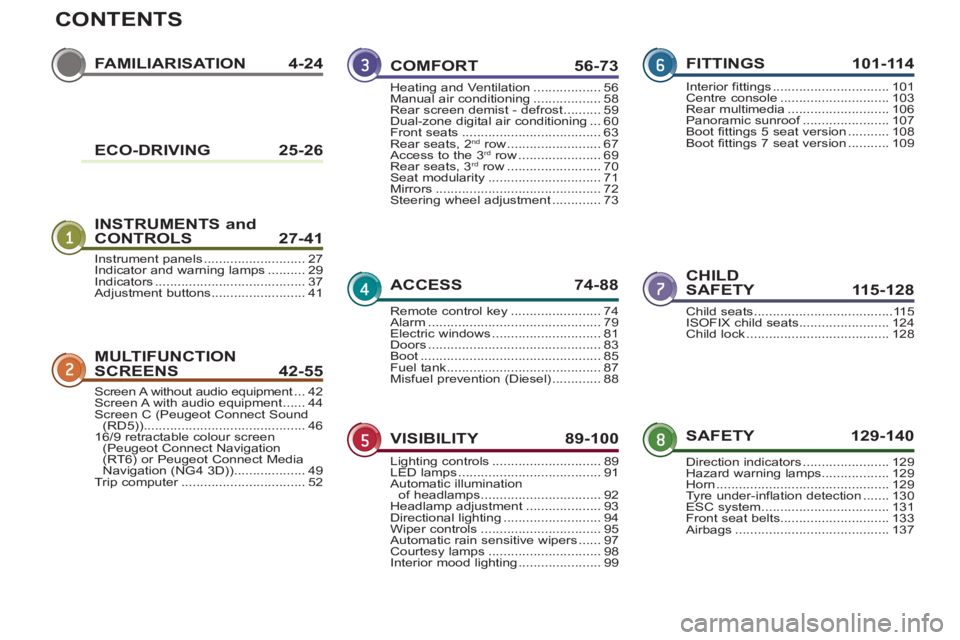

CONTENTS
FAMILIARISATION4-24
INSTRUMENTS and
CONTROLS 27-41
CHILD
SAFETY 115-128
MULTIFUNCTION
SCREEN
S42-55
SAFETY 129-140 COMFORT 56-7
3
ACCESS 74-88
VISIBILITY 89-100
FITTINGS 101-114
Instrument panels ...........................27Indicator and warning lamps ..........29Indicators........................................37Adjustment buttons.........................41
Child seats.....................................115ISOFIX child seats........................124Child lock......................................128
Screen A without audio equipment...t42Screen A with audio equipment......44Screen C (Peugeot Connect Sound (RD5))...........................................4616/9 retractable colour screen(Peugeot Connect Navigation (RT6) or Peugeot Connect Media
Navigation (NG4 3D))...................49Trip computer.................................r52
Direction indicators.......................129Hazard warning lamps..................129Horn..............................................129Tyre under-inflation detection .......130ESC system..................................131Front seat belts.............................133Airbags .........................................137
Heating and Ventilation ..................56Manual air conditioning ..................58Rear screen demist - defrost..........59Dual-zone digital air conditioning...60Front seats.....................................63Rear seats, 2nd row.........................67Access to the 3rdrow ......................69Rear seats, 3rdrow.........................70Seat modularity..............................71Mirrors............................................72Steering wheel adjustment .............73
Remote control key........................74Alarm..............................................79Electric windows.............................81Doors ..............................................83Boot................................................85Fuel tank.........................................87Misfuel prevention (Diesel).............88
Lighting controls.............................89LED lamps......................................91Automatic illumination
of headlamps................................92Headlamp adjustment ....................93Directional lighting..........................94Wiper controls................................95Automatic rain sensitive wipers ......97Courtesy lamps..............................98Interior mood lighting......................99
Interior fittings ...............................101Centre console .............................103Rear multimedia...........................106Panoramic sunroof.......................f107Boot fittings 5 seat version ...........108Boot fittings 7 seat version ...........109ECO-DRIVING 25-26

FA
M
11
SITTING COMFORTABLY
Driver's seat

Forwards-backwards
Height



Manual adjustment

63


Electric adjustment

64
Seat back angle

FA
M
12
SITTING COMFORTABLY

Front seats


Head restraint height and angle

Lumbar
65

Steering wheel adjustment



1.
Releasing the adjustment mechanism.

2.
Adjustment of height and reach.

3.
Locking the adjustment mechanism.
As a safety precaution, these opera-
tions must only be carried out when sta-
tionary.
73


Centre console

This has a large storage area (with re-
cesses for 2 bottles, ...) for the front
passengers and, according to version,
a multimedia system for the rear pas-
sengers.
103,
106

13
SITTING COMFORTABLY
Door mirrors

Adjustment

A.
Selection of the mirror to be adjusted.

B.
Adjustment of the position of the
mirror in the four directions.
72


Rear view mirror


Manual model


1.
Selection of the "day" position of the
mirror.

2.
Adjustment of the mirror.
73

Automatic day/night model


1.
Adjustment of the mirror.
73

Front seat belts



1.
Fastening the buckle.
133
2.
Height adjustment.
Also...


C.
Folding /
Unfolding.

CO
63
FRONT SEATS WITH MANUALADJUSTMENTS
Seat consisting of a seat cushion, a seat
back and a head restraint which can all
be adjusted to adapt your position for
ease of driving and comfort.
Height



)
Pull the control upwards to raise
or push it downwards to lower, as
many times as required, to obtain
the position required.

Seat back angle



)
Push the control rearwards.

Forwards-backwards



)
Raise the control and slide the seat
forwards or backwards.

CO
65










Heated seats control
With the engine running, the front seats
can be heated separately.


)
Use the adjustment dial, placed on
the side of each front seat, to switch
on and select the level of heating re-
quired:

0:


Off.

1

:
Low.

2

:
Medium.

3

:
High.


)
To raise the head restraint, pull it
forwards and upwards at the same
time.

)
To remove the head restraint, press
the lug A
and pull the head restraint
upwards.

)
To put the head restraint back in
place, engage the head restraint
stems in the openings keeping them
in line with the seat back.

)
To lower the head restraint, press
the lug A
and the head restraint at
the same time.

)
To adjust the angle of the head re-
straint, tilt its lower part forwards or
rearwards.
The head restraint is fi tted with
a frame with notches which
prevents it from lowering; this
is a safety device in case of impact.

The adjustment is correct when the
upper edge of the head restraint is
level with the top of the head.

Never drive with the head restraints
removed; they must be in place and
adjusted correctly.


Manual lumbar adjustment



)
Turn the knob manually to obtain
the desired level of lumbar support.

Head restraint height and angle adjustment

VIS
93
MANUAL ADJUSTMENT OF
HALOGEN HEADLAMPS
The initial setting is position "0"
.
To avoid causing a nuisance to other
road users, the height of the halogen
headlamps should be adjusted accord-
ing to the load in the vehicle.

0.
1 or 2 people in the front seats.

-.
3 people.

1.
5 people.

-.
Intermediate setting.

2.
5 people + maximum authorised load.

-.
Intermediate setting.

3.
Driver + maximum authorised load.
AUTOMATIC ADJUSTMENT
OF THE XENON HEADLAMPS

If a malfunction occurs, do not
touch the xenon bulbs. Contact
a PEUGEOT dealer or a quali-
fi ed workshop.
In order to avoid causing a nuisance to
other road users, this system corrects
the height of the xenon headlamps beam
automatically and when stationary, in re-
lation to the load in the vehicle.

If a malfunction occurs, this warn-
ing lamp is displayed on the in-
strument panel, accompanied by
an audible signal and a message
on the multifunction screen.
The system then places your headlamps
in the lowest position.

Travelling abroad
If using your vehicle in a coun-
try that drives on the other side
of the road, the headlamps must be
adjusted to avoid dazzling on-coming
drivers.
Contact a PEUGEOT dealer or a quali-
fi ed workshop.

FITTINGS
105
STORAGE COMPARTMENTS UNDER THE REAR FOOTWELLS

Depending on the confi guration, the
vehicle has storage compartments un-
der the footwells, located forward of the
outer rear seats. Access is via clipped
fl aps with a handle A
.
"AIRCRAFT" TYPE TABLES



)
To use the table, lower it fully until it
locks in the low position.

)
To store the table, raise it, passing
the point of resistance, to the high
position.

On the passenger side, do not
forget to fold the "aircraft" type
table before placing the seat
in the table position.
Do not place hard or heavy objects
on the table. They could become
dangerous projectiles in the event of
emergency braking or impact. Installed on the back of each front seat,
these allow you to set down objects.
It is located under the driver's seat
(manual adjustment).

Opening



)
Raise the front of the drawer and
pull it.
Do not place heavy objects in the drawers.
