2013 NISSAN ROGUE Owners Manual

Black plate (111,1)
[ Edit: 2012/ 5/ 18 Model: S35-D ]

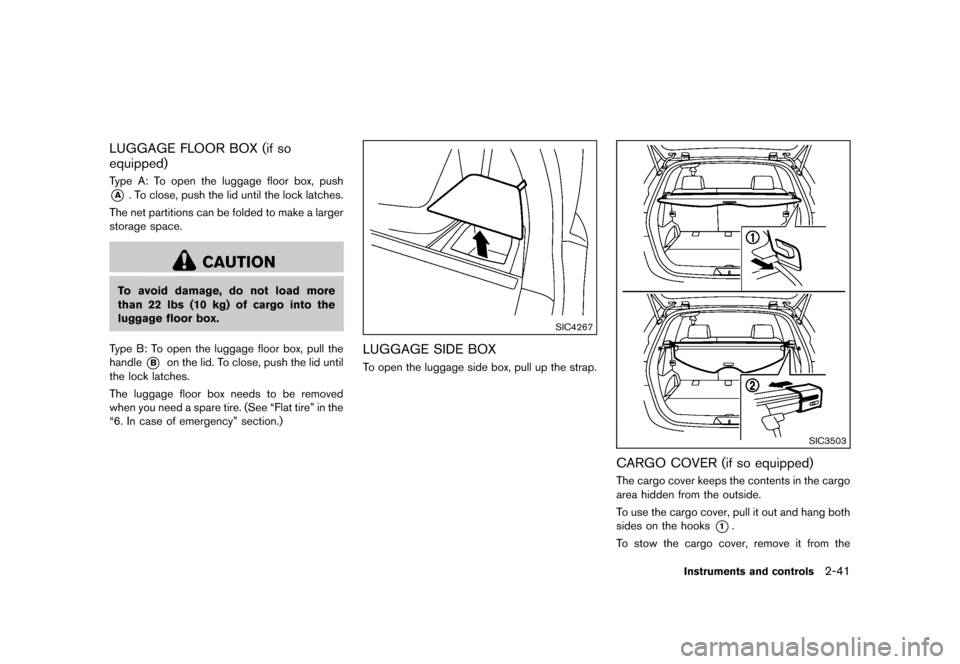

LUGGAGE FLOOR BOX (if so
equipped)
S35-D-110201-B2DC4A4F-CB14-4C93-B757-CA7BE5833E8CType A: To open the luggage floor box, push
*A. To close, push the lid until the lock latches.
The net partitions can be folded to make a larger
storage space.
CAUTION
To avoid damage, do not load more
than 22 lbs (10 kg) of cargo into the
luggage floor box.
Type B: To open the luggage floor box, pull the
handle
*Bon the lid. To close, push the lid until
the lock latches.
The luggage floor box needs to be removed
when you need a spare tire. (See “Flat tire” in the
“6. In case of emergency” section.)
SIC4267
LUGGAGE SIDE BOXS35-D-110201-65867C13-C89A-46EC-8E2A-F8212C01D932To open the luggage side box, pull up the strap.
SIC3503
CARGO COVER (if so equipped)S35-D-110201-4D798BFB-9ED7-4FB8-9F2C-7D3C067EF3DCThe cargo cover keeps the contents in the cargo
area hidden from the outside.
To use the cargo cover, pull it out and hang both
sides on the hooks
*1.
To stow the cargo cover, remove it from the
Instruments and controls2-41

Black plate (112,1)
[ Edit: 2012/ 5/ 18 Model: S35-D ]

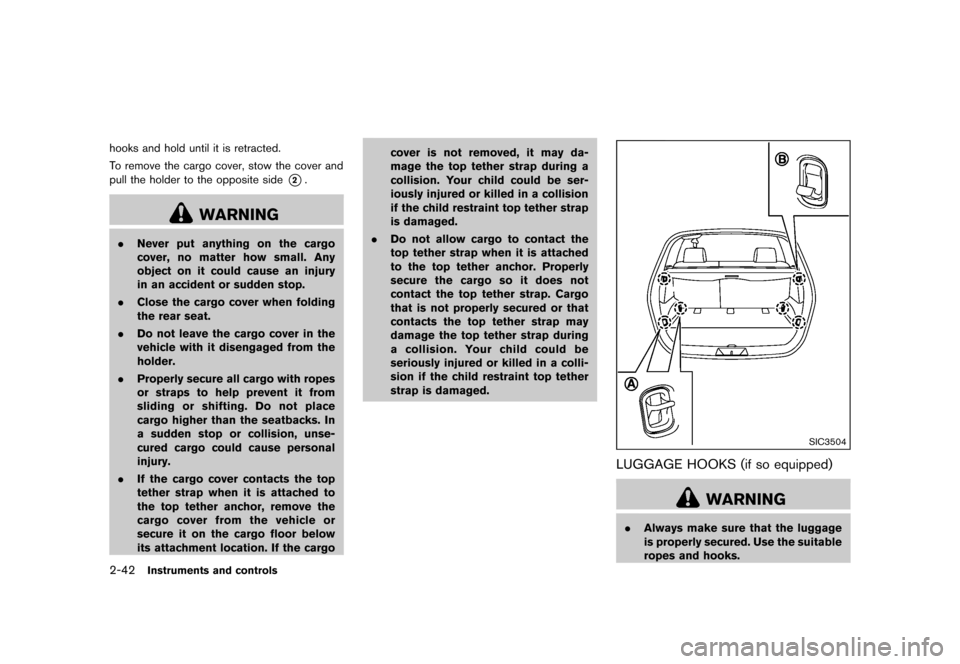

2-42Instruments and controls
hooks and hold until it is retracted.
To remove the cargo cover, stow the cover and
pull the holder to the opposite side
*2.
WARNING
.Never put anything on the cargo
cover, no matter how small. Any
object on it could cause an injury
in an accident or sudden stop.
. Close the cargo cover when folding
the rear seat.
. Do not leave the cargo cover in the
vehicle with it disengaged from the
holder.
. Properly secure all cargo with ropes
or straps to help prevent it from
sliding or shifting. Do not place
cargo higher than the seatbacks. In
a sudden stop or collision, unse-
cured cargo could cause personal
injury.
. If the cargo cover contacts the top
tether strap when it is attached to
the top tether anchor, remove the
cargo cover from the vehicle or
secure it on the cargo floor below
its attachment location. If the cargo cover is not removed, it may da-
mage the top tether strap during a
collision. Your child could be ser-
iously injured or killed in a collision
if the child restraint top tether strap
is damaged.
. Do not allow cargo to contact the
top tether strap when it is attached
to the top tether anchor. Properly
secure the cargo so it does not
contact the top tether strap. Cargo
that is not properly secured or that
contacts the top tether strap may
damage the top tether strap during
a collision. Your child could be
seriously injured or killed in a colli-
sion if the child restraint top tether
strap is damaged.
SIC3504
LUGGAGE HOOKS (if so equipped)S35-D-110201-2D988198-3E52-49E3-8EEB-85813B616CF7
WARNING
.Always make sure that the luggage
is properly secured. Use the suitable
ropes and hooks.

Black plate (113,1)
[ Edit: 2012/ 5/ 18 Model: S35-D ]

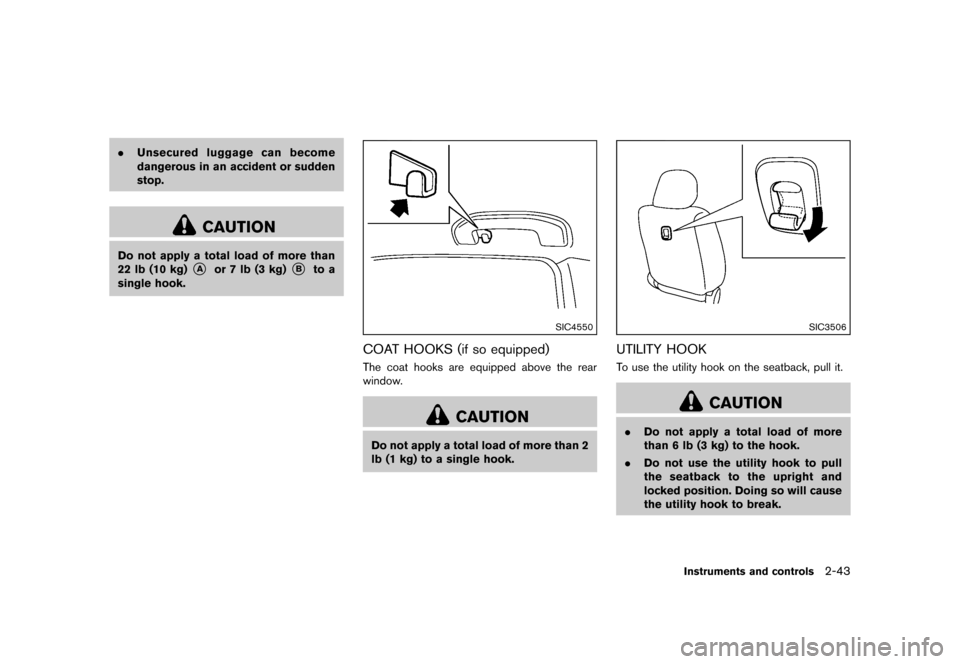

.Unsecured luggage can become
dangerous in an accident or sudden
stop.
CAUTION
Do not apply a total load of more than
22 lb (10 kg)
*Aor 7 lb (3 kg)*Bto a
single hook.
SIC4550
COAT HOOKS (if so equipped)S35-D-110201-DF957E51-D7CE-457F-B5FE-B60CF761743AThe coat hooks are equipped above the rear
window.
CAUTION
Do not apply a total load of more than 2
lb (1 kg) to a single hook.
SIC3506
UTILITY HOOKS35-D-110201-0F642A2D-5628-4E33-83E0-2E6B14382F28To use the utility hook on the seatback, pull it.
CAUTION
. Do not apply a total load of more
than 6 lb (3 kg) to the hook.
. Do not use the utility hook to pull
the seatback to the upright and
locked position. Doing so will cause
the utility hook to break.
Instruments and controls2-43

Black plate (114,1)
[ Edit: 2012/ 5/ 18 Model: S35-D ]
2-44Instruments and controls
SIC3549
ROOF RACK (if so equipped)GUID-963DC233-F1BF-4195-80FA-612BBCFAEFB2Secure the crossbars to the roof rail before
loading. The crossbars are available from a
NISSAN dealer.
Always distribute the luggage evenly on the roof
rack. Do not load more than 99 lb (45 kg). Be
careful that your vehicle does not exceed the
Gross Vehicle Weight Rating (GVWR) or its
Gross Axle Weight Rating (GAWR front and
rear) . The GVWR and GAWR are located on the
F.M.V.S.S. or C.V.M.S.S. certification label (lo-
cated on the driver’s door pillar). For more
information regarding GVWR and GAWR, see
“Vehicle loading information” in the “9. Technical
and consumer information” section.
WARNING
.Drive extra carefully when the vehi-
cle is loaded at or near the cargo
carrying capacity, especially if the
significant portion of that load is
carried on the roof rack.
. Heavy loading of the roof rack has
the potential to affect the vehicle
stability and handling during sud-
den or unusual handling maneuvers.
. Roof rack load should be evenly
distributed.
. Do not exceed maximum roof rack
load weight capacity.
. Properly secure all cargo with ropes
or straps to help prevent it from
sliding or shifting. In a sudden stop
or collision, unsecured cargo could
cause personal injury.
CAUTION
Use care when placing or removing
items from the roof rack. If you cannot
comfortably lift the items onto the roof rack from the ground, use a ladder or
stool.

Black plate (115,1)
[ Edit: 2012/ 5/ 18 Model: S35-D ]

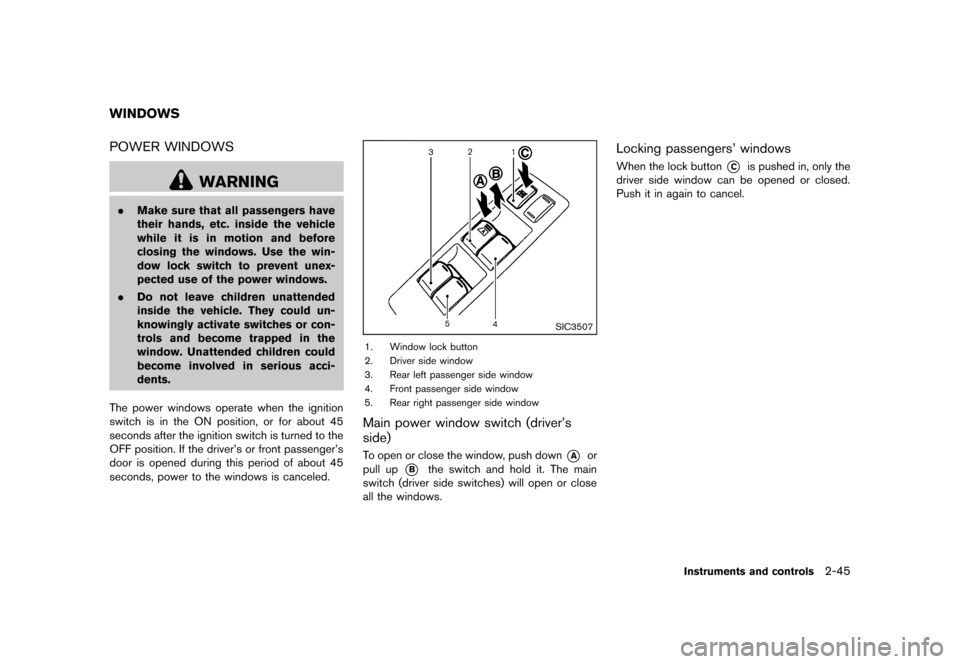

S35-D-110201-EF5A4CAB-3CE8-402A-B85B-F12E85049006POWER WINDOWSS35-D-110201-28870A1D-95F8-487F-8BEF-004065E33A6E
WARNING
.Make sure that all passengers have
their hands, etc. inside the vehicle
while it is in motion and before
closing the windows. Use the win-
dow lock switch to prevent unex-
pected use of the power windows.
. Do not leave children unattended
inside the vehicle. They could un-
knowingly activate switches or con-
trols and become trapped in the
window. Unattended children could
become involved in serious acci-
dents.
The power windows operate when the ignition
switch is in the ON position, or for about 45
seconds after the ignition switch is turned to the
OFF position. If the driver’s or front passenger’s
door is opened during this period of about 45
seconds, power to the windows is canceled.
SIC3507
1. Window lock button
2. Driver side window
3. Rear left passenger side window
4. Front passenger side window
5. Rear right passenger side window
Main power window switch (driver’s
side)
GUID-B6E7617E-E40E-40C3-9E55-437ACDA41B5ATo open or close the window, push down*Aor
pull up
*Bthe switch and hold it. The main
switch (driver side switches) will open or close
all the windows.
Locking passengers’ windowsGUID-21155F19-5215-4B78-A2CE-1C399D86BA17When the lock button*Cis pushed in, only the
driver side window can be opened or closed.
Push it in again to cancel.
Instruments and controls2-45
WINDOWS

Black plate (116,1)
[ Edit: 2012/ 5/ 18 Model: S35-D ]
2-46Instruments and controls
SIC3508
Passenger side power window switchGUID-6392E6CE-0551-411A-994B-8AC9D946BB5EThe passenger side switch will open or close
only the corresponding window. To open or
close the window, push down or pull up the
switch and hold it.
SIC3509
Automatic operation (if so equipped)GUID-E7474ECC-09DE-4A54-A358-7896B84E25A1The automatic operation is available for the
switch that has an
mark on its surface.
Type A: To fully open or close the window, push
down or pull up the switch to the second detent
and release it; the switch need not be held. The
window will automatically open or close all the
way. To stop the window, just push or lift the
switch in the opposite direction.
Type B: To fully open the window, push down
the switch to the second detent and release it;
the switch need not be held. The window will
automatically open all the way. To stop the
window, just lift the switch. To fully close the window, push and hold the switch.
A light push or pull on the switch will cause the
window to open or close until the switch is
released.
Auto-reverse function (if so equipped)GUID-CD58E688-0E5F-4849-A2F9-9DCE763F2A71
WARNING
There are some small distances imme-
diately before the closed position which
cannot be detected. Make sure that all
passengers have their hands, etc., in-
side the vehicle before closing the
window.
If the control unit detects something caught in
the window as it is closing, the window will be
immediately lowered.
The auto reverse function can be activated when
the window is closed by automatic operation
when the ignition switch is in the ON position or
for 45 seconds after the ignition switch is turned
to the OFF position.
Depending on the environment or driving
conditions, the auto reverse function may
be activated if an impact or load similar to
something being caught in the window
occurs.

Black plate (117,1)
[ Edit: 2012/ 5/ 18 Model: S35-D ]

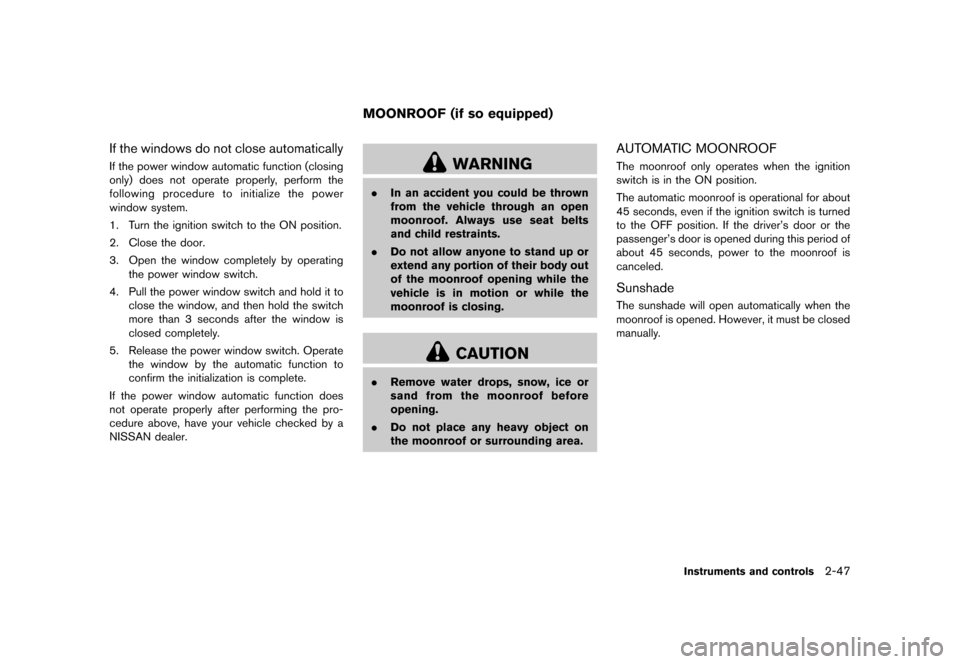

If the windows do not close automaticallyGUID-4366A858-91A3-4739-91C0-DACFB774B6DEIf the power window automatic function (closing
only) does not operate properly, perform the
following procedure to initialize the power
window system.
1. Turn the ignition switch to the ON position.
2. Close the door.
3. Open the window completely by operatingthe power window switch.
4. Pull the power window switch and hold it to close the window, and then hold the switch
more than 3 seconds after the window is
closed completely.
5. Release the power window switch. Operate the window by the automatic function to
confirm the initialization is complete.
If the power window automatic function does
not operate properly after performing the pro-
cedure above, have your vehicle checked by a
NISSAN dealer.
GUID-74BA112D-48AA-4F68-AF07-7C0714B7A644
WARNING
. In an accident you could be thrown
from the vehicle through an open
moonroof. Always use seat belts
and child restraints.
. Do not allow anyone to stand up or
extend any portion of their body out
of the moonroof opening while the
vehicle is in motion or while the
moonroof is closing.
CAUTION
.Remove water drops, snow, ice or
sand from the moonroof before
opening.
. Do not place any heavy object on
the moonroof or surrounding area.
AUTOMATIC MOONROOFGUID-795A67FE-3AA6-4D5F-A971-C344A69CEBB7The moonroof only operates when the ignition
switch is in the ON position.
The automatic moonroof is operational for about
45 seconds, even if the ignition switch is turned
to the OFF position. If the driver’s door or the
passenger’s door is opened during this period of
about 45 seconds, power to the moonroof is
canceled.
SunshadeS35-D-110201-6A117BAD-3314-4417-9693-3DEEE0575E80The sunshade will open automatically when the
moonroof is opened. However, it must be closed
manually.
Instruments and controls2-47
MOONROOF (if so equipped)

Black plate (118,1)
[ Edit: 2012/ 5/ 18 Model: S35-D ]
2-48Instruments and controls
SIC3510
Sliding the moonroofGUID-E58CB540-F94C-4392-847D-DF07AA0A152BTo fully open or close the moonroof, push the
switch toward
*1or*2and release
it; it need not be held. The roof will automatically
open or close all the way. To stop the roof, push
the switch in any direction while it is opening or
closing.
Tilting the moonroofGUID-F8514024-28D3-4F20-A4B9-9C5D9274A6BBTo tilt up, first close the moonroof by pushing the
switch toward
*2. Push the switch toward
*2again and release it; it need not be
held. To tilt down the moonroof, push the switch
toward
*1.
Auto reverse functionS35-D-110201-AF18E966-5C54-4980-BC51-E872555FB4DF
WARNING
There are some small distances imme-
diately before the closed position which
cannot be detected. Make sure that all
passengers have their hands, etc., in-
side the vehicle before closing the
moonroof.
If the control unit detects something caught in
the moonroof when it is closing, the moonroof
will be immediately opened.
The auto reverse function can be activated when
the moonroof is closed by automatic operation
when the ignition switch is in the ON position or
for about 45 seconds after the ignition switch is
turned to the OFF position.
If the moonroof cannot be closed automatically
when the auto reverse function activates due to
a malfunction, push and hold the switch toward
*2.
Depending on the environment or driving
conditions, the auto reverse function may
be activated if an impact or load similar to
something being caught in the moonroof
occurs.
If the moonroof does not operateGUID-750E5F7D-B6E5-4E9E-9714-1DE514A949D8If the moonroof does not operate properly,
perform the following procedure to initialize the
moonroof operation system.
1. If the moonroof is open, close it fully by repeatedly pushing the switch toward
*2.
2. Push and hold the switch toward
*2to
tilt the moonroof up.
3. Release the moonroof switch after the
moonroof moves slightly up and down.
4. Push and hold the switch toward
*1to
fully tilt the moonroof down.
5. Check if the moonroof switch operates
normally.
If the moonroof does not operate properly after
performing the procedure above, have your
vehicle checked by a NISSAN dealer.
