2013 NISSAN ROGUE Owners Manual

Black plate (103,1)
[ Edit: 2012/ 5/ 18 Model: S35-D ]
Battery saver systemGUID-C87E6811-F73E-43C4-B263-0CDDFD967519.When the headlight switch is in theor
position while the ignition switch is in
the ON position, the lights will automatically
turn off within a period of time after the
ignition switch has been turned to the OFF
position.
. When the headlight switch remains in the
orposition after the lights auto-
matically turn off, the lights will turn on when
the ignition switch is turned to the ON
position.
CAUTION
. When you turn on the headlight
switch again after the lights auto-
matically turn off, the lights will not
turn off automatically. Be sure to
turn the light switch to the OFF
position when you leave the vehicle
for extended periods of time, other-
wise the battery will be discharged.
. Never leave the light switch on
when the engine is not running for
extended periods of time even if the
headlights turn off automatically.
SIC2275
Headlight aiming control (if so equipped)S35-D-110201-1FB40E63-F262-4574-B0B3-682A946243B6Depending on the number of occupants in the
vehicle and the load it is carrying, the headlight
axis may be higher than desired. If the vehicle is
traveling on a hilly road, the headlights may
directly hit the rearview mirror of the vehicle
ahead or the windshield of the oncoming
vehicle. The light axis can be lowered with the
operation of the switch.
The larger the number designated on the switch,
the lower the axis.
When traveling with no heavy load or on a flat
road, select position 0.
WARNING
Xenon headlights are extremely bright
compared to conventional headlights. If
the xenon headlights hit the rearview
mirror of the vehicle ahead or the
windshield of oncoming vehicle, the
driver of these vehicles may have
difficulty driving because of the bright-
ness. Use the headlight aiming control
switch to lower the light axis. See
“Xenon headlights” earlier in this sec-
tion for additional information.
Daytime running light system (Canada
only)
GUID-10297789-CB0E-4316-8D06-E96C4D5A3D58The daytime running lights automatically illumi-
nate when the engine is started with the parking
brake released. The daytime running lights
operate with the headlight switch in the OFF
position or in the
position. Turn the head-
light switch to the
position for full illumina-
tion when driving at night.
If the parking brake is applied before the engine
is started, the daytime running lights do not
illuminate. The daytime running lights illuminate
once the parking brake is released. The daytime
running lights will remain on until the ignition
Instruments and controls2-33

Black plate (104,1)
[ Edit: 2012/ 5/ 18 Model: S35-D ]
2-34Instruments and controls
switch is turned to the OFF position.
WARNING
When the daytime running light system
is active, tail lights on your vehicle are
not on. It is necessary at dusk to turn on
your headlights. Failure to do so could
cause an accident injuring yourself and
others.
SIC3488
TURN SIGNAL SWITCHS35-D-110201-D70B7BB9-0165-4793-8DD2-5117530A4F24
*1Turn signalS35-D-110201-78EF5631-94EC-4BFA-B057-20F6E43845D5Move the lever up or down to signal the turning
direction. When the turn is completed, the turn
signals cancel automatically.
*2Lane change signalS35-D-110201-706FD6E2-4F8D-4CE9-BE9D-F50571D2B390To indicate a lane change, move the lever up or
down to the point where lights begin flashing.
SIC3020
FOG LIGHT SWITCH (if so equipped)S35-D-110201-3A145094-902C-4624-8C4C-7BCAA5A6360CTo turn the fog lights on, turn the headlight
switch to the
position, then turn the switch
to the
position. To turn them off, turn the
switch to the OFF position.
The headlights must be on for the fog lights to
operate.
When the headlight high-beam is selected, the
fog lights turn off.

Black plate (105,1)
[ Edit: 2012/ 5/ 18 Model: S35-D ]
S35-D-110201-6910BDF6-7620-4A3A-A2E3-EA42F9846A63
SIC3404
To sound the horn, push the center pad area of
the steering wheel.
WARNING
Do not disassemble the horn. Doing so
could affect proper operation of the
supplemental front air bag system.
Tampering with the supplemental front
air bag system may result in serious
personal injury.
S35-D-110201-0C36F960-D520-4B91-8EDB-7DE5A9B2422D
WARNING
Do not use or allow occupants to use
the seat heater if you or the occupants
cannot monitor elevated seat tempera-
tures or have an inability to feel pain in
those body parts in contact with the
seat. Use of the seat heater by such
people could result in serious injury.
CAUTION
.The battery could run down if the
seat heater is operated while the
engine is not running.
. Do not use the seat heater for
extended periods or when no one
is using the seat.
. Do not put anything on the seat
which insulates heat, such as a
blanket, cushion, seat cover, etc.
Otherwise, the seat may become
overheated.
. Do not place anything hard or heavy
on the seat or pierce it with a pin or
similar object. This may result in damage to the heater.
. Any liquid spilled on the heated seat
should be removed immediately
with a dry cloth.
. When cleaning the seat, never use
gasoline, thinner, or any similar
materials.
. If any malfunctions are found or the
heated seat does not operate, turn
the switch off and have the system
checked by a NISSAN dealer.
Instruments and controls2-35
HORN HEATED SEATS (if so equipped)

Black plate (106,1)
[ Edit: 2012/ 5/ 18 Model: S35-D ]
2-36Instruments and controls
SIC3355
The front seats are warmed by built-in heaters.
The switches located on the center console can
be operated independently of each other.
1. Start the engine.
2. Select heat range.
*1For high heat, push the HI (High) side of
the switch.
*2For low heat, push the LO (Low) side of
the switch.
The indicator light in the switch
*3will
illuminate when low or high is selected.
3. To turn off the heater, return the switch to the level position. Make sure the indicator
light goes off. The heater is controlled by a thermostat,
automatically turning the heater on and off.
The indicator light will remain on as long as
the switch is on.
When the vehicle’s interior is warmed, or
before you leave the vehicle, be sure to turn
off the switch.
S35-D-110201-A6E4B20D-7614-4546-90DD-DBDB4900E03B
SSD1153
The vehicle should be driven with the Vehicle
Dynamic Control (VDC) system on for most
driving conditions.
If the vehicle is stuck in mud or snow, the VDC
system reduces the engine output to reduce
wheel spin. The engine speed will be reduced
even if the accelerator is depressed to the floor.
If maximum engine power is needed to free a
stuck vehicle, turn the VDC system off.
To turn off the VDC system, push the VDC OFF
switch. The
indicator will illuminate.
Push the VDC OFF switch again or restart the
engine to turn on the system. (See “Vehicle
Dynamic Control (VDC) system” in the “5.
Starting and driving” section.)
VEHICLE DYNAMIC CONTROL (VDC)
OFF SWITCH

Black plate (107,1)
[ Edit: 2012/ 5/ 18 Model: S35-D ]
S35-D-110201-C63091BC-C543-488A-8F3D-AFA12FC37391
SIC3492
Instrument panel
SIC3493
Center console (if so equipped)
The power outlet is located in the instrument
panel and the center console (if so equipped) .
CAUTION
.The outlet and plug may be hot
during or immediately after use.
. Do not use with accessories that
exceed a 12 volt, 120W (10A) power
draw. Do not use double adapters or
more than one electrical accessory.
. Use power outlet with the engine
running to avoid discharging the
vehicle battery.
. Avoid using power outlet when the
air conditioner, headlights or rear
window defroster is on.
. Before inserting or disconnecting a
plug, be sure the electrical acces-
sory being used is turned OFF.
. This power outlet is not designed
for use with a cigarette lighter unit.
. Push the plug in as far as it will go.
If good contact is not made, the plug
may overheat or the internal tem-
perature fuse may open. .
When not in use, be sure to close
the cap. Do not allow water or any
liquid to contact the outlet.
Instruments and controls2-37
POWER OUTLET

Black plate (108,1)
[ Edit: 2012/ 5/ 18 Model: S35-D ]
2-38Instruments and controls

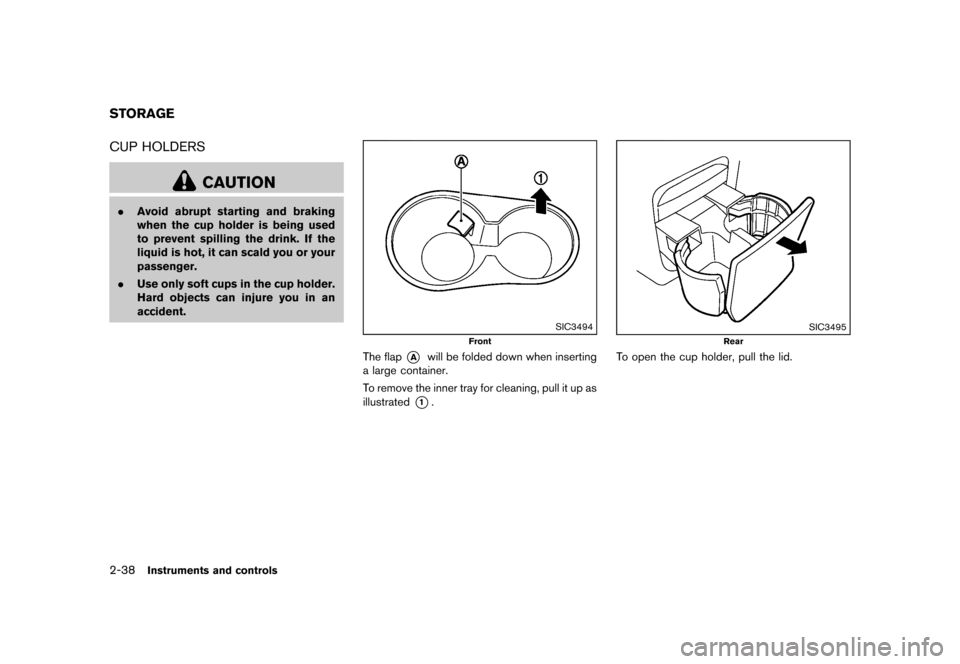

S35-D-110201-CF7976D3-F285-4050-AFD1-1371CF792F0BCUP HOLDERSS35-D-110201-FD1D8479-5AEA-4CA7-8486-247F76618FF5
CAUTION
.Avoid abrupt starting and braking
when the cup holder is being used
to prevent spilling the drink. If the
liquid is hot, it can scald you or your
passenger.
. Use only soft cups in the cup holder.
Hard objects can injure you in an
accident.
SIC3494
Front
The flap*Awill be folded down when inserting
a large container.
To remove the inner tray for cleaning, pull it up as
illustrated
*1.
SIC3495
Rear
To open the cup holder, pull the lid.
STORAGE

Black plate (109,1)
[ Edit: 2012/ 5/ 18 Model: S35-D ]

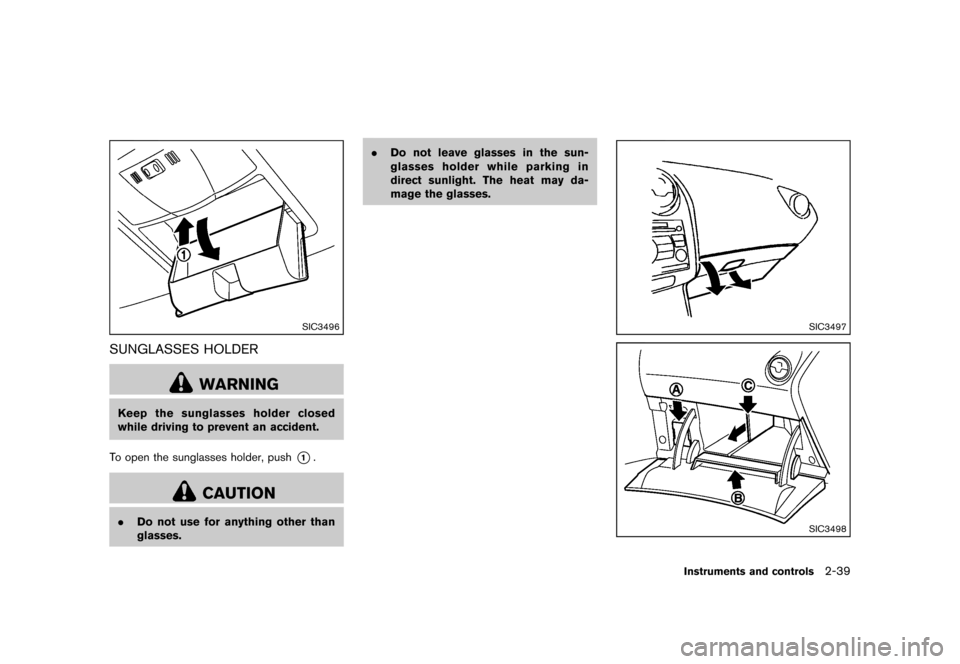

SIC3496
SUNGLASSES HOLDERS35-D-110201-7D49A2AA-DD28-4615-B72E-A1CBFE395B60
WARNING
Keep the sunglasses holder closed
while driving to prevent an accident.
To open the sunglasses holder, push
*1.
CAUTION
. Do not use for anything other than
glasses. .
Do not leave glasses in the sun-
glasses holder while parking in
direct sunlight. The heat may da-
mage the glasses.
SIC3497
SIC3498
Instruments and controls2-39

Black plate (110,1)
[ Edit: 2012/ 5/ 18 Model: S35-D ]
2-40Instruments and controls
GLOVE BOXS35-D-110201-F9260F73-5260-4688-8D88-814B9E5BA4ED
WARNING
Keep glove box lid closed while driving
to help prevent injury in an accident or a
sudden stop.
To open the glove box, pull the handle.
To close, push the lid in until the lock latches.
The glove box light illuminates when the head-
light switch is turned on.
*ACard holder
*BBack side pocket of lid
*CRemovable partition (if so equipped)
To remove the partition, pull it out.
SIC3499
CONSOLE BOXS35-D-110201-E018BA87-9079-45DE-909F-A77EB11D068ETo open the console boxes, push up the knob
*Aand pull up the lid.
To close, push the lid down until latched.
To remove the inner box (if so equipped) for
cleaning or storing a large object, pull it up as
illustrated
*B.
The inside of the console box lid is designed to
be used as a card holder
*Cand pen holders
*D.
SIC4530
Type A
SIC3514
Type B
