2013 NISSAN ROGUE Owners Manual

Black plate (207,1)
[ Edit: 2012/ 5/ 18 Model: S35-D ]

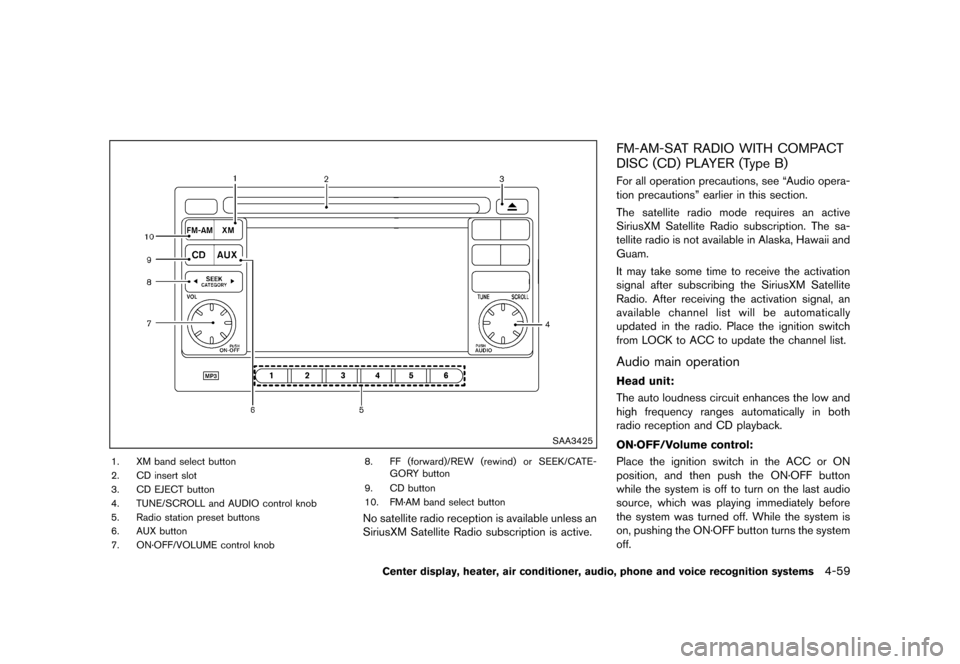

SAA3425
1. XM band select button
2. CD insert slot
3. CD EJECT button
4. TUNE/SCROLL and AUDIO control knob
5. Radio station preset buttons
6. AUX button
7. ON·OFF/VOLUME control knob8.
FF (forward)/REW (rewind) or SEEK/CATE-
GORY button
9. CD button
10. FM·AM band select button
No satellite radio reception is available unless an
SiriusXM Satellite Radio subscription is active.
FM-AM-SAT RADIO WITH COMPACT
DISC (CD) PLAYER (Type B)
S35-D-110201-A34993EA-D4E6-4D0E-A0D9-4178E013D125For all operation precautions, see “Audio opera-
tion precautions” earlier in this section.
The satellite radio mode requires an active
SiriusXM Satellite Radio subscription. The sa-
tellite radio is not available in Alaska, Hawaii and
Guam.
It may take some time to receive the activation
signal after subscribing the SiriusXM Satellite
Radio. After receiving the activation signal, an
available channel list will be automatically
updated in the radio. Place the ignition switch
from LOCK to ACC to update the channel list.
Audio main operationS35-D-110201-EC1E62D8-FD17-46CD-9549-AB5994BB95AB
Head unit:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407The auto loudness circuit enhances the low and
high frequency ranges automatically in both
radio reception and CD playback.
ON·OFF/Volume control:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Place the ignition switch in the ACC or ON
position, and then push the ON·OFF button
while the system is off to turn on the last audio
source, which was playing immediately before
the system was turned off. While the system is
on, pushing the ON·OFF button turns the system
off.
Center display, heater, air conditioner, audio, phone and voice recognition systems4-59

Black plate (208,1)
[ Edit: 2012/ 5/ 18 Model: S35-D ]
4-60Center display, heater, air conditioner, audio, phone and voice recognition systems
Turn the VOL control knob to adjust the volume.
Adjusting tone quality and speaker bal-
ance:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407To adjust Bass, Treble, Balance and Fade, push
the Audio control knob. When the display shows
the setting you want to change (Bass, Treble,
Balance and Fade) , rotate the Audio control
knob to set the desired setting. For the other
setting methods, see “How to use touch screen”
earlier in this section.
This vehicle has some sound effect functions as
follows:
.Speed Volume
For more details, see “How to use the setup
button” earlier in this section.
Adjusting AUX level:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407The volume level of incoming sound can be
selected from “Quiet”, “Medium” and “Loud”
when an auxiliary device is connected to the
system. For more details, see “How to use the
setup button” earlier in this section.
Switching the display:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Pushing the AUX button will switch the displays
between USB/iPod®and AUX.
FM-AM-SAT radio operationS35-D-110201-0C647E9F-E647-4371-8C51-BFF85FD6BA69When the radio band select button is pushed
while the ignition switch is in the ACC or ON
position, the radio will come on at the channel
last played.
The last channel played will also come on when
the ON·OFF button is pushed to ON.
If another audio source is playing when the radio
band select button is turned to ON, the audio
source will automatically be turned off and the
last radio channel played will come on.
When the stereo broadcast signal is weak, the
radio will automatically change from stereo to
monaural reception.
FM·AM radio band select:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Pushing the FM·AM radio band select button will
change the band as follows:
AM ?FM1 ?FM2 ?AM
SiriusXM Satellite Radio band se-
lect:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Pushing the XM band select button will change
the band as follows:
XM1 ?XM2 ?XM3 ?XM1
The satellite radio is not available in Alaska,
Hawaii and Guam. TUNE (Tuning):
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407.
For AM and FM radio
Turn the TUNE knob for manual tuning.
. For SiriusXM Satellite Radio
Turn the TUNE knob to seek channels from
all of the categories when any category is
not selected.
SEEK tuning:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407.For AM and FM radio
Push the SEEK/CATEGORY button
or
to tune from low to high or high to low
frequencies and to stop at the next broad-
casting station.
. For SiriusXM Satellite Radio
Push the SEEK/CATEGORY button
or
to tune to the first channel of the next or
previous category.
Tuning with the touch screen (AM and FM
radio):
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407When in AM or FM mode, the radio can be
tuned using the touch screen. To bring up the
visual tuner, touch the “Tune” key on the lower
right corner of the screen. A screen appears
with a bar running from low frequencies on the
left to high frequencies on the right. Touch the
screen at the location of the frequency you wish
to tune and the station will change to that

Black plate (209,1)
[ Edit: 2012/ 5/ 18 Model: S35-D ]
frequency. To return to the regular radio display
screen, touch the “OK” key.
toStation memory operations:GUID-D73A39BF-43C8-459F-9C24-47B7F579C40712 stations/channels can be set for the FM band
(6 each for FM1 and FM2) , 18 for SiriusXM
Satellite Radio (6 each for XM1, XM2 and XM3)
and 6 stations can be set for the AM band.
1. Choose the radio band using the radio bandselect button.
2. Tune to the desired station/channel using the SEEK/CATEGORY button or the TUNE
knob.
3. Push and hold the desired station preset button
tountil the beep sound is
heard.
4. The station indicator will then come on and the sound will resume. Memorizing is now
complete.
5. Other buttons can be set in the same
manner.
If the battery cable is disconnected, or if the fuse
opens, the radio memory will be erased. In that
case, reset the desired stations/channels.
Touch screen (SiriusXM Satellite Radio):
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407When the SiriusXM Satellite Radio is being
played, the following items are available with the
touch screen operation. .
Channels
Displays a list of channels. Touch a preferred
channel displayed on the list to change to
that channel.
. Categories
Displays a list of categories. Touch a
preferred channel displayed on the list to
display options within that category.
Compact Disc (CD) player operationS35-D-110201-63B58E87-669C-4423-9305-86EC6AF5209BPlace the ignition switch in the ACC or ON
position and insert the Compact Disc (CD) into
the slot with the label side facing up. The CD will
be guided automatically into the slot and start
playing.
If the radio is already operating, it will auto-
matically turn off and the CD will play.
If the system has been turned off while the CD
was playing, pushing the ON·OFF button will
start the CD.
Do not use 3.1 in (8 cm) discs.
PLAY:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407When the CD button is pushed with the system
off and the CD loaded, the system will turn on
and the CD will start to play.
When the CD button is pushed with the CD
loaded and the radio playing, the radio will automatically be turned off and the CD will start
to play.
While listening to a CD or an MP3/WMA CD,
certain text may be displayed (when a CD
encoded with text is being used). Depending on
how the CD or MP3/WMA CD is encoded, the
text is displayed listing the artist, album and
song title.
Next/Previous Track and Fast
Forward/Rewind:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407When theorbutton is pushed for more
than 1.5 seconds while the CD is being played,
the CD will play while fast forwarding or
rewinding. When the button is released, the
CD will return to normal play speed.
When the
orbutton is pushed for less
than 1.5 seconds while the CD is being played,
the next track or the beginning of the current
track on the CD will be played.
When the rewind button is pushed for less than
1.5 seconds within 3 seconds after the current
track starts playing, the previous track will be
played.
Center display, heater, air conditioner, audio, phone and voice recognition systems4-61

Black plate (210,1)
[ Edit: 2012/ 5/ 18 Model: S35-D ]
4-62Center display, heater, air conditioner, audio, phone and voice recognition systems
SAA3401
Random:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Touch the “Random” key to apply a random play
pattern to the CD. When the random mode is
active, the
icon will be displayed to the left
of the song title. If an MP3 CD is playing,
touching “Random” alternates between ran-
domly playing songs within the current folder
and songs from the CD as a whole. The
icon is displayed to the left of the song title or
folder name to denote which pattern is applied.
To cancel Random mode, touch the “Random”
key until no
icon is displayed.
SAA3402
Repeat:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Touch the “Repeat” key to apply a repeat play
pattern to the CD. When the repeat mode is
active, the
icon will be displayed to the left
of the song title. If an MP3 CD is playing,
touching “Repeat” alternates between repeating
the current song and repeating the current
folder. The
icon is displayed to the left of
the song title or folder name to denote which
pattern is applied. To cancel Repeat mode,
touch the “Repeat” key until no
icon is
displayed.
Browse:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Touch the “Browse” key to display the titles on
the CD in list format. Touch the title of a song in the list to begin playing that song. If an MP3 CD
is playing, touching the “Browse” key will also
list the folders on the disc. Follow the procedure
for selecting a song with the touch screen to
choose a folder.
CD EJECT:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407When the CD EJECT button is pushed with the
CD loaded, the CD will be ejected.
When this button is pushed while the CD is
being played, the CD will be ejected.
If the CD comes out and is not removed, it
will be pulled back into the slot to protect
it.
AUX (Auxiliary) inputS35-D-110201-BFB01D76-4C28-4AB6-9B76-289AAED6BAD3
AUX IN jack:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407The AUX IN jack is located in the center console.
The AUX IN audio input jack accepts any
standard analog audio input such as from a
portable cassette tape/CD player, MP3 player or
laptop computer.
AUX (Auxiliary) button:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407To switch to the AUX mode, push the AUX
button when a compatible audio device is
connected into the AUX IN jack.
When the AUX button is pushed with no device

Black plate (211,1)
[ Edit: 2012/ 5/ 18 Model: S35-D ]
plugged into the jack, the audio system does not
change to the AUX mode.
NISSAN strongly recommends using a stereo
mini plug cable when connecting your music
device to the audio system. Music may not play
properly when a monaural cable is used.

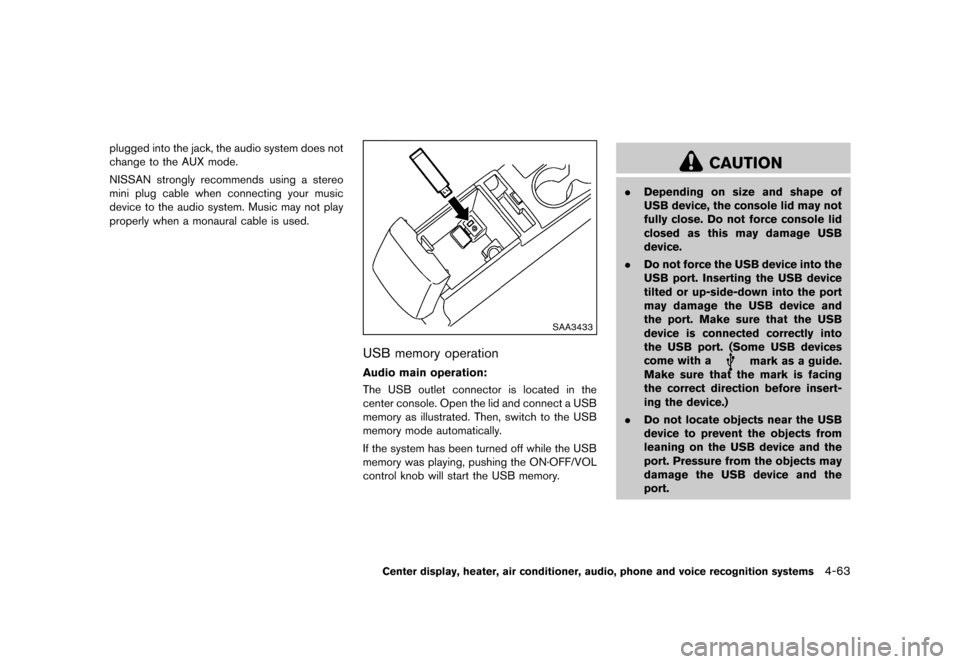

SAA3433
USB memory operationGUID-D2715C02-97AF-46F9-A58E-16E8B12F9706
Audio main operation:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407The USB outlet connector is located in the
center console. Open the lid and connect a USB
memory as illustrated. Then, switch to the USB
memory mode automatically.
If the system has been turned off while the USB
memory was playing, pushing the ON·OFF/VOL
control knob will start the USB memory.
CAUTION
.Depending on size and shape of
USB device, the console lid may not
fully close. Do not force console lid
closed as this may damage USB
device.
. Do not force the USB device into the
USB port. Inserting the USB device
tilted or up-side-down into the port
may damage the USB device and
the port. Make sure that the USB
device is connected correctly into
the USB port. (Some USB devices
come with a
mark as a guide.
Make sure that the mark is facing
the correct direction before insert-
ing the device.)
. Do not locate objects near the USB
device to prevent the objects from
leaning on the USB device and the
port. Pressure from the objects may
damage the USB device and the
port.
Center display, heater, air conditioner, audio, phone and voice recognition systems4-63

Black plate (212,1)
[ Edit: 2012/ 5/ 18 Model: S35-D ]
4-64Center display, heater, air conditioner, audio, phone and voice recognition systems
PLAY:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407When the AUX button is pushed with the system
off and the USB memory inserted, the system
will turn on.
If another audio source is playing and a USB
memory is inserted, push the AUX button
repeatedly until the center display changes to
the USB memory mode.
SEEK/CATEGORY button:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Push the SEEK/CATEGORY buttonwhile
an audio file on the USB device is playing to
return to the beginning of the current track. Push
the SEEK/CATEGORY button
several
times to skip backward several tracks.
Push the SEEK/CATEGORY button
while
an audio file on the USB device is playing to
advance one track. Push the SEEK/CATEGORY
button
several times to skip forward several
tracks. If the last track in a folder on the USB
device is skipped, the first track of the next folder
is played.
Push and hold the SEEK/CATEGORY button
orfor 1.5 seconds while an audio file
on the USB device is playing to reverse or fast
forward the track being played. The track plays
at an increased speed while reversing or fast
forwarding. When the button is released, the audio file returns to normal play speed.
Random and repeat play mode:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407While files on a USB device are playing, the play
pattern can be altered so that songs are
repeated or played randomly.
Random:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Touch the “Random” key to apply a random play
pattern to the USB device. When the random
mode is active, the
icon is displayed to the
left of the song title or album name to denote
which random pattern is applied. To cancel
Random mode, touch the “Random” key until no
icon is displayed.
Repeat:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Touch the “Repeat” key to apply a repeat play
pattern to the USB device. When the repeat
mode is active, the
icon is displayed to the
left of the song title or album name to denote
which repeat pattern is applied. To cancel
Repeat mode, touch the “Repeat” key until no
icon is displayed.
SAA3435
iPod®player operationS35-D-110201-14D49E3C-C854-4E06-9C60-5D7DEE8745DD
Connecting iPod®:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407To connect an iPod®to the vehicle so that the
iPod®can be controlled with the audio system
controls and display screen, use the USB jack
located in the center console. Open the
protective cover on the USB jack in the center
console and then connect the iPod
®specific
end of the cable to the iPod®and the USB end
of the cable to the USB jack on the vehicle
*1.
If your iPod®supports charging via a USB
connection, its battery will be charged while
connected to the vehicle with the ignition switch
in the ACC or ON position.

Black plate (213,1)
[ Edit: 2012/ 5/ 18 Model: S35-D ]

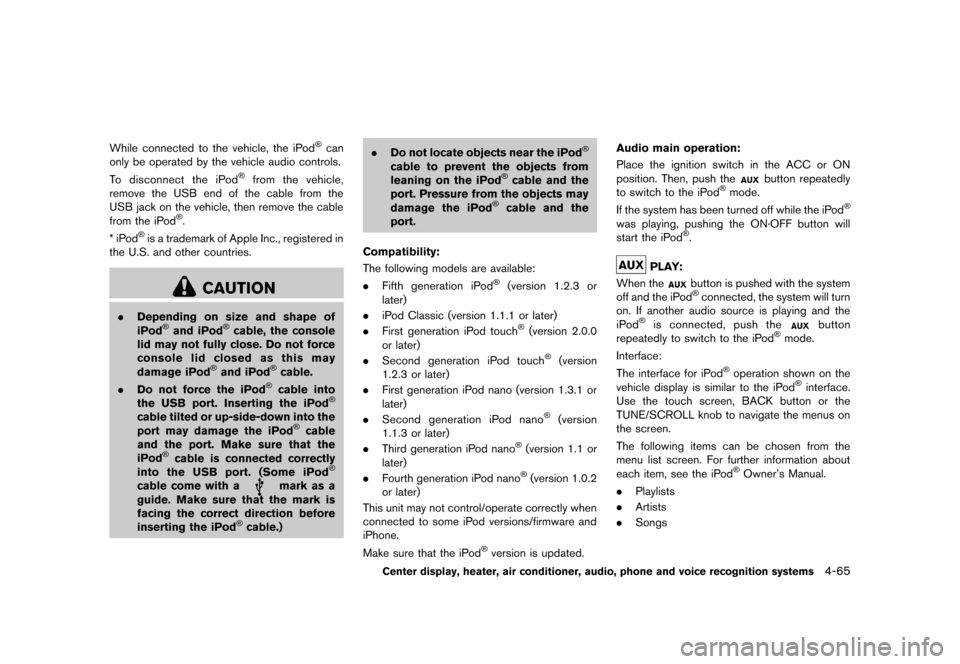

While connected to the vehicle, the iPod®can
only be operated by the vehicle audio controls.
To disconnect the iPod
®from the vehicle,
remove the USB end of the cable from the
USB jack on the vehicle, then remove the cable
from the iPod
®.
* iPod®is a trademark of Apple Inc., registered in
the U.S. and other countries.
CAUTION
. Depending on size and shape of
iPod®and iPod®cable, the console
lid may not fully close. Do not force
console lid closed as this may
damage iPod
®and iPod®cable.
. Do not force the iPod®cable into
the USB port. Inserting the iPod®
cable tilted or up-side-down into the
port may damage the iPod®cable
and the port. Make sure that the
iPod
®cable is connected correctly
into the USB port. (Some iPod®
cable come with amark as a
guide. Make sure that the mark is
facing the correct direction before
inserting the iPod
®cable.) .
Do not locate objects near the iPod
®
cable to prevent the objects from
leaning on the iPod®cable and the
port. Pressure from the objects may
damage the iPod
®cable and the
port.
Compatibility:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407The following models are available:
. Fifth generation iPod®(version 1.2.3 or
later)
. iPod Classic (version 1.1.1 or later)
. First generation iPod touch
®(version 2.0.0
or later)
. Second generation iPod touch
®(version
1.2.3 or later)
. First generation iPod nano (version 1.3.1 or
later)
. Second generation iPod nano
®(version
1.1.3 or later)
. Third generation iPod nano
®(version 1.1 or
later)
. Fourth generation iPod nano
®(version 1.0.2
or later)
This unit may not control/operate correctly when
connected to some iPod versions/firmware and
iPhone.
Make sure that the iPod
®version is updated. Audio main operation:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Place the ignition switch in the ACC or ON
position. Then, push the
button repeatedly
to switch to the iPod®mode.
If the system has been turned off while the iPod®
was playing, pushing the ON·OFF button will
start the iPod®.
PLAY:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407When thebutton is pushed with the system
off and the iPod®connected, the system will turn
on. If another audio source is playing and the
iPod
®is connected, push thebutton
repeatedly to switch to the iPod®mode.
Interface:
The interface for iPod
®operation shown on the
vehicle display is similar to the iPod®interface.
Use the touch screen, BACK button or the
TUNE/SCROLL knob to navigate the menus on
the screen.
The following items can be chosen from the
menu list screen. For further information about
each item, see the iPod
®Owner’s Manual.
. Playlists
. Artists
. Songs
Center display, heater, air conditioner, audio, phone and voice recognition systems4-65

Black plate (214,1)
[ Edit: 2012/ 5/ 18 Model: S35-D ]
4-66Center display, heater, air conditioner, audio, phone and voice recognition systems

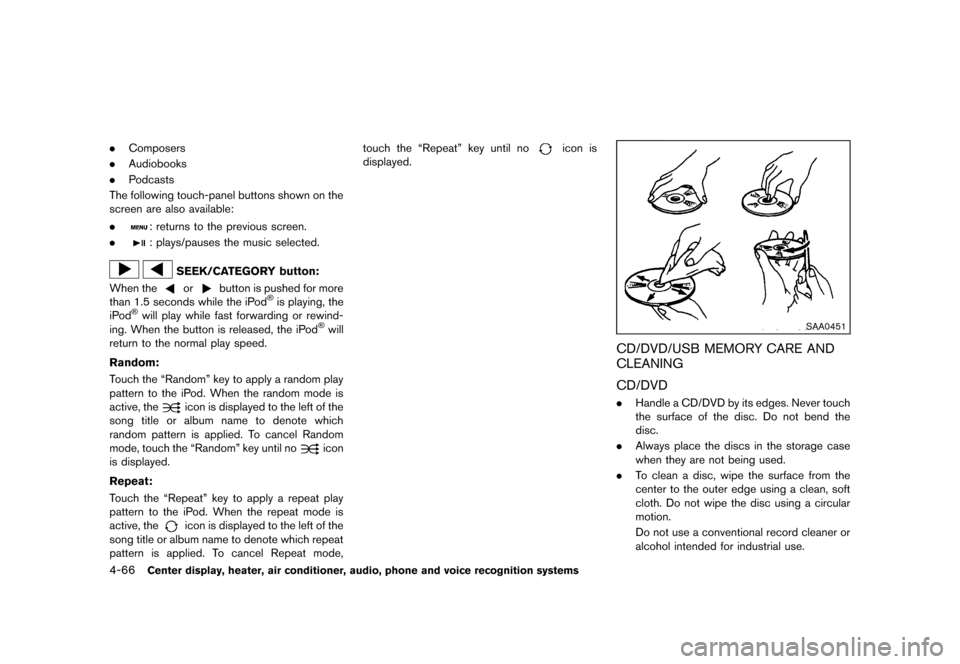

.Composers
. Audiobooks
. Podcasts
The following touch-panel buttons shown on the
screen are also available:
.
: returns to the previous screen.
.
: plays/pauses the music selected.
SEEK/CATEGORY button:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407When theorbutton is pushed for more
than 1.5 seconds while the iPod®is playing, the
iPod®will play while fast forwarding or rewind-
ing. When the button is released, the iPod®will
return to the normal play speed.
Random:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Touch the “Random” key to apply a random play
pattern to the iPod. When the random mode is
active, the
icon is displayed to the left of the
song title or album name to denote which
random pattern is applied. To cancel Random
mode, touch the “Random” key until no
icon
is displayed.
Repeat:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Touch the “Repeat” key to apply a repeat play
pattern to the iPod. When the repeat mode is
active, the
icon is displayed to the left of the
song title or album name to denote which repeat
pattern is applied. To cancel Repeat mode, touch the “Repeat” key until no
icon is
displayed.
SAA0451
CD/DVD/USB MEMORY CARE AND
CLEANING
S35-D-110201-C75B0B69-DD75-43C0-A5F4-2CF949045946
CD/DVDS35-D-110201-7B256299-FD32-483A-BB5B-74544008F3F7. Handle a CD/DVD by its edges. Never touch
the surface of the disc. Do not bend the
disc.
. Always place the discs in the storage case
when they are not being used.
. To clean a disc, wipe the surface from the
center to the outer edge using a clean, soft
cloth. Do not wipe the disc using a circular
motion.
Do not use a conventional record cleaner or
alcohol intended for industrial use.
