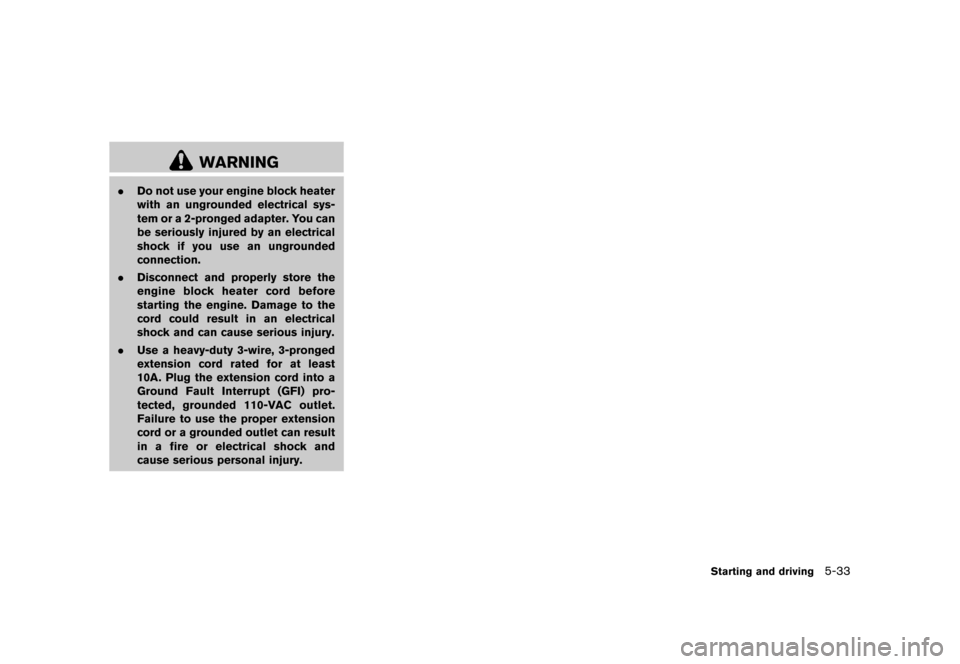

WARNING
.Do not use your engine block heater
with an ungrounded electrical sys-
tem or a 2-pronged adapter. You can
be seriously injured by an electrical
shock if you use an ungrounded
connection.
. Disconnect and properly store the
engine block heater cord before
starting the engine. Damage to the
cord could result in an electrical
shock and can cause serious injury.
. Use a heavy-duty 3-wire, 3-pronged
extension cord rated for at least
10A. Plug the extension cord into a
Ground Fault Interrupt (GFI) pro-
tected, grounded 110-VAC outlet.
Failure to use the proper extension
cord or a grounded outlet can result
in a fire or electrical shock and
cause serious personal injury.
Starting and driving5-33

Black plate (264,1)
[ Edit: 2012/ 5/ 18 Model: S35-D ]
5-34Starting and driving

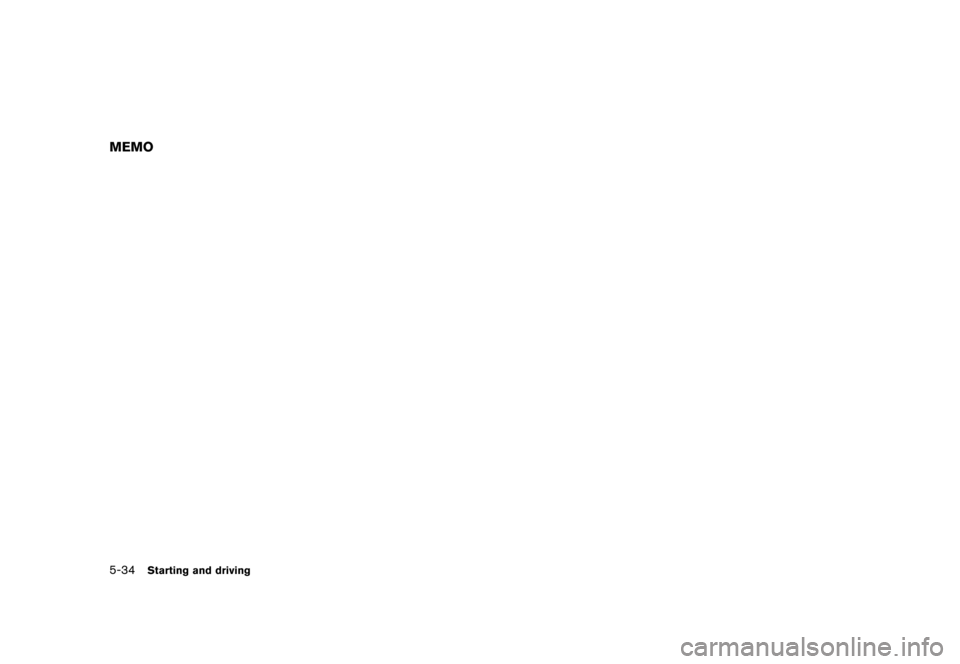

MEMO

Black plate (265,1)
[ Edit: 2012/ 5/ 18 Model: S35-D ]
6 In case of emergency
Hazard warning flasher switch...
.............................................. 6-2
Flat tire ...
........................................................................\
................. 6-2
Tire Pressure Monitoring System (TPMS) ...
.................... 6-2
Changing a flat tire ...
............................................................. 6-3
Jump starting ...
........................................................................\
...... 6-9 Push starting
...
........................................................................\
... 6-11
If your vehicle overheats ...
...................................................... 6-11
Towing your vehicle ...
.............................................................. 6-12
Towing recommended by NISSAN ...
........................... 6-13
Vehicle recovery (freeing a stuck vehicle) ...
............... 6-14

Black plate (266,1)
[ Edit: 2012/ 5/ 18 Model: S35-D ]
6-2In case of emergency
S35-D-110201-58538178-DA8D-4166-BF6A-386530D47FBC
SIC2574
Push the switch on to warn other drivers when
you must stop or park under emergency condi-
tions. All turn signal lights will flash.
WARNING
.If stopping for an emergency, be
sure to move the vehicle well off the
road.
. Do not use the hazard warning
flashers while moving on the high-
way unless unusual circumstances
force you to drive so slowly that
your vehicle might become a hazard to other traffic.
. Turn signals do not work when the
hazard warning flasher lights are
on.
The flasher can be actuated with the ignition
switch in any position.
Some state laws may prohibit the use of
the hazard warning flasher switch while
driving.
S35-D-110201-EF2663AC-5667-4F76-8F00-52984A4E59BCTIRE PRESSURE MONITORING SYS-
TEM (TPMS)
GUID-0C5C2AE1-3515-4587-A5FA-5B3AD2913F9DThis vehicle is equipped with the Tire Pressure
Monitoring System (TPMS) . It monitors tire
pressure of all tires except the spare. When
the low tire pressure warning light is lit and the
CHECK TIRE PRESSURE warning appears on
the vehicle information display, one or more of
your tires is significantly under-inflated. If the
vehicle is being driven with low tire pressure, the
TPMS will activate and warn you of it by the low
tire pressure warning light. This system will
activate only when the vehicle is driven at
speeds above 16 MPH (25 km/h). For more
details, see “Warning/indicator lights and audi-
ble reminders” in the “2. Instruments and
controls” section and “Tire Pressure Monitoring
System (TPMS)” in the “5. Starting and driving”
section.
WARNING
. If the low tire pressure warning light
illuminates while driving, avoid sud-
den steering maneuvers or abrupt
braking, reduce vehicle speed, pull
off the road to a safe location and
stop the vehicle as soon as possi-
ble. Driving with under-inflated tires
HAZARD WARNING FLASHER
SWITCH FLAT TIRE

Black plate (267,1)
[ Edit: 2012/ 5/ 18 Model: S35-D ]
may permanently damage the tires
and increase the likelihood of tire
failure. Serious vehicle damage
could occur and may lead to an
accident and could result in serious
personal injury. Check the tire pres-
sure for all four tires. Adjust the tire
pressure to the recommended COLD
tire pressure shown on the Tire and
Loading Information label to turn
the low tire pressure warning light
OFF. If you have a flat tire, replace it
with a spare tire as soon as possi-
ble.
. When a spare tire is mounted or a
wheel is replaced, the TPMS will not
function and the low tire pressure
warning light will flash for approxi-
mately 1 minute. The light will
remain on after 1 minute. Contact
your NISSAN dealer as soon as
possible for tire replacement and/
or system resetting.
. Replacing tires with those not ori-
ginally specified by NISSAN could
affect the proper operation of the
TPMS.
. Do not inject any tire liquid or
aerosol tire sealant into the tires, as this may cause a malfunction of
the tire pressure sensors.
CHANGING A FLAT TIREGUID-7F502885-999B-4F16-9B7A-9469FE323A90If you have a flat tire, follow the instructions
below.
Stopping the vehicleS35-D-110201-DA918CAE-0F67-4558-BF28-3DEF851F78D51. Safely move the vehicle off the road and
away from traffic.
2. Turn on the hazard warning flashers.
3. Park on a level surface and apply the parking brake. Move the selector lever to the P
(Park) position.
4. Turn off the engine.
5. Raise the hood to warn other traffic, and to signal professional road assistance person-
nel that you need assistance.
6. Have all passengers get out of the vehicle and stand in a safe place, away from traffic
and clear of the vehicle.
WARNING
.Make sure the parking brake is
securely applied and the transmis-
sion is shifted into the P (Park)
position. .
Never change tires when the vehicle
is on a slope, ice or slippery areas.
This is hazardous.
. Never change tires if oncoming
traffic is close to your vehicle. Wait
for professional road assistance.
In case of emergency6-3

Black plate (268,1)
[ Edit: 2012/ 5/ 18 Model: S35-D ]

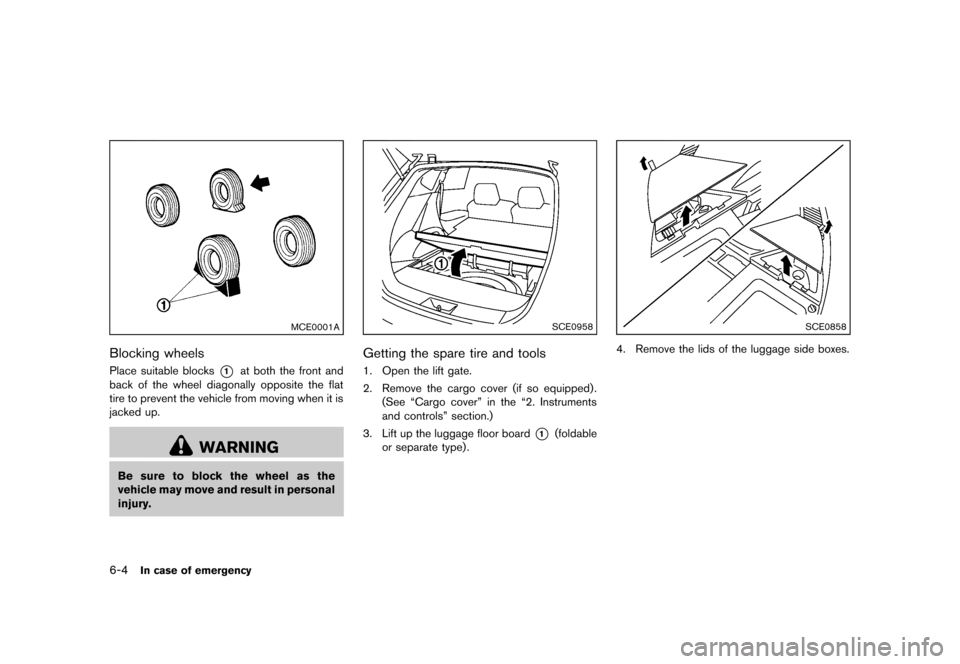

6-4In case of emergency
MCE0001A
Blocking wheelsS35-D-110201-ED4AAED5-0B0B-4094-B7EA-EC3CABAC1551Place suitable blocks*1at both the front and
back of the wheel diagonally opposite the flat
tire to prevent the vehicle from moving when it is
jacked up.
WARNING
Be sure to block the wheel as the
vehicle may move and result in personal
injury.
SCE0958
Getting the spare tire and toolsS35-D-110201-00B2E6C6-F5E9-434D-8DD3-1F79393629751. Open the lift gate.
2. Remove the cargo cover (if so equipped) . (See “Cargo cover” in the “2. Instruments
and controls” section.)
3. Lift up the luggage floor board
*1(foldable
or separate type) .
SCE0858
4. Remove the lids of the luggage side boxes.

Black plate (269,1)
[ Edit: 2012/ 5/ 18 Model: S35-D ]
SCE0859
5. Remove the luggage floor box (Type A or B)by turning the clips counterclockwise.
SCE0699
Jacking tools
6. Remove the jacking tools and the spare tire.
Jacking tools: Remove the jack by turning it,
then remove the other tools.
JVE0026X
Spare tire
Type A:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Rotate the clamp until it can be removed then
remove the spare tire.
Type B:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Rotate the clamp until it can be removed then
relocate the subwoofer to a side of the cargo
area and remove the spare tire.
In case of emergency6-5

Black plate (270,1)
[ Edit: 2012/ 5/ 18 Model: S35-D ]
6-6In case of emergency
SCE0630
Removing wheel cover (if so equipped)S35-D-110201-4604A27A-FD46-4A3C-8D40-A151EC14119E
WARNING
Never use your hands to remove the
wheel cover. This may cause personal
injury.
To remove the wheel cover, use the jack rod
*1
as illustrated.
Apply cloth
*2between the wheel and jack rod
to prevent damaging the wheel and wheel cover.
Jacking up the vehicle and removing the
damaged tire
S35-D-110201-BC3D3D5D-920C-496B-A55B-07519536C45F
WARNING
. Never get under the vehicle while it
is supported only by the jack. If it is
necessary to work under the vehicle,
support it with safety stands.
. Use only the jack provided with your
vehicle to lift the vehicle. Do not use
the jack provided with your vehicle
on other vehicles. The jack is de-
signed for lifting only your vehicle
during a tire change.
. Use the correct jack-up points.
Never use any other part of the
vehicle for jack support.
. Never jack up the vehicle more than
necessary.
. Never use blocks on or under the
jack.
. Do not start or run the engine while
vehicle is on the jack, as it may
cause the vehicle to move.
. Do not allow passengers to stay in
the vehicle while it is on the jack. Carefully read the caution label attached
to the jack body and the following instruc-
tions.
