2013 NISSAN ROGUE radio controls

Black plate (154,1)
[ Edit: 2012/ 5/ 18 Model: S35-D ]
4-6Center display, heater, air conditioner, audio, phone and voice recognition systems
SAA3397
Speed Volume:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Controls the level to which the volume is
adjusted as the vehicle’s driving speed changes.
Choose a setting between 1 and 5 or choose 0
to disable the feature entirely.
AUX Level:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Controls the volume level of incoming sound
when an auxiliary device is connected to the
system. Available options are Quiet, Medium
and Loud.
Navigation setupGUID-B9AA7DEB-75C8-439C-AB2C-CD5EB042E481Refer to the separate Navigation System Own-
er’s Manual for information regarding this item.
XM setupGUID-EABD1884-04E7-402A-A446-574F90206135For SiriusXM Satellite Radio setup, refer to “FM-
AM-SAT radio with Compact Disc (CD) player
(Type B) ” later in this section.
SAA3391
System setupGUID-28F2C574-E628-459B-BF48-5E85D07EDE74Select the “System” key to select and/or adjust
various functions of the system. A screen with
additional options will appear.

Black plate (200,1)
[ Edit: 2012/ 5/ 18 Model: S35-D ]
4-52Center display, heater, air conditioner, audio, phone and voice recognition systems
Audio main operationS35-D-110201-62364244-60D7-41AF-886E-4DC38A679472
Head unit:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407The auto loudness circuit enhances the low and
high frequency ranges automatically in both
radio reception and CD playback.
PWR/Volume control:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Place the ignition switch in the ACC or ON
position, and then push the PWR button while
the system is off to turn on the last audio source,
which was playing immediately before the
system was turned off. While the system is on,
pushing the PWR button turns the system off.
Turn the VOL control knob to adjust the volume.
ENTER/SETTING button:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407The settings screen will appear when pushing
the ENTER/SETTING button.
The following items are available in the settings
screen.
.Bass, Treble, Balance and Fade
Controls the sound of the audio system.
Balance adjusts the sound between the left
and right speakers. Fade adjusts the sound
between the front and rear speakers.
Select the “Bass”, “Treble”, “Balance” or
“Fade” using the TUNE·SCROLL or
TUNE·FOLDER control knob and then push the ENTER/SETTING button. Turn the TU-
NE·SCROLL or TUNE·FOLDER control
knob to adjust the Bass, Treble, Balance
and Fade of the screen to the preferred
level.
. Speed Sens Vol.
To change the Speed Sensitive Volume
(Speed Sens Vol.) level from off (0) to 5,
turn the TUNE·SCROLL or TUNE·FOLDER
control knob.
. AUX Vol.
Controls the volume level of incoming sound
when an auxiliary device is connected to the
system. To change the AUX Vol. level from 0
(off) to 3, turn the TUNE·SCROLL or
TUNE·FOLDER control knob.
. Brightness and Contrast
Adjust the brightness and contrast of the
screen.
Select the “Brightness” or “Contrast” using
the TUNE·SCROLL or TUNE·FOLDER con-
trol knob and then push the ENTER/
SETTING button. Turn the TUNE·SCROLL
or TUNE·FOLDER control knob to adjust the
brightness and contrast of the screen to the
preferred level.
. Clock Adjust
Adjust the clock according to the following
procedure.
JVH0117X
1. Push the ENTER/SETTING button*1until
“Setting Clock” and “Clock Adjust” appear on
the display.
2. Turn the TUNE·SCROLL or TUNE·FOLDER
control knob
*2to adjust the hour.
3. Push the ENTER/SETTING button
*1.
4. Turn the TUNE·SCROLL or TUNE·FOLDER
control knob
*2to adjust the minute.
5. Push the ENTER/SETTING button
*1.
. On-Screen Clock
When this item is turned on, a clock is
always displayed in the upper right corner of
the screen.
Select the “On-Screen Clock” using the
TUNE·SCROLL or TUNE·FOLDER control
knob and then push the ENTER/SETTING

Black plate (215,1)
[ Edit: 2012/ 5/ 18 Model: S35-D ]

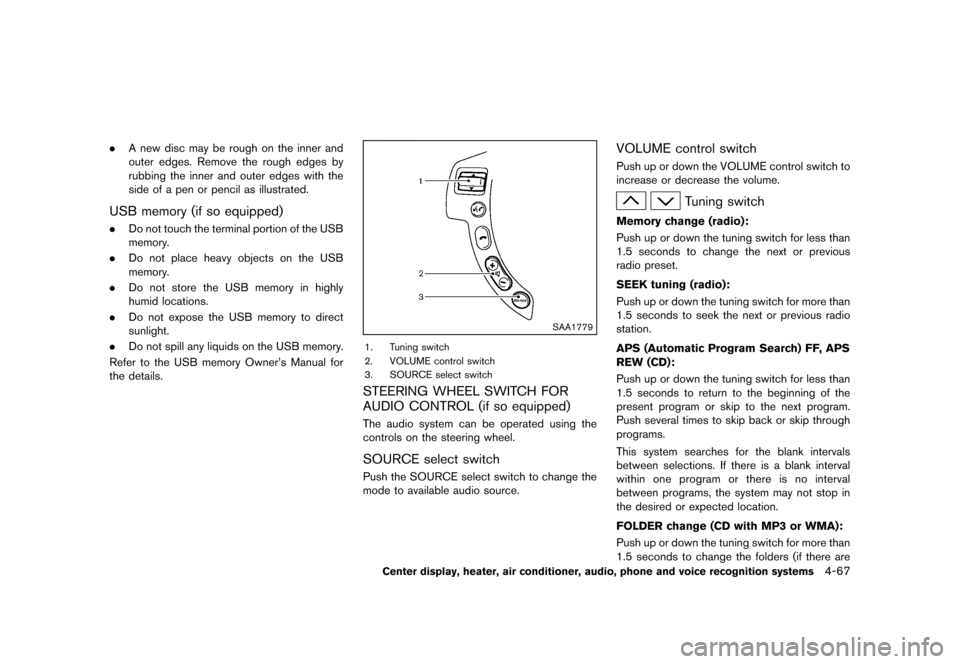

.A new disc may be rough on the inner and
outer edges. Remove the rough edges by
rubbing the inner and outer edges with the
side of a pen or pencil as illustrated.
USB memory (if so equipped)S35-D-110201-05DDD64A-1C7F-49B9-9DCC-5BB6AEA55646.Do not touch the terminal portion of the USB
memory.
. Do not place heavy objects on the USB
memory.
. Do not store the USB memory in highly
humid locations.
. Do not expose the USB memory to direct
sunlight.
. Do not spill any liquids on the USB memory.
Refer to the USB memory Owner’s Manual for
the details.
SAA1779
1. Tuning switch
2. VOLUME control switch
3. SOURCE select switch
STEERING WHEEL SWITCH FOR
AUDIO CONTROL (if so equipped)
S35-D-110201-C76F168B-0BEC-40AD-BD6D-4624D94C03CBThe audio system can be operated using the
controls on the steering wheel.
SOURCE select switchS35-D-110201-ED6F6E26-E9A5-48A8-986D-E10281EAFC60Push the SOURCE select switch to change the
mode to available audio source.
VOLUME control switchGUID-28FEC6B8-E1DE-41D8-B60B-C05C851D0868Push up or down the VOLUME control switch to
increase or decrease the volume.
Tuning switchS35-D-110201-5CA8CF8B-C0F5-481A-814C-213749094806
Memory change (radio):GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Push up or down the tuning switch for less than
1.5 seconds to change the next or previous
radio preset.
SEEK tuning (radio):
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Push up or down the tuning switch for more than
1.5 seconds to seek the next or previous radio
station.
APS (Automatic Program Search) FF, APS
REW (CD):
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Push up or down the tuning switch for less than
1.5 seconds to return to the beginning of the
present program or skip to the next program.
Push several times to skip back or skip through
programs.
This system searches for the blank intervals
between selections. If there is a blank interval
within one program or there is no interval
between programs, the system may not stop in
the desired or expected location.
FOLDER change (CD with MP3 or WMA):
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Push up or down the tuning switch for more than
1.5 seconds to change the folders (if there are
Center display, heater, air conditioner, audio, phone and voice recognition systems4-67

Black plate (241,1)
[ Edit: 2012/ 5/ 18 Model: S35-D ]
SSD0436
Operating rangeS35-D-110201-E7BEEF8F-362F-4C60-AE3A-079EA87D5DB5The Intelligent Key functions can only be used
for starting the engine when the Intelligent Key is
within the specified operating range
*1.
When the Intelligent Key battery is almost
discharged or strong radio waves are present
near the operating location, the Intelligent Key
system’s operating range becomes narrower
and may not function properly.
If the Intelligent Key is within the operating
range, it is possible for anyone, even someone
who does not carry the Intelligent Key, to turn
the ignition switch to start the engine. .
The cargo area is not included in the
operating range, but the Intelligent Key may
function.
. If the Intelligent Key is placed on the
instrument panel, inside the glove box or
door pocket, the Intelligent Key may not
function.
. If the Intelligent Key is placed near the door
or window outside the vehicle, the Intelligent
Key may function.
Some indicators and warnings for operation are
displayed on the vehicle information display
between the speedometer and tachometer.
(See “Vehicle information display” in the “2.
Instruments and controls” section.)
SSD0392
Without Intelligent Key system
SSD0437A
With Intelligent Key system
Starting and driving5-11

Black plate (361,1)
[ Edit: 2012/ 5/ 18 Model: S35-D ]
10 Index
A
ABS (Anti-lock Braking System)...
............................ 5-28
Advanced air bag system ...
......................................... 1-45
Aiming control, Headlights ...
........................................ 2-33
Air bag system Advanced air bag system ...
.................................. 1-45
Front passenger air bag and status light ...
....... 1-46
Front-seat mounted side-impact
supplemental air bag system ...
............................ 1-49
Roof-mounted curtain side-impact and
rollover supplemental air bag system ...
............. 1-49
Air bag warning labels ...
............................................... 1-52
Air bag warning light ...
...................................... 1-52, 2-13
Air cleaner housing filter ...
........................................... 8-16
Air conditioner Air conditioner operation ...
.................................... 4-24
Air conditioner service ...
........................................ 4-29
Air conditioner specification label ...
.................... 9-10
Air conditioning system refrigerant and
lubricant recommendations ...
....................... 4-29, 9-6
Alarm, How to stop alarm (see vehicle
security system) ...
........................................................... 2-26
Alcohol, drugs and driving ...
.......................................... 5-7
All-wheel drive (AWD) ...
............................................... 5-23
All-wheel drive (AWD) warning light ...
........................ 2-9
Antenna ...
.......................................................................... 4-68
Anti-lock Braking System (ABS) ...
............................ 5-28
Anti-lock braking system (ABS) warning light ...
....... 2-9
Appearance care Exterior appearance care ...
...................................... 7-2
Interior appearance care ...
....................................... 7-4
Around view
TMmonitor ...
.............................................. 4-13
Audible reminders ...
....................................................... 2-15
Audio operation precautions ...
.................................... 4-30
Audio setup ...
.................................................................... 4-5 Audio system
...
................................................................ 4-30
Steering wheel audio controls ...
.......................... 4-67
Autolight system ...
.......................................................... 2-31
Automatic Air conditioner ...
....................................................... 4-27
Door locks ...
................................................................. 3-6
Average speed (MPH or km/h) ...
............................... 2-23
Avoiding collision and rollover ...
................................... 5-6
B
Back door (See lift gate) ...
.......................................... 3-20
Battery ...
............................................................................ 8-13
Battery replacement, Intelligent Key ...
................ 8-23
Battery replacement, Keyfob ...
............................. 8-22
Battery saver system ...
........................................... 2-33
Keyfob battery replacement ...
............................... 8-22
Before starting the engine ...
........................................ 5-13
Belts (See drive belts) ...
............................................... 8-15
Bluetooth
®Hands-Free Phone System ...
................ 4-69
Booster seats ...
............................................................... 1-36
Brake Anti-lock Braking System (ABS) ...
..................... 5-28
Brake fluid ...
.............................................................. 8-11
Brake system ...
......................................................... 5-27
Parking brake operation ...
..................................... 5-19
Warning light ...
......................................................... 2-10
Break-in schedule ...
....................................................... 5-21
Brightness control Display ON/OFF button ...
........................................ 4-5
Instrument panel ...
...................................................... 2-7
Bulb check/instrument panel ...
..................................... 2-9
Bulb replacement ...
........................................................ 8-25
C
Capacities and recommended fuel/lubricants ...
....... 9-2
Car phone or CB radio ...
............................................. 4-69
Cargo cover ...
.................................................................. 2-41
Cargo light ...
.................................................................... 2-51
Catalytic converter, Three way catalyst ...
................... 5-3
CD/CF/USB memory care and cleaning ...
.............. 4-66
Ceiling light ...
................................................................... 2-50
Child restraints ...
............................................................. 1-22
Booster seats ...
........................................................ 1-36
LATCH system ...
...................................................... 1-24
Precautions on child restraints ...
......................... 1-22
Child safety ...
................................................................... 1-20
Child safety rear door lock ...
......................................... 3-6
Chimes, Audible reminders ...
...................................... 2-15
Circuit breaker, Fusible link ...
...................................... 8-20
Cleaning exterior and interior ...
............................ 7-2, 7-4
Clock ...
...................................................... 2-23, 4-44, 4-52
Clock (models with navigation system) ...
................... 4-7
Coat hooks ...
................................................................... 2-43
Cold weather driving ...
.................................................. 5-31
Compact Disc (CD) player (See
audio system) ...
....................................... 4-46, 4-54, 4-61
Console box ...
................................................................. 2-40
Continuously Variable Transmission
(CVT) fluid ...
..................................................................... 8-11
Control panel buttons — color screen with
navigation system ...
.......................................................... 4-2
Controls, Steering wheel audio controls ...
............... 4-67
Coolant Capacities and
recommended fuel/lubricants ...
............................... 9-2
Changing engine coolant ...
...................................... 8-8
Checking engine coolant level ...
............................. 8-8
Corrosion protection ...
.................................................... 7-6

Black plate (364,1)
[ Edit: 2012/ 5/ 18 Model: S35-D ]
10-4
Manual air conditioner...
................................................ 4-24
Manual front seat adjustment ...
..................................... 1-3
Map lights ...
..................................................................... 2-49
Master warning light ...
................................................... 2-12
Mechanical key (Intelligent Key system) ...
................. 3-4
Meter, Trip computer ...
.................................................. 2-21
Meters and gauges ...
....................................................... 2-4
Instrument brightness control ...
.............................. 2-7
Mirror Inside mirror ...
........................................................... 3-24
Outside mirrors ...
..................................................... 3-25
Mirror, Vanity mirror ...
.................................................... 3-26
Monitor, Rearview monitor ...
.......................................... 4-9
Moonroof ...
....................................................................... 2-47
N
Navigation setup ...
............................................................ 4-6
New vehicle break-in ...
.................................................. 5-21
NISSAN Vehicle Immobilizer System ...
..................... 2-26
O
Off-road recovery ...
.......................................................... 5-6
Oil
Capacities and
recommended fuel/lubricants ...
............................... 9-2
Changing engine oil and filter ...
.............................. 8-9
Checking engine oil level ...
...................................... 8-9
Engine oil ...
................................................................... 8-9
Engine oil viscosity ...
.................................................. 9-5
Operation, Indicators for operation ...
........................ 2-18
Outside air temperature ...
............................................ 2-17
Outside mirrors ...
............................................................ 3-25
Overdrive OFF switch ...
................................................ 5-17
Overheat, If your vehicle overheats ...
........................ 6-11 Owner’s Manual/Service Manual
order information
...
......................................................... 9-28
P
Panic alarm ...
.......................................................... 3-8, 3-17
Parking Brake break-in ...
....................................................... 5-28
Parking brake operation ...
..................................... 5-19
Parking on hills ...
..................................................... 5-26
Phone Bluetooth
®Hands-Free Phone System ...
......... 4-69
Car phone or CB radio ...
...................................... 4-69
Power Electric power steering system ...
........................ 5-27
Front seat adjustment ...
............................................ 1-3
Power door lock ...
...................................................... 3-4
Power outlet ...
.......................................................... 2-37
Power windows ...
.................................................... 2-45
Precautions Audio operation ...
.................................................... 4-30
Braking precautions ...
............................................. 5-27
Child restraints ...
...................................................... 1-22
Cruise control ...
........................................................ 5-19
Driving safety ...
............................................................ 5-8
Maintenance ...
............................................................. 8-5
On-pavement and off-road driving ...
..................... 5-6
Seat belt usage ...
.................................................... 1-10
Supplemental restraint system ...
.......................... 1-39
When starting and driving ...
.................................... 5-2
Push starting ...
................................................................ 6-11
R
Radio ...
.............................................................................. 4-30
Car phone or CB radio ...
...................................... 4-69 FM-AM radio with Compact Disc
(CD) player
...
............................................................ 4-43
Steering wheel audio controls ...
.......................... 4-67
Range (distance to empty) ...
....................................... 2-23
Rapid air pressure loss ...
................................................ 5-7
Readiness for inspection/maintenance
(I/M) test ...
........................................................................ 9-27
Rear center seat belt ...
................................................. 1-16
Rear door lock, Child safety rear door lock ...
........... 3-6
Rear seats ...
....................................................................... 1-6
Rear window and outside mirror
defroster switch ...
........................................................... 2-30
Rear window wiper and washer switch ...
................ 2-29
Rearview monitor ...
........................................................... 4-9
Recorders, Event data ...
............................................... 9-28
Registering your vehicle in another country ...
........... 9-8
Remote keyless entry function, For Intelligent
Key system ...
.................................................................... 3-16
Remote keyless entry system ...
..................................... 3-7
Reporting safety defects ...
........................................... 9-26
Rollover ...
............................................................................ 5-6
Roof Moonroof ...
................................................................ 2-48
Roof rack ...
................................................................ 2-44
S
Safety
Child seat belts ...
.................................................... 1-20
Towing safety ...
......................................................... 9-20
Satellite radio operation ...
................................ 4-53, 4-60
Seat adjustment Folding front passenger’s seat ...
............................ 1-5
Front manual seat adjustment ...
.............................. 1-3
Front power seat adjustment ...
............................... 1-3
Front seats ...
................................................................ 1-3
