Black plate (89,1)
[ Edit: 2012/ 5/ 18 Model: S35-D ]
check tire pressure warning turns off after a
period of time. (See “Low tire pressure warning
light” earlier in this section and “Tire Pressure
Monitoring System (TPMS)” in the “5. Starting
and driving” section.)
5. Low washer fluid warning (if so
equipped)
GUID-90E15ADB-F0B0-4D80-8356-99653A9D81D1This light illuminates when the washer fluid is at
a low level. Add washer fluid as necessary. (See
“Window washer fluid” in the “8. Maintenance
and do-it-yourself” section.)
When the
switch is pushed, the low washer
fluid warning turns off (if so equipped) .
6. SHIFT “P” warning (if so equipped)GUID-58C85533-5532-497D-A5F9-10BA63C390BBThis warning appears when the ignition switch is
turned to stop the engine with the selector lever
in any position except the P (Park) position.
If this warning appears, move the selector lever
to the P (Park) position or turn the ignition
switch to the ON position.
An inside warning chime will also sound. (See
“Intelligent Key system” in the “3. Pre-driving
checks and adjustments” section.)
7. Parking brake release warningGUID-FD53AB45-3AC7-4816-8C9B-02CE195475FCThis warning appears when the vehicle speed is
above 4 MPH (7 km/h) and the parking brake is
applied.
8. Intelligent Key detection warning (if so
equipped)
GUID-90F98116-CBBF-42F7-9888-C0FC896EBDE2This warning appears in either of the following
conditions.
No key inside the vehicle:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407The warning appears when the door is closed
with the Intelligent Key left outside the vehicle
and the ignition switch in the ACC or ON
position. Make sure that the Intelligent Key is
inside the vehicle.
Unregistered Intelligent Key:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407The warning appears when the ignition switch is
turned from the LOCK position and the Intelli-
gent Key cannot be recognized by the system.
You cannot start the engine with an unregistered
key. Use the registered Intelligent Key.
See “Intelligent Key system” in the “3. Pre-
driving checks and adjustments” section for
more details.
9. Intelligent key battery discharge in-
dicator (if so equipped)
GUID-CAFFE8FC-6DF5-4295-88C7-5F990638E820This indicator appears when the Intelligent key
battery is running out of power.
If this indicator appears, replace the battery with
a new one. (See “Battery replacement” in the “8.
Maintenance and do-it-yourself” section.)
10. Intelligent Key system fault warning
(if so equipped)
GUID-A07A76FA-0B98-4D91-A83E-2BA58990F079
CAUTION
If the Intelligent Key system fault warn-
ing comes on, it may indicate a system
malfunction. Contact a NISSAN dealer
for repair.
For more information, see “Intelligent Key
system” in the “3. Pre-driving checks and
adjustments” section.
11. Setting menu operation warningGUID-A8A654A3-3FED-4E7E-8D4D-5F2ADBF361F9The warning appears when you try to operate
the setting menu while driving. The setting menu
can only be entered when the vehicle is
stationary.
Instruments and controls2-19

Black plate (119,1)
[ Edit: 2012/ 5/ 18 Model: S35-D ]
S35-D-110201-6554559D-EE81-4A45-B1ED-9C063E192D41
CAUTION
Do not use for extended periods of time
with the engine stopped. This could
result in a discharged battery.

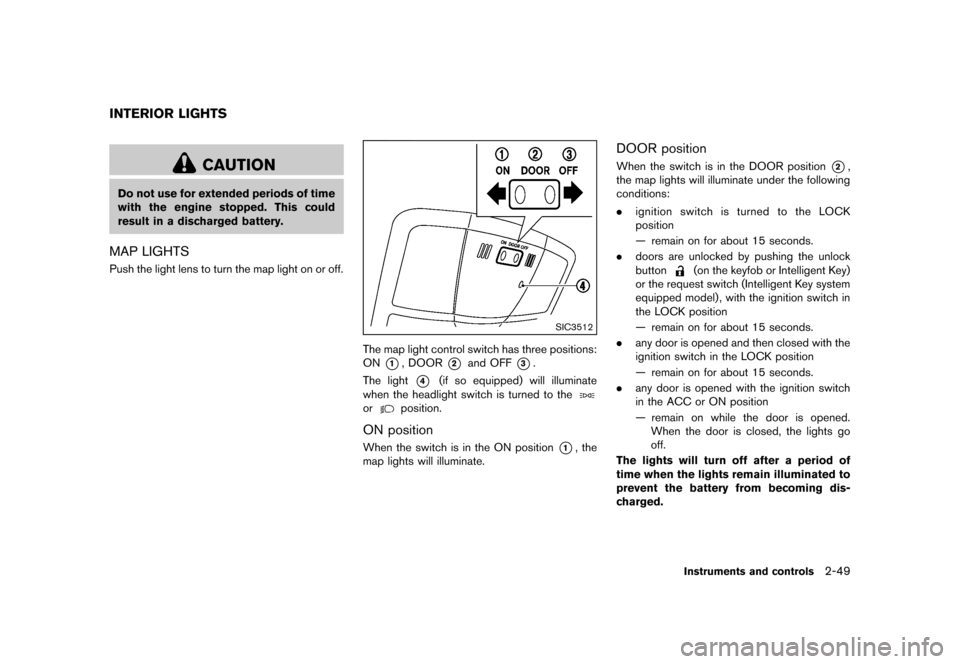

MAP LIGHTSS35-D-110201-C243F5B9-4483-4D93-AA0B-1EA9F7CF9D9DPush the light lens to turn the map light on or off.
SIC3512
The map light control switch has three positions:
ON
*1, DOOR*2and OFF*3.
The light
*4(if so equipped) will illuminate
when the headlight switch is turned to the
orposition.
ON positionS35-D-110201-7683F6B1-A28E-4E34-903D-85E1BC5B2ED3When the switch is in the ON position*1, the
map lights will illuminate.
DOOR positionS35-D-110201-6D5F4D58-B171-4027-B458-15DB5CE5FB39When the switch is in the DOOR position*2,
the map lights will illuminate under the following
conditions:
. ignition switch is turned to the LOCK
position
— remain on for about 15 seconds.
. doors are unlocked by pushing the unlock
button
(on the keyfob or Intelligent Key)
or the request switch (Intelligent Key system
equipped model) , with the ignition switch in
the LOCK position
— remain on for about 15 seconds.
. any door is opened and then closed with the
ignition switch in the LOCK position
— remain on for about 15 seconds.
. any door is opened with the ignition switch
in the ACC or ON position
— remain on while the door is opened.
When the door is closed, the lights go
off.
The lights will turn off after a period of
time when the lights remain illuminated to
prevent the battery from becoming dis-
charged.
Instruments and controls2-49
INTERIOR LIGHTS

Black plate (120,1)
[ Edit: 2012/ 5/ 18 Model: S35-D ]

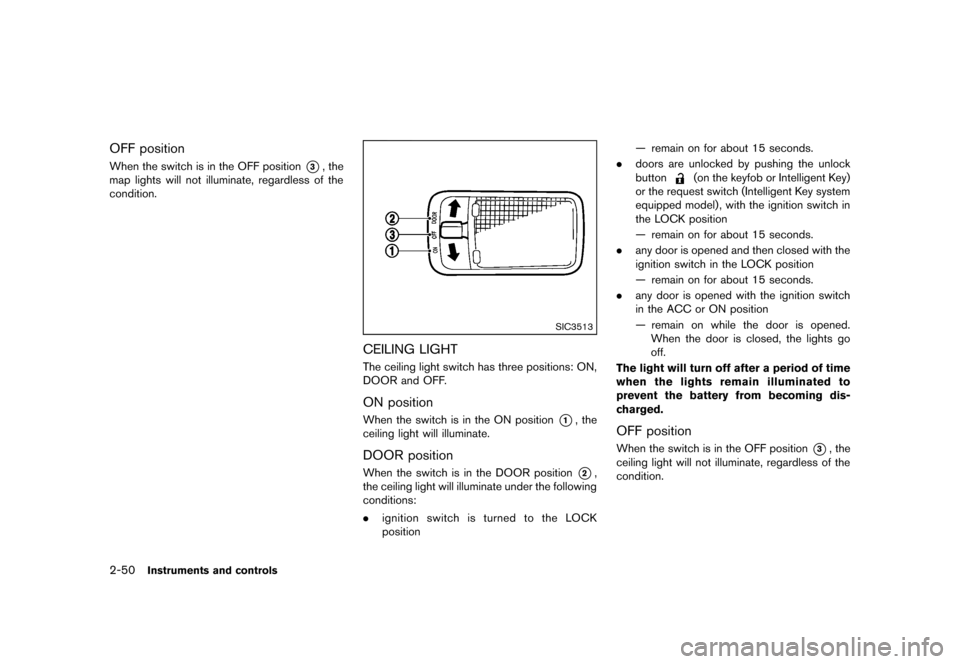

2-50Instruments and controls
OFF positionS35-D-110201-55BC51B8-E593-4DF0-A4A4-C808144A2F0BWhen the switch is in the OFF position*3, the
map lights will not illuminate, regardless of the
condition.
SIC3513
CEILING LIGHTGUID-BE9CB642-0C31-473C-A93E-63673165372BThe ceiling light switch has three positions: ON,
DOOR and OFF.
ON positionS35-D-110201-70BCA29A-4C18-4168-8B6D-98BE0BE33E7FWhen the switch is in the ON position*1, the
ceiling light will illuminate.
DOOR positionS35-D-110201-96E5D9BB-55A7-44D8-B0DC-A27CDCB014C4When the switch is in the DOOR position*2,
the ceiling light will illuminate under the following
conditions:
. ignition switch is turned to the LOCK
position — remain on for about 15 seconds.
. doors are unlocked by pushing the unlock
button
(on the keyfob or Intelligent Key)
or the request switch (Intelligent Key system
equipped model) , with the ignition switch in
the LOCK position
— remain on for about 15 seconds.
. any door is opened and then closed with the
ignition switch in the LOCK position
— remain on for about 15 seconds.
. any door is opened with the ignition switch
in the ACC or ON position
— remain on while the door is opened.
When the door is closed, the lights go
off.
The light will turn off after a period of time
when the lights remain illuminated to
prevent the battery from becoming dis-
charged.
OFF positionS35-D-110201-D2E4CC19-C6A3-43E3-A546-AEDCAD5B81E9When the switch is in the OFF position*3, the
ceiling light will not illuminate, regardless of the
condition.

Black plate (125,1)
[ Edit: 2012/ 5/ 18 Model: S35-D ]
SPA2406
1. Intelligent Key (2)
2. Mechanical key (inside Intelligent Key) (2)
3. Key number plate (1)
INTELLIGENT KEYS (if so equipped)S35-D-110201-D15F2CE6-CCCA-4C47-A594-B5FAFAF94A86Your vehicle can only be driven with the
Intelligent Keys which are registered to your
vehicle’s Intelligent Key system components and
NISSAN Vehicle Immobilizer System compo-
nents. As many as 4 Intelligent Keys can be
registered and used with one vehicle. The new
keys must be registered by a NISSAN dealer
prior to use with the Intelligent Key system and
NISSAN Vehicle Immobilizer System of your
vehicle. Since the registration process requires
erasing all memory in the Intelligent Key compo-nents when registering new keys, be sure to take
all Intelligent Keys that you have to the NISSAN
dealer.
CAUTION
.
Do not allow the Intelligent Key,
which contains electrical compo-
nents, to come into contact with
water or salt water. This could affect
the system function.
. Do not drop the Intelligent Key.
. Do not strike the Intelligent Key
sharply against another object.
. If the outside temperature is below
148F (-108C) degrees, the battery of
the Intelligent Key may not function
properly.
. Do not place the Intelligent Key for
an extended period in an area where
temperatures exceed 1408F (608C) .
. Do not attach the Intelligent Key
with a key holder that contains a
magnet.
. Do not place the Intelligent Key near
equipment that produces a mag-
netic field, such as a TV, audio equipment and personal computers.
Pre-driving checks and adjustments3-3

Black plate (129,1)
[ Edit: 2012/ 5/ 18 Model: S35-D ]
S35-D-110201-1E00637E-1C0B-4FEB-811E-9997F446A105It is possible to lock/unlock all doors (including
the lift gate) , and activate the panic alarm by
using the keyfob from outside the vehicle.
Before locking the doors, make sure the
key is not left in the vehicle.
The keyfob can operate at a distance of
approximately 33 ft (10 m) from the vehicle.
(The effective distance depends upon the
conditions around the vehicle.)
As many as 5 keyfobs can be used with one
vehicle. For information concerning the pur-
chase and use of additional keyfobs, contact a
NISSAN dealer.
The keyfob will not function:
.When the keyfob is not within the opera-
tional range.
. When the doors are open or not closed
securely.
. When the key is in the ignition switch.
. When the battery is discharged.
WARNING
The remote keyless entry keyfob trans-
mits radio waves when the buttons are
pushed. The FAA advises that the radio
waves may affect aircraft navigation
and communication systems. Do not operate the keyfob while on an air-
plane. Make sure the buttons are not
operated unintentionally when the unit
is stored during a flight.
CAUTION
The following conditions or occur-
rences will damage the keyfob.
.
Do not allow the keyfob to become
wet.
. Do not drop the keyfob.
. Do not strike the keyfob sharply
against another object.
. If the outside temperature is below
148F (-108C) degrees, the battery of
keyfob may not function properly.
. Do not place the keyfob for an
extended period in an area where
temperatures exceed 1408F (608C) .
If a keyfob is lost or stolen, NISSAN
recommends erasing the ID code of that
keyfob. This will prevent the keyfob
from unauthorized use to unlock the
vehicle. For information regarding the
erasing procedure, please contact a NISSAN dealer.
If the indicator light on the keyfob does not
illuminate when pushing the buttons, the keyfob
battery may be discharged.
For information regarding the replacement of a
battery, see “Battery replacement” in the “8.
Maintenance and do-it-yourself” section.
Pre-driving checks and adjustments3-7
REMOTE KEYLESS ENTRY SYSTEM
(if so equipped)

Black plate (132,1)
[ Edit: 2012/ 5/ 18 Model: S35-D ]
3-10Pre-driving checks and adjustments
S35-D-110201-1EBA8E8A-E285-4EDF-8DC6-8282FF7F52ED
WARNING
.Radio waves could adversely affect
electric medical equipment. Those
who use a pacemaker should con-
tact the electric medical equipment
manufacturer for the possible influ-
ences before use.
. The Intelligent Key transmits radio
waves when the buttons are
pushed. The FAA advises that the
radio waves may affect aircraft na-
vigation and communication sys-
tems. Do not operate the
Intelligent Key while on an airplane.
Make sure the buttons are not
operated unintentionally when the
unit is stored during a flight.
The Intelligent Key system can operate all the
door locks using the remote controller function
or pushing the request switch on the vehicle
without taking the key out from a pocket or
purse. The operating environment and/or condi-
tions may affect the Intelligent Key system
operation.
Be sure to read the following before using the
Intelligent Key system.
CAUTION
. Be sure to carry the Intelligent Key
with you when operating the vehi-
cle.
. Never leave the Intelligent Key in
the vehicle when you leave the
vehicle.
The Intelligent Key is always communicating with
the vehicle as it receives radio waves. The
Intelligent Key system transmits weak radio
waves. Environmental conditions may interfere
with the operation of the Intelligent Key system
under the following operating conditions.
. When operating near a location where
strong radio waves are transmitted, such
as a TV tower, power station and broad-
casting station.
. When in possession of wireless equipment,
such as a cellular telephone, transceiver,
and CB radio.
. When the Intelligent Key is in contact with or
covered by metallic materials.
. When any type of radio wave remote control
is used nearby.
. When the Intelligent Key is placed near an
electric appliance such as a personal computer.
. When the vehicle is parked near a parking
meter.
In such cases, correct the operating conditions
before using the Intelligent Key function or use
the mechanical key.
Although the life of the battery varies depending
on the operating conditions, the battery’s life is
approximately 2 years. If the battery is dis-
charged, replace it with a new one.
Since the Intelligent Key is continuously receiv-
ing radio waves, if the key is left near equipment
which transmits strong radio waves, such as
signals from a TV and personal computer, the
battery life may become shorter.
For information regarding replacement of a
battery, see “Battery replacement” in the “8.
Maintenance and do-it-yourself” section.
As many as 4 Intelligent Keys can be registered
and used with one vehicle. For information about
the purchase and use of additional Intelligent
Keys, contact a NISSAN dealer.
CAUTION
. Do not allow the Intelligent Key,
which contains electrical compo-
nents, to come into contact with
INTELLIGENT KEY SYSTEM (if so
equipped)

Black plate (133,1)
[ Edit: 2012/ 5/ 18 Model: S35-D ]
water or salt water. This could affect
the system function.
. Do not drop the Intelligent Key.
. Do not strike the Intelligent Key
sharply against another object.
. Do not change or modify the Intel-
ligent Key.
. Wetting may damage the Intelligent
Key. If the Intelligent Key gets wet,
immediately wipe until it is comple-
tely dry.
. If the outside temperature is below
148F (−108C) degrees, the battery of
the Intelligent Key may not function
properly.
. Do not place the Intelligent Key for
an extended period in an area where
temperatures exceed 1408F (608C) .
. Do not attach the Intelligent Key
with a key holder that contains a
magnet.
. Do not place the Intelligent Key near
equipment that produces a mag-
netic field, such as a TV, audio
equipment, personal computers or
cellular phone. If an Intelligent Key is lost or stolen, NISSAN
recommends erasing the ID code of that
Intelligent Key from the vehicle. This may prevent
the unauthorized use of the Intelligent Key to
operate the vehicle. For information regarding
the erasing procedure, contact a NISSAN deal-
er.
The Intelligent Key function can be disabled. For
information about disabling the Intelligent Key
function, contact a NISSAN dealer.
Pre-driving checks and adjustments3-11

Black plate (134,1)
[ Edit: 2012/ 5/ 18 Model: S35-D ]

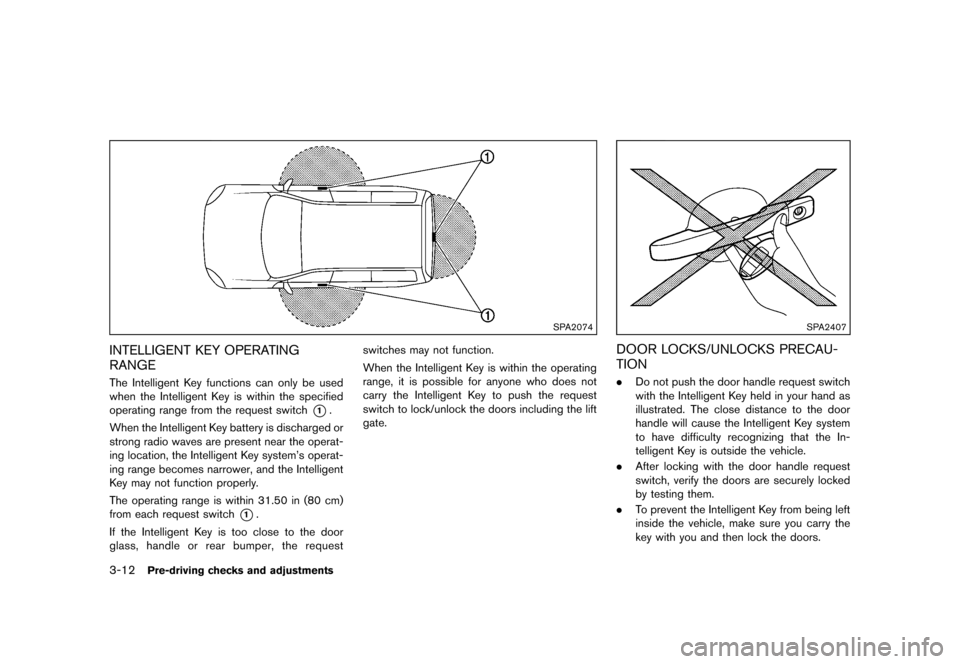

3-12Pre-driving checks and adjustments
SPA2074
INTELLIGENT KEY OPERATING
RANGE
S35-D-110201-78F9827F-C347-4841-AFF5-1DE018677F6BThe Intelligent Key functions can only be used
when the Intelligent Key is within the specified
operating range from the request switch
*1.
When the Intelligent Key battery is discharged or
strong radio waves are present near the operat-
ing location, the Intelligent Key system’s operat-
ing range becomes narrower, and the Intelligent
Key may not function properly.
The operating range is within 31.50 in (80 cm)
from each request switch
*1.
If the Intelligent Key is too close to the door
glass, handle or rear bumper, the request switches may not function.
When the Intelligent Key is within the operating
range, it is possible for anyone who does not
carry the Intelligent Key to push the request
switch to lock/unlock the doors including the lift
gate.
SPA2407
DOOR LOCKS/UNLOCKS PRECAU-
TION
GUID-5B258DE1-6D3E-4530-A070-24F6EB804D09.
Do not push the door handle request switch
with the Intelligent Key held in your hand as
illustrated. The close distance to the door
handle will cause the Intelligent Key system
to have difficulty recognizing that the In-
telligent Key is outside the vehicle.
. After locking with the door handle request
switch, verify the doors are securely locked
by testing them.
. To prevent the Intelligent Key from being left
inside the vehicle, make sure you carry the
key with you and then lock the doors.
