2013 NISSAN ROGUE fog light

Black plate (9,1)
[ Edit: 2012/ 5/ 18 Model: S35-D ]
S35-D-110201-EC0978FC-F07A-49EA-9574-1FE5707C4FA0
JVC0165X
1. Front view camera* (P.4-13)
2. Hood (P.3-19)
3. Headlight and turn signal lights— Switch operation (P.2-30)
— Bulb replacement (P.8-26)
4. Windshield wiper and washer — Switch operation (P.2-28) — Blade replacement (P.8-17)
— Window washer fluid (P.8-12)
5. Roof rack (rail)* (P.2-44)
6. Moonroof* (P.2-47)
7. Outside mirrors (P.3-25) — Side view camera* (P.4-13)
8. Power windows (P.2-45) 9. Recovery hook (P.6-14)
10. License plate installation (P.9-11)
11. Fog lights*
— Switch operation (P.2-34)
— Bulb replacement (P.8-27)
12. Tires — Wheel and tires (P.8-31, P.9-7)
— Flat tire (P.6-2)
— Tire Pressure Monitoring System (TPMS)
(P.2-11, P.5-3)
13. Doors — Keys (P.3-2)
— Door locks (P.3-4)
— Intelligent Key system* (P.3-10)
— Remote keyless entry system* (P.3-7)
— Security system (P.2-25)
14. Child safety rear door lock (P.3-6)
*: if so equipped
Illustrated table of contents0-3
EXTERIOR FRONT

Black plate (12,1)
[ Edit: 2012/ 5/ 18 Model: S35-D ]
0-6Illustrated table of contents
S35-D-110201-8C8F180E-0520-4D0C-9AA2-07D387D3F374
JVC0173X
1. Side ventilator (P.4-23)
2. Headlight, fog light* and turn signal switch(P.2-30)
3. Steering-wheel-mounted controls (left side)*
— Audio control* (P.4-67)
— Bluetooth
®Hands-Free Phone System con-
trol* (P.4-69) 4. Steering wheel
— Horn (P.2-35)
— Driver supplemental air bag (P.1-39)
— Electric power steering system (P.5-27)
5. Meters and gauges (P.2-4)
6. Steering-wheel-mounted controls (right side) — Cruise control switches (P.5-19) 7. Wiper and washer switch (P.2-28)
8. Center ventilator (P.4-23)
9. Hazard warning flasher switch (P.6-2)
10. Audio system (P.4-30)/Navigation system**
— Clock (P.4-6, P.4-43, P.4-52)
— Rear view monitor* (P.4-9)
— Around view
TMmonitor* (P.4-13)
11. Front passenger supplemental air bag (P.1-39)
12. Outside remote mirror control switch (P.3-25)
13. Headlight aiming control* (P.2-33)
14. All-Wheel Drive (AWD) LOCK switch* (P.5-23)
15. Fuse box cover (P.8-20)
16. Vehicle Dynamic Control (VDC) OFF switch
(P.2-36, P.5-29)
17. Hood release handle (P.3-19)
18. Tilting steering wheel lever (P.3-23)
19. Parking brake (P.5-19)
20. Ignition switch (P.5-10)
21. Heated seat switch* (P.2-35)
22. “Camera” Around view
TMmonitor display
switch* (P.4-13)
23. Sport mode switch (P.5-16)
24. Power outlet (P.2-37)
25. Heater/air conditioner control (P.4-24)
26. Selector lever (P.5-14)
27. Front passenger air bag status light (P.1-46)
28. Rear window and outside mirror* defroster
switch (P.2-30)
29. Glove box (P.2-40)
*: if so equipped
INSTRUMENT PANEL

Black plate (71,1)
[ Edit: 2012/ 5/ 18 Model: S35-D ]
2 Instruments and controls
Instrument panel...
........................................................................\
2-3
Meters and gauges ...
................................................................... 2-4
Speedometer ...
........................................................................\
2-4
Odometer/twin trip odometer ...
.......................................... 2-5
Tachometer ...
........................................................................\
... 2-5
Engine coolant temperature gauge ...
................................ 2-6
Fuel gauge ...
........................................................................\
.... 2-6
Instrument brightness control ...
.......................................... 2-7
Warning/indicator lights and audible reminders ...
............... 2-8
Checking bulbs ...
.................................................................... 2-9
Warning lights ...
...................................................................... 2-9
Indicator lights ...
................................................................... 2-13
Audible reminders ...
............................................................ 2-15
Vehicle information display ...
.................................................. 2-16
Outside air temperature ...
.................................................. 2-17
Indicators for operation ...
................................................... 2-18
Indicators for maintenance ...
............................................. 2-21
Trip computer ...
.................................................................... 2-21
Continuously Variable Transmission (CVT)
position indicator ...
.............................................................. 2-24
Security systems ...
.................................................................... 2-25
Vehicle Security System ...
................................................. 2-25
NISSAN Vehicle Immobilizer System ...
.......................... 2-26
Windshield wiper and washer switch ...
............................... 2-28 Rear window wiper and washer switch
...
.......................... 2-29
Rear window and outside mirror defroster switch ...
....... 2-30
Headlight and turn signal switch ...
....................................... 2-30
Xenon headlights (if so equipped) ...
............................ 2-30
Headlight switch ...
............................................................ 2-32
Turn signal switch ...
.......................................................... 2-34
Fog light switch (if so equipped) ...
.............................. 2-34
Horn ...
........................................................................\
.................. 2-35
Heated seats (if so equipped) ...
........................................... 2-35
Vehicle Dynamic Control (VDC) OFF switch ...
................. 2-36
Power outlet ...
........................................................................\
.... 2-37
Storage ...
........................................................................\
............ 2-38
Cup holders ...
..................................................................... 2-38
Sunglasses holder ...
......................................................... 2-39
Glove box ...
........................................................................\
. 2-40
Console box ...
.................................................................... 2-40
Luggage floor box (if so equipped) ...
.......................... 2-41
Luggage side box ...
.......................................................... 2-41
Cargo cover (if so equipped) ...
..................................... 2-41
Luggage hooks (if so equipped) ...
............................... 2-42
Coat hooks (if so equipped) ...
....................................... 2-43
Utility hook ...
....................................................................... 2-43
Roof rack (if so equipped) ...
.......................................... 2-44>

Black plate (73,1)
[ Edit: 2012/ 5/ 18 Model: S35-D ]
S35-D-110201-A7D4030A-2862-489B-A7AF-66159DF04F04
JVC0173X
1. Side ventilator
2. Headlight, fog light (if so equipped) and turnsignal switch
3. Steering-wheel-mounted controls (left side) (if so equipped)
— Audio control
— Bluetooth
®Hands-Free Phone system con- trol
4. Steering wheel — Horn
— Driver supplemental air bag
5. Meters and gauges
6. Steering-wheel-mounted controls (right side) — Cruise control switches 7. Wiper and washer switch
8. Center ventilator
9. Hazard warning flasher switch
10.
Audio system/Navigation system (if so
equipped)
— Clock
— Rear view monitor (if so equipped)
— Around view
TMmonitor (if so equipped)
11. Front passenger supplemental air bag
12. Outside remote mirror control switch
13. Headlight aiming control (if so equipped)
14. All-Wheel Drive (AWD) LOCK switch (if so equipped)
15. Fuse box cover
16. Vehicle Dynamic Control (VDC) OFF switch
17. Hood release handle
18. Tilting steering wheel lever
19. Parking brake
20. Ignition switch
21. Heated seat switch (if so equipped)
22. “Camera” Around view
TMmonitor display switch
(if so equipped)
23. Sport mode switch
24. Power outlet
25. Heater/air conditioner control
26. Selector lever
27. Front passenger air bag status light
28. Rear window and outside mirror (if so equipped) defroster switch
29. Glove box
Instruments and controls2-3
INSTRUMENT PANEL

Black plate (100,1)
[ Edit: 2012/ 5/ 18 Model: S35-D ]
2-30Instruments and controls
GUID-0D0E8587-930B-43B3-9368-B3B0F30F30EF
SIC3481
To defog/defrost the rear window glass and
outside mirrors (if so equipped), start the engine
and push the switch on. The indicator light
*1
will illuminate. Push the switch again to turn the
defroster off.
It will automatically turn off in approximately 15
minutes.
CAUTION
When cleaning the inner side of the rear
window, be careful not to scratch or
damage the rear window defroster.
S35-D-110201-8104C934-B454-4845-BB26-5BCBF1F256ADXENON HEADLIGHTS (if so equipped)S35-D-110201-51586A62-6562-41E5-82FB-43C896A0EF46
WARNING
HIGH VOLTAGE
. When xenon headlights are on, they
produce a high voltage. To prevent
an electric shock, never attempt to
modify or disassemble. Always have
your xenon headlights replaced at a
NISSAN dealer.
. Xenon headlights provide consider-
ably more light than conventional
headlights. If they are not correctly
aimed, they might temporarily blind
an oncoming driver or the driver
ahead of you and cause a serious
accident. If headlights are not aimed
correctly, immediately take your ve-
hicle to a NISSAN dealer and have
the headlights adjusted correctly.
When the xenon headlight is initially turned on,
its brightness or color varies slightly. However,
the color and brightness will soon stabilize.
. The life of xenon headlights will be
shortened by frequent on-off opera-
tion. It is generally desirable not to turn off the headlights for short intervals
(for example, when the vehicle stops at
a traffic signal) .
. If the xenon headlight bulb is close to
burning out, the brightness will drasti-
cally decrease, the light will start
blinking, or the color of the light will
become reddish. If one or more of the
above signs appear, contact a NISSAN
dealer.
REAR WINDOW AND OUTSIDE
MIRROR DEFROSTER SWITCH HEADLIGHT AND TURN SIGNAL
SWITCH

Black plate (104,1)
[ Edit: 2012/ 5/ 18 Model: S35-D ]

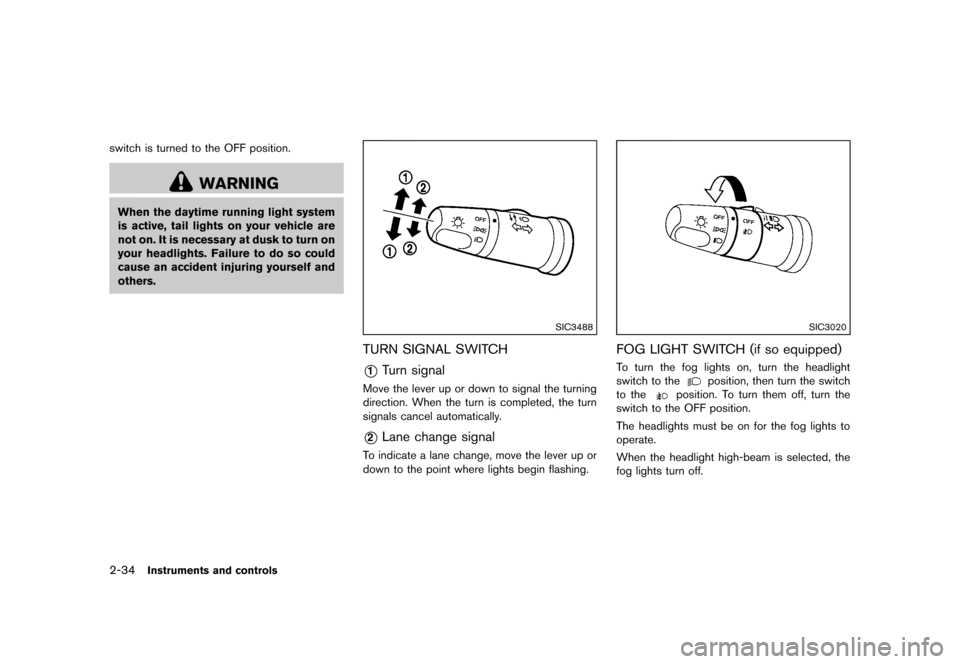

2-34Instruments and controls
switch is turned to the OFF position.
WARNING
When the daytime running light system
is active, tail lights on your vehicle are
not on. It is necessary at dusk to turn on
your headlights. Failure to do so could
cause an accident injuring yourself and
others.
SIC3488
TURN SIGNAL SWITCHS35-D-110201-D70B7BB9-0165-4793-8DD2-5117530A4F24
*1Turn signalS35-D-110201-78EF5631-94EC-4BFA-B057-20F6E43845D5Move the lever up or down to signal the turning
direction. When the turn is completed, the turn
signals cancel automatically.
*2Lane change signalS35-D-110201-706FD6E2-4F8D-4CE9-BE9D-F50571D2B390To indicate a lane change, move the lever up or
down to the point where lights begin flashing.
SIC3020
FOG LIGHT SWITCH (if so equipped)S35-D-110201-3A145094-902C-4624-8C4C-7BCAA5A6360CTo turn the fog lights on, turn the headlight
switch to the
position, then turn the switch
to the
position. To turn them off, turn the
switch to the OFF position.
The headlights must be on for the fog lights to
operate.
When the headlight high-beam is selected, the
fog lights turn off.

Black plate (172,1)
[ Edit: 2012/ 5/ 18 Model: S35-D ]
4-24Center display, heater, air conditioner, audio, phone and voice recognition systems
S35-D-110201-73A25172-06C8-4D8E-A6DC-5CBD131ADC3A
WARNING
.The air conditioner cooling function
operates only when the engine is
running.
. Do not leave children or adults who
would normally require the support
of others alone in your vehicle. Pets
should not be left alone either. On
hot, sunny days, temperatures in a
closed vehicle could quickly become
high enough to cause severe or
possibly fatal injuries to people or
animals.
. Do not use the recirculation mode
for long periods as it may cause the
interior air to become stale and the
windows to fog up.
Start the engine and operate the heater and air
conditioner system.
SAA1776
1. Fan speed controldial
2. Temperature control dial
3. Air flow control dial
4. Air recirculation button
5. A/C (Air Conditioner) button
6. Rear window defroster button (See “Rear
window and outside mirror defroster switch” in
the “2. Instruments and controls” section.)
MANUAL AIR CONDITIONERS35-D-110201-BAF28FD4-665D-44FA-9913-B21AC9730C36To turn off the heater and air conditioner, turn the
fan speed control
dial to the OFF position.
ControlsS35-D-110201-528D314D-1240-4D18-9E3F-DC4286AC735C
Outside air circulation:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Push the air recirculation button to turn off the
indicator light on the button. The air flow is
drawn from outside the vehicle.
Air recirculation:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Push the air recirculation button to turn on the
indicator light on the button. The air flow is
circulated inside the vehicle.
Air flow control:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Turn the air flow control dial to change the air
flow mode.
HEATER AND AIR CONDITIONER

Black plate (173,1)
[ Edit: 2012/ 5/ 18 Model: S35-D ]
— Air flows from the center and side ventila-tors with maximum cooling (air condition-
ing) . (The air recirculation
and A/C will
be automatically turned on.)
— Air flows from the center and side ventila- tors.
— Air flows from the center and side ventila-tors and foot outlets.
— Air flows mainly from the foot outlets.
— Air flows from the defroster and foot outlets.
— Air flows mainly from the defroster outlets.
.You can also select the middle position
between
andor betweenand
.
. When the
,orposition is
selected, the air recirculation
mode
cannot be turned on to prevent the windows
from being fogged up.
Fan speed control:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Turn the fan speed controldial clockwise
(HI) to increase the fan speed.
Turn the fan speed control
dial counter-
clockwise (LO) to decrease the fan speed.
A/C (Air Conditioner) operation:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Push the A/C button to turn on or off the air
conditioner. When the air conditioner is on, the
A/C indicator light on the button illuminates. Temperature control:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Turn the temperature control dial to set the
desired temperature. Turn the dial between the
middle and the right position to select the hot
temperature. Turn the dial between the middle
and the left position to select the cool tempera-
ture.
Heater operationS35-D-110201-1491AD0D-22C6-45F1-B821-82C280A00A69
Heating:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407This mode is used to direct heated air to the foot
outlets.
1. Push the air recirculation button
to the
OFF position. (The indicator light turns off.)
2. Turn the air flow control dial to the
position.
3. Turn the fan speed control
dial to the
desired position.
4. Turn the temperature control dial to the desired position between the middle and the
hot (right) position.
Ventilation:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407This mode directs outside air to the side and
center ventilators.
1. Push the air recirculation button
to the
OFF position. (The indicator light turns off.) 2. Turn the air flow control dial to the
position.
3. Turn the fan speed control
dial to the
desired position.
4. Turn the temperature control dial to the desired position.
Defrosting or defogging:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407This mode directs the air to the defroster outlets
to defrost/defog the windows.
1. Turn the air flow control dial to the
position.
2. Turn the fan speed control
dial to the
desired position.
3. Turn the temperature control dial to the desired position between the middle and the
hot (right) position.
. To remove frost from the outside surface of
the windshield quickly, turn the temperature
control dial to the maximum hot position and
the fan speed control
dial to maximum
(HI) position.
. If it is difficult to defog the windshield, turn
the A/C button on.
Bi-level heating:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407This mode directs cool air from the side and
center vents and warm air from the foot outlets.
When the temperature control dial is turned to
Center display, heater, air conditioner, audio, phone and voice recognition systems4-25
