2013 NISSAN ROGUE Owners Manual

Black plate (119,1)
[ Edit: 2012/ 5/ 18 Model: S35-D ]
S35-D-110201-6554559D-EE81-4A45-B1ED-9C063E192D41
CAUTION
Do not use for extended periods of time
with the engine stopped. This could
result in a discharged battery.
MAP LIGHTSS35-D-110201-C243F5B9-4483-4D93-AA0B-1EA9F7CF9D9DPush the light lens to turn the map light on or off.
SIC3512
The map light control switch has three positions:
ON
*1, DOOR*2and OFF*3.
The light
*4(if so equipped) will illuminate
when the headlight switch is turned to the
orposition.
ON positionS35-D-110201-7683F6B1-A28E-4E34-903D-85E1BC5B2ED3When the switch is in the ON position*1, the
map lights will illuminate.
DOOR positionS35-D-110201-6D5F4D58-B171-4027-B458-15DB5CE5FB39When the switch is in the DOOR position*2,
the map lights will illuminate under the following
conditions:
. ignition switch is turned to the LOCK
position
— remain on for about 15 seconds.
. doors are unlocked by pushing the unlock
button
(on the keyfob or Intelligent Key)
or the request switch (Intelligent Key system
equipped model) , with the ignition switch in
the LOCK position
— remain on for about 15 seconds.
. any door is opened and then closed with the
ignition switch in the LOCK position
— remain on for about 15 seconds.
. any door is opened with the ignition switch
in the ACC or ON position
— remain on while the door is opened.
When the door is closed, the lights go
off.
The lights will turn off after a period of
time when the lights remain illuminated to
prevent the battery from becoming dis-
charged.
Instruments and controls2-49
INTERIOR LIGHTS

Black plate (120,1)
[ Edit: 2012/ 5/ 18 Model: S35-D ]
2-50Instruments and controls
OFF positionS35-D-110201-55BC51B8-E593-4DF0-A4A4-C808144A2F0BWhen the switch is in the OFF position*3, the
map lights will not illuminate, regardless of the
condition.
SIC3513
CEILING LIGHTGUID-BE9CB642-0C31-473C-A93E-63673165372BThe ceiling light switch has three positions: ON,
DOOR and OFF.
ON positionS35-D-110201-70BCA29A-4C18-4168-8B6D-98BE0BE33E7FWhen the switch is in the ON position*1, the
ceiling light will illuminate.
DOOR positionS35-D-110201-96E5D9BB-55A7-44D8-B0DC-A27CDCB014C4When the switch is in the DOOR position*2,
the ceiling light will illuminate under the following
conditions:
. ignition switch is turned to the LOCK
position — remain on for about 15 seconds.
. doors are unlocked by pushing the unlock
button
(on the keyfob or Intelligent Key)
or the request switch (Intelligent Key system
equipped model) , with the ignition switch in
the LOCK position
— remain on for about 15 seconds.
. any door is opened and then closed with the
ignition switch in the LOCK position
— remain on for about 15 seconds.
. any door is opened with the ignition switch
in the ACC or ON position
— remain on while the door is opened.
When the door is closed, the lights go
off.
The light will turn off after a period of time
when the lights remain illuminated to
prevent the battery from becoming dis-
charged.
OFF positionS35-D-110201-D2E4CC19-C6A3-43E3-A546-AEDCAD5B81E9When the switch is in the OFF position*3, the
ceiling light will not illuminate, regardless of the
condition.

Black plate (121,1)
[ Edit: 2012/ 5/ 18 Model: S35-D ]
S35-D-110201-60256316-8D60-44BF-B844-446DA9E30D11
SIC2064
The light on the vanity mirror will turn on when
the cover on the vanity mirror is opened.
When the cover is closed, the light will turn off.
The lights will turn off after a period of
time when the lights remain illuminated to
prevent the battery from becoming dis-
charged.
GUID-AC455466-F059-41D4-A466-DD80D2F1310F
SIC2131A
When the switch is in the ON position*1, the
light illuminates while the lift gate is opened.
When the lift gate is closed, the light will turn off.
When the switch is in the OFF position
*2, the
light will turn off.
The light will turn off after a period of time
when the lights remain illuminated to
prevent the battery from becoming dis-
charged.
Instruments and controls2-51
VANITY MIRROR LIGHTS (if so
equipped) CARGO LIGHT

Black plate (122,1)
[ Edit: 2012/ 5/ 18 Model: S35-D ]

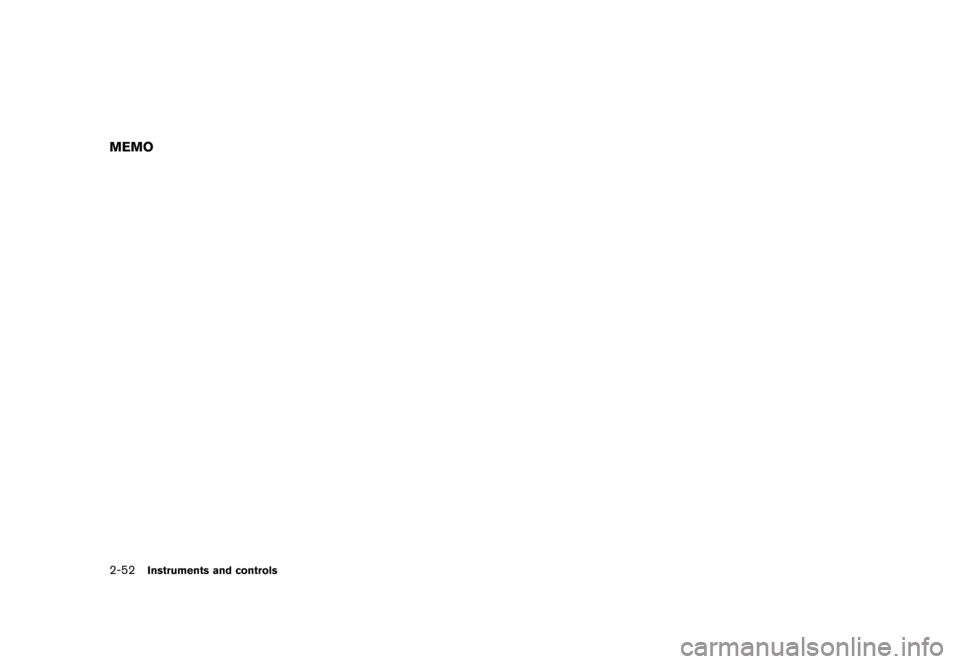

2-52Instruments and controls
MEMO

Black plate (123,1)
[ Edit: 2012/ 5/ 18 Model: S35-D ]
3 Pre-driving checks and adjustments
Keys...
........................................................................\
...................... 3-2
NISSAN Vehicle Immobilizer System keys ...
................... 3-2
Intelligent Keys (if so equipped) ...
..................................... 3-3
Doors ...
........................................................................\
.................... 3-4
Locking with key ...
.................................................................. 3-5
Locking with inside lock knob ...
.......................................... 3-5
Locking with power door lock switch ...
............................ 3-5
Automatic door locks ...
......................................................... 3-6
Child safety rear door lock ...
............................................... 3-6
Remote keyless entry system (if so equipped) ...
................. 3-7
How to use remote keyless entry system ...
..................... 3-8
Intelligent Key system (if so equipped) ...
............................ 3-10
Intelligent Key operating range ...
..................................... 3-12
Door locks/unlocks precaution ...
.................................... 3-12
Intelligent Key operation ...
................................................. 3-13 Warning signals
...
.............................................................. 3-14
Troubleshooting guide ...
.................................................. 3-15
How to use remote keyless entry function ...
.............. 3-16
Hood ...
........................................................................\
................. 3-19
Lift gate ...
........................................................................\
............ 3-20
Lift gate release ...
.............................................................. 3-21
Fuel-filler door ...
........................................................................\
3-21
Opening the fuel-filler door ...
......................................... 3-21
Fuel-filler cap ...
.................................................................. 3-21
Steering wheel ...
....................................................................... 3-23
Tilt operation ...
................................................................... 3-23
Sun visors ...
........................................................................\
........ 3-24
Mirrors ...
........................................................................\
.............. 3-24
Inside mirror ...
..................................................................... 3-24
Outside mirrors ...
............................................................... 3-25
Vanity mirror ...
..................................................................... 3-26

Black plate (124,1)
[ Edit: 2012/ 5/ 18 Model: S35-D ]
3-2Pre-driving checks and adjustments
S35-D-110201-DE70668C-DA04-469B-B5C4-09EB700CFDF7A key number plate is supplied with your keys.
Record the key number and keep it in a safe
place (such as your wallet), not in the vehicle. If
you lose your keys, see a NISSAN dealer for
duplicates by using the key number. NISSAN
does not record any key numbers so it is very
important to keep track of your key number plate.
A key number is only necessary when you have
lost all keys and do not have one to duplicate
from. If you still have a key, this key can be
duplicated by a NISSAN dealer.
SPA2405
1. Master key (2)
2. Key number plate (1)
NISSAN VEHICLE IMMOBILIZER SYS-
TEM KEYS
S35-D-110201-9A9F7A26-2A31-4E79-9589-56D7FD9A686EYour vehicle can only be driven with the master
keys which are registered to the NISSAN
Vehicle Immobilizer System components in your
vehicle. These keys have a transponder chip in
the key head.
Never leave these keys in the vehicle.
Additional or replacement keys:
If you still have a key, the key number is not
necessary when you need extra NISSAN Vehicle
Immobilizer System keys. Your dealer canduplicate your existing key. As many as 5 keys
can be used with one vehicle. You should bring
all the registered keys that you have to a
NISSAN dealer for registration. This is because
the registration process will erase the memory of
all key codes previously registered into the
NISSAN Vehicle Immobilizer System. After the
registration process, these components will only
recognize keys coded into the NISSAN Vehicle
Immobilizer System during registration. Any key
that is not given to your dealer at the time of
registration will no longer be able to start your
vehicle.
CAUTION
Do not allow the NISSAN Vehicle Im-
mobilizer System key, which contains
an electrical transponder, to come in
contact with salt water. This could
cause the system to malfunction.
KEYS

Black plate (125,1)
[ Edit: 2012/ 5/ 18 Model: S35-D ]
SPA2406
1. Intelligent Key (2)
2. Mechanical key (inside Intelligent Key) (2)
3. Key number plate (1)
INTELLIGENT KEYS (if so equipped)S35-D-110201-D15F2CE6-CCCA-4C47-A594-B5FAFAF94A86Your vehicle can only be driven with the
Intelligent Keys which are registered to your
vehicle’s Intelligent Key system components and
NISSAN Vehicle Immobilizer System compo-
nents. As many as 4 Intelligent Keys can be
registered and used with one vehicle. The new
keys must be registered by a NISSAN dealer
prior to use with the Intelligent Key system and
NISSAN Vehicle Immobilizer System of your
vehicle. Since the registration process requires
erasing all memory in the Intelligent Key compo-nents when registering new keys, be sure to take
all Intelligent Keys that you have to the NISSAN
dealer.
CAUTION
.
Do not allow the Intelligent Key,
which contains electrical compo-
nents, to come into contact with
water or salt water. This could affect
the system function.
. Do not drop the Intelligent Key.
. Do not strike the Intelligent Key
sharply against another object.
. If the outside temperature is below
148F (-108C) degrees, the battery of
the Intelligent Key may not function
properly.
. Do not place the Intelligent Key for
an extended period in an area where
temperatures exceed 1408F (608C) .
. Do not attach the Intelligent Key
with a key holder that contains a
magnet.
. Do not place the Intelligent Key near
equipment that produces a mag-
netic field, such as a TV, audio equipment and personal computers.
Pre-driving checks and adjustments3-3

Black plate (126,1)
[ Edit: 2012/ 5/ 18 Model: S35-D ]
3-4Pre-driving checks and adjustments

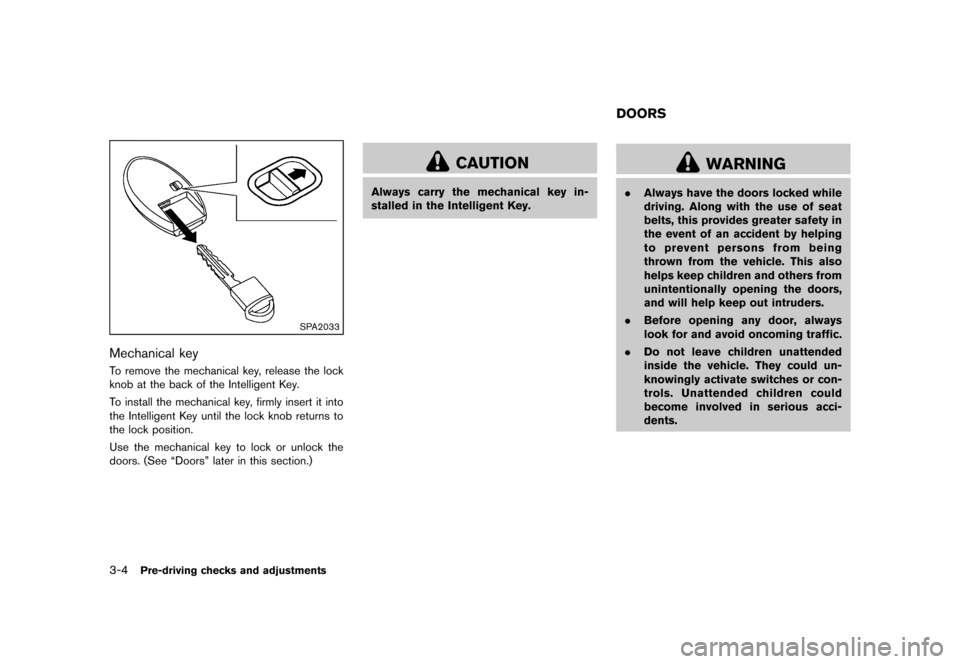

SPA2033
Mechanical keyS35-D-110201-9601DF7C-3FF9-40D5-B6B8-9E5EEEBD0038To remove the mechanical key, release the lock
knob at the back of the Intelligent Key.
To install the mechanical key, firmly insert it into
the Intelligent Key until the lock knob returns to
the lock position.
Use the mechanical key to lock or unlock the
doors. (See “Doors” later in this section.)
CAUTION
Always carry the mechanical key in-
stalled in the Intelligent Key.
S35-D-110201-11F4111D-00C7-425A-8CBE-258C29021D15
WARNING
.Always have the doors locked while
driving. Along with the use of seat
belts, this provides greater safety in
the event of an accident by helping
to prevent persons from being
thrown from the vehicle. This also
helps keep children and others from
unintentionally opening the doors,
and will help keep out intruders.
. Before opening any door, always
look for and avoid oncoming traffic.
. Do not leave children unattended
inside the vehicle. They could un-
knowingly activate switches or con-
trols. Unattended children could
become involved in serious acci-
dents.
DOORS
