line is displayed only on the opposite
side of the turn.
SAA3570

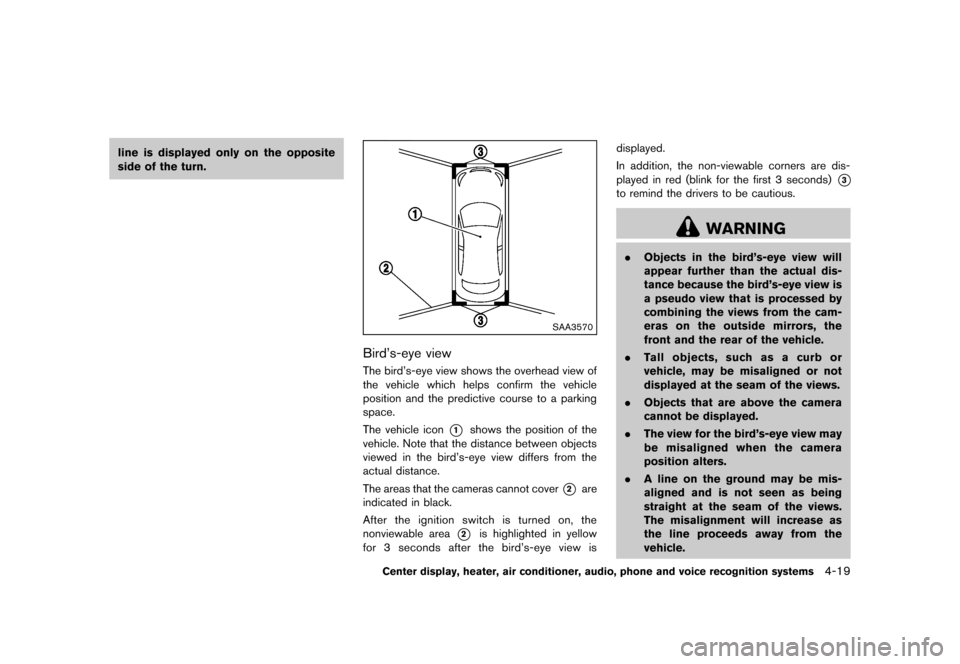

Bird’s-eye viewGUID-50301F42-478E-4D89-939B-7FFBFE931E68The bird’s-eye view shows the overhead view of
the vehicle which helps confirm the vehicle
position and the predictive course to a parking
space.
The vehicle icon
*1shows the position of the
vehicle. Note that the distance between objects
viewed in the bird’s-eye view differs from the
actual distance.
The areas that the cameras cannot cover
*2are
indicated in black.
After the ignition switch is turned on, the
nonviewable area
*2is highlighted in yellow
for 3 seconds after the bird’s-eye view is displayed.
In addition, the non-viewable corners are dis-
played in red (blink for the first 3 seconds)
*3
to remind the drivers to be cautious.
WARNING
.
Objects in the bird’s-eye view will
appear further than the actual dis-
tance because the bird’s-eye view is
a pseudo view that is processed by
combining the views from the cam-
eras on the outside mirrors, the
front and the rear of the vehicle.
. Tall objects, such as a curb or
vehicle, may be misaligned or not
displayed at the seam of the views.
. Objects that are above the camera
cannot be displayed.
. The view for the bird’s-eye view may
be misaligned when the camera
position alters.
. A line on the ground may be mis-
aligned and is not seen as being
straight at the seam of the views.
The misalignment will increase as
the line proceeds away from the
vehicle.
Center display, heater, air conditioner, audio, phone and voice recognition systems4-19

Black plate (168,1)
[ Edit: 2012/ 5/ 18 Model: S35-D ]
4-20Center display, heater, air conditioner, audio, phone and voice recognition systems
SAA3571
Front-side viewGUID-8076DAE4-5740-4153-97B7-D23604255E79Guiding lines:
Guiding lines that indicate the width and the
front end of the vehicle are displayed on the
monitor.
The front-of-vehicle line
*1shows the front part
of the vehicle.
The side-of-vehicle line
*2shows the vehicle
width including the outside mirror.
The extensions
*3of both the front*1and
side
*2lines are shown with a green dotted
line.
CAUTION
. There is a plastic cover over the
camera. Do not scratch the cover
when cleaning dirt or snow from the
cover.
. The turn signal light may overlap
with the side-of-vehicle line. This is
not a malfunction.
DIFFERENCE BETWEEN PREDICTIVE
AND ACTUAL DISTANCES
GUID-EB108E6F-FFB7-4017-9AA2-AC698DAE4B5BThe distance guide line and the vehicle width
guide line on the front and the rear view should
be used as a reference only when the vehicle is
on a level, paved surface. The distance viewed
on the monitor is for reference only and may be
different than the actual distance between the
vehicle and displayed objects.
SAA1978
Moving to a steep uphillGUID-B1B473C0-4A36-49DC-8575-42548B891124When moving the vehicle up a hill, the distance
guide lines and the vehicle width guide lines are
shown closer than the actual distance. For
example, the display shows 3 ft (1 m) to the
place
*A, but the actual 3 ft (1 m) distance on
the hill is the place
*B. Note that any object on

Black plate (169,1)
[ Edit: 2012/ 5/ 18 Model: S35-D ]
the hill is viewed in the monitor further than it
appears.
SAA1979
Moving to a steep downhillGUID-DF650F08-D143-4AB0-890C-0A871FB28623When moving the vehicle down a hill, the
distance guide lines and the vehicle width guide
lines are shown further than the actual distance.
For example, the display shows 3 ft (1 m) to the
place
*A, but the actual 3 ft (1 m) distance on
the hill is the place
*B. Note that any object on the hill is viewed in the monitor closer than it
appears.
Center display, heater, air conditioner, audio, phone and voice recognition systems4-21

Black plate (170,1)
[ Edit: 2012/ 5/ 18 Model: S35-D ]
4-22Center display, heater, air conditioner, audio, phone and voice recognition systems
SAA1923

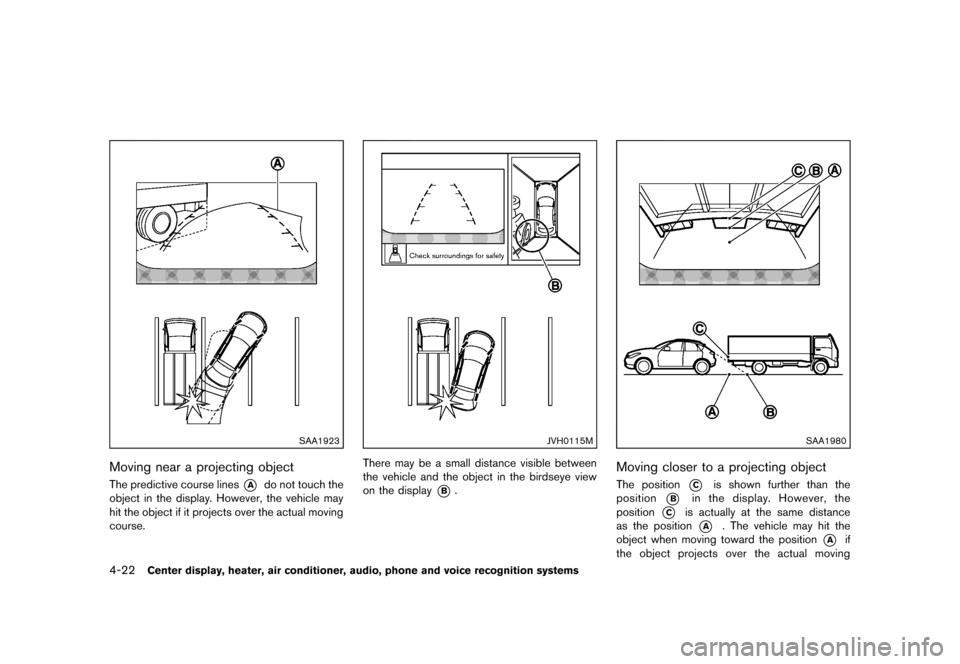

Moving near a projecting objectGUID-45695E62-599A-43BA-86C6-51CAFF6DBA96The predictive course lines*Ado not touch the
object in the display. However, the vehicle may
hit the object if it projects over the actual moving
course.
JVH0115M
There may be a small distance visible between
the vehicle and the object in the birdseye view
on the display
*B.
SAA1980
Moving closer to a projecting objectGUID-4A689DBE-9843-4AA4-80EA-C6C9AE4BD279The position*Cis shown further than the
position
*Bin the display. However, the
position
*Cis actually at the same distance
as the position
*A. The vehicle may hit the
object when moving toward the position
*Aif
the object projects over the actual moving

Black plate (171,1)
[ Edit: 2012/ 5/ 18 Model: S35-D ]
course.

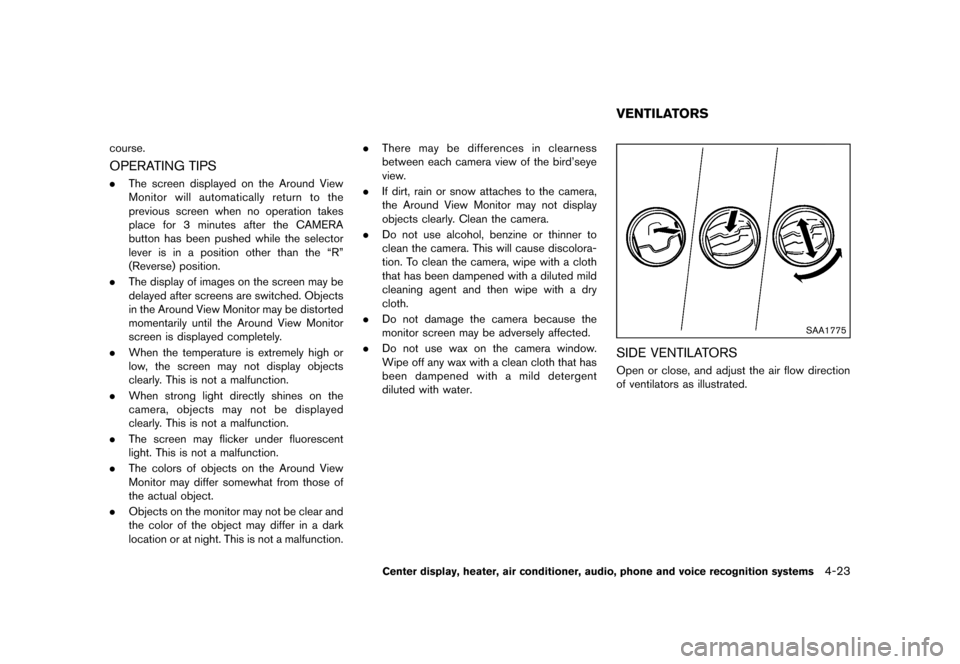

OPERATING TIPSGUID-CF52BB42-FFBD-4B6D-ABD2-E53AE93EE69F.The screen displayed on the Around View
Monitor will automatically return to the
previous screen when no operation takes
place for 3 minutes after the CAMERA
button has been pushed while the selector
lever is in a position other than the “R”
(Reverse) position.
. The display of images on the screen may be
delayed after screens are switched. Objects
in the Around View Monitor may be distorted
momentarily until the Around View Monitor
screen is displayed completely.
. When the temperature is extremely high or
low, the screen may not display objects
clearly. This is not a malfunction.
. When strong light directly shines on the
camera, objects may not be displayed
clearly. This is not a malfunction.
. The screen may flicker under fluorescent
light. This is not a malfunction.
. The colors of objects on the Around View
Monitor may differ somewhat from those of
the actual object.
. Objects on the monitor may not be clear and
the color of the object may differ in a dark
location or at night. This is not a malfunction. .
There may be differences in clearness
between each camera view of the bird’seye
view.
. If dirt, rain or snow attaches to the camera,
the Around View Monitor may not display
objects clearly. Clean the camera.
. Do not use alcohol, benzine or thinner to
clean the camera. This will cause discolora-
tion. To clean the camera, wipe with a cloth
that has been dampened with a diluted mild
cleaning agent and then wipe with a dry
cloth.
. Do not damage the camera because the
monitor screen may be adversely affected.
. Do not use wax on the camera window.
Wipe off any wax with a clean cloth that has
been dampened with a mild detergent
diluted with water.
S35-D-110201-2902BFED-B9AA-4CF2-9D44-C5D05BF5B964
SAA1775
SIDE VENTILATORSGUID-7D2AD213-490F-4596-A188-7E529E37E640Open or close, and adjust the air flow direction
of ventilators as illustrated.
Center display, heater, air conditioner, audio, phone and voice recognition systems4-23
VENTILATORS

Black plate (172,1)
[ Edit: 2012/ 5/ 18 Model: S35-D ]
4-24Center display, heater, air conditioner, audio, phone and voice recognition systems
S35-D-110201-73A25172-06C8-4D8E-A6DC-5CBD131ADC3A
WARNING
.The air conditioner cooling function
operates only when the engine is
running.
. Do not leave children or adults who
would normally require the support
of others alone in your vehicle. Pets
should not be left alone either. On
hot, sunny days, temperatures in a
closed vehicle could quickly become
high enough to cause severe or
possibly fatal injuries to people or
animals.
. Do not use the recirculation mode
for long periods as it may cause the
interior air to become stale and the
windows to fog up.
Start the engine and operate the heater and air
conditioner system.
SAA1776
1. Fan speed controldial
2. Temperature control dial
3. Air flow control dial
4. Air recirculation button
5. A/C (Air Conditioner) button
6. Rear window defroster button (See “Rear
window and outside mirror defroster switch” in
the “2. Instruments and controls” section.)
MANUAL AIR CONDITIONERS35-D-110201-BAF28FD4-665D-44FA-9913-B21AC9730C36To turn off the heater and air conditioner, turn the
fan speed control
dial to the OFF position.
ControlsS35-D-110201-528D314D-1240-4D18-9E3F-DC4286AC735C
Outside air circulation:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Push the air recirculation button to turn off the
indicator light on the button. The air flow is
drawn from outside the vehicle.
Air recirculation:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Push the air recirculation button to turn on the
indicator light on the button. The air flow is
circulated inside the vehicle.
Air flow control:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Turn the air flow control dial to change the air
flow mode.
HEATER AND AIR CONDITIONER

Black plate (173,1)
[ Edit: 2012/ 5/ 18 Model: S35-D ]
— Air flows from the center and side ventila-tors with maximum cooling (air condition-
ing) . (The air recirculation
and A/C will
be automatically turned on.)
— Air flows from the center and side ventila- tors.
— Air flows from the center and side ventila-tors and foot outlets.
— Air flows mainly from the foot outlets.
— Air flows from the defroster and foot outlets.
— Air flows mainly from the defroster outlets.
.You can also select the middle position
between
andor betweenand
.
. When the
,orposition is
selected, the air recirculation
mode
cannot be turned on to prevent the windows
from being fogged up.
Fan speed control:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Turn the fan speed controldial clockwise
(HI) to increase the fan speed.
Turn the fan speed control
dial counter-
clockwise (LO) to decrease the fan speed.
A/C (Air Conditioner) operation:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Push the A/C button to turn on or off the air
conditioner. When the air conditioner is on, the
A/C indicator light on the button illuminates. Temperature control:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Turn the temperature control dial to set the
desired temperature. Turn the dial between the
middle and the right position to select the hot
temperature. Turn the dial between the middle
and the left position to select the cool tempera-
ture.
Heater operationS35-D-110201-1491AD0D-22C6-45F1-B821-82C280A00A69
Heating:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407This mode is used to direct heated air to the foot
outlets.
1. Push the air recirculation button
to the
OFF position. (The indicator light turns off.)
2. Turn the air flow control dial to the
position.
3. Turn the fan speed control
dial to the
desired position.
4. Turn the temperature control dial to the desired position between the middle and the
hot (right) position.
Ventilation:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407This mode directs outside air to the side and
center ventilators.
1. Push the air recirculation button
to the
OFF position. (The indicator light turns off.) 2. Turn the air flow control dial to the
position.
3. Turn the fan speed control
dial to the
desired position.
4. Turn the temperature control dial to the desired position.
Defrosting or defogging:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407This mode directs the air to the defroster outlets
to defrost/defog the windows.
1. Turn the air flow control dial to the
position.
2. Turn the fan speed control
dial to the
desired position.
3. Turn the temperature control dial to the desired position between the middle and the
hot (right) position.
. To remove frost from the outside surface of
the windshield quickly, turn the temperature
control dial to the maximum hot position and
the fan speed control
dial to maximum
(HI) position.
. If it is difficult to defog the windshield, turn
the A/C button on.
Bi-level heating:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407This mode directs cool air from the side and
center vents and warm air from the foot outlets.
When the temperature control dial is turned to
Center display, heater, air conditioner, audio, phone and voice recognition systems4-25

Black plate (174,1)
[ Edit: 2012/ 5/ 18 Model: S35-D ]

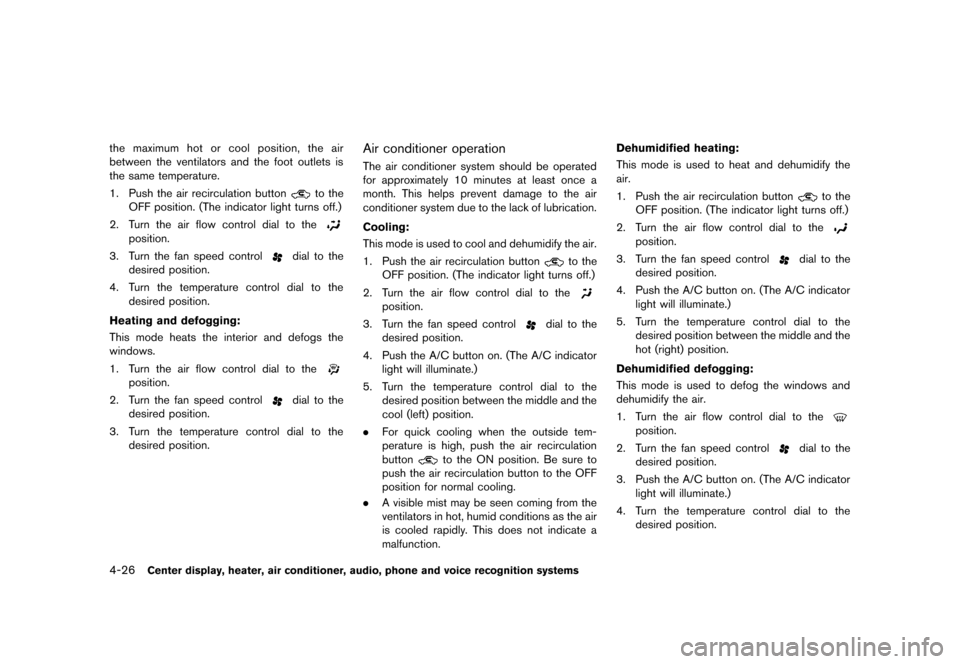

4-26Center display, heater, air conditioner, audio, phone and voice recognition systems
the maximum hot or cool position, the air
between the ventilators and the foot outlets is
the same temperature.
1. Push the air recirculation button
to the
OFF position. (The indicator light turns off.)
2. Turn the air flow control dial to the
position.
3. Turn the fan speed control
dial to the
desired position.
4. Turn the temperature control dial to the desired position.
Heating and defogging:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407This mode heats the interior and defogs the
windows.
1. Turn the air flow control dial to the
position.
2. Turn the fan speed control
dial to the
desired position.
3. Turn the temperature control dial to the desired position.
Air conditioner operationS35-D-110201-B5067E1C-0586-411F-A263-C1D511C1E269The air conditioner system should be operated
for approximately 10 minutes at least once a
month. This helps prevent damage to the air
conditioner system due to the lack of lubrication.
Cooling:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407This mode is used to cool and dehumidify the air.
1. Push the air recirculation button
to the
OFF position. (The indicator light turns off.)
2. Turn the air flow control dial to the
position.
3. Turn the fan speed control
dial to the
desired position.
4. Push the A/C button on. (The A/C indicator light will illuminate.)
5. Turn the temperature control dial to the desired position between the middle and the
cool (left) position.
. For quick cooling when the outside tem-
perature is high, push the air recirculation
button
to the ON position. Be sure to
push the air recirculation button to the OFF
position for normal cooling.
. A visible mist may be seen coming from the
ventilators in hot, humid conditions as the air
is cooled rapidly. This does not indicate a
malfunction. Dehumidified heating:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407This mode is used to heat and dehumidify the
air.
1. Push the air recirculation button
to the
OFF position. (The indicator light turns off.)
2. Turn the air flow control dial to the
position.
3. Turn the fan speed control
dial to the
desired position.
4. Push the A/C button on. (The A/C indicator light will illuminate.)
5. Turn the temperature control dial to the desired position between the middle and the
hot (right) position.
Dehumidified defogging:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407This mode is used to defog the windows and
dehumidify the air.
1. Turn the air flow control dial to the
position.
2. Turn the fan speed control
dial to the
desired position.
3. Push the A/C button on. (The A/C indicator light will illuminate.)
4. Turn the temperature control dial to the desired position.
