2-10Instruments and controls
operates normally, but without anti-lock assis-
tance. (See “Brake system” in the “5. Starting
and driving” section.)
orBrake warning lightS35-D-110201-FAC4FDDE-38CB-4A48-8813-E0FC7230DB1AThis light functions for both the parking brake
and the foot brake systems.
Parking brake indicator:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407When the ignition switch is in the ON position,
the light illuminates when the parking brake is
applied.
Low brake fluid warning light:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407When the ignition switch is in the ON position,
the light warns of a low brake fluid level. If the
light illuminates while the engine is running with
the parking brake not applied, stop the vehicle
and perform the following:
1. Check the brake fluid level. Add brake fluidas necessary. (See “Brake fluid” in the “8.
Maintenance and do-it-yourself” section.)
2. If the brake fluid level is correct, have the warning system checked by a NISSAN
dealer.
Anti-lock Braking System (ABS) warning
indicator:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407When the parking brake is released and the
brake fluid level is sufficient, if both the brake
warning light and the Anti-lock Braking System (ABS) warning light illuminate, it may indicate
the ABS is not functioning properly. Have the
brake system checked, and if necessary re-
paired, by a NISSAN dealer promptly. (See
“Anti-lock Braking System (ABS) warning light”
earlier in this section.)
WARNING
.
Your brake system may not be
working properly if the warning light
is on. Driving could be dangerous. If
you judge it to be safe, drive care-
fully to the nearest service station
for repairs. Otherwise, have your
vehicle towed because driving it
could be dangerous.
. Pressing the brake pedal with the
engine stopped and/or low brake
fluid level may increase your stop-
ping distance and braking will re-
quire greater pedal effort as well as
pedal travel.
. If the brake fluid level is below the
minimum or MIN mark on the brake
fluid reservoir, do not drive until the
brake system has been checked at a
NISSAN dealer.
Charge warning lightS35-D-110201-B5291C9A-3089-486D-840B-2926E436A0BEIf the light illuminates while the engine is running,
it may indicate the charging system is not
functioning properly. Turn the engine off and
check the alternator belt. If the belt is loose,
broken, missing or if the light remains on, see a
NISSAN dealer immediately.
CAUTION
Do not continue driving if the alternator
belt is loose, broken or missing.
Electric power steering warning
light
S35-D-110201-88542F69-8229-41AA-9C73-2BE953D6B595When the ignition switch is in the ON position,
the electric power steering warning light illumi-
nates. After starting the engine, the electric
power steering warning light turns off. This
indicates the electric power steering system is
operational.
If the electric power steering warning light
illuminates while the engine is running, it may
indicate the electric power steering system is
not functioning properly and may need servicing.
Have the electric power steering system
checked by a NISSAN dealer.
When the electric power steering warning light

Black plate (91,1)
[ Edit: 2012/ 5/ 18 Model: S35-D ]
INDICATORS FOR MAINTENANCES35-D-110201-800F6ACB-DB84-4028-98D1-DAACB7798F91
1. Service due indicatorS35-D-110201-CFD2A761-A4C9-4CF4-8BE3-496BCDE236ACThis indicator appears when the customer set
distance comes for service due, for example, for
engine oil and oil filter. You can set or reset the
distance for service due. (See “Trip computer”
later in this section.) For scheduled maintenance
items and intervals, see your NISSAN Service
and Maintenance Guide.
2. Tire replacement indicatorS35-D-110201-CE0B87AB-634A-4111-8740-7919E54C2B20This indicator appears when the customer set
distance comes for replacing tires. You can set
or reset the distance for replacing tires. (See
“Trip computer” later in this section.)
WARNING
The tire replacement indicator is not a
substitute for regular tire checks, in-
cluding tire pressure checks. See
“Changing wheels and tires” in the “8.
Maintenance and do-it-yourself” sec-
tion. Many factors including tire infla-
tion, alignment, driving habits and road
conditions affect tire wear and when
tires should be replaced. Setting the
tire replacement indicator for a certain
driving distance does not mean yourtires will last that long. Use the tire
replacement indicator as a guide only
and always perform regular tire checks.
Failure to perform regular tire checks,
including tire pressure checks could
result in tire failure. Serious vehicle
damage could occur and may lead to a
collision, which could result in serious
personal injury or death.
3. “OTHER” indicatorS35-D-110201-ED731025-DFE8-493E-8EAF-5AFA33B448D9This indicator appears when the customer set
distance comes for checking or replacing
maintenance items other than the engine oil, oil
filter and tires. Other maintenance items can
include such things as air filter or tire rotation.
You can set or reset the distance for checking or
replacing the items. (See “Trip computer” later in
this section.) For scheduled maintenance items
and intervals, see your NISSAN Service and
Maintenance Guide.SIC4551
TRIP COMPUTERS35-D-110201-032DC1AF-C190-4089-A120-1FC1894A1A57To operate the trip computer, use the*A
switch.
When the ignition switch is in the ON position,
modes of the trip computer can be selected by
pushing the
switch*Abriefly.
Each time the
switch*Ais pushed, the
display will change as follows:
Fuel Economy ?Average speed ?Driving
distance ?Elapsed time ?Range (distance to
empty) (dte) ?Settings
. When the
switch*Ais pushed and
held for less than 3 seconds, the selected
item can be reset except for “Range”,
Instruments and controls2-21

Black plate (94,1)
[ Edit: 2012/ 5/ 18 Model: S35-D ]
2-24Instruments and controls
On or Off.
. [24/12 Hr]
Select this submenu to set the 12h/24h time
display mode.
To return to the top page of the setting mode,
select “BACK”.
The time display may be different from the one
on the audio display.
Units:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407The units can be set for the following items on
this menu.
. Temperature
. Distance/Fuel
To return to the top page of the setting mode,
select “BACK”.

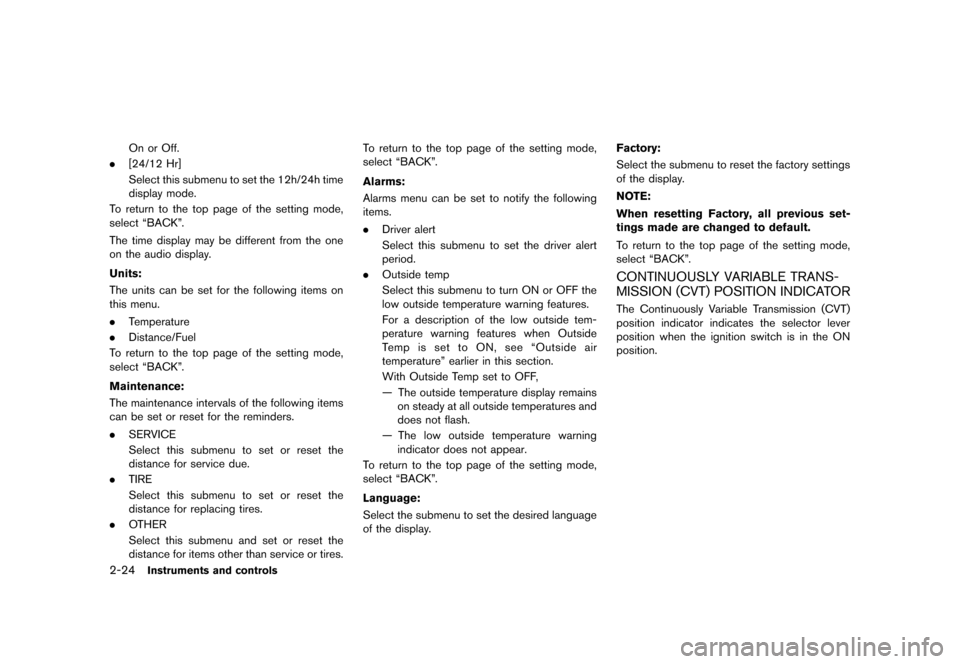

Maintenance:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407The maintenance intervals of the following items
can be set or reset for the reminders.
. SERVICE
Select this submenu to set or reset the
distance for service due.
. TIRE
Select this submenu to set or reset the
distance for replacing tires.
. OTHER
Select this submenu and set or reset the
distance for items other than service or tires. To return to the top page of the setting mode,
select “BACK”.
Alarms:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Alarms menu can be set to notify the following
items.
.
Driver alert
Select this submenu to set the driver alert
period.
. Outside temp
Select this submenu to turn ON or OFF the
low outside temperature warning features.
For a description of the low outside tem-
perature warning features when Outside
Temp is set to ON, see “Outside air
temperature” earlier in this section.
With Outside Temp set to OFF,
— The outside temperature display remains
on steady at all outside temperatures and
does not flash.
— The low outside temperature warning indicator does not appear.
To return to the top page of the setting mode,
select “BACK”.
Language:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Select the submenu to set the desired language
of the display. Factory:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Select the submenu to reset the factory settings
of the display.
NOTE:
When resetting Factory, all previous set-
tings made are changed to default.
To return to the top page of the setting mode,
select “BACK”.
CONTINUOUSLY VARIABLE TRANS-
MISSION (CVT) POSITION INDICATOR
S35-D-110201-9B42C689-272C-4B6A-B7AF-C4F2DC0E17F6The Continuously Variable Transmission (CVT)
position indicator indicates the selector lever
position when the ignition switch is in the ON
position.

Black plate (97,1)
[ Edit: 2012/ 5/ 18 Model: S35-D ]
FCC Notice:
For USA:
This device complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions: (1) This device
may not cause harmful interference, and
(2) this device must accept any interfer-
ence received, including interference that
may cause undesired operation.
NOTE:
Changes or modifications not expressly
approved by the party responsible for
compliance could void the user’s authority
to operate the equipment.
For Canada:
This device complies with RSS-210 of
Industry Canada. Operation is subject to
the following two conditions: (1) this
device may not cause interference, and
(2) this device must accept any interfer-
ence, including interference that may
cause undesired operation of the device.
SIC2045

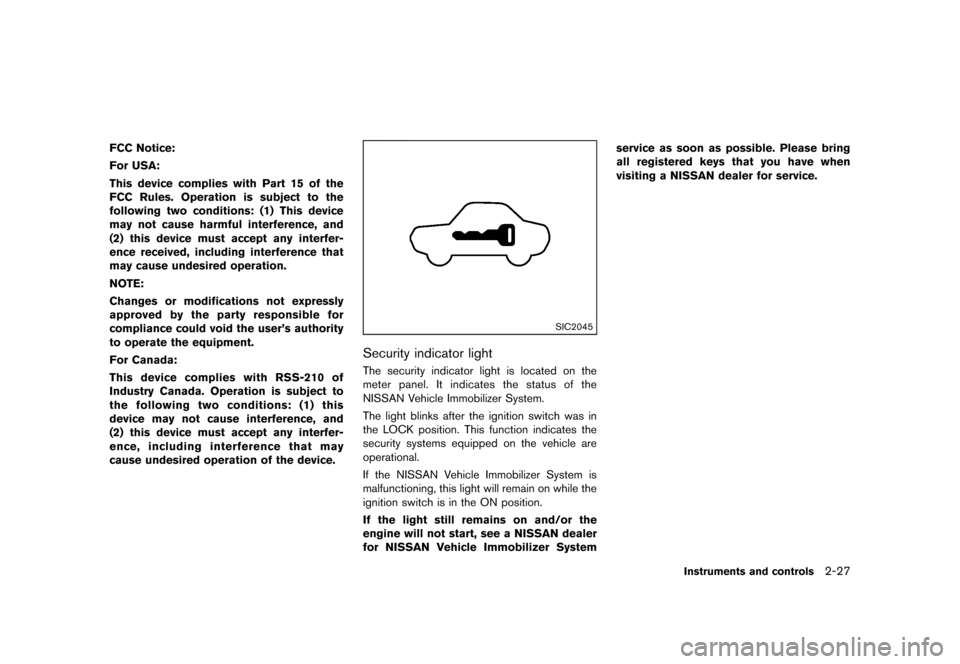

Security indicator lightGUID-B6969E9E-2AE7-4B89-9C71-367597E1FAA0The security indicator light is located on the
meter panel. It indicates the status of the
NISSAN Vehicle Immobilizer System.
The light blinks after the ignition switch was in
the LOCK position. This function indicates the
security systems equipped on the vehicle are
operational.
If the NISSAN Vehicle Immobilizer System is
malfunctioning, this light will remain on while the
ignition switch is in the ON position.
If the light still remains on and/or the
engine will not start, see a NISSAN dealer
for NISSAN Vehicle Immobilizer Systemservice as soon as possible. Please bring
all registered keys that you have when
visiting a NISSAN dealer for service.
Instruments and controls2-27

Black plate (177,1)
[ Edit: 2012/ 5/ 18 Model: S35-D ]
Air recirculation mode?Outside air circulation
mode?Automatic control mode?Air recircula-
tion mode
When automatic control mode is set, the air
recirculation indicator and outside air circulation
indicator will turn off.

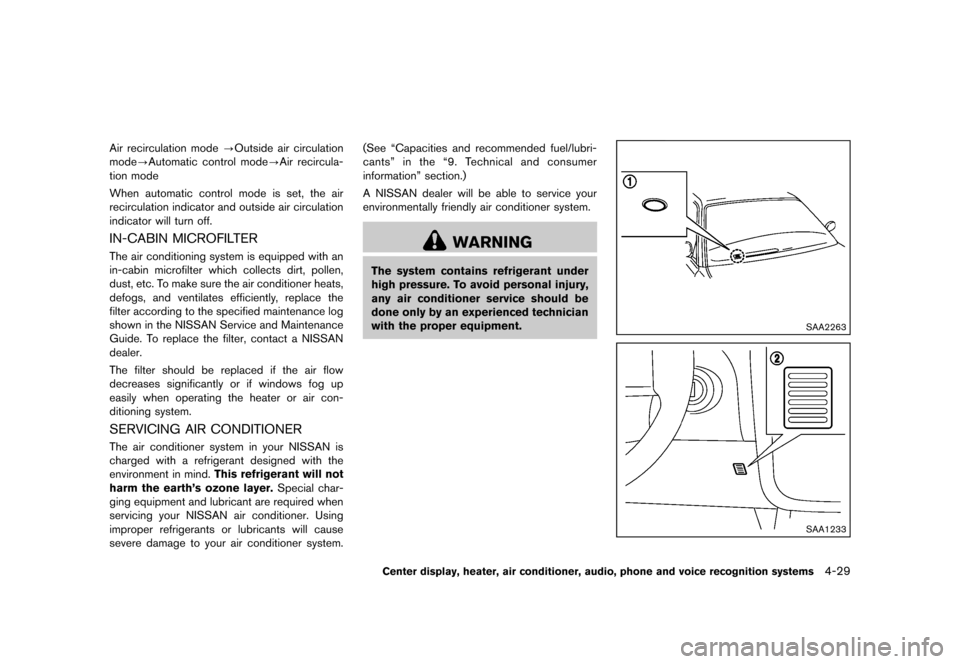

IN-CABIN MICROFILTERGUID-DF641D2F-1DDE-4BEF-B8EC-51EC605C221CThe air conditioning system is equipped with an
in-cabin microfilter which collects dirt, pollen,
dust, etc. To make sure the air conditioner heats,
defogs, and ventilates efficiently, replace the
filter according to the specified maintenance log
shown in the NISSAN Service and Maintenance
Guide. To replace the filter, contact a NISSAN
dealer.
The filter should be replaced if the air flow
decreases significantly or if windows fog up
easily when operating the heater or air con-
ditioning system.
SERVICING AIR CONDITIONERGUID-6DED59C6-5F9F-4BD9-990B-85372E93B241The air conditioner system in your NISSAN is
charged with a refrigerant designed with the
environment in mind. This refrigerant will not
harm the earth’s ozone layer. Special char-
ging equipment and lubricant are required when
servicing your NISSAN air conditioner. Using
improper refrigerants or lubricants will cause
severe damage to your air conditioner system. (See “Capacities and recommended fuel/lubri-
cants” in the “9. Technical and consumer
information” section.)
A NISSAN dealer will be able to service your
environmentally friendly air conditioner system.
WARNING
The system contains refrigerant under
high pressure. To avoid personal injury,
any air conditioner service should be
done only by an experienced technician
with the proper equipment.
SAA2263
SAA1233
Center display, heater, air conditioner, audio, phone and voice recognition systems4-29

Black plate (193,1)
[ Edit: 2012/ 5/ 18 Model: S35-D ]

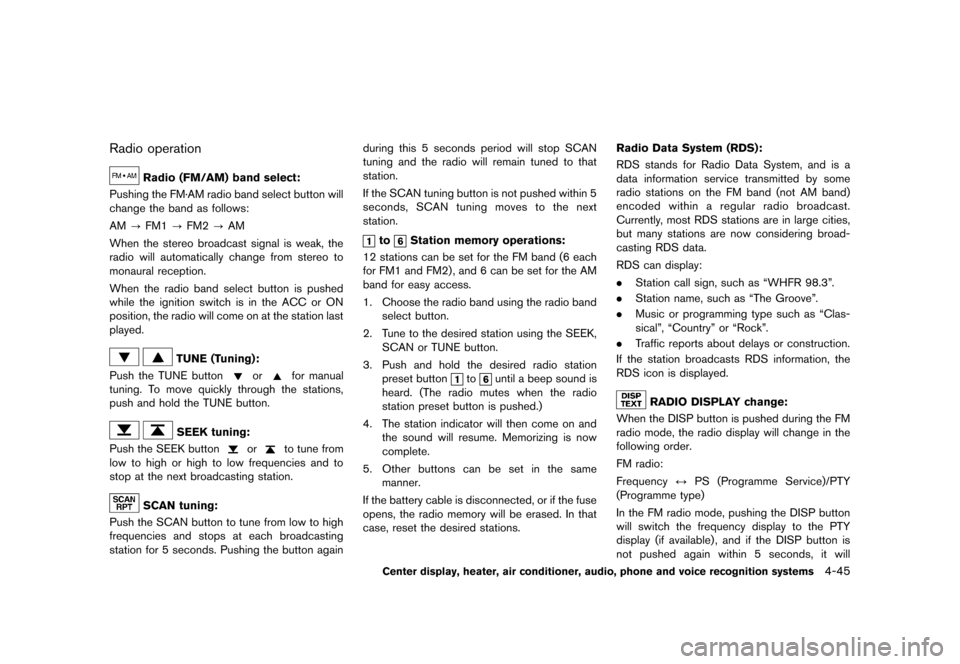

Radio operationS35-D-110201-5CFF91BB-BBB0-4B7F-B234-E74EABB5CC53
Radio (FM/AM) band select:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Pushing the FM·AM radio band select button will
change the band as follows:
AM?FM1 ?FM2 ?AM
When the stereo broadcast signal is weak, the
radio will automatically change from stereo to
monaural reception.
When the radio band select button is pushed
while the ignition switch is in the ACC or ON
position, the radio will come on at the station last
played.
TUNE (Tuning):GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Push the TUNE buttonorfor manual
tuning. To move quickly through the stations,
push and hold the TUNE button.
SEEK tuning:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Push the SEEK buttonorto tune from
low to high or high to low frequencies and to
stop at the next broadcasting station.
SCAN tuning:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Push the SCAN button to tune from low to high
frequencies and stops at each broadcasting
station for 5 seconds. Pushing the button again during this 5 seconds period will stop SCAN
tuning and the radio will remain tuned to that
station.
If the SCAN tuning button is not pushed within 5
seconds, SCAN tuning moves to the next
station.
toStation memory operations:GUID-D73A39BF-43C8-459F-9C24-47B7F579C40712 stations can be set for the FM band (6 each
for FM1 and FM2), and 6 can be set for the AM
band for easy access.
1. Choose the radio band using the radio band
select button.
2. Tune to the desired station using the SEEK, SCAN or TUNE button.
3. Push and hold the desired radio station preset button
tountil a beep sound is
heard. (The radio mutes when the radio
station preset button is pushed.)
4. The station indicator will then come on and the sound will resume. Memorizing is now
complete.
5. Other buttons can be set in the same
manner.
If the battery cable is disconnected, or if the fuse
opens, the radio memory will be erased. In that
case, reset the desired stations. Radio Data System (RDS):
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407RDS stands for Radio Data System, and is a
data information service transmitted by some
radio stations on the FM band (not AM band)
encoded within a regular radio broadcast.
Currently, most RDS stations are in large cities,
but many stations are now considering broad-
casting RDS data.
RDS can display:
.
Station call sign, such as “WHFR 98.3”.
. Station name, such as “The Groove”.
. Music or programming type such as “Clas-
sical”, “Country” or “Rock”.
. Traffic reports about delays or construction.
If the station broadcasts RDS information, the
RDS icon is displayed.
RADIO DISPLAY change:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407When the DISP button is pushed during the FM
radio mode, the radio display will change in the
following order.
FM radio:
Frequency ↔PS (Programme Service)/PTY
(Programme type)
In the FM radio mode, pushing the DISP button
will switch the frequency display to the PTY
display (if available) , and if the DISP button is
not pushed again within 5 seconds, it will
Center display, heater, air conditioner, audio, phone and voice recognition systems4-45

Black plate (291,1)
[ Edit: 2012/ 5/ 18 Model: S35-D ]
8 Maintenance and do-it-yourself
Maintenance requirement...
........................................................ 8-2
Scheduled maintenance ...
.................................................... 8-2
General maintenance ...
......................................................... 8-2
Where to go for service ...
.................................................... 8-2
General maintenance ...
............................................................... 8-2
Explanation of maintenance items ...
................................... 8-2
Maintenance precautions ...
........................................................ 8-5
Engine compartment check locations ...
.................................. 8-6
QR25DE engine ...
.................................................................. 8-6
Engine cooling system ...
............................................................. 8-7
Checking engine coolant level ...
......................................... 8-8
Changing engine coolant ...
.................................................. 8-8
Engine oil ...
........................................................................\
............ 8-9
Checking engine oil level ...
.................................................. 8-9
Changing engine oil and filter ...
.......................................... 8-9
Continuously Variable Transmission (CVT) fluid ...
............ 8-11
Brake fluid ...
........................................................................\
........ 8-11
Window washer fluid ...
............................................................ 8-12
Battery ...
........................................................................\
............... 8-13
Jump starting ...
..................................................................... 8-14
Drive belts ...
........................................................................\
........ 8-15
Spark plugs ...
........................................................................\
..... 8-15
Replacing spark plugs ...
.................................................... 8-16 Air cleaner
...
........................................................................\
....... 8-16
Windshield wiper blades ...
..................................................... 8-17
Cleaning ...
........................................................................\
... 8-17
Replacing ...
........................................................................\
. 8-17
Rear window wiper blade ...
................................................... 8-18
Brakes ...
........................................................................\
.............. 8-18
Self-adjusting brakes ...
.................................................... 8-18
Brake pad wear indicators ...
.......................................... 8-18
Fuses ...
........................................................................\
................ 8-19
Engine compartment ...
..................................................... 8-19
Passenger compartment ...
.............................................. 8-20
Battery replacement ...
.............................................................. 8-22
Keyfob ...
........................................................................\
....... 8-22
Intelligent Key battery ...
.................................................... 8-23
Lights ...
........................................................................\
................ 8-25
Headlights ...
........................................................................\
8-26
Exterior and interior lights ...
............................................ 8-27
Wheels and tires ...
................................................................... 8-31
Tire pressure ...
................................................................... 8-31
Tire labeling ...
..................................................................... 8-34
Types of tires ...
................................................................... 8-36
Tire chains ...
....................................................................... 8-37
Changing wheels and tires ...
.......................................... 8-38

Black plate (329,1)
[ Edit: 2012/ 5/ 18 Model: S35-D ]

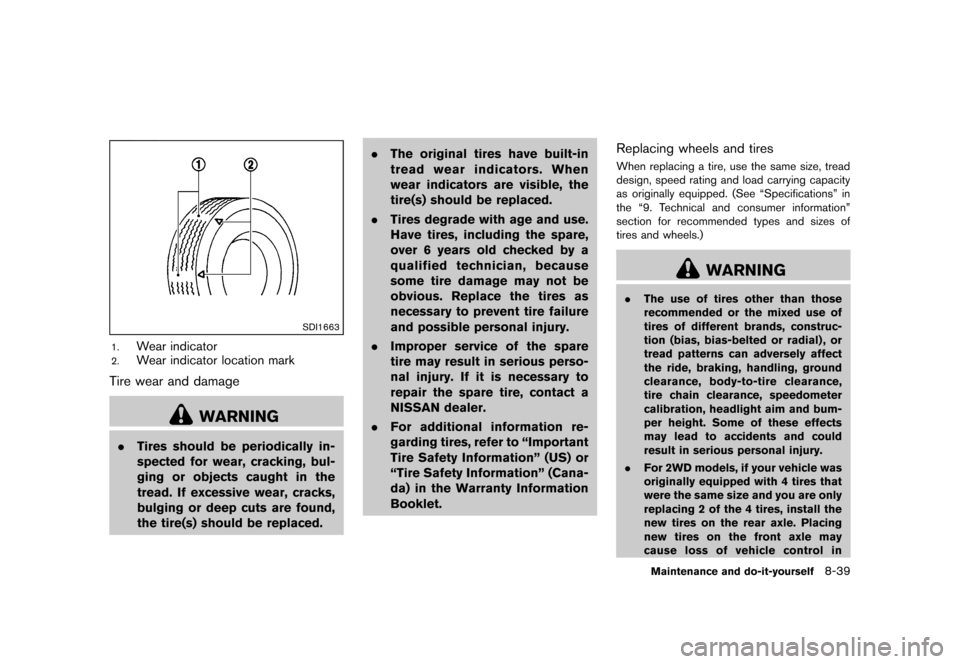

SDI1663
1.Wear indicator
2.Wear indicator location mark
Tire wear and damageS35-D-110201-2E6D7DC3-0C7F-4E12-A774-F3C188570BD7
WARNING
.Tires should be periodically in-
spected for wear, cracking, bul-
ging or objects caught in the
tread. If excessive wear, cracks,
bulging or deep cuts are found,
the tire(s) should be replaced. .
The original tires have built-in
tread wear indicators. When
wear indicators are visible, the
tire(s) should be replaced.
. Tires degrade with age and use.
Have tires, including the spare,
over 6 years old checked by a
qualified technician, because
some tire damage may not be
obvious. Replace the tires as
necessary to prevent tire failure
and possible personal injury.
. Improper service of the spare
tire may result in serious perso-
nal injury. If it is necessary to
repair the spare tire, contact a
NISSAN dealer.
. For additional information re-
garding tires, refer to “Important
Tire Safety Information” (US) or
“Tire Safety Information” (Cana-
da) in the Warranty Information
Booklet.
Replacing wheels and tiresGUID-5F49021B-1D68-4060-A4C5-6D4AD42F0837When replacing a tire, use the same size, tread
design, speed rating and load carrying capacity
as originally equipped. (See “Specifications” in
the “9. Technical and consumer information”
section for recommended types and sizes of
tires and wheels.)
WARNING
. The use of tires other than those
recommended or the mixed use of
tires of different brands, construc-
tion (bias, bias-belted or radial) , or
tread patterns can adversely affect
the ride, braking, handling, ground
clearance, body-to-tire clearance,
tire chain clearance, speedometer
calibration, headlight aim and bum-
per height. Some of these effects
may lead to accidents and could
result in serious personal injury.
. For 2WD models, if your vehicle was
originally equipped with 4 tires that
were the same size and you are only
replacing 2 of the 4 tires, install the
new tires on the rear axle. Placing
new tires on the front axle may
cause loss of vehicle control in
Maintenance and do-it-yourself8-39
