2013 NISSAN ROGUE headlights

Black plate (71,1)
[ Edit: 2012/ 5/ 18 Model: S35-D ]
2 Instruments and controls
Instrument panel...
........................................................................\
2-3
Meters and gauges ...
................................................................... 2-4
Speedometer ...
........................................................................\
2-4
Odometer/twin trip odometer ...
.......................................... 2-5
Tachometer ...
........................................................................\
... 2-5
Engine coolant temperature gauge ...
................................ 2-6
Fuel gauge ...
........................................................................\
.... 2-6
Instrument brightness control ...
.......................................... 2-7
Warning/indicator lights and audible reminders ...
............... 2-8
Checking bulbs ...
.................................................................... 2-9
Warning lights ...
...................................................................... 2-9
Indicator lights ...
................................................................... 2-13
Audible reminders ...
............................................................ 2-15
Vehicle information display ...
.................................................. 2-16
Outside air temperature ...
.................................................. 2-17
Indicators for operation ...
................................................... 2-18
Indicators for maintenance ...
............................................. 2-21
Trip computer ...
.................................................................... 2-21
Continuously Variable Transmission (CVT)
position indicator ...
.............................................................. 2-24
Security systems ...
.................................................................... 2-25
Vehicle Security System ...
................................................. 2-25
NISSAN Vehicle Immobilizer System ...
.......................... 2-26
Windshield wiper and washer switch ...
............................... 2-28 Rear window wiper and washer switch
...
.......................... 2-29
Rear window and outside mirror defroster switch ...
....... 2-30
Headlight and turn signal switch ...
....................................... 2-30
Xenon headlights (if so equipped) ...
............................ 2-30

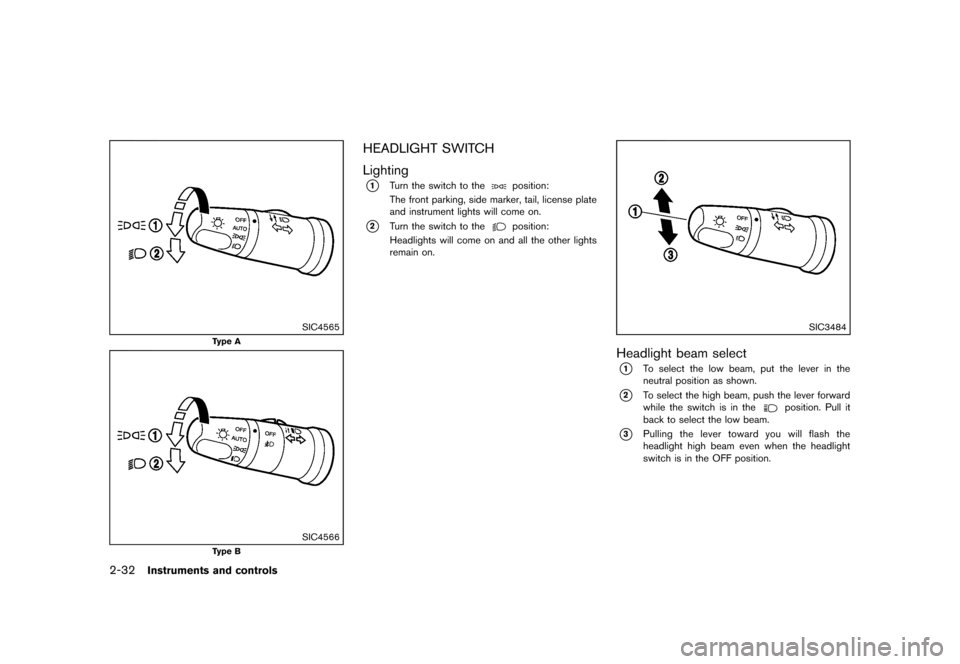

Headlight switch ...
............................................................ 2-32
Turn signal switch ...
.......................................................... 2-34
Fog light switch (if so equipped) ...
.............................. 2-34
Horn ...
........................................................................\
.................. 2-35
Heated seats (if so equipped) ...
........................................... 2-35
Vehicle Dynamic Control (VDC) OFF switch ...
................. 2-36
Power outlet ...
........................................................................\
.... 2-37
Storage ...
........................................................................\
............ 2-38
Cup holders ...
..................................................................... 2-38
Sunglasses holder ...
......................................................... 2-39
Glove box ...
........................................................................\
. 2-40
Console box ...
.................................................................... 2-40
Luggage floor box (if so equipped) ...
.......................... 2-41
Luggage side box ...
.......................................................... 2-41
Cargo cover (if so equipped) ...
..................................... 2-41
Luggage hooks (if so equipped) ...
............................... 2-42
Coat hooks (if so equipped) ...
....................................... 2-43
Utility hook ...
....................................................................... 2-43
Roof rack (if so equipped) ...
.......................................... 2-44>

Black plate (83,1)
[ Edit: 2012/ 5/ 18 Model: S35-D ]
The seat belt warning light for the front
passenger will illuminate if the seat belt is not
fastened when the front passenger’s seat is
occupied. For about 5 seconds after the ignition
switch is in the ON position, the system does
not activate the warning light for the front
passenger.
See “Seat belts” in the “1. Safety — Seats, seat
belts and supplemental restraint system” section
for precautions on seat belt usage.
Supplemental air bag warning lightGUID-0BCEC56A-5310-4561-AD7B-B9A0E3518B42After turning the ignition switch to the ON
position, the supplemental air bag warning light
will illuminate. The supplemental air bag warning
light will turn off after about 7 seconds if the
supplemental front air bag and supplemental
side air bag, curtain side-impact air bag systems
and/or pretensioner seat belt are operational.
If any of the following conditions occur, the front
air bag, side air bag, curtain and rollover air bag
and pretensioner systems need servicing and
your vehicle must be taken to your nearest
NISSAN dealer.
.The supplemental air bag warning light
remains on after approximately 7 seconds.
. The supplemental air bag warning light
flashes intermittently. .
The supplemental air bag warning light does
not illuminate at all.
Unless checked and repaired, the Supplemental
Restraint Systems and/or the pretensioners may
not function properly.
For additional information, see “Supplemental
Restraint System” in the “1. Safety — Seats,
seat belts and supplemental restraint system”
section.
WARNING
If the supplemental air bag warning
light is on, it could mean that the front
air bag, side air bag, curtain and roll-
over air bag and/or pretensioner sys-
tems will not operate in an accident. To
help avoid injury to yourself or others,
have your vehicle checked by a NISSAN
dealer as soon as possible.
Vehicle Dynamic Control (VDC)
warning light
GUID-A2AB8C35-82AD-4A90-9170-49ABF8331549The light will blink when the Vehicle Dynamic
Control (VDC) system or the traction control
system is operating, thus alerting the driver that
the vehicle is nearing its traction limits. The road
surface may be slippery. If the VDC warning light illuminates while the
VDC system is on, this light alerts the driver to
the fact that the VDC system’s fail-safe mode is
operating, for example the VDC system may not
be functioning properly. Have the system
checked by a NISSAN dealer. If a malfunction
occurs in the system, the VDC system function
will be canceled but the vehicle is still driveable.
For additional information, see “Vehicle Dynamic
Control (VDC) system” in the “Starting and
driving” section of this manual.
INDICATOR LIGHTSS35-D-110201-93D8A153-4B41-4643-9F4D-4E46D2B6B569
All-Wheel Drive (AWD) LOCK
indicator light (AWD models)
S35-D-110201-FC7B00D5-9770-487E-BFC5-E6D3A121AAFBThis light illuminates when the ignition switch is
turned to the ON position, and turns off within 1
second.
When selecting the LOCK mode while the
engine is running, this light will illuminate. (See
“All-Wheel Drive (AWD)” in the “5. Starting and
driving” section.)
Exterior light indicatorS35-D-110201-983C926F-208B-45A5-A6A7-8EE1E1B71861This indicator illuminates when the headlight
switch is turned to the AUTO (if so equipped) ,
orposition and the front parking lights,
instrument panel lights, rear combination lights,
license plate lights or headlights are on. The
indicator turns off when these lights are turned
Instruments and controls2-13

Black plate (96,1)
[ Edit: 2012/ 5/ 18 Model: S35-D ]
2-26Instruments and controls
.the power door lock switch.the key — master or mechanical (Intelli-gent Key equipped model)
4. Confirm that the security indicator light
illuminates. The security indicator light stays
on for about 30 seconds. The vehicle
security system is now pre-armed. After
about 30 seconds the vehicle security
system automatically shifts into the armed
phase. The security light begins to flash
once every approximately 3 seconds. If,
during this 30-second pre-arm time period,
the door is unlocked, or the ignition switch is
turned to the ACC or ON position, the
system will not arm.
Even when the driver and/or passengers
are in the vehicle, the system will activate
with all doors locked with the ignition
switch in the LOCK position. When turning
the ignition switch to the ACC or ON
position, the system will be released.
Vehicle security system activationGUID-E0994200-F9B0-476C-AF5D-4AFA2F5FF981The vehicle security system will give the follow-
ing alarm:
. The headlights blink and the horn sounds
intermittently.
. The alarm automatically turns off after
approximately 50 seconds. However, the
alarm reactivates if the vehicle is tampered with again.
The alarm is activated by:
. Unlocking the door without using the keyfob,
the Intelligent Key (if so equipped) the
request switch (if so equipped) or the key.
(Even if the door is opened by releasing the
door inside lock knob, the alarm will
activate.)
How to stop an activated alarmGUID-22EF1D00-401F-445E-9D49-7B8AEBA716D0The alarm will stop by unlocking a door by
pushing the unlock button
on the keyfob or
Intelligent Key, pushing the request switch or
using the key. The alarm will not stop if the
ignition switch is turned to the ACC or ON
position.
If the system does not operate as de-
scribed above, have it checked by a
NISSAN dealer.
NISSAN VEHICLE IMMOBILIZER SYS-
TEM
GUID-52296442-4547-4FA1-9662-0A05BE6E48F5The NISSAN Vehicle Immobilizer System will not
allow the engine to start without the use of the
registered key.
If the engine fails to start using the registered
key, it may be due to interference caused by
another registered key, an automated toll road
device or automated payment device on the key
ring. Restart the engine using the following
procedures:
1. Leave the ignition switch in the ON position
for approximately 5 seconds.
2. Turn the ignition switch to the OFF or LOCK position and wait approximately 10 seconds.
3. Repeat step 1 and 2 again.
4. Restart the engine while holding the device (which may have caused the interference)
separate from the registered key.
If this procedure allows the engine to start,
NISSAN recommends placing the regis-
tered key on a separate key ring to avoid
interference from other devices.
Statement related to section 15 of FCC
rules for NISSAN Vehicle Immobilizer
System (CONT ASSY-BCM. ANT ASSY-
IMMOBILISER)

Black plate (100,1)
[ Edit: 2012/ 5/ 18 Model: S35-D ]
2-30Instruments and controls
GUID-0D0E8587-930B-43B3-9368-B3B0F30F30EF
SIC3481
To defog/defrost the rear window glass and
outside mirrors (if so equipped), start the engine
and push the switch on. The indicator light
*1
will illuminate. Push the switch again to turn the
defroster off.
It will automatically turn off in approximately 15
minutes.
CAUTION
When cleaning the inner side of the rear
window, be careful not to scratch or
damage the rear window defroster.
S35-D-110201-8104C934-B454-4845-BB26-5BCBF1F256ADXENON HEADLIGHTS (if so equipped)S35-D-110201-51586A62-6562-41E5-82FB-43C896A0EF46
WARNING
HIGH VOLTAGE
. When xenon headlights are on, they
produce a high voltage. To prevent
an electric shock, never attempt to
modify or disassemble. Always have
your xenon headlights replaced at a
NISSAN dealer.
. Xenon headlights provide consider-
ably more light than conventional
headlights. If they are not correctly
aimed, they might temporarily blind
an oncoming driver or the driver
ahead of you and cause a serious
accident. If headlights are not aimed
correctly, immediately take your ve-
hicle to a NISSAN dealer and have
the headlights adjusted correctly.
When the xenon headlight is initially turned on,
its brightness or color varies slightly. However,
the color and brightness will soon stabilize.
. The life of xenon headlights will be
shortened by frequent on-off opera-
tion. It is generally desirable not to turn off the headlights for short intervals
(for example, when the vehicle stops at
a traffic signal) .
. If the xenon headlight bulb is close to
burning out, the brightness will drasti-
cally decrease, the light will start
blinking, or the color of the light will
become reddish. If one or more of the
above signs appear, contact a NISSAN
dealer.
REAR WINDOW AND OUTSIDE
MIRROR DEFROSTER SWITCH HEADLIGHT AND TURN SIGNAL
SWITCH

Black plate (101,1)
[ Edit: 2012/ 5/ 18 Model: S35-D ]
SIC2412A
Autolight system (if so equipped)GUID-FA702B69-EFA2-45DC-8232-8507EB8E9B3FThe autolight system allows the headlights to be
set so they turn on and off automatically.
To set the autolight system:
1. Make sure the headlight switch is in theAUTO position.
2. Turn the ignition switch to the ON position.
3. The autolight system automatically turns the headlights on and off.
To turn the autolight system off, turn the switch
to the OFF,
orposition.
The autolight system can turn on the headlights
automatically when it is dark and turn off the headlights when it is light.
If the ignition switch is turned to the OFF
position and one of the doors is opened and this
condition is continued, the headlights remain on
for 5 minutes.
Automatic headlights off delay:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407You can keep the headlights on for up to 45
seconds after you turn the ignition switch to OFF
and open any door then close all the doors.
SAA1755
Be sure not to put anything on top of the
photo sensor
*1located on the top of the
instrument panel. The photo sensor con-
trols the autolight; if it is covered, the
photo sensor reacts as if it is dark and the
headlights will illuminate.
Instruments and controls2-31

Black plate (102,1)
[ Edit: 2012/ 5/ 18 Model: S35-D ]
2-32Instruments and controls
SIC4565
Type A
SIC4566
Type B
HEADLIGHT SWITCHS35-D-110201-D3180DCA-291B-41E0-9575-59BFC897CD0C
LightingGUID-883639D7-CE21-42AD-BB55-8D5AA7204896*1Turn the switch to theposition:
The front parking, side marker, tail, license plate
and instrument lights will come on.
*2Turn the switch to theposition:
Headlights will come on and all the other lights
remain on.
SIC3484
Headlight beam selectGUID-C74B6A43-085A-4AE9-8DC9-9FFF2FAB7C5C*1To select the low beam, put the lever in the
neutral position as shown.
*2To select the high beam, push the lever forward
while the switch is in theposition. Pull it
back to select the low beam.
*3Pulling the lever toward you will flash the
headlight high beam even when the headlight
switch is in the OFF position.

Black plate (103,1)
[ Edit: 2012/ 5/ 18 Model: S35-D ]
Battery saver systemGUID-C87E6811-F73E-43C4-B263-0CDDFD967519.When the headlight switch is in theor
position while the ignition switch is in
the ON position, the lights will automatically
turn off within a period of time after the
ignition switch has been turned to the OFF
position.
. When the headlight switch remains in the
orposition after the lights auto-
matically turn off, the lights will turn on when
the ignition switch is turned to the ON
position.
CAUTION
. When you turn on the headlight
switch again after the lights auto-
matically turn off, the lights will not
turn off automatically. Be sure to
turn the light switch to the OFF
position when you leave the vehicle
for extended periods of time, other-
wise the battery will be discharged.
. Never leave the light switch on
when the engine is not running for
extended periods of time even if the
headlights turn off automatically.
SIC2275
Headlight aiming control (if so equipped)S35-D-110201-1FB40E63-F262-4574-B0B3-682A946243B6Depending on the number of occupants in the
vehicle and the load it is carrying, the headlight
axis may be higher than desired. If the vehicle is
traveling on a hilly road, the headlights may
directly hit the rearview mirror of the vehicle
ahead or the windshield of the oncoming
vehicle. The light axis can be lowered with the
operation of the switch.
The larger the number designated on the switch,
the lower the axis.
When traveling with no heavy load or on a flat
road, select position 0.
WARNING
Xenon headlights are extremely bright
compared to conventional headlights. If
the xenon headlights hit the rearview
mirror of the vehicle ahead or the
windshield of oncoming vehicle, the
driver of these vehicles may have
difficulty driving because of the bright-
ness. Use the headlight aiming control
switch to lower the light axis. See
“Xenon headlights” earlier in this sec-
tion for additional information.
Daytime running light system (Canada
only)
GUID-10297789-CB0E-4316-8D06-E96C4D5A3D58The daytime running lights automatically illumi-
nate when the engine is started with the parking
brake released. The daytime running lights
operate with the headlight switch in the OFF
position or in the
position. Turn the head-
light switch to the
position for full illumina-
tion when driving at night.
If the parking brake is applied before the engine
is started, the daytime running lights do not
illuminate. The daytime running lights illuminate
once the parking brake is released. The daytime
running lights will remain on until the ignition
Instruments and controls2-33

Black plate (104,1)
[ Edit: 2012/ 5/ 18 Model: S35-D ]
2-34Instruments and controls
switch is turned to the OFF position.
WARNING
When the daytime running light system
is active, tail lights on your vehicle are
not on. It is necessary at dusk to turn on
your headlights. Failure to do so could
cause an accident injuring yourself and
others.
SIC3488
TURN SIGNAL SWITCHS35-D-110201-D70B7BB9-0165-4793-8DD2-5117530A4F24
*1Turn signalS35-D-110201-78EF5631-94EC-4BFA-B057-20F6E43845D5Move the lever up or down to signal the turning
direction. When the turn is completed, the turn
signals cancel automatically.
*2Lane change signalS35-D-110201-706FD6E2-4F8D-4CE9-BE9D-F50571D2B390To indicate a lane change, move the lever up or
down to the point where lights begin flashing.
SIC3020
FOG LIGHT SWITCH (if so equipped)S35-D-110201-3A145094-902C-4624-8C4C-7BCAA5A6360CTo turn the fog lights on, turn the headlight
switch to the
position, then turn the switch
to the
position. To turn them off, turn the
switch to the OFF position.
The headlights must be on for the fog lights to
operate.
When the headlight high-beam is selected, the
fog lights turn off.
