2013 NISSAN ROGUE rear view mirror

Black plate (9,1)
[ Edit: 2012/ 5/ 18 Model: S35-D ]
S35-D-110201-EC0978FC-F07A-49EA-9574-1FE5707C4FA0
JVC0165X
1. Front view camera* (P.4-13)
2. Hood (P.3-19)
3. Headlight and turn signal lights— Switch operation (P.2-30)
— Bulb replacement (P.8-26)
4. Windshield wiper and washer — Switch operation (P.2-28) — Blade replacement (P.8-17)
— Window washer fluid (P.8-12)
5. Roof rack (rail)* (P.2-44)
6. Moonroof* (P.2-47)
7. Outside mirrors (P.3-25) — Side view camera* (P.4-13)
8. Power windows (P.2-45) 9. Recovery hook (P.6-14)
10. License plate installation (P.9-11)
11. Fog lights*
— Switch operation (P.2-34)
— Bulb replacement (P.8-27)
12. Tires — Wheel and tires (P.8-31, P.9-7)
— Flat tire (P.6-2)
— Tire Pressure Monitoring System (TPMS)
(P.2-11, P.5-3)
13. Doors — Keys (P.3-2)
— Door locks (P.3-4)
— Intelligent Key system* (P.3-10)
— Remote keyless entry system* (P.3-7)
— Security system (P.2-25)
14. Child safety rear door lock (P.3-6)
*: if so equipped
Illustrated table of contents0-3
EXTERIOR FRONT

Black plate (11,1)
[ Edit: 2012/ 5/ 18 Model: S35-D ]
S35-D-110201-D17BF6FB-2377-4353-8AA4-6003C390EDA9

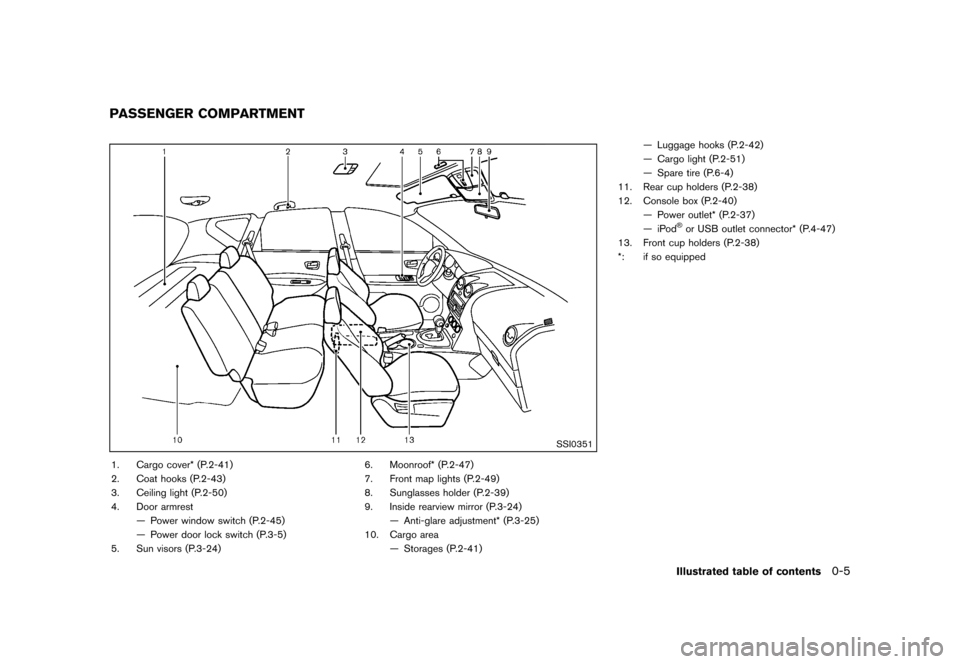

SSI0351
1. Cargo cover* (P.2-41)
2. Coat hooks (P.2-43)
3. Ceiling light (P.2-50)
4. Door armrest— Power window switch (P.2-45)
— Power door lock switch (P.3-5)
5. Sun visors (P.3-24) 6. Moonroof* (P.2-47)
7. Front map lights (P.2-49)
8. Sunglasses holder (P.2-39)
9. Inside rearview mirror (P.3-24)
— Anti-glare adjustment* (P.3-25)
10. Cargo area — Storages (P.2-41) — Luggage hooks (P.2-42)
— Cargo light (P.2-51)
— Spare tire (P.6-4)
11. Rear cup holders (P.2-38)
12. Console box (P.2-40) — Power outlet* (P.2-37)
— iPod
®or USB outlet connector* (P.4-47)
13. Front cup holders (P.2-38)
*: if so equipped
Illustrated table of contents0-5
PASSENGER COMPARTMENT

Black plate (12,1)
[ Edit: 2012/ 5/ 18 Model: S35-D ]
0-6Illustrated table of contents
S35-D-110201-8C8F180E-0520-4D0C-9AA2-07D387D3F374
JVC0173X
1. Side ventilator (P.4-23)
2. Headlight, fog light* and turn signal switch(P.2-30)
3. Steering-wheel-mounted controls (left side)*
— Audio control* (P.4-67)
— Bluetooth
®Hands-Free Phone System con-
trol* (P.4-69) 4. Steering wheel
— Horn (P.2-35)
— Driver supplemental air bag (P.1-39)
— Electric power steering system (P.5-27)
5. Meters and gauges (P.2-4)
6. Steering-wheel-mounted controls (right side) — Cruise control switches (P.5-19) 7. Wiper and washer switch (P.2-28)
8. Center ventilator (P.4-23)
9. Hazard warning flasher switch (P.6-2)
10. Audio system (P.4-30)/Navigation system**
— Clock (P.4-6, P.4-43, P.4-52)
— Rear view monitor* (P.4-9)
— Around view
TMmonitor* (P.4-13)
11. Front passenger supplemental air bag (P.1-39)
12. Outside remote mirror control switch (P.3-25)
13. Headlight aiming control* (P.2-33)
14. All-Wheel Drive (AWD) LOCK switch* (P.5-23)
15. Fuse box cover (P.8-20)
16. Vehicle Dynamic Control (VDC) OFF switch
(P.2-36, P.5-29)
17. Hood release handle (P.3-19)
18. Tilting steering wheel lever (P.3-23)
19. Parking brake (P.5-19)
20. Ignition switch (P.5-10)
21. Heated seat switch* (P.2-35)
22. “Camera” Around view
TMmonitor display
switch* (P.4-13)
23. Sport mode switch (P.5-16)
24. Power outlet (P.2-37)
25. Heater/air conditioner control (P.4-24)
26. Selector lever (P.5-14)
27. Front passenger air bag status light (P.1-46)
28. Rear window and outside mirror* defroster
switch (P.2-30)
29. Glove box (P.2-40)
*: if so equipped
INSTRUMENT PANEL

Black plate (73,1)
[ Edit: 2012/ 5/ 18 Model: S35-D ]
S35-D-110201-A7D4030A-2862-489B-A7AF-66159DF04F04
JVC0173X
1. Side ventilator
2. Headlight, fog light (if so equipped) and turnsignal switch
3. Steering-wheel-mounted controls (left side) (if so equipped)
— Audio control
— Bluetooth
®Hands-Free Phone system con- trol
4. Steering wheel — Horn
— Driver supplemental air bag
5. Meters and gauges
6. Steering-wheel-mounted controls (right side) — Cruise control switches 7. Wiper and washer switch
8. Center ventilator
9. Hazard warning flasher switch
10.
Audio system/Navigation system (if so
equipped)
— Clock
— Rear view monitor (if so equipped)
— Around view
TMmonitor (if so equipped)
11. Front passenger supplemental air bag
12. Outside remote mirror control switch
13. Headlight aiming control (if so equipped)
14. All-Wheel Drive (AWD) LOCK switch (if so equipped)
15. Fuse box cover
16. Vehicle Dynamic Control (VDC) OFF switch
17. Hood release handle
18. Tilting steering wheel lever
19. Parking brake
20. Ignition switch
21. Heated seat switch (if so equipped)
22. “Camera” Around view
TMmonitor display switch
(if so equipped)
23. Sport mode switch
24. Power outlet
25. Heater/air conditioner control
26. Selector lever
27. Front passenger air bag status light
28. Rear window and outside mirror (if so equipped) defroster switch
29. Glove box
Instruments and controls2-3
INSTRUMENT PANEL

Black plate (103,1)
[ Edit: 2012/ 5/ 18 Model: S35-D ]
Battery saver systemGUID-C87E6811-F73E-43C4-B263-0CDDFD967519.When the headlight switch is in theor
position while the ignition switch is in
the ON position, the lights will automatically
turn off within a period of time after the
ignition switch has been turned to the OFF
position.
. When the headlight switch remains in the
orposition after the lights auto-
matically turn off, the lights will turn on when
the ignition switch is turned to the ON
position.
CAUTION
. When you turn on the headlight
switch again after the lights auto-
matically turn off, the lights will not
turn off automatically. Be sure to
turn the light switch to the OFF
position when you leave the vehicle
for extended periods of time, other-
wise the battery will be discharged.
. Never leave the light switch on
when the engine is not running for
extended periods of time even if the
headlights turn off automatically.
SIC2275
Headlight aiming control (if so equipped)S35-D-110201-1FB40E63-F262-4574-B0B3-682A946243B6Depending on the number of occupants in the
vehicle and the load it is carrying, the headlight
axis may be higher than desired. If the vehicle is
traveling on a hilly road, the headlights may
directly hit the rearview mirror of the vehicle
ahead or the windshield of the oncoming
vehicle. The light axis can be lowered with the
operation of the switch.
The larger the number designated on the switch,
the lower the axis.
When traveling with no heavy load or on a flat
road, select position 0.
WARNING
Xenon headlights are extremely bright
compared to conventional headlights. If
the xenon headlights hit the rearview
mirror of the vehicle ahead or the
windshield of oncoming vehicle, the
driver of these vehicles may have
difficulty driving because of the bright-
ness. Use the headlight aiming control
switch to lower the light axis. See
“Xenon headlights” earlier in this sec-
tion for additional information.
Daytime running light system (Canada
only)
GUID-10297789-CB0E-4316-8D06-E96C4D5A3D58The daytime running lights automatically illumi-
nate when the engine is started with the parking
brake released. The daytime running lights
operate with the headlight switch in the OFF
position or in the
position. Turn the head-
light switch to the
position for full illumina-
tion when driving at night.
If the parking brake is applied before the engine
is started, the daytime running lights do not
illuminate. The daytime running lights illuminate
once the parking brake is released. The daytime
running lights will remain on until the ignition
Instruments and controls2-33

Black plate (146,1)
[ Edit: 2012/ 5/ 18 Model: S35-D ]
3-24Pre-driving checks and adjustments
S35-D-110201-B266053D-0E25-4B84-A94E-88E6B81337A0
SIC2872
1. To block out glare from the front, swingdown the sun visor
*1.
2. To block glare from the side, remove the sun visor from the center mount and swing it to
the side
*2.
S35-D-110201-2C2A1443-F866-4FB7-8FF5-8337E541196D
SPA2447
INSIDE MIRRORS35-D-110201-67D1410D-36D6-4377-944E-434F7B628FFCAdjust the height and the angle of the inside
mirror to the desired position.
SPA2143
Manual anti-glare typeS35-D-110201-7FA2E3AD-51E8-43DF-93EA-2C31AEAE2711The night position*1will reduce glare from the
headlights of vehicles behind you at night.
Use the day position
*2when driving in daylight
hours.
WARNING
Use the night position only when ne-
cessary, because it reduces rear view
clarity.
SUN VISORS MIRRORS

Black plate (157,1)
[ Edit: 2012/ 5/ 18 Model: S35-D ]
S35-D-110201-2F64DC1B-3CBB-41D0-8176-3FF7CF94DB67The system isdesigned as an aid to the driver in
situations such as slot parking or parallel
parking.
When the selector lever is shifted into the R
(Reverse) position, the monitor display shows
the view to the rear of the vehicle.
WARNING
.The RearView camera is a conveni-
ence but it is not a substitute to
check behind the vehicle when
backing up.
. The driver is always responsible for
safety during parking and other
maneuvers.
. Objects viewed in the RearView
Monitor differ from actual distance
because a wide-angle lens is used.
. Objects in the RearView Monitor
will appear visually opposite than
when viewed in the rear view and
outside mirrors.
. Make sure that the lift gate is
securely closed when backing up.
. Underneath the bumper and the
corner areas of the bumper cannot
be viewed on the RearView Monitor because of its monitoring range
limitation.
. Do not put anything on the Rear-
View camera.
. When washing the vehicle with
high-pressure water, be sure not to
spray it around the camera. Other-
wise, water may enter the camera
unit causing water condensation on
the lens, a malfunction, fire or an
electric shock.
. Do not strike the camera. It is a
precision instrument. Otherwise, it
may malfunction or cause damage
resulting in a fire or an electric
shock.
CAUTION
Do not scratch the camera lens when
cleaning dirt or snow from the lens.
SAA2776
HOW TO READ THE DISPLAYED
LINES
S35-D-110201-90C6EB03-D1AD-43E9-8C29-AB01726784FAGuiding lines which indicate the vehicle width
and distances to objects with reference to the
bumper line
*Aare displayed on the monitor.
Distance guide lines:
Indicate distances from the vehicle body.
. Red line
*1: approx. 1.5 ft (0.5 m)
. Yellow line
*2: approx. 3 ft (1 m)
. Green line
*3: approx. 7 ft (2 m)
. Green line
*4: approx. 10 ft (3 m)
Vehicle width guide lines
*5:
Indicate the vehicle width when backing up.
Center display, heater, air conditioner, audio, phone and voice recognition systems4-9
REARVIEW MONITOR (if so
equipped)

Black plate (162,1)
[ Edit: 2012/ 5/ 18 Model: S35-D ]
4-14Center display, heater, air conditioner, audio, phone and voice recognition systems
.Front View
The view to the front of the vehicle.
. Rear View
The view to the rear of the vehicle.
The system is designed as an aid to the driver in
situations such as slot parking or parallel
parking.

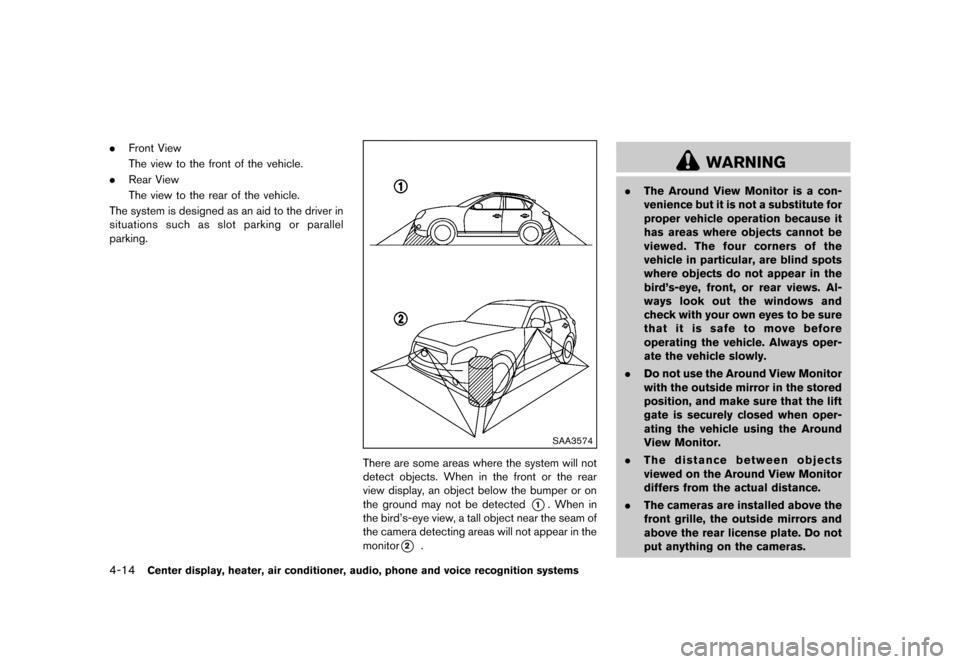

SAA3574
There are some areas where the system will not
detect objects. When in the front or the rear
view display, an object below the bumper or on
the ground may not be detected
*1. When in
the bird’s-eye view, a tall object near the seam of
the camera detecting areas will not appear in the
monitor
*2.
WARNING
. The Around View Monitor is a con-
venience but it is not a substitute for
proper vehicle operation because it
has areas where objects cannot be
viewed. The four corners of the
vehicle in particular, are blind spots
where objects do not appear in the
bird’s-eye, front, or rear views. Al-
ways look out the windows and
check with your own eyes to be sure
that it is safe to move before
operating the vehicle. Always oper-
ate the vehicle slowly.
. Do not use the Around View Monitor
with the outside mirror in the stored
position, and make sure that the lift
gate is securely closed when oper-
ating the vehicle using the Around
View Monitor.
. The distance between objects
viewed on the Around View Monitor
differs from the actual distance.
. The cameras are installed above the
front grille, the outside mirrors and
above the rear license plate. Do not
put anything on the cameras.
