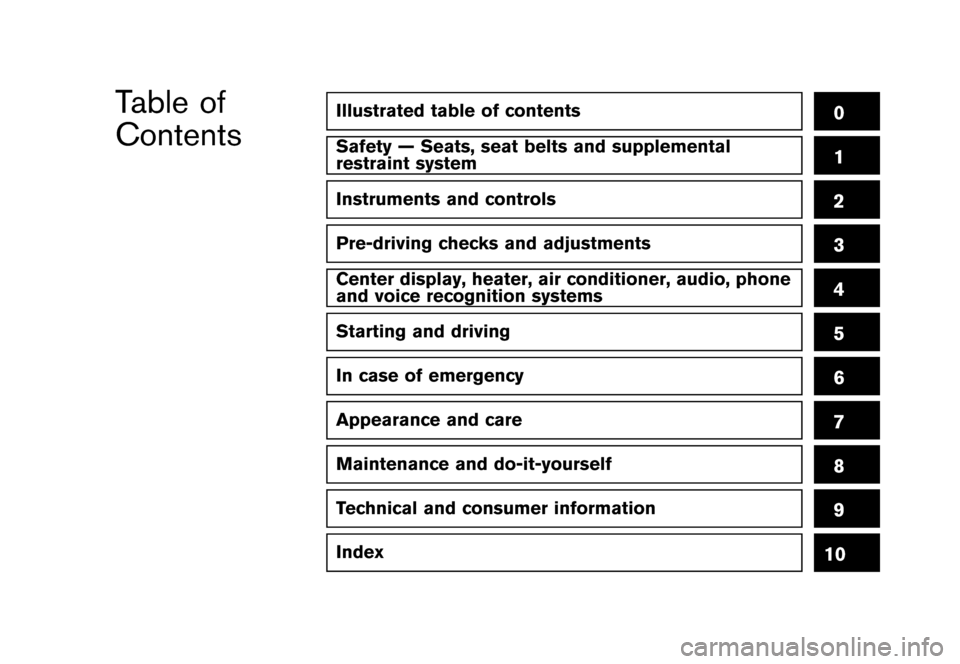

Illustrated table of contents0
Safety — Seats, seat belts and supplemental
restraint system1
Instruments and controls
Pre-driving checks and adjustments
Center display, heater, air conditioner, audio, phone
and voice recognition systems
Starting and driving
In case of emergency
Appearance and care
Maintenance and do-it-yourself
Technical and consumer information
Index
2
3
4
5
6
7
8
9
10
Table of
Contents
[ Edit: 2012/ 5/ 18 Model: S35-D ]

Black plate (12,1)
[ Edit: 2012/ 5/ 18 Model: S35-D ]
0-6Illustrated table of contents
S35-D-110201-8C8F180E-0520-4D0C-9AA2-07D387D3F374
JVC0173X
1. Side ventilator (P.4-23)
2. Headlight, fog light* and turn signal switch(P.2-30)
3. Steering-wheel-mounted controls (left side)*
— Audio control* (P.4-67)
— Bluetooth
®Hands-Free Phone System con-
trol* (P.4-69) 4. Steering wheel
— Horn (P.2-35)
— Driver supplemental air bag (P.1-39)
— Electric power steering system (P.5-27)
5. Meters and gauges (P.2-4)
6. Steering-wheel-mounted controls (right side) — Cruise control switches (P.5-19) 7. Wiper and washer switch (P.2-28)
8. Center ventilator (P.4-23)
9. Hazard warning flasher switch (P.6-2)
10. Audio system (P.4-30)/Navigation system**
— Clock (P.4-6, P.4-43, P.4-52)
— Rear view monitor* (P.4-9)
— Around view
TMmonitor* (P.4-13)
11. Front passenger supplemental air bag (P.1-39)
12. Outside remote mirror control switch (P.3-25)
13. Headlight aiming control* (P.2-33)
14. All-Wheel Drive (AWD) LOCK switch* (P.5-23)
15. Fuse box cover (P.8-20)
16. Vehicle Dynamic Control (VDC) OFF switch
(P.2-36, P.5-29)
17. Hood release handle (P.3-19)
18. Tilting steering wheel lever (P.3-23)
19. Parking brake (P.5-19)
20. Ignition switch (P.5-10)
21. Heated seat switch* (P.2-35)
22. “Camera” Around view
TMmonitor display
switch* (P.4-13)
23. Sport mode switch (P.5-16)
24. Power outlet (P.2-37)
25. Heater/air conditioner control (P.4-24)
26. Selector lever (P.5-14)
27. Front passenger air bag status light (P.1-46)
28. Rear window and outside mirror* defroster
switch (P.2-30)
29. Glove box (P.2-40)
*: if so equipped
INSTRUMENT PANEL

Black plate (14,1)
[ Edit: 2012/ 5/ 18 Model: S35-D ]
0-8Illustrated table of contents
S35-D-110201-BA7643A9-5590-4C58-9A41-1AA8C68ABF1F
JVC0301X

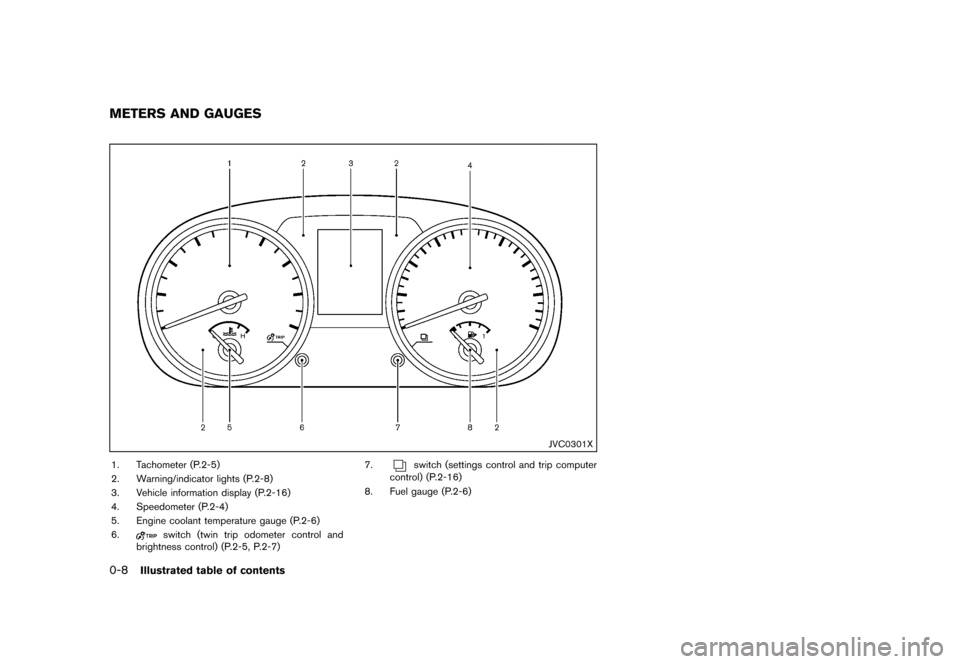

1. Tachometer (P.2-5)
2. Warning/indicator lights (P.2-8)
3. Vehicle information display (P.2-16)
4. Speedometer (P.2-4)
5. Engine coolant temperature gauge (P.2-6)
6.
switch (twin trip odometer control and
brightness control) (P.2-5, P.2-7) 7.
switch (settings control and trip computer
control) (P.2-16)
8. Fuel gauge (P.2-6)
METERS AND GAUGES

Black plate (68,1)
[ Edit: 2012/ 5/ 18 Model: S35-D ]
1-52Safety — Seats, seat belts and supplemental restraint system
SSS1020

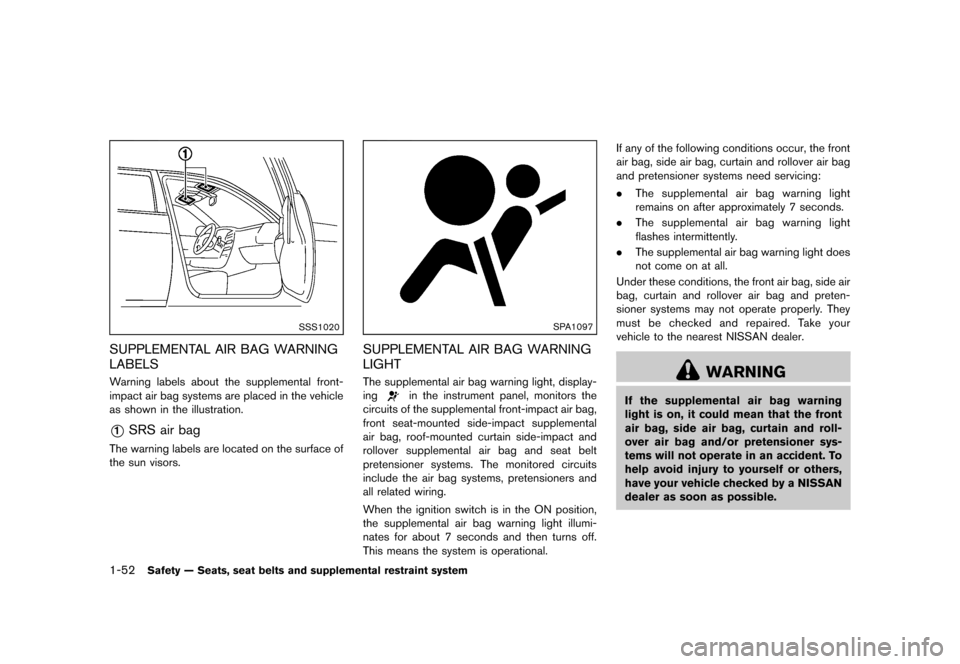

SUPPLEMENTAL AIR BAG WARNING
LABELS
GUID-37DF6A92-22A9-49A7-98CE-C6CDC2B970EDWarning labels about the supplemental front-
impact air bag systems are placed in the vehicle
as shown in the illustration.
*1SRS air bagGUID-CE62463F-AE26-46D9-BB1F-CAB75ADF2F27The warning labels are located on the surface of
the sun visors.
SPA1097
SUPPLEMENTAL AIR BAG WARNING
LIGHT
GUID-10351182-5327-4A48-81C2-1CEB9FDA3F20The supplemental air bag warning light, display-
ing
in the instrument panel, monitors the
circuits of the supplemental front-impact air bag,
front seat-mounted side-impact supplemental
air bag, roof-mounted curtain side-impact and
rollover supplemental air bag and seat belt
pretensioner systems. The monitored circuits
include the air bag systems, pretensioners and
all related wiring.
When the ignition switch is in the ON position,
the supplemental air bag warning light illumi-
nates for about 7 seconds and then turns off.
This means the system is operational. If any of the following conditions occur, the front
air bag, side air bag, curtain and rollover air bag
and pretensioner systems need servicing:
.
The supplemental air bag warning light
remains on after approximately 7 seconds.
. The supplemental air bag warning light
flashes intermittently.
. The supplemental air bag warning light does
not come on at all.
Under these conditions, the front air bag, side air
bag, curtain and rollover air bag and preten-
sioner systems may not operate properly. They
must be checked and repaired. Take your
vehicle to the nearest NISSAN dealer.
WARNING
If the supplemental air bag warning
light is on, it could mean that the front
air bag, side air bag, curtain and roll-
over air bag and/or pretensioner sys-
tems will not operate in an accident. To
help avoid injury to yourself or others,
have your vehicle checked by a NISSAN
dealer as soon as possible.

Black plate (71,1)
[ Edit: 2012/ 5/ 18 Model: S35-D ]
2 Instruments and controls
Instrument panel...
........................................................................\
2-3
Meters and gauges ...
................................................................... 2-4
Speedometer ...
........................................................................\
2-4
Odometer/twin trip odometer ...
.......................................... 2-5
Tachometer ...
........................................................................\
... 2-5
Engine coolant temperature gauge ...
................................ 2-6
Fuel gauge ...
........................................................................\
.... 2-6
Instrument brightness control ...
.......................................... 2-7
Warning/indicator lights and audible reminders ...
............... 2-8
Checking bulbs ...
.................................................................... 2-9
Warning lights ...
...................................................................... 2-9
Indicator lights ...
................................................................... 2-13
Audible reminders ...
............................................................ 2-15
Vehicle information display ...
.................................................. 2-16
Outside air temperature ...
.................................................. 2-17
Indicators for operation ...
................................................... 2-18
Indicators for maintenance ...
............................................. 2-21
Trip computer ...
.................................................................... 2-21
Continuously Variable Transmission (CVT)
position indicator ...
.............................................................. 2-24
Security systems ...
.................................................................... 2-25
Vehicle Security System ...
................................................. 2-25
NISSAN Vehicle Immobilizer System ...
.......................... 2-26
Windshield wiper and washer switch ...
............................... 2-28 Rear window wiper and washer switch
...
.......................... 2-29
Rear window and outside mirror defroster switch ...
....... 2-30
Headlight and turn signal switch ...
....................................... 2-30
Xenon headlights (if so equipped) ...
............................ 2-30
Headlight switch ...
............................................................ 2-32
Turn signal switch ...
.......................................................... 2-34
Fog light switch (if so equipped) ...
.............................. 2-34
Horn ...
........................................................................\
.................. 2-35
Heated seats (if so equipped) ...
........................................... 2-35
Vehicle Dynamic Control (VDC) OFF switch ...
................. 2-36
Power outlet ...
........................................................................\
.... 2-37
Storage ...
........................................................................\
............ 2-38
Cup holders ...
..................................................................... 2-38
Sunglasses holder ...
......................................................... 2-39
Glove box ...
........................................................................\
. 2-40
Console box ...
.................................................................... 2-40
Luggage floor box (if so equipped) ...
.......................... 2-41
Luggage side box ...
.......................................................... 2-41
Cargo cover (if so equipped) ...
..................................... 2-41
Luggage hooks (if so equipped) ...
............................... 2-42
Coat hooks (if so equipped) ...
....................................... 2-43
Utility hook ...
....................................................................... 2-43
Roof rack (if so equipped) ...
.......................................... 2-44>

Black plate (73,1)
[ Edit: 2012/ 5/ 18 Model: S35-D ]
S35-D-110201-A7D4030A-2862-489B-A7AF-66159DF04F04
JVC0173X
1. Side ventilator
2. Headlight, fog light (if so equipped) and turnsignal switch
3. Steering-wheel-mounted controls (left side) (if so equipped)
— Audio control
— Bluetooth
®Hands-Free Phone system con- trol
4. Steering wheel — Horn
— Driver supplemental air bag
5. Meters and gauges
6. Steering-wheel-mounted controls (right side) — Cruise control switches 7. Wiper and washer switch
8. Center ventilator
9. Hazard warning flasher switch
10.
Audio system/Navigation system (if so
equipped)
— Clock
— Rear view monitor (if so equipped)
— Around view
TMmonitor (if so equipped)
11. Front passenger supplemental air bag
12. Outside remote mirror control switch
13. Headlight aiming control (if so equipped)
14. All-Wheel Drive (AWD) LOCK switch (if so equipped)
15. Fuse box cover
16. Vehicle Dynamic Control (VDC) OFF switch
17. Hood release handle
18. Tilting steering wheel lever
19. Parking brake
20. Ignition switch
21. Heated seat switch (if so equipped)
22. “Camera” Around view
TMmonitor display switch
(if so equipped)
23. Sport mode switch
24. Power outlet
25. Heater/air conditioner control
26. Selector lever
27. Front passenger air bag status light
28. Rear window and outside mirror (if so equipped) defroster switch
29. Glove box
Instruments and controls2-3
INSTRUMENT PANEL

Black plate (74,1)
[ Edit: 2012/ 5/ 18 Model: S35-D ]
2-4Instruments and controls
S35-D-110201-F221FA22-5C18-4A37-B124-E6F61E733E4B
JVC0301X

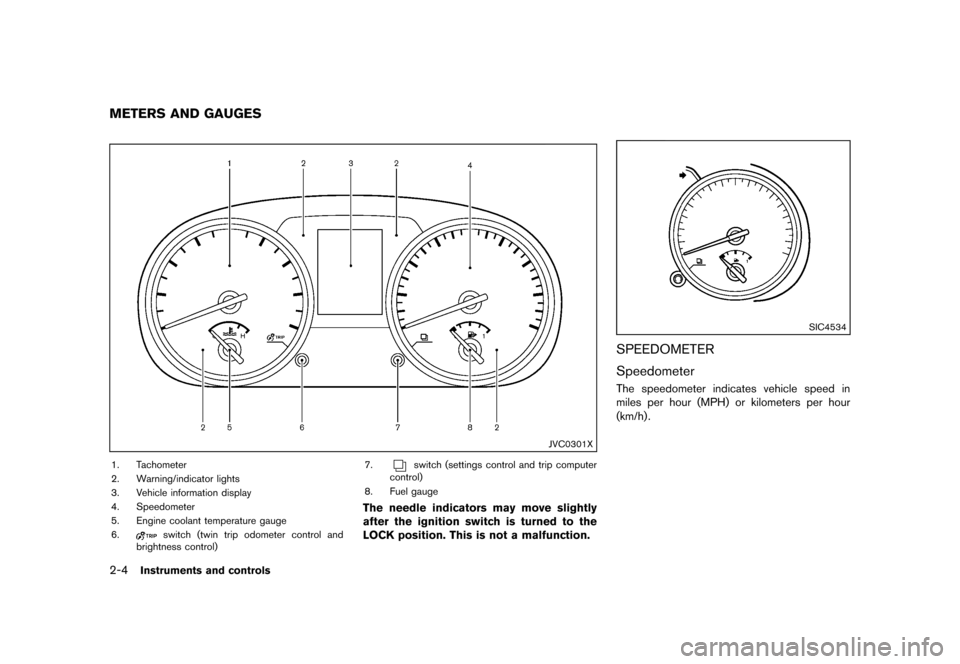

1. Tachometer
2. Warning/indicator lights
3. Vehicle information display
4. Speedometer
5. Engine coolant temperature gauge
6.
switch (twin trip odometer control and
brightness control) 7.
switch (settings control and trip computer
control)
8. Fuel gauge
The needle indicators may move slightly
after the ignition switch is turned to the
LOCK position. This is not a malfunction.
SIC4534
SPEEDOMETERS35-D-110201-C9945ABD-2549-458F-908F-CB27BD1CA5A3
SpeedometerS35-D-110201-60576567-9CF2-4129-A4A9-9B5C4699383DThe speedometer indicates vehicle speed in
miles per hour (MPH) or kilometers per hour
(km/h) .
METERS AND GAUGES

Black plate (75,1)
[ Edit: 2012/ 5/ 18 Model: S35-D ]
SIC4575

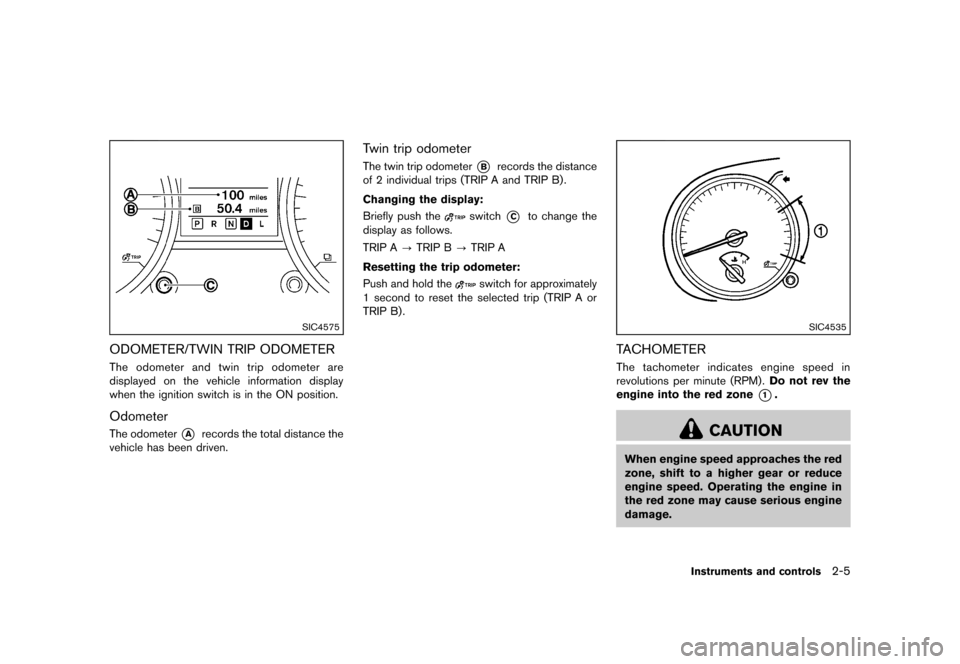

ODOMETER/TWIN TRIP ODOMETERS35-D-110201-2BE450E5-2630-467B-84F7-2D3A478E020EThe odometer and twin trip odometer are
displayed on the vehicle information display
when the ignition switch is in the ON position.
OdometerS35-D-110201-8DFDDE94-809B-4D2D-AA93-E378AFA980E9The odometer*Arecords the total distance the
vehicle has been driven.
Twin trip odometerS35-D-110201-D6A1AD54-C687-4B93-91DA-22BF83CE3F84The twin trip odometer*Brecords the distance
of 2 individual trips (TRIP A and TRIP B) .
Changing the display:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Briefly push theswitch*Cto change the
display as follows.
TRIP A ?TRIP B ?TRIP A
Resetting the trip odometer:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Push and hold theswitch for approximately
1 second to reset the selected trip (TRIP A or
TRIP B) .
SIC4535
TACHOMETERS35-D-110201-BB0955F7-0971-43A9-994F-8F7EC807ED65The tachometer indicates engine speed in
revolutions per minute (RPM) . Do not rev the
engine into the red zone
*1.
CAUTION
When engine speed approaches the red
zone, shift to a higher gear or reduce
engine speed. Operating the engine in
the red zone may cause serious engine
damage.
Instruments and controls2-5
