3-22Pre-driving checks and adjustments
WARNING
.Gasoline is extremely flammable
and highly explosive under certain
conditions. You could be burned or
seriously injured if it is misused or
mishandled. Always stop engine
and do not smoke or allow open
flames or sparks near the vehicle
when refueling.
. Do not attempt to top off the fuel
tank after the fuel pump nozzle
shuts off automatically. Continued
refueling may cause fuel overflow,
resulting in fuel spray and possibly
a fire.
. Use only an original equipment type
fuel-filler cap as a replacement. It
has a built-in safety valve needed
for proper operation of the fuel
system and emission control sys-
tem. An incorrect cap can result in a
serious malfunction and possible
injury. It could also cause the mal-
function indicator light to come on.
. Never pour fuel into the throttle
body to attempt to start your vehi-
cle. .
Do not fill a portable fuel container
in the vehicle or trailer. Static elec-
tricity can cause an explosion of
flammable liquid, vapor or gas in
any vehicle or trailer. To reduce the
risk of serious injury or death when
filling portable fuel containers:
— Always place the container on
the ground when filling.
— Do not use electronic devices when filling.
— Keep the pump nozzle in contact with the container while you are
filling it.
— Use only approved portable fuel containers for flammable liquid.
CAUTION
. If fuel is spilled on the vehicle body,
flush it away with water to avoid
paint damage.
. Insert the cap straight into the fuel-
filler tube, then tighten until the
fuel-filler cap clicks. Failure to tight-
en the fuel-filler cap properly may cause the
malfunction indicator
light (MIL) to illuminate. If the
light illuminates because the fuel-
filler cap is loose or missing, tighten
or install the cap and continue to
drive the vehicle. The
light
should turn off after a few driving
trips. If the
light does not turn
off after a few driving trips, have the
vehicle inspected by a NISSAN deal-
er.
For additional information, see
“Malfunction Indicator Light (MIL)”
in the “2. Instruments and controls”
section.
. The LOOSE FUEL CAP warning will
appear if the fuel-filler cap is not
properly tightened. It may take a few
driving trips for the message to be
displayed. Failure to tighten the
fuel-filler cap properly after the
LOOSE FUEL CAP warning appears
may cause the Malfunction Indicator
Light (MIL) to illuminate.

Black plate (145,1)
[ Edit: 2012/ 5/ 18 Model: S35-D ]
SPA2807

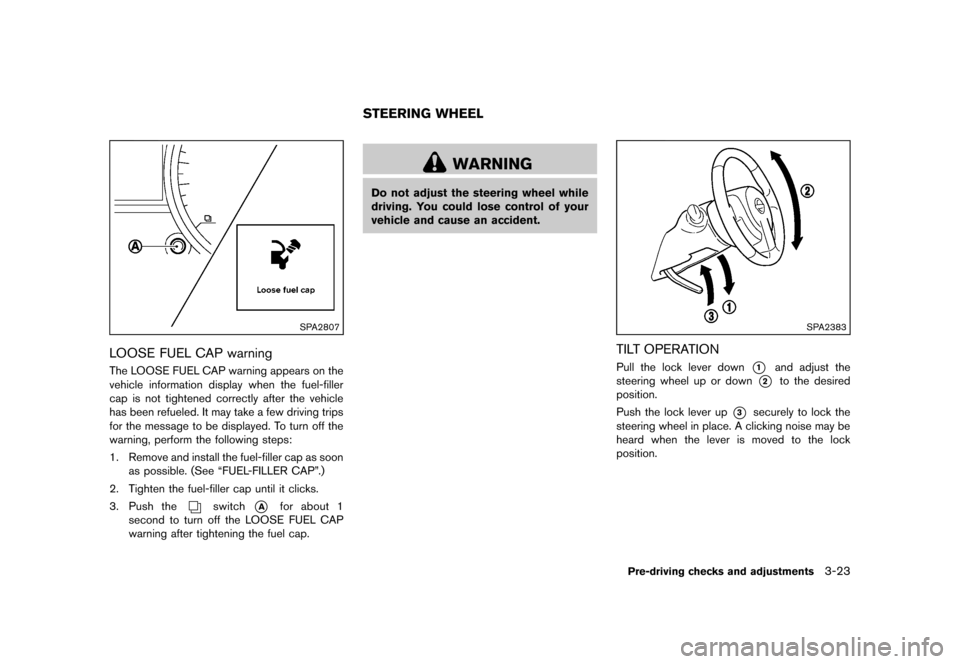

LOOSE FUEL CAP warningS35-D-110201-7BDBA3A1-1B36-47D7-8D3F-6BCA39874459The LOOSE FUEL CAP warning appears on the
vehicle information display when the fuel-filler
cap is not tightened correctly after the vehicle
has been refueled. It may take a few driving trips
for the message to be displayed. To turn off the
warning, perform the following steps:
1. Remove and install the fuel-filler cap as soonas possible. (See “FUEL-FILLER CAP”.)
2. Tighten the fuel-filler cap until it clicks.
3. Push the
switch*Afor about 1
second to turn off the LOOSE FUEL CAP
warning after tightening the fuel cap.
S35-D-110201-080D2004-4570-4B0C-B875-A5DE896B6841
WARNING
Do not adjust the steering wheel while
driving. You could lose control of your
vehicle and cause an accident.
SPA2383
TILT OPERATIONS35-D-110201-28BA420D-969D-46F3-B289-6F251133B52BPull the lock lever down*1and adjust the
steering wheel up or down
*2to the desired
position.
Push the lock lever up
*3securely to lock the
steering wheel in place. A clicking noise may be
heard when the lever is moved to the lock
position.
Pre-driving checks and adjustments3-23
STEERING WHEEL

Black plate (149,1)
[ Edit: 2012/ 5/ 18 Model: S35-D ]
4 Center display, heater, air conditioner, audio,phone and voice recognition systems
Safety note ...
........................................................................\
.......... 4-2
Control panel buttons — color screen with navigation
system (if so equipped) ...
.......................................................... 4-2
How to use touch screen ...
................................................. 4-3
How to use the back button ...
............................................ 4-5
How to use brightness control and display
ON/OFF button ...
................................................................... 4-5
How to use the setup button ...
........................................... 4-5
RearView monitor (if so equipped) ...
...................................... 4-9
How to read the displayed lines ...
..................................... 4-9
Difference between predictive and
actual distances ...
................................................................ 4-10
How to adjust the screen (if so equipped) ...
............... 4-12
Operating tips ...
................................................................... 4-13
Around View
TMMonitor (if so equipped) ...
........................ 4-13
How to switch the display ...
............................................. 4-16
How to see each view ...
.................................................... 4-17
Difference between predictive and
actual distances ...
................................................................ 4-20
Operating tips ...
................................................................... 4-23
Ventilators ...
........................................................................\
......... 4-23
Side ventilators ...
................................................................. 4-23
Heater and air conditioner ...
................................................... 4-24
Manual air conditioner ...
..................................................... 4-24
Automatic air conditioner ...
............................................... 4-27 In-cabin microfilter
...
......................................................... 4-29
Servicing air conditioner ...
.............................................. 4-29
Operating tips (for automatic air conditioner) ...
........ 4-30
Audio system ...
........................................................................\
.. 4-30
Audio operation precautions ...
....................................... 4-30
FM-AM radio with Compact Disc (CD) player ...
....... 4-43
FM-AM-SAT(if so equipped) radio with Compact
Disc (CD) player (Type A) ...
........................................... 4-51
FM-AM-SAT radio with Compact Disc (CD) player
(Type B) ...
........................................................................\
.. 4-59
CD/DVD/USB memory care and cleaning ...
.............. 4-66
Steering wheel switch for audio control
(if so equipped) ...
.............................................................. 4-67
Antenna ...
........................................................................\
.... 4-68
Car phone and CB radio ...
.................................................... 4-69
Bluetooth®Hands-Free Phone System
(if so equipped) ...
..................................................................... 4-69
Regulatory information ...
.................................................. 4-71
Using the system ...
........................................................... 4-71
Control buttons ...
............................................................... 4-73
Getting started ...
............................................................... 4-74
List of voice commands ...
............................................... 4-75
Speaker Adaptation (SA) mode ...
................................. 4-79
Troubleshooting guide ...
.................................................. 4-81

Black plate (150,1)
[ Edit: 2012/ 5/ 18 Model: S35-D ]
4-2Center display, heater, air conditioner, audio, phone and voice recognition systems
S35-D-110201-085FF441-F2C8-4C6E-ABB3-F2123CE126F8
WARNING
.Do not disassemble or modify this
system. If you do, it may result in
accidents, fire, or electric shock.
. Do not use this system if you notice
any abnormality, such as a frozen
screen or lack of sound. Continued
use of the system may result in
accident, fire or electric shock.
. In case you notice any foreign
object in the system hardware, spill
liquid on it, or notice smoke or smell
coming from it, stop using the
system immediately and contact
your nearest NISSAN dealer. Ignor-
ing such conditions may lead to
accidents, fire, or electric shock.
Do not attempt to operate the system in
extreme temperature conditions [below
−48F (−208C) and above 1588F (708C)].
Operating this system under these condi-
tions may result in system malfunctions.
GUID-B91320C6-CA93-4DC0-9D1D-0B560BE93822
SAA3377
1.(brightness control) button (P.4-5)
2. Display screen (P.4-3)
3. MAP button*
4. NAV button*
5. TRAF button*
6. SETUP button (P.4-5)
7.
BACK button (P.4-5) 8. TUNE/SCROLL knob
9. Power button/Volume control knob
*For Navigation system control buttons, refer to
the separate Navigation System Owner’s Man-
ual.
When you use this system, make sure the
engine is running.
SAFETY NOTE
CONTROL PANEL BUTTONS —
COLOR SCREEN WITH NAVIGATION
SYSTEM (if so equipped)

Black plate (151,1)
[ Edit: 2012/ 5/ 18 Model: S35-D ]
If you use the system with the engine not
running (ignition ON or ACC) for a long
time, it will discharge the battery, and the
engine will not start.
Reference symbols:
“Example” — Words marked in quotes refer to a
key shown only on the display. These keys can
be selected by touching the screen.
HOW TO USE TOUCH SCREENGUID-7C59B976-54A1-4D74-A77C-CF757A76A294
CAUTION
.The glass screen on the liquid
crystal display may break if it is hit
with a hard or sharp object. If the
glass screen breaks, do not touch it.
Doing so could result in an injury.
. To clean the display, use a soft, dry
cloth. If additional cleaning is ne-
cessary, use a small amount of
neutral detergent with a soft cloth.
Never use a rough cloth, alcohol,
benzine, thinner or any kind of
solvent or paper towel with a che-
mical cleaning agent. They will
scratch or deteriorate the panel.
. Do not splash any liquid such as
water or car fragrance on the dis- play. Contact with liquid will cause
the system to malfunction.
To ensure safe driving, some functions cannot
be operated while driving.
The on-screen functions that are not available
while driving will be “grayed out” or muted.
Park the vehicle in a safe location and then
operate the navigation system.
WARNING
. ALWAYS give your full attention to
driving.
. Avoid using vehicle features that
could distract you. If distracted,
you could lose control of your
vehicle and cause an accident.SAA3386
Touch screen operationGUID-67B20698-8B04-4122-9E42-414B14750F5F
Selecting the item:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Touch an item to select. For example, to select
the “Audio” key, touch the “Audio” key
*1on
the screen.
Center display, heater, air conditioner, audio, phone and voice recognition systems4-3

Black plate (152,1)
[ Edit: 2012/ 5/ 18 Model: S35-D ]
4-4Center display, heater, air conditioner, audio, phone and voice recognition systems
SAA3387

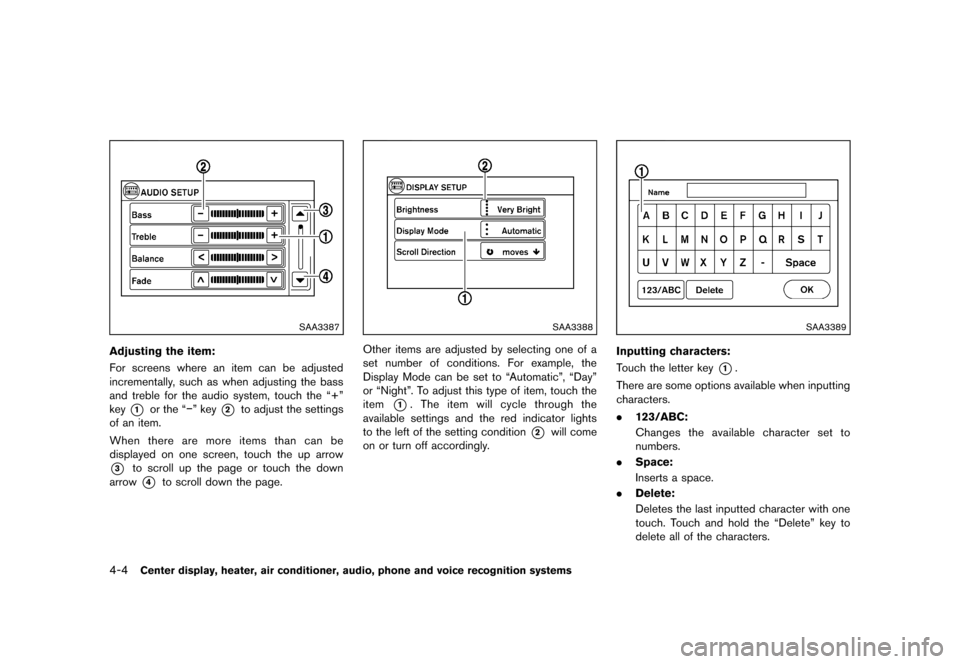

Adjusting the item:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407For screens where an item can be adjusted
incrementally, such as when adjusting the bass
and treble for the audio system, touch the “+”
key
*1or the “−” key*2to adjust the settings
of an item.
When there are more items than can be
displayed on one screen, touch the up arrow
*3to scroll up the page or touch the down
arrow
*4to scroll down the page.
SAA3388
Other items are adjusted by selecting one of a
set number of conditions. For example, the
Display Mode can be set to “Automatic”, “Day”
or “Night”. To adjust this type of item, touch the
item
*1. The item will cycle through the
available settings and the red indicator lights
to the left of the setting condition
*2will come
on or turn off accordingly.
SAA3389
Inputting characters:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Touch the letter key*1.
There are some options available when inputting
characters.
. 123/ABC:
Changes the available character set to
numbers.
. Space:
Inserts a space.
. Delete:
Deletes the last inputted character with one
touch. Touch and hold the “Delete” key to
delete all of the characters.

Black plate (153,1)
[ Edit: 2012/ 5/ 18 Model: S35-D ]

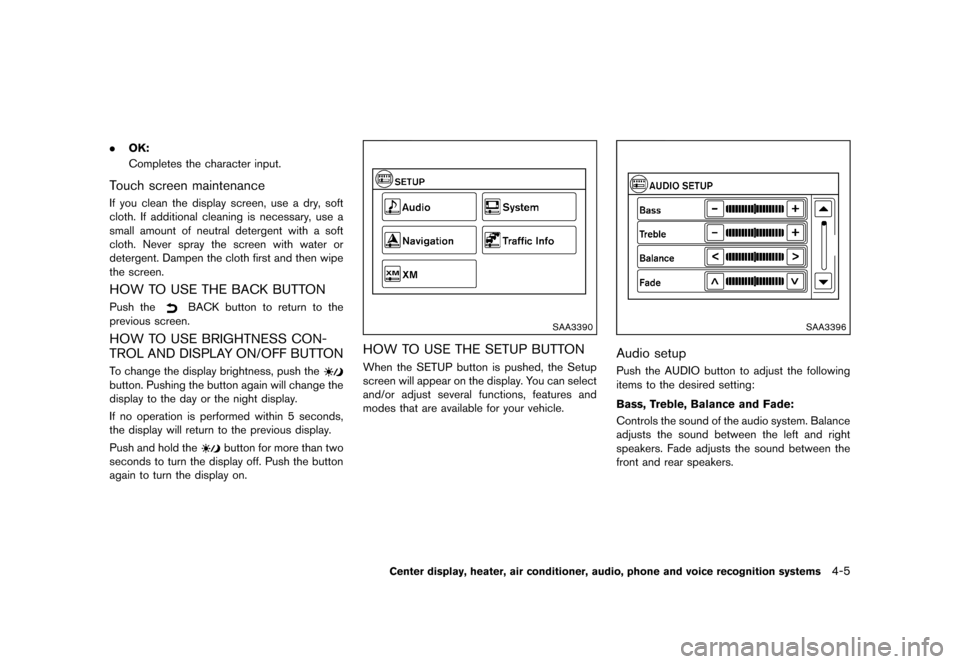

.OK:
Completes the character input.
Touch screen maintenanceGUID-81BE922F-CC67-4C42-9828-DA9A2B268C8CIf you clean the display screen, use a dry, soft
cloth. If additional cleaning is necessary, use a
small amount of neutral detergent with a soft
cloth. Never spray the screen with water or
detergent. Dampen the cloth first and then wipe
the screen.
HOW TO USE THE BACK BUTTONGUID-3731A0E9-D30B-4326-87CC-DE42F49C98C6Push theBACK button to return to the
previous screen.
HOW TO USE BRIGHTNESS CON-
TROL AND DISPLAY ON/OFF BUTTON
GUID-45C21C47-851E-4C30-8B09-DFE9F060C0A9To change the display brightness, push the
button. Pushing the button again will change the
display to the day or the night display.
If no operation is performed within 5 seconds,
the display will return to the previous display.
Push and hold the
button for more than two
seconds to turn the display off. Push the button
again to turn the display on.
SAA3390
HOW TO USE THE SETUP BUTTONGUID-12359B90-6257-4C35-8D6D-868D31AAACA0When the SETUP button is pushed, the Setup
screen will appear on the display. You can select
and/or adjust several functions, features and
modes that are available for your vehicle.
SAA3396
Audio setupGUID-3A0D33F6-B887-4B69-81BC-BE7B20D8CE08Push the AUDIO button to adjust the following
items to the desired setting:
Bass, Treble, Balance and Fade:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Controls the sound of the audio system. Balance
adjusts the sound between the left and right
speakers. Fade adjusts the sound between the
front and rear speakers.
Center display, heater, air conditioner, audio, phone and voice recognition systems4-5

Black plate (154,1)
[ Edit: 2012/ 5/ 18 Model: S35-D ]
4-6Center display, heater, air conditioner, audio, phone and voice recognition systems
SAA3397
Speed Volume:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Controls the level to which the volume is
adjusted as the vehicle’s driving speed changes.
Choose a setting between 1 and 5 or choose 0
to disable the feature entirely.
AUX Level:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Controls the volume level of incoming sound
when an auxiliary device is connected to the
system. Available options are Quiet, Medium
and Loud.
Navigation setupGUID-B9AA7DEB-75C8-439C-AB2C-CD5EB042E481Refer to the separate Navigation System Own-
er’s Manual for information regarding this item.
XM setupGUID-EABD1884-04E7-402A-A446-574F90206135For SiriusXM Satellite Radio setup, refer to “FM-
AM-SAT radio with Compact Disc (CD) player
(Type B) ” later in this section.
SAA3391
System setupGUID-28F2C574-E628-459B-BF48-5E85D07EDE74Select the “System” key to select and/or adjust
various functions of the system. A screen with
additional options will appear.
