2013 NISSAN ROGUE Owners Manual

Black plate (239,1)
[ Edit: 2012/ 5/ 18 Model: S35-D ]
.Before operating the vehicle, ensure
that the driver and all passengers
have their seat belts fastened.
. Always drive with the floor mats in
place as the floor may became hot.
. Lower your speed when encounter-
ing strong crosswinds. With a higher
center of gravity, your NISSAN is
more affected by strong side winds.
Slower speeds ensure better vehicle
control.
. Do not drive beyond the perfor-
mance capability of the tires, even
with AWD engaged.
. For AWD equipped vehicles, do not
attempt to raise two wheels off the
ground and shift the transmission to
any drive or reverse position with
the engine running. Doing so may
result in drivetrain damage or un-
expected vehicle movement which
could result in serious vehicle da-
mage or personal injury.
. Do not attempt to test an AWD
equipped vehicle on a 2-wheel dy-
namometer (such as the dynam-
ometers used by some states for
emissions testing) , or similar equip- ment even if the other two wheels
are raised off the ground. Make sure
you inform test facility personnel
that your vehicle is equipped with
AWD before it is placed on a
dynamometer. Using the wrong test
equipment may result in drivetrain
damage or unexpected vehicle
movement which could result in
serious vehicle damage or personal
injury.
. When a wheel is off the ground due
to an unlevel surface, do not spin
the wheel excessively. (AWD mod-
els)
. Accelerating quickly, sharp steering
maneuvers or sudden braking may
cause loss of control.
. If at all possible, avoid sharp turning
maneuvers, particularly at high
speeds. Your vehicle has a higher
center of gravity than a conventional
passenger car. The vehicle is not
designed for cornering at the same
speeds as conventional passenger
cars. Failure to operate this vehicle
correctly could result in loss of
control and/or a rollover accident. .
Always use tires of the same type,
size, brand, construction (bias, bias-
belted or radial) , and tread pattern
on all four wheels. Install traction
devices on the front wheels when
driving on slippery roads and drive
carefully.
. Be sure to check the brakes imme-
diately after driving in mud or water.
See “Brake system” later in this
section for wet brakes.
. Avoid parking your vehicle on steep
hills. If you get out of the vehicle
and it rolls forward, backward or
sideways, you could be injured.
. Whenever you drive off-road
through sand, mud or water as deep
as the wheel hub, more frequent
maintenance may be required. See
the maintenance information in the
“NISSAN Service and Maintenance
Guide”.
. Spinning the front wheels on slip-
pery surfaces may cause the AWD
warning light to flash and the AWD
system to automatically switch from
the AWD mode to the 2WD mode.
This could reduce traction. Be espe-
cially careful when towing a trailer.
Starting and driving5-9

Black plate (240,1)
[ Edit: 2012/ 5/ 18 Model: S35-D ]

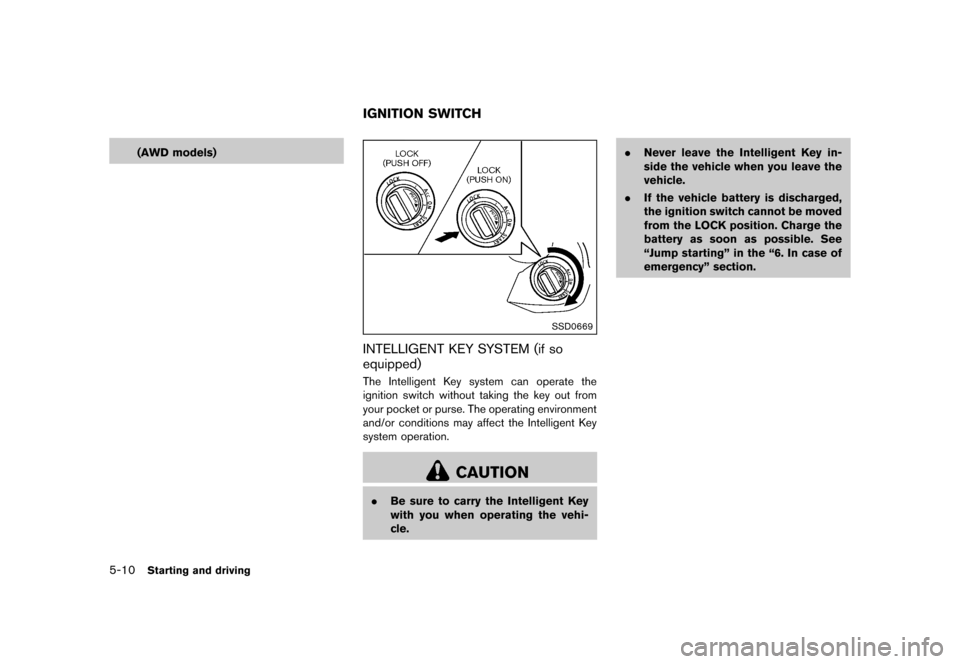

5-10Starting and driving
(AWD models)
S35-D-110201-5700BCBC-6DD7-45B8-832F-13606871BC4B
SSD0669
INTELLIGENT KEY SYSTEM (if so
equipped)
S35-D-110201-5BE72C3A-D258-4669-AB4A-70E75CB4440FThe Intelligent Key system can operate the
ignition switch without taking the key out from
your pocket or purse. The operating environment
and/or conditions may affect the Intelligent Key
system operation.
CAUTION
.Be sure to carry the Intelligent Key
with you when operating the vehi-
cle. .
Never leave the Intelligent Key in-
side the vehicle when you leave the
vehicle.
. If the vehicle battery is discharged,
the ignition switch cannot be moved
from the LOCK position. Charge the
battery as soon as possible. See
“Jump starting” in the “6. In case of
emergency” section.
IGNITION SWITCH

Black plate (241,1)
[ Edit: 2012/ 5/ 18 Model: S35-D ]
SSD0436
Operating rangeS35-D-110201-E7BEEF8F-362F-4C60-AE3A-079EA87D5DB5The Intelligent Key functions can only be used
for starting the engine when the Intelligent Key is
within the specified operating range
*1.
When the Intelligent Key battery is almost
discharged or strong radio waves are present
near the operating location, the Intelligent Key
system’s operating range becomes narrower
and may not function properly.
If the Intelligent Key is within the operating
range, it is possible for anyone, even someone
who does not carry the Intelligent Key, to turn
the ignition switch to start the engine. .
The cargo area is not included in the
operating range, but the Intelligent Key may
function.
. If the Intelligent Key is placed on the
instrument panel, inside the glove box or
door pocket, the Intelligent Key may not
function.
. If the Intelligent Key is placed near the door
or window outside the vehicle, the Intelligent
Key may function.
Some indicators and warnings for operation are
displayed on the vehicle information display
between the speedometer and tachometer.
(See “Vehicle information display” in the “2.
Instruments and controls” section.)
SSD0392
Without Intelligent Key system
SSD0437A
With Intelligent Key system
Starting and driving5-11

Black plate (242,1)
[ Edit: 2012/ 5/ 18 Model: S35-D ]

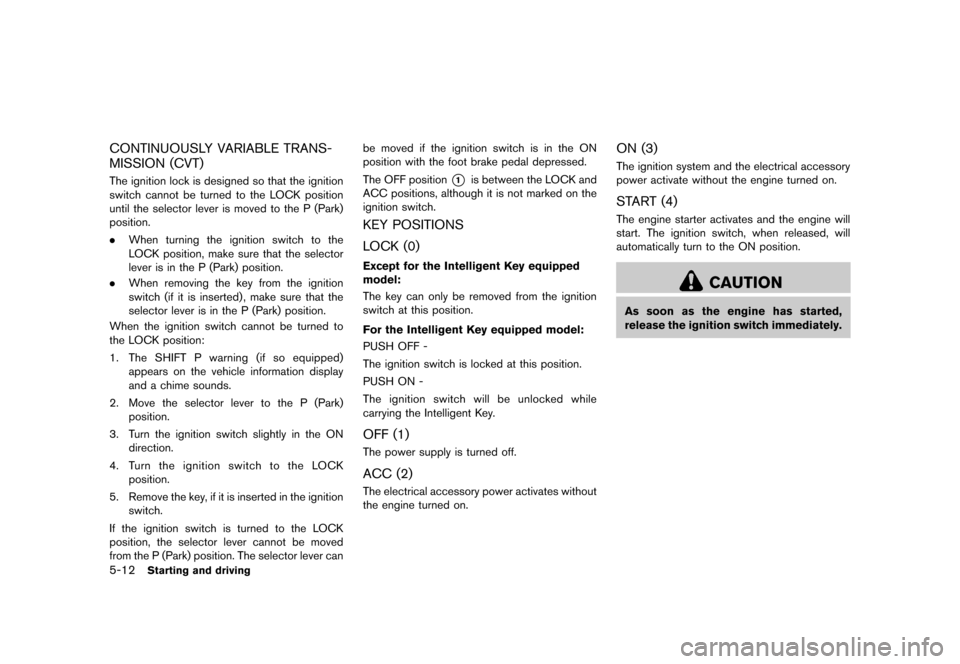

5-12Starting and driving
CONTINUOUSLY VARIABLE TRANS-
MISSION (CVT)
S35-D-110201-7E60201D-5BC1-4A77-B022-2EB741764885The ignition lock is designed so that the ignition
switch cannot be turned to the LOCK position
until the selector lever is moved to the P (Park)
position.
.When turning the ignition switch to the
LOCK position, make sure that the selector
lever is in the P (Park) position.
. When removing the key from the ignition
switch (if it is inserted) , make sure that the
selector lever is in the P (Park) position.
When the ignition switch cannot be turned to
the LOCK position:
1. The SHIFT P warning (if so equipped)
appears on the vehicle information display
and a chime sounds.
2. Move the selector lever to the P (Park) position.
3. Turn the ignition switch slightly in the ON direction.
4. Turn the ignition switch to the LOCK
position.
5. Remove the key, if it is inserted in the ignition switch.
If the ignition switch is turned to the LOCK
position, the selector lever cannot be moved
from the P (Park) position. The selector lever can be moved if the ignition switch is in the ON
position with the foot brake pedal depressed.
The OFF position*1is between the LOCK and
ACC positions, although it is not marked on the
ignition switch.
KEY POSITIONSS35-D-110201-06396A46-A2D1-4669-9D84-BF9FD54D3642
LOCK (0)S35-D-110201-3766F96D-1AD8-4926-9BF6-89EEF00D4EE3
Except for the Intelligent Key equipped
model:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407The key can only be removed from the ignition
switch at this position.
For the Intelligent Key equipped model:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407PUSH OFF -
The ignition switch is locked at this position.
PUSH ON -
The ignition switch will be unlocked while
carrying the Intelligent Key.
OFF (1)S35-D-110201-B63E5331-2F3F-4787-8587-50D4072E5971The power supply is turned off.
ACC (2)S35-D-110201-A6FC5348-7C27-49D0-A408-EB98CE521FDBThe electrical accessory power activates without
the engine turned on.
ON (3)S35-D-110201-9D3A8F96-70AB-4768-80FB-4789116DD6ADThe ignition system and the electrical accessory
power activate without the engine turned on.
START (4)S35-D-110201-79ACFB24-9ADC-4251-AB1C-2447A8767855The engine starter activates and the engine will
start. The ignition switch, when released, will
automatically turn to the ON position.
CAUTION
As soon as the engine has started,
release the ignition switch immediately.

Black plate (243,1)
[ Edit: 2012/ 5/ 18 Model: S35-D ]
S35-D-110201-EFA61046-21C4-4AD9-9C39-10A435B04B96.Make sure the area around the vehicle is
clear.
. Check fluid levels such as engine oil, cool-
ant, brake fluid, and window washer fluid as
frequently as possible, or at least whenever
you refuel.
. Check that all windows and lights are clean.
. Visually inspect tires for their appearance
and condition. Also check tires for proper
inflation.
. Lock all doors.
. Position seat and adjust head restraints.
. Adjust inside and outside mirrors.
. Fasten seat belts and ask all passengers to
do likewise.
. Check the operation of warning lights when
the ignition key is turned to the ON position.
(See “Warning/indicator lights and audible
reminders” in the “2. Instruments and con-
trols” section.)S35-D-110201-87C2625E-B819-4174-914B-BC526532BA901. Apply the parking brake.
2. Move the selector lever to the P (Park) or N
(Neutral) position. (P is recommended.)
The starter is designed so that it does not
operate unless the selector lever is in either
of the above positions.
3. Crank the engine with your foot off the
accelerator pedal by turning the ignition
switch to START. Release the switch when
the engine starts. If the engine starts, but
fails to run, repeat the above procedure.
.If the engine is very hard to start in extremely cold weather or when restart-
ing, depress the accelerator pedal a little
(approximately 1/3 to the floor) and hold
it and then crank the engine. Release the
accelerator pedal when the engine starts.
.If the engine is very hard to start becauseit is flooded, depress the accelerator
pedal all the way to the floor and hold it.
Crank the engine for 5 - 6 seconds. After
cranking the engine, release the accel-
erator pedal. Crank the engine with your
foot off the accelerator pedal by
turning the ignition switch to START.
Release the ignition switch when the
engine starts. If the engine starts, but fails
to run, repeat the above procedure.
CAUTION
Do not operate the starter for more
than 15 seconds at a time. If the engine
does not start, turn the ignition switch
off and wait 10 seconds before cranking
again, otherwise the starter could be
damaged.
4. Warm-up
Allow the engine to idle for at least 30
seconds after starting. Do not race the
engine while warming it up. Drive at
moderate speed for a short distance first,
especially in cold weather. In cold weather,
keep the engine running for a minimum of 2 -
3 minutes before shutting it off. Starting and
stopping the engine over a short period of
time may make the vehicle more difficult to
start.
5. To stop the engine, shift the selector lever to the P (Park) position and turn the ignition
switch to the OFF position.
NOTE:
Care should be taken to avoid situations
that can lead to potential battery discharge
and potential no-start conditions such as:
Starting and driving5-13
BEFORE STARTING THE ENGINE STARTING THE ENGINE

Black plate (244,1)
[ Edit: 2012/ 5/ 18 Model: S35-D ]
5-14Starting and driving
1.Installation or extended use of electro-
nic accessories that consume battery
power when the engine is not running
(Phone chargers, GPS, DVD players,
etc.)
2. Vehicle is not driven regularly and/or
only driven short distances.
In these cases, the battery may need to be
charged to maintain battery health.
S35-D-110201-B37603AF-ECB2-481C-A92E-035B1AB0690BCONTINUOUSLY VARIABLE TRANS-
MISSION (CVT)
S35-D-110201-5418F86B-BA47-41F8-8576-D09AB3751BAFThe Continuously Variable Transmission (CVT)
in your vehicle is electronically controlled to
produce maximum power and smooth operation.
The recommended operating procedures for this
transmission are shown on the following pages.
Follow these procedures for maximum vehicle
performance and driving enjoyment.
Engine power may be automatically re-
duced to protect the CVT if the engine
speed increases quickly when driving on
slippery roads or while being tested on
some dynamometers.
Starting the vehicleS35-D-110201-09A6574C-D46F-4EF2-9E5A-FADC6C34FAE01. After starting the engine, fully depress the foot brake pedal before moving the selector
lever out of the P (Park) position.
This CVT is designed so that the foot
brake pedal must be depressed before
shifting from P (Park) to any driving
position while the ignition switch is in
the ON position.
The selector lever cannot be moved out
of the P (Park) position and into any of
the other positions if the ignition
switch is turned to the LOCK, OFF or
ACC position or if the key is removed. 2. Keep the foot brake pedal depressed, push
the selector lever button and move the
selector lever to a driving position.
3. Release the parking brake and foot brake pedal, and then gradually start the vehicle in
motion.
WARNING
.Do not depress the accelerator
pedal while shifting from P (Park)
or N (Neutral) to R (Reverse) , D
(Drive) , L (Low) . Always depress
the brake pedal until shifting is
completed. Failure to do so could
cause you to lose control and have
an accident.
. Cold engine idle speed is high, so
use caution when shifting into a
forward or reverse gear before the
engine has warmed up.
. Never shift to P (Park) or R (Re-
verse) while vehicle is moving. Fail-
ure to do so could cause you to lose
control and have an accident.
DRIVING THE VEHICLE

Black plate (245,1)
[ Edit: 2012/ 5/ 18 Model: S35-D ]
CAUTION
.Except in an emergency, do not shift
to the N (Neutral) position while
driving. Coasting with the transmis-
sion in the N (Neutral) position may
cause serious damage to the trans-
mission.
. When stopping the vehicle on an
uphill grade, do not hold the vehicle
by depressing the accelerator pedal.
The foot brake should be used for
this purpose.
. Do not downshift abruptly on slip-
pery roads. This may cause a loss of
control.
SSD0665
To move the selector lever,
: Push the button*Awhile depressing the
brake pedal.
: Push the button.
: Just move the selector lever.
ShiftingS35-D-110201-06F074F0-546E-4865-A769-64F3F1CC3D96After starting the engine, fully depress the brake
pedal, push the selector lever button and move
the selector lever from the P (Park) position to
any of the desired shift positions.
WARNING
Apply the parking brake if the selector
lever is in any position while the engine
is not running. Failure to do so could
cause the vehicle to move unexpectedly
or roll away and result in serious
personal injury or property damage.
If the ignition switch is turned to the OFF or
ACC position for any reason while the selector
lever is in any positions other than the P (Park) ,
the ignition switch cannot be turned to the
LOCK position.
If the ignition switch cannot be turned to the
LOCK position, perform the following steps:
1. Apply the parking brake when the vehicle is stopped.
2. Turn the ignition switch to the ON position while depressing the foot brake pedal.
3. Move the selector lever to the P (Park) position.
4. Turn the ignition switch to the LOCK
position.
Starting and driving5-15

Black plate (246,1)
[ Edit: 2012/ 5/ 18 Model: S35-D ]
5-16Starting and driving
CAUTION
To prevent transmission damage, use
the P (Park) or R (Reverse) position only
when the vehicle is completely stopped.
P (Park):
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Use this selector position when the vehicle is
parked or when starting the engine. Make sure
the vehicle is completely stopped. The brake
pedal must be depressed and the selector
lever button pushed in to move the selec-
tor lever from N (Neutral) or any drive
position to P (Park) . Apply the parking brake.
When parking on a hill, apply the parking brake
first, then move the selector lever to the P (Park)
position.
R (Reverse):
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Use this position to back up. Make sure the
vehicle is completely stopped before selecting
the R (Reverse) position. The brake pedal
must be depressed and the selector lever
button pushed in to move the selector
lever from P (Park) , N (Neutral) or any
driving position to R (Reverse) .
N (Neutral):
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Neither forward nor reverse gear is engaged. The engine can be started in this position. You
may shift to N (Neutral) and restart a stalled
engine while the vehicle is moving.
D (Drive):
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Use this position for all normal forward driving.
L (Low) (if so equipped):
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Use this position for maximum engine braking on
steep downhill gradients/climbing steep slopes
and whenever approaching sharp bends. Do not
use the L position in any other circumstances.
JVS0100X
SPORT mode switchGUID-99239937-893E-4CAC-B84A-6159150240ECIn the SPORT mode, the engine and transmis-
sion are controlled to set the engine speed
higher than in the D (Drive) position. This
enhances throttle response for a “sporty” driving
feeling.
To turn on the SPORT mode, push the SPORT
mode switch. The SPORT mode indicator light
in the instrument panel illuminates. To turn off
the SPORT mode, push the SPORT mode
switch again. The SPORT mode indicator light
on the instrument panel turns off.
If the SPORT mode indicator light does not
illuminate when the SPORT mode switch is
