2013 LINCOLN MKZ Owners Manual

M.
Maximum Inflation Pressure:
Indicates the tire manufacturers'
maximum permissible pressure or the
pressure at which the maximum load
can be carried by the tire. This
pressure is normally higher than the
vehicle manufacturer's recommended
cold inflation pressure which can be
found on the Safety Compliance
Certification Label (affixed to either
the door hinge pillar, door-latch post,
or the door edge that meets the
door-latch post, next to the driver's
seating position), or Tire Label which
is located on the B-Pillar or the edge
of the driver ’s door. The cold inflation
pressure should never be set lower
than the recommended pressure on
the vehicle label.
The tire suppliers may have additional
markings, notes or warnings such as
standard load, radial tubeless, etc.
Additional Information Contained
on the Tire Sidewall for LT Type
Tires
Note: Tire Quality Grades do not apply
to this type of tire. LT type tires have some additional
information beyond those of P type
tires; these differences are described
below.
A.
LT: Indicates a tire, designated by
the Tire and Rim Association (T&RA),
that is intended for service on light
trucks.
B. Load Range and Load Inflation
Limits:
Indicates the tire's
load-carrying capabilities and its
inflation limits.
C. Maximum Load Dual lb (kg) at
psi (kPa) cold:
Indicates the
maximum load and tire pressure when
the tire is used as a dual; defined as
four tires on the rear axle (a total of
six or more tires on the vehicle).
D. Maximum Load Single lb (kg) at
psi (kPa) cold:
Indicates the
maximum load and tire pressure when
the tire is used as a single; defined as
two tires (total) on the rear axle.
310
Wheels and TiresA
BC
BDE142544

Information on T Type Tires
T145/80D16 is an example of a tire
size.
Note:
The temporary tire size for your
vehicle may be different from this
example. Tire Quality Grades do not
apply to this type of tire. T type tires have some additional
information beyond those of P type
tires; these differences are described
below:
A.
T: Indicates a type of tire,
designated by the Tire and Rim
Association (T&RA), that is intended
for temporary service on cars, SUVs,
minivans and light trucks. B.
145:
Indicates the nominal width of
the tire in millimeters from sidewall
edge to sidewall edge. In general, the
larger the number, the wider the tire.
C. 80:
Indicates the aspect ratio
which gives the tire's ratio of height to
width. Numbers of 70 or lower
indicate a short sidewall.
D. D:
Indicates a diagonal type tire.
R:
Indicates a radial type tire.
E. 16:
Indicates the wheel or rim
diameter in inches. If you change your
wheel size, you will have to purchase
new tires to match the new wheel
diameter.
Location of the Tire Label
You will find a Tire Label containing
tire inflation pressure by tire size and
other important information located
on the B-Pillar or the edge of the
driver ’s door.
Inflating Your Tires
Safe operation of your vehicle requires
that your tires are properly inflated.
Remember that a tire can lose up to
half of its air pressure without
appearing flat.
Every day before you drive, check your
tires. If one looks lower than the
others, use a tire gauge to check
pressure of all tires and adjust if
required.
311
Wheels and TiresA
BCDE
E142545

At least once a month and before long
trips, inspect each tire and check the
tire pressure with a tire gauge
(including spare, if equipped). Inflate
all tires to the inflation pressure
recommended by Ford Motor
Company.
You are strongly urged to buy a
reliable tire pressure gauge, as
automatic service station gauges may
be inaccurate. Ford recommends the
use of a digital or dial-type tire
pressure gauge rather than a
stick-type tire pressure gauge.
Use the recommended cold inflation
pressure for optimum tire
performance and wear.
Under-inflation or over-inflation may
cause uneven treadwear patterns
WARNING
Under-inflation is the most
common cause of tire failures
and may result in severe tire cracking,
tread separation or blowout, with
unexpected loss of vehicle control and
increased risk of injury. Under-inflation
increases sidewall flexing and rolling
resistance, resulting in heat buildup
and internal damage to the tire. It also
may result in unnecessary tire stress,
irregular wear, loss of vehicle control
and accidents. A tire can lose up to
half of its air pressure and not appear
to be flat! Always inflate your tires to the Ford
recommended inflation pressure even
if it is less than the maximum inflation
pressure information found on the tire.
The Ford recommended tire inflation
pressure is found on the Safety
Compliance Certification Label
(affixed to either the door hinge pillar,
door-latch post, or the door edge that
meets the door-latch post, next to the
driver's seating position), or Tire Label
which is located on the B-Pillar or the
edge of the driver
’s door. Failure to
follow the tire pressure
recommendations can cause uneven
treadwear patterns and adversely
affect the way your vehicle handles
Maximum Inflation Pressure is the
tire manufacturer's maximum
permissible pressure and the pressure
at which the maximum load can be
carried by the tire. This pressure is
normally higher than the
manufacturer ’s recommended cold
inflation pressure which can be found
on the Safety Compliance
Certification Label (affixed to either
the door hinge pillar, door-latch post,
or the door edge that meets the
door-latch post, next to the driver's
seating position), or Tire Label which
is located on the B-Pillar or the edge
of the driver ’s door. The cold inflation
pressure should never be set lower
than the recommended pressure on
the Safety Compliance Certification
Label or Tire Label.
312
Wheels and Tires

When weather temperature changes
occur, tire inflation pressures also
change. A 10°F (6°C) temperature
drop can cause a corresponding drop
of 1 psi (7 kPa) in inflation pressure.
Check your tire pressures frequently
and adjust them to the proper
pressure which can be found on the
Safety Compliance Certification Label
or Tire Label.
To check the pressure in your tire(s):
1. Make sure the tires are cool,
meaning they are not hot from
driving even a mile.
Note: If you are checking tire pressure
when the tire is hot, (i.e. driven more
than 1 mile [1.6 kilometers]), never
bleed or reduce air pressure. The tires
are hot from driving and it is normal for
pressures to increase above
recommended cold pressures. A hot
tire at or below recommended cold
inflation pressure could be significantly
under-inflated.
Note: If you have to drive a distance
to get air for your tire(s), check and
record the tire pressure first and add
the appropriate air pressure when you
get to the pump. It is normal for tires
to heat up and the air pressure inside
to go up as you drive.
2. Remove the cap from the valve on
one tire, then firmly press the tire
gauge onto the valve and measure
the pressure.
3. Add enough air to reach the recommended air pressure. Note:
If you overfill the tire, release air
by pressing on the metal stem in the
center of the valve. Then recheck the
pressure with your tire gauge.
4. Replace the valve cap.
5. Repeat this procedure for each tire,
including the spare.
Note: Some spare tires operate at a
higher inflation pressure than the other
tires. For T type mini-spare tires (refer
to the Dissimilar spare wheel and tire
assembly information for a
description): Store and maintain at 60
psi (4.15 bar). For full-size and
dissimilar spare tires (refer to the
Dissimilar spare wheel and tire
assembly information for a
description): Store and maintain at the
higher of the front and rear inflation
pressure as shown on the Tire Label.
6. Visually inspect the tires to make
sure there are no nails or other
objects embedded that could poke
a hole in the tire and cause an air
leak.
7. Check the sidewalls to make sure there are no gouges, cuts or bulges.
313
Wheels and Tires

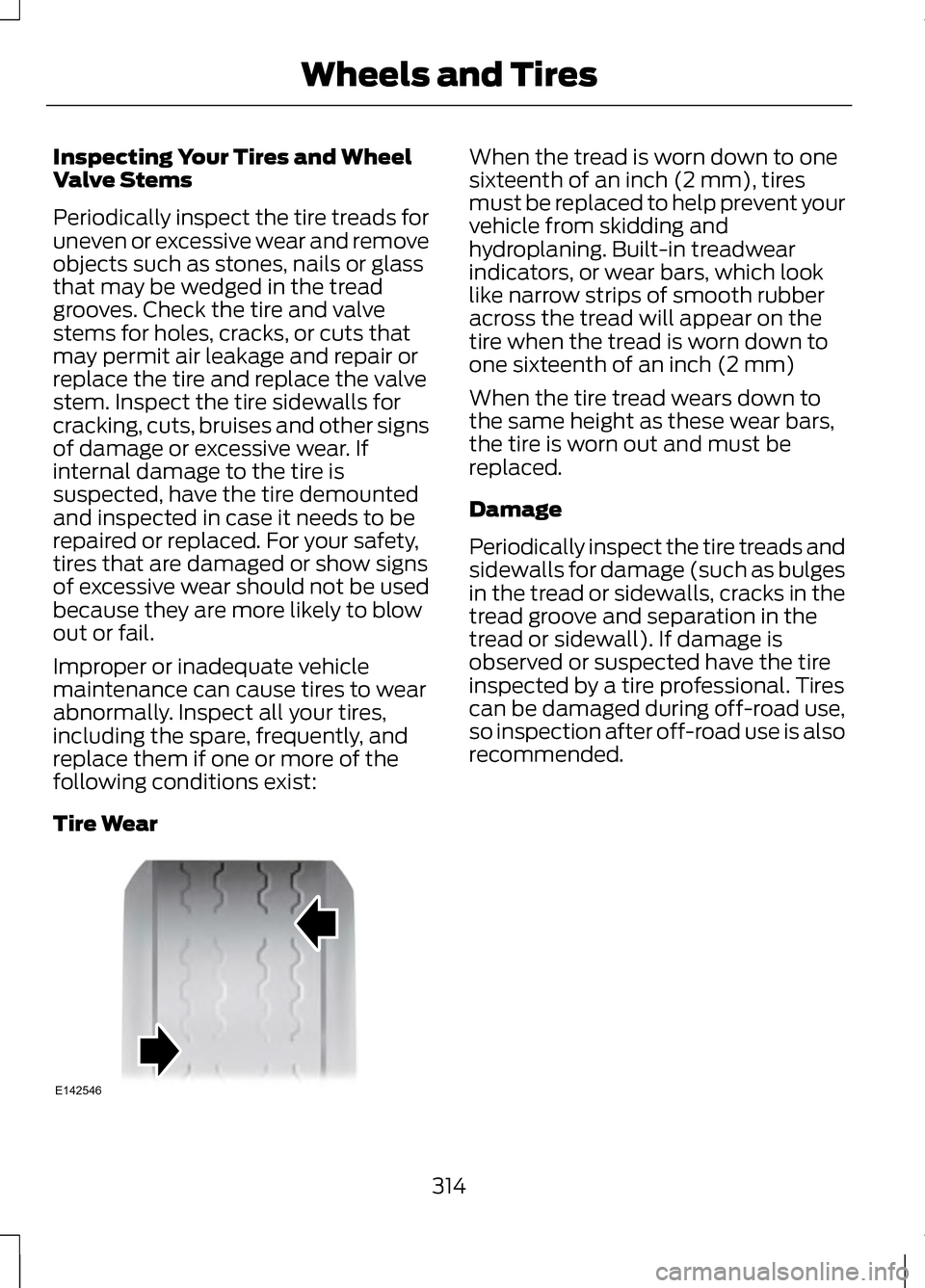

Inspecting Your Tires and Wheel
Valve Stems
Periodically inspect the tire treads for
uneven or excessive wear and remove
objects such as stones, nails or glass
that may be wedged in the tread
grooves. Check the tire and valve
stems for holes, cracks, or cuts that
may permit air leakage and repair or
replace the tire and replace the valve
stem. Inspect the tire sidewalls for
cracking, cuts, bruises and other signs
of damage or excessive wear. If
internal damage to the tire is
suspected, have the tire demounted
and inspected in case it needs to be
repaired or replaced. For your safety,
tires that are damaged or show signs
of excessive wear should not be used
because they are more likely to blow
out or fail.
Improper or inadequate vehicle
maintenance can cause tires to wear
abnormally. Inspect all your tires,
including the spare, frequently, and
replace them if one or more of the
following conditions exist:
Tire Wear When the tread is worn down to one
sixteenth of an inch (2 mm), tires
must be replaced to help prevent your
vehicle from skidding and
hydroplaning. Built-in treadwear
indicators, or wear bars, which look
like narrow strips of smooth rubber
across the tread will appear on the
tire when the tread is worn down to
one sixteenth of an inch (2 mm)
When the tire tread wears down to
the same height as these wear bars,
the tire is worn out and must be
replaced.
Damage
Periodically inspect the tire treads and
sidewalls for damage (such as bulges
in the tread or sidewalls, cracks in the
tread groove and separation in the
tread or sidewall). If damage is
observed or suspected have the tire
inspected by a tire professional. Tires
can be damaged during off-road use,
so inspection after off-road use is also
recommended.
314
Wheels and TiresE142546

Age
WARNING
Tires degrade over time
depending on many factors such
as weather, storage conditions, and
conditions of use (load, speed,
inflation pressure, etc.) the tires
experience throughout their lives.
In general, tires should be replaced
after six years regardless of tread
wear. However, heat caused by hot
climates or frequent high loading
conditions can accelerate the aging
process and may require tires to be
replaced more frequently.
You should replace your spare tire
when you replace the road tires or
after six years due to aging even if it
has not been used. U.S. DOT Tire Identification
Number (TIN)
Both U.S. and Canada Federal
regulations require tire manufacturers
to place standardized information on
the sidewall of all tires. This
information identifies and describes
the fundamental characteristics of
the tire and also provides a U.S. DOT
Tire Identification Number for safety
standard certification and in case of
a recall. This begins with the letters DOT and
indicates that the tire meets all
federal standards. The next two
numbers or letters are the plant code
designating where it was
manufactured, the next two are the
tire size code and the last four
numbers represent the week and year
the tire was built. For example, the
numbers 317 mean the 31st week of
1997. After 2000 the numbers go to
four digits. For example, 2501 means
the 25th week of 2001. The numbers
in between are identification codes
used for traceability. This information
is used to contact customers if a tire
defect requires a recall.
Tire Replacement Requirements
Your vehicle is equipped with tires
designed to provide a safe ride and
handling capability.
WARNINGS
Only use replacement tires and
wheels that are the same size,
load index, speed rating and type
(such as P-metric versus LT-metric or
all-season versus all-terrain) as those
originally provided by Ford. The
recommended tire and wheel size
may be found on either the Safety
Compliance Certification Label
(affixed to either the door hinge pillar,
door-latch post, or the door edge that
meets the door-latch post, next to the
driver's seating position), or the Tire
Label which is located on the B-Pillar
or edge of the driver ’s door. If this
information is not found on these
labels then you should contact your
authorized dealer as soon as possible.
315
Wheels and Tires

WARNINGS
Use of any tire or wheel not
recommended by Ford can affect the
safety and performance of your
vehicle, which could result in an
increased risk of loss of vehicle
control, vehicle rollover, personal
injury and death. Additionally the use
of non-recommended tires and
wheels could cause steering,
suspension, axle, transfer case or
power transfer unit failure. If you have
questions regarding tire replacement,
contact your authorized dealer as
soon as possible. When mounting replacement
tires and wheels, you should not
exceed the maximum pressure
indicated on the sidewall of the tire to
set the beads without additional
precautions listed below. If the beads
do not seat at the maximum pressure
indicated, re-lubricate and try again
When inflating the tire for mounting
pressures up to 20 psi (1.38 bar)
greater than the maximum pressure
on the tire sidewall, the following
precautions must be taken to protect
the person mounting the tire:
1. Make sure that you have the correct
tire and wheel size.
2. Lubricate the tire bead and wheel
bead seat area again.
3. Stand at a minimum of 12 feet (3.66
meters) away from the wheel and tire
assembly.
4. Use both eye and ear protection. WARNINGS
For a mounting pressure more than
20 psi (1.38 bar) greater than the
maximum pressure, a Ford dealer or
other tire service professional should
do the mounting.
Always inflate steel carcass tires with
a remote air fill with the person
inflating standing at a minimum of 12
ft (3.66 m) away from the wheel and
tire assembly Important: Remember to replace the
wheel valve stems when the road tires
are replaced on your vehicle
It is recommended that the two front
tires or two rear tires generally be
replaced as a pair.
The tire pressure sensors mounted in
the wheels (originally installed on your
vehicle) are not designed to be used
in aftermarket wheels.
The use of wheels or tires not
recommended by Ford Motor
Company may affect the operation of
your tire pressure monitoring system.
If the TPMS indicator is flashing, your
TPMS is malfunctioning. Your
replacement tire might be
incompatible with your TPMS, or
some component of the TPMS may
be damaged.
316
Wheels and Tires

Safety Practices
WARNINGS
If your vehicle is stuck in snow,
mud, sand, etc., do not rapidly
spin the tires; spinning the tires can
tear the tire and cause an explosion.
A tire can explode in as little as three
to five seconds. Do not spin the wheels at over
35 mph (56 km/h). The tires may
fail and injure a passenger or
bystander. Driving habits have a great deal to do
with your tire mileage and safety.
•
Observe posted speed limits
• Avoid fast starts, stops and turns
• Avoid potholes and objects on the
road
• Do not run over curbs or hit the tire
against a curb when parking
Highway Hazards
No matter how carefully you drive
there ’s always the possibility that you
may eventually have a flat tire on the
highway. Drive slowly to the closest
safe area out of traffic. This may
further damage the flat tire, but your
safety is more important. If you feel a sudden vibration or ride
disturbance while driving, or you
suspect your tire or vehicle has been
damaged, immediately reduce your
speed. Drive with caution until you can
safely pull off the road. Stop and
inspect the tires for damage. If a tire
is under-inflated or damaged, deflate
it, remove wheel and replace it with
your spare tire and wheel. If you
cannot detect a cause, have the
vehicle towed to the nearest repair
facility or tire dealer to have the
vehicle inspected.
Tire and Wheel Alignment
A bad jolt from hitting a curb or
pothole can cause the front end of
your vehicle to become misaligned or
cause damage to your tires. If your
vehicle seems to pull to one side when
you’re driving, the wheels may be out
of alignment. Have an authorized
dealer check the wheel alignment
periodically.
Wheel misalignment in the front or
the rear can cause uneven and rapid
treadwear of your tires and should be
corrected by an authorized dealer.
Front-wheel drive vehicles and those
with an independent rear suspension
(if equipped) may require alignment
of all four wheels.
The tires should also be balanced
periodically. An unbalanced tire and
wheel assembly may result in irregular
tire wear.
317
Wheels and Tires
