2013 LINCOLN MKZ Owners Manual

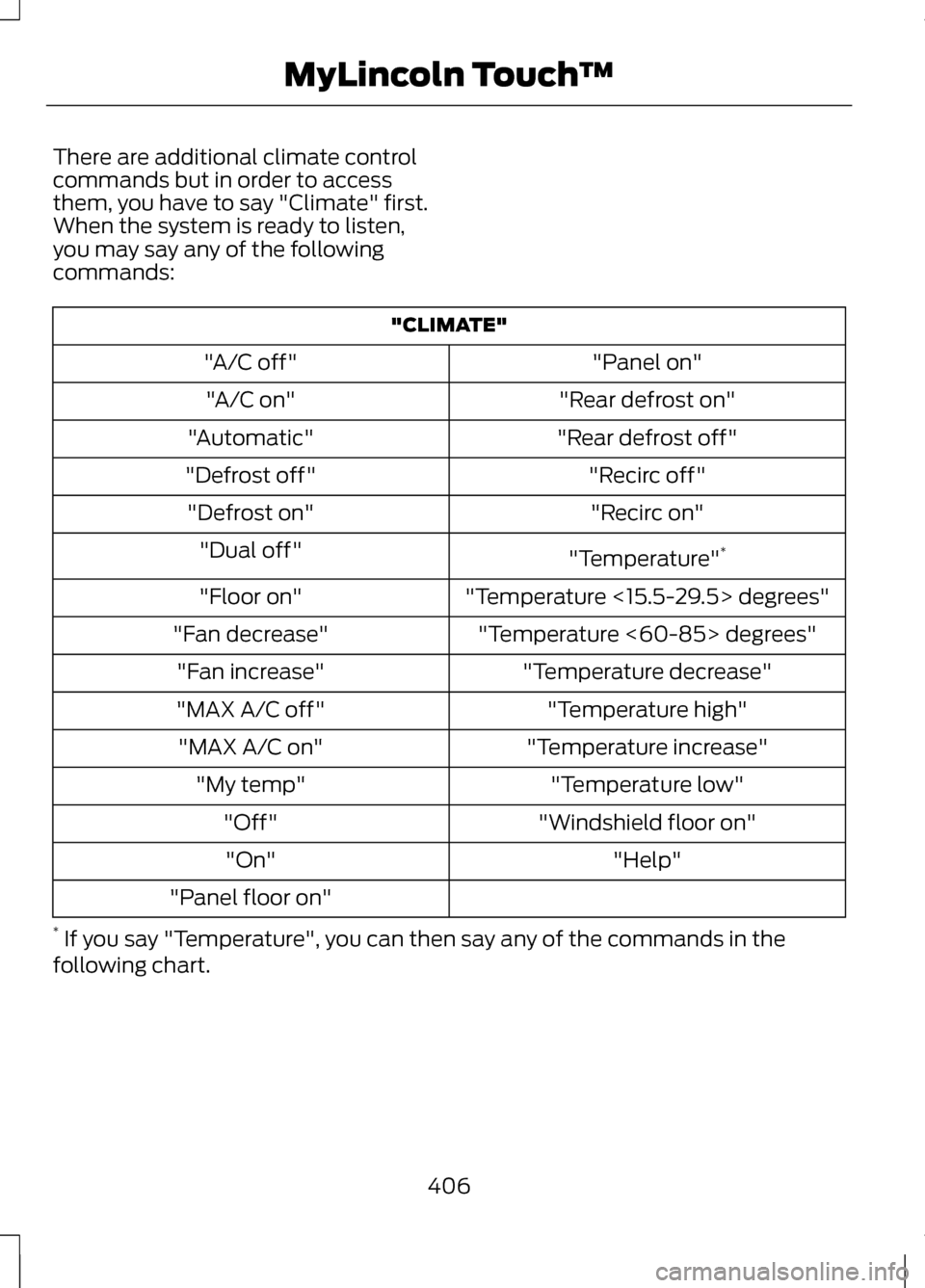

There are additional climate control
commands but in order to access
them, you have to say "Climate" first.
When the system is ready to listen,
you may say any of the following
commands:
"CLIMATE"
"Panel on"
"A/C off"
"Rear defrost on"
"A/C on"
"Rear defrost off"
"Automatic"
"Recirc off"
"Defrost off"
"Recirc on"
"Defrost on"
"Temperature"*
"Dual off"
"Temperature <15.5-29.5> degrees"
"Floor on"
"Temperature <60-85> degrees"
"Fan decrease"
"Temperature decrease"
"Fan increase"
"Temperature high"
"MAX A/C off"
"Temperature increase"
"MAX A/C on"
"Temperature low"
"My temp"
"Windshield floor on"
"Off"
"Help"
"On"
"Panel floor on"
* If you say "Temperature", you can then say any of the commands in the
following chart.
406
MyLincoln Touch
™

"TEMPERATURE"
"<15.5-29.5> degrees" "<60-85> degrees" "High""Low"
"Help"
NAVIGATION (IF EQUIPPED)
Note: The navigation SD card must be
in the SD card slot to operate the
navigation system. If you need a
replacement SD card, see your
authorized dealer.
Note: The SD card slot is
spring-loaded. To remove the SD card,
just push the card in and release it. Do
not attempt to pull the card out to
remove it; this could cause damage.
Your navigation system is comprised
of two main features, destination
mode and map mode. To set a destination, press the green
corner of your touchscreen, then the
Dest button when it appears. See
Setting a destination
later in this
chapter.
To view the navigation map and the
vehicle's current location, touch the
green bar in the upper right hand
corner of the touchscreen, or, press
Dest, then Map. See Map mode later
in this chapter.
Setting a Destination
Press the green corner of your
touchscreen, then the Dest button
when it appears. Choose any of the
following: Destination
Street Address
My Home
Intersection
Favorites
City Center
Previous Destinations
Map
Point of Interest (POI)
Previous Starting Point
Emergency
Latitude/Longitude
Freeway Entrance/Exit
407
MyLincoln Touch
™

1. Enter the necessary information
into the highlighted text fields (in
any order). For address destination
entry, the Go! button appears once
all the necessary information has
been entered. Pressing the Go!
button makes the address location
appear on the map. If you choose
Previous Destination, the last 20
destinations you have selected
appear.
2. Select Set as Dest to make this your destination. You can also
choose to set this as a waypoint
(have the system route to this
point on the way to your current
destination) or save it as a favorite.
Any Avoid Areas selections are
also considered in route
calculation.
3. Choose from up to three different types of routes, then select Start
Route.
• Fastest: Uses the fastest moving
roads possible.
• Shortest: Uses the shortest
distance possible.
• Eco (EcoRoute): Uses the most
fuel efficient route. You can cancel the route or have the
system demo the route for you. Select
Route Prefs to set route preferences
like avoiding freeways, toll roads,
ferries and car trains as well as to use
or not use HOV lanes. (HOV lanes are
High Occupancy Vehicle Lanes also
known as carpool or diamond lanes.
These lanes are reserved for people
who ride in buses, vanpools or
carpools.)
Note:
If Start Route button is not
pressed and the vehicle is driven on a
recognized road, the system defaults
to the fastest route option and begins
guidance.
During route guidance, the talking
bubble icon that appears in the upper
right navigation corner (green bar) can
be pressed if the user wants the
system to repeat a route guidance
instruction. Instructions decrease with
each press.
Point of Interest (POI)
Categories
Your system offers a variety if POI
(Points of Interest) categories. Main Categories
Automotive
Food/Drink & Dining
Shopping
Travel & Transportation
Entertainment & Arts
Financial
408
MyLincoln Touch
™

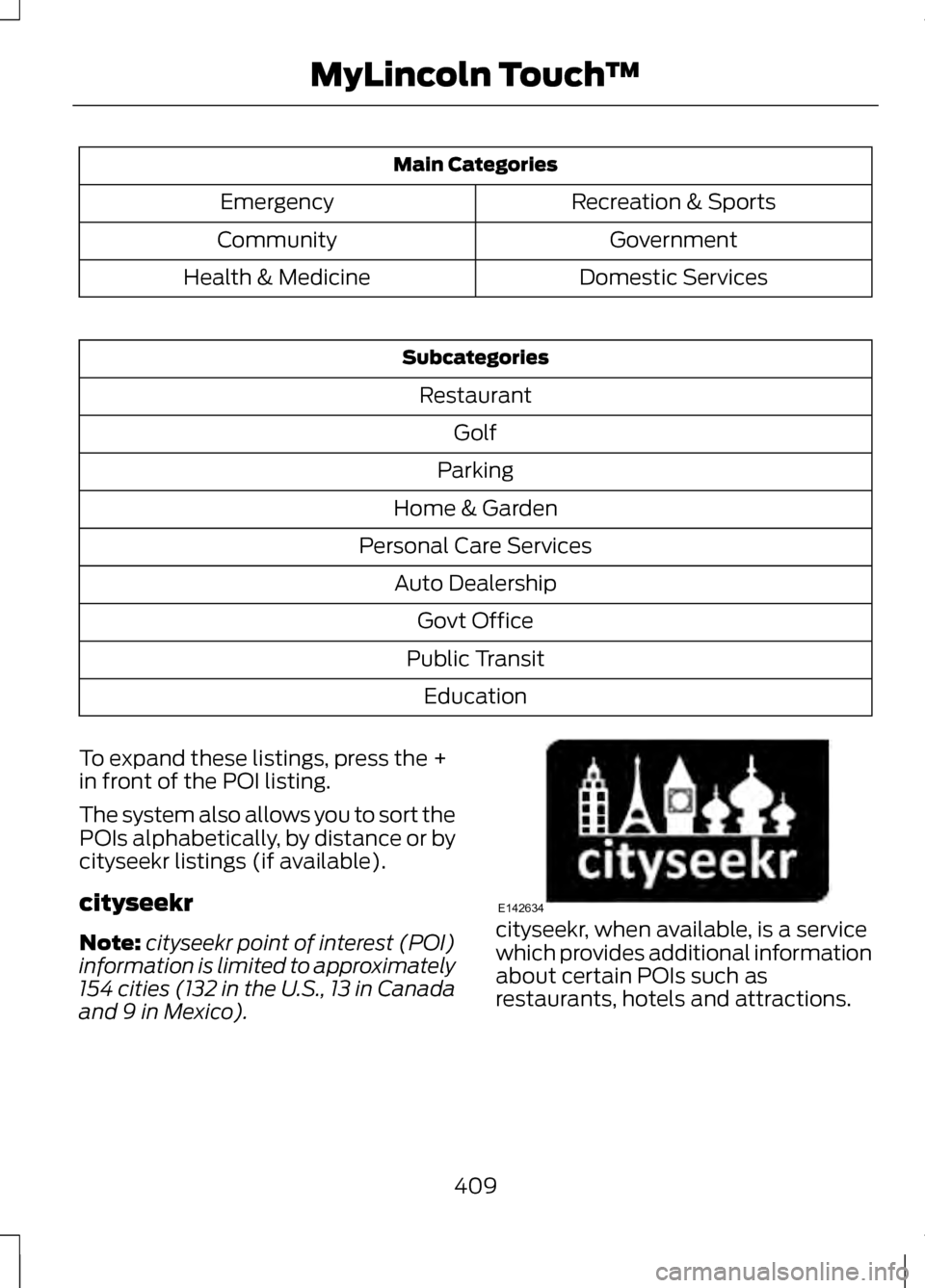

Main Categories
Recreation & Sports
Emergency
Government
Community
Domestic Services
Health & Medicine Subcategories
Restaurant Golf
Parking
Home & Garden
Personal Care Services Auto DealershipGovt Office
Public Transit Education
To expand these listings, press the +
in front of the POI listing.
The system also allows you to sort the
POIs alphabetically, by distance or by
cityseekr listings (if available).
cityseekr
Note: cityseekr point of interest (POI)
information is limited to approximately
154 cities (132 in the U.S., 13 in Canada
and 9 in Mexico). cityseekr, when available, is a service
which provides additional information
about certain POIs such as
restaurants, hotels and attractions.
409
MyLincoln Touch
™E142634

When you have selected a POI, the
location and information appear, such
as address and phone number. If the
POI is listed with cityseekr, you also
see information such as a brief
description, check-in and check-out
times, when the restaurant is open,
etc.
Press More Information for a longer
review, a list of services and facilities,
the average room or meal price as
well as the website. This screen
displays the POI icon such as:
Hotel
Coffeehouse
Food & Drink
Nightlife Attraction
This icon appears when your
selection exists in multiple
categories within the
system.
When you are viewing additional
information for hotels, cityseekr will
also tell you if the hotel has certain
services and facilities using icons.
For restaurants, cityseekr can provide
information such as star rating,
average cost, review, handicap
access, hours of operation, and
website address.
For hotels, cityseekr can provide
information such as star rating, price
category, review, check in/out times,
hotel service icons and website
address.
Setting Your Navigation
Preferences
Select settings for the system to take
into account when planning your
route. Press the Settings icon >
Settings > Navigation.
You Can
When You Select
· Turn breadcrumbs on and off.
Map Preferences
· Choose how you want to view the turn list (top-to-
bottom or bottom-to-top).
410
MyLincoln Touch
™E143884 E142636 E142637 E142638 E142639 E142640 E142607

You Can
When You Select
· Set the automatic parking POI notification. (When
parking POI notification is on, parking POI icons
display on the map when you get close to your
destination. This may not be very useful in dense
areas, and may clutter the map if other POIs are
also set for display.)
· Avoid freeways, toll roads, ferries and car trains
when planning your route.
Route Preferences
· Use HOV lanes (if available), and have the system
always select the shortest distance, fastest time or
most economical route.
· Choose prompts to be either voice or tone only.
Navigation Preferences
· Have the system automatically fill in the state and
province based on the information already entered
into the system.
Choose how you want the system to handle traffic
problems along your route.
Traffic Preferences
· Automatic: Have the system reroute you to avoid
traffic incidents that develop and impact the current
route (no notification is provided).
·
Manual: Have the system always provide a traffic
alert notification for traffic incidents along the
planned route. You have a choice to accept or ignore
the notification before the route deviation is made.
Choose areas which you want the system to avoid
when calculating a route for you. Press
Add to
select a category.
Avoid Areas
Once you make a selection, the system tries to avoid
the area(s) if possible for all routes. To delete a
selection, choose the listing on the screen; when
the screen changes to
Avoid Areas Edit, press
Delete at the bottom right of the screen.
411
MyLincoln Touch
™

Map Mode
Press the green bar in the upper right
area of the touchscreen to view map
mode. Map mode shows advanced
viewing comprised of both 2D city
maps as well as 3D landmarks (when
available).
2D city maps show detailed outlines
of buildings, visible land use and land
elements and detailed railway
infrastructure for the most essential
cities around the globe. These maps
also contain features such as town
blocks, building footprints, and
railways.
3D landmarks appear as clear, visible
objects which are typically
recognizable and have a certain
tourist value. The 3D landmarks
appear in 3D map mode only.
Change the appearance of the map
display by repeatedly pressing the
arrow button in the upper left corner
of the screen. It toggles between three
different map modes; Heading up,
North up, and 3D. Heading up (2D map) always
shows the direction of forward
travel to be upward on the
screen. This view is available for map
scales up to 2.5 miles (4 kilometers).
For larger map scales, this setting is
remembered, but the map is shown
in North up only. If the scale returns
below this level, then Heading up is
restored. North up (2D map) always
shows the northern direction
to be upward on the screen. 3D map mode
provides an
elevated perspective of the
map. This viewing angle can
be adjusted and the map can
be rotated 180 degrees by dragging
your finger along the shaded bar with
arrows at the bottom of the map. Re-centering the map
can
be done by pressing this icon
whenever you scroll the map
away from your vehicle's current
location.
412
MyLincoln Touch
™E142641 E142642 E142643 E142644 E146188

Auto Zoom
Press the green bar to access map
mode, then select the + or - zoom
button to bring up the zoom level and
Auto buttons on the touchscreen.
When the Auto button is pressed,
Auto Zoom is turned on and Auto is
displayed in the bottom left corner of
the screen. The map zoom level then
synchronizes with vehicle speed. The
slower the vehicle is traveling, the
farther in the map is zoomed in; the
faster the vehicle is traveling, the
farther the map is zoomed out. To turn
the feature off, just press the + or -
button again.
Map Icons
Vehicle mark shows the
current location of the
vehicle. It stays in the center
of the map display, except
when in scroll mode. Scroll cursor
allows you to
scroll the map; the icon is fixed
in the center of the screen. The
map position closest to the cursor is
in a window on the top center part of
the screen. Address book entry default
icon(s)
indicates the location
on the map of an address book
entry. This is the default symbol
shown after the entry has been stored
to the Address Book by any method
other than the map. A different icon
can be selected from the 22 icons
available; each icon can be used more
than once. Home
indicates the location
on the map currently stored as
the home position. Only one
entry from the Address Book
can be saved as Home. This icon
cannot be changed. POI (Point Of Interest)
icons
can be displayed on the
map and can be turned on or
off. There are about 56 subcategories
of POIs that can be selected to be
displayed on the map one at a time. Starting point
indicates the
starting point of a planned
route. Waypoint
indicates the
location of a waypoint on the
map. The number inside the
circle is different for each
waypoint and represents the position
of the waypoint in the route list. Destination symbol indicates
the ending point of a planned
route.
Next maneuver point
indicates the location of the
next turn on the planned route.
No GPS symbol indicates that
insufficient GPS satellite
signals are available for
accurate map positioning. This
icon may be intermittently displayed
under normal operation in an area
with poor GPS access.
413
MyLincoln Touch
™E142646 E142647 E142648 E142649 E142650 E142651 E142652 E142653 E142654 E142655
