2013 LINCOLN MKZ Owners Manual

To Release the Trunk
Enter the factory set code or your
personal code, then press 5·6 within
five seconds.
Displaying the Factory Set Code
Note: You will need to have two
programmed intelligent access keys
for this procedure.
To display the factory set code in the
information display:
1. Place the first programmed key in the backup slot at the bottom of
the cupholder (after removing the
rubber cover).
2. Press the
START/STOP button
once and wait a few seconds.
3. Press the
START/STOP button
again and remove the key.
4. Insert the second programmed key
into the backup slot, then press the
START/STOP
button.
The factory set code will appear in the
information display for a few seconds.
Note: The code may not display until
after any other warning messages first
display. INTERIOR LUGGAGE
COMPARTMENT RELEASE WARNINGS
Keep vehicle doors and luggage
compartment locked and keep
keys and remote transmitters out of
a child ’s reach. Unsupervised children
could lock themselves in the trunk and
risk injury. Children should be taught
not to play in vehicles. Do not leave children, unreliable
adults, or animals unattended in
the vehicle. On hot days, the
temperature in the trunk or vehicle
interior can rise very quickly. Exposure
of people or animals to these high
temperatures for even a short time
can cause death or serious
heat-related injuries, including brain
damage. Small children are
particularly at risk. Your vehicle is equipped with a
release handle that provides a means
of escape for children and adults if
they become locked inside the
luggage compartment.
Adults should familiarize themselves
with the operation and location of the
release handle.
70
Locks

The handle is located inside the
luggage compartment either on the
luggage compartment door (lid) or
near the tail lamps. It is composed of
a material that will glow for hours in
darkness following brief exposure to
ambient light.
Pull the handle and push up on the
luggage compartment door (lid) to
open from within the luggage
compartment.
71
LocksE144403

PASSIVE ANTI-THEFT
SYSTEM
Note:
The system is not compatible
with non-Ford aftermarket remote start
systems. Use of these systems may
result in vehicle starting problems and
a loss of security protection.
Note: Metallic objects, electronic
devices or a second coded key on the
same key chain may cause vehicle
starting problems if they are too close
to the key when starting the engine.
Prevent these objects from touching
the coded key while starting the engine.
Switch the ignition off, move all objects
on the key chain away from the coded
key and restart the engine if a problem
occurs.
Note: Do not leave a duplicate coded
key in the vehicle. Always take your
keys and lock all doors when leaving
the vehicle.
SecuriLock®
The system is an engine
immobilization system. It is designed
to help prevent the engine from being
started unless a coded key
programmed to your vehicle is used.
Using the wrong key may prevent the
engine from starting. A message may
appear in the information display.
If you are unable to start the engine
with a correctly coded key, a
malfunction has happened and a
message may appear in the
information display. Automatic Arming
The vehicle is armed immediately
after switching the ignition off.
Automatic Disarming
Switching the ignition on with a coded
key disarms the vehicle.
Replacement Keys
Note:
Your vehicle comes equipped
with two intelligent access keys.
The intelligent access key functions
as a programmed key that operates
the driver door lock and activates the
intelligent access with push button
start system, as well as a remote
control.
If your programmed transmitters are
lost or stolen and you do not have an
extra coded key, you will need to have
your vehicle towed to an authorized
dealer. The key codes need to be
erased from your vehicle and new
coded keys will need to be
programmed.
Store an extra programmed key away
from the vehicle in a safe place to help
prevent any inconveniences. See your
authorized dealer to purchase
additional spare or replacement keys.
Programming a Spare Intelligent
Access Key
Note: You can program a maximum
for four intelligent access keys to your
vehicle.
72
Security

You must have two previously
programmed intelligent access keys
inside the vehicle and the new
unprogrammed intelligent access keys
readily accessible. See your
authorized dealer to have the spare
key programmed if two previously
programmed keys are not available.
Make sure that the vehicle is off
before beginning this procedure. Make
sure that all doors are closed before
beginning and that they remain closed
throughout the procedure. Perform all
steps within 30 seconds of starting
the sequence. Stop and wait for at
least one minute before starting again
if any steps are performed out of
sequence.
Read and understand the entire
procedure before you begin.
1. Place a programmed intelligent
access key in the backup slot at
the bottom of the cupholder (after
removing the rubber covering).
2. Wait 5 seconds, then press the START/STOP button.
3. Remove the intelligent access key.
4. Within 10 seconds, place a second
programmed intelligent access key
in the backup slot and press the
START/STOP
button.
5. Wait 5 seconds, then press the START/STOP
button again.
6. Remove the intelligent access key.
7. Wait 5 seconds, then place the unprogrammed intelligent access
key in the backup slot and press
the
START/STOP button. The intelligent access key is now
programmed. Verify the remote
control functions operate and the
vehicle starts with the new intelligent
access key.
If it was not programmed successfully,
wait 10 seconds and repeat Steps 1
through 7. If you are still unsuccessful,
take your vehicle to your authorized
dealer.
ANTI-THEFT ALARM
(IF
EQUIPPED)
The system will warn you of an
unauthorized entry to your vehicle. It
will be triggered if any door, the
luggage compartment or the hood is
opened without using the key, remote
control or keyless entry keypad.
The direction indicators will flash and
the horn will sound if unauthorized
entry is attempted while the alarm is
armed.
Take all remote controls to an
authorized dealer if there is any
potential alarm problem with your
vehicle.
Arming the Alarm
The alarm is ready to arm when there
is not a key in the ignition.
Electronically lock the vehicle to arm
the alarm.
Disarming the Alarm
Disarm the alarm by any of the
following actions:
73
Security

•
Unlock the doors or luggage
compartment with the remote
control or keyless entry keypad.
• Switch the ignition on or start the
vehicle.
• Use a key in the driver ’s door to
unlock the vehicle, then switch the
ignition on within 12 seconds.
Note: Pressing the panic button on the
remote control will stop the horn and
signal indicators, but will not disarm
the system.
74
Security

ADJUSTING THE STEERING
WHEEL
WARNING
Do not adjust the steering wheel
when your vehicle is moving.
Note:
Make sure that you are sitting in
the correct position. See Sitting in the
Correct Position (page 131). 1. Unlock the steering column.
2. Adjust the steering wheel to the
desired position. 3. Lock the steering column. Power Tilt and Telescope
Steering Column
(If Equipped) WARNING
Do not adjust the steering wheel
when your vehicle is moving.
Note:
Make sure that you are sitting in
the correct position. See Sitting in the
Correct Position
(page 131). Use the control on the side of the
steering column to adjust the position.
To adjust:
•
tilt: use the top or bottom of the
control
• telescope: use the front or rear of
the control.
Easy Entry and Exit Feature
The column will move to the full up
and in position when the ignition is
turned off and this feature is activated
through the information display. The
column will return to the previous
setting when the ignition is turned on.
75
Steering Wheel2
2
1E157083 E157084 E145975

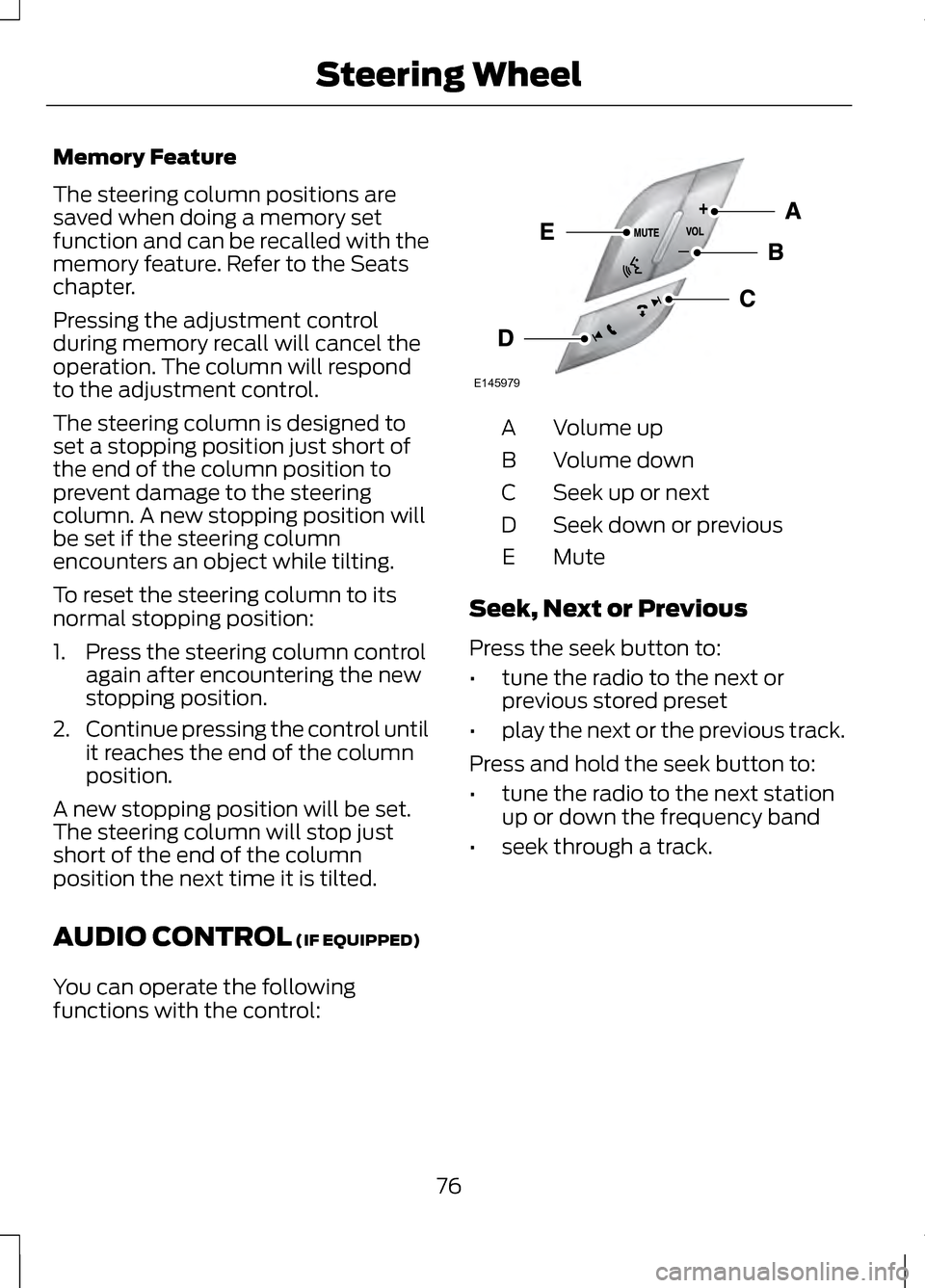

Memory Feature
The steering column positions are
saved when doing a memory set
function and can be recalled with the
memory feature. Refer to the Seats
chapter.
Pressing the adjustment control
during memory recall will cancel the
operation. The column will respond
to the adjustment control.
The steering column is designed to
set a stopping position just short of
the end of the column position to
prevent damage to the steering
column. A new stopping position will
be set if the steering column
encounters an object while tilting.
To reset the steering column to its
normal stopping position:
1. Press the steering column control
again after encountering the new
stopping position.
2. Continue pressing the control until
it reaches the end of the column
position.
A new stopping position will be set.
The steering column will stop just
short of the end of the column
position the next time it is tilted.
AUDIO CONTROL (IF EQUIPPED)
You can operate the following
functions with the control: Volume up
A
Volume down
B
Seek up or next
C
Seek down or previous
D
MuteE
Seek, Next or Previous
Press the seek button to:
• tune the radio to the next or
previous stored preset
• play the next or the previous track.
Press and hold the seek button to:
• tune the radio to the next station
up or down the frequency band
• seek through a track.
76
Steering WheelE145979

VOICE CONTROL (IF EQUIPPED)
Voice recognition
A
End a call
B
Answer a call
C
See
MyLincoln Touch ™ (page 337).
CRUISE CONTROL
Type 1 Type 2
See
Cruise Control (page 195).
INFORMATION DISPLAY
CONTROL See Information Displays (page 100).
Cluster Display Control
Features
77
Steering WheelE145980 E145976 E145977 E145981 E145982
