2012 SSANGYONG NEW REXTON Service Manual

0000-00

0000-00
5. RECOMMENDED FLUIDS AND LUBRICANTS
- Use only Ssangyong recommended fluids and lubricants.
- Keep the specified levels when adding or replacing the fluids.
- Do not mix any different types or brands of oils or fluids. This may cause damages.
D20DTR: Diesel 2.0 (EU5), D20DT: Diesel 2.0, D27DTP: Diesel 2.7 Power-Up,
D27DT: Diesel 2.7, G32D: Gasoline

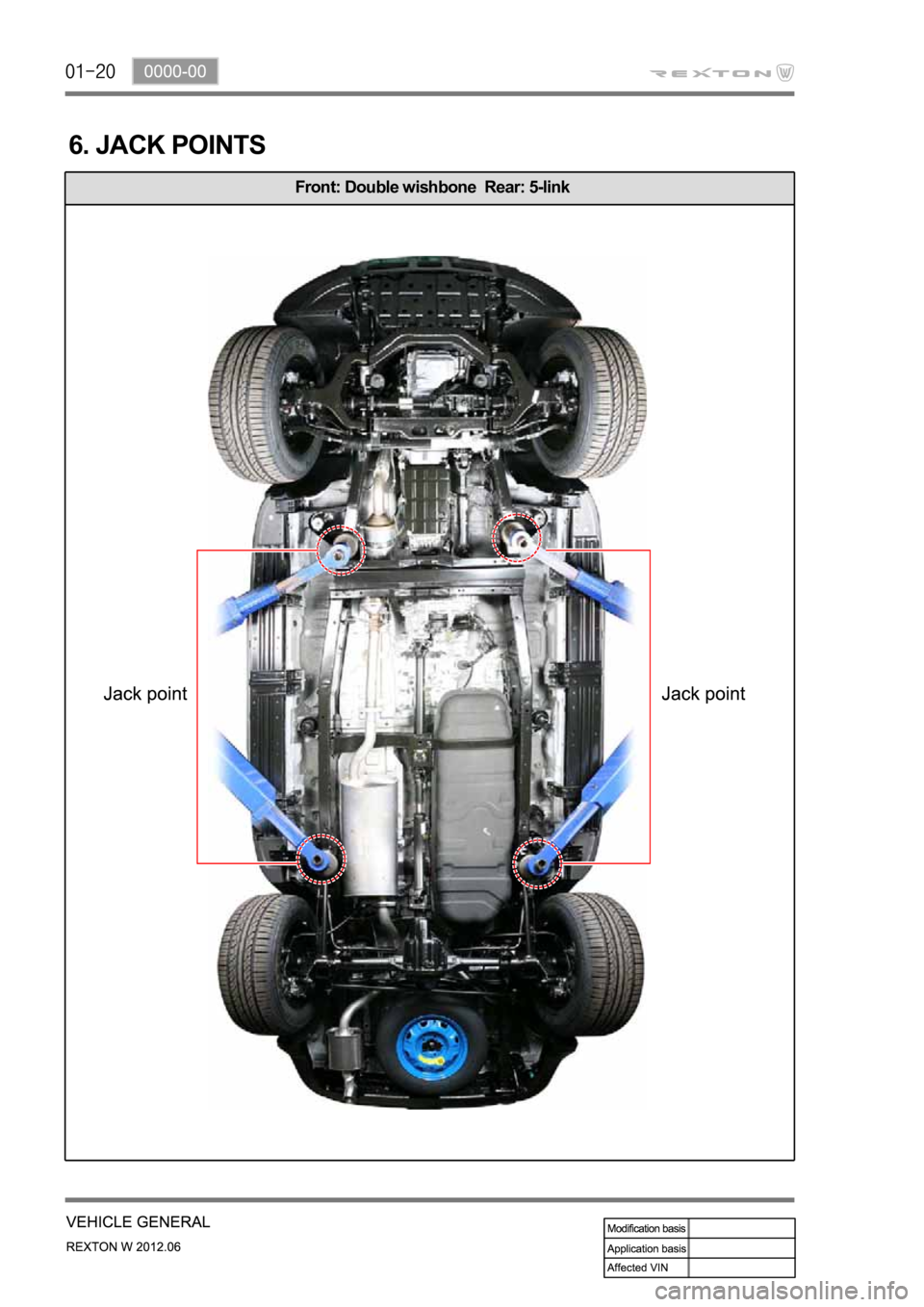

Front: Double wishbone Rear: 5-link
6. JACK POINTS

0000-00
The diagnostic connector is located at bottom of instrument panel. It consists of 16 pins.
The REKES key should be coded by the scan tool.
Connector Pin
Diagnostic connector
Pin No. Function
1 CAN HI S203 "18"
2 CAN LO S203 "8"
3 -
4 Ground
5 Ground
6 CAN HI S202 "14"
7 -
8
9
10 -
11 TCU "A18"(5-A/T)
12
13 TCCU "21"
14 CAN LO S202 "4"
15 STICS "B21"
16 B+
7. PIN ARRANGEMENT OF DIAGNOSTIC CONNECTOR

8. ELECTRIC COMPONENTS AND LAYOUT
1) Wiring Harness Arrangement

0000-00
2) Components Locator

9. TIGHTENING TORQUE OF STANDARD BOLTS
Tightening Torque By Bolt Specification
Metric bolt strength is embossed on the
head of each bolt. The strength of bolt can
be classified as 4T, 7T, 8.8T, 10.9T, 11T
and 12.9T in general.
Observe standard tightening torque during
bolt tightening works and can adjust torque
to be proper within 15 % if necessary. Tr
y
not to over max. allowable tightening
torque if not required to do so. 1.
2.Determine extra proper tightening torque if
tightens with washer or packing.
If tightens bolts on the below materials, be
sure to determine the proper torque. 3.
4.
Aluminum alloy: Tighten to 80 % of
above torque table.
Plastics: Tighten to 20 % of above
torque table.
