1. D27DT ENGINE STRUCTURE
1) Major Components in Engine and Engine Compartment
The advanced electronically controlled D27DT engine that has high pressure fuel system has
been introduced to this vehicle. It satisfies the strict emission regulation and provides improved
output and maximum torque.
1. Coolant reservoir
2. FFH device
3. Brake fluid reservoir
4. Washer fluid reservoir
5. Common rail6. Fuse box
7. Battery
8. Fuel filter
9. Power steering pump
10. Priming pump11. EGR valve
12. Air cleaner assembly
13. Turbo charger
14. Oil dipstick

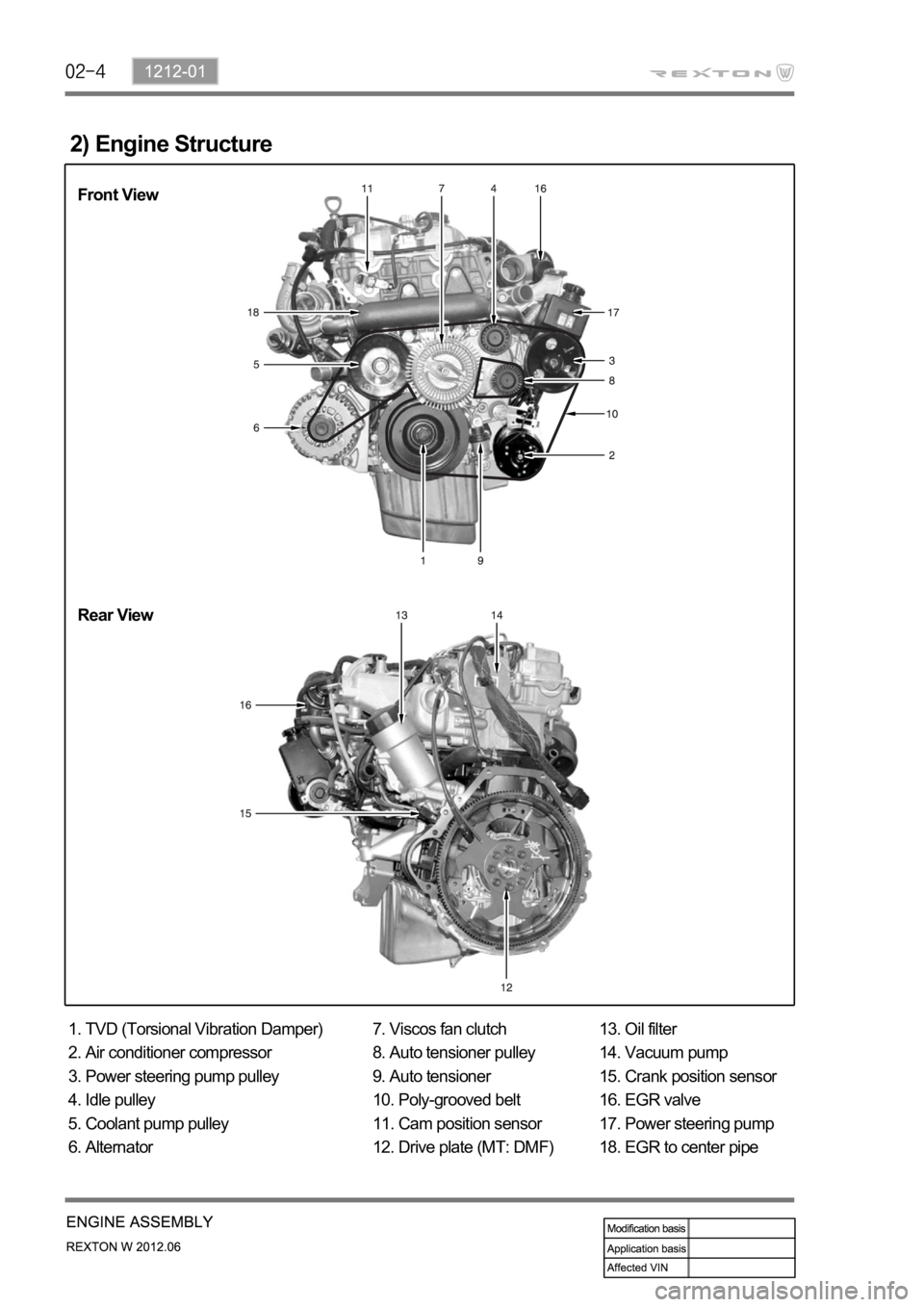

2) Engine Structure
1. TVD (Torsional Vibration Damper)
2. Air conditioner compressor
3. Power steering pump pulley
4. Idle pulley
5. Coolant pump pulley
6. Alternator7. Viscos fan clutch
8. Auto tensioner pulley
9. Auto tensioner
10. Poly-grooved belt
11. Cam position sensor
12. Drive plate (MT: DMF)13. Oil filter
14. Vacuum pump
15. Crank position sensor
16. EGR valve
17. Power steering pump
18. EGR to center pipe
Front View
Rear View

1212-01
Top View
19. Cylinder head cover
20. Intake manifold
21. Water outlet port
22. Common rail
23. Fuel pressure sensor24. Fuel pipe
25. Injector
26. Fuel return line
27. Oil filler cap
28. Glow plug29. Booster pressure sensor
30. PCV valve and oil separator
31. Oil dipstick
32. EGR-LH (#1) pipe

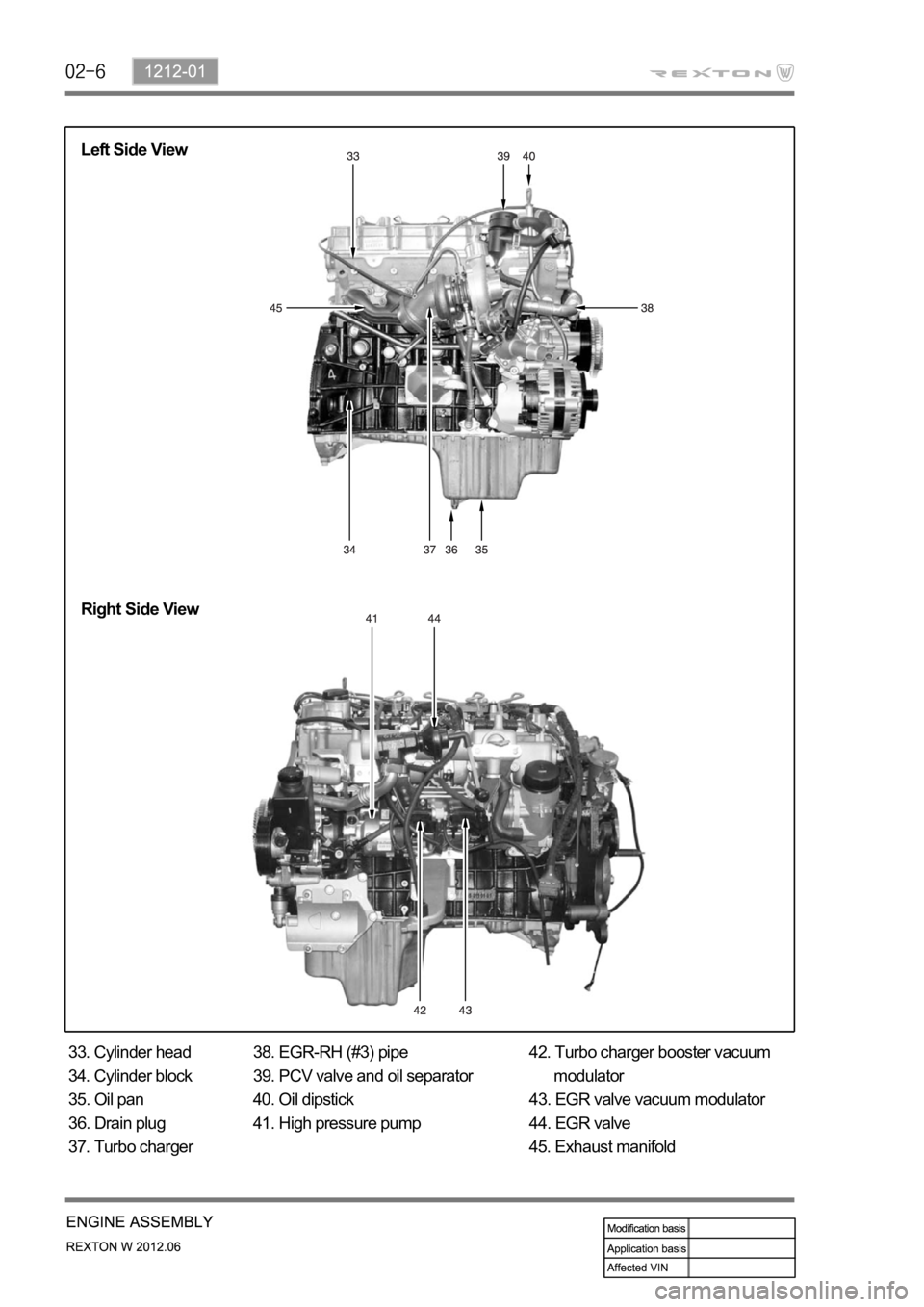

Left Side View
33. Cylinder head
34. Cylinder block
35. Oil pan
36. Drain plug
37. Turbo charger38. EGR-RH (#3) pipe
39. PCV valve and oil separator
40. Oil dipstick
41. High pressure pump42. Turbo charger booster vacuum
modulator
43. EGR valve vacuum modulator
44. EGR valve
45. Exhaust manifold
Right Side View
