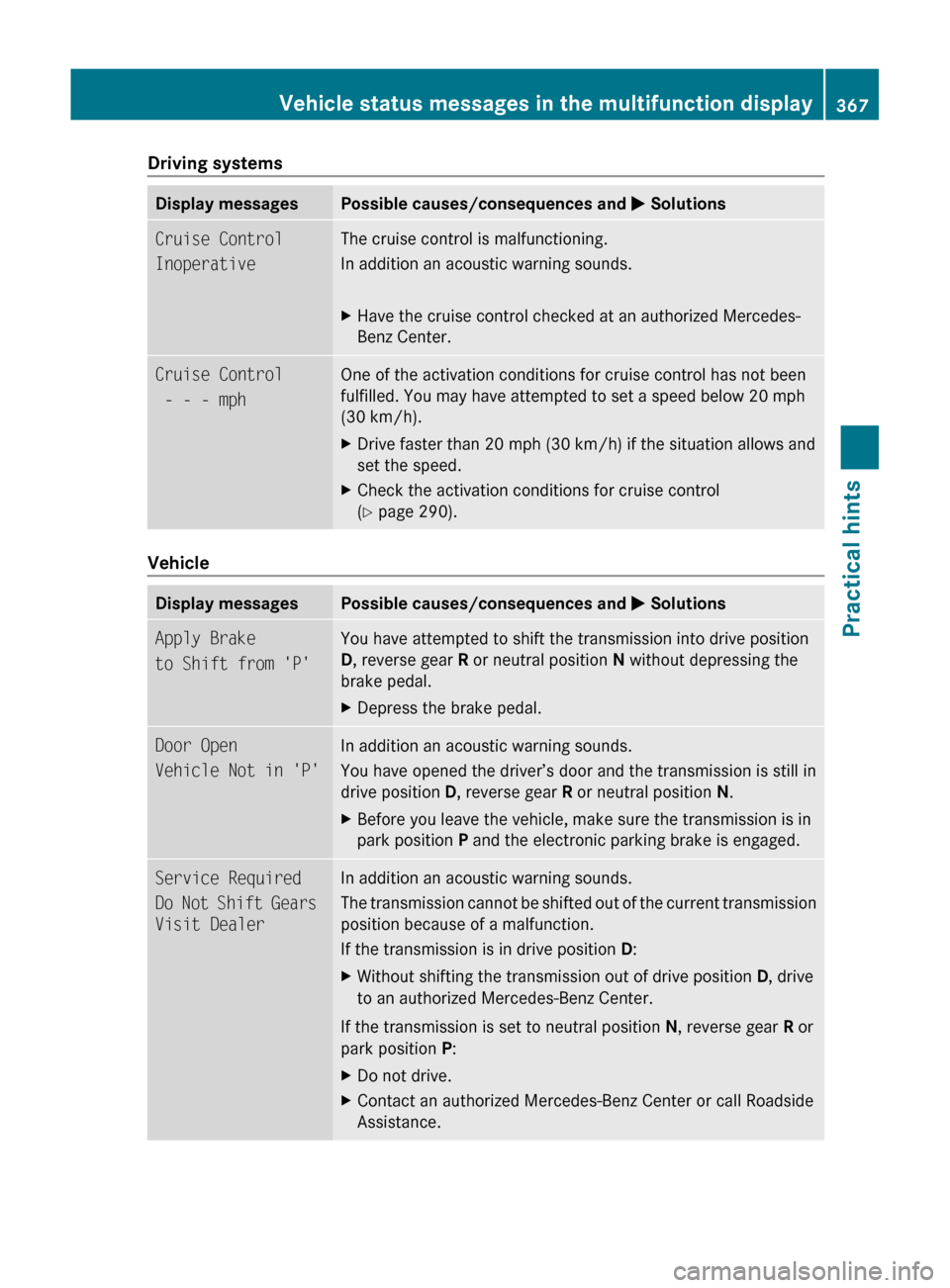

Driving systemsDisplay messagesPossible causes/consequences and M SolutionsCruise Control
InoperativeThe cruise control is malfunctioning.
In addition an acoustic warning sounds.XHave the cruise control checked at an authorized Mercedes-
Benz Center.Cruise Control
- - - mph One of the activation conditions for cruise control has not been
fulfilled. You may have attempted to set a speed below 20 mph
(30 km/h). XDrive faster than 20 mph (30 km/h) if the situation allows and
set the speed.XCheck the activation conditions for cruise control
( Y page 290).
Vehicle
Display messagesPossible causes/consequences and M SolutionsApply Brake
to Shift from 'P'You have attempted to shift the transmission into drive position
D , reverse gear R or neutral position N without depressing the
brake pedal.XDepress the brake pedal.Door Open
Vehicle Not in 'P'In addition an acoustic warning sounds.
You have opened the driver’s door and the transmission is still in
drive position D, reverse gear R or neutral position N.XBefore you leave the vehicle, make sure the transmission is in
park position P and the electronic parking brake is engaged.Service Required
Do Not Shift Gears
Visit DealerIn addition an acoustic warning sounds.
The transmission cannot be shifted out of the current transmission
position because of a malfunction.
If the transmission is in drive position D:XWithout shifting the transmission out of drive position D, drive
to an authorized Mercedes-Benz Center.
If the transmission is set to neutral position N, reverse gear R or
park position P:
XDo not drive.XContact an authorized Mercedes-Benz Center or call Roadside
Assistance.Vehicle status messages in the multifunction display367Practical hintsBA 197 USA, CA Edition A 2011; 1; 27, en-UShereepeVersion: 3.0.3.52010-03-24T15:31:10+01:00 - Seite 367Z

Display messagesPossible causes/consequences and M SolutionsOnly Shift to 'P'
when Vehicle is
StationaryYou have attempted to shift the transmission into park position
P although the vehicle was still in motion.XStop your vehicle as soon as it is safe to do so.XShift the transmission to park position P.Shift to 'P' or 'N'
to Start EngineYou have attempted to start the engine while the transmission was
in reverse gear R or drive position D.XShift the transmission into park position P or neutral position
N . Make sure the brake pedal is depressed.Auxiliary Battery
MalfunctionThe backup battery for the transmission is no longer charging. XContact an authorized Mercedes-Benz Center.
Tires
Display messagesPossible causes/consequences and M SolutionsTire pressures
will be displayed
after driving a
few minutesThe tire inflation pressure is being checked by the Advanced
TPMS.XDrive the vehicle for a few minutes.Tire Pressure
Monitor
InoperativeThe Advanced TPMS is malfunctioning. XHave the Advanced TPMS checked at an authorized Mercedes-
Benz Center.Tire Pressure
Monitor
Inoperative No
Wheel SensorsThere are wheels without appropriate wheel sensors mounted
(e.g. winter tires).XHave the Advanced TPMS checked at an authorized Mercedes-
Benz Center.XHave the appropriate wheel sensors installed at an authorized
Mercedes-Benz Center.TirePress.
Sensor(s)MissingAt least one sensor is defect (e.g. battery is empty).
The respective tire is indicated by – – instead of the tire inflation
pressure in the multifunction display.XHave the Advanced TPMS checked at an authorized Mercedes-
Benz Center.XHave the wheel sensors installed at an authorized Mercedes-
Benz Center.368Vehicle status messages in the multifunction displayPractical hints
BA 197 USA, CA Edition A 2011; 1; 27, en-UShereepeVersion: 3.0.3.52010-03-24T15:31:10+01:00 - Seite 368

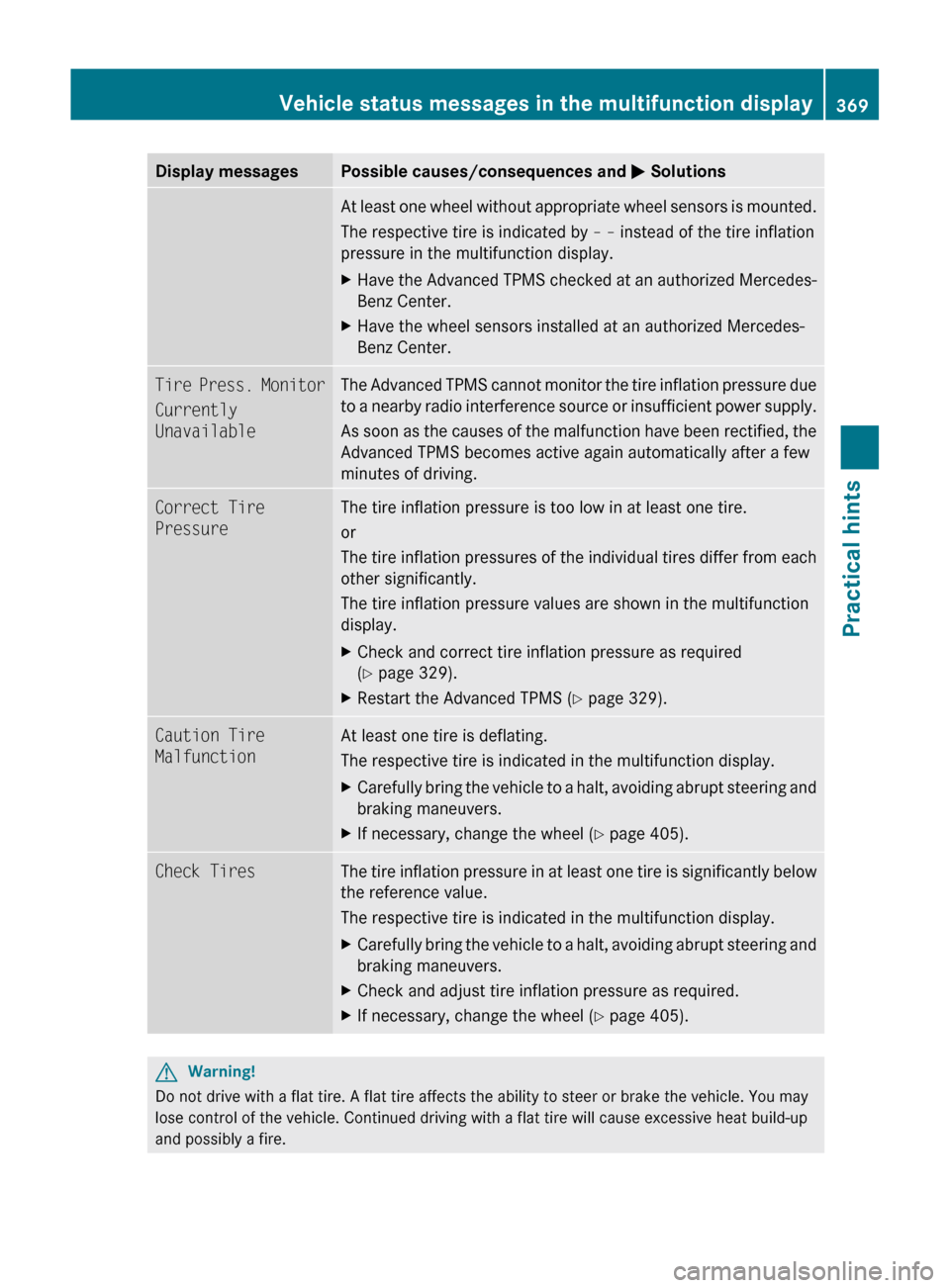

Display messagesPossible causes/consequences and M SolutionsAt least one wheel without appropriate wheel sensors is mounted.
The respective tire is indicated by – – instead of the tire inflation
pressure in the multifunction display.XHave the Advanced TPMS checked at an authorized Mercedes-
Benz Center.XHave the wheel sensors installed at an authorized Mercedes-
Benz Center.Tire Press. Monitor
Currently
UnavailableThe Advanced TPMS cannot monitor the tire inflation pressure due
to a nearby radio interference source or insufficient power supply.
As soon as the causes of the malfunction have been rectified, the
Advanced TPMS becomes active again automatically after a few
minutes of driving.Correct Tire
PressureThe tire inflation pressure is too low in at least one tire.
or
The tire inflation pressures of the individual tires differ from each
other significantly.
The tire inflation pressure values are shown in the multifunction
display.XCheck and correct tire inflation pressure as required
( Y page 329).XRestart the Advanced TPMS ( Y page 329).Caution Tire
MalfunctionAt least one tire is deflating.
The respective tire is indicated in the multifunction display.XCarefully bring the vehicle to a halt, avoiding abrupt steering and
braking maneuvers.XIf necessary, change the wheel ( Y page 405).Check TiresThe tire inflation pressure in at least one tire is significantly below
the reference value.
The respective tire is indicated in the multifunction display.XCarefully bring the vehicle to a halt, avoiding abrupt steering and
braking maneuvers.XCheck and adjust tire inflation pressure as required.XIf necessary, change the wheel ( Y page 405).GWarning!
Do not drive with a flat tire. A flat tire affects the ability to steer or brake the vehicle. You may
lose control of the vehicle. Continued driving with a flat tire will cause excessive heat build-up
and possibly a fire.
Vehicle status messages in the multifunction display369Practical hintsBA 197 USA, CA Edition A 2011; 1; 27, en-UShereepeVersion: 3.0.3.52010-03-24T15:31:10+01:00 - Seite 369Z

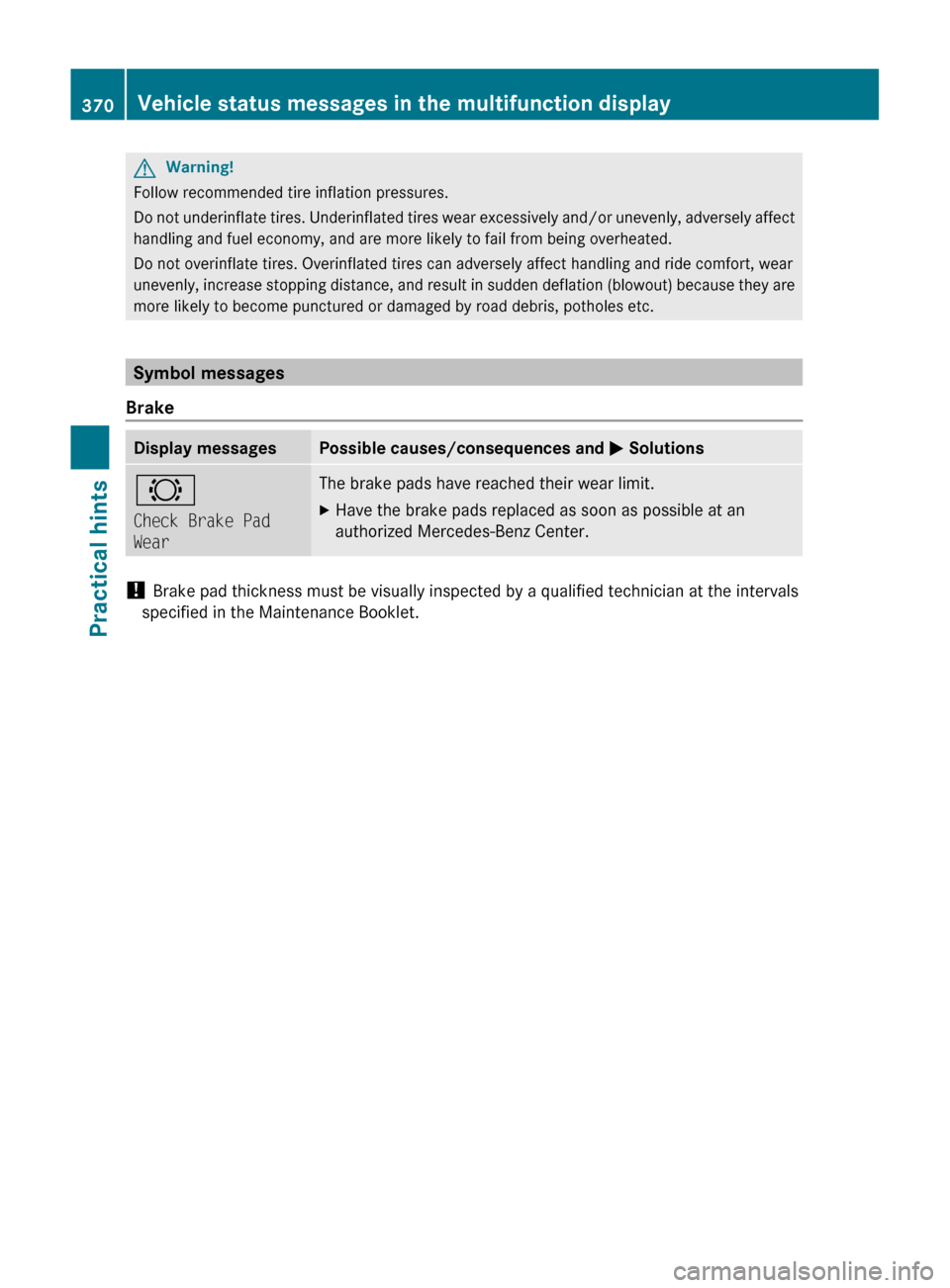

GWarning!
Follow recommended tire inflation pressures.
Do not underinflate tires. Underinflated tires wear excessively and/or unevenly, adversely affect
handling and fuel economy, and are more likely to fail from being overheated.
Do not overinflate tires. Overinflated tires can adversely affect handling and ride comfort, wear
unevenly, increase stopping distance, and result in sudden deflation (blowout) because they are
more likely to become punctured or damaged by road debris, potholes etc.
Symbol messages
Brake
Display messagesPossible causes/consequences and M Solutions#
Check Brake Pad
WearThe brake pads have reached their wear limit. XHave the brake pads replaced as soon as possible at an
authorized Mercedes-Benz Center.
! Brake pad thickness must be visually inspected by a qualified technician at the intervals
specified in the Maintenance Booklet.
370Vehicle status messages in the multifunction displayPractical hints
BA 197 USA, CA Edition A 2011; 1; 27, en-UShereepeVersion: 3.0.3.52010-03-24T15:31:10+01:00 - Seite 370

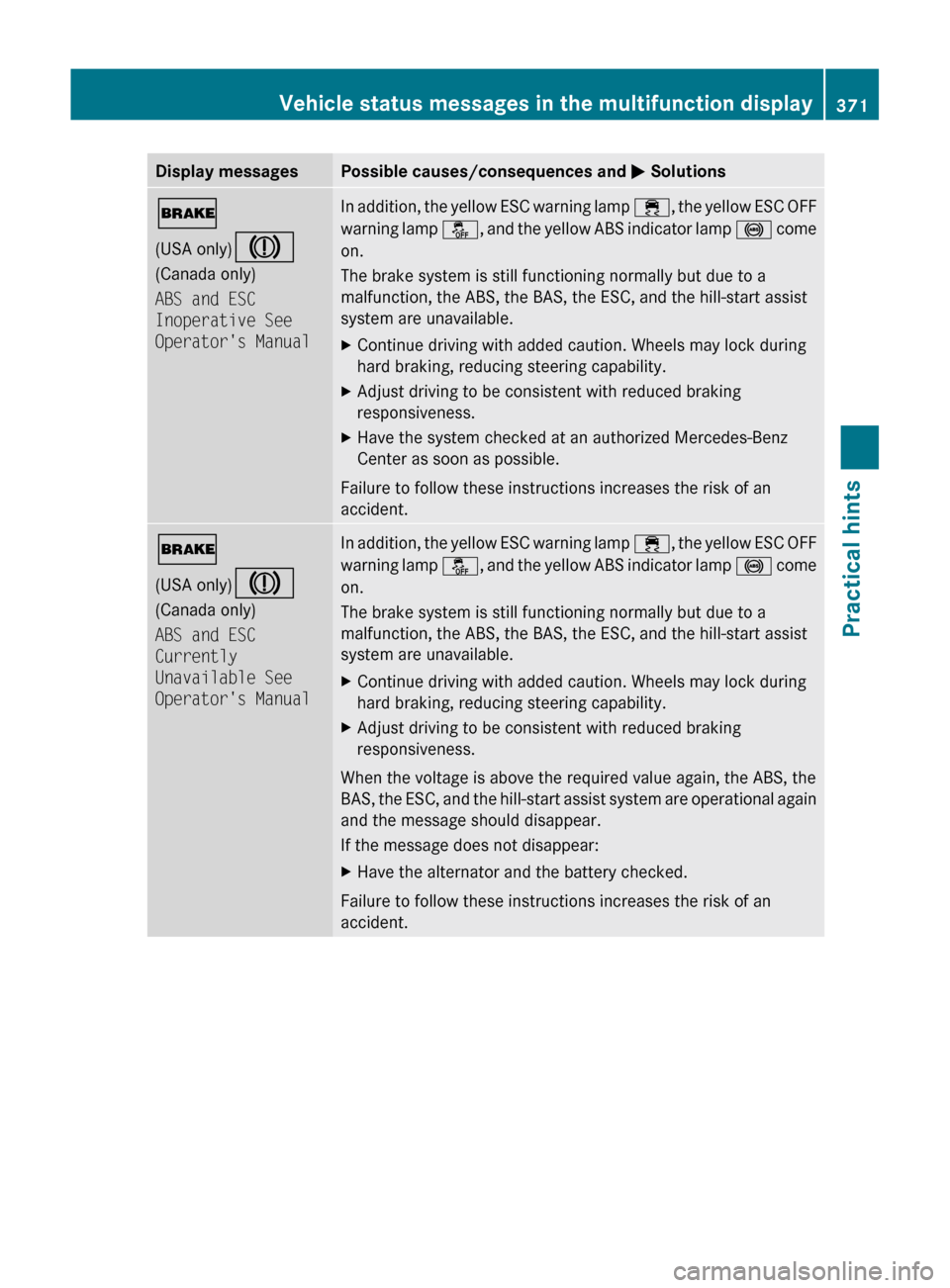

Display messagesPossible causes/consequences and M Solutions$
(USA only) J
(Canada only)
ABS and ESC
Inoperative See
Operator's ManualIn addition, the yellow ESC warning lamp ÷, the yellow ESC OFF
warning lamp å, and the yellow ABS indicator lamp ! come
on.
The brake system is still functioning normally but due to a
malfunction, the ABS, the BAS, the ESC, and the hill-start assist
system are unavailable.XContinue driving with added caution. Wheels may lock during
hard braking, reducing steering capability. XAdjust driving to be consistent with reduced braking
responsiveness.XHave the system checked at an authorized Mercedes-Benz
Center as soon as possible.
Failure to follow these instructions increases the risk of an
accident.
$
(USA only) J
(Canada only)
ABS and ESC
Currently
Unavailable See
Operator's ManualIn addition, the yellow ESC warning lamp ÷, the yellow ESC OFF
warning lamp å, and the yellow ABS indicator lamp ! come
on.
The brake system is still functioning normally but due to a
malfunction, the ABS, the BAS, the ESC, and the hill-start assist
system are unavailable.XContinue driving with added caution. Wheels may lock during
hard braking, reducing steering capability.XAdjust driving to be consistent with reduced braking
responsiveness.
When the voltage is above the required value again, the ABS, the
BAS, the ESC, and the hill-start assist system are operational again
and the message should disappear.
If the message does not disappear:
XHave the alternator and the battery checked.
Failure to follow these instructions increases the risk of an
accident.
Vehicle status messages in the multifunction display371Practical hintsBA 197 USA, CA Edition A 2011; 1; 27, en-UShereepeVersion: 3.0.3.52010-03-24T15:31:10+01:00 - Seite 371Z

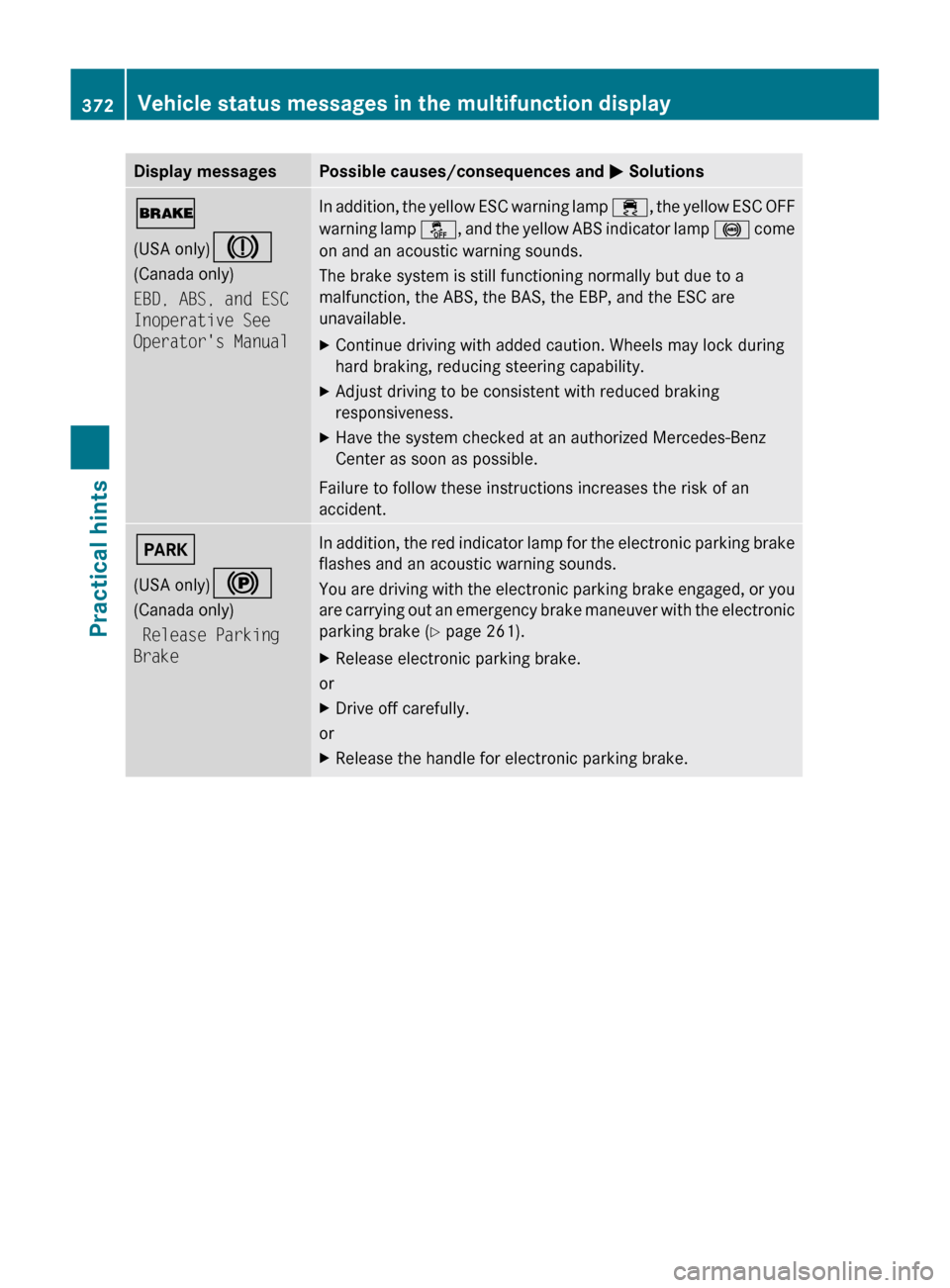

Display messagesPossible causes/consequences and M Solutions$
(USA only) J
(Canada only)
EBD, ABS, and ESC
Inoperative See
Operator's ManualIn addition, the yellow ESC warning lamp ÷, the yellow ESC OFF
warning lamp å, and the yellow ABS indicator lamp ! come
on and an acoustic warning sounds.
The brake system is still functioning normally but due to a
malfunction, the ABS, the BAS, the EBP, and the ESC are
unavailable. XContinue driving with added caution. Wheels may lock during
hard braking, reducing steering capability.XAdjust driving to be consistent with reduced braking
responsiveness.XHave the system checked at an authorized Mercedes-Benz
Center as soon as possible.
Failure to follow these instructions increases the risk of an
accident.
F
(USA only) !
(Canada only)
Release Parking
BrakeIn addition, the red indicator lamp for the electronic parking brake
flashes and an acoustic warning sounds.
You are driving with the electronic parking brake engaged, or you
are carrying out an emergency brake maneuver with the electronic
parking brake ( Y page 261).XRelease electronic parking brake.
or
XDrive off carefully.
or
XRelease the handle for electronic parking brake.372Vehicle status messages in the multifunction displayPractical hints
BA 197 USA, CA Edition A 2011; 1; 27, en-UShereepeVersion: 3.0.3.52010-03-24T15:31:10+01:00 - Seite 372

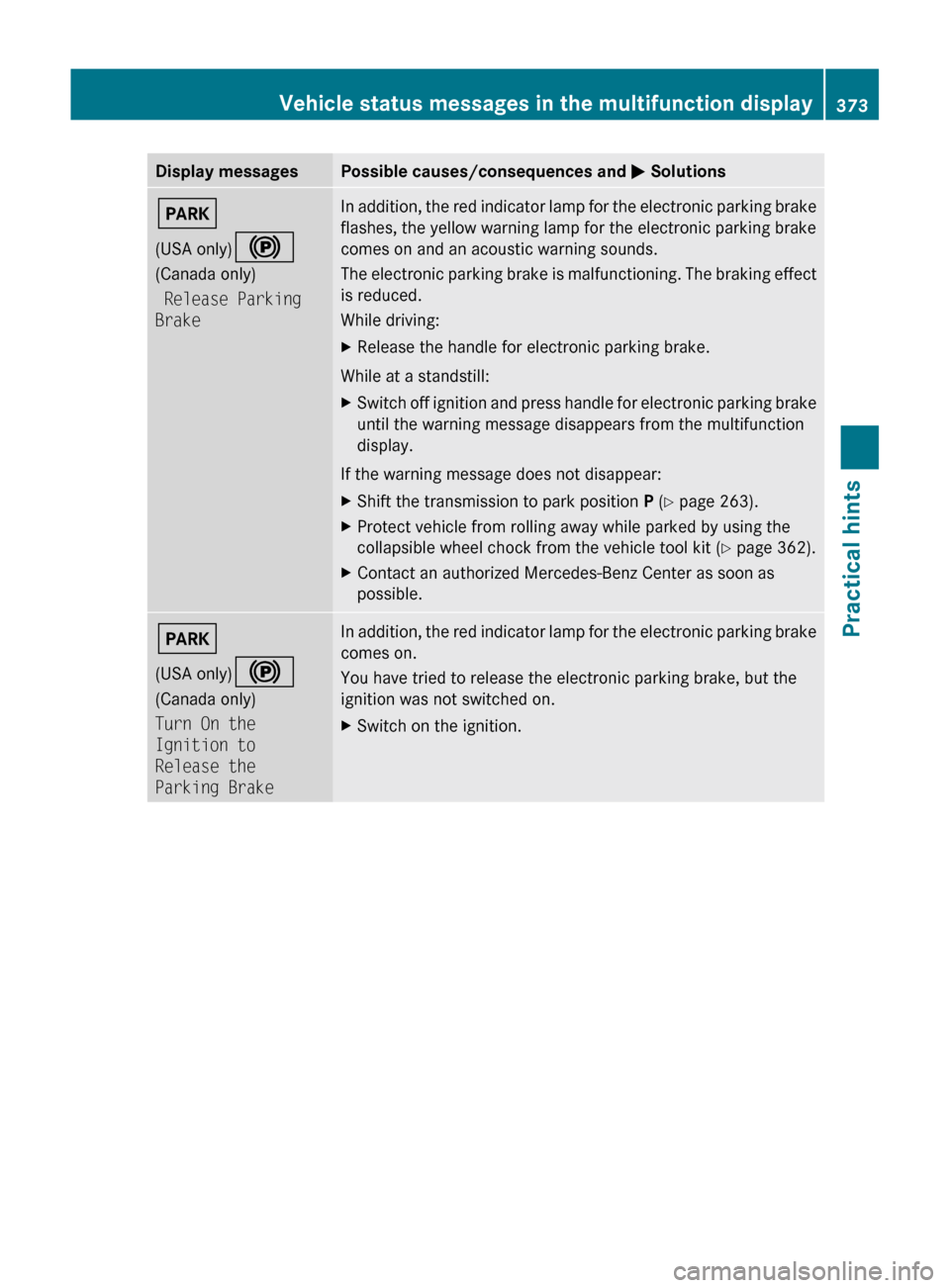

Display messagesPossible causes/consequences and M SolutionsF
(USA only) !
(Canada only)
Release Parking
BrakeIn addition, the red indicator lamp for the electronic parking brake
flashes, the yellow warning lamp for the electronic parking brake
comes on and an acoustic warning sounds.
The electronic parking brake is malfunctioning. The braking effect
is reduced.
While driving:XRelease the handle for electronic parking brake.
While at a standstill:
XSwitch off ignition and press handle for electronic parking brake
until the warning message disappears from the multifunction
display.
If the warning message does not disappear:
XShift the transmission to park position P (Y page 263).XProtect vehicle from rolling away while parked by using the
collapsible wheel chock from the vehicle tool kit ( Y page 362).XContact an authorized Mercedes-Benz Center as soon as
possible.F
(USA only) !
(Canada only)
Turn On the
Ignition to
Release the
Parking BrakeIn addition, the red indicator lamp for the electronic parking brake
comes on.
You have tried to release the electronic parking brake, but the
ignition was not switched on.XSwitch on the ignition.Vehicle status messages in the multifunction display373Practical hintsBA 197 USA, CA Edition A 2011; 1; 27, en-UShereepeVersion: 3.0.3.52010-03-24T15:31:10+01:00 - Seite 373Z

Display messagesPossible causes/consequences and M SolutionsF
(USA only) !
(Canada only)
Parking Brake See
Oper. ManualIn addition, the yellow warning lamp for the electronic parking
brake comes on. The red indicator lamp for the electronic parking
brake may also come on.
The electronic parking brake is malfunctioning.
To release:XPull handle of electronic parking brake.
or
XDrive off carefully.XContact an authorized Mercedes-Benz Center as soon as
possible.
To engage:
XSwitch off the ignitionXPress handle for electronic parking brake for at least 10 seconds
until the warning message in the multifunction display
disappears.
If the warning message does not disappear:
XShift the transmission to park position P (Y page 263).XProtect vehicle from rolling away while parked by using the
collapsible wheel chock from the vehicle tool kit ( Y page 362).XContact an authorized Mercedes-Benz Center as soon as
possible.F
(USA only) !
(Canada only)
Parking Brake See
Oper. ManualIn addition, the red indicator lamp for the electronic parking brake
flashes.
The power supply for the electronic parking brake was interrupted.XPull handle of electronic parking brake.
or
XDrive off carefully.
or
XPress handle for electronic parking brake until the warning
message in the multifunction display disappears.374Vehicle status messages in the multifunction displayPractical hints
