9-10

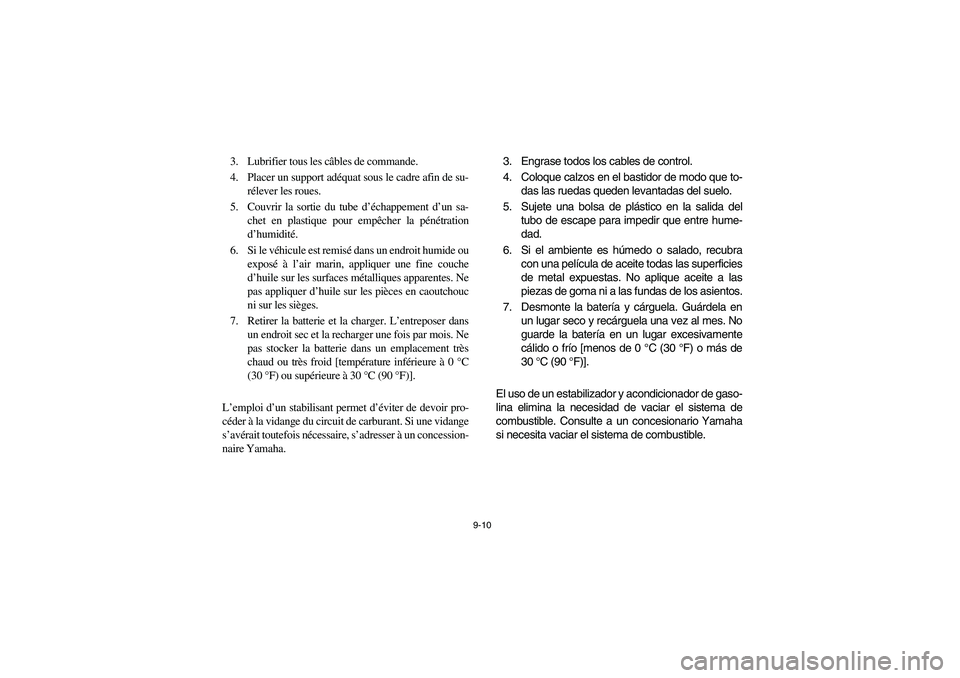

3. Lubrifier tous les câbles de commande.
4. Placer un support adéquat sous le cadre afin de su-
rélever les roues.
5. Couvrir la sortie du tube d’échappement d’un sa-
chet en plastique pour empêcher la pénétration
d’humidité.
6. Si le véhicule est remisé dans un endroit humide ou
exposé à l’air marin, appliquer une fine couche
d’huile sur les surfaces métalliques apparentes. Ne
pas appliquer d’huile sur les pièces en caoutchouc
ni sur les sièges.
7. Retirer la batterie et la charger. L’entreposer dans
un endroit sec et la recharger une fois par mois. Ne
pas stocker la batterie dans un emplacement très
chaud ou très froid [température inférieure à 0 °C
(30 °F) ou supérieure à 30 °C (90 °F)].
L’emploi d’un stabilisant permet d’éviter de devoir pro-
céder à la vidange du circuit de carburant. Si une vidange
s’avérait toutefois nécessaire, s’adresser à un concession-
naire Yamaha.3. Engrase todos los cables de control.
4. Coloque calzos en el bastidor de modo que to-
das las ruedas queden levantadas del suelo.
5. Sujete una bolsa de plástico en la salida del
tubo de escape para impedir que entre hume-
dad.
6. Si el ambiente es húmedo o salado, recubra
con una película de aceite todas las superficies
de metal expuestas. No aplique aceite a las
piezas de goma ni a las fundas de los asientos.
7. Desmonte la batería y cárguela. Guárdela en
un lugar seco y recárguela una vez al mes. No
guarde la batería en un lugar excesivamente
cálido o frío [menos de 0 °C (30 °F) o más de
30 °C (90 °F)].
El uso de un estabilizador y acondicionador de gaso-
lina elimina la necesidad de vaciar el sistema de
combustible. Consulte a un concesionario Yamaha
si necesita vaciar el sistema de combustible.
EE.book Page 10 Tuesday, April 15, 2008 9:11 AM

10-1
EVU01050

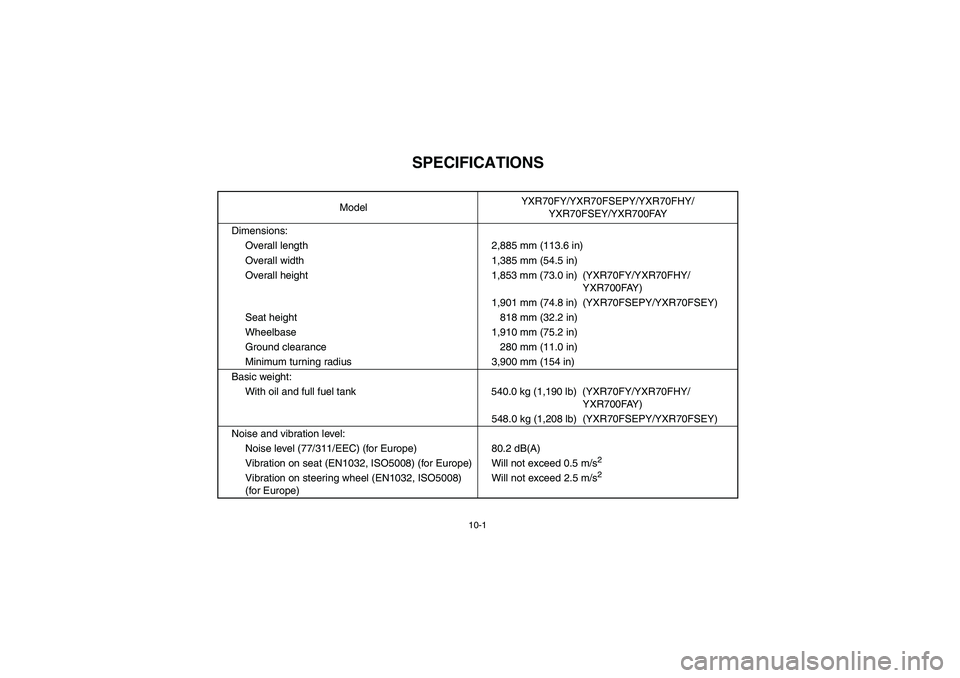

1 -SPECIFICATIONS
ModelYXR70FY/YXR70FSEPY/YXR70FHY/
YXR70FSEY/YXR700FAY
Dimensions:
Overall length 2,885 mm (113.6 in)
Overall width 1,385 mm (54.5 in)
Overall height 1,853 mm (73.0 in) (YXR70FY/YXR70FHY/
YXR700FAY)
1,901 mm (74.8 in) (YXR70FSEPY/YXR70FSEY)
Seat height 818 mm (32.2 in)
Wheelbase 1,910 mm (75.2 in)
Ground clearance 280 mm (11.0 in)
Minimum turning radius 3,900 mm (154 in)
Basic weight:
With oil and full fuel tank 540.0 kg (1,190 lb) (YXR70FY/YXR70FHY/
YXR700FAY)
548.0 kg (1,208 lb) (YXR70FSEPY/YXR70FSEY)
Noise and vibration level:
Noise level (77/311/EEC) (for Europe) 80.2 dB(A)
Vibration on seat (EN1032, ISO5008) (for Europe) Will not exceed 0.5 m/s
2
Vibration on steering wheel (EN1032, ISO5008)
(for Europe)Will not exceed 2.5 m/s
2
EE.book Page 1 Tuesday, April 15, 2008 9:11 AM

10-2
10
Engine:
Engine type Liquid cooled 4-stroke, SOHC
Cylinder arrangement Forward-inclined single cylinder
Displacement 686.0 cm
3
Bore × stroke 102.0 × 84.0 mm (4.02 × 3.31 in)
Compression ratio 9.20:1
Starting system Electric starter
Lubrication system Wet sumpModelYXR70FY/YXR70FSEPY/YXR70FHY/
YXR70FSEY/YXR700FAY
EE.book Page 2 Tuesday, April 15, 2008 9:11 AM

10-3

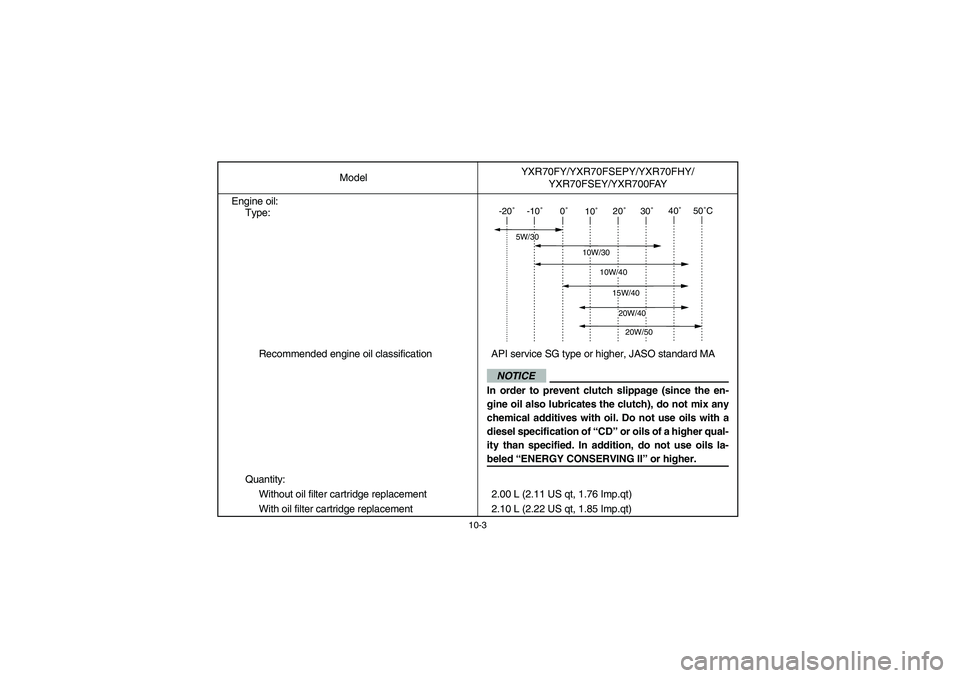

Engine oil:
Type:
Recommended engine oil classification API service SG type or higher, JASO standard MA
Quantity:
Without oil filter cartridge replacement 2.00 L (2.11 US qt, 1.76 Imp.qt)
With oil filter cartridge replacement 2.10 L (2.22 US qt, 1.85 Imp.qt)ModelYXR70FY/YXR70FSEPY/YXR70FHY/
YXR70FSEY/YXR700FAY
-20˚ -10˚ 0˚
10˚20˚ 30˚40˚50˚C
10W/30
15W/4020W/4020W/50
10W/40
5W/30
NOTICEIn order to prevent clutch slippage (since the en-
gine oil also lubricates the clutch), do not mix any
chemical additives with oil. Do not use oils with a
diesel specification of “CD” or oils of a higher qual-
ity than specified. In addition, do not use oils la-beled “ENERGY CONSERVING II” or higher.
EE.book Page 3 Tuesday, April 15, 2008 9:11 AM

10-4

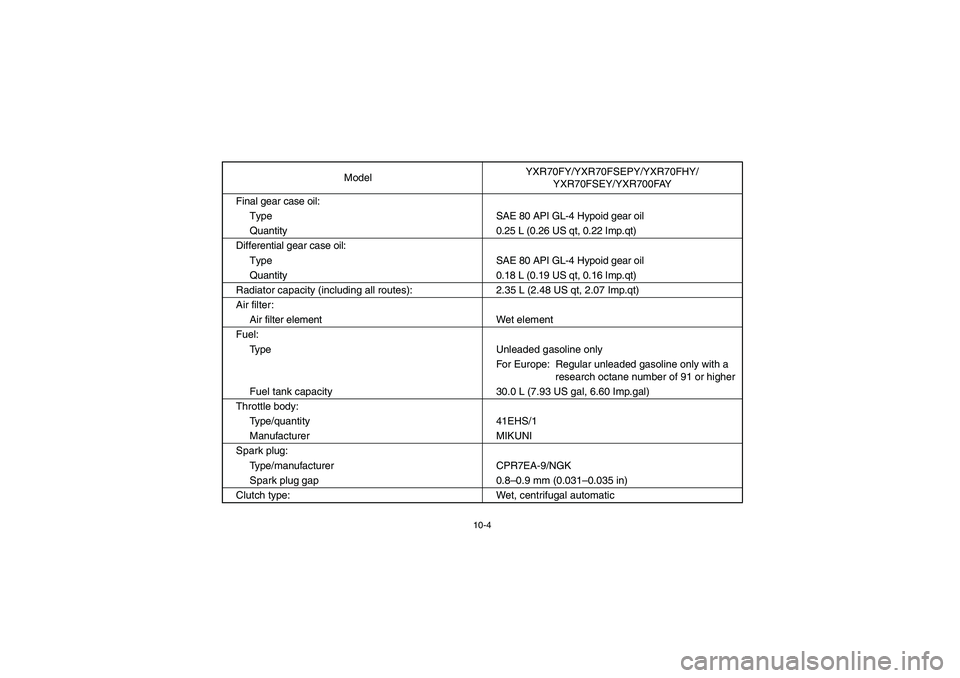

Final gear case oil:
Type SAE 80 API GL-4 Hypoid gear oil
Quantity 0.25 L (0.26 US qt, 0.22 Imp.qt)
Differential gear case oil:
Type SAE 80 API GL-4 Hypoid gear oil
Quantity 0.18 L (0.19 US qt, 0.16 Imp.qt)
Radiator capacity (including all routes): 2.35 L (2.48 US qt, 2.07 Imp.qt)
Air filter:
Air filter element Wet element
Fuel:
Type Unleaded gasoline only
For Europe: Regular unleaded gasoline only with a
research octane number of 91 or higher
Fuel tank capacity 30.0 L (7.93 US gal, 6.60 Imp.gal)
Throttle body:
Type/quantity 41EHS/1
Manufacturer MIKUNI
Spark plug:
Type/manufacturer CPR7EA-9/NGK
Spark plug gap 0.8–0.9 mm (0.031–0.035 in)
Clutch type: Wet, centrifugal automaticModelYXR70FY/YXR70FSEPY/YXR70FHY/
YXR70FSEY/YXR700FAY
EE.book Page 4 Tuesday, April 15, 2008 9:11 AM

10-5

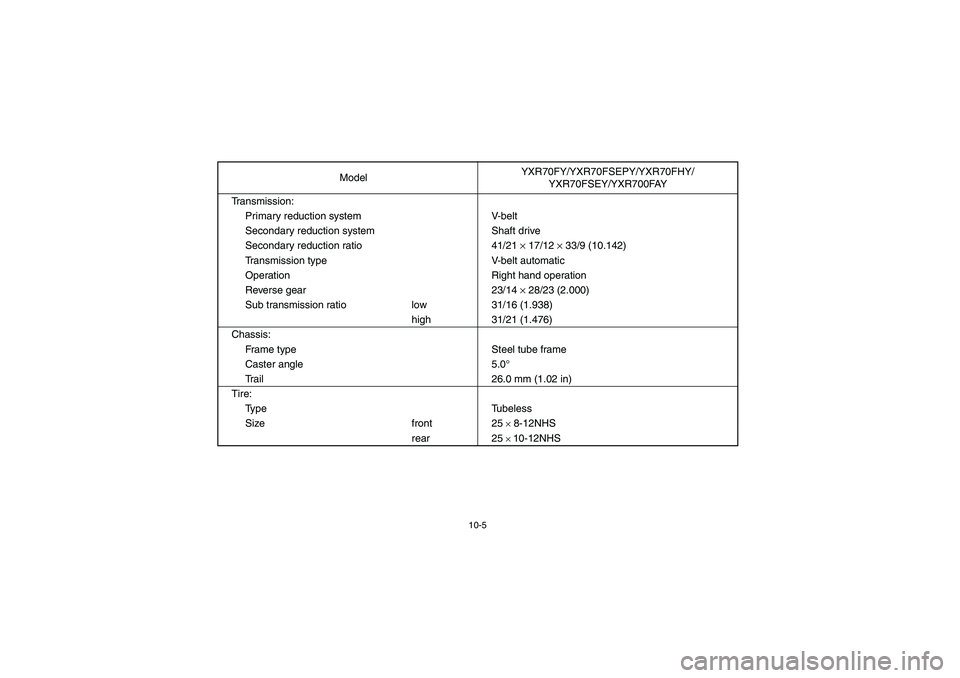

Transmission:
Primary reduction system V-belt
Secondary reduction system Shaft drive
Secondary reduction ratio 41/21 × 17/12 × 33/9 (10.142)
Transmission type V-belt automatic
Operation Right hand operation
Reverse gear 23/14 × 28/23 (2.000)
Sub transmission ratio low 31/16 (1.938)
high 31/21 (1.476)
Chassis:
Frame type Steel tube frame
Caster angle 5.0°
Trail 26.0 mm (1.02 in)
Tire:
Ty p e Tu b e l e s s
Size front 25
× 8-12NHS
rear 25 × 10-12NHS ModelYXR70FY/YXR70FSEPY/YXR70FHY/
YXR70FSEY/YXR700FAY
EE.book Page 5 Tuesday, April 15, 2008 9:11 AM

10-6

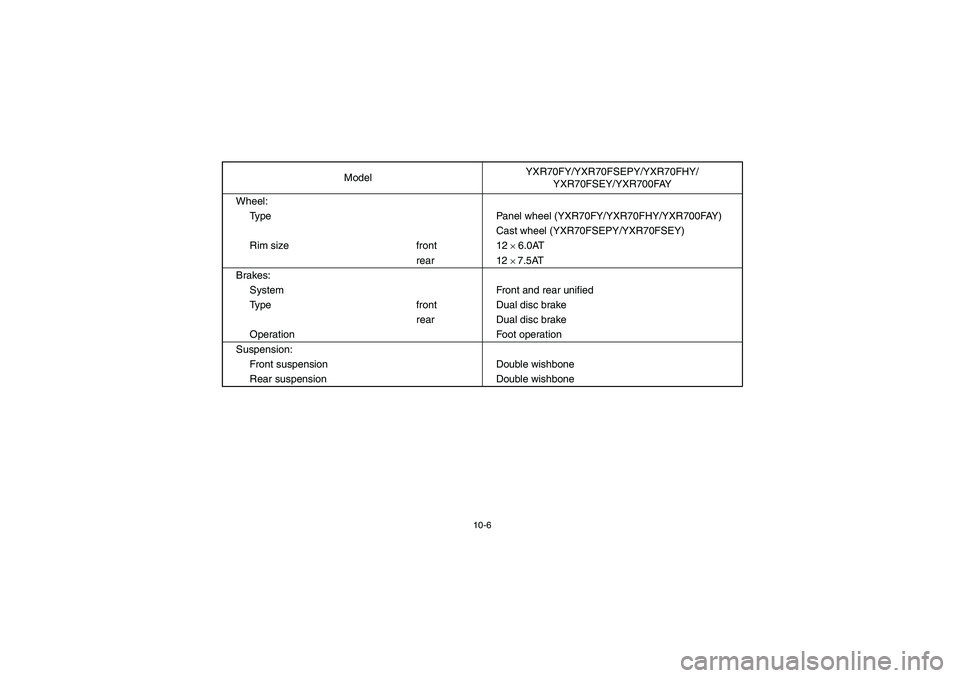

Wheel:
Type Panel wheel (YXR70FY/YXR70FHY/YXR700FAY)
Cast wheel (YXR70FSEPY/YXR70FSEY)
Rim size front 12
× 6.0AT
rear 12 × 7.5AT
Brakes:
System Front and rear unified
Type front Dual disc brake
rear Dual disc brake
Operation Foot operation
Suspension:
Front suspension Double wishbone
Rear suspension Double wishboneModelYXR70FY/YXR70FSEPY/YXR70FHY/
YXR70FSEY/YXR700FAY
EE.book Page 6 Tuesday, April 15, 2008 9:11 AM

10-7

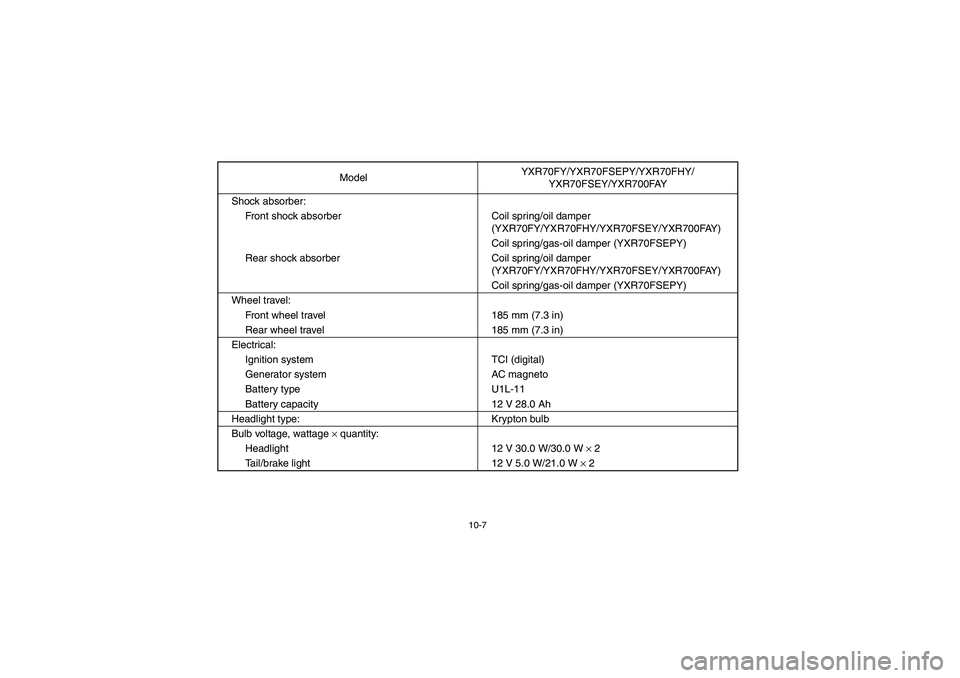

Shock absorber:
Front shock absorber Coil spring/oil damper
(YXR70FY/YXR70FHY/YXR70FSEY/YXR700FAY)
Coil spring/gas-oil damper (YXR70FSEPY)
Rear shock absorber Coil spring/oil damper
(YXR70FY/YXR70FHY/YXR70FSEY/YXR700FAY)
Coil spring/gas-oil damper (YXR70FSEPY)
Wheel travel:
Front wheel travel 185 mm (7.3 in)
Rear wheel travel 185 mm (7.3 in)
Electrical:
Ignition system TCI (digital)
Generator system AC magneto
Battery type U1L-11
Battery capacity 12 V 28.0 Ah
Headlight type: Krypton bulb
Bulb voltage, wattage × quantity:
Headlight 12 V 30.0 W/30.0 W × 2
Tail/brake light 12 V 5.0 W/21.0 W × 2 ModelYXR70FY/YXR70FSEPY/YXR70FHY/
YXR70FSEY/YXR700FAY
