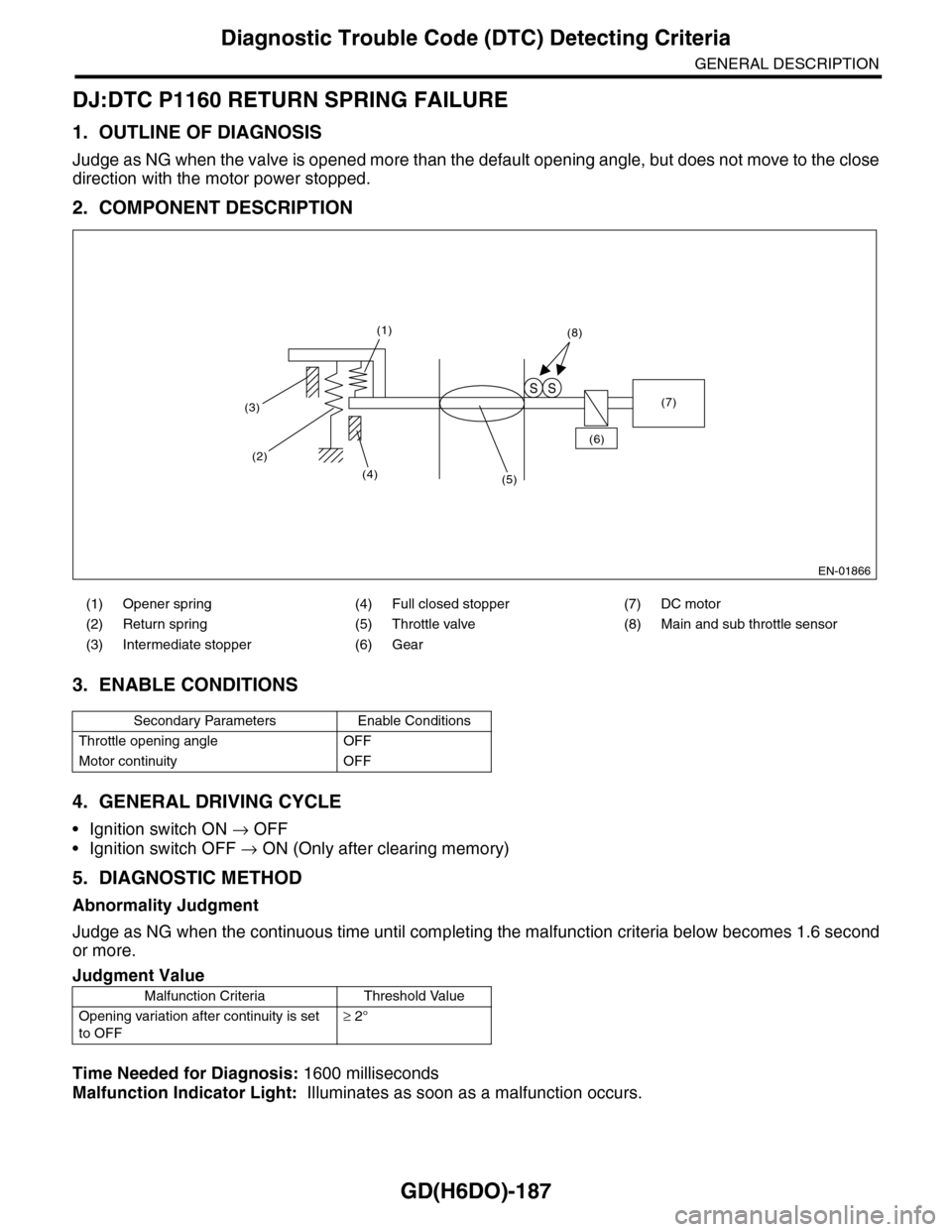

GD(H6DO)-187
Diagnostic Trouble Code (DTC) Detecting Criteria
GENERAL DESCRIPTION
DJ:DTC P1160 RETURN SPRING FAILURE
1. OUTLINE OF DIAGNOSIS
Judge as NG when the valve is opened more than the default opening angle, but does not move to the close
direction with the motor power stopped.
2. COMPONENT DESCRIPTION
3. ENABLE CONDITIONS
4. GENERAL DRIVING CYCLE
•Ignition switch ON → OFF
•Ignition switch OFF → ON (Only after clearing memory)
5. DIAGNOSTIC METHOD
Abnormality Judgment
Judge as NG when the continuous time until completing the malfunction criteria below becomes 1.6 second
or more.
Time Needed for Diagnosis: 1600 milliseconds
Malfunction Indicator Light: Illuminates as soon as a malfunction occurs.
(1) Opener spring (4) Full closed stopper (7) DC motor
(2) Return spring (5) Throttle valve (8) Main and sub throttle sensor
(3) Intermediate stopper (6) Gear
Secondary Parameters Enable Conditions
Throttle opening angle OFF
Motor continuity OFF
Judgment Value
Malfunction Criteria Threshold Value
Opening variation after continuity is set
to OFF
≥ 2°
EN-01866
SS
(8)
(6)
(7)
(5)
(1)
(3)
(2)
(4)

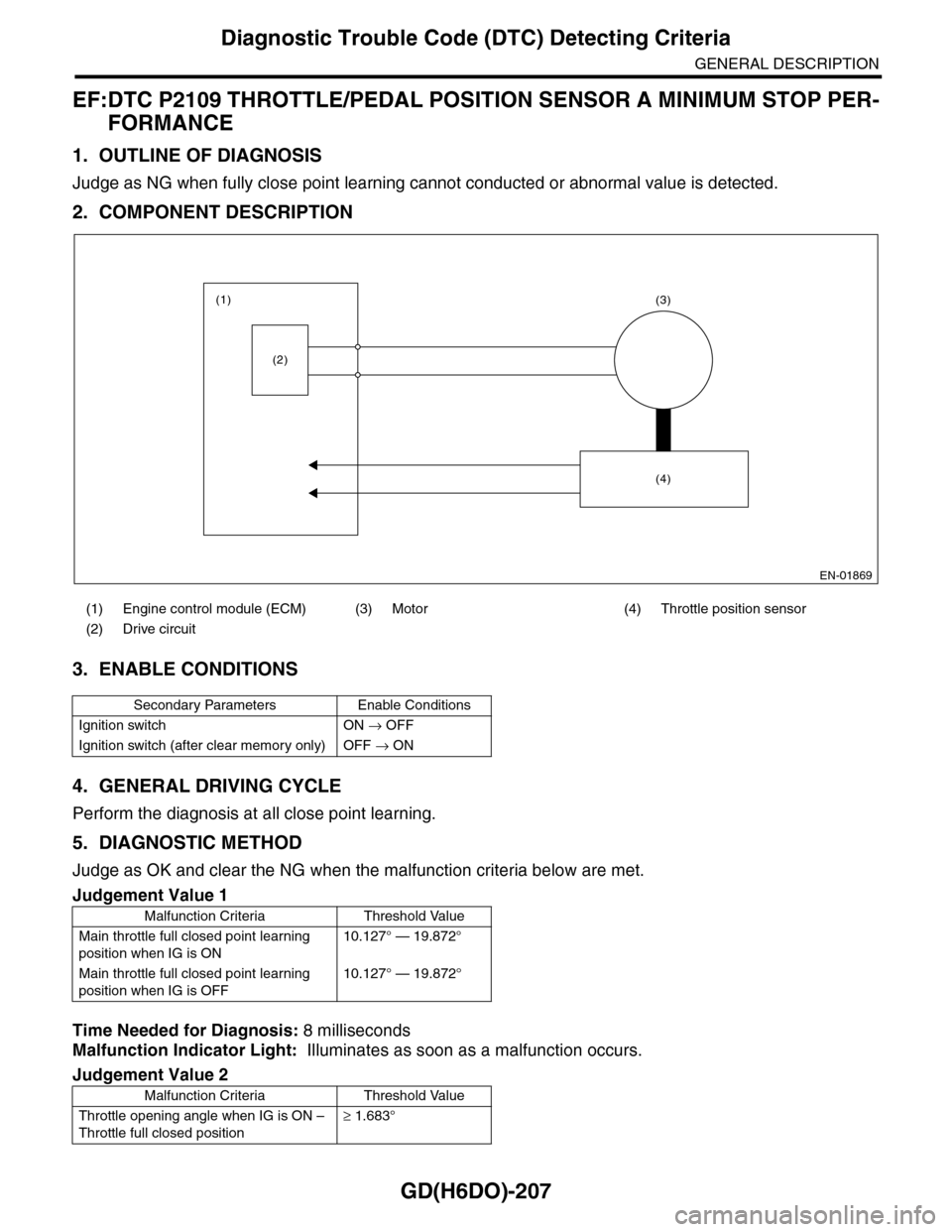

GD(H6DO)-207
Diagnostic Trouble Code (DTC) Detecting Criteria
GENERAL DESCRIPTION
EF:DTC P2109 THROTTLE/PEDAL POSITION SENSOR A MINIMUM STOP PER-
FORMANCE
1. OUTLINE OF DIAGNOSIS
Judge as NG when fully close point learning cannot conducted or abnormal value is detected.
2. COMPONENT DESCRIPTION
3. ENABLE CONDITIONS
4. GENERAL DRIVING CYCLE
Perform the diagnosis at all close point learning.
5. DIAGNOSTIC METHOD
Judge as OK and clear the NG when the malfunction criteria below are met.
Time Needed for Diagnosis: 8 milliseconds
Malfunction Indicator Light: Illuminates as soon as a malfunction occurs.
(1) Engine control module (ECM) (3) Motor (4) Throttle position sensor
(2) Drive circuit
Secondary Parameters Enable Conditions
Ignition switch ON → OFF
Ignition switch (after clear memory only) OFF → ON
Judgement Value 1
Malfunction Criteria Threshold Value
Main throttle full closed point learning
position when IG is ON
10.127° — 19.872°
Main throttle full closed point learning
position when IG is OFF
10.127° — 19.872°
Judgement Value 2
Malfunction Criteria Threshold Value
Throttle opening angle when IG is ON –
Throttle full closed position
≥ 1.683°
EN-01869
(1)
(2)
(3)
(4)

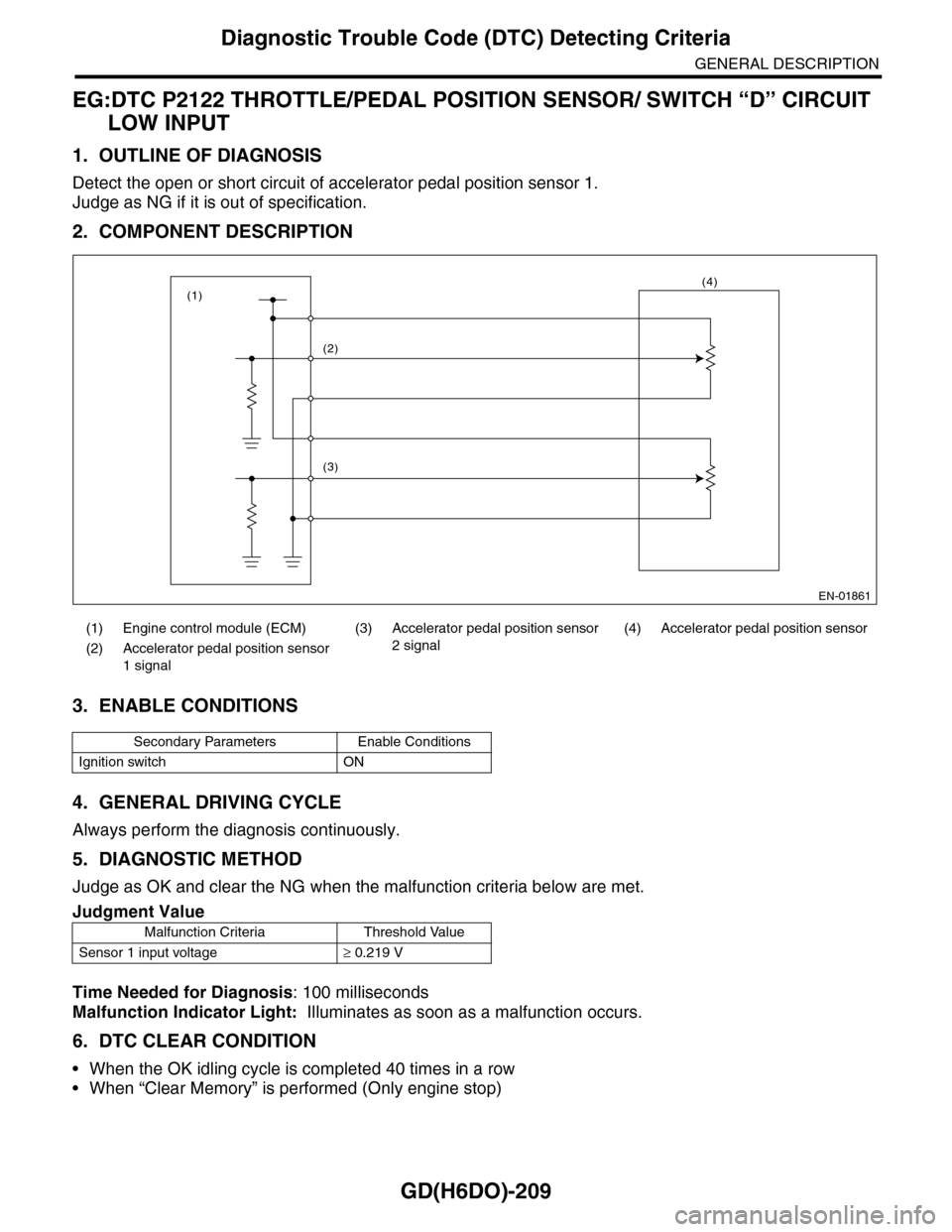

GD(H6DO)-209
Diagnostic Trouble Code (DTC) Detecting Criteria
GENERAL DESCRIPTION
EG:DTC P2122 THROTTLE/PEDAL POSITION SENSOR/ SWITCH “D” CIRCUIT
LOW INPUT
1. OUTLINE OF DIAGNOSIS
Detect the open or short circuit of accelerator pedal position sensor 1.
Judge as NG if it is out of specification.
2. COMPONENT DESCRIPTION
3. ENABLE CONDITIONS
4. GENERAL DRIVING CYCLE
Always perform the diagnosis continuously.
5. DIAGNOSTIC METHOD
Judge as OK and clear the NG when the malfunction criteria below are met.
Time Needed for Diagnosis: 100 milliseconds
Malfunction Indicator Light: Illuminates as soon as a malfunction occurs.
6. DTC CLEAR CONDITION
•When the OK idling cycle is completed 40 times in a row
•When “Clear Memory” is performed (Only engine stop)
(1) Engine control module (ECM) (3) Accelerator pedal position sensor
2 signal
(4) Accelerator pedal position sensor
(2) Accelerator pedal position sensor
1 signal

Secondary Parameters Enable Conditions
Ignition switch ON
Judgment Value
Malfunction Criteria Threshold Value
Sensor 1 input voltage≥ 0.219 V
EN-01861
(2)
(3)
(4)(1)

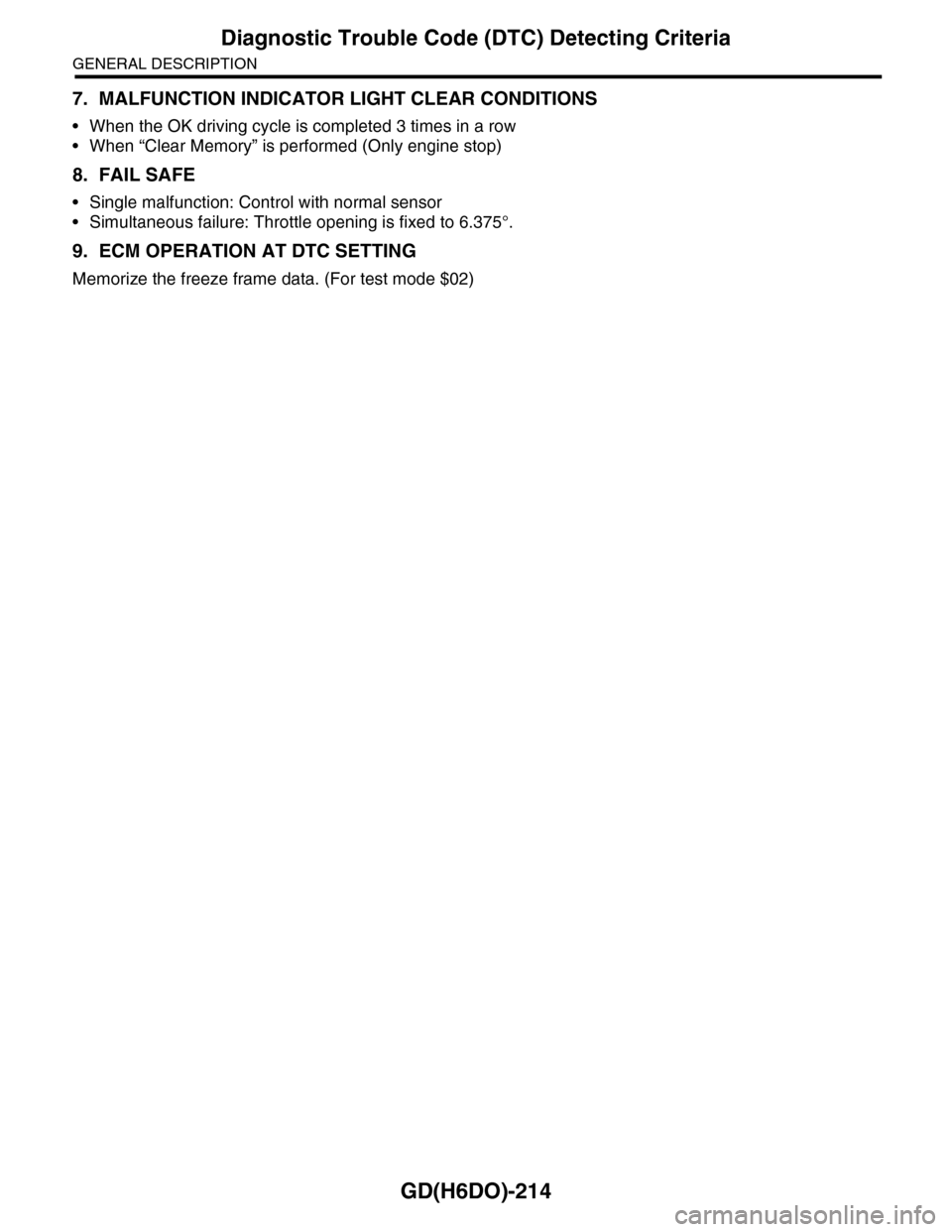

GD(H6DO)-210
Diagnostic Trouble Code (DTC) Detecting Criteria
GENERAL DESCRIPTION
7. MALFUNCTION INDICATOR LIGHT CLEAR CONDITIONS
•When the OK driving cycle is completed 3 times in a row
•When “Clear Memory” is performed (Only engine stop)
8. FAIL SAFE
•Single malfunction: Control with normal sensor
•Simultaneous failure: Throttle opening is fixed to 6.375°.
9. ECM OPERATION AT DTC SETTING
Memorize the freeze frame data. (For test mode $02)

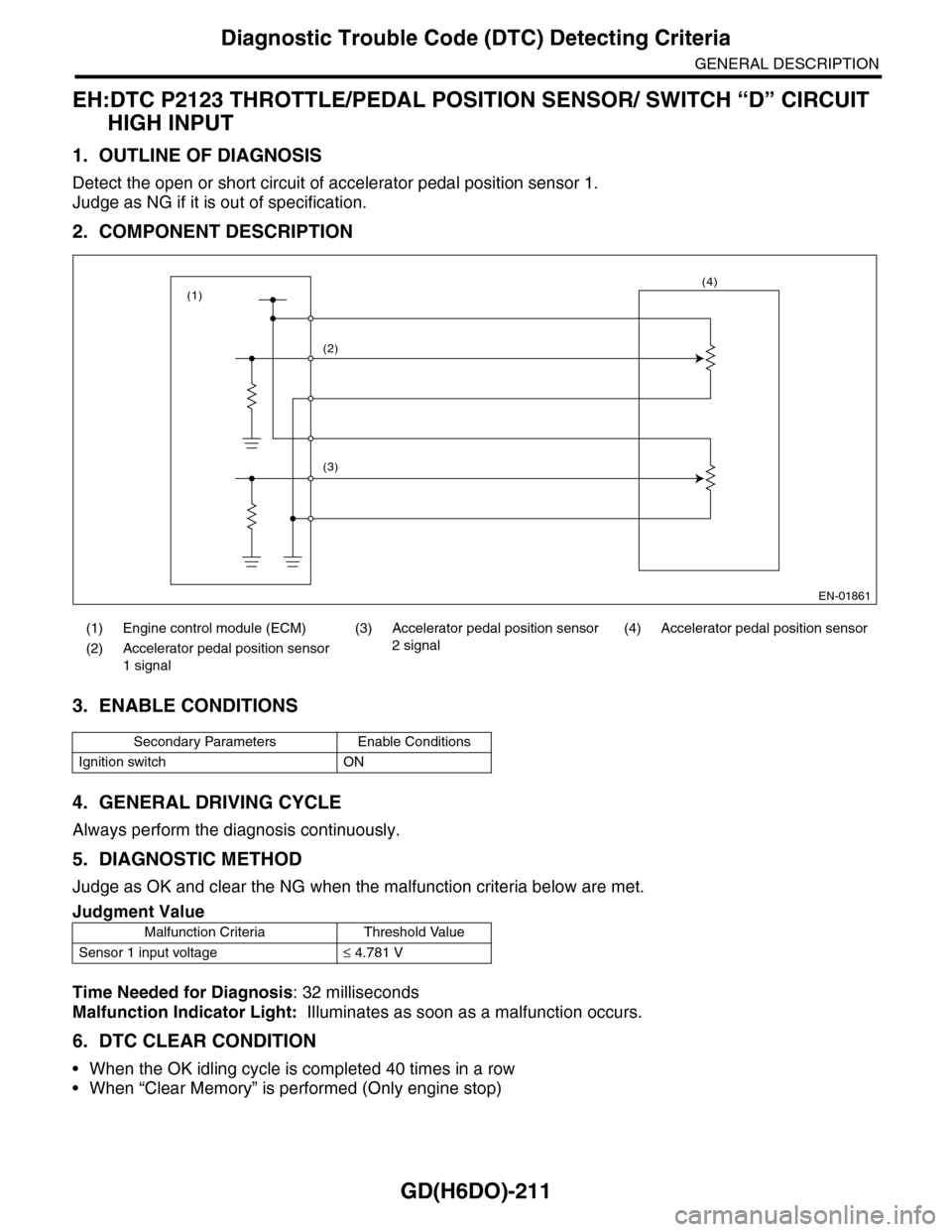

GD(H6DO)-211
Diagnostic Trouble Code (DTC) Detecting Criteria
GENERAL DESCRIPTION
EH:DTC P2123 THROTTLE/PEDAL POSITION SENSOR/ SWITCH “D” CIRCUIT
HIGH INPUT
1. OUTLINE OF DIAGNOSIS
Detect the open or short circuit of accelerator pedal position sensor 1.
Judge as NG if it is out of specification.
2. COMPONENT DESCRIPTION
3. ENABLE CONDITIONS
4. GENERAL DRIVING CYCLE
Always perform the diagnosis continuously.
5. DIAGNOSTIC METHOD
Judge as OK and clear the NG when the malfunction criteria below are met.
Time Needed for Diagnosis: 32 milliseconds
Malfunction Indicator Light: Illuminates as soon as a malfunction occurs.
6. DTC CLEAR CONDITION
•When the OK idling cycle is completed 40 times in a row
•When “Clear Memory” is performed (Only engine stop)
(1) Engine control module (ECM) (3) Accelerator pedal position sensor
2 signal
(4) Accelerator pedal position sensor
(2) Accelerator pedal position sensor
1 signal

Secondary Parameters Enable Conditions
Ignition switch ON
Judgment Value
Malfunction Criteria Threshold Value
Sensor 1 input voltage≤ 4.781 V
EN-01861
(2)
(3)
(4)(1)

GD(H6DO)-212
Diagnostic Trouble Code (DTC) Detecting Criteria
GENERAL DESCRIPTION
7. MALFUNCTION INDICATOR LIGHT CLEAR CONDITIONS
•When the OK driving cycle is completed 3 times in a row
•When “Clear Memory” is performed (Only engine stop)
8. FAIL SAFE
•Single malfunction: Control with normal sensor
•Simultaneous failure: Throttle opening is fixed to 6.375°.
9. ECM OPERATION AT DTC SETTING
Memorize the freeze frame data. (For test mode $02)

GD(H6DO)-213
Diagnostic Trouble Code (DTC) Detecting Criteria
GENERAL DESCRIPTION
EI: DTC P2127 THROTTLE/PEDAL POSITION SENSOR/ SWITCH “E” CIRCUIT
LOW INPUT
1. OUTLINE OF DIAGNOSIS
Detect the open or short circuit of accelerator pedal position sensor 2.
Judge as NG if it is out of specification.
2. COMPONENT DESCRIPTION
3. ENABLE CONDITIONS
4. GENERAL DRIVING CYCLE
Always perform the diagnosis continuously.
5. DIAGNOSTIC METHOD
Judge as OK and clear the NG when the malfunction criteria below are met.
Time Needed for Diagnosis: 100 milliseconds
Malfunction Indicator Light: Illuminates as soon as a malfunction occurs.
6. DTC CLEAR CONDITION
•When the OK idling cycle is completed 40 times in a row
•When “Clear Memory” is performed (Only engine stop)
(1) Engine control module (ECM) (3) Accelerator pedal position sensor
2 signal
(4) Accelerator pedal position sensor
(2) Accelerator pedal position sensor
1 signal

Secondary Parameters Enable Conditions
Ignition switch ON
Judgment Value
Malfunction Criteria Threshold Value
Sensor 2 input voltage≥ 0.219 V
EN-01861
(2)
(3)
(4)(1)

GD(H6DO)-214
Diagnostic Trouble Code (DTC) Detecting Criteria
GENERAL DESCRIPTION
7. MALFUNCTION INDICATOR LIGHT CLEAR CONDITIONS
•When the OK driving cycle is completed 3 times in a row
•When “Clear Memory” is performed (Only engine stop)
8. FAIL SAFE
•Single malfunction: Control with normal sensor
•Simultaneous failure: Throttle opening is fixed to 6.375°.
9. ECM OPERATION AT DTC SETTING
Memorize the freeze frame data. (For test mode $02)
