2009 PEUGEOT 308 SW BL Owners Manual

i
!
73
COMFORT

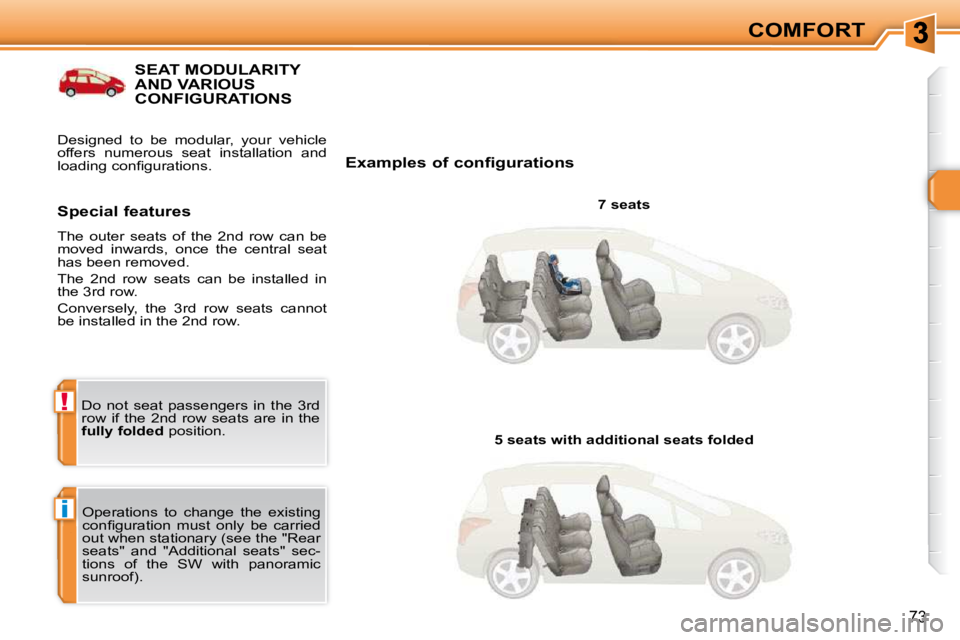

SEAT MODULARITY AND VARIOUS CONFIGURATIONS
Examples of configurations 7 seats
Operations to change the existing
confi guration must only be carried
out when stationary (see the "Rear
seats" and "Additional seats" sec-
tions of the SW with panoramic
sunroof).
Special features
The outer seats of the 2nd row can be
moved inwards, once the central seat
has been removed.
The 2nd row seats can be installed in
the 3rd row.
Conversely, the 3rd row seats cannot
be installed in the 2nd row.
5 seats with additional seats folded
Do not seat passengers in the 3rd
row if the 2nd row seats are in the

fully folded position.
Designed to be modular, your vehicle
offers numerous seat installation and
loading confi gurations.

74
COMFORT 5 seats
5 seats with 2nd row seats moved inwards
Transporting long objects Loading a large volume

!
i
i
75
COMFORT
The objects observed are, in reality,
closer than they appear.
Take this into account in order to
correctly judge the distance of ve-
hicles approaching from behind.

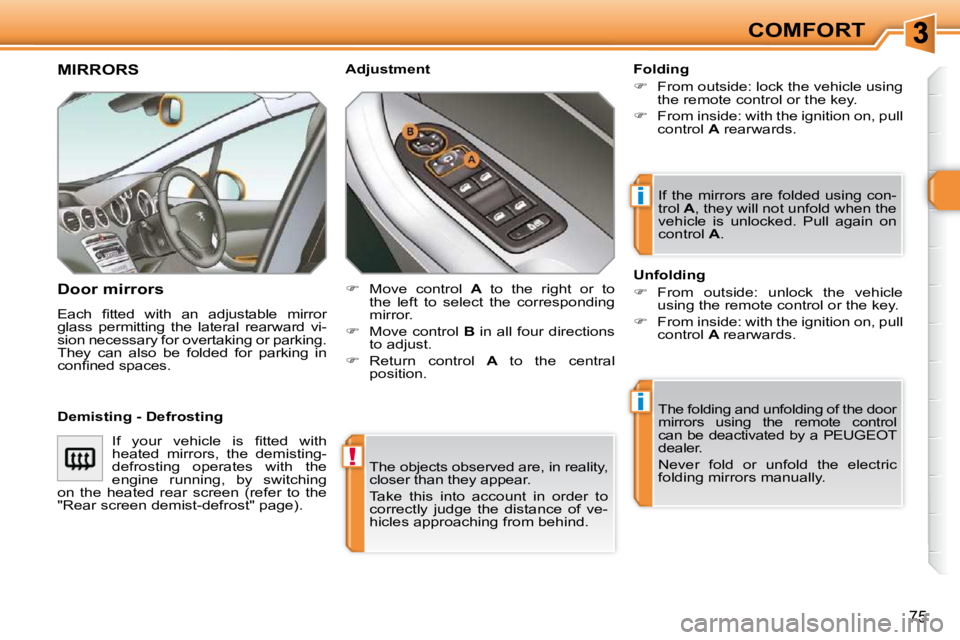

MIRRORS
Door mirrors
Each fi tted with an adjustable mirror
glass permitting the lateral rearward vi-
sion necessary for overtaking or parking.
They can also be folded for parking in
confi ned spaces. Folding

 From outside: lock the vehicle using
the remote control or the key.

 From inside: with the ignition on, pull
control A rearwards.
The folding and unfolding of the door
mirrors using the remote control
can be deactivated by a PEUGEOT
dealer.
Never fold or unfold the electric
folding mirrors manually.
Adjustment
Unfolding

 From outside: unlock the vehicle
using the remote control or the key.

 From inside: with the ignition on, pull
control A rearwards.
If the mirrors are folded using con-
trol
A , they will not unfold when the
vehicle is unlocked. Pull again on
control A .

 Move control A to the right or to
the left to select the corresponding
mirror.

 Move control B in all four directions
to adjust.

 Return control A to the central
position.
Demisting - Defrosting If your vehicle is fi tted with
heated mirrors, the demisting-
defrosting operates with the
engine running, by switching
on the heated rear screen (refer to the
"Rear screen demist-defrost" page).

!
76
COMFORT Adjustment

 Adjust the mirror so that the glass
is directed correctly in the "day"
position.
As a safety precaution, the mirrors
must be adjusted to reduce the
"blind spot".
Manual day/night model
Day/night position

 Pull the lever to change to the "night"
anti-dazzle position.

 Push the lever to change to the
normal "day" position.

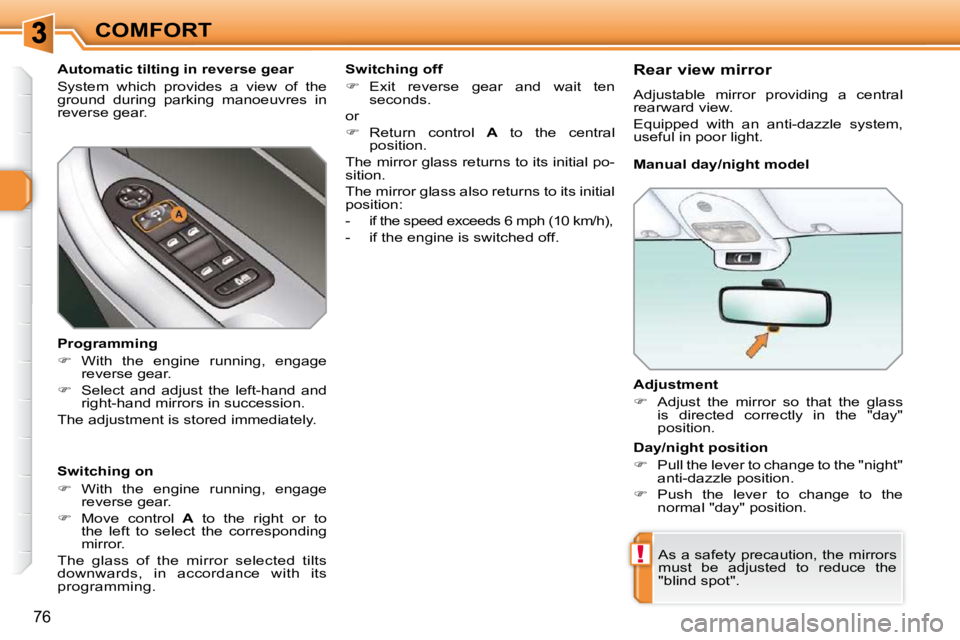

Automatic tilting in reverse gear
System which provides a view of the
ground during parking manoeuvres in
reverse gear.
Switching on

 With the engine running, engage
reverse gear.

 Move control A to the right or to
the left to select the corresponding
mirror.
The glass of the mirror selected tilts
downwards, in accordance with its
programming.
Programming

 With the engine running, engage
reverse gear.

 Select and adjust the left-hand and
right-hand mirrors in succession.
The adjustment is stored immediately. Switching off

 Exit reverse gear and wait ten
seconds.
or

 Return control A to the central
position.
The mirror glass returns to its initial po-
sition.
The mirror glass also returns to its initial
position:
- if the speed exceeds 6 mph (10 km/h),
- if the engine is switched off.
Rear view mirror
Adjustable mirror providing a central
rearward view.
Equipped with an anti-dazzle system,
useful in poor light.

!
76
COMFORT Adjustment

 Adjust the mirror so that the glass
is directed correctly in the "day"
position.
As a safety precaution, the mirrors
must be adjusted to reduce the
"blind spot".
Manual day/night model
Day/night position

 Pull the lever to change to the "night"
anti-dazzle position.

 Push the lever to change to the
normal "day" position.

Automatic tilting in reverse gear
System which provides a view of the
ground during parking manoeuvres in
reverse gear.
Switching on

 With the engine running, engage
reverse gear.

 Move control A to the right or to
the left to select the corresponding
mirror.
The glass of the mirror selected tilts
downwards, in accordance with its
programming.
Programming

 With the engine running, engage
reverse gear.

 Select and adjust the left-hand and
right-hand mirrors in succession.
The adjustment is stored immediately. Switching off

 Exit reverse gear and wait ten
seconds.
or

 Return control A to the central
position.
The mirror glass returns to its initial po-
sition.
The mirror glass also returns to its initial
position:
- if the speed exceeds 6 mph (10 km/h),
- if the engine is switched off.
Rear view mirror
Adjustable mirror providing a central
rearward view.
Equipped with an anti-dazzle system,
useful in poor light.

!i
77
COMFORT

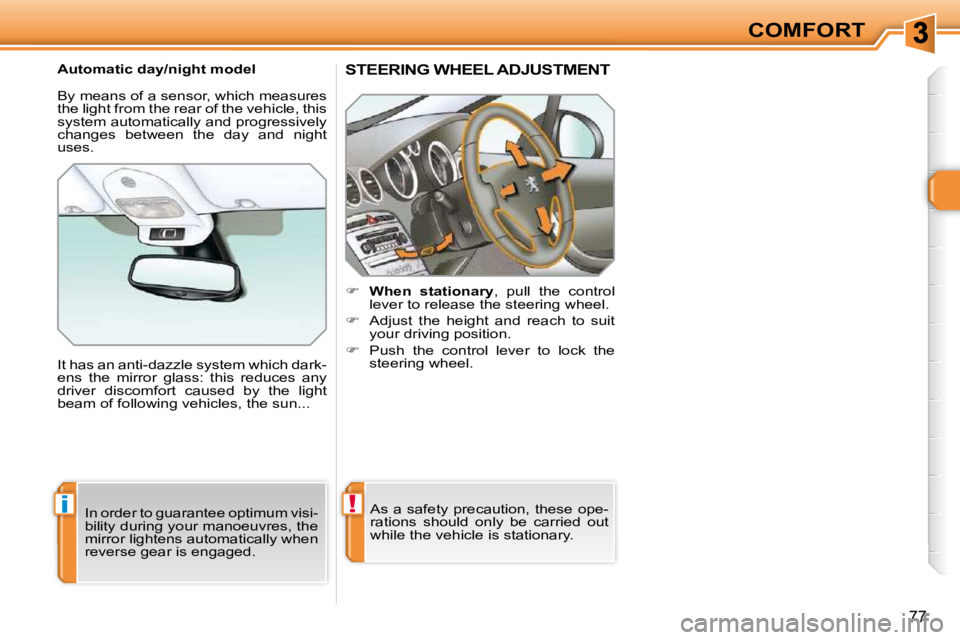

STEERING WHEEL ADJUSTMENT

 When stationary , pull the control
lever to release the steering wheel.

 Adjust the height and reach to suit
your driving position.

 Push the control lever to lock the
steering wheel.
As a safety precaution, these ope-
rations should only be carried out
while the vehicle is stationary.

Automatic day/night model
It has an anti-dazzle system which dark-
ens the mirror glass: this reduces any
driver discomfort caused by the light
beam of following vehicles, the sun...
In order to guarantee optimum visi-
bility during your manoeuvres, the
mirror lightens automatically when
reverse gear is engaged.
By means of a sensor, which measures
the light from the rear of the vehicle, this
system automatically and progressively
changes between the day and night
uses.

!i
77
COMFORT
STEERING WHEEL ADJUSTMENT

 When stationary , pull the control
lever to release the steering wheel.

 Adjust the height and reach to suit
your driving position.

 Push the control lever to lock the
steering wheel.
As a safety precaution, these ope-
rations should only be carried out
while the vehicle is stationary.

Automatic day/night model
It has an anti-dazzle system which dark-
ens the mirror glass: this reduces any
driver discomfort caused by the light
beam of following vehicles, the sun...
In order to guarantee optimum visi-
bility during your manoeuvres, the
mirror lightens automatically when
reverse gear is engaged.
By means of a sensor, which measures
the light from the rear of the vehicle, this
system automatically and progressively
changes between the day and night
uses.

ii
78
ACCESS

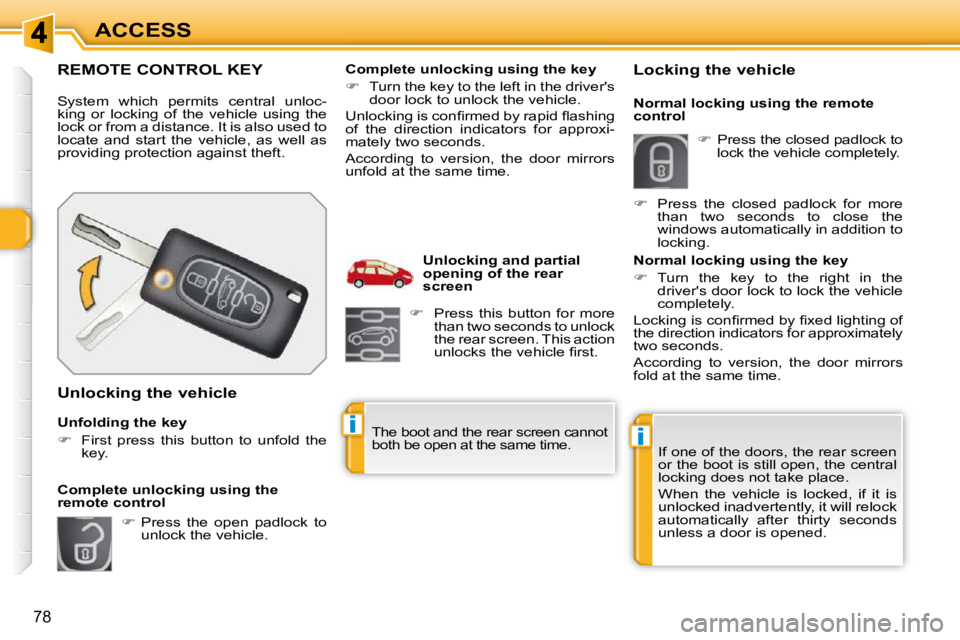

REMOTE CONTROL KEY
System which permits central unloc-
king or locking of the vehicle using the
lock or from a distance. It is also used to
locate and start the vehicle, as well as
providing protection against theft.
Unfolding the key

 First press this button to unfold the
key.
Unlocking the vehicle

 Press the open padlock to
unlock the vehicle. Complete unlocking using the key

 Turn the key to the left in the driver's
door lock to unlock the vehicle.
Unlocking is confi rmed by rapid fl ashing
of the direction indicators for approxi-
mately two seconds.
According to version, the door mirrors
unfold at the same time.
Complete unlocking using the
remote control Unlocking and partial
opening of the rear
screen
If one of the doors, the rear screen
or the boot is still open, the central
locking does not take place.
When the vehicle is locked, if it is
unlocked inadvertently, it will relock
automatically after thirty seconds
unless a door is opened.
Normal locking using the key

 Turn the key to the right in the
driver's door lock to lock the vehicle
completely.
Locking is confi rmed by fi xed lighting of
the direction indicators for approximately
two seconds.
According to version, the door mirrors
fold at the same time.
Locking the vehicle

 Press the closed padlock to
lock the vehicle completely.

 Press the closed padlock for more
than two seconds to close the
windows automatically in addition to
locking.
Normal locking using the remote
control

 Press this button for more
than two seconds to unlock
the rear screen. This action
unlocks the vehicle fi rst.
The boot and the rear screen cannot
both be open at the same time.
