2009 PEUGEOT 308 SW BL Owners Manual

244
03
5
6
3
4
2
NAV
1

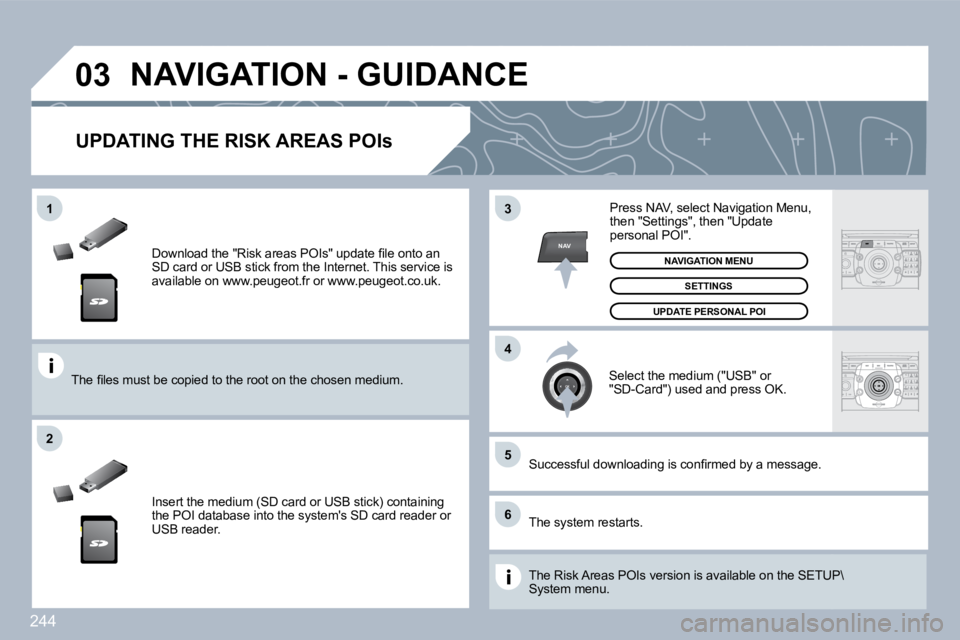

Download the "Risk areas POIs" update fi le onto an SD card or USB stick from the Internet. This servic e is available on www.peugeot.fr or www.peugeot.co.uk.
The fi les must be copied to the root on the chosen medium. The fi les must be copied to the root on the chosen medium.
Insert the medium (SD card or USB stick) containi ng the POI database into the system's SD card reader o r USB reader.
Successful downloading is confi rmed by a message.
The system restarts.
UPDATING THE RISK AREAS POIs
Select the medium ("USB" or "SD-Card") used and press OK.
Press NAV, select Navigation Menu, then "Settings", then "Update personal POI".
SETTINGS
NAVIGATION MENU
NAVIGATION - GUIDANCE
The Risk Areas POIs version is available on the SETUPETUP\System menu.
UPDATE PERSONAL POI

245
03
5
3
4
NAV1
2
1

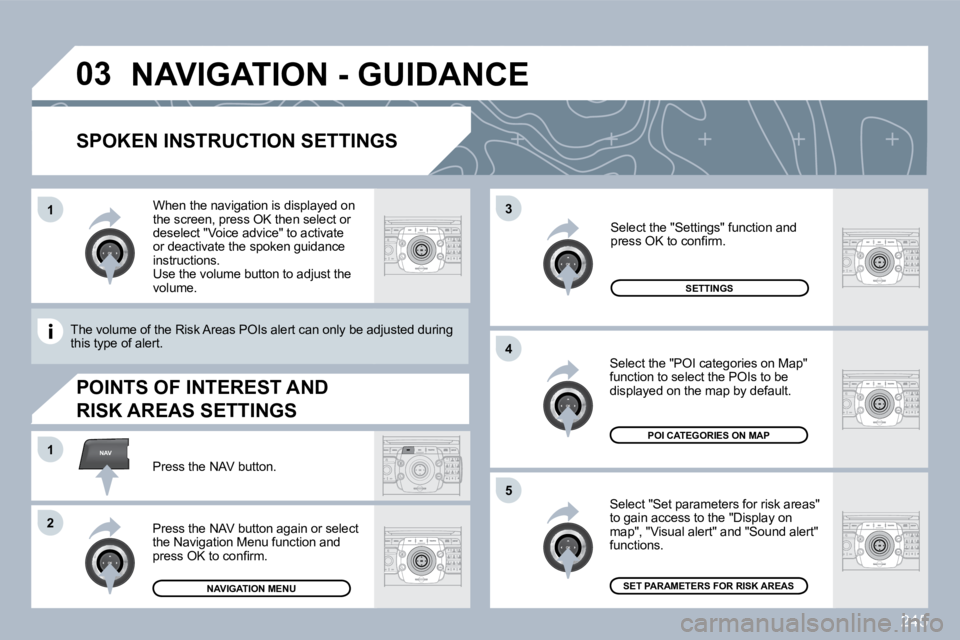

SPOKEN INSTRUCTION SETTINGS
Select "Set parameters for risk areas" to gain access to the "Display on map", "Visual alert" and "Sound alert" functions.
Select the "POI categories on Map" function to select the POIs to be displayed on the map by default.
Press the NAV button.
Press the NAV button again or select the Navigation Menu function and press OK to confi rm.
Select the "Settings" function and press OK to confi rm.
NAVIGATION MENU
SETTINGS
POI CATEGORIES ON MAP
SET PARAMETERS FOR RISK AREAS
NAVIGATION - GUIDANCE
When the navigation is displayed on the screen, press OK then select or deselect "Voice advice" to activate or deactivate the spoken guidance instructions. Use the volume button to adjust the volume.
POINTS OF INTEREST AND
RISK AREAS SETTINGS
The volume of the Risk Areas POIs alert can only be adjbe adjusted during this type of alert.

246
TRAFFIC
04
1
2
4
5
3

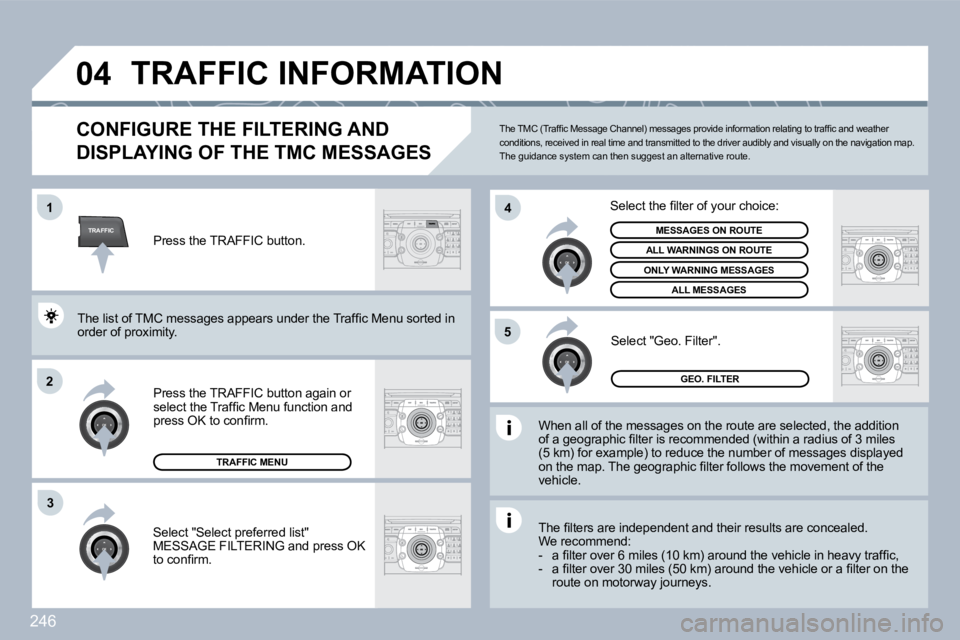

TRAFFIC INFORMATION
CONFIGURE THE FILTERING AND
DISPLAYING OF THE TMC MESSAGES
When all of the messages on the route are selected, the addition of a geographic fi lter is recommended (within a rad ius of 3 miles (5 km) for example) to reduce the number of message s displayed on the map. The geographic fi lter follows the movement of the vehicle.
The fi lters are independent and their results are concealed. We recommend: - a fi lter over 6 miles (10 km) around the vehicle in heavy traffi c, - a fi lter over 30 miles (50 km) around the vehi cle or a fi lter on the route on motorway journeys.
Press the TRAFFIC button again or select the Traffi c Menu function and press OK to confi rm.
Select "Geo. Filter".
The list of TMC messages appears under the Traffi c Menu sorted in The list of TMC messages appears under the Traffi c Menu sorted in order of proximity.
Select the fi lter of your choice:
MESSAGES ON ROUTE
ALL WARNINGS ON ROUTE
ONLY WARNING MESSAGES
ALL MESSAGES
TRAFFIC MENU
Select "Select preferred list" MESSAGE FILTERING and press OK to confi rm.
The TMC (Traffi c Message Channel) messages provide information relating to traffi c and weather conditions, received in real time and transmitted to the driver audibly and visually on the navigation map. The guidance system can then suggest an alternativ e route.
Press the TRAFFIC button.
GEO. FILTER

247
04
2
1
3
2
1
TRAFFIC INFORMATION
PRINCIPAL TMC SYMBOLS
Red and yellow triangle: traffi c information, for
example:
Black and blue triangle: general information, for example:
With the current audio source displayed on the screen, press the dial.
The shortcut menu for the source appears and give s access to: The shortcut menu for the source appears and gives access to:
Select Traffi c Announcements (TA) and press the dial to confi rm and go to the associated settings.
TA
The TA (Traffi c Announcement) function gives priority to TA alert messages. To operate, this function needs good rece ption of a radio station transmitting this type of message. When a traffi c report is transmitted, the current audio source (Radio, CD, J ukebox, ...) is interrupted automatically to play the TA message. N ormal playback of the audio source resumes at the end of the transmission of the message.
RECEIVING TA MESSAGES

248

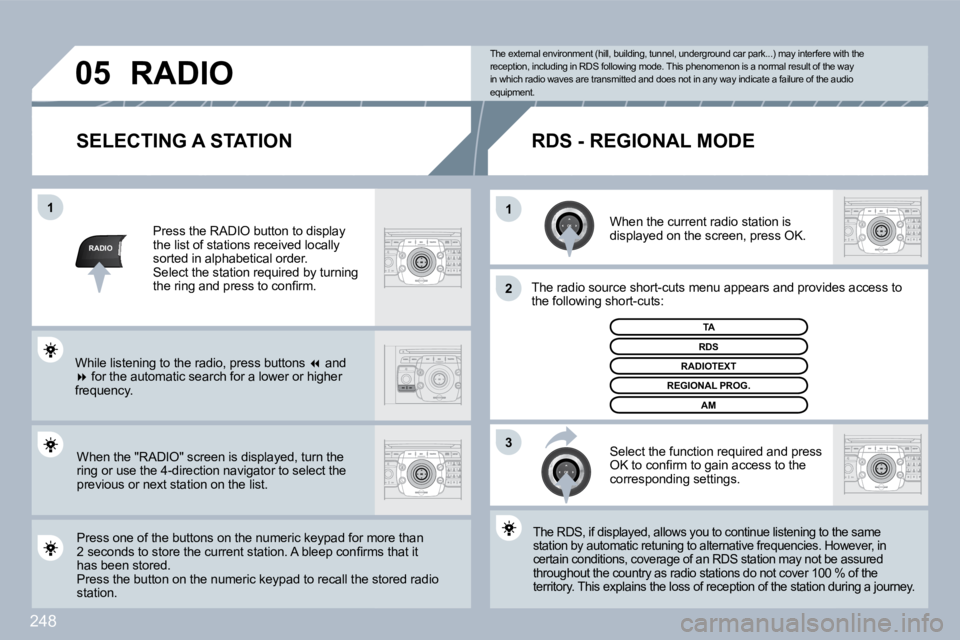

RADIO
11
2
3
05
SELECTING A STATION
When the current radio station is displayed on the screen, press OK.
The radio source short-cuts menu appears and providesovides access to the following short-cuts:
Select the function required and press OK to confi rm to gain access to the corresponding settings.
TA
The RDS, if displayed, allows you to continue listening to thg to the same station by automatic retuning to alternative freque ncies. Hows. However, in certain conditions, coverage of an RDS station may not be aot be assured throughout the country as radio stations do not cover 100 % 100 % of the territory. This explains the loss of reception of the station durion during a journey.
The external environment (hill, building, tunnel, underground car park...) may interfere with the reception, including in RDS following mode. This ph enomenon is a normal result of the way in which radio waves are transmitted and does not in any way indicate a failure of the audio equipment.
RDS - REGIONAL MODE
Press the RADIO button to display the list of stations received locally sorted in alphabetical order. Select the station required by turning the ring and press to confi rm.
Press one of the buttons on the numeric keypad fo r moor more than 2 seconds to store the current station. A bleep confi rms that it 2 seconds to store the current station. A bleep confi rms that it has been stored. Press the button on the numeric keypad to recall the stothe stored radio station.
RDS
RADIOTEXT
REGIONAL PROG.
AM
RADIO
When the "RADIO" screen is displayed, turn the ring or use the 4-direction navigator to select the previous or next station on the list.
While listening to the radio, press buttons  and  for the automatic search for a lower or higher frequency.

249

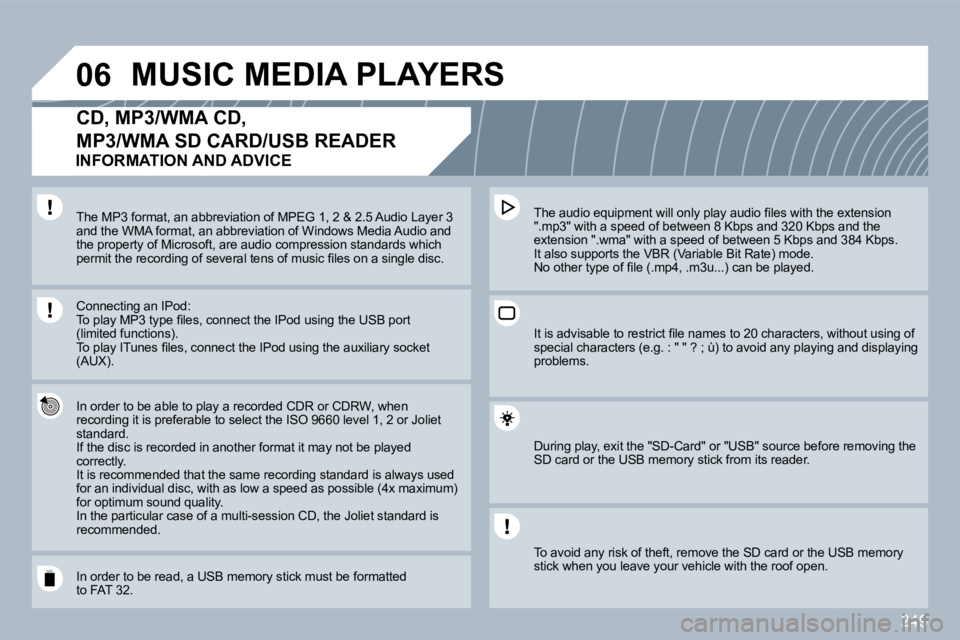

06 MUSIC MEDIA PLAYERS
CD, MP3/WMA CD,
MP3/WMA SD CARD/USB READER
In order to be able to play a recorded CDR or CDRW, wRW, when recording it is preferable to select the ISO 9660 level 1, vel 1, 2 or Joliet standard. If the disc is recorded in another format it may not be plat be played correctly. It is recommended that the same recording standard is ard is always used for an individual disc, with as low a speed as possible (4x maximum) for an individual disc, with as low a speed as possible (4x maximum) for optimum sound quality. In the particular case of a multi-session CD, the Joliet stoliet standard is recommended.
The audio equipment will only play audio fi les wi th the extension The audio equipment will only play audio fi les with the extension ".mp3" with a speed of between 8 Kbps and 320 Kbps abps and the extension ".wma" with a speed of between 5 Kbps and 3s and 384 Kbps. It also supports the VBR (Variable Bit Rate) mode. No other type of fi le (.mp4, .m3u...) can be played.
The MP3 format, an abbreviation of MPEG 1, 2 & 2.5 A 2.5 Audio Layer 3 and the WMA format, an abbreviation of Windows Medi Media Audio and the property of Microsoft, are audio compression standastandards which permit the recording of several tens of music fi les on a single disc. permit the recording of several tens of music fi les on a single disc.
Connecting an IPod: To play MP3 type fi les, connect the IPod using the USB port To play MP3 type fi les, connect the IPod using the USB port (limited functions). To play ITunes fi les, connect the IPod using the auxiliary socket To play ITunes fi les, connect the IPod using the auxiliary socket (AUX).
In order to be read, a USB memory stick must be f orma formatted to FAT 32.
It is advisable to restrict fi le names to 20 characters, without using of It is advisable to restrict fi le names to 20 characters, without using of special characters (e.g. : " " ? ; ù) to avoid any playing and displaying special characters (e.g. : " " ? ; ù) to avoid any playing and displaying problems.
During play, exit the "SD-Card" or "USB" source b efore efore removing the SD card or the USB memory stick from its reader.
To avoid any risk of theft, remove the SD card or the USthe USB memory stick when you leave your vehicle with the roof ope n.
INFORMATION AND ADVICE

250
4
5
6
2
7
3
1
MEDIA
06
2
ABC 3
DEF
5
JKL
4
GHI 6
MNO
8
TUV
7
PQRS 9
WXYZ
0
* #
1
RADIO MEDIA
NAV ESC TRAFFIC
SETUP
ADDRBOOK

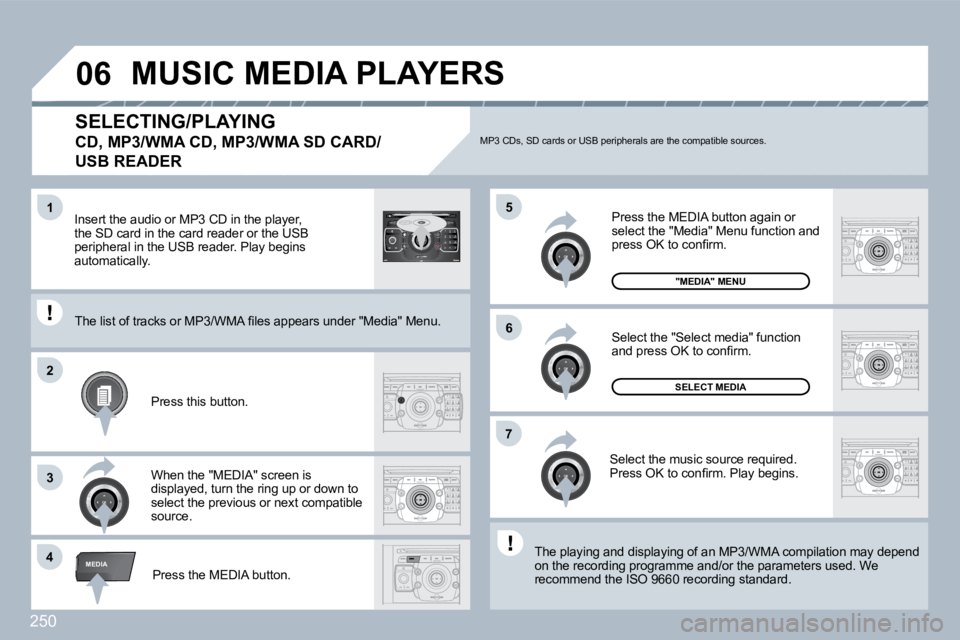

SELECTING/PLAYING
CD, MP3/WMA CD, MP3/WMA SD CARD/
USB READER
The playing and displaying of an MP3/WMA compilati
on may depend The playing and displaying of an MP3/WMA compilation may depend on the recording programme and/or the parameters us ed. We on the recording programme and/or the parameters used. We recommend the ISO 9660 recording standard. Press the MEDIA button.
Select the "Select media" function and press OK to confi rm.
Press this button.
Select the music source required. Press OK to confi rm. Play begins.
SELECT MEDIA
Press the MEDIA button again or select the "Media" Menu function and press OK to confi rm.
When the "MEDIA" screen is displayed, turn the ring up or down to select the previous or next compatible source.
"MEDIA" MENU
The list of tracks or MP3/WMA fi les appears under "Media" Menu. The list of tracks or MP3/WMA fi les appears under "Media" Menu.
Insert the audio or MP3 CD in the player, the SD card in the card reader or the USB peripheral in the USB reader. Play begins automatically.
MP3 CDs, SD cards or USB peripherals are the compatible sources.
MUSIC MEDIA PLAYERS

251
2
ABC 3
DEF
5
JKL
4
GHI 6
MNO
8
TUV
7
PQRS 9
WXYZ
0
* #
1
RADIO MEDIA
NAV ESC TRAFFIC
SETUP
ADDRBOOK
1
2
3
4
5
6
7
8
9
MEDIA
06

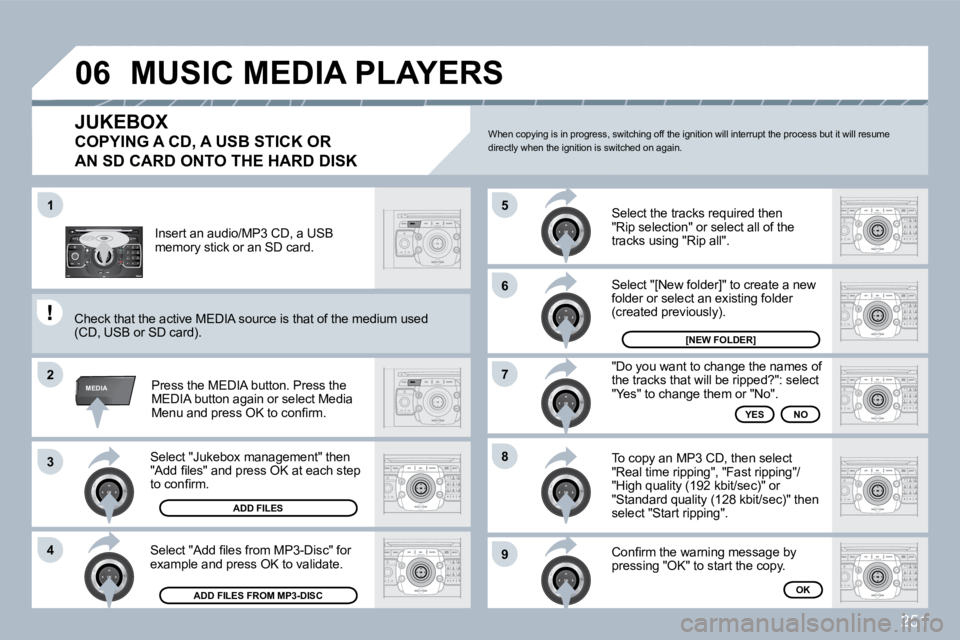

Select "Jukebox management" then "Add fi les" and press OK at each step to confi rm.
Press the MEDIA button. Press the MEDIA button again or select Media Menu and press OK to confi rm.
Insert an audio/MP3 CD, a USB memory stick or an SD card.
JUKEBOX
ADD FILES
Check that the active MEDIA source is that of the
mediu medium used (CD, USB or SD card).
Select "Add fi les from MP3-Disc" for example and press OK to validate.
Select the tracks required then "Rip selection" or select all of the tracks using "Rip all".
Select "[New folder]" to create a new folder or select an existing folder (created previously).
ADD FILES FROM MP3-DISC
[NEW FOLDER]
"Do you want to change the names of the tracks that will be ripped?": select "Yes" to change them or "No".
To copy an MP3 CD, then select "Real time ripping", "Fast ripping"/"High quality (192 kbit/sec)" or "Standard quality (128 kbit/sec)" then select "Start ripping".
Confi rm the warning message by pressing "OK" to start the copy.
OK
YESNO
When copying is in progress, switching off the ignition will interrupt the process but it will resume directly when the ignition is switched on again.
MUSIC MEDIA PLAYERS
COPYING A CD, A USB STICK OR
AN SD CARD ONTO THE HARD DISK
