2009 PEUGEOT 308 SW BL Owners Manual

10
!
i

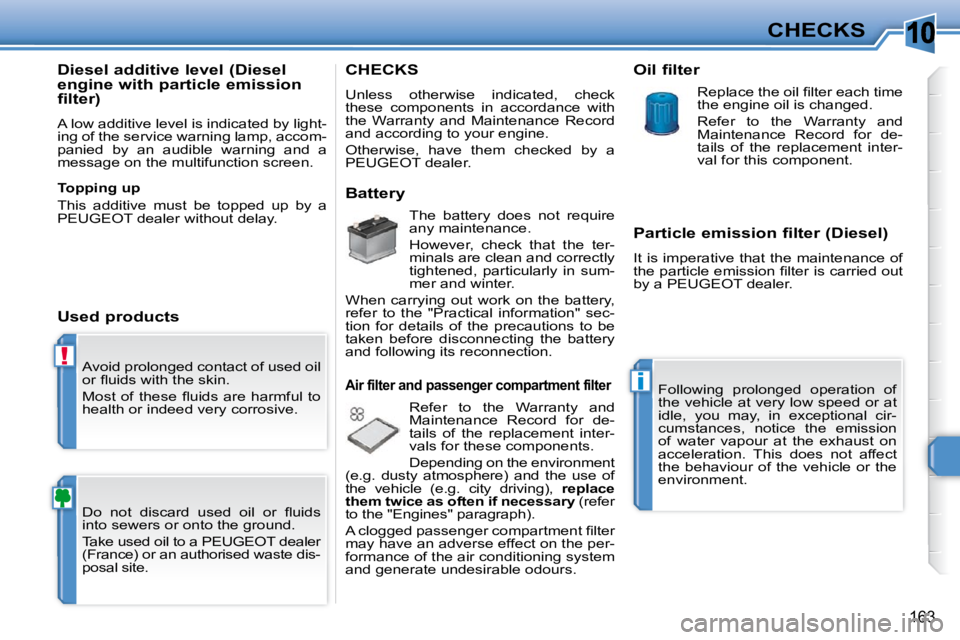

163
CHECKS
Avoid prolonged contact of used oil
or fl uids with the skin.
Most of these fl uids are harmful to
health or indeed very corrosive.
Do not discard used oil or fl uids
into sewers or onto the ground.
Take used oil to a PEUGEOT dealer
(France) or an authorised waste dis-
posal site.
Diesel additive level (Diesel
engine with particle emission
filter)
A low additive level is indicated by light-
ing of the service warning lamp, accom-
panied by an audible warning and a
message on the multifunction screen.
Used products
CHECKS
Unless otherwise indicated, check
these components in accordance with
the Warranty and Maintenance Record
and according to your engine.
Otherwise, have them checked by a
PEUGEOT dealer.
Battery
The battery does not require
any maintenance.
However, check that the ter-
minals are clean and correctly
tightened, particularly in sum-
mer and winter.
When carrying out work on the battery,
refer to the "Practical information" sec-
tion for details of the precautions to be
taken before disconnecting the battery
and following its reconnection.

Air filter and passenger compartment filter
Refer to the Warranty and
Maintenance Record for de-
tails of the replacement inter-
vals for these components.
Depending on the environment
(e.g. dusty atmosphere) and the use of
the vehicle (e.g. city driving), replace
them twice as often if necessary (refer
to the "Engines" paragraph).
A clogged passenger compartment fi lter
may have an adverse effect on the per-
formance of the air conditioning system
and generate undesirable odours. Particle emission filter (Diesel)
It is imperative that the maintenance of
the particle emission fi lter is carried out
by a PEUGEOT dealer.
Oil filter
Replace the oil fi lter each time
the engine oil is changed.
Refer to the Warranty and
Maintenance Record for de-
tails of the replacement inter-
val for this component.
Following prolonged operation of
the vehicle at very low speed or at
idle, you may, in exceptional cir-
cumstances, notice the emission
of water vapour at the exhaust on
acceleration. This does not affect
the behaviour of the vehicle or the
environment.
Topping up
This additive must be topped up by a
PEUGEOT dealer without delay.

10
!
164
CHECKS Only use products recommended
by PEUGEOT or products of equiv-
alent quality and specifi cations.
In order to optimise the operation
of units as important as the braking
system, PEUGEOT selects and of-
fers very specifi c products.
To avoid damaging the electrical
units, the use of a high pressure
washer in the engine compartment
is strictly prohibited .
Brake disc wear
Brake pads
Parking brake Brake wear depends on the
style of driving, particularly in
the case of vehicles used in
town, over short distances. It
may be necessary to have the
condition of the brakes checked, even
between vehicle services.
Unless there is a leak in the circuit, a
drop in the brake fl uid level indicates
that the brake pads are worn.
For information relating to
checking the brake disc wear,
contact a PEUGEOT dealer.
If a loss of effectiveness of this
system is noticed, the parking
brake must be checked, even
between two services.
This system must be checked
by a PEUGEOT dealer.
Manual gearbox
The gearbox does not re-
quire any maintenance (no oil
change).
Refer to the Maintenance and
Warranty Guide for the details
of the level checking interval
for this component.
6-speed electronic gear control
gearbox The gearbox does not re-
quire any maintenance (no oil
change).
Refer to the Warranty and
Maintenance Record for de-
tails of the checking interval for
this component.
Automatic gearbox The gearbox does not re-
quire any maintenance (no oil
change).
Refer to the Warranty and
Maintenance Record for details
of the level checking interval for
this component.

11
i

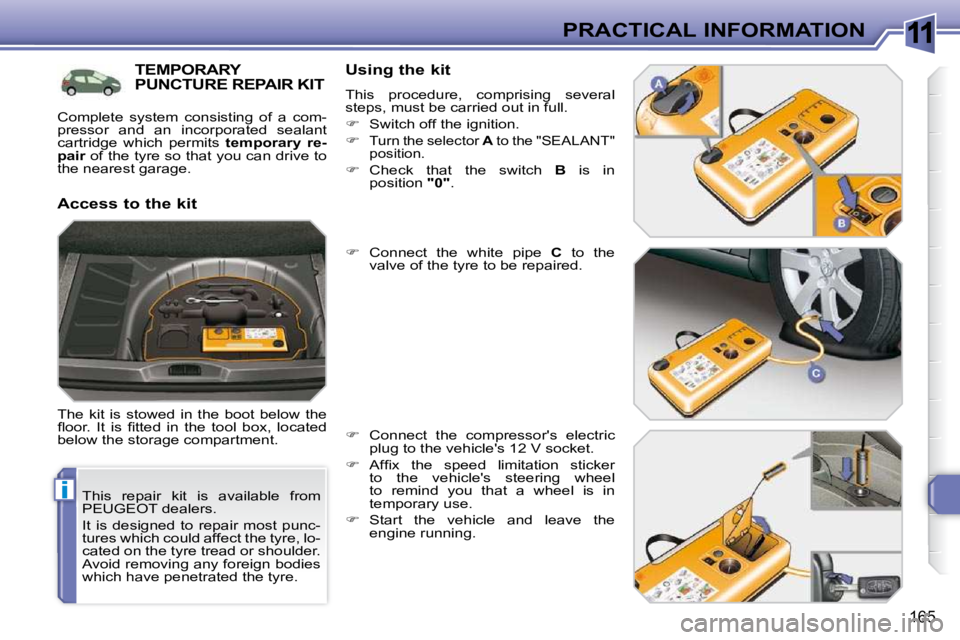

165
PRACTICAL INFORMATION
This repair kit is available from
PEUGEOT dealers.
It is designed to repair most punc-
tures which could affect the tyre, lo-
cated on the tyre tread or shoulder.
Avoid removing any foreign bodies
which have penetrated the tyre.
TEMPORARY PUNCTURE REPAIR KIT
The kit is stowed in the boot below the
fl oor. It is fi tted in the tool box, located
below the storage compartment. Using the kit
This procedure, comprising several
steps, must be carried out in full.

 Switch off the ignition.


Turn the selector A to the "SEALANT"
position.

 Check that the switch B is in
position "0" .

 Connect the white pipe C to the
valve of the tyre to be repaired.

 Connect the compressor's electric
plug to the vehicle's 12 V socket.

 Affi x the speed limitation sticker
to the vehicle's steering wheel
to remind you that a wheel is in
temporary use.

 Start the vehicle and leave the
engine running.
Access to the kit
Complete system consisting of a com-
pressor and an incorporated sealant
cartridge which permits
temporary re-
pair of the tyre so that you can drive to
the nearest garage.

11
i
i

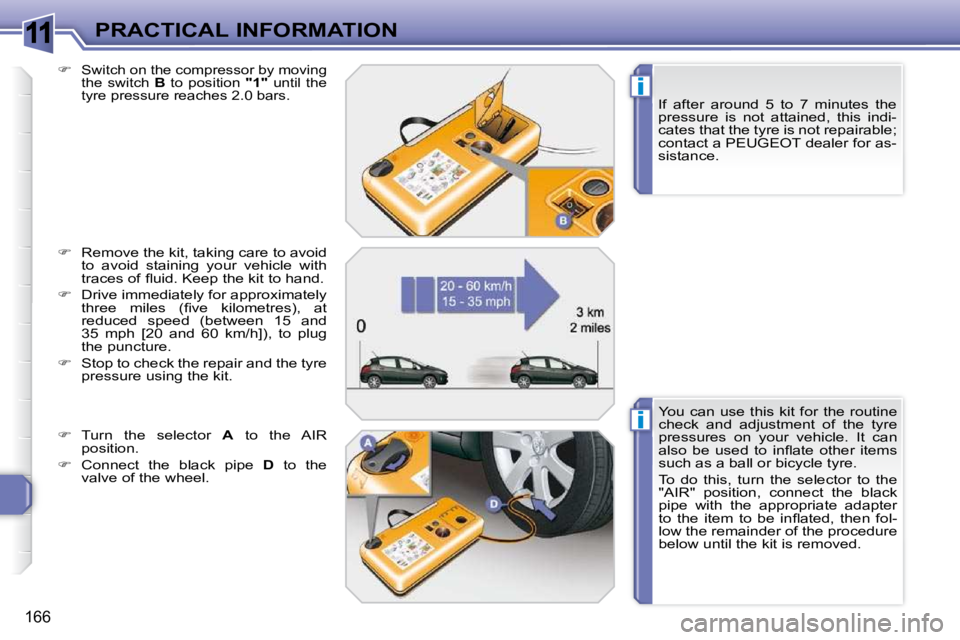

166
PRACTICAL INFORMATION If after around 5 to 7 minutes the
pressure is not attained, this indi-
cates that the tyre is not repairable;
contact a PEUGEOT dealer for as-
sistance.


Switch on the compressor by moving
the switch B to position "1" until the
tyre pressure reaches 2.0 bars.

 Remove the kit, taking care to avoid
to avoid staining your vehicle with
traces of fl uid. Keep the kit to hand.

 Drive immediately for approximately
three miles (fi ve kilometres), at
reduced speed (between 15 and
35 mph [20 and 60 km/h]), to plug
the puncture.

 Stop to check the repair and the tyre
pressure using the kit.

 Turn the selector A to the AIR
position.

 Connect the black pipe D to the
valve of the wheel. You can use this kit for the routine
check and adjustment of the tyre
pressures on your vehicle. It can
also be used to infl ate other items
such as a ball or bicycle tyre.
To do this, turn the selector to the
"AIR" position, connect the black
pipe with the appropriate adapter
to the item to be infl ated, then fol-
low the remainder of the procedure
below until the kit is removed.

11
i
!
!

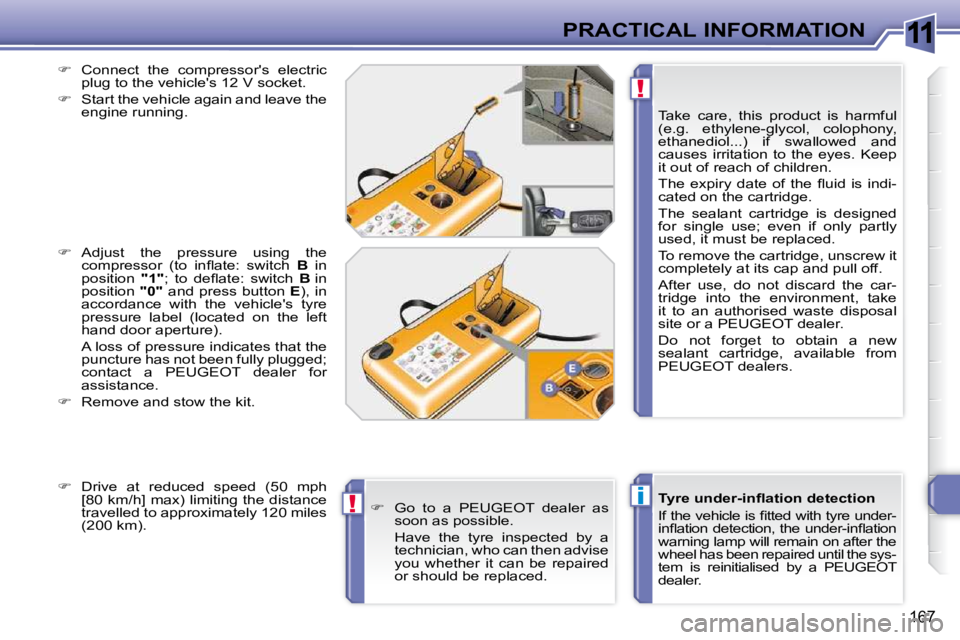

167
PRACTICAL INFORMATION Tyre under-infl ation detection
If the vehicle is fi tted with tyre under-
infl ation detection, the under-infl ation
warning lamp will remain on after the
wheel has been repaired until the sys-
tem is reinitialised by a PEUGEOT
dealer.
Take care, this product is harmful
(e.g. ethylene-glycol, colophony,
ethanediol...) if swallowed and
causes irritation to the eyes. Keep
it out of reach of children.
The expiry date of the fl uid is indi-
cated on the cartridge.
The sealant cartridge is designed
for single use; even if only partly
used, it must be replaced.
To remove the cartridge, unscrew it
completely at its cap and pull off.
After use, do not discard the car-
tridge into the environment, take
it to an authorised waste disposal
site or a PEUGEOT dealer.
Do not forget to obtain a new
sealant cartridge, available from
PEUGEOT dealers.

 Connect the compressor's electric
plug to the vehicle's 12 V socket.

 Start the vehicle again and leave the
engine running.

 Adjust the pressure using the
compressor (to infl ate: switch B in
position "1" ; to defl ate: switch B in
position "0" and press button E ), in
accordance with the vehicle's tyre
pressure label (located on the left
hand door aperture).
A loss of pressure indicates that the puncture has not been fully plugged;
contact a PEUGEOT dealer for
assistance.

 Remove and stow the kit.

 Drive at reduced speed (50 mph
[80 km/h] max) limiting the distance
travelled to approximately 120 miles
(200 km).
 Go to a PEUGEOT dealer as
soon as possible.
Have the tyre inspected by a technician, who can then advise
you whether it can be repaired
or should be replaced.

11
i

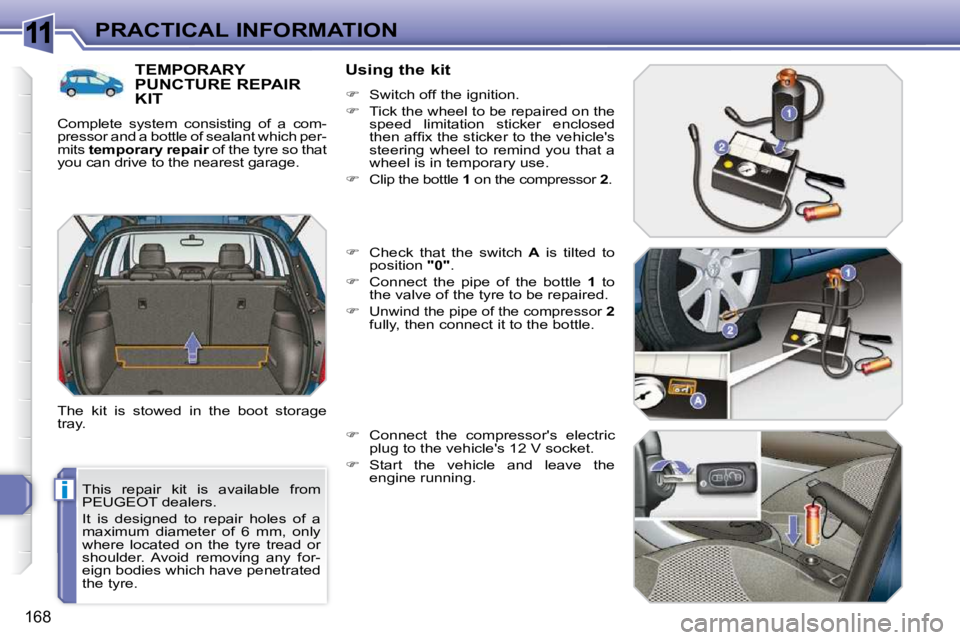

168
PRACTICAL INFORMATION
This repair kit is available from
PEUGEOT dealers.
It is designed to repair holes of a
maximum diameter of 6 mm, only
where located on the tyre tread or
shoulder. Avoid removing any for-
eign bodies which have penetrated
the tyre.
TEMPORARY PUNCTURE REPAIR KIT
Complete system consisting of a com-
pressor and a bottle of sealant which per-
mits temporary repair of the tyre so that
you can drive to the nearest garage.
The kit is stowed in the boot storage
tray. Using the kit

 Switch off the ignition.

 Tick the wheel to be repaired on the
speed limitation sticker enclosed
then affi x the sticker to the vehicle's
steering wheel to remind you that a
wheel is in temporary use.

 Clip the bottle 1 on the compressor 2 .

 Check that the switch A is tilted to
position "0" .

 Connect the pipe of the bottle 1 to
the valve of the tyre to be repaired.


Unwind the pipe of the compressor
2
fully, then connect it to the bottle.

 Connect the compressor's electric
plug to the vehicle's 12 V socket.

 Start the vehicle and leave the
engine running.

11
i

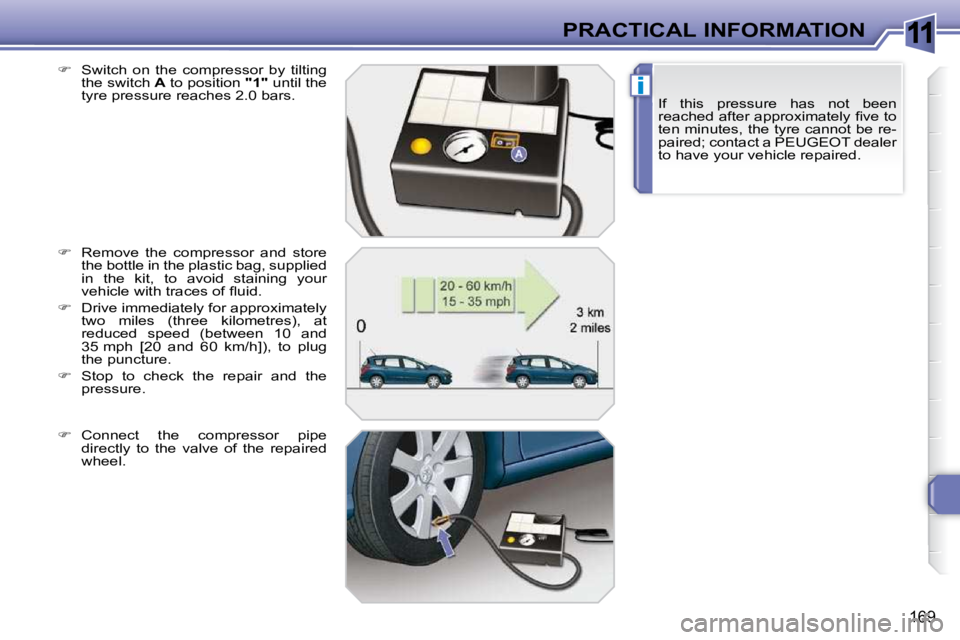

169
PRACTICAL INFORMATIONIf this pressure has not been
reached after approximately fi ve to
ten minutes, the tyre cannot be re-
paired; contact a PEUGEOT dealer
to have your vehicle repaired.

 Switch on the compressor by tilting
the switch A to position "1" until the
tyre pressure reaches 2.0 bars.

 Remove the compressor and store
the bottle in the plastic bag, supplied
in the kit, to avoid staining your
vehicle with traces of fl uid.

 Drive immediately for approximately
two miles (three kilometres), at
reduced speed (between 10 and
35 mph [20 and 60 km/h]), to plug
the puncture.

 Stop to check the repair and the
pressure.

 Connect the compressor pipe
directly to the valve of the repaired
wheel.

11
i
!
!

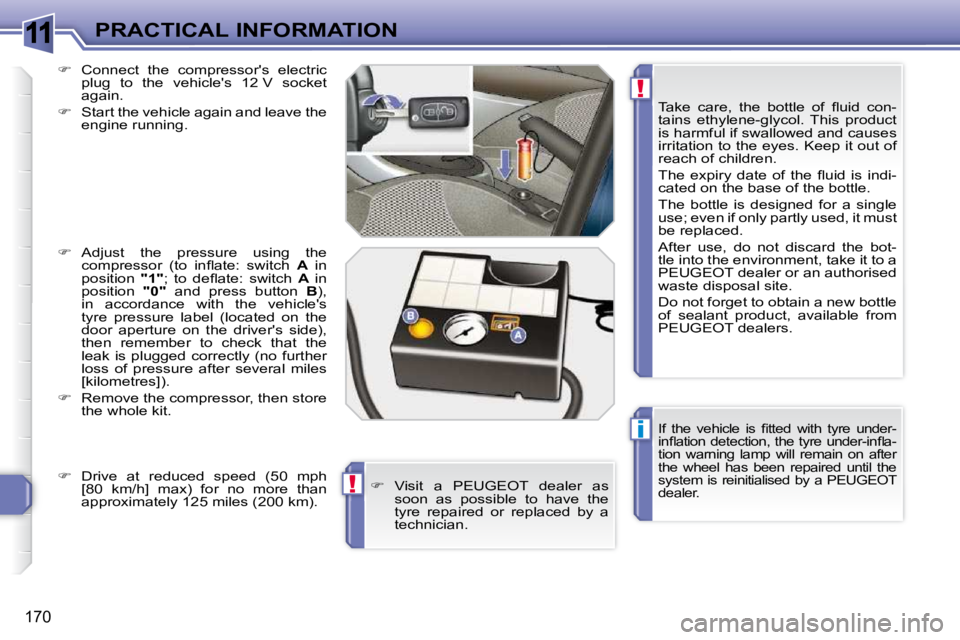

170
PRACTICAL INFORMATION
If the vehicle is fi tted with tyre under-
infl ation detection, the tyre under-infl a-
tion warning lamp will remain on after
the wheel has been repaired until the
system is reinitialised by a PEUGEOT
dealer.
Take care, the bottle of fl uid con-
tains ethylene-glycol. This product
is harmful if swallowed and causes
irritation to the eyes. Keep it out of
reach of children.
The expiry date of the fl uid is indi-
cated on the base of the bottle.
The bottle is designed for a single
use; even if only partly used, it must
be replaced.
After use, do not discard the bot-
tle into the environment, take it to a
PEUGEOT dealer or an authorised
waste disposal site.
Do not forget to obtain a new bottle
of sealant product, available from
PEUGEOT dealers.

 Connect the compressor's electric
plug to the vehicle's 12 V socket
again.

 Start the vehicle again and leave the
engine running.

 Adjust the pressure using the
compressor (to infl ate: switch A in
position "1" ; to defl ate: switch A in
position "0" and press button B ),
in accordance with the vehicle's
tyre pressure label (located on the
door aperture on the driver's side),
then remember to check that the
leak is plugged correctly (no further
loss of pressure after several miles
[kilometres]).

 Remove the compressor, then store
the whole kit.

 Visit a PEUGEOT dealer as
soon as possible to have the
tyre repaired or replaced by a
technician.

 Drive at reduced speed (50 mph
[80 km/h] max) for no more than
approximately 125 miles (200 km).
