2009 PEUGEOT 308 SW BL Owners Manual

i
!

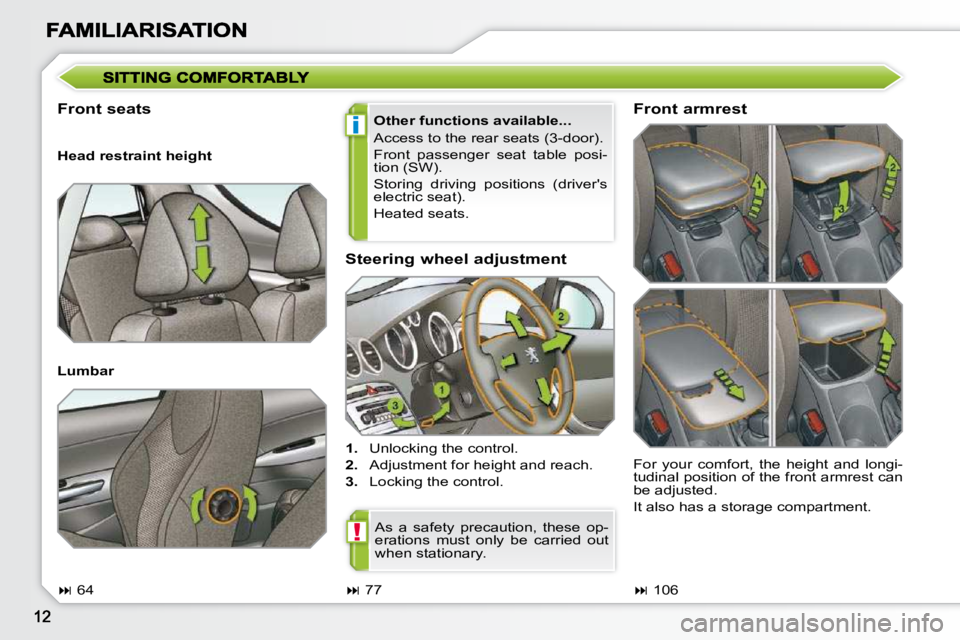

Steering wheel adjustment

1. Unlocking the control.

2. Adjustment for height and reach.

3. Locking the control.
Front seats
Other functions available...
Access to the rear seats (3-door).
Front passenger seat table posi-
tion (SW).
Storing driving positions (driver's
electric seat).
Heated seats.
Head restraint height
Lumbar Front armrest

 64
 106

 77 For your comfort, the height and longi-
tudinal position of the front armrest can
be adjusted.
It also has a storage compartment.
As a safety precaution, these op-
erations must only be carried out
when stationary.

i

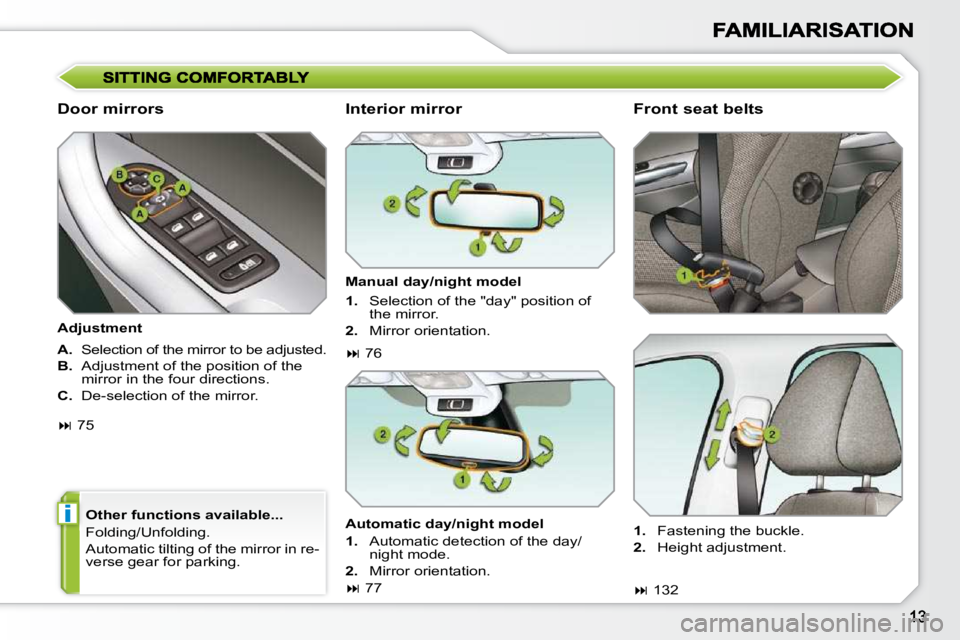

Door mirrors

A. Selection of the mirror to be adjusted.

B. Adjustment of the position of the
mirror in the four directions.

C. De-selection of the mirror.
Other functions available...
Folding/Unfolding.
Automatic tilting of the mirror in re-
verse gear for parking. Interior mirror
Manual day/night model
Front seat belts

1. Fastening the buckle.

2. Height adjustment.

 76

 132

 75
1. Selection of the "day" position of
the mirror.

2. Mirror orientation.
Automatic day/night model

1. Automatic detection of the day/
night mode.

2. Mirror orientation.

 77
Adjustment

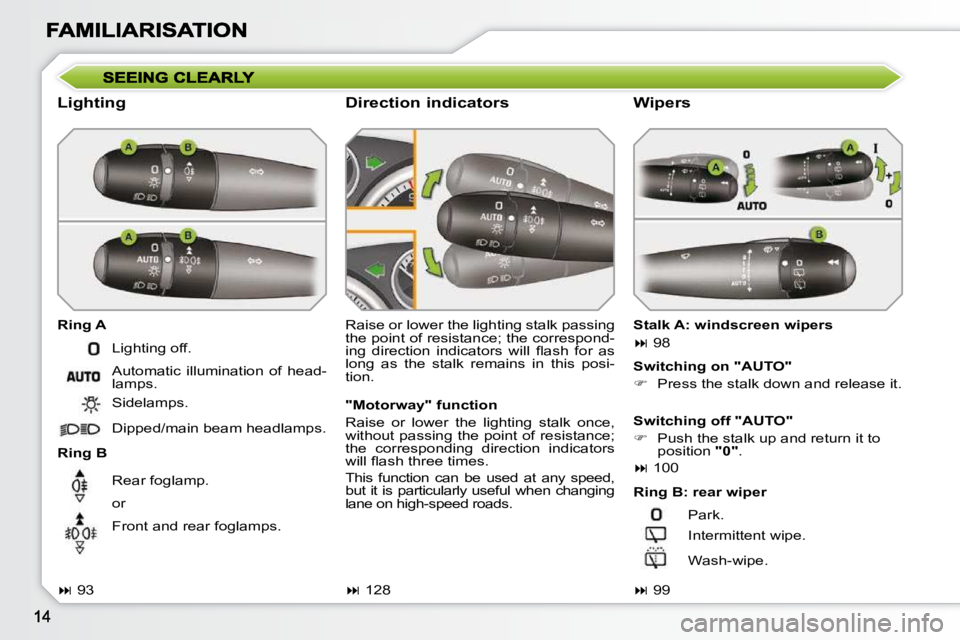

Lighting
Ring A
Ring B Raise or lower the lighting stalk passing
the point of resistance; the correspond-
ing direction indicators will fl ash for as
long as the stalk remains in this posi-
tion.
Direction indicators
Switching on "AUTO"

 Press the stalk down and release it.
Ring B: rear wiper

 93
 99
Lighting off.
Automatic illumination of head-
lamps.
Sidelamps.
Dipped/main beam headlamps.
Rear foglamp.
or
Front and rear foglamps.
Park.
Intermittent wipe.
Wash-wipe.
Stalk A: windscreen wipers

 98
Wipers
Switching off "AUTO"

 Push the stalk up and return it to
position "0" .

 100

 128
"Motorway" function
Raise or lower the lighting stalk once,
without passing the point of resistance;
the corresponding direction indicators
will fl ash three times.
This function can be used at any speed,
but it is particularly useful when changing
lane on high-speed roads.

–

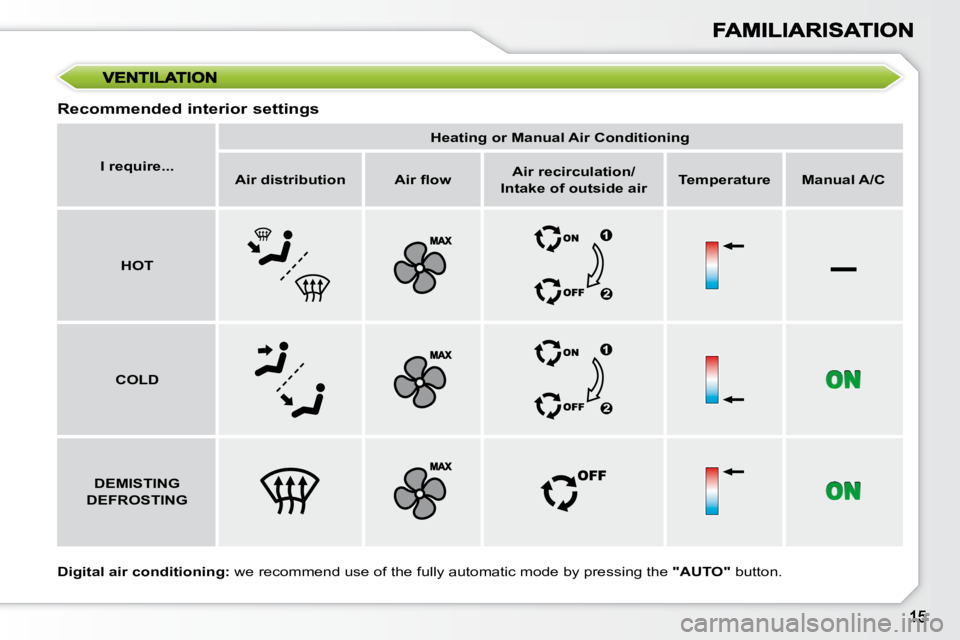

Recommended interior settings

Digital
air conditioning: we recommend use of the fully automatic mode by pressing the "AUTO" button.

I require...
Heating or Manual Air Conditioning

Air distribution Air fl ow
Air recirculation/

Intake of outside air
Temperature Manual A/C

HOT


COLD

DEMISTING

DEFROSTING

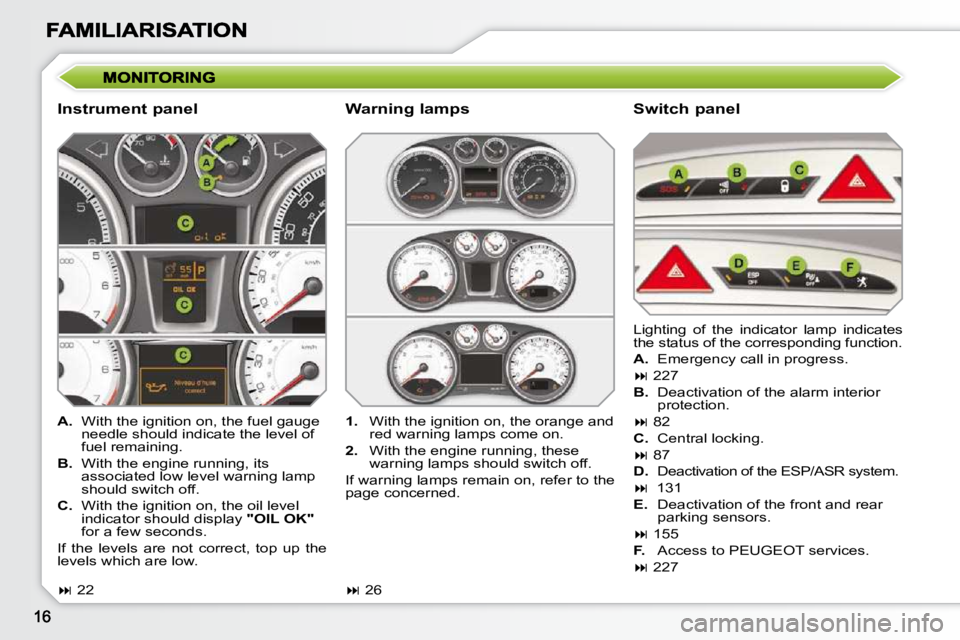

Instrument panel Switch panel

A. With the ignition on, the fuel gauge
needle should indicate the level of
fuel remaining.

B. With the engine running, its
associated low level warning lamp
should switch off.

C. With the ignition on, the oil level
indicator should display "OIL OK"
for a few seconds.
If the levels are not correct, top up the
levels which are low. Lighting of the indicator lamp indicates
the status of the corresponding function.

A. Emergency call in progress.
 227

B. Deactivation of the alarm interior
protection.
 82

C. Central locking.
 87

D. Deactivation of the ESP/ASR system.
 131

E. Deactivation of the front and rear
parking sensors.
 155

F. Access to PEUGEOT services.
 227

1. With the ignition on, the orange and
red warning lamps come on.

2. With the engine running, these
warning lamps should switch off.
If warning lamps remain on, refer to the
page concerned.
Warning lamps

 22  26

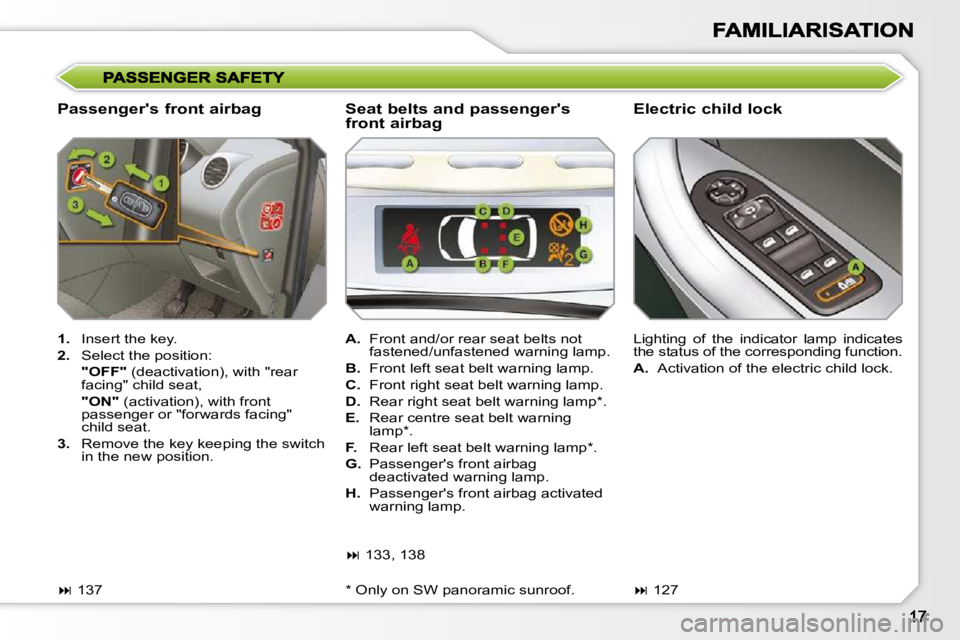

Passenger's front airbag Electric child lock

1. Insert the key.

2. Select the position:
"OFF" (deactivation), with "rear
facing" child seat,
"ON" (activation), with front
passenger or "forwards facing"
child seat.

3. Remove the key keeping the switch
in the new position. Lighting of the indicator lamp indicates
the status of the corresponding function.

A. Activation of the electric child lock.

A. Front and/or rear seat belts not
fastened/unfastened warning lamp.

B. Front left seat belt warning lamp.

C. Front right seat belt warning lamp.

D. Rear right seat belt warning lamp * .

E. Rear centre seat belt warning
lamp * .

F. Rear left seat belt warning lamp * .

G. Passenger's front airbag
deactivated warning lamp.

H. Passenger's front airbag activated
warning lamp.
Seat belts and passenger's
front airbag

 133, 138

 137
 127
* Only on SW panoramic sunroof.

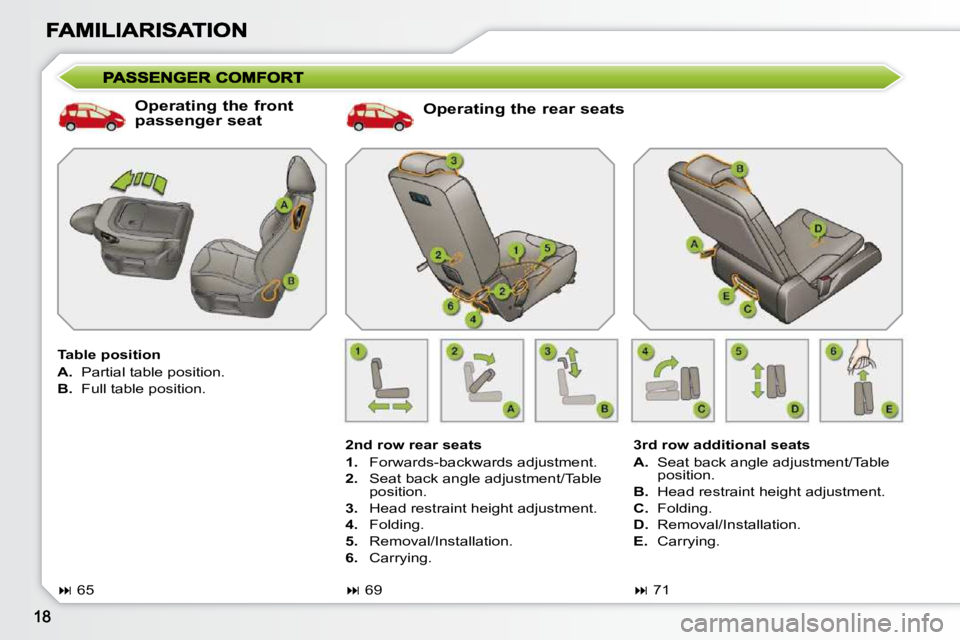

Operating the rear seats
2nd row rear seats

1. Forwards-backwards adjustment.

2. Seat back angle adjustment/Table
position.

3. Head restraint height adjustment.

4. Folding.

5. Removal/Installation.

6. Carrying.

 69 3rd row additional seats

A. Seat back angle adjustment/Table
position.

B. Head restraint height adjustment.

C. Folding.

D. Removal/Installation.

E. Carrying.

 71
Operating the front
passenger seat
Table position

A. Partial table position.

B. Full table position.

 65

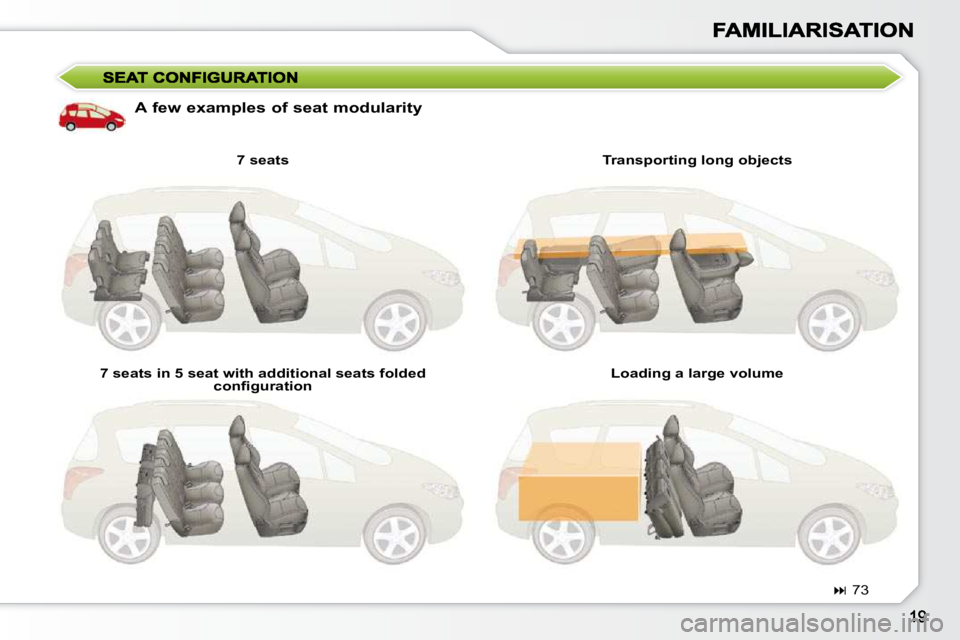

A few examples of seat modularity 7 seats
7 seats in 5 seat with additional seats folded confi guration Transporting long objects
Loading a large volume

 73
