2009 PEUGEOT 308 SW BL Owners Manual

12TECHNICAL DATA

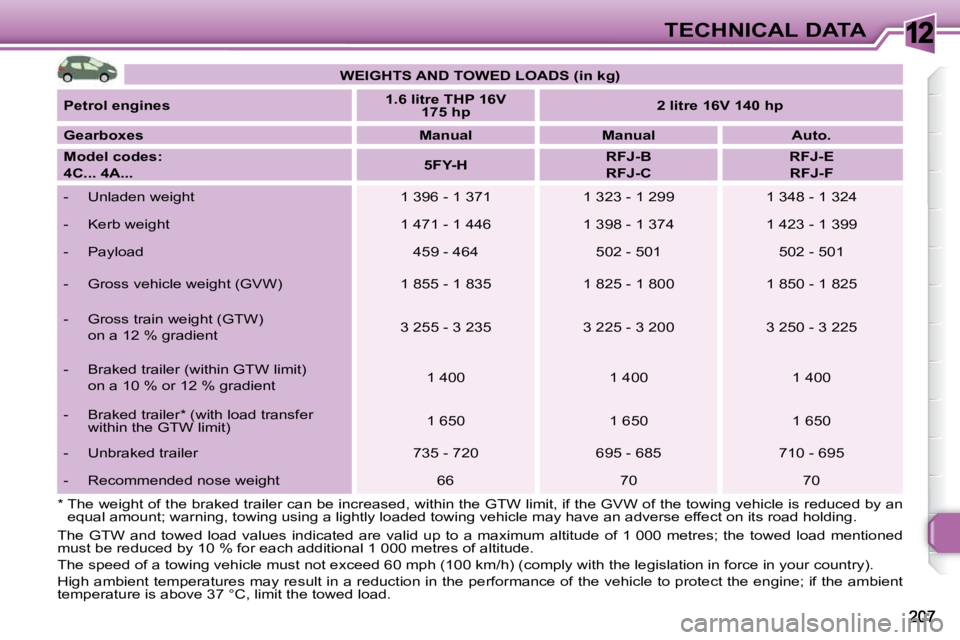

WEIGHTS AND TOWED LOADS (in kg)

Petrol engines
1.6
litre
THP 16V
175
hp
2
litre
16V 140
hp

Gearboxes
Manual Manual Auto.

Model codes:
4C... 4A...
5FY-H
RFJ-B
RFJ-C
RFJ-E
RFJ-F
- Unladen weight 1 396 - 1 371 1 323 - 1 299 1 348 - 1 324
- Kerb weight 1 471 - 1 446 1 398 - 1 374 1 423 - 1 399
- Payload 459 - 464 502 - 501 502 - 501
- Gross vehicle weight (GVW) 1 855 - 1 835 1 825 - 1 800 1 850 - 1 825
- Gross train weight (GTW)
on a 12 % gradient 3 255 - 3 235 3 225 - 3 200 3 250 - 3 225
- Braked trailer (within GTW limit)
on a 10 % or 12 % gradient 1 400 1 400 1 400
- Braked trailer * (with load transfer within the GTW limit) 1 650 1 650 1 650
- Unbraked trailer 735 - 720 695 - 685 710 - 6 95
- Recommended nose weight 66 70 70
The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mention ed
must be reduced by 10 % for each additional 1 000 metres of a ltitude.
The speed of a towing vehicle must not exceed 60 mph (100 k m/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the pe rformance of the vehicle to protect the engine; if the ambient
temperature is above 37 °C, limit the towed load.
* The weight of the braked trailer can be increased, w
ithin the GTW limit, if the GVW of the towing vehicle is reduced by an
equal amount; warning, towing using a lightly loaded to wing vehicle may have an adverse effect on its road holding.

12
208
TECHNICAL DATA
* The weight of the braked trailer can be increased, w ithin the GTW limit, if the GVW of the towing vehicle is reduced by an
equal amount; warning, towing using a lightly loaded to wing vehicle may have an adverse effect on its road holding.

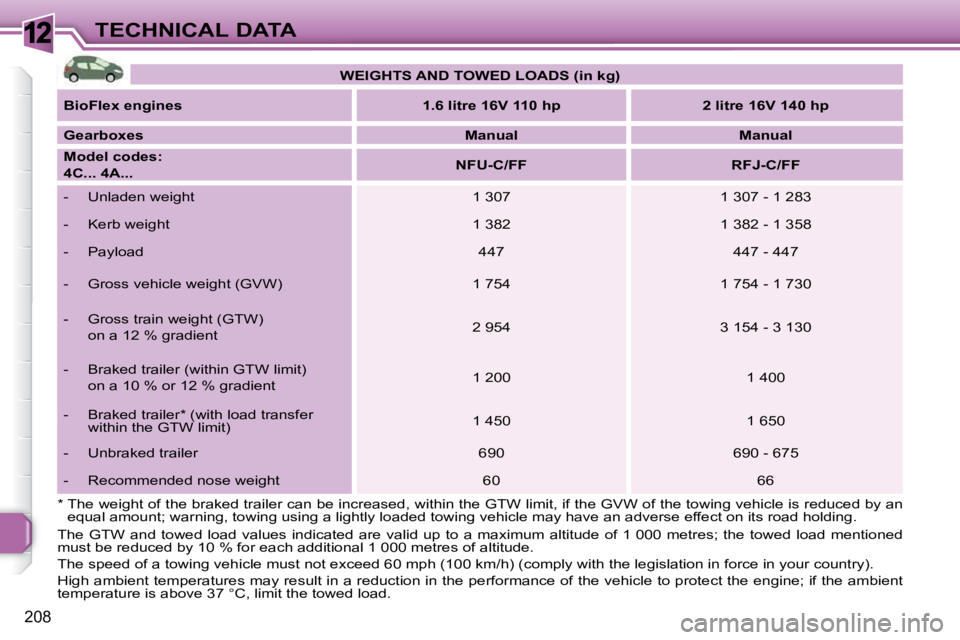

WEIGHTS AND TOWED LOADS (in kg)

BioFlex engines 1.6
litre
16V 110
hp 2
litre
16V 140
hp

Gearboxes
Manual Manual

Model codes:
4C... 4A...
NFU-C/FF RFJ-C/FF
- Unladen weight 1 307 1 307 - 1 283
- Kerb weight 1 382 1 382 - 1 358
- Payload 447 447 - 447
- Gross vehicle weight (GVW) 1 754 1 754 - 1 730
- Gross train weight (GTW)
on a 12 % gradient 2 954 3 154 - 3 130
- Braked trailer (within GTW limit)
on a 10 % or 12 % gradient 1 200 1 400
- Braked trailer * (with load transfer within the GTW limit) 1 450 1 650
- Unbraked trailer 690 690 - 675
- Recommended nose weight 60 66
The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mention ed
must be reduced by 10 % for each additional 1 000 metres of a ltitude.
The speed of a towing vehicle must not exceed 60 mph (100 k m/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the pe rformance of the vehicle to protect the engine; if the ambient
temperature is above 37 °C, limit the towed load.

12
209
TECHNICAL DATA

WEIGHTS AND TOWED LOADS (in kg)

Petrol engines
1.4
litre
VTi 16V
95
hp
1.6
litre
VTi 16V 120
hp
1.6
litre
16V
108
hp

Gearboxes Manual Manual Auto. Manual

Model codes: 4E... 8FS-C 5FW-C 5FW-F
N6A-B
N6A-C
- Unladen weight 1 351 1 362 1 388 1 374
- Kerb weight 1 426 1 437 1 463 1 449
- Payload 569 560 560 576
- Gross vehicle weight (GVW) 1 920 1 922 1 948 1 950
- Gross train weight (GTW)
on a 12 % gradient 2 970 3 172 3 098 3 150
- Braked trailer (within GTW limit)
on a 10 % or 12 % gradient 1 050 1 250 1 150 1 200
- Braked trailer * (with load transfer within the GTW limit) 1 350 1 550 1 450 1 400
- Unbraked trailer 710 715 730 720
- Recommended nose weight 60 65 60 75
The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mention ed
must be reduced by 10 % for each additional 1 000 metres of a ltitude.
The speed of a towing vehicle must not exceed 60 mph (100 k m/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the pe rformance of the vehicle to protect the engine; if the ambient
temperature is above 37 °C, limit the towed load.
* The weight of the braked trailer can be increased, w
ithin the GTW limit, if the GVW of the towing vehicle is reduced by an
equal amount; warning, towing using a lightly loaded to wing vehicle may have an adverse effect on its road holding.

12TECHNICAL DATA

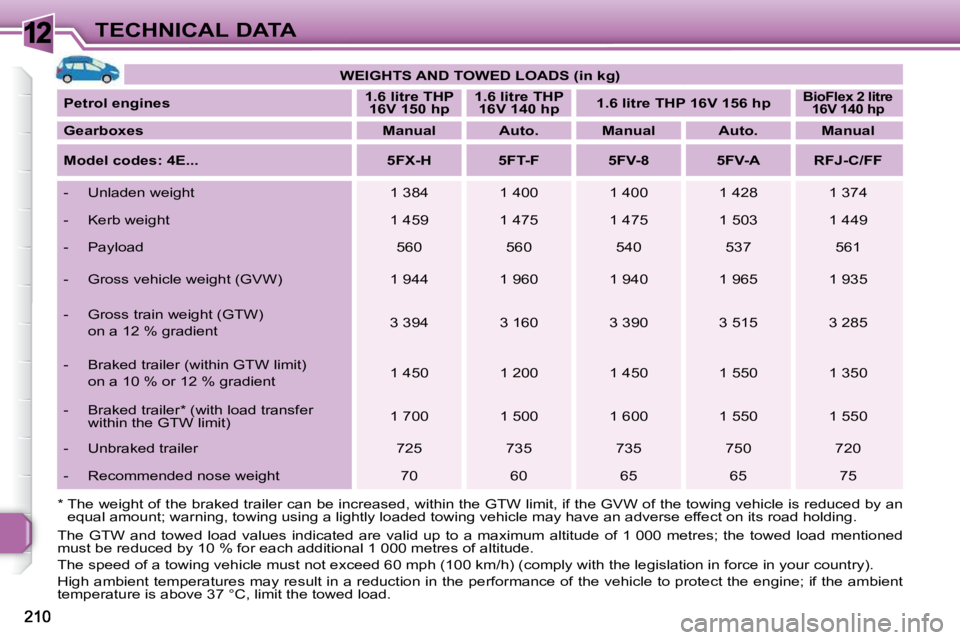

WEIGHTS AND TOWED LOADS (in kg)

Petrol engines
1.6
litre
THP
16V 150
hp
1.6
litre
THP
16V 140
hp
1.6
litre
THP 16V 156
hp

BioFlex 2
litre

16V 140
hp

Gearboxes Manual Auto. Manual Auto. Manual

Model codes: 4E... 5FX-H 5FT-F 5FV-8 5FV-A RFJ-C/FF
- Unladen weight 1 384 1 400 1 400 1 428 1 374
- Kerb weight 1 459 1 475 1 475 1 503 1 449
- Payload 560 560 540 537 561
- Gross vehicle weight (GVW) 1 944 1 960 1 940 1 965 1 935
- Gross train weight (GTW)
on a 12 % gradient 3 394 3 160 3 390 3 515 3 285
- Braked trailer (within GTW limit)
on a 10 % or 12 % gradient 1 450 1 200 1 450 1 550 1 350
- Braked trailer * (with load transfer within the GTW limit) 1 700 1 500 1 600 1 550 1 550
- Unbraked trailer 725 735 735 750 72 0
- Recommended nose weight 70 60 65 65 75
The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mention ed
must be reduced by 10 % for each additional 1 000 metres of a ltitude.
The speed of a towing vehicle must not exceed 60 mph (100 k m/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the pe rformance of the vehicle to protect the engine; if the ambient
temperature is above 37 °C, limit the towed load.
* The weight of the braked trailer can be increased, w
ithin the GTW limit, if the GVW of the towing vehicle is reduced by an
equal amount; warning, towing using a lightly loaded to wing vehicle may have an adverse effect on its road holding.

12
211
TECHNICAL DATA

WEIGHTS AND TOWED LOADS (in kg)

Petrol engines 1.6
litre
VTi 16V 120
hp
1.6
litre
16V
108
hp
1.6
litre
THP
16V 150
hp
1.6
litre
THP
16V 140
hp

Gearboxes Manual Auto. Manual Manual Auto.

Model codes: 4H... 5FW-C 5FW-F
N6A-B
N6A-C
5FX-H 5FT-F
- Unladen weight 1 440 1 466 1 462 1 486 1 502
- Kerb weight 1 515 1 541 1 537 1 561 1 577
- Payload 660 659 648 644 643
- Gross vehicle weight (GVW) 2 100 2 125 2 110 2 130 2 145
- Gross train weight (GTW)
on a 12 % gradient 3 200 3 095 3 110 3 380 3 195
- Braked trailer (within GTW limit)
on a 10 % or 12 % gradient 1 100 970 1 000 1 250 1 050
- Braked trailer * (with load transfer within the GTW limit) 1 500 1 370 1 350 1 650 1 450
- Unbraked trailer 750 750 750 750 75 0
- Recommended nose weight 60 55 75 70 60
The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mention ed
must be reduced by 10 % for each additional 1 000 metres of a ltitude.
The speed of a towing vehicle must not exceed 60 mph (100 k m/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the pe rformance of the vehicle to protect the engine; if the ambient
temperature is above 37 °C, limit the towed load.
* The weight of the braked trailer can be increased, w
ithin the GTW limit, if the GVW of the towing vehicle is reduced by an
equal amount; warning, towing using a lightly loaded to wing vehicle may have an adverse effect on its road holding.

12
212
TECHNICAL DATA
The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mention ed
must be reduced by 10 % for each additional 1 000 metres of a ltitude.
The speed of a towing vehicle must not exceed 60 mph (100 k m/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the pe rformance of the vehicle to protect the engine; if the ambient
temperature is above 37 °C, limit the towed load.

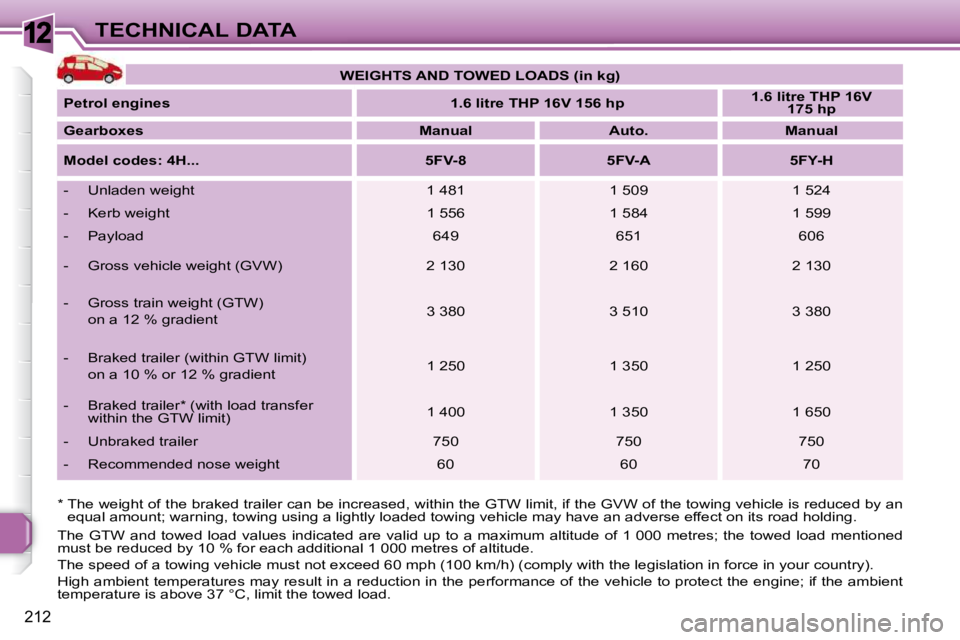

WEIGHTS AND TOWED LOADS (in kg)

Petrol engines
1.6
litre
THP 16V 156
hp
1.6
litre
THP 16V
175
hp

Gearboxes
Manual Auto. Manual

Model codes: 4H... 5FV-8 5FV-A 5FY-H
- Unladen weight 1 481 1 509 1 524
- Kerb weight 1 556 1 584 1 599
- Payload 649 651 606
- Gross vehicle weight (GVW) 2 130 2 160 2 130
- Gross train weight (GTW)
on a 12 % gradient 3 380 3 510 3 380
- Braked trailer (within GTW limit)
on a 10 % or 12 % gradient 1 250 1 350 1 250
- Braked trailer * (with load transfer within the GTW limit) 1 400 1 350 1 650
- Unbraked trailer 750 750 750
- Recommended nose weight 60 60 70
* The weight of the braked trailer can be increased, w ithin the GTW limit, if the GVW of the towing vehicle is reduced by an
equal amount; warning, towing using a lightly loaded to wing vehicle may have an adverse effect on its road holding.

12TECHNICAL DATA
* The weight of the braked trailer can be increased, w ithin the GTW limit, if the GVW of the towing vehicle is reduced by an
equal amount; warning, towing using a lightly loaded to wing vehicle may have an adverse effect on its road holding.
The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mention ed
must be reduced by 10 % for each additional 1 000 metres of a ltitude.
The speed of a towing vehicle must not exceed 60 mph (100 k m/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the pe rformance of the vehicle to protect the engine; if the ambient
temperature is above 37 °C, limit the towed load.

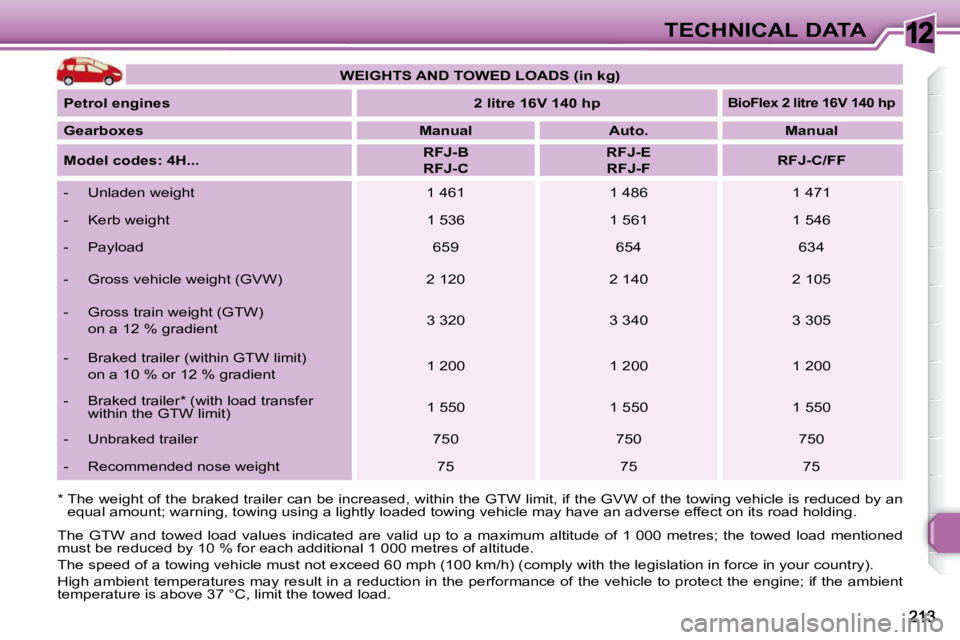

WEIGHTS AND TOWED LOADS (in kg)

Petrol engines
2
litre
16V 140
hp

BioFlex 2
litre
16V 140
hp

Gearboxes
Manual Auto. Manual

Model codes: 4H...
RFJ-B
RFJ-C
RFJ-E
RFJ-F
RFJ-C/FF
- Unladen weight 1 461 1 486 1 471
- Kerb weight 1 536 1 561 1 546
- Payload 659 654 634
- Gross vehicle weight (GVW) 2 120 2 140 2 105
- Gross train weight (GTW)
on a 12 % gradient 3 320 3 340 3 305
- Braked trailer (within GTW limit)
on a 10 % or 12 % gradient 1 200 1 200 1 200
- Braked trailer * (with load transfer within the GTW limit) 1 550 1 550 1 550
- Unbraked trailer 750 750 750
- Recommended nose weight 75 75 75

12
217
TECHNICAL DATA
* The weight of the braked trailer can be increased, w ithin the GTW limit, if the GVW of the towing vehicle is reduced by an
equal amount; warning, towing using a lightly loaded to wing vehicle may have an adverse effect on its road holding.

WEIGHTS AND TOWED LOADS (in kg)

Diesel engines
1.6
litre
Turbo HDI 16V 90
hp
1.6
litre
Turbo HDI
16V 92
hp

Gearboxes
Manual Manual

Model codes:
4C... 4A... 4G...
9HX-B 9HX-C 9HV-C 9HP-0
- Unladen weight -
1 303 - 1 293 - 1 278 1 311 - 1 301 1 303 - 1 288
- Kerb weight -
1 378 - 1 368 - 1 353 1 386 - 1 376 1 378 - 1 363
- Payload - 501 - 499 - 530 502 - 498 512 - 502
- Gross vehicle weight (GVW) -
1 804 - 1 792 - 1 808 1 813 - 1 799 1 815 - 1 790
- Gross train weight (GTW)
on a 12 % gradient -
3 074 - 3 062 - 3 078 3 083 - 3 069 2 915 - 2 890
- Braked trailer (within GTW limit)
on a 10 % or 12 % gradient - 1 270 1 270 1 100
- Braked trailer * (with load transfer within the GTW limit) - 1 520 1 520 1 300
- Unbraked trailer - 685 - 680 - 675 690 - 685 685 - 680
- Recommended nose weight - 61 - 61 - 55 61 60
The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mention ed
must be reduced by 10 % for each additional 1 000 metres of a ltitude.
The speed of a towing vehicle must not exceed 60 mph (100 k m/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the pe rformance of the vehicle to protect the engine; if the ambient
temperature is above 37 °C, limit the towed load.
