MULTIFUNCTION SCREENS

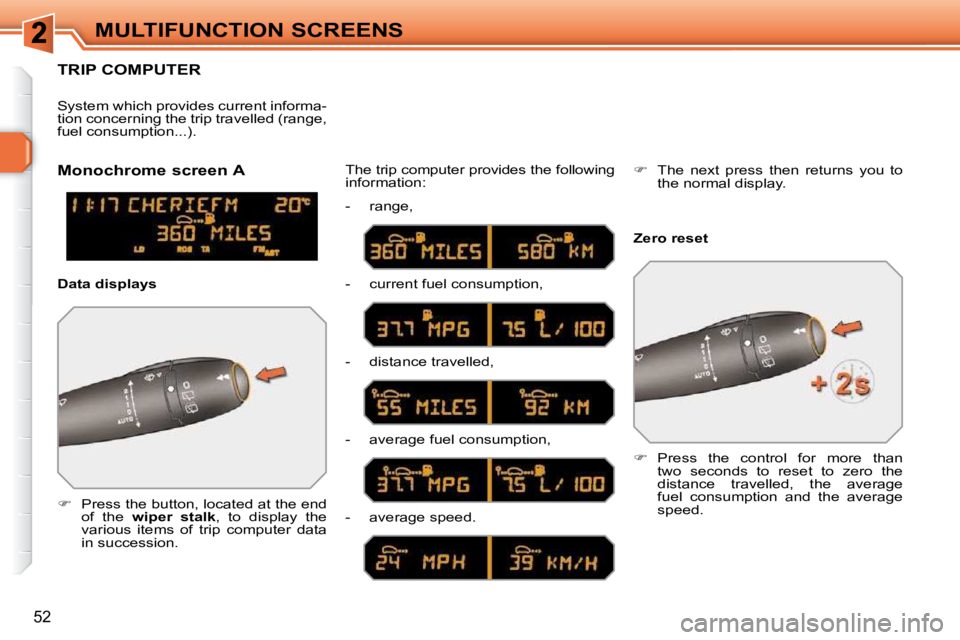

TRIP COMPUTER

 Press the button, located at the end
of the wiper stalk , to display the
various items of trip computer data
in succession. The trip computer provides the following
information:
System which provides current informa-
tion concerning the trip travelled (range,
fuel consumption...).

 Press the control for more than
two seconds to reset to zero the
distance travelled, the average
fuel consumption and the average
speed.
Monochrome screen A
Zero reset
Data displays - range,
- current fuel consumption,
- distance travelled,
- average fuel consumption,
- average speed.
 The next press then returns you to
the normal display.

!
i
i
54
MULTIFUNCTION SCREENS
Trip zero reset

With the monochrome screen C or
the instrument panel large screen

 When the trip required is displayed,
press the control for more than
two seconds.

With the instrument panel
Peugeot
Connect Media

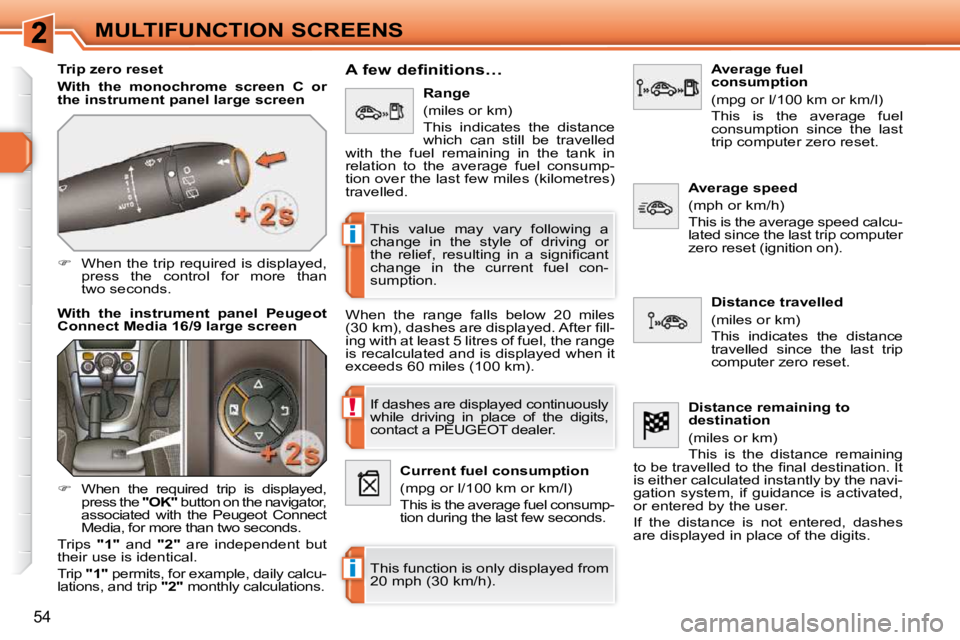

16/9 large screen A few definitions…
When the range falls below 20 miles
(30 km), dashes are displayed. After fi ll-
ing with at least 5 litres of fuel, the range
is recalculated and is displayed when it
exceeds 60 miles (100 km).
If dashes are displayed continuously
while driving in place of the digits,
contact a PEUGEOT dealer.
This function is only displayed from
20 mph (30 km/h).
This value may vary following a
change in the style of driving or
the relief, resulting in a signifi cant
change in the current fuel con-
sumption.
Range
(miles or km)
This indicates the distance
which can still be travelled
with the fuel remaining in the tank in
relation to the average fuel consump-
tion over the last few miles (kilometres)
travelled.
Current fuel consumption
(mpg or l/100 km or km/l)
This is the average fuel consump-
tion during the last few seconds. Average fuel
consumption
(mpg or l/100 km or km/l)
This is the average fuel
consumption since the last
trip computer zero reset.
Distance travelled
(miles or km)
This indicates the distance
travelled since the last trip
computer zero reset.
Average speed
(mph or km/h)
This is the average speed calcu-
lated since the last trip computer
zero reset (ignition on).
Distance remaining to
destination
(miles or km)
This is the distance remaining
to be travelled to the fi nal destination. It
is either calculated instantly by the navi-
gation system, if guidance is activated,
or entered by the user.
If the distance is not entered, dashes
are displayed in place of the digits.

 When the required trip is displayed,
press the "OK" button on the navigator,
associated with the Peugeot Connect
Media, for more than two seconds.
Trips "1" and "2" are independent but
their use is identical.
Trip "1" permits, for example, daily calcu-
lations, and trip "2" monthly calculations.

i
53

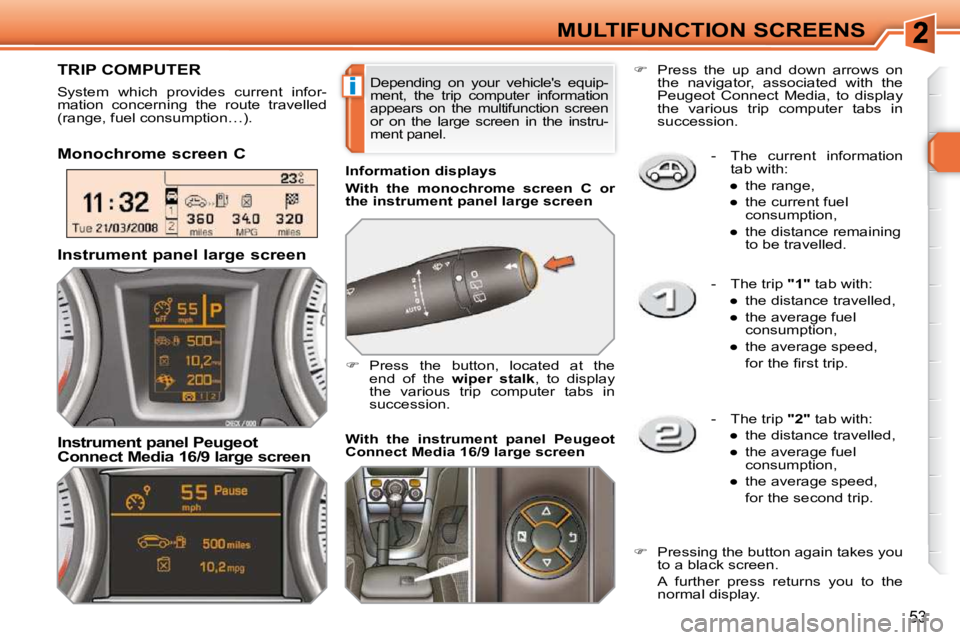

MULTIFUNCTION SCREENS - The current information tab with:

!
i
i
54
MULTIFUNCTION SCREENS
Trip zero reset

With the monochrome screen C or
the instrument panel large screen

 When the trip required is displayed,
press the control for more than
two seconds.

With the instrument panel
Peugeot
Connect Media
16/9 large screen A few definitions…
When the range falls below 20 miles
(30 km), dashes are displayed. After fi ll-
ing with at least 5 litres of fuel, the range
is recalculated and is displayed when it
exceeds 60 miles (100 km).
If dashes are displayed continuously
while driving in place of the digits,
contact a PEUGEOT dealer.
This function is only displayed from
20 mph (30 km/h).
This value may vary following a
change in the style of driving or
the relief, resulting in a signifi cant
change in the current fuel con-
sumption.
Range
(miles or km)
This indicates the distance
which can still be travelled
with the fuel remaining in the tank in
relation to the average fuel consump-
tion over the last few miles (kilometres)
travelled.
Current fuel consumption
(mpg or l/100 km or km/l)
This is the average fuel consump-
tion during the last few seconds. Average fuel
consumption
(mpg or l/100 km or km/l)
This is the average fuel
consumption since the last
trip computer zero reset.
Distance travelled
(miles or km)
This indicates the distance
travelled since the last trip
computer zero reset.
Average speed
(mph or km/h)
This is the average speed calcu-
lated since the last trip computer
zero reset (ignition on).
Distance remaining to
destination
(miles or km)
This is the distance remaining
to be travelled to the fi nal destination. It
is either calculated instantly by the navi-
gation system, if guidance is activated,
or entered by the user.
If the distance is not entered, dashes
are displayed in place of the digits.

 When the required trip is displayed,
press the "OK" button on the navigator,
associated with the Peugeot Connect
Media, for more than two seconds.
Trips "1" and "2" are independent but
their use is identical.
Trip "1" permits, for example, daily calcu-
lations, and trip "2" monthly calculations.

55
COMFORT

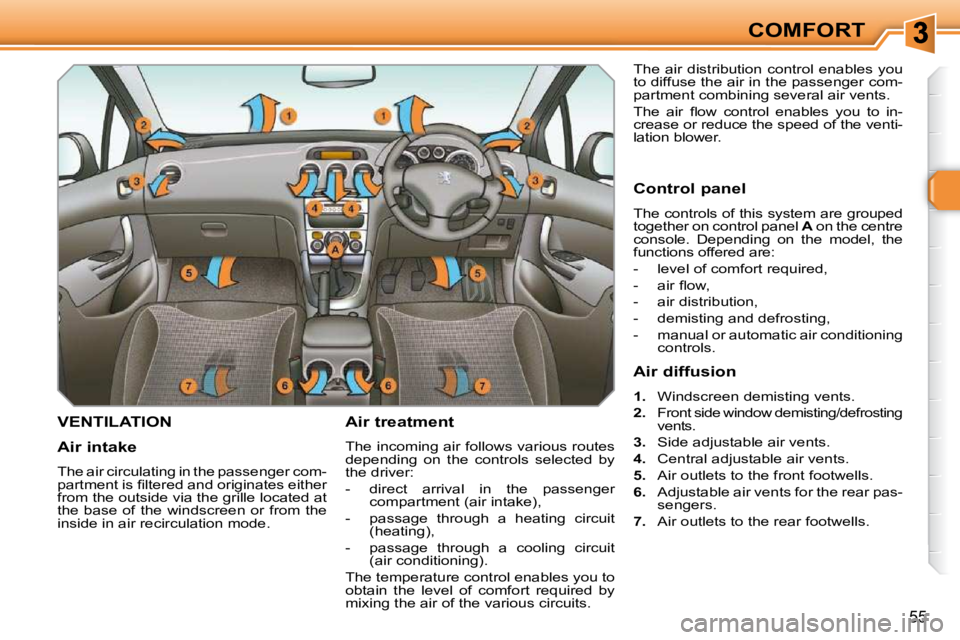

VENTILATION Air treatment
The incoming air follows various routes
depending on the controls selected by
the driver:
- direct arrival in the passenger compartment (air intake),
- passage through a heating circuit (heating),
- passage through a cooling circuit (air conditioning).
The temperature control enables you to
obtain the level of comfort required by
mixing the air of the various circuits. The air distribution control enables you
to diffuse the air in the passenger com-
partment combining several air vents.
The air fl ow control enables you to in-
crease or reduce the speed of the venti-
lation blower.
Air intake
The air circulating in the passenger com-
partment is fi ltered and originates either
from the outside via the grille located at
the base of the windscreen or from the
inside in air recirculation mode. Control panel
The controls of this system are grouped
together on control panel
A on the centre
console. Depending on the model, the
functions offered are:
- level of comfort required,
- air fl ow,
- air distribution,
- demisting and defrosting,
- manual or automatic air conditioning controls.
Air diffusion

1. Windscreen demisting vents.

2. Front side window demisting/defrosting
vents.

3. Side adjustable air vents.

4. Central adjustable air vents.

5. Air outlets to the front footwells.

6. Adjustable air vents for the rear pas-
sengers.

7. Air outlets to the rear footwells.

i
i
56
COMFORT
If after an extended stop in sunshine,
the interior temperature is very high,
fi rst ventilate the passenger com-
partment for a few moments.
Put the air fl ow control at a setting
high enough to quickly change the
air in the passenger compartment.
The air conditioning system does not
contain chlorine and does not present
any danger to the ozone layer.

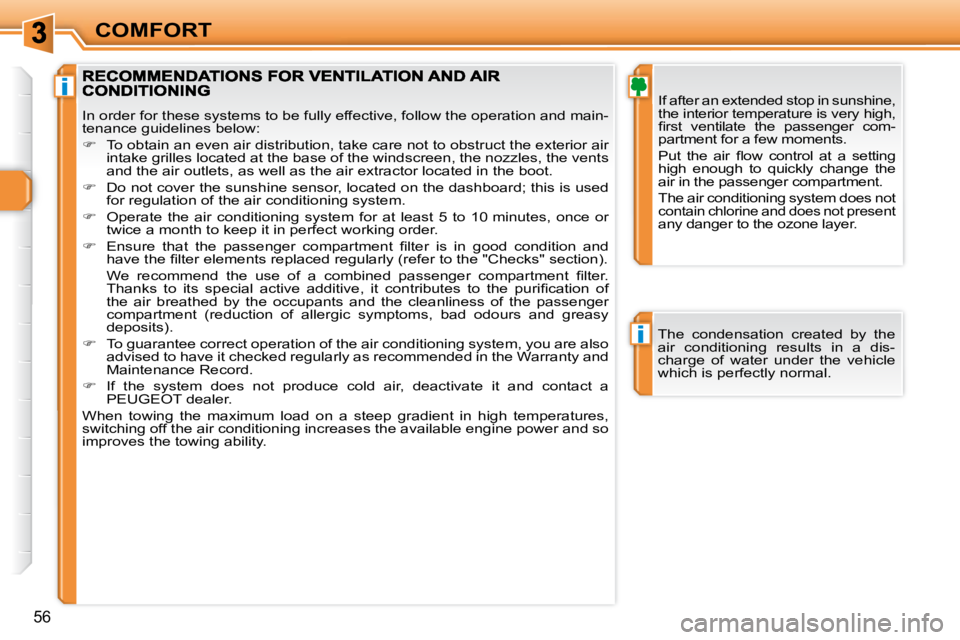

In order for these systems to be fully effective, follow the o peration and main-
tenance guidelines below:

 To obtain an even air distribution, take care not to obst ruct the exterior air
intake grilles located at the base of the windscreen, the n ozzles, the vents
and the air outlets, as well as the air extractor located in the boot.

 Do not cover the sunshine sensor, located on the dashboard ; this is used
for regulation of the air conditioning system.

 Operate the air conditioning system for at least 5 to 10 mi nutes, once or
twice a month to keep it in perfect working order.

 Ensure that the passenger compartment fi lter is in good condit ion and
have the fi lter elements replaced regularly (refer to the "Checks" section).
We recommend the use of a combined passenger compartment fi lter.
Thanks to its special active additive, it contributes to the p urifi cation of
the air breathed by the occupants and the cleanliness of the passenger
compartment (reduction of allergic symptoms, bad odours and greasy
deposits).

 To guarantee correct operation of the air conditioning syste m, you are also
advised to have it checked regularly as recommended in the Warranty and
Maintenance Record.

 If the system does not produce cold air, deactivate it and contact a
PEUGEOT dealer.
When towing the maximum load on a steep gradient in high temperatures,
switching off the air conditioning increases the available e ngine power and so
improves the towing ability. The condensation created by the
air conditioning results in a dis-
charge of water under the vehicle
which is perfectly normal.

i
57
COMFORT

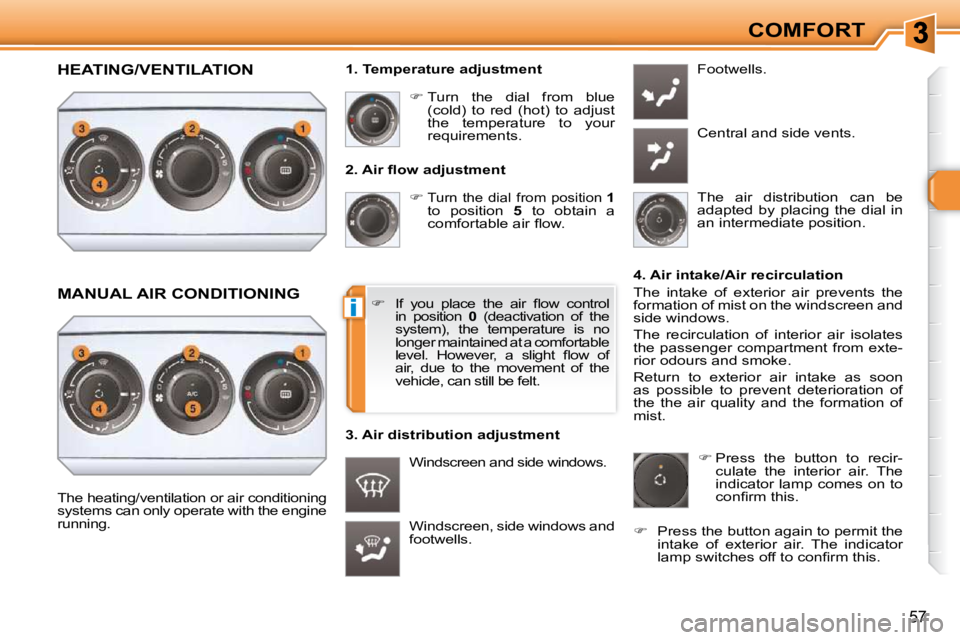

2. Air fl ow adjustment

Turn the dial from position
1
to position 5 to obtain a
comfortable air fl ow.
Windscreen, side windows and
footwells. Footwells.
Central and side vents.

 Turn the dial from blue
(cold) to red (hot) to adjust
the temperature to your
requirements.
Windscreen and side windows.
1. Temperature adjustment
The air distribution can be
adapted by placing the dial in
an intermediate position.
The heating/ventilation or air condition ing
systems can only operate with the engine
running. 4. Air intake/Air recirculation
The intake of exterior air prevents the
formation of mist on the windscreen and
side windows.
The recirculation of interior air isolates
the passenger compartment from exte-
rior odours and smoke.
Return to exterior air intake as soon
as possible to prevent deterioration of
the the air quality and the formation of
mist.

 If you place the air fl ow control
in position 0 (deactivation of the
system), the temperature is no
longer maintained at a comfortable
level. However, a slight fl ow of
air, due to the movement of the
vehicle, can still be felt.
3. Air distribution adjustment
 Press the button to recir-
culate the interior air. The
indicator lamp comes on to
confi rm this.

 Press the button again to permit the
intake of exterior air. The indicator
lamp switches off to confi rm this.
HEATING/VENTILATION
MANUAL AIR CONDITIONING

58
COMFORT

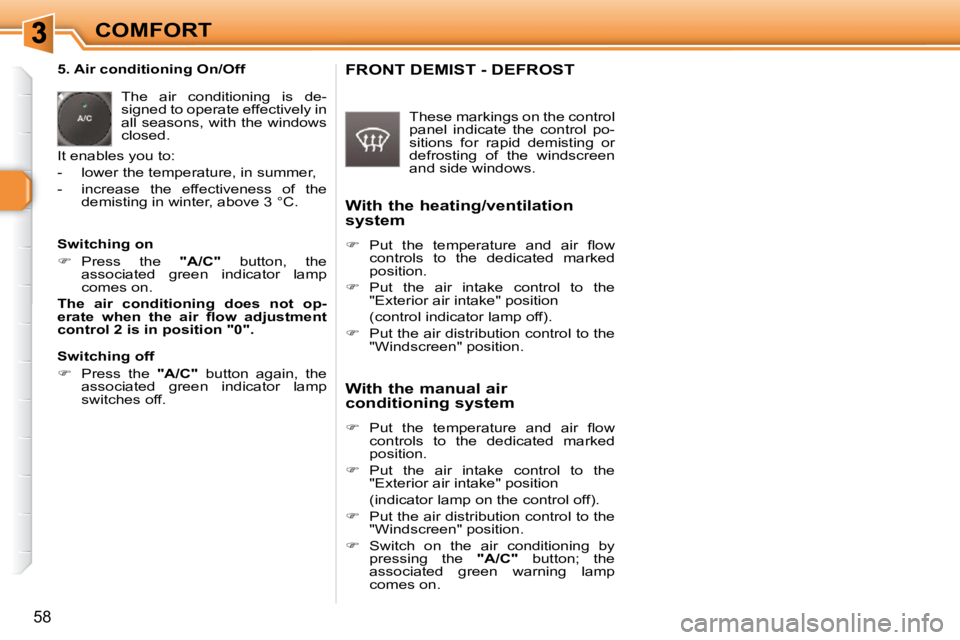

5. Air conditioning On/Off The air conditioning is de-
signed to operate effectively in
all seasons, with the windows
closed.
It enables you to:
- lower the temperature, in summer,
- increase the effectiveness of the demisting in winter, above 3 °C.
Switching off

 Press the "A/C" button again, the
associated green indicator lamp
switches off.
Switching on

 Press the "A/C" button, the
associated green indicator lamp
comes on.

The air conditioning does not op-
erate when the air fl ow adjustment
control 2 is in position "0".
FRONT DEMIST - DEFROST
These markings on the control
panel indicate the control po-
sitions for rapid demisting or
defrosting of the windscreen
and side windows.
With the heating/ventilation
system

 Put the temperature and air fl ow
controls to the dedicated marked
position.

 Put the air intake control to the
"Exterior air intake" position
(control indicator lamp off).

 Put the air distribution control to the
"Windscreen" position.
With the manual air
conditioning system

 Put the temperature and air fl ow
controls to the dedicated marked
position.

 Put the air intake control to the
"Exterior air intake" position
(indicator lamp on the control off).

 Put the air distribution control to the
"Windscreen" position.

 Switch on the air conditioning by
pressing the "A/C" button; the
associated green warning lamp
comes on.
