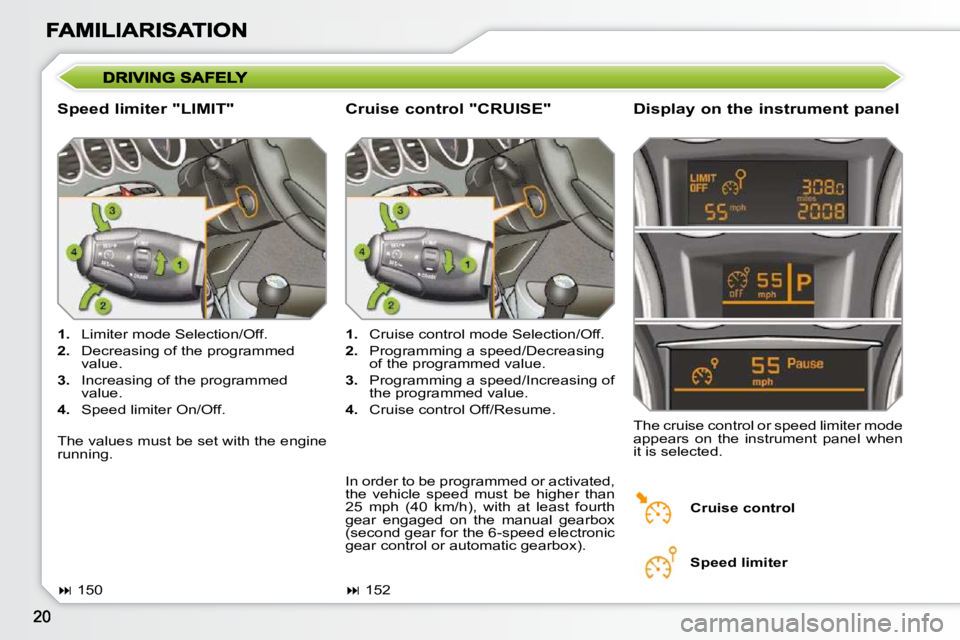

Speed limiter "LIMIT" Display on the instrument panel

1. Limiter mode Selection/Off.

2. Decreasing of the programmed
value.

3. Increasing of the programmed
value.

4. Speed limiter On/Off.
The cruise control or speed limiter mode
appears on the instrument panel when
it is selected.

1. Cruise control mode Selection/Off.

2. Programming a speed/Decreasing
of the programmed value.

3. Programming a speed/Increasing of
the programmed value.

4. Cruise control Off/Resume.
Cruise control "CRUISE"
Cruise control
Speed limiter

 152

 150 In order to be programmed or activated,
the vehicle speed must be higher than
25 mph (40 km/h), with at least fourth
gear engaged on the manual gearbox
(second gear for the 6-speed electronic
gear control or automatic gearbox).
The values must be set with the engine
running.

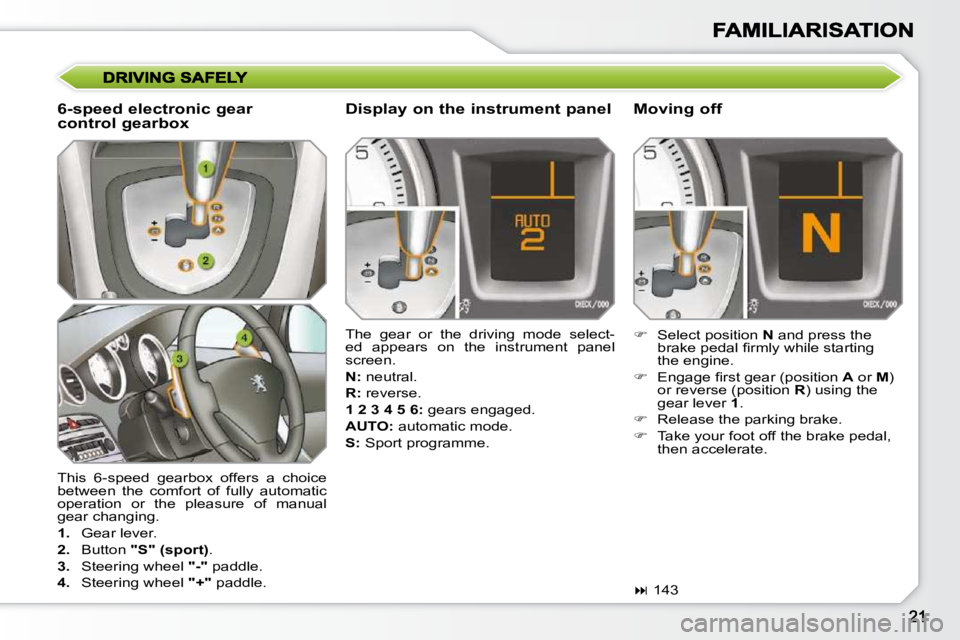

This 6-speed gearbox offers a choice
between the comfort of fully automatic
operation or the pleasure of manual
gear changing.

1. Gear lever.

2. Button "S" (sport) .

3. Steering wheel "-"
paddle.

4. Steering wheel "+"
paddle. The gear or the driving mode select-
ed appears on the instrument panel
screen.

N: neutral.

R: reverse.

1 2 3 4 5 6: gears engaged.

AUTO: automatic mode.

S: Sport programme.
Display on the instrument panel

 Select position N and press the
brake pedal fi rmly while starting
the engine.

 Engage fi rst gear (position A or M )
or reverse (position R ) using the
gear lever 1 .

 Release the parking brake.

 Take your foot off the brake pedal,
then accelerate.
Moving off

 143
6-speed electronic gear
control gearbox

i
22
INSTRUMENTS and CONTROLS

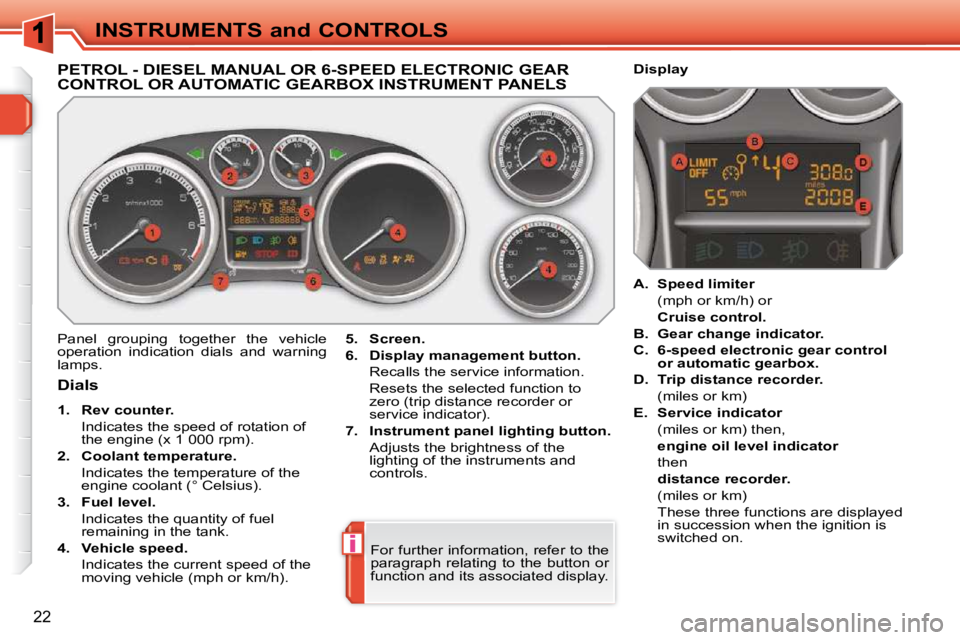

PETROL - DIESEL MANUAL OR 6-SPEED ELECTRONIC GEAR CONTROL OR AUTOMATIC GEARBOX INSTRUMENT PANELS
Panel grouping together the vehicle
operation indication dials and warning
lamps.
5. Screen
.

6. Display management button.
Recalls the service information.
Resets the selected function to zero (trip distance recorder or
service indicator).

7. Instrument panel lighting button.
Adjusts the brightness of the lighting of the instruments and
controls.
Dials

1. Rev counter.
Indicates the speed of rotation of the engine (x 1 000 rpm).

2. Coolant temperature.
Indicates the temperature of the engine coolant (° Celsius).

3. Fuel level.
Indicates the quantity of fuel remaining in the tank.

4. Vehicle speed.
Indicates the current speed of the moving vehicle (mph or km/h).
A. Speed limiter
(mph or km/h) or
Cruise control.

B. Gear change indicator.

C. 6-speed
electronic gear control

or automatic gearbox.

D. Trip distance recorder.
(miles or km)

E. Service indicator
(miles or km) then,
engine oil level indicator
then
distance recorder.
(miles or km)
These three functions are displayed in succession when the ignition is
switched on.
Display
For further information, refer to the
paragraph relating to the button or
function and its associated display.

i
23
INSTRUMENTS and CONTROLS
PETROL - DIESEL MANUAL OR 6-SPEED ELECTRONIC GEAR CONTROL OR AUTOMATIC GEARBOX INSTRUMENT PANELS
Panel grouping together the vehicle
operation indication dials and warning
lamps.
5. Small
screen
.

6. Large central
screen
.

7. Display management button.
Starts a manual CHECK and recalls the service information.
Resets the function selected to zero (trip distance recorder or
service indicator).

8. Instrument panel lighting button.
Adjusts the brightness of the lighting of the instruments and
controls.
Dials

1. Rev counter.
Indicates the speed of rotation of the engine (x 1 000 rpm).

2. Coolant temperature.
Indicates the temperature of the engine coolant (° Celsius).

3. Fuel level.
Indicates the quantity of fuel remaining in the tank.

4. Vehicle speed.
Indicates the current speed of the moving vehicle (mph or km/h).
A. Trip distance recorder.
(miles or km)

B. Distance recorder.
(miles or km)

C. Engine oil level indicator,
service indicator.
(miles or km)
These two functions are displayed when the ignition is switched on,
then disappear after a few seconds.
Displays
For further information, refer to the
paragraph which relates to the but-
ton or function and its associated
display. The following functions are displayed
depending on the selection.
-
Warning
lamps
/CHECK.
- Tyre under-infl ation detection.
- Speed limiter/Cruise control.
- Gear change indicator.
- 6-speed
electronic gear control

or automatic gearbox.
- Navigation - Guidance/
Trip computer.

i
24
INSTRUMENTS and CONTROLS
PETROL - DIESEL MANUAL OR 6-SPEED ELECTRONIC GEAR CONTROL OR AUTOMATIC GEARBOX PEUGEOT CONNECT MEDIA INSTRUMENT PANELS

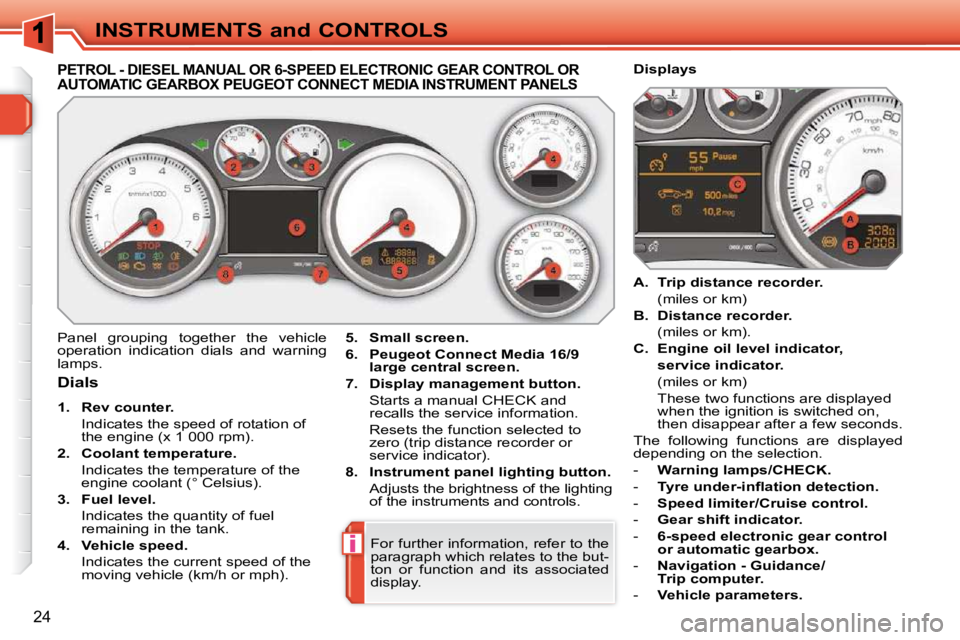

Dials

1. Rev counter.
Indicates the speed of rotation of the engine (x 1 000 rpm).

2. Coolant temperature.
Indicates the temperature of the engine coolant (° Celsius).

3. Fuel level.
Indicates the quantity of fuel remaining in the tank.

4. Vehicle speed.
Indicates the current speed of the moving vehicle (km/h or mph).
A. Trip distance recorder.
(miles or km)

B. Distance recorder.
(miles or km).

C. Engine oil level indicator,
service indicator.
(miles or km)
These two functions are displayed when the ignition is switched on,
then disappear after a few seconds.
The following functions are displayed
depending on the selection.
- Warning
lamps
/CHECK.
- Tyre under-infl ation detection.
- Speed limiter/Cruise control.
- Gear
shift
indicator.
- 6-speed
electronic gear control

or automatic gearbox.
- Navigation - Guidance/
Trip computer.
- Vehicle parameters.
Panel grouping together the vehicle
operation indication dials and warning
lamps. Displays

5. Small
screen
.

6. Peugeot Connect Media
16/9
large central screen.

7. Display management button.
Starts a manual CHECK and recalls the service information.
Resets the function selected to zero (trip distance recorder or
service indicator).

8. Instrument panel lighting button.
Adjusts the brightness of the lighting of the instruments and controls.
For further information, refer to the
paragraph which relates to the but-
ton or function and its associated
display.

i
25
INSTRUMENTS and CONTROLS * According to country.
Instrument panel navigator associated
with the Peugeot Connect Media
Controls
There are four buttons to control the in-
strument panel 16/9 large screen:

1. access the main menu, confi rm the
selection,

2. move up through the menu,

3. move down through the menu,

4. return to the previous screen, exit
from the menu. Main menu

 Press button 1 for access to the
main menu and select one of the
following functions:
- "Vehicle parameters",
- "Choice of language",
- "Choice of units".

 Press button 2 or 3 to move on the
screen.

 Press button 1 again to confi rm the
selection. The main menu and its associated
functions can only be accessed
when stationary, via buttons
1 to 4 .
A message appears on the screen
above a certain speed threshold,
indicating that the main menu can-
not be displayed.
The trip computer displays can
only be accessed while driving, via
buttons 2 and 3 (refer to the "Trip
computer" section).
This group of buttons permits:
-
when stationary , confi guration
of the vehicle's equipment and
of the parameters of the display
(languages, units...),
- while driving , scrolling of the
active functions (trip computer,
navigation...).
Vehicle parameters
This menu allows you to activate or deacti-
vate certain driving and comfort equipment:
- wiper linked with reverse gear (refer to the "Visibility" section),
- guide-me-home and welcome lighting (refer to the "Visibility"
section),
- interior mood lighting (refer to the "Visibility" section),
- daytime running lamps (refer to the "Visibility" section),
- directional headlamps (refer to the "Visibility" section),
- rear parking sensors (refer to the "Driving" section).
Choice of language
This menu allows you to select the lan-
guage used by the display: Deutsch,
English, Espanol, Français, Italiano,
Nederlands, Portugues, Türkçe * .
Choice of units
This menu allows you to select the units:
temperature (°Celsius or °Fahrenheit)
and consumption (l/100 km, mpg or km/l).

!
26
INSTRUMENTS and CONTROLS
The warning lamps may come on
continuously or fl ash.
Certain warning lamps may come
on in two different modes. Only by
relating the type of lighting to the
operating status of the vehicle can
it be ascertained whether the situ-
ation is normal or whether a fault
has occurred.

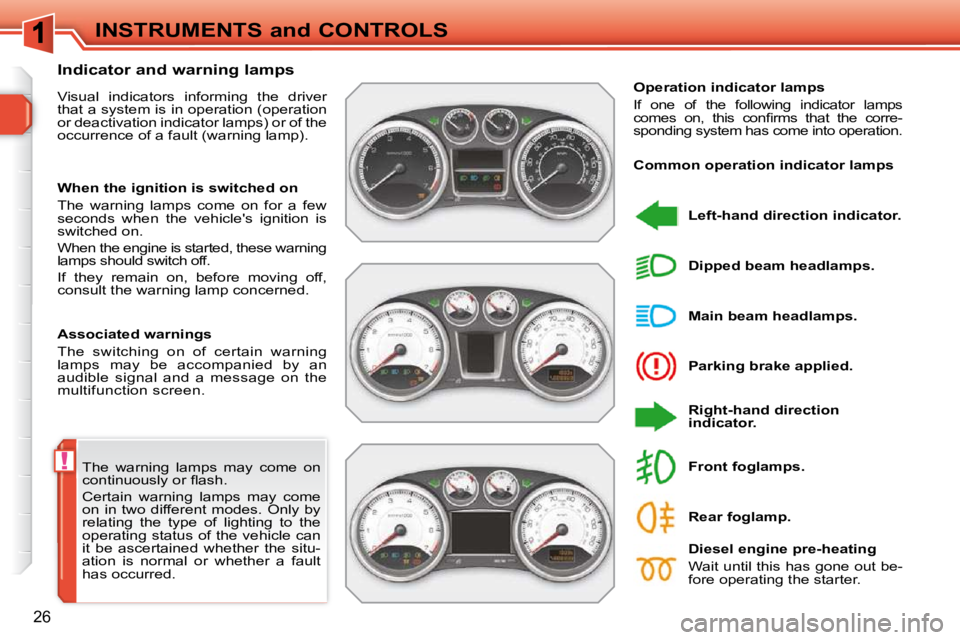

Indicator and warning lamps
Visual indicators informing the driver
that a system is in operation (operation
or deactivation indicator lamps) or of the
occurrence of a fault (warning lamp).
Associated warnings
The switching on of certain warning
lamps may be accompanied by an
audible signal and a message on the
multifunction screen.
Operation indicator lamps
If one of the following indicator lamps
comes on, this confi rms that the corre-
sponding system has come into operation.
Left-hand direction indicator.
Parking brake applied.
Right-hand direction
indicator.
Main beam headlamps.
Dipped beam headlamps.
Diesel engine pre-heating
Wait until this has gone out be-
fore operating the starter.
Front foglamps.
When the ignition is switched on
The warning lamps come on for a few
seconds when the vehicle's ignition is
switched on.
When the engine is started, these warning
lamps should switch off.
If they remain on, before moving off,
consult the warning lamp concerned.
Common operation indicator lamps
Rear foglamp.

27
INSTRUMENTS and CONTROLS
Foot on brake.
Press the brake pedal to start
the engine with the 6-speed
electronic gear control gearbox
or automatic gearbox.

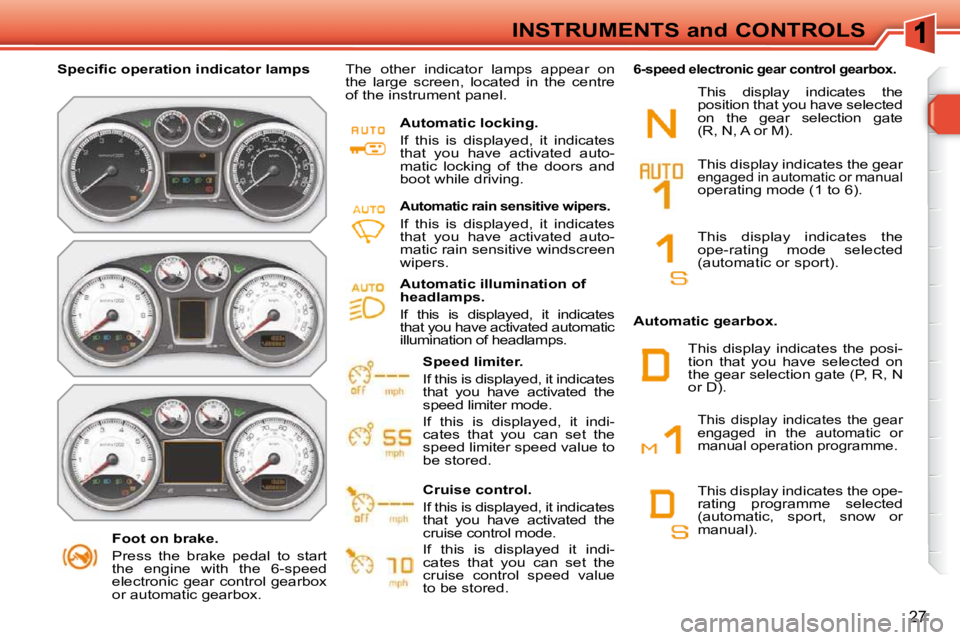

Specifi c operation indicator lamps
The other indicator lamps appear on
the large screen, located in the centre
of the instrument panel.
Automatic locking.
If this is displayed, it indicates
that you have activated auto-
matic locking of the doors and
boot while driving.
Speed limiter.
If this is displayed, it indicates
that you have activated the
speed limiter mode.
If this is displayed, it indi-
cates that you can set the
speed limiter speed value to
be stored.
Cruise control.
If this is displayed, it indicates
that you have activated the
cruise control mode.
If this is displayed it indi-
cates that you can set the
cruise control speed value
to be stored. Automatic gearbox.
This display indicates the
position that you have selected
on the gear selection gate
(R, N, A or M).
Automatic rain sensitive wipers.
If this is displayed, it indicates
that you have activated auto-
matic rain sensitive windscreen
wipers.
Automatic illumination of
headlamps.
If this is displayed, it indicates
that you have activated automatic
illumination of headlamps.
This display indicates the gear
engaged in automatic or manual
operating mode (1 to 6).
This display indicates the
ope-rating mode selected
(automatic or sport).
This display indicates the gear
engaged in the automatic or
manual operation programme.
This display indicates the ope-
rating programme selected
(automatic, sport, snow or
manual).
6-speed electronic gear control gearbox.
This display indicates the posi-
tion that you have selected on
the gear selection gate (P, R, N
or D).
