2009 PEUGEOT 308 SW BL Owners Manual

i
i

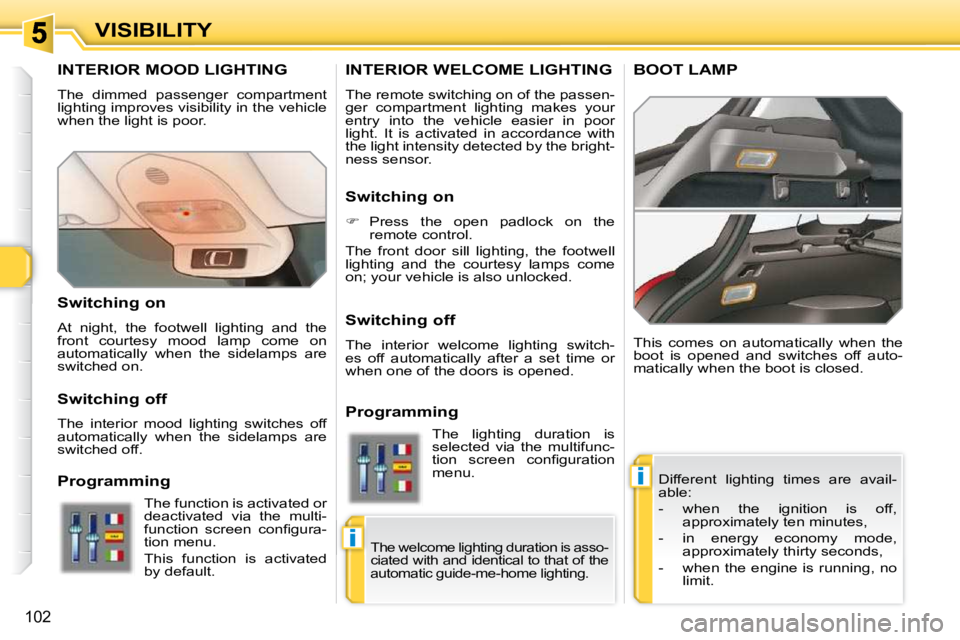

102
VISIBILITY
INTERIOR MOOD LIGHTING
The dimmed passenger compartment
lighting improves visibility in the vehicle
when the light is poor. Different lighting times are avail-
able:
- when the ignition is off, approximately ten minutes,
- in energy economy mode, approximately thirty seconds,
- when the engine is running, no limit.
This comes on automatically when the
boot is opened and switches off auto-
matically when the boot is closed.
INTERIOR WELCOME LIGHTING
The remote switching on of the passen-
ger compartment lighting makes your
entry into the vehicle easier in poor
light. It is activated in accordance with
the light intensity detected by the bright-
ness sensor.
BOOT LAMP
Switching on

 Press the open padlock on the
remote control.
The front door sill lighting, the footwell
lighting and the courtesy lamps come
on; your vehicle is also unlocked.
Switching off
The interior welcome lighting switch-
es off automatically after a set time or
when one of the doors is opened.
Programming
Switching on
At night, the footwell lighting and the
front courtesy mood lamp come on
automatically when the sidelamps are
switched on.
Switching off
The interior mood lighting switches off
automatically when the sidelamps are
switched off.
Programming
The welcome lighting duration is asso-
ciated with and identical to that of the
automatic guide-me-home lighting.
The function is activated or
deactivated via the multi-
function screen confi gura-
tion menu.
This function is activated
by default. The lighting duration is
selected via the multifunc-
tion screen confi guration
menu.

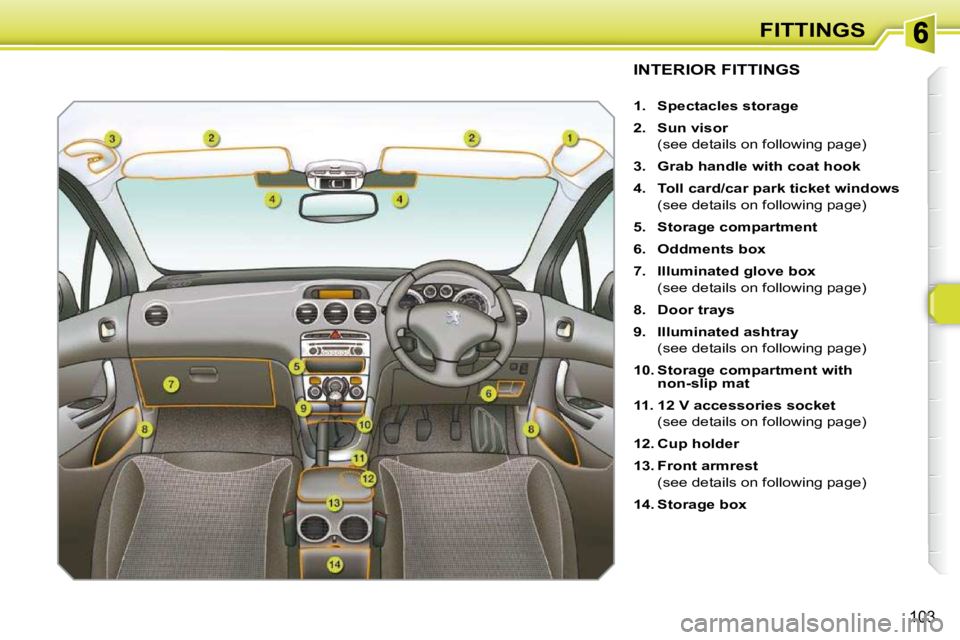

103
FITTINGS
INTERIOR FITTINGS

1. Spectacles storage

2. Sun visor
(see details on following page)

3. Grab handle with coat hook

4. Toll card/car park ticket windows
(see details on following page)

5. Storage compartment

6. Oddments box

7. Illuminated glove
box
(see details on following page)

8. Door trays

9. Illuminated ashtray
(see details on following page)

10. Storage compartment with
non-slip
mat

11. 12 V accessories socket
(see details on following page)

12. Cup
holder

13. Front armrest
(see details on following page)

14. Storage box

i

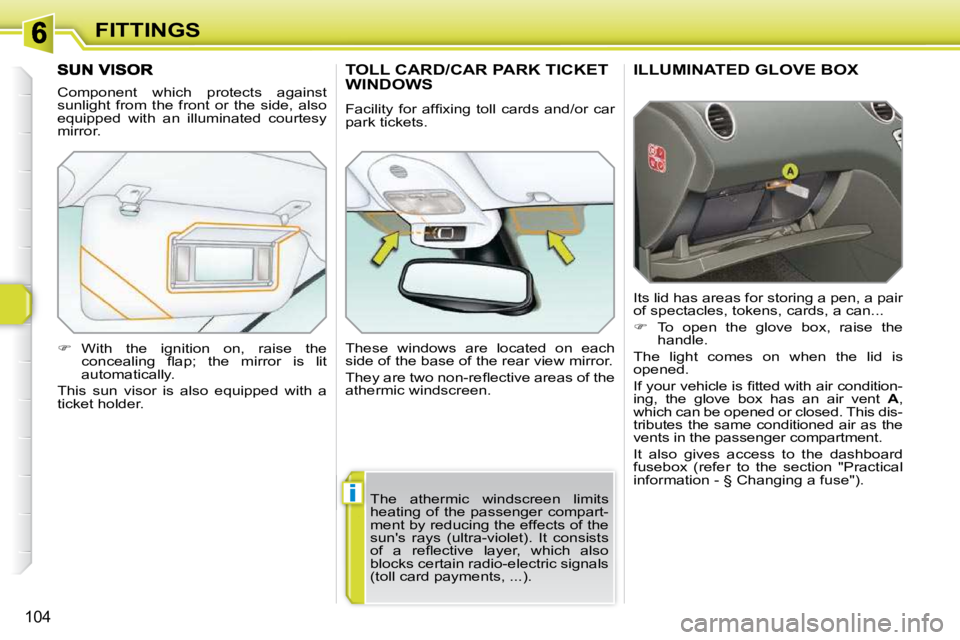

104
FITTINGS
ILLUMINATED GLOVE BOX
Its lid has areas for storing a pen, a pair
of spectacles, tokens, cards, a can...

 To open the glove box, raise the
handle.
The light comes on when the lid is
opened.
If your vehicle is fi tted with air condition-
ing, the glove box has an air vent A ,
which can be opened or closed. This dis-
tributes the same conditioned air as the
vents in the passenger compartment.
It also gives access to the dashboard
fusebox (refer to the section "Practical
information - § Changing a fuse").
Component which protects against
sunlight from the front or the side, also
equipped with an illuminated courtesy
mirror.

 With the ignition on, raise the
concealing fl ap; the mirror is lit
automatically.
This sun visor is also equipped with a
ticket holder.
TOLL CARD/CAR PARK TICKET WINDOWS
Facility for affi xing toll cards and/or car
park tickets.
These windows are located on each
side of the base of the rear view mirror.
They are two non-refl ective areas of the
athermic windscreen.
The athermic windscreen limits
heating of the passenger compart-
ment by reducing the effects of the
sun's rays (ultra-violet). It consists
of a refl ective layer, which also
blocks certain radio-electric signals
(toll card payments, ...).

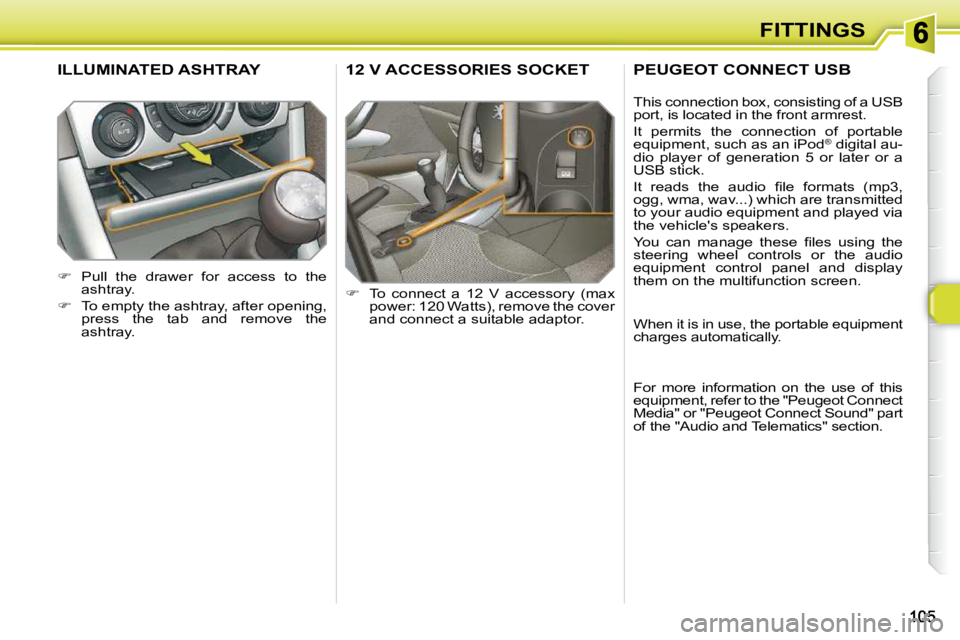

FITTINGS
12 V ACCESSORIES SOCKET

 To connect a 12 V accessory (max
power: 120 Watts), remove the cover
and connect a suitable adaptor.
ILLUMINATED ASHTRAY

 Pull the drawer for access to the
ashtray.

 To empty the ashtray, after opening,
press the tab and remove the
ashtray.
PEUGEOT CONNECT USB
This connection box, consisting of a USB
port, is located in the front armrest.
It permits the connection of portable
equipment, such as an iPod ®
digital au-
dio player of generation 5 or later or a
USB stick.
It reads the audio fi le formats (mp3,
ogg, wma, wav...) which are transmitted
to your audio equipment and played via
the vehicle's speakers.
You can manage these fi les using the
steering wheel controls or the audio
equipment control panel and display
them on the multifunction screen.
When it is in use, the portable equipment
charges automatically.
For more information on the use of this
equipment, refer to the "Peugeot Connect
Media" or "Peugeot Connect Sound" part
of the "Audio and Telematics" section.

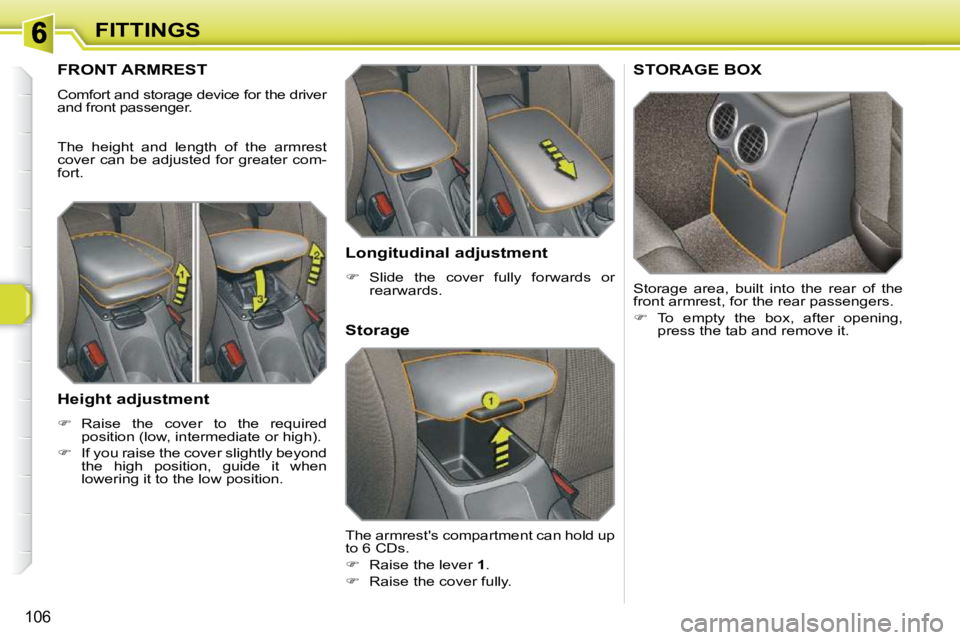

106
FITTINGS
FRONT ARMREST
Comfort and storage device for the driver
and front passenger.
The height and length of the armrest
cover can be adjusted for greater com-
fort.
Height adjustment

 Raise the cover to the required
position (low, intermediate or high).

 If you raise the cover slightly beyond
the high position, guide it when
lowering it to the low position.
STORAGE BOX
Storage area, built into the rear of the
front armrest, for the rear passengers.

 To empty the box, after opening,
press the tab and remove it.
Storage
The armrest's compartment can hold up
to 6 CDs.

 Raise the lever 1 .

 Raise the cover fully.
Longitudinal adjustment

 Slide the cover fully forwards or
rearwards.

FITTINGS
12 V ACCESSORIES SOCKET

 To connect a 12 V accessory (max
power: 120 Watts), remove the cover
and connect a suitable adaptor.
ILLUMINATED ASHTRAY

 Pull the drawer for access to the
ashtray.

 To empty the ashtray, after opening,
press the tab and remove the
ashtray.
PEUGEOT CONNECT USB
This connection box, consisting of a USB
port, is located in the front armrest.
It permits the connection of portable
equipment, such as an iPod ®
digital au-
dio player of generation 5 or later or a
USB stick.
It reads the audio fi le formats (mp3,
ogg, wma, wav...) which are transmitted
to your audio equipment and played via
the vehicle's speakers.
You can manage these fi les using the
steering wheel controls or the audio
equipment control panel and display
them on the multifunction screen.
When it is in use, the portable equipment
charges automatically.
For more information on the use of this
equipment, refer to the "Peugeot Connect
Media" or "Peugeot Connect Sound" part
of the "Audio and Telematics" section.

!
!

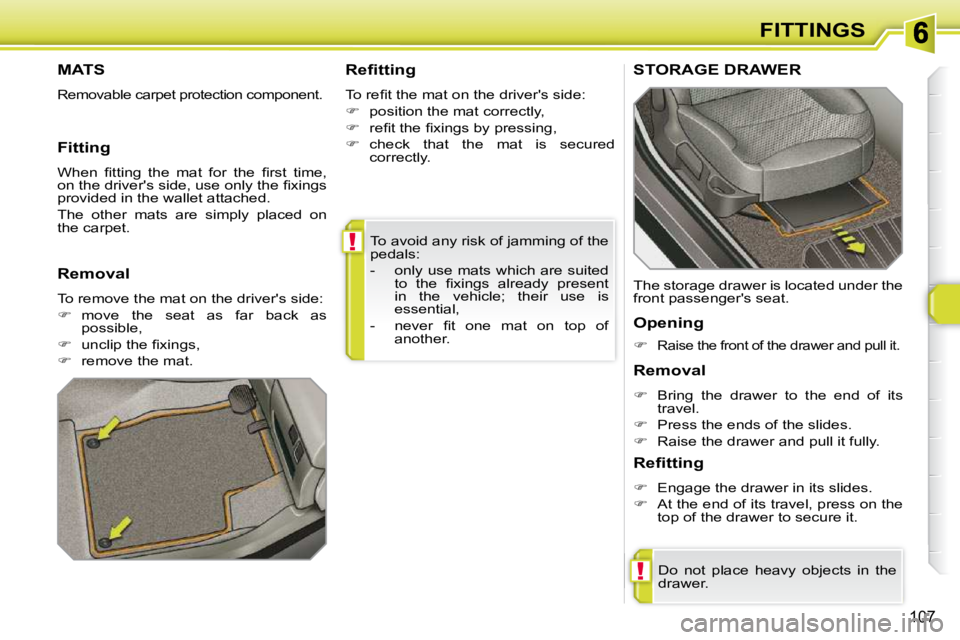

107
FITTINGS
To avoid any risk of jamming of the
pedals:
- only use mats which are suited to the fi xings already present
in the vehicle; their use is
essential,
- never fi t one mat on top of another.
MATS
Removable carpet protection component. Refitting
To refi t the mat on the driver's side:

 position the mat correctly,

 refi t the fi xings by pressing,

 check that the mat is secured
correctly.
Fitting
When fi tting the mat for the fi rst time,
on the driver's side, use only the fi xings
provided in the wallet attached.
The other mats are simply placed on
the carpet.
Removal
To remove the mat on the driver's side:

 move the seat as far back as
possible,

 unclip the fi xings,

 remove the mat.
STORAGE DRAWER
Opening


Raise the front of the drawer and pull it.
Do not place heavy objects in the
drawer.
Removal

 Bring the drawer to the end of its
travel.

 Press the ends of the slides.

 Raise the drawer and pull it fully.
Refitting

 Engage the drawer in its slides.

 At the end of its travel, press on the
top of the drawer to secure it.
The storage drawer is located under the
front passenger's seat.

!

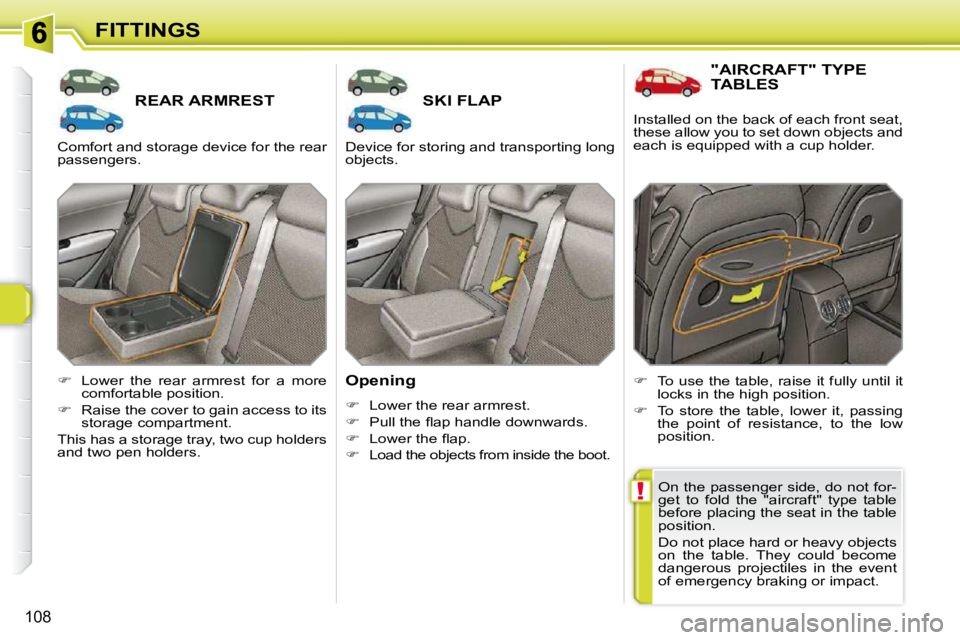

108
FITTINGS
REAR ARMREST SKI FLAP
Opening

 Lower the rear armrest.

 Pull the fl ap handle downwards.

 Lower the fl ap.

 Load the objects from inside the boot.

 Lower the rear armrest for a more
comfortable position.

 Raise the cover to gain access to its
storage compartment.
This has a storage tray, two cup holders
and two pen holders.
"AIRCRAFT" TYPE TABLES

 To use the table, raise it fully until it
locks in the high position.

 To store the table, lower it, passing
the point of resistance, to the low
position.
On the passenger side, do not for-
get to fold the "aircraft" type table
before placing the seat in the table
position.
Do not place hard or heavy objects
on the table. They could become
dangerous projectiles in the event
of emergency braking or impact.
Comfort and storage device for the rear
passengers.
Device for storing and transporting long
objects. Installed on the back of each front seat,
these allow you to set down objects and
each is equipped with a cup holder.
