2009 PEUGEOT 308 SW BL Owners Manual

236

02
1
1
1
1
1
2
1
2
2
2
2
2
1
3
3
3
31
2
2
3
3
3
3
2
3
2
3
1
2
2
3
3
3

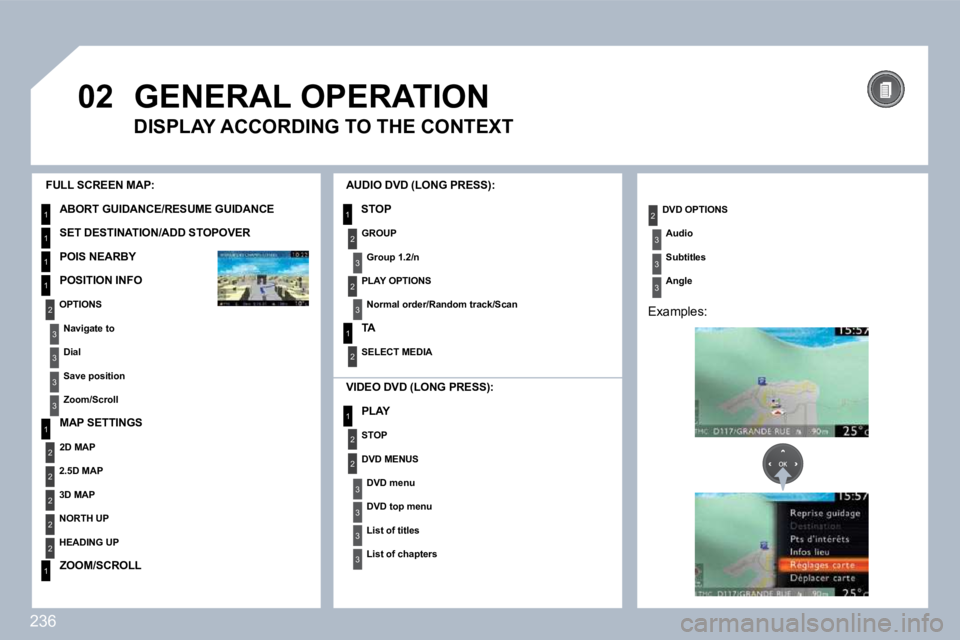

GENERAL OPERATION
DISPLAY ACCORDING TO THE CONTEXT
FULL SCREEN MAP:
ABORT GUIDANCE/RESUME GUIDANCE
SET DESTINATION/ADD STOPOVER
POIS NEARBY
POSITION INFO
OPTIONS
Navigate to
Dial
Save position
Zoom/Scroll
MAP SETTINGS
2D MAP
2.5D MAP
3D MAP
NORTH UP
HEADING UP
ZOOM/SCROLL
AUDIO DVD (LONG PRESS):
STOP
GROUP
Group 1.2/n
PLAY OPTIONS
Normal order/Random track/Scan
TA
SELECT MEDIA
DVD OPTIONS
Audio
Subtitles
Angle
Examples:
VIDEO DVD (LONG PRESS):
PLAY
STOP
DVD MENUS
DVD menu
DVD top menu
List of titles
List of chapters

237

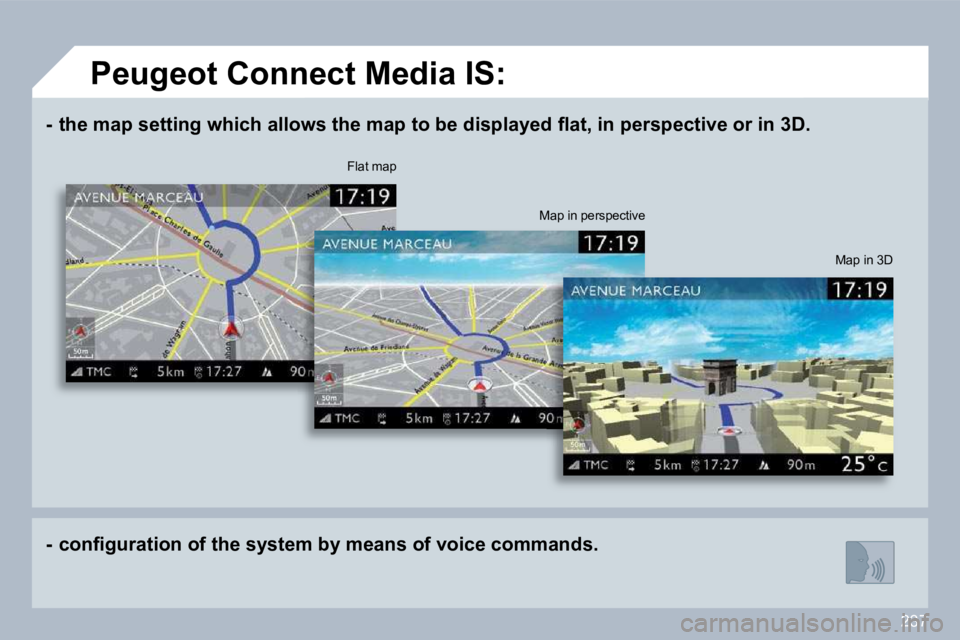

- the map setting which allows the map to be displayed fl at, in perspective or in 3D.
- confi guration of the system by means of voice comm ands.
Map in 3D
Flat map
Map in perspective
Peugeot Connect Media IS:

238
NAV
03
1
2
3
6
5
4

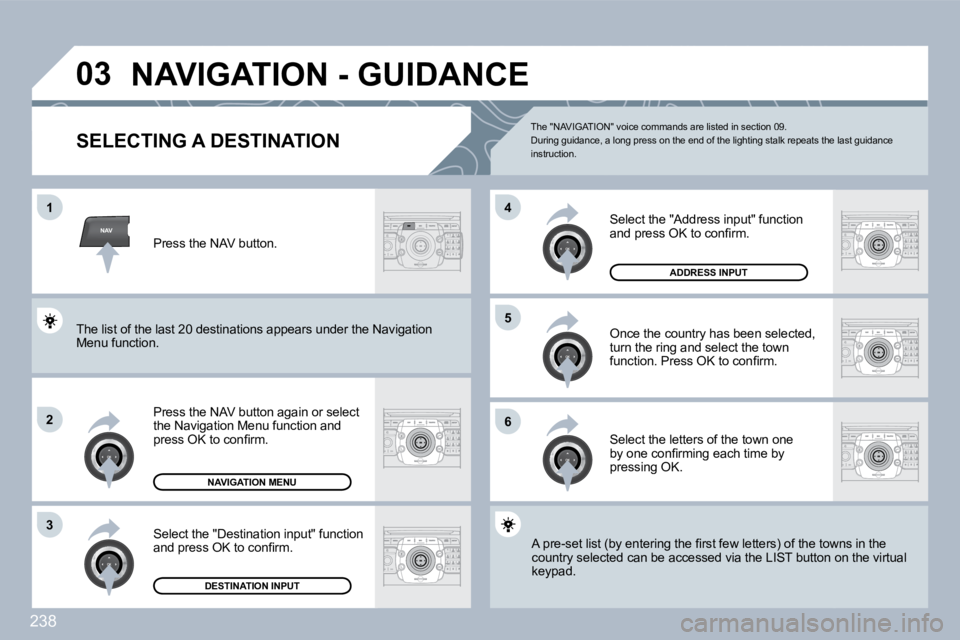

NAVIGATION - GUIDANCE
SELECTING A DESTINATION
Press the NAV button again or select the Navigation Menu function and press OK to confi rm.
Select the "Destination input" function and press OK to confi rm.
Press the NAV button.
Select the letters of the town one by one confi rming each time by pressing OK.
Once the country has been selected, turn the ring and select the town function. Press OK to confi rm.
NAVIGATION MENU
DESTINATION INPUT
A pre-set list (by entering the fi rst few letters) of the towns in the A pre-set list (by entering the fi rst few letters) of the towns in the country selected can be accessed via the LIST butto n ontton on the virtual keypad.
Select the "Address input" function and press OK to confi rm.
ADDRESS INPUT
The list of the last 20 destinations appears under the Nathe Navigation Menu function.
The "NAVIGATION" voice commands are listed in section 09. During guidance, a long press on the end of the lighting stalk repeats the last guidance instruction.

239
7
8
10
9
11
03

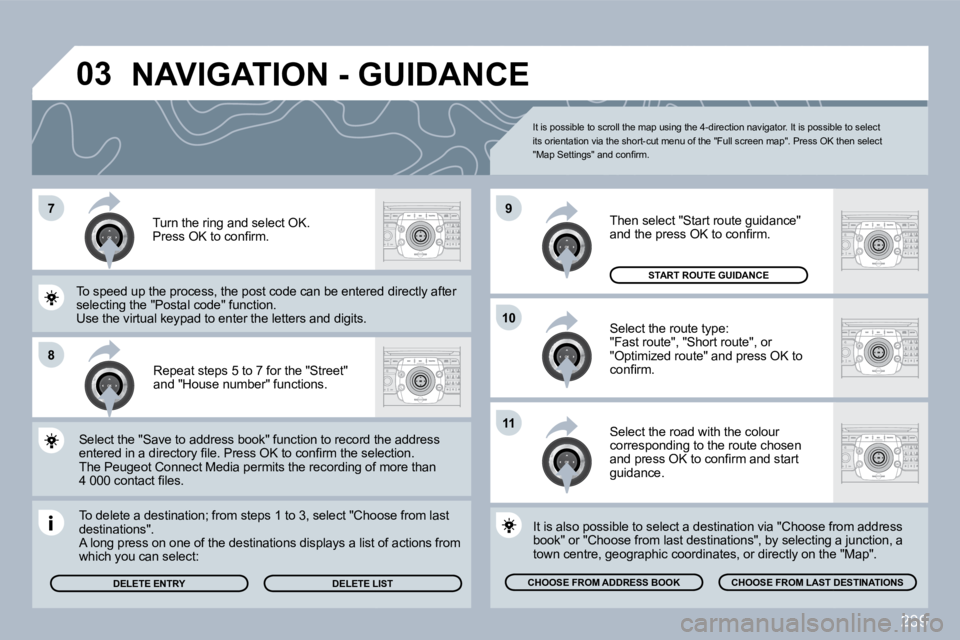

Repeat steps 5 to 7 for the "Street" and "House number" functions.
To delete a destination; from steps 1 to 3, select "ChooChoose from last destinations". A long press on one of the destinations displays a list o list of actions from which you can select:
Select the "Save to address book" function to record thord the address entered in a directory fi le. Press OK to confi rm the selection. entered in a directory fi le. Press OK to confi rm the selection. The Peugeot Connect Media permits the recording of mg of more than 4 000 contact fi les.
To speed up the process, the post code can be enteredtered directly after selecting the "Postal code" function. Use the virtual keypad to enter the letters and digits. Select the route type: "Fast route", "Short route", or "Optimized route" and press OK to confi rm.
Then select "Start route guidance" and the press OK to confi rm.
It is also possible to select a destination via "Choose frose from address book" or "Choose from last destinations", by select ing ating a junction, a town centre, geographic coordinates, or directly on the "n the "Map".
CHOOSE FROM ADDRESS BOOK CHOOSE FROM LAST DST DESTINATIONS
START ROUTE GUIDANCE
It is possible to scroll the map using the 4-direction navigator. It is possible to select its orientation via the short-cut menu of the "Full screen map". Press OK then select "Map Settings" and confi rm.
Select the road with the colour corresponding to the route chosen and press OK to confi rm and start guidance.
Turn the ring and select OK. Press OK to confi rm.
DELETE ENTRY DELETE LISTE LIST
NAVIGATION - GUIDANCE

240
NAV
03
5
6
7
1
2
3
4

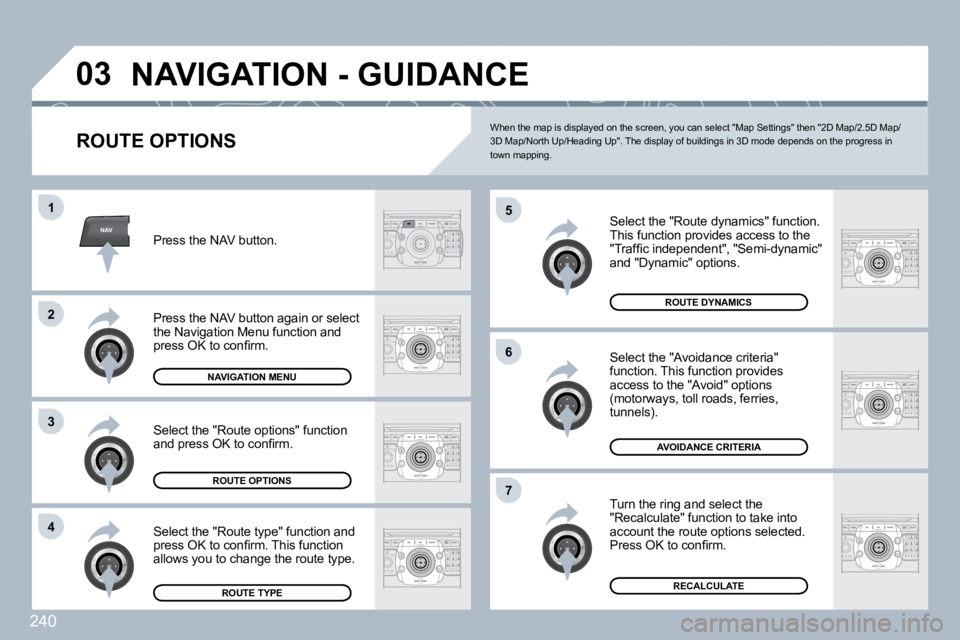

NAVIGATION - GUIDANCE
ROUTE OPTIONS
Select the "Route dynamics" function. This function provides access to the "Traffi c independent", "Semi-dynamic" and "Dynamic" options.
Select the "Avoidance criteria" function. This function provides access to the "Avoid" options (motorways, toll roads, ferries, tunnels).
Turn the ring and select the "Recalculate" function to take into account the route options selected. Press OK to confi rm.
Press the NAV button.
Press the NAV button again or select the Navigation Menu function and press OK to confi rm.
Select the "Route type" function and press OK to confi rm. This function allows you to change the route type.
Select the "Route options" function and press OK to confi rm.
NAVIGATION MENU
ROUTE OPTIONS
ROUTE TYPE
ROUTE DYNAMICS
AVOIDANCE CRITERIA
RECALCULATE
When the map is displayed on the screen, you can select "Map Settings" then "2D Map/2.5D Map/3D Map/North Up/Heading Up". The display of buildin gs in 3D mode depends on the progress in town mapping.

241
NAV
5
6
7
1
2
3
4
8
03

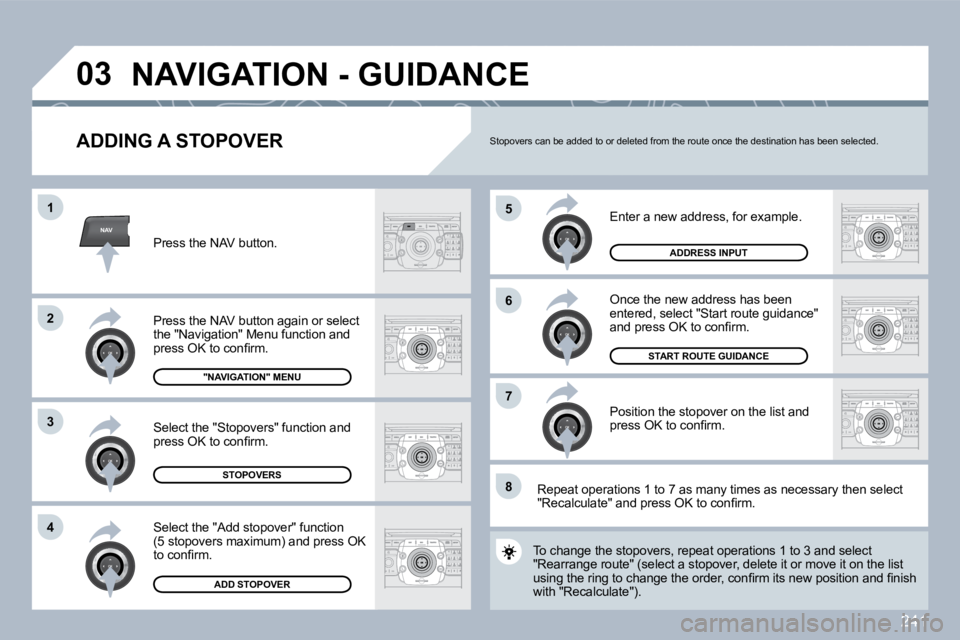

ADDING A STOPOVER
Enter a new address, for example.
Once the new address has been entered, select "Start route guidance" and press OK to confi rm.
Position the stopover on the list and press OK to confi rm.
Press the NAV button.
Press the NAV button again or select the "Navigation" Menu function and press OK to confi rm.
Select the "Add stopover" function (5 stopovers maximum) and press OK to confi rm.
Select the "Stopovers" function and press OK to confi rm.
"NAVIGATION" MENU
STOPOVERS
ADD STOPOVER
ADDRESS INPUT
To change the stopovers, repeat operations 1 to 3 and s and select "Rearrange route" (select a stopover, delete it or move iove it on the list using the ring to change the order, confi rm its new position and fi nish using the ring to change the order, confi rm its new position and fi nish with "Recalculate").
Stopovers can be added to or deleted from the route once the destination has been selected.
Repeat operations 1 to 7 as many times as necessar y then select "Recalculate" and press OK to confi rm.
START ROUTE GUIDANCE
NAVIGATION - GUIDANCE

242
NAV
03
1
2
3
4
7
85
6

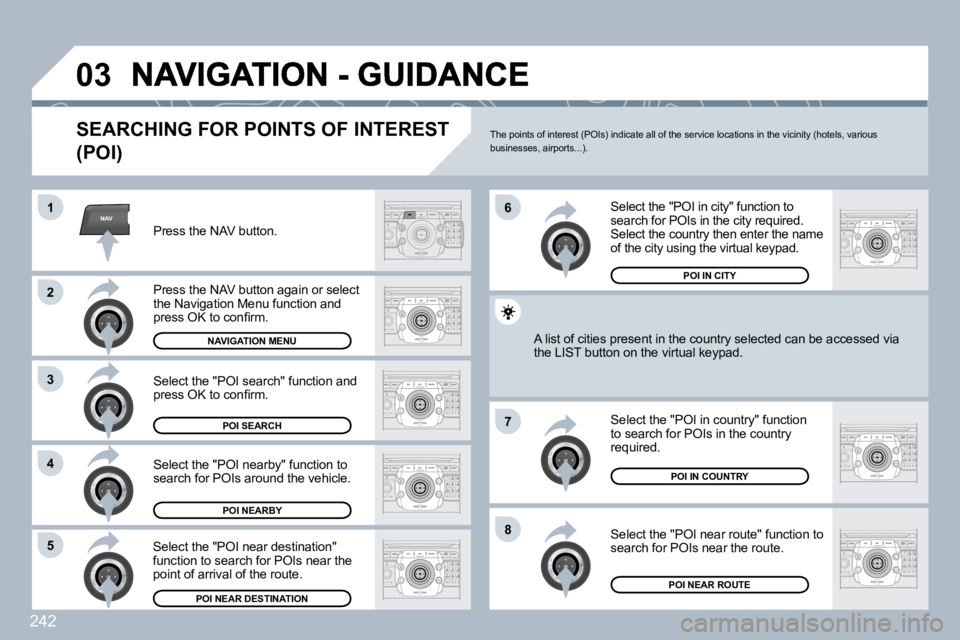

SEARCHING FOR POINTS OF INTEREST
(POI)
Press the NAV button.
Press the NAV button again or select the Navigation Menu function and press OK to confi rm.
Select the "POI nearby" function to search for POIs around the vehicle.
Select the "POI search" function and press OK to confi rm.
NAVIGATION MENU
POI SEARCH
POI NEARBY
Select the "POI in city" function to search for POIs in the city required. Select the country then enter the name of the city using the virtual keypad.
Select the "POI near route" function to search for POIs near the route.
Select the "POI in country" function to search for POIs in the country required.
Select the "POI near destination" function to search for POIs near the point of arrival of the route.
POI NEAR DESTINATION
POI IN COUNTRY
POI NEAR ROUTE
A list of cities present in the country selected can be accbe accessed via the LIST button on the virtual keypad.
POI IN CITY
The points of interest (POIs) indicate all of the service locations in the vicinity (hotels, various businesses, airports...).

243

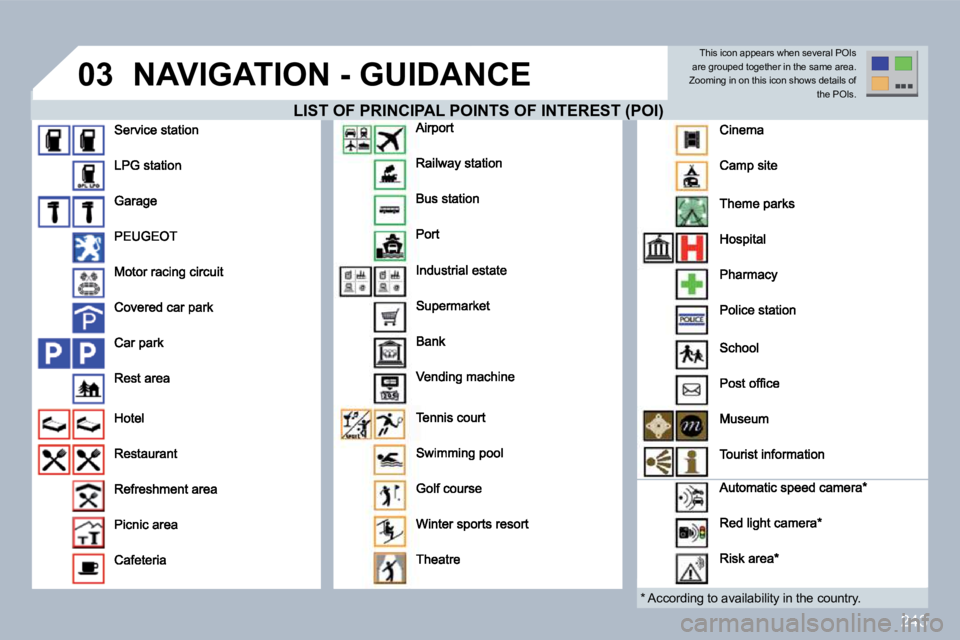

03 NAVIGATION - GUIDANCE
LIST OF PRINCIPAL POINTS OF INTEREST (POI) POINTS OF INTEREST (POI)
* According to availability in the country.
This icon appears when several POIs are grouped together in the same area. Zooming in on this icon shows details of the POIs.
