155
DRIVING

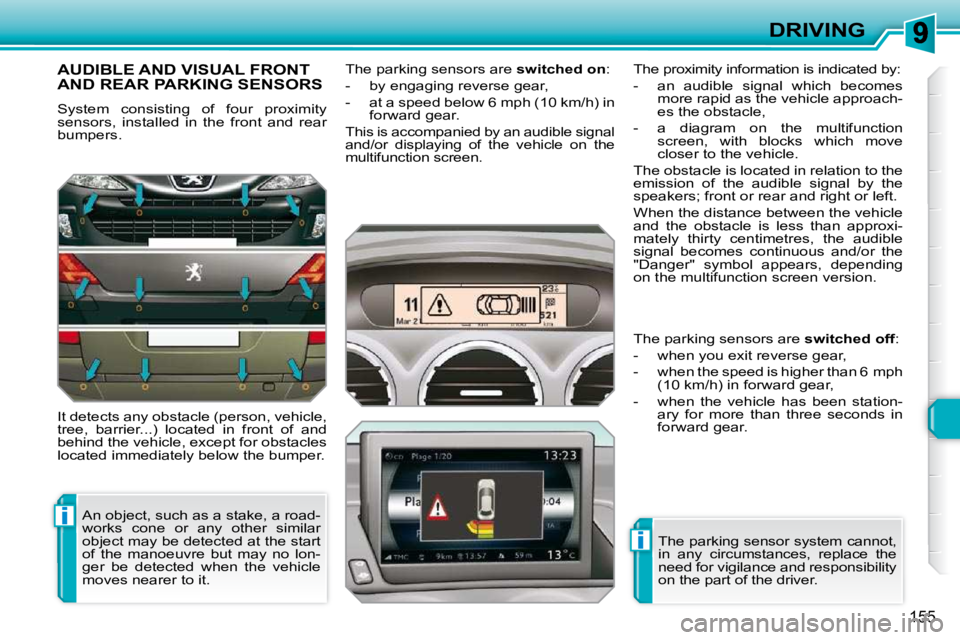

AUDIBLE AND VISUAL FRONT AND REAR PARKING SENSORS
System consisting of four proximity
sensors, installed in the front and rear
bumpers.
It detects any obstacle (person, vehicle,
tree, barrier...) located in front of and
behind the vehicle, except for obstacles
located immediately below the bumper. The parking sensors are
switched on :
- by engaging reverse gear,
- at a speed below 6 mph (10 km/h) in forward gear.
This is accompanied by an audible signal
and/or displaying of the vehicle on the
multifunction screen.
An object, such as a stake, a road-
works cone or any other similar
object may be detected at the start
of the manoeuvre but may no lon-
ger be detected when the vehicle
moves nearer to it. The proximity information is indicated by:
- an audible signal which becomes
more rapid as the vehicle approach-
es the obstacle,
- a diagram on the multifunction screen, with blocks which move
closer to the vehicle.
The obstacle is located in relation to the
emission of the audible signal by the
speakers; front or rear and right or left.
When the distance between the vehicle
and the obstacle is less than approxi-
mately thirty centimetres, the audible
signal becomes continuous and/or the
"Danger" symbol appears, depending
on the multifunction screen version.
The parking sensor system cannot,
in any circumstances, replace the
need for vigilance and responsibility
on the part of the driver.
The parking sensors are
switched off :
- when you exit reverse gear,
- when the speed is higher than 6 mph (10 km/h) in forward gear,
- when the vehicle has been station- ary for more than three seconds in
forward gear.

i
i
156
DRIVING

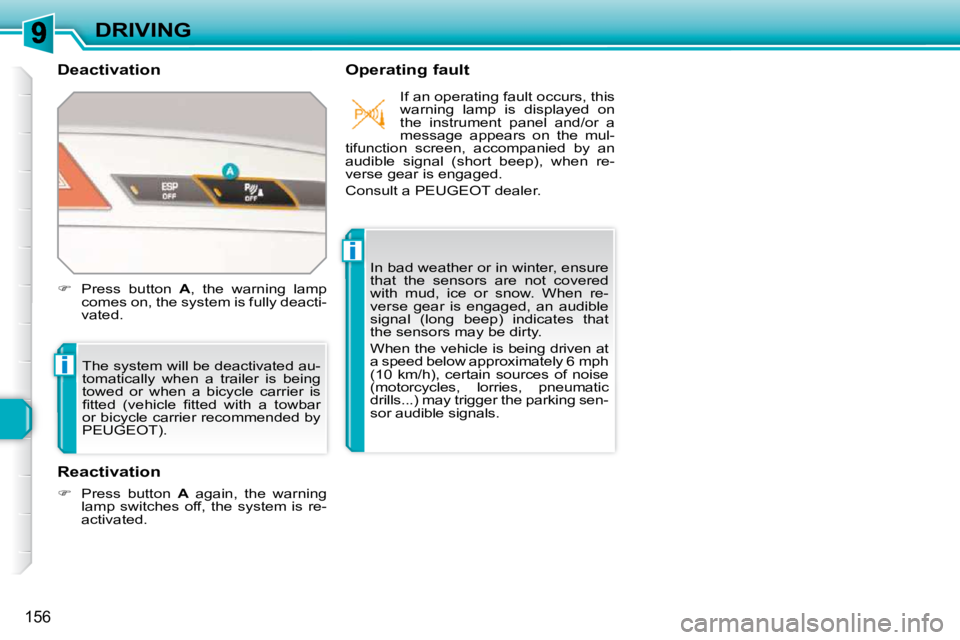

Deactivation Operating fault
The system will be deactivated au-
tomatically when a trailer is being
towed or when a bicycle carrier is
fi tted (vehicle fi tted with a towbar
or bicycle carrier recommended by
PEUGEOT).
Reactivation

 Press button A , the warning lamp
comes on, the system is fully deacti-
vated. In bad weather or in winter, ensure
that the sensors are not covered
with mud, ice or snow. When re-
verse gear is engaged, an audible
signal (long beep) indicates that
the sensors may be dirty.
When the vehicle is being driven at
a speed below approximately 6 mph
(10 km/h), certain sources of noise
(motorcycles, lorries, pneumatic
drills...) may trigger the parking sen-
sor audible signals. If an operating fault occurs, this
warning lamp is displayed on
the instrument panel and/or a
message appears on the mul-
tifunction screen, accompanied by an
audible signal (short beep), when re-
verse gear is engaged.
Consult a PEUGEOT dealer.

 Press button A again, the warning
lamp switches off, the system is re-
activated.

10
i
!
158
CHECKS

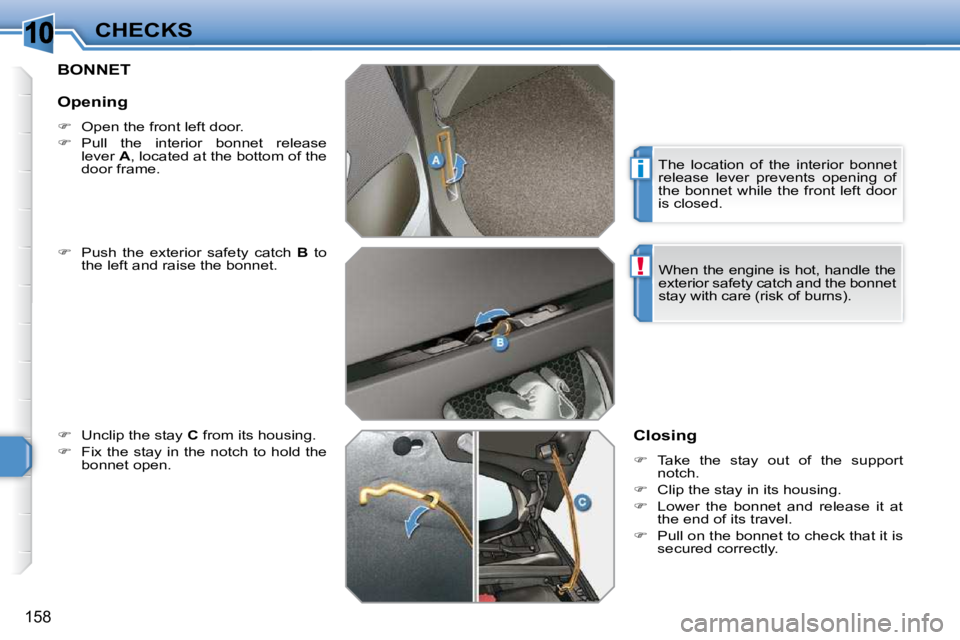

BONNET

 Push the exterior safety catch B to
the left and raise the bonnet.

 Unclip the stay C from its housing.

 Fix the stay in the notch to hold the
bonnet open. Closing

 Take the stay out of the support
notch.

 Clip the stay in its housing.

 Lower the bonnet and release it at
the end of its travel.

 Pull on the bonnet to check that it is
secured correctly.
Opening

 Open the front left door.

 Pull the interior bonnet release
lever A , located at the bottom of the
door frame. The location of the interior bonnet
release lever prevents opening of
the bonnet while the front left door
is closed.
When the engine is hot, handle the
exterior safety catch and the bonnet
stay with care (risk of burns).

10
ii
159
CHECKS

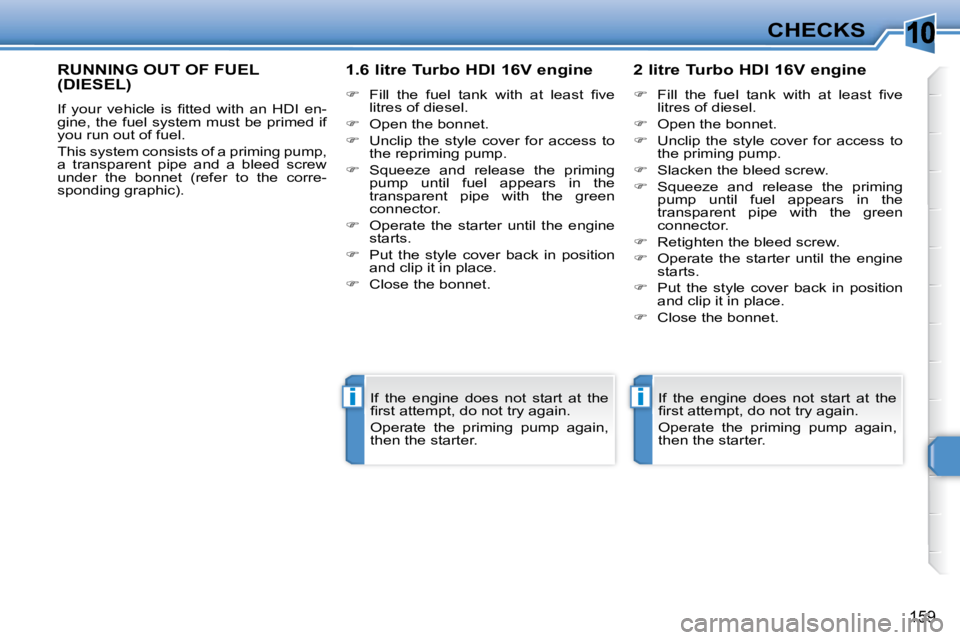

RUNNING OUT OF FUEL (DIESEL)
If your vehicle is fi tted with an HDI en-
gine, the fuel system must be primed if
you run out of fuel.
This system consists of a priming pump,
a transparent pipe and a bleed screw
under the bonnet (refer to the corre-
sponding graphic). 1.6 litre Turbo HDI 16V engine

 Fill the fuel tank with at least fi ve
litres of diesel.

 Open the bonnet.

 Unclip the style cover for access to
the repriming pump.

 Squeeze and release the priming
pump until fuel appears in the
transparent pipe with the green
connector.

 Operate the starter until the engine
starts.

 Put the style cover back in position
and clip it in place.

 Close the bonnet. 2 litre Turbo HDI 16V engine

 Fill the fuel tank with at least fi ve
litres of diesel.

 Open the bonnet.

 Unclip the style cover for access to
the priming pump.

 Slacken the bleed screw.

 Squeeze and release the priming
pump until fuel appears in the
transparent pipe with the green
connector.

 Retighten the bleed screw.

 Operate the starter until the engine
starts.

 Put the style cover back in position
and clip it in place.

 Close the bonnet.
If the engine does not start at the
fi rst attempt, do not try again.
Operate the priming pump again,
then the starter. If the engine does not start at the
fi rst attempt, do not try again.
Operate the priming pump again,
then the starter.

10
160
CHECKS
PETROL ENGINES

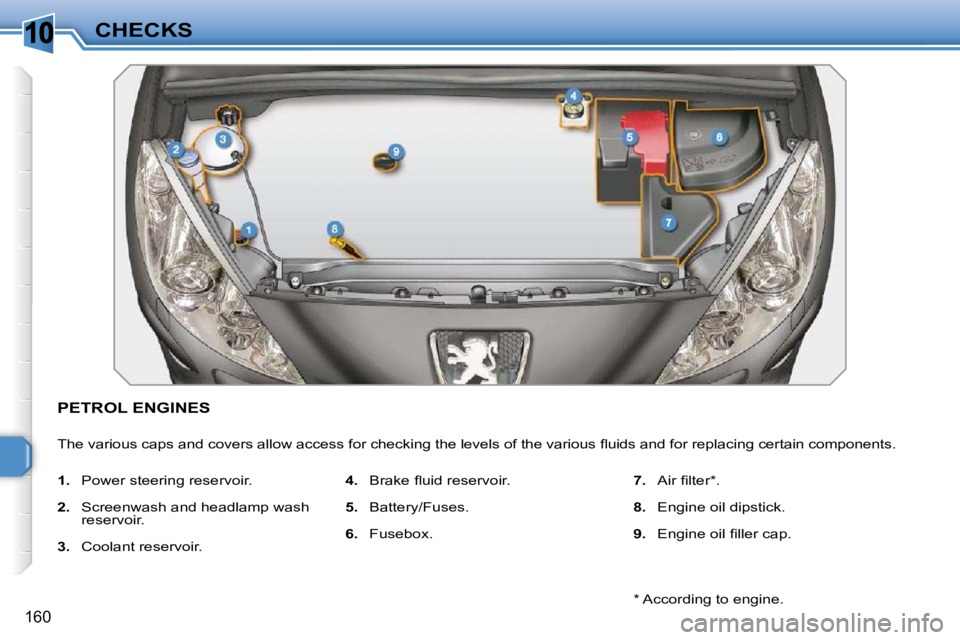

The various caps and covers allow access for checking the levels of the various fl uids and for replacing certain components.

1. Power steering reservoir.

2. Screenwash and headlamp wash
reservoir.

3. Coolant reservoir.
4. Brake fl uid reservoir.

5. Battery/Fuses.

6. Fusebox.
7. Air fi lter * .

8. Engine oil dipstick.

9. Engine oil fi ller cap.
* According to engine.

10
161
CHECKS
DIESEL ENGINES

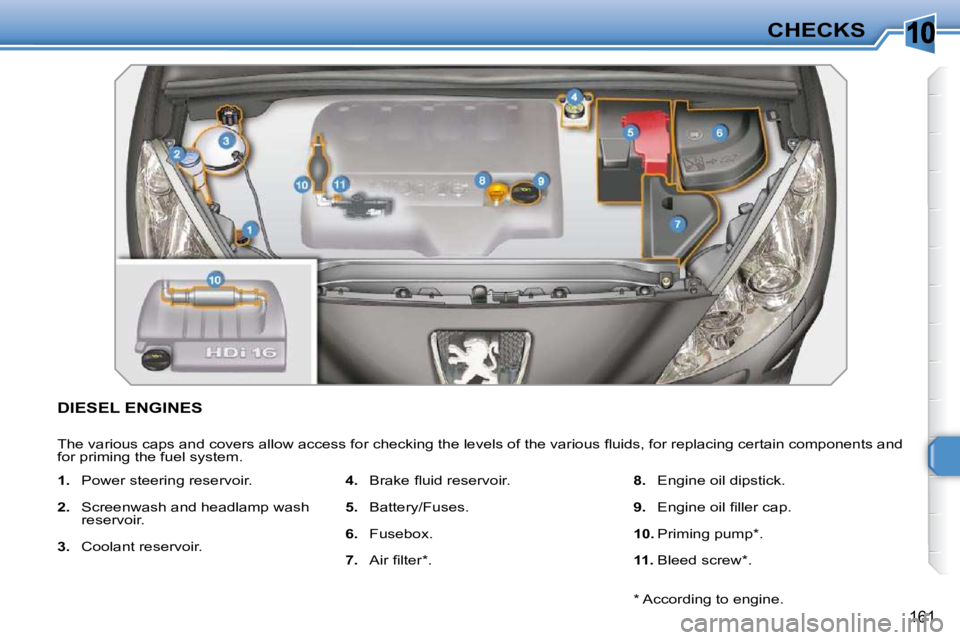

The various caps and covers allow access for checking the levels of the various fl uids, for replacing certain components and
for priming the fuel system.

1. Power steering reservoir.

2. Screenwash and headlamp wash
reservoir.

3. Coolant reservoir.
4. Brake fl uid reservoir.

5. Battery/Fuses.

6. Fusebox.

7. Air fi lter * .
8. Engine oil dipstick.

9. Engine oil fi ller cap.

10. Priming pump * .

11. Bleed screw * .
* According to engine.

10
!
162
CHECKS

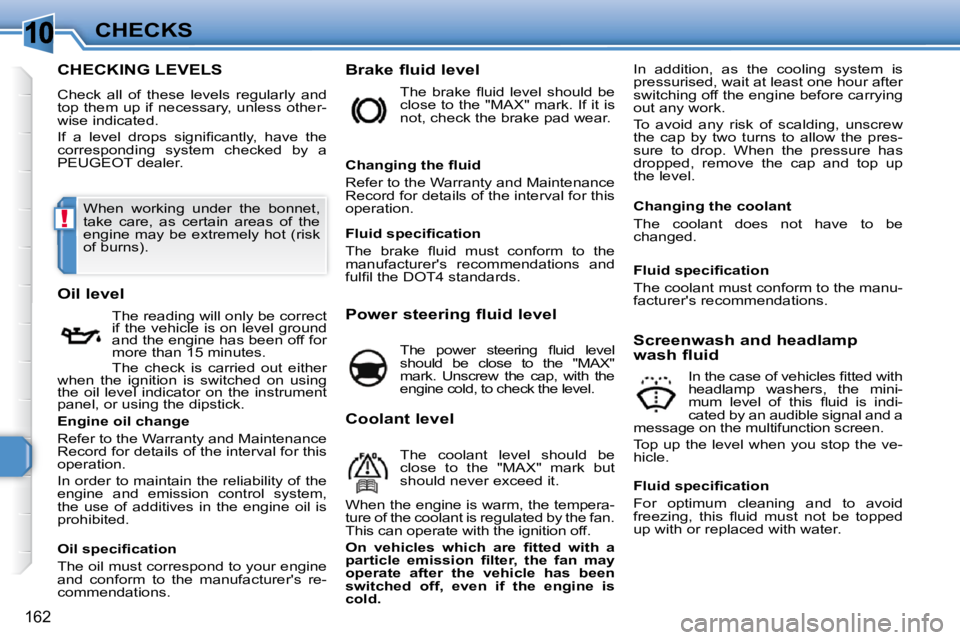

CHECKING LEVELS
Check all of these levels regularly and
top them up if necessary, unless other-
wise indicated.
If a level drops signifi cantly, have the
corresponding system checked by a
PEUGEOT dealer. Brake fluid level
In addition, as the cooling system is
pressurised, wait at least one hour after
switching off the engine before carrying
out any work.
To avoid any risk of scalding, unscrew
the cap by two turns to allow the pres-
sure to drop. When the pressure has
dropped, remove the cap and top up
the level.
Oil level The reading will only be correct
if the vehicle is on level ground
and the engine has been off for
more than 15 minutes.
The check is carried out either
when the ignition is switched on using
the oil level indicator on the instrument
panel, or using the dipstick. The brake fl uid level should be
close to the "MAX" mark. If it is
not, check the brake pad wear.
Changing the fl uid
Refer to the Warranty and Maintenance
Record for details of the interval for this
operation.
Power steering fluid level The power steering fl uid level
should be close to the "MAX"
mark. Unscrew the cap, with the
engine cold, to check the level. Screenwash and headlamp
wash fluid
In the case of vehicles fi tted with
headlamp washers, the mini-
mum level of this fl uid is indi-
cated by an audible signal and a
message on the multifunction screen.
Top up the level when you stop the ve-
hicle.
Engine oil change
Refer to the Warranty and Maintenance
Record for details of the interval for this
operation.
In order to maintain the reliability of the
engine and emission control system,
the use of additives in the engine oil is
prohibited.
Oil specifi cation
The oil must correspond to your engine
and conform to the manufacturer's re-
commendations. Fluid specifi cation
The brake fl uid must conform to the
manufacturer's recommendations and
fulfi l the DOT4 standards.
Changing the coolant
The coolant does not have to be
changed.
Fluid specifi cation
For optimum cleaning and to avoid
freezing, this fl uid must not be topped
up with or replaced with water.
Coolant level
The coolant level should be
close to the "MAX" mark but
should never exceed it.
When the engine is warm, the tempera-
ture of the coolant is regulated by the fan.
This can operate with the ignition off.

On vehicles which are fi tted with a
particle emission fi lter, the fan may
operate after the vehicle has been
switched off, even if the engine is
cold. Fluid specifi cation
The coolant must conform to the manu-
facturer's recommendations.
When working under the bonnet,
take care, as certain areas of the
engine may be extremely hot (risk
of burns).

10
!
i
163
CHECKS
Avoid prolonged contact of used oil
or fl uids with the skin.
Most of these fl uids are harmful to
health or indeed very corrosive.
Do not discard used oil or fl uids
into sewers or onto the ground.
Take used oil to a PEUGEOT dealer
(France) or an authorised waste dis-
posal site.

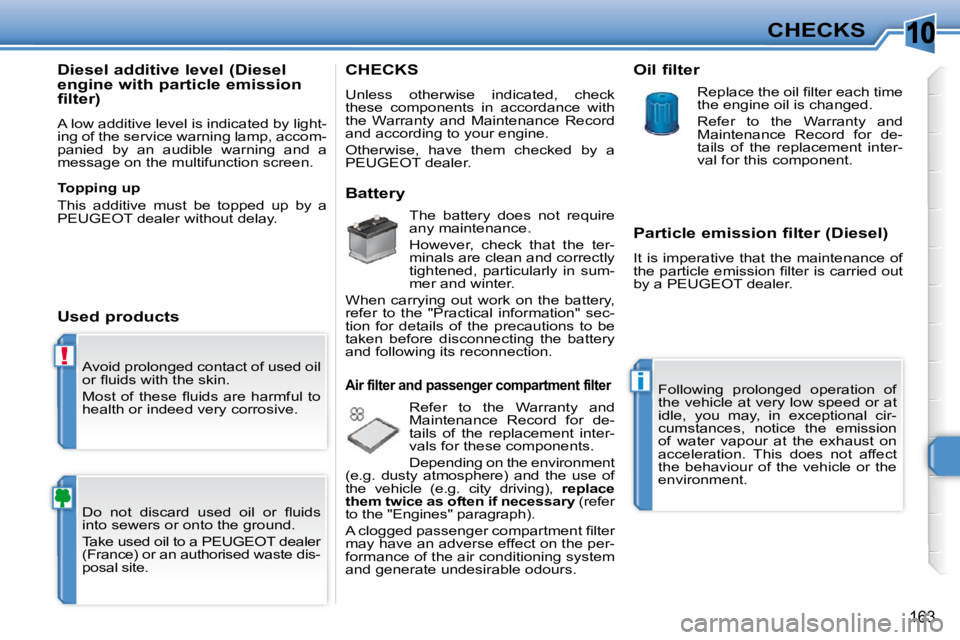

Diesel additive level (Diesel
engine with particle emission
filter)
A low additive level is indicated by light-
ing of the service warning lamp, accom-
panied by an audible warning and a
message on the multifunction screen.
Used products
CHECKS
Unless otherwise indicated, check
these components in accordance with
the Warranty and Maintenance Record
and according to your engine.
Otherwise, have them checked by a
PEUGEOT dealer.
Battery
The battery does not require
any maintenance.
However, check that the ter-
minals are clean and correctly
tightened, particularly in sum-
mer and winter.
When carrying out work on the battery,
refer to the "Practical information" sec-
tion for details of the precautions to be
taken before disconnecting the battery
and following its reconnection.

Air filter and passenger compartment filter
Refer to the Warranty and
Maintenance Record for de-
tails of the replacement inter-
vals for these components.
Depending on the environment
(e.g. dusty atmosphere) and the use of
the vehicle (e.g. city driving), replace
them twice as often if necessary (refer
to the "Engines" paragraph).
A clogged passenger compartment fi lter
may have an adverse effect on the per-
formance of the air conditioning system
and generate undesirable odours. Particle emission filter (Diesel)
It is imperative that the maintenance of
the particle emission fi lter is carried out
by a PEUGEOT dealer.
Oil filter
Replace the oil fi lter each time
the engine oil is changed.
Refer to the Warranty and
Maintenance Record for de-
tails of the replacement inter-
val for this component.
Following prolonged operation of
the vehicle at very low speed or at
idle, you may, in exceptional cir-
cumstances, notice the emission
of water vapour at the exhaust on
acceleration. This does not affect
the behaviour of the vehicle or the
environment.
Topping up
This additive must be topped up by a
PEUGEOT dealer without delay.
